Sketching & Transforming Graphs

More questions on this topic: GCSE Algebra: Graphical Transformations (66) IGCSE Algebra: Graphical Transformations (31) A2 Pure: Sketching & Transforming Graphs (98)

Your progress
0 of 105 done
Ticks are kept only in this browser: clearing your browsing data or changing device loses them. · ·

Edexcel

Edexcel · Old spec

AQA

OCR A

OCR MEI

WJEC

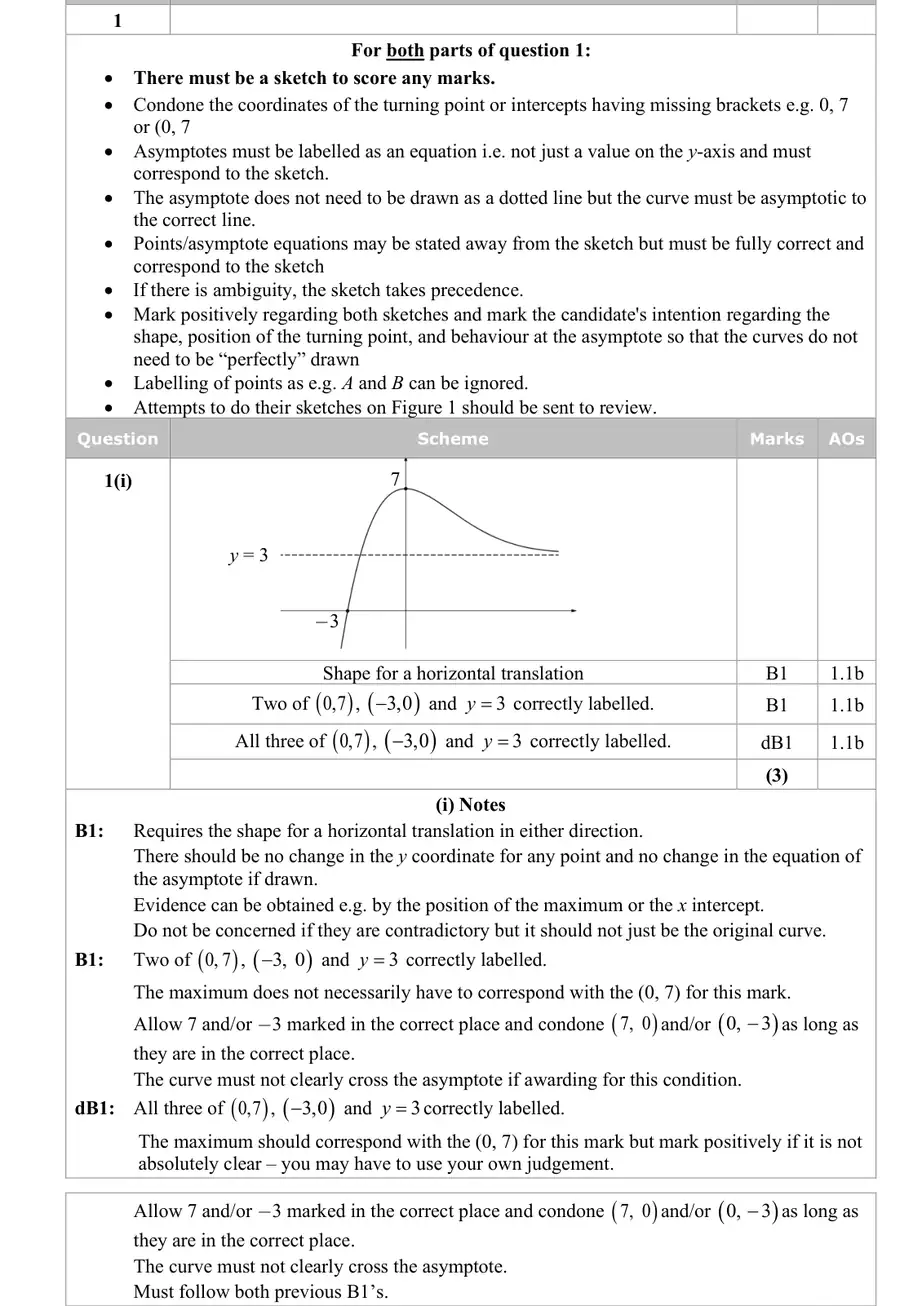

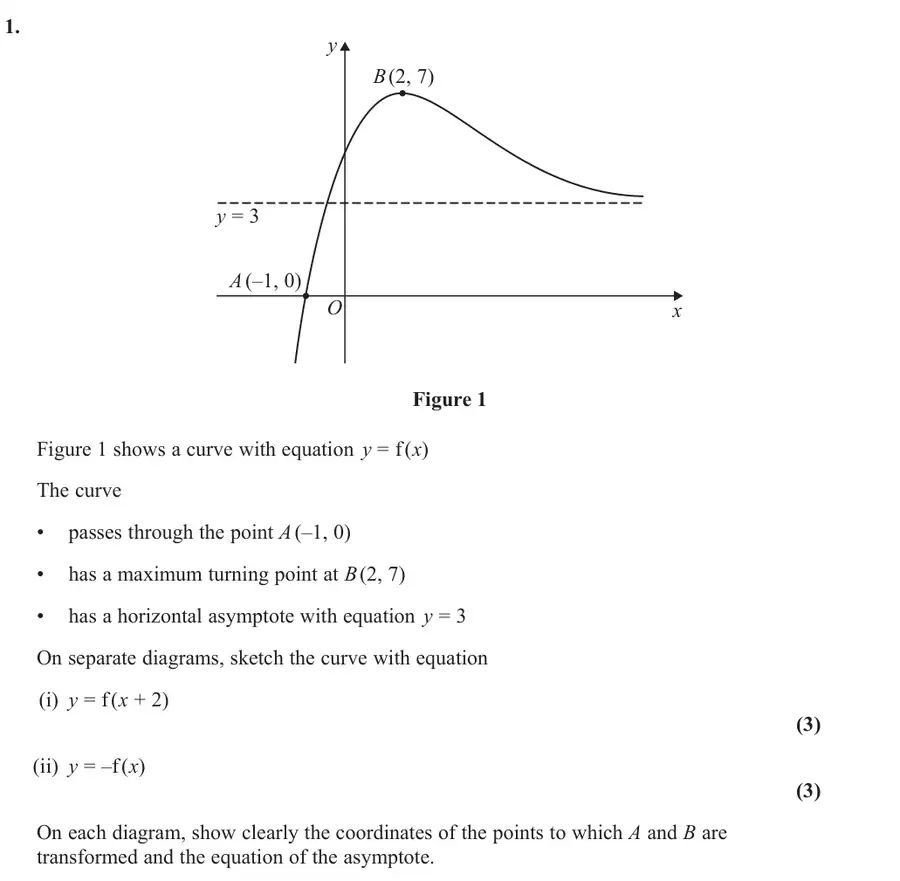

June 2025 Paper 1 Q1

EdexcelCurrent spec6 marksSketching & Transforming Graphs

1.

Figure 1: curve y = f(x) crossing the x-axis at A(−1, 0), rising to a maximum at B(2, 7) and then decreasing towards the horizontal asymptote y = 3 (dashed)
Figure 1

Figure 1 shows a curve with equation \(y = \mathrm{f}(x)\)

The curve

  • passes through the point \(A(-1,\ 0)\)
  • has a maximum turning point at \(B(2,\ 7)\)
  • has a horizontal asymptote with equation \(y = 3\)

On separate diagrams, sketch the curve with equation

(i) \(y = \mathrm{f}(x+2)\) (3)

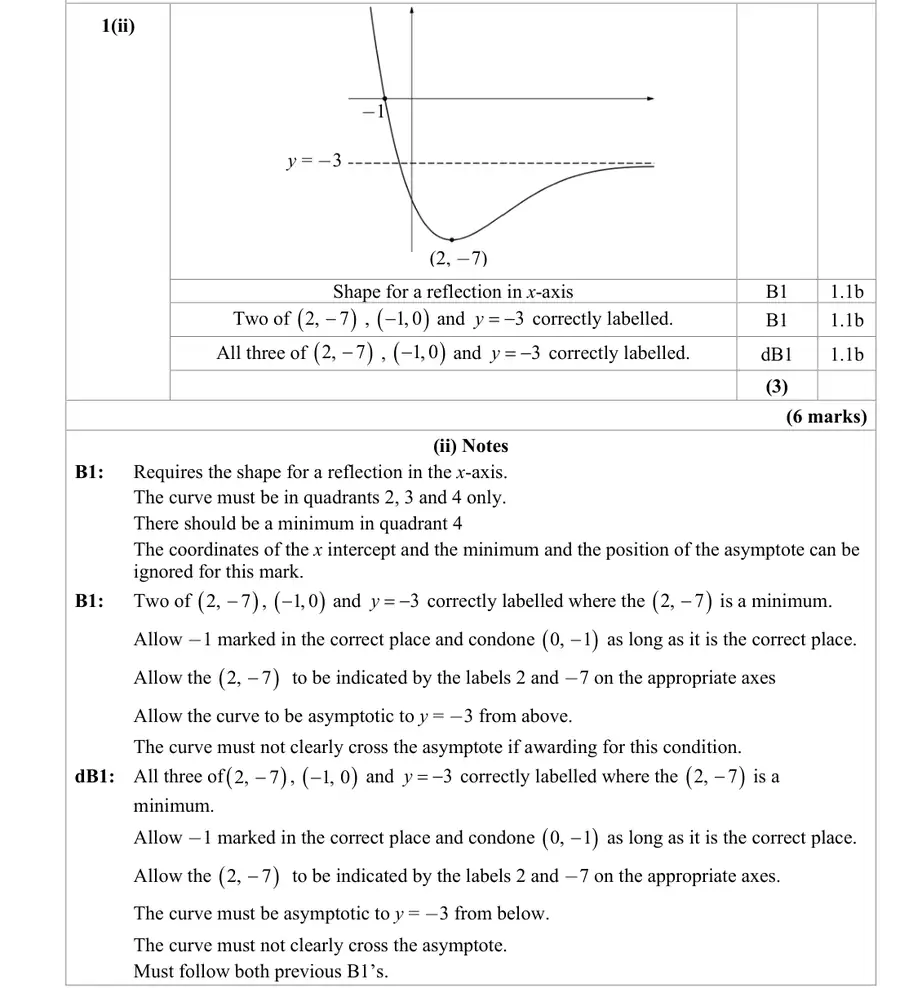

(ii) \(y = -\mathrm{f}(x)\) (3)

On each diagram, show clearly the coordinates of the points to which \(A\) and \(B\) are transformed and the equation of the asymptote.

June 2024 Paper 1 Q5

5. The curve \(C_1\) has equation\[y = \frac{6}{x} + 3\]

(a)
(i) Sketch \(C_1\) stating the coordinates of any points where the curve cuts the coordinate axes.
(ii) State the equations of any asymptotes to the curve \(C_1\) (3)

The curve \(C_2\) has equation\[y = 3x^2 - 4x - 10\]

(b) Show that \(C_1\) and \(C_2\) intersect when\[3x^3 - 4x^2 - 13x - 6 = 0\] (2)

Given that the \(x\) coordinate of one of the points of intersection is \(-\dfrac{2}{3}\)

(c) use algebra to find the \(x\) coordinates of the other points of intersection between \(C_1\) and \(C_2\)
(Solutions relying on calculator technology are not acceptable.) (4)

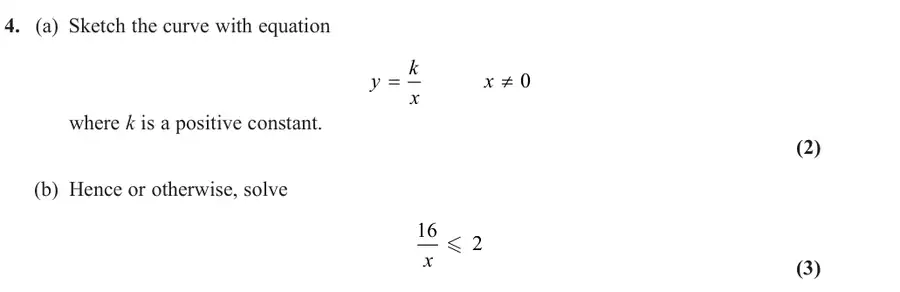

June 2023 Paper 1 Q4

EdexcelCurrent spec5 marksSketching & Transforming Graphs

4.

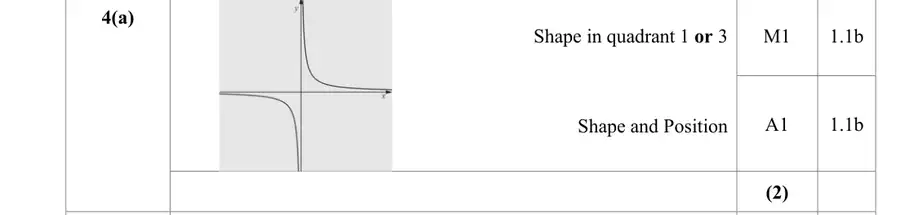

(a) Sketch the curve with equation\[y = \frac{k}{x} \qquad x \neq 0\]where \(k\) is a positive constant. (2)

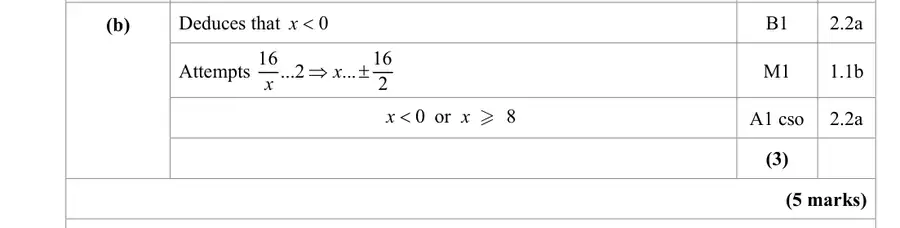

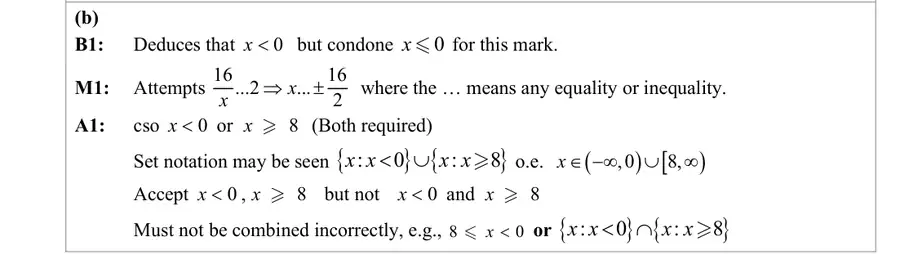

(b) Hence or otherwise, solve\[\frac{16}{x} \leqslant 2\] (3)

June 2022 Paper 1 Q7

7.

(a) Factorise completely \(9x - x^3\) (2)

The curve \(C\) has equation

\[y = 9x - x^3\]
(b) Sketch \(C\) showing the coordinates of the points at which the curve cuts the \(x\)-axis. (2)

The line \(l\) has equation \(y = k\) where \(k\) is a constant.

Given that \(C\) and \(l\) intersect at 3 distinct points,

(c) find the range of values for \(k\), writing your answer in set notation.
Solutions relying on calculator technology are not acceptable. (3)

October 2020 Paper 1 Q9

9.

Figure 3: part of the curve y = 3cos x°, crossing the y-axis at a maximum, with the minimum point P(c, d) to the left of the y-axis
Figure 3

Figure 3 shows part of the curve with equation \(y = 3\cos x^\circ\).

The point \(P(c, d)\) is a minimum point on the curve with \(c\) being the smallest negative value of \(x\) at which a minimum occurs.

(a) State the value of \(c\) and the value of \(d\). (1)
(b) State the coordinates of the point to which \(P\) is mapped by the transformation which transforms the curve with equation \(y = 3\cos x^\circ\) to the curve with equation
(i) \(y = 3\cos\left(\dfrac{x^\circ}{4}\right)\)
(ii) \(y = 3\cos(x - 36)^\circ\) (2)
(c) Solve, for \(450^\circ \leqslant \theta \lt 720^\circ\),\[3\cos\theta = 8\tan\theta\]giving your solution to one decimal place.

In part (c) you must show all stages of your working.

Solutions relying entirely on calculator technology are not acceptable. (5)

June 2019 Paper 1 Q11

11.\[\mathrm{f}(x) = 2x^3 - 13x^2 + 8x + 48\]

(a) Prove that \((x - 4)\) is a factor of \(\mathrm{f}(x)\). (2)
(b) Hence, using algebra, show that the equation \(\mathrm{f}(x) = 0\) has only two distinct roots. (4)
Figure 2: sketch of the cubic y = f(x), crossing the negative x-axis, with a maximum just to the right of the y-axis and a minimum touching the positive x-axis
Figure 2

Figure 2 shows a sketch of part of the curve with equation \(y = \mathrm{f}(x)\).

(c) Deduce, giving reasons for your answer, the number of real roots of the equation\[2x^3 - 13x^2 + 8x + 46 = 0\] (2)

Given that \(k\) is a constant and the curve with equation \(y = \mathrm{f}(x + k)\) passes through the origin,

(d) find the two possible values of \(k\). (2)

June 2019 Paper 1 Q7

7. The curve \(C\) has equation\[y = \frac{k^2}{x} + 1 \qquad x \in \mathbb{R},\ x \neq 0\]where \(k\) is a constant.

(a) Sketch \(C\) stating the equation of the horizontal asymptote. (3)

The line \(l\) has equation \(y = -2x + 5\)

(b) Show that the \(x\) coordinate of any point of intersection of \(l\) with \(C\) is given by a solution of the equation\[2x^2 - 4x + k^2 = 0\] (2)
(c) Hence find the exact values of \(k\) for which \(l\) is a tangent to \(C\). (3)

C1 June 2018 Q9

9. The curve \(C\) has equation \(y = \mathrm{f}(x)\), where\[\mathrm{f}^{\prime}(x) = (x - 3)(3x + 5)\]Given that the point \(P\,(1, 20)\) lies on \(C\),

(a) find \(\mathrm{f}(x)\), simplifying each term. (5)
(b) Show that\[\mathrm{f}(x) = (x - 3)^2(x + A)\]where \(A\) is a constant to be found. (3)
(c) Sketch the graph of \(C\). Show clearly the coordinates of the points where \(C\) cuts or meets the \(x\)-axis and where \(C\) cuts the \(y\)-axis. (4)

C1 June 2018 Q5

EdexcelOld spec5 marksSketching & Transforming Graphs

5.

Figure 1: curve approaching the dashed asymptote y = 1 on the left, through (0, 4), maximum at (2, 7), crossing the x-axis at (5, 0)
Figure 1

Figure 1 shows the sketch of a curve with equation \(y = \mathrm{f}(x)\), \(x \in \mathbb{R}\).

The curve crosses the \(y\)-axis at \((0, 4)\) and crosses the \(x\)-axis at \((5, 0)\).

The curve has a single turning point, a maximum, at \((2, 7)\).

The line with equation \(y = 1\) is the only asymptote to the curve.

(a) State the coordinates of the turning point on the curve with equation \(y = \mathrm{f}(x - 2)\). (1)
(b) State the solution of the equation \(\mathrm{f}(2x) = 0\) (1)
(c) State the equation of the asymptote to the curve with equation \(y = \mathrm{f}(-x)\). (1)

Given that the line with equation \(y = k\), where \(k\) is a constant, meets the curve \(y = \mathrm{f}(x)\) at only one point,

(d) state the set of possible values for \(k\). (2)

C1 June 2017 Q10

10.

Figure 2: cubic curve with a maximum to the left of the y-axis, crossing the positive y-axis and touching the positive x-axis
Figure 2

Figure 2 shows a sketch of part of the curve \(y = \mathrm{f}(x)\), \(x \in \mathbb{R}\), where\[\mathrm{f}(x) = (2x - 5)^2(x + 3)\]

(a) Given that
(i) the curve with equation \(y = \mathrm{f}(x) - k\), \(x \in \mathbb{R}\), passes through the origin, find the value of the constant \(k\),
(ii) the curve with equation \(y = \mathrm{f}(x + c)\), \(x \in \mathbb{R}\), has a minimum point at the origin, find the value of the constant \(c\).
(3)
(b) Show that \(\mathrm{f}^{\prime}(x) = 12x^2 - 16x - 35\) (3)

Points \(A\) and \(B\) are distinct points that lie on the curve \(y = \mathrm{f}(x)\).

The gradient of the curve at \(A\) is equal to the gradient of the curve at \(B\).

Given that point \(A\) has \(x\) coordinate 3

(c) find the \(x\) coordinate of point \(B\). (5)

C1 June 2017 Q9

9.

(a) On separate axes sketch the graphs of
(i) \(y = -3x + c\), where \(c\) is a positive constant,
(ii) \(y = \dfrac{1}{x} + 5\)

On each sketch show the coordinates of any point at which the graph crosses the \(y\)-axis and the equation of any horizontal asymptote.

(4)

Given that \(y = -3x + c\), where \(c\) is a positive constant, meets the curve \(y = \dfrac{1}{x} + 5\) at two distinct points,

(b) show that \((5 - c)^2 > 12\) (3)
(c) Hence find the range of possible values for \(c\). (4)

C1 June 2017 Q5

5.\[\mathrm{f}(x) = x^2 - 8x + 19\]

(a) Express \(\mathrm{f}(x)\) in the form \((x + a)^2 + b\), where \(a\) and \(b\) are constants. (2)

The curve \(C\) with equation \(y = \mathrm{f}(x)\) crosses the \(y\)-axis at the point \(P\) and has a minimum point at the point \(Q\).

(b) Sketch the graph of \(C\) showing the coordinates of point \(P\) and the coordinates of point \(Q\). (3)
(c) Find the distance \(PQ\), writing your answer as a simplified surd. (3)

C1 June 2016 Q4

EdexcelOld spec5 marksSketching & Transforming Graphs

4.

Figure 1: cubic curve y = f(x) with maximum A(-2, 4), passing through the origin O, and minimum B(3, -8)
Figure 1

Figure 1 shows a sketch of part of the curve with equation \(y = \mathrm{f}(x)\). The curve has a maximum point \(A\) at \((-2, 4)\) and a minimum point \(B\) at \((3, -8)\) and passes through the origin \(O\).

On separate diagrams, sketch the curve with equation

(a) \(y = 3\mathrm{f}(x)\), (2)
(b) \(y = \mathrm{f}(x) - 4\) (3)

On each diagram, show clearly the coordinates of the maximum and the minimum points and the coordinates of the point where the curve crosses the \(y\)-axis.

C1 June 2015 Q8

8.

(a) Factorise completely \(9x - 4x^3\) (3)
(b) Sketch the curve \(C\) with equation\[y = 9x - 4x^3\]Show on your sketch the coordinates at which the curve meets the \(x\)-axis. (3)

The points \(A\) and \(B\) lie on \(C\) and have \(x\) coordinates of \(-2\) and 1 respectively.

(c) Show that the length of \(AB\) is \(k\sqrt{10}\) where \(k\) is a constant to be found. (4)

C1 June 2014 (R) Q9

9. The curve \(C\) has equation \(y = \dfrac{1}{3}x^2 + 8\)

The line \(L\) has equation \(y = 3x + k\), where \(k\) is a positive constant.

(a) Sketch \(C\) and \(L\) on separate diagrams, showing the coordinates of the points at which \(C\) and \(L\) cut the axes. (4)

Given that line \(L\) is a tangent to \(C\),

(b) find the value of \(k\). (5)

C2 June 2014 Q8

8.

(a) Sketch the graph of\[y = 3^x, \quad x \in \mathbb{R}\]showing the coordinates of any points at which the graph crosses the axes. (2)
(b) Use algebra to solve the equation\[3^{2x} - 9(3^x) + 18 = 0\]giving your answers to 2 decimal places where appropriate. (5)

C1 June 2014 Q4

EdexcelOld spec5 marksSketching & Transforming Graphs

4.

Figure 1: sketch of the curve C, a hyperbola with branches in the first and third quadrants, crossing the x-axis at A to the left of O
Figure 1

Figure 1 shows a sketch of the curve \(C\) with equation\[y = \frac{1}{x} + 1, \qquad x \neq 0\]The curve \(C\) crosses the \(x\)-axis at the point \(A\).

(a) State the \(x\) coordinate of the point \(A\). (1)

The curve \(D\) has equation \(y = x^2(x - 2)\), for all real values of \(x\).

(b) A copy of Figure 1 is shown on page 7.
On this copy, sketch a graph of curve \(D\).
Show on the sketch the coordinates of each point where the curve \(D\) crosses the coordinate axes. (3)
(c) Using your sketch, state, giving a reason, the number of real solutions to the equation\[x^2(x - 2) = \frac{1}{x} + 1\] (1)

C1 January 2014 (IAL) Q9

9. A curve with equation \(y = \mathrm{f}(x)\) passes through the point \((3, 6)\). Given that\[\mathrm{f}^{\prime}(x) = (x - 2)(3x + 4)\]

(a) use integration to find \(\mathrm{f}(x)\). Give your answer as a polynomial in its simplest form. (5)
(b) Show that \(\mathrm{f}(x) \equiv (x - 2)^2(x + p)\), where \(p\) is a positive constant. State the value of \(p\). (3)
(c) Sketch the graph of \(y = \mathrm{f}(x)\), showing the coordinates of any points where the curve touches or crosses the coordinate axes. (4)

C1 January 2014 (IAL) Q4

EdexcelOld spec4 marksSketching & Transforming Graphs

4.

Figure 1: curve y = f(x) crossing the y-axis at (0, 3) with a minimum at P(4, 2)
Figure 1

Figure 1 shows a sketch of a curve with equation \(y = \mathrm{f}(x)\).

The curve crosses the \(y\)-axis at \((0, 3)\) and has a minimum at \(P\,(4, 2)\).

On separate diagrams, sketch the curve with equation

(a) \(y = \mathrm{f}(x + 4)\), (2)
(b) \(y = 2\mathrm{f}(x)\). (2)

On each diagram, show clearly the coordinates of the minimum point and any point of intersection with the \(y\)-axis.

C1 June 2013 (R) Q9

9.

Figure 1: cubic curve y = f(x) crossing the x-axis at (-1, 0), with a maximum at (0, 4) and touching the x-axis at (2, 0)
Figure 1

Figure 1 shows a sketch of the curve \(C\) with equation \(y = \mathrm{f}(x)\).

The curve \(C\) passes through the point \((-1, 0)\) and touches the \(x\)-axis at the point \((2, 0)\).

The curve \(C\) has a maximum at the point \((0, 4)\).

(a) The equation of the curve \(C\) can be written in the form\[y = x^3 + ax^2 + bx + c\]where \(a\), \(b\) and \(c\) are integers.

Calculate the values of \(a\), \(b\) and \(c\). (5)
(b) Sketch the curve with equation \(y = \mathrm{f}\left(\tfrac{1}{2}x\right)\) in the space provided.

Show clearly the coordinates of all the points where the curve crosses or meets the coordinate axes. (3)

C1 June 2013 Q11

11.

Figure 2: curve H, a hyperbola with branches in the first quadrant and crossing the negative x-axis, approaching a horizontal asymptote above the x-axis
Figure 2

Figure 2 shows a sketch of the curve \(H\) with equation \(y = \dfrac{3}{x} + 4,\ x \neq 0\).

(a) Give the coordinates of the point where \(H\) crosses the \(x\)-axis. (1)
(b) Give the equations of the asymptotes to \(H\). (2)
(c) Find an equation for the normal to \(H\) at the point \(P(-3, 3)\). (5)

This normal crosses the \(x\)-axis at \(A\) and the \(y\)-axis at \(B\).

(d) Find the length of the line segment \(AB\). Give your answer as a surd. (3)

C1 June 2013 Q8

EdexcelOld spec6 marksSketching & Transforming Graphs

8.

Figure 1: cubic curve touching the x-axis at -3, crossing it at 1 and crossing the y-axis at -9
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\) where\[\mathrm{f}(x) = (x + 3)^2(x - 1), \qquad x \in \mathbb{R}.\]The curve crosses the \(x\)-axis at \((1, 0)\), touches it at \((-3, 0)\) and crosses the \(y\)-axis at \((0, -9)\)

(a) In the space below, sketch the curve \(C\) with equation \(y = \mathrm{f}(x + 2)\) and state the coordinates of the points where the curve \(C\) meets the \(x\)-axis. (3)
(b) Write down an equation of the curve \(C\). (1)
(c) Use your answer to part (b) to find the coordinates of the point where the curve \(C\) meets the \(y\)-axis. (2)

C1 January 2013 Q10

10.\[4x^2 + 8x + 3 \equiv a(x + b)^2 + c\]

(a) Find the values of the constants \(a\), \(b\) and \(c\). (3)
(b) On the axes below, sketch the curve with equation \(y = 4x^2 + 8x + 3\), showing clearly the coordinates of any points where the curve crosses the coordinate axes. (4)
Blank axes: x-axis and y-axis meeting at the origin O

C1 January 2013 Q6

6.

Figure 1: sketch of y = 2/x, a curve in the first and third quadrants with the axes as asymptotes
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \dfrac{2}{x},\ x \neq 0\)

The curve \(C\) has equation \(y = \dfrac{2}{x} - 5,\ x \neq 0\), and the line \(l\) has equation \(y = 4x + 2\)

(a) Sketch and clearly label the graphs of \(C\) and \(l\) on a single diagram.

On your diagram, show clearly the coordinates of the points where \(C\) and \(l\) cross the coordinate axes. (5)
(b) Write down the equations of the asymptotes of the curve \(C\). (2)
(c) Find the coordinates of the points of intersection of \(y = \dfrac{2}{x} - 5\) and \(y = 4x + 2\) (5)

C1 June 2012 Q10

EdexcelOld spec8 marksSketching & Transforming Graphs

10.

Figure 1: curve C with a minimum at the origin O, a maximum at (3, 27), cutting the positive x-axis at A
Figure 1

Figure 1 shows a sketch of the curve \(C\) with equation \(y = \mathrm{f}(x)\) where\[\mathrm{f}(x) = x^2(9 - 2x)\]There is a minimum at the origin, a maximum at the point \((3, 27)\) and \(C\) cuts the \(x\)-axis at the point \(A\).

(a) Write down the coordinates of the point \(A\). (1)
(b) On separate diagrams sketch the curve with equation
(i) \(y = \mathrm{f}(x + 3)\)
(ii) \(y = \mathrm{f}(3x)\)

On each sketch you should indicate clearly the coordinates of the maximum point and any points where the curves cross or meet the coordinate axes.

(6)

The curve with equation \(y = \mathrm{f}(x) + k\), where \(k\) is a constant, has a maximum point at \((3, 10)\).

(c) Write down the value of \(k\). (1)

C1 June 2012 Q8

8.\[4x - 5 - x^2 = q - (x + p)^2\]where \(p\) and \(q\) are integers.

(a) Find the value of \(p\) and the value of \(q\). (3)
(b) Calculate the discriminant of \(4x - 5 - x^2\) (2)
(c) On the axes on page 17, sketch the curve with equation \(y = 4x - 5 - x^2\) showing clearly the coordinates of any points where the curve crosses the coordinate axes. (3)

C1 January 2012 Q8

8. The curve \(C_1\) has equation\[y = x^2(x + 2)\]

(a) Find \(\dfrac{\mathrm{d}y}{\mathrm{d}x}\) (2)
(b) Sketch \(C_1\), showing the coordinates of the points where \(C_1\) meets the \(x\)-axis. (3)
(c) Find the gradient of \(C_1\) at each point where \(C_1\) meets the \(x\)-axis. (2)

The curve \(C_2\) has equation\[y = (x - k)^2(x - k + 2)\]where \(k\) is a constant and \(k > 2\)

(d) Sketch \(C_2\), showing the coordinates of the points where \(C_2\) meets the \(x\) and \(y\) axes. (3)

C1 January 2012 Q5

5. The curve \(C\) has equation \(y = x(5 - x)\) and the line \(L\) has equation \(2y = 5x + 4\)

(a) Use algebra to show that \(C\) and \(L\) do not intersect. (4)
(b) In the space on page 11, sketch \(C\) and \(L\) on the same diagram, showing the coordinates of the points at which \(C\) and \(L\) meet the axes. (4)

C1 June 2011 Q10

10. The curve \(C\) has equation\[y = (x + 1)(x + 3)^2\]

(a) Sketch \(C\), showing the coordinates of the points at which \(C\) meets the axes. (4)
(b) Show that \(\dfrac{\mathrm{d}y}{\mathrm{d}x} = 3x^2 + 14x + 15\). (3)

The point \(A\), with \(x\)-coordinate \(-5\), lies on \(C\).

(c) Find the equation of the tangent to \(C\) at \(A\), giving your answer in the form \(y = mx + c\), where \(m\) and \(c\) are constants. (4)

Another point \(B\) also lies on \(C\). The tangents to \(C\) at \(A\) and \(B\) are parallel.

(d) Find the \(x\)-coordinate of \(B\). (3)

C1 June 2011 Q8

EdexcelOld spec10 marksSketching & Transforming Graphs

8.

Figure 1: U-shaped curve C through the origin O and (6, 0), with a minimum at (3, -1)
Figure 1

Figure 1 shows a sketch of the curve \(C\) with equation \(y = \mathrm{f}(x)\).
The curve \(C\) passes through the origin and through \((6, 0)\).
The curve \(C\) has a minimum at the point \((3, -1)\).

On separate diagrams, sketch the curve with equation

(a) \(y = \mathrm{f}(2x)\), (3)
(b) \(y = -\mathrm{f}(x)\), (3)
(c) \(y = \mathrm{f}(x + p)\), where \(p\) is a constant and \(0 < p < 3\). (4)

On each diagram show the coordinates of any points where the curve intersects the \(x\)-axis and of any minimum or maximum points.

C1 January 2011 Q10

EdexcelOld spec8 marksSketching & Transforming Graphs

10.

(a) On the axes below, sketch the graphs of
(i) \(y = x(x + 2)(3 - x)\)
(ii) \(y = -\dfrac{2}{x}\)

showing clearly the coordinates of all the points where the curves cross the coordinate axes.

(6)
(b) Using your sketch state, giving a reason, the number of real solutions to the equation\[x(x + 2)(3 - x) + \frac{2}{x} = 0\] (2)

C2 January 2011 Q8

8.

(a) Sketch the graph of \(y = 7^x\), \(x \in \mathbb{R}\), showing the coordinates of any points at which the graph crosses the axes. (2)
(b) Solve the equation\[7^{2x} - 4\left(7^x\right) + 3 = 0\]giving your answers to 2 decimal places where appropriate. (6)

C1 January 2011 Q5

EdexcelOld spec7 marksSketching & Transforming Graphs

5.

Figure 1: curve through the origin with asymptotes y = 1 and x = 2, one branch to the left of x = 2 passing through O and one branch above y = 1 to the right of x = 2
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\) where\[\mathrm{f}(x) = \frac{x}{x - 2}, \qquad x \neq 2\]The curve passes through the origin and has two asymptotes, with equations \(y = 1\) and \(x = 2\), as shown in Figure 1.

(a) In the space below, sketch the curve with equation \(y = \mathrm{f}(x - 1)\) and state the equations of the asymptotes of this curve. (3)
(b) Find the coordinates of the points where the curve with equation \(y = \mathrm{f}(x - 1)\) crosses the coordinate axes. (4)

C1 June 2010 Q10

10.

(a) On the axes below sketch the graphs of
(i) \(y = x(4 - x)\)
(ii) \(y = x^2(7 - x)\)

showing clearly the coordinates of the points where the curves cross the coordinate axes.

(5)
(b) Show that the \(x\)-coordinates of the points of intersection of\[y = x(4 - x) \quad \text{and} \quad y = x^2(7 - x)\]are given by the solutions to the equation \(x(x^2 - 8x + 4) = 0\) (3)

The point \(A\) lies on both of the curves and the \(x\) and \(y\) coordinates of \(A\) are both positive.

(c) Find the exact coordinates of \(A\), leaving your answer in the form \((p + q\sqrt{3},\ r + s\sqrt{3})\), where \(p\), \(q\), \(r\) and \(s\) are integers. (7)
Blank x and y axes for sketching

C1 June 2010 Q6

EdexcelOld spec7 marksSketching & Transforming Graphs

6.

Figure 1: cubic curve through the origin O with maximum A (-2, 3) and minimum B (3, -5)
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\). The curve has a maximum point \(A\) at \((-2, 3)\) and a minimum point \(B\) at \((3, -5)\).

On separate diagrams sketch the curve with equation

(a) \(y = \mathrm{f}(x + 3)\) (3)
(b) \(y = 2\mathrm{f}(x)\) (3)

On each diagram show clearly the coordinates of the maximum and minimum points.

The graph of \(y = \mathrm{f}(x) + a\) has a minimum at \((3, 0)\), where \(a\) is a constant.

(c) Write down the value of \(a\). (1)

C1 June 2010 Q4

4.

(a) Show that \(x^2 + 6x + 11\) can be written as\[(x + p)^2 + q\]where \(p\) and \(q\) are integers to be found. (2)
(b) In the space at the top of page 7, sketch the curve with equation \(y = x^2 + 6x + 11\), showing clearly any intersections with the coordinate axes. (2)
(c) Find the value of the discriminant of \(x^2 + 6x + 11\) (2)

C1 January 2010 Q10

10.\[\mathrm{f}(x) = x^2 + 4kx + (3 + 11k), \qquad \text{where } k \text{ is a constant.}\]

(a) Express \(\mathrm{f}(x)\) in the form \((x + p)^2 + q\), where \(p\) and \(q\) are constants to be found in terms of \(k\). (3)

Given that the equation \(\mathrm{f}(x) = 0\) has no real roots,

(b) find the set of possible values of \(k\). (4)

Given that \(k = 1\),

(c) sketch the graph of \(y = \mathrm{f}(x)\), showing the coordinates of any point at which the graph crosses a coordinate axis. (3)

C1 January 2010 Q9

9.

(a) Factorise completely \(x^3 - 4x\) (3)
(b) Sketch the curve \(C\) with equation\[y = x^3 - 4x,\]showing the coordinates of the points at which the curve meets the \(x\)-axis. (3)

The point \(A\) with \(x\)-coordinate \(-1\) and the point \(B\) with \(x\)-coordinate 3 lie on the curve \(C\).

(c) Find an equation of the line which passes through \(A\) and \(B\), giving your answer in the form \(y = mx + c\), where \(m\) and \(c\) are constants. (5)
(d) Show that the length of \(AB\) is \(k\sqrt{10}\), where \(k\) is a constant to be found. (2)

C1 January 2010 Q8

EdexcelOld spec7 marksSketching & Transforming Graphs

8.

Figure 1: curve y = f(x) with maximum point (-2, 5) and horizontal asymptote y = 1 shown dashed
Figure 1

Figure 1 shows a sketch of part of the curve with equation \(y = \mathrm{f}(x)\).

The curve has a maximum point \((-2, 5)\) and an asymptote \(y = 1\), as shown in Figure 1.

On separate diagrams, sketch the curve with equation

(a) \(y = \mathrm{f}(x) + 2\) (2)
(b) \(y = 4\mathrm{f}(x)\) (2)
(c) \(y = \mathrm{f}(x + 1)\) (3)

On each diagram, show clearly the coordinates of the maximum point and the equation of the asymptote.

C1 June 2009 Q10

10.

(a) Factorise completely \(x^3 - 6x^2 + 9x\) (3)
(b) Sketch the curve with equation\[y = x^3 - 6x^2 + 9x\]showing the coordinates of the points at which the curve meets the \(x\)-axis. (4)

Using your answer to part (b), or otherwise,

(c) sketch, on a separate diagram, the curve with equation\[y = (x - 2)^3 - 6(x - 2)^2 + 9(x - 2)\]showing the coordinates of the points at which the curve meets the \(x\)-axis. (2)

C1 January 2009 Q8

EdexcelOld spec7 marksSketching & Transforming Graphs

8. The point \(P\,(1, a)\) lies on the curve with equation \(y = (x + 1)^2(2 - x)\).

(a) Find the value of \(a\). (1)
(b) On the axes below sketch the curves with the following equations:
(i) \(y = (x + 1)^2(2 - x)\),
(ii) \(y = \dfrac{2}{x}\).

On your diagram show clearly the coordinates of any points at which the curves meet the axes.

(5)
(c) With reference to your diagram in part (b) state the number of real solutions to the equation\[(x + 1)^2(2 - x) = \frac{2}{x}.\] (1)
Blank x and y axes for sketching

C1 January 2009 Q5

EdexcelOld spec6 marksSketching & Transforming Graphs

5.

Figure 1: curve C with a maximum at the origin O, a minimum at (2, -1), crossing the x-axis at 3
Figure 1

Figure 1 shows a sketch of the curve \(C\) with equation \(y = \mathrm{f}(x)\). There is a maximum at \((0, 0)\), a minimum at \((2, -1)\) and \(C\) passes through \((3, 0)\).

On separate diagrams sketch the curve with equation

(a) \(y = \mathrm{f}(x + 3)\), (3)
(b) \(y = \mathrm{f}(-x)\). (3)

On each diagram show clearly the coordinates of the maximum point, the minimum point and any points of intersection with the \(x\)-axis.

C1 June 2008 Q6

6. The curve \(C\) has equation \(y = \dfrac{3}{x}\) and the line \(l\) has equation \(y = 2x + 5\).

(a) On the axes below, sketch the graphs of \(C\) and \(l\), indicating clearly the coordinates of any intersections with the axes. (3)
(b) Find the coordinates of the points of intersection of \(C\) and \(l\). (6)
Blank axes: x-axis and y-axis meeting at the origin O

C1 June 2008 Q3

EdexcelOld spec5 marksSketching & Transforming Graphs

3.

Figure 1: the curve y = f(x) passing through (0, 7) with a minimum point on the x-axis at (7, 0)
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\). The curve passes through the point \((0, 7)\) and has a minimum point at \((7, 0)\).

On separate diagrams, sketch the curve with equation

(a) \(y = \mathrm{f}(x) + 3\), (3)
(b) \(y = \mathrm{f}(2x)\). (2)

On each diagram, show clearly the coordinates of the minimum point and the coordinates of the point at which the curve crosses the \(y\)-axis.

C1 January 2008 Q10

10. The curve \(C\) has equation\[y = (x + 3)(x - 1)^2.\]

(a) Sketch \(C\) showing clearly the coordinates of the points where the curve meets the coordinate axes. (4)
(b) Show that the equation of \(C\) can be written in the form\[y = x^3 + x^2 - 5x + k,\]where \(k\) is a positive integer, and state the value of \(k\). (2)

There are two points on \(C\) where the gradient of the tangent to \(C\) is equal to 3.

(c) Find the \(x\)-coordinates of these two points. (6)

C1 January 2008 Q6

EdexcelOld spec7 marksSketching & Transforming Graphs

6.

Figure 1: an n-shaped curve crossing the x-axis at 1 and 4 with maximum point (2, 5)
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\). The curve crosses the \(x\)-axis at the points \((1, 0)\) and \((4, 0)\). The maximum point on the curve is \((2, 5)\).
In separate diagrams sketch the curves with the following equations.
On each diagram show clearly the coordinates of the maximum point and of each point at which the curve crosses the \(x\)-axis.

(a) \(y = 2\mathrm{f}(x)\), (3)
(b) \(y = \mathrm{f}(-x)\). (3)

The maximum point on the curve with equation \(y = \mathrm{f}(x + a)\) is on the \(y\)-axis.

(c) Write down the value of the constant \(a\). (1)

C1 June 2007 Q9

9. The curve \(C\) with equation \(y = \mathrm{f}(x)\) passes through the point \((5, 65)\).

Given that \(\mathrm{f}^{\prime}(x) = 6x^2 - 10x - 12\),

(a) use integration to find \(\mathrm{f}(x)\). (4)
(b) Hence show that \(\mathrm{f}(x) = x(2x + 3)(x - 4)\). (2)
(c) In the space provided on page 17, sketch \(C\), showing the coordinates of the points where \(C\) crosses the \(x\)-axis. (3)

C1 June 2007 Q5

EdexcelOld spec5 marksSketching & Transforming Graphs

5.

Figure 1: the curve y = 3/x, with one branch in the first quadrant and one in the third quadrant
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \dfrac{3}{x}\), \(x \neq 0\).

(a) On a separate diagram, sketch the curve with equation \(y = \dfrac{3}{x + 2}\), \(x \neq -2\),
showing the coordinates of any point at which the curve crosses a coordinate axis. (3)
(b) Write down the equations of the asymptotes of the curve in part (a). (2)

C1 January 2007 Q10

10.

(a) On the same axes sketch the graphs of the curves with equations
(i) \(y = x^2(x - 2)\), (3)
(ii) \(y = x(6 - x)\), (3)

and indicate on your sketches the coordinates of all the points where the curves cross the \(x\)-axis.

(b) Use algebra to find the coordinates of the points where the graphs intersect. (7)

C1 January 2007 Q3

EdexcelOld spec6 marksSketching & Transforming Graphs

3. Given that\[\mathrm{f}(x) = \frac{1}{x}, \qquad x \neq 0,\]

(a) sketch the graph of \(y = \mathrm{f}(x) + 3\) and state the equations of the asymptotes. (4)
(b) Find the coordinates of the point where \(y = \mathrm{f}(x) + 3\) crosses a coordinate axis. (2)

C1 June 2006 Q9

9. Given that \(\mathrm{f}(x) = (x^2 - 6x)(x - 2) + 3x\),

(a) express \(\mathrm{f}(x)\) in the form \(x(ax^2 + bx + c)\), where \(a\), \(b\) and \(c\) are constants. (3)
(b) Hence factorise \(\mathrm{f}(x)\) completely. (2)
(c) Sketch the graph of \(y = \mathrm{f}(x)\), showing the coordinates of each point at which the graph meets the axes. (3)

C1 June 2006 Q3

EdexcelOld spec5 marksSketching & Transforming Graphs

3. On separate diagrams, sketch the graphs of

(a) \(y = (x + 3)^2\), (3)
(b) \(y = (x + 3)^2 + k\), where \(k\) is a positive constant. (2)

Show on each sketch the coordinates of each point at which the graph meets the axes.

C1 January 2006 Q10

10.\[x^2 + 2x + 3 \equiv (x + a)^2 + b.\]

(a) Find the values of the constants \(a\) and \(b\). (2)
(b) In the space provided below, sketch the graph of \(y = x^2 + 2x + 3\), indicating clearly the coordinates of any intersections with the coordinate axes. (3)
(c) Find the value of the discriminant of \(x^2 + 2x + 3\). Explain how the sign of the discriminant relates to your sketch in part (b). (2)

The equation \(x^2 + kx + 3 = 0\), where \(k\) is a constant, has no real roots.

(d) Find the set of possible values of \(k\), giving your answer in surd form. (4)

C1 January 2006 Q9

9.

Figure 2: cubic curve C crossing the x-axis at P, 1 and Q and the y-axis at 4
Figure 2

Figure 2 shows part of the curve \(C\) with equation\[y = (x - 1)(x^2 - 4).\]The curve cuts the \(x\)-axis at the points \(P\), \((1, 0)\) and \(Q\), as shown in Figure 2.

(a) Write down the \(x\)-coordinate of \(P\), and the \(x\)-coordinate of \(Q\). (2)
(b) Show that \(\dfrac{\mathrm{d}y}{\mathrm{d}x} = 3x^2 - 2x - 4\). (3)
(c) Show that \(y = x + 7\) is an equation of the tangent to \(C\) at the point \((-1, 6)\). (2)

The tangent to \(C\) at the point \(R\) is parallel to the tangent at the point \((-1, 6)\).

(d) Find the exact coordinates of \(R\). (5)

C1 January 2006 Q6

EdexcelOld spec9 marksSketching & Transforming Graphs

6.

Figure 1: curve y = f(x) through (0, 3), touching the x-axis at (1, 0) and crossing it at (4, 0)
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\). The curve passes through the points \((0, 3)\) and \((4, 0)\) and touches the \(x\)-axis at the point \((1, 0)\).

On separate diagrams sketch the curve with equation

(a) \(y = \mathrm{f}(x + 1)\), (3)
(b) \(y = 2\mathrm{f}(x)\), (3)
(c) \(y = \mathrm{f}\left(\dfrac{1}{2}x\right)\). (3)

On each diagram show clearly the coordinates of all the points where the curve meets the axes.

C1 June 2005 Q4

EdexcelOld spec5 marksSketching & Transforming Graphs

4.

Figure 1: curve y = f(x) through O and (6, 0) with maximum point (3, 5)
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\). The curve passes through the origin \(O\) and through the point \((6, 0)\). The maximum point on the curve is \((3, 5)\).

On separate diagrams, sketch the curve with equation

(a) \(y = 3\mathrm{f}(x)\), (2)
(b) \(y = \mathrm{f}(x + 2)\). (3)

On each diagram, show clearly the coordinates of the maximum point and of each point at which the curve crosses the \(x\)-axis.

C1 January 2005 Q10

10. Given that\[\mathrm{f}(x) = x^2 - 6x + 18, \quad x \geqslant 0,\]

(a) express \(\mathrm{f}(x)\) in the form \((x - a)^2 + b\), where \(a\) and \(b\) are integers. (3)

The curve \(C\) with equation \(y = \mathrm{f}(x),\ x \geqslant 0\), meets the \(y\)-axis at \(P\) and has a minimum point at \(Q\).

(b) In the space provided on page 19, sketch the graph of \(C\), showing the coordinates of \(P\) and \(Q\). (4)

The line \(y = 41\) meets \(C\) at the point \(R\).

(c) Find the \(x\)-coordinate of \(R\), giving your answer in the form \(p + q\sqrt{2}\), where \(p\) and \(q\) are integers. (5)

C1 January 2005 Q6

EdexcelOld spec6 marksSketching & Transforming Graphs

6.

Figure 1: curve y = f(x) crossing the x-axis at 2 and 4 with minimum point P(3, -2)
Figure 1

Figure 1 shows a sketch of the curve with equation \(y = \mathrm{f}(x)\). The curve crosses the \(x\)-axis at the points \((2, 0)\) and \((4, 0)\). The minimum point on the curve is \(P(3, -2)\).

In separate diagrams sketch the curve with equation

(a) \(y = -\mathrm{f}(x)\), (3)
(b) \(y = \mathrm{f}(2x)\). (3)

On each diagram, give the coordinates of the points at which the curve crosses the \(x\)-axis, and the coordinates of the image of \(P\) under the given transformation.

June 2025 Paper 1 Q8

8 Sketch the graph of

\[y = (x - k)^2(x + 2k)\]

where \(k\) is a positive constant.

Label the coordinates of the points where the graph meets the axes. [4 marks]

June 2024 Paper 1 Q9

9 A curve has equation \(y = \mathrm{f}(x)\) where

\[\mathrm{f}(x) = x(6 - x)\]
(a) Find \(\mathrm{f}^{\prime}(x)\) [2 marks]
(b) The diagram below shows the graph of \(y = \mathrm{f}(x)\)

On the same diagram sketch the gradient function for this curve, stating the coordinates of any points where the gradient function cuts the axes. [3 marks]

Graph of the parabola y = x(6 − x) through O and 6 on the x-axis, with its maximum just below 10 on the y-axis

June 2024 Paper 2 Q4

4 Curve \(C\) has equation \(y = 8\sin x\)

(a) Curve \(C\) is transformed onto curve \(C_1\) by a translation of vector \(\begin{bmatrix} 0 \\ 4 \end{bmatrix}\)

Find the equation of \(C_1\) [1 mark]

(b) Curve \(C\) is transformed onto curve \(C_2\) by a stretch of scale factor 4 in the \(y\) direction.

Find the equation of \(C_2\) [1 mark]

(c) Curve \(C\) is transformed onto curve \(C_3\) by a stretch of scale factor 2 in the \(x\) direction.

Find the equation of \(C_3\) [1 mark]

June 2023 Paper 1 Q9

9 A continuous curve has equation \(y = \mathrm{f}(x)\)

The curve passes through the points \(A(2, 1)\), \(B(4, 5)\) and \(C(6, 1)\)

It is given that \(\mathrm{f}^{\prime}(4) = 0\)

Jasmin made two statements about the nature of the curve \(y = \mathrm{f}(x)\) at the point \(B\):

Statement 1: There is a turning point at \(B\)

Statement 2: There is a maximum point at \(B\)

(a) Draw a sketch of the curve \(y = \mathrm{f}(x)\) such that Statement 1 is correct and Statement 2 is correct. [1 mark]
Grid with x and y from 0 to 8 showing the points A(2, 1), B(4, 5) and C(6, 1)
(b) Draw a sketch of the curve \(y = \mathrm{f}(x)\) such that Statement 1 is correct and Statement 2 is not correct. [1 mark]
Grid with x and y from 0 to 8 showing the points A(2, 1), B(4, 5) and C(6, 1)
(c) Draw a sketch of the curve \(y = \mathrm{f}(x)\) such that Statement 1 is not correct and Statement 2 is not correct. [1 mark]
Grid with x and y from 0 to 8 showing the points A(2, 1), B(4, 5) and C(6, 1)

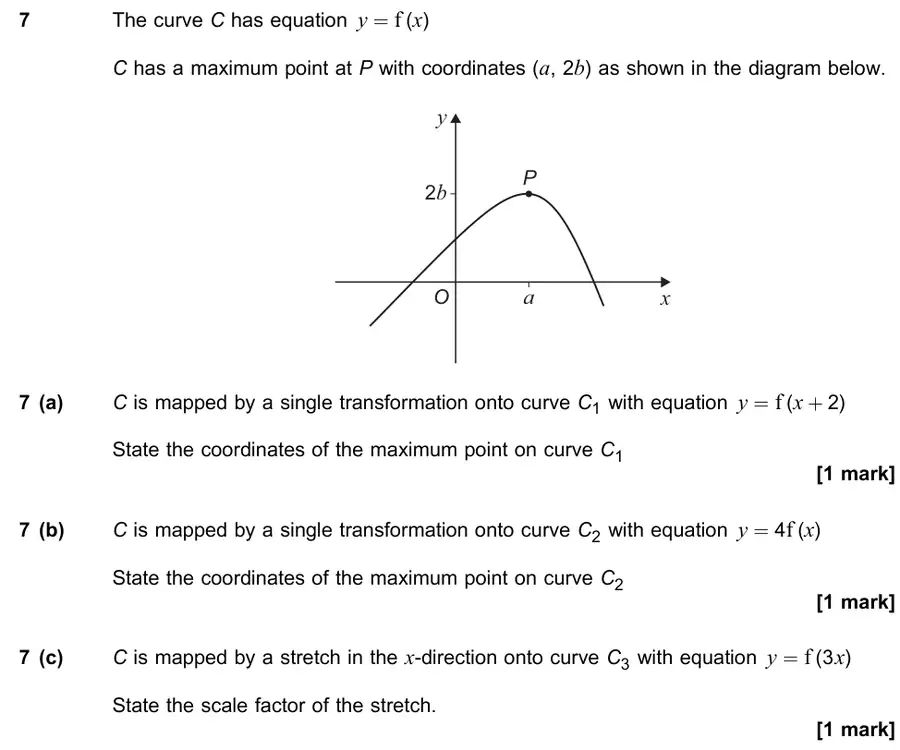

June 2023 Paper 2 Q7

AQACurrent spec3 marksSketching & Transforming Graphs

7 The curve \(C\) has equation \(y = \mathrm{f}(x)\)

\(C\) has a maximum point at \(P\) with coordinates \((a, 2b)\) as shown in the diagram below.

Curve C crossing the negative x-axis, passing above O, rising to a maximum at P(a, 2b) with a > 0, then falling to cross the positive x-axis

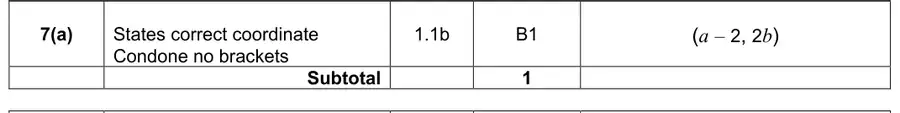

(a) \(C\) is mapped by a single transformation onto curve \(C_1\) with equation \(y = \mathrm{f}(x + 2)\)

State the coordinates of the maximum point on curve \(C_1\) [1 mark]

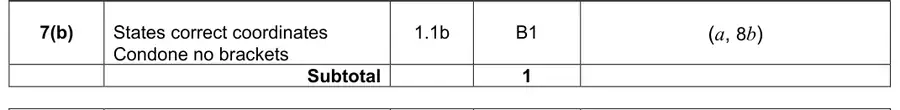

(b) \(C\) is mapped by a single transformation onto curve \(C_2\) with equation \(y = 4\mathrm{f}(x)\)

State the coordinates of the maximum point on curve \(C_2\) [1 mark]

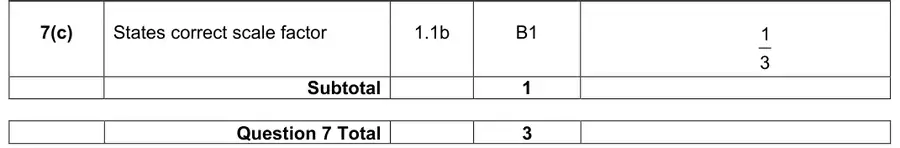

(c) \(C\) is mapped by a stretch in the \(x\)-direction onto curve \(C_3\) with equation \(y = \mathrm{f}(3x)\)

State the scale factor of the stretch. [1 mark]

June 2023 Paper 1 Q6

6

(a) The curve \(C_1\) has equation \(y = 2x^2 - 20x + 42\)

Express the equation of \(C_1\) in the form

\[y = a(x - b)^2 + c\]

where \(a\), \(b\) and \(c\) are integers. [3 marks]

(b) Write down the coordinates of the minimum point of \(C_1\) [1 mark]
(c) The curve \(C_1\) is mapped onto the curve \(C_2\) by a stretch in the \(y\)-direction.

The minimum point of \(C_2\) is at \((5, -4)\)

Find the equation of \(C_2\) [2 marks]

June 2021 Paper 1 Q5

5

(a) Sketch the curve\[y = (x - a)^2(3 - x) \qquad \text{where } 0 \lt a \lt 3\]indicating the coordinates of the points where the curve and the axes meet. [4 marks]
(b) Hence, solve\[(x - a)^2(3 - x) \gt 0\]giving your answer in set notation form. [2 marks]

June 2021 Paper 1 Q3

AQACurrent spec3 marksSketching & Transforming Graphs

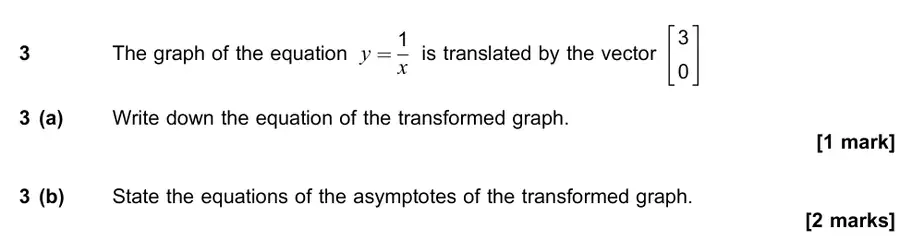

3 The graph of the equation \(y = \dfrac{1}{x}\) is translated by the vector \(\begin{bmatrix} 3 \\ 0 \end{bmatrix}\)

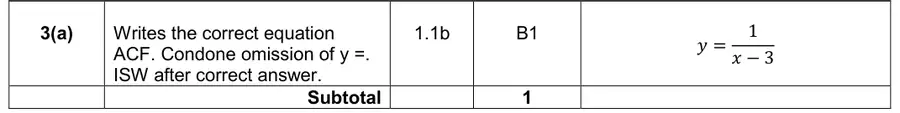

(a) Write down the equation of the transformed graph. [1 mark]

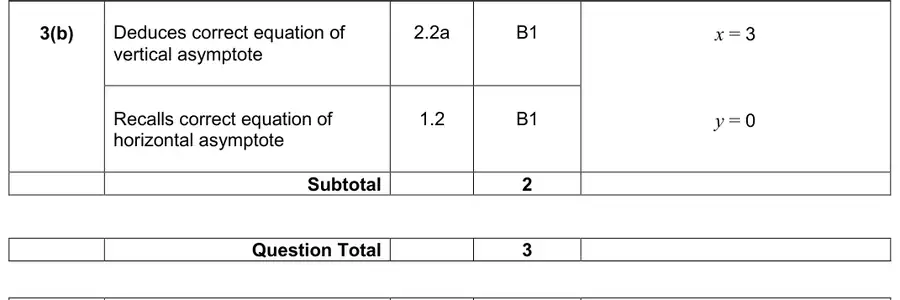

(b) State the equations of the asymptotes of the transformed graph. [2 marks]

June 2020 Paper 1 Q7

7 Curve \(C\) has equation \(y = x^2\)

\(C\) is translated by vector \(\begin{bmatrix} 3 \\ 0 \end{bmatrix}\) to give curve \(C_1\)

Line \(L\) has equation \(y = x\)

\(L\) is stretched by scale factor 2 parallel to the \(x\)-axis to give line \(L_1\)

Find the exact distance between the two intersection points of \(C_1\) and \(L_1\) [6 marks]

June 2020 Paper 1 Q2

AQACurrent spec1 markSketching & Transforming Graphs

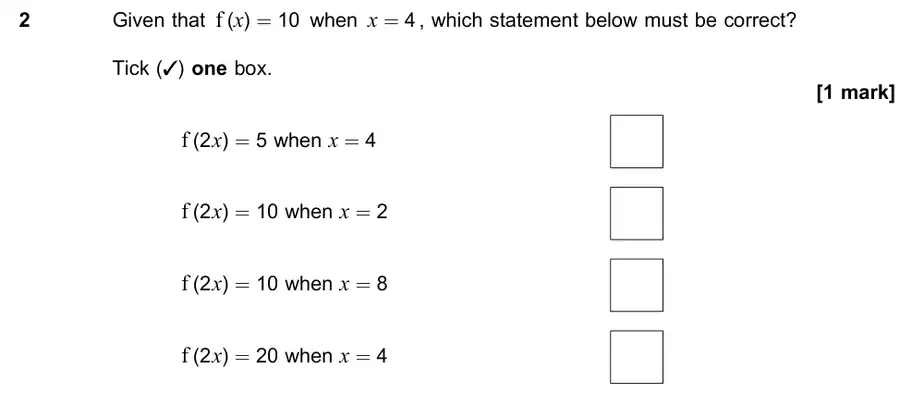

2 Given that \(\mathrm{f}(x) = 10\) when \(x = 4\), which statement below must be correct?

Tick (✓) one box. [1 mark]

  • \(\mathrm{f}(2x) = 5\) when \(x = 4\)
  • \(\mathrm{f}(2x) = 10\) when \(x = 2\)
  • \(\mathrm{f}(2x) = 10\) when \(x = 8\)
  • \(\mathrm{f}(2x) = 20\) when \(x = 4\)

June 2019 Paper 2 Q9

9 A curve \(C\) has equation \(y = \mathrm{f}(x)\) where\[\mathrm{f}(x) = (x - 2)(x - 3)^2\]

(a) Find the exact coordinates of the turning points of \(C\).

Determine the nature of each turning point.

Fully justify your answer. [8 marks]

(b) State the coordinates of the turning points of the curve\[y = \mathrm{f}(x + 1) - 4\] [2 marks]

June 2019 Paper 1 Q5

5

(a) Sketch the curve \(y = \mathrm{g}(x)\) where\[\mathrm{g}(x) = (x + 2)(x - 1)^2\] [3 marks]
(b) Hence, solve \(\mathrm{g}(x) \leqslant 0\) [2 marks]

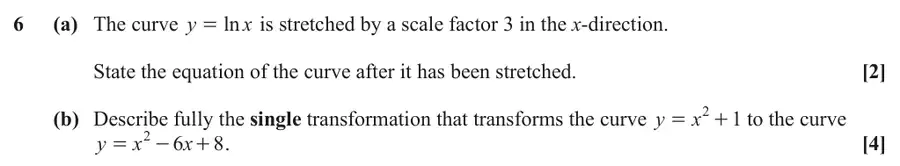

June 2025 Paper 2 Q6

OCR ACurrent spec6 marksSketching & Transforming Graphs

6

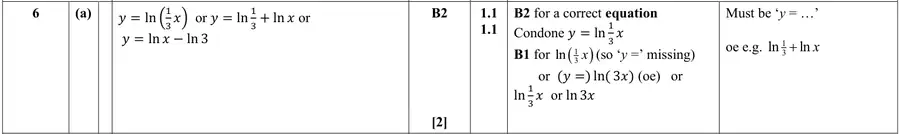

(a) The curve \(y = \ln x\) is stretched by a scale factor 3 in the \(x\)-direction.
State the equation of the curve after it has been stretched. [2]

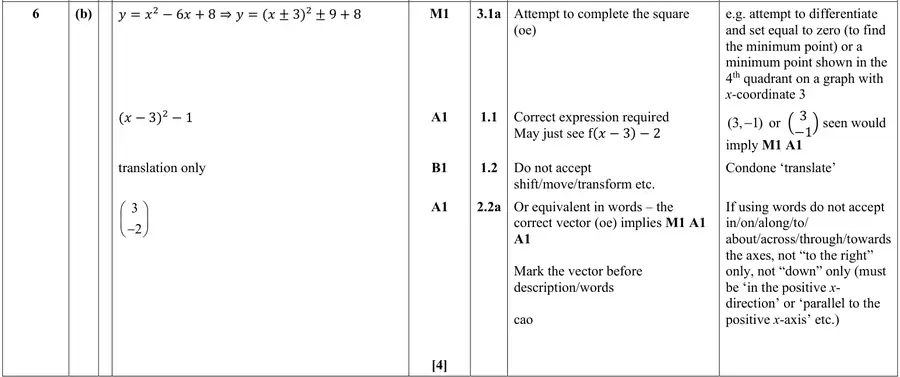

(b) Describe fully the single transformation that transforms the curve \(y = x^2 + 1\) to the curve \(y = x^2 - 6x + 8\). [4]

June 2024 Paper 2 Q4

OCR ACurrent spec4 marksSketching & Transforming Graphs

4

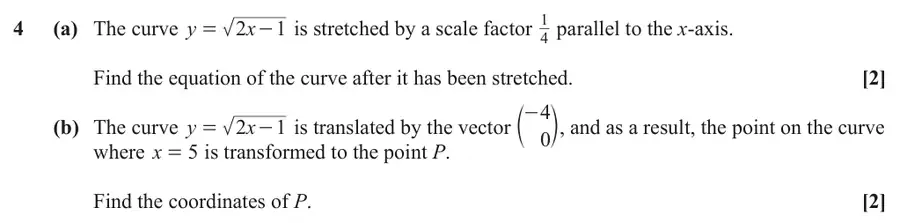

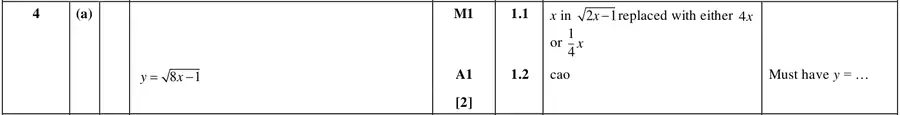

(a) The curve \(y = \sqrt{2x - 1}\) is stretched by a scale factor \(\tfrac{1}{4}\) parallel to the \(x\)-axis.

Find the equation of the curve after it has been stretched. [2]

(b) The curve \(y = \sqrt{2x - 1}\) is translated by the vector \(\begin{pmatrix} -4 \\ 0 \end{pmatrix}\), and as a result, the point on the curve where \(x = 5\) is transformed to the point \(P\).

Find the coordinates of \(P\). [2]

June 2023 Paper 2 Q5

5

Graphs of y = 2 to the power 3x and y = 2 to the power 3x+2, both increasing curves above the x-axis, with y = 2 to the power 3x+2 above y = 2 to the power 3x and crossing the y-axis higher

The diagram shows the graphs of \(y = 2^{3x}\) and \(y = 2^{3x+2}\). The graph of \(y = 2^{3x}\) can be transformed to the graph of \(y = 2^{3x+2}\) by means of a stretch.

(a) Give details of the stretch. [2]

The point \(A\) lies on \(y = 2^{3x}\) and the point \(B\) lies on \(y = 2^{3x+2}\). The line segment \(AB\) is parallel to the \(y\)-axis and the difference between the \(y\)-coordinates of \(A\) and \(B\) is 36.

(b) Determine the \(x\)-coordinate of \(A\). Give your answer in the form \(m\log_2 n\) where \(m\) and \(n\) are constants to be determined. [3]

June 2023 Paper 1 Q3

3 The diagram shows the graph of \(y = \mathrm{f}(x)\), where \(\mathrm{f}(x)\) is a quadratic function of \(x\).

A copy of the diagram is given in the Printed Answer Booklet.

U-shaped curve y = f(x) starting on the positive y-axis, falling to a minimum above the x-axis, then rising; the y-axis extends well below the x-axis
(a) On the copy of the diagram in the Printed Answer Booklet, draw a possible graph of the gradient function \(y = \mathrm{f}'(x)\). [3]
(b) State the gradient of the graph of \(y = \mathrm{f}''(x)\). [1]

June 2022 Paper 2 Q5

5

Curve C with two branches, one in the second quadrant and one in the fourth quadrant, with the axes as asymptotes; the point (1, -1/2) is marked on the lower branch

The diagram shows a curve \(C\) for which \(y\) is inversely proportional to \(x\). The curve passes through the point \(\left(1, -\frac{1}{2}\right)\).

(a)
(i) Determine the equation of the gradient function for the curve \(C\). [3]
(ii) Sketch this gradient function on a pair of axes. [1]
(b) The diagram indicates that the curve \(C\) has no stationary points.

State what feature of your sketch in part (a)(ii) corresponds to this. [1]

(c) The curve \(C\) is translated by the vector \(\begin{pmatrix} -2 \\ 0 \end{pmatrix}\).

Find the equation of the curve after it has been translated. [2]

June 2022 Paper 1 Q3

3 The diagram below shows part of the graph of \(y = x^2 - 4x + 3\).

Graph of y = x^2 - 4x + 3 on a grid with x from 0 to 4 and y from -2 to 4, crossing the y-axis at 3, crossing the x-axis at 1 and 3, with minimum at (2, -1)
(a) It is required to solve the equation \(x^2 - 3x + 1 = 0\) graphically by drawing a straight line with equation \(y = mx + c\) on the diagram, where \(m\) and \(c\) are constants.

Find the values of \(m\) and \(c\). [2]

(b) Use the graph to find approximate values of the roots of the equation \(x^2 - 3x + 1 = 0\). [2]
(c) By shading, or otherwise, indicate clearly the regions where all of the following inequalities are satisfied. You should use the values of \(m\) and \(c\) found in part (a).

\(x \geqslant 0\)    \(x \leqslant 4\)    \(y \leqslant x^2 - 4x + 3\)    \(y \geqslant mx + c\) [3]

October 2021 Paper 1 Q3

3 The diagram shows the curve \(y = \mathrm{f}(x)\), where \(\mathrm{f}(x)\) is a cubic polynomial in \(x\).

Cubic curve y = f(x) on a grid with x from -3 to 3.5 and y from -2 to 2: it rises steeply through the x-axis just below x = 1, has a maximum at about (1.4, 0.9), a minimum at about (2.6, 0.1) above the x-axis, then rises again
(a) State the values of \(x\) for which \(\mathrm{f}(x) \lt \frac{1}{2}\), giving your answer in set notation. [3]
(b) On the diagram above, draw the graph of \(y = \mathrm{f}(-x)\). [2]
(c) Explain how you can tell that \(\mathrm{f}(x)\) cannot be expressed as the product of three real linear factors. [1]

October 2020 Paper 1 Q5

5 The function f is defined by \(\mathrm{f}(x) = (x + a)(x + 3a)(x - b)\) where \(a\) and \(b\) are positive integers.

(a) On the axes below, sketch the curve \(y = \mathrm{f}(x)\). [2]
Blank x and y axes for the sketch
(b) On your sketch show, in terms of \(a\) and \(b\), the coordinates of the points where the curve meets the axes. [2]

It is now given that \(a = 1\) and \(b = 4\).

(c) Find the total area enclosed between the curve \(y = \mathrm{f}(x)\) and the \(x\)-axis. [4]

October 2020 Paper 2 Q5

5 A curve has equation \(y = a(x + b)^2 + c\), where \(a\), \(b\) and \(c\) are constants. The curve has a stationary point at \((-3, 2)\).

(a) State the values of \(b\) and \(c\). [2]

When the curve is translated by \(\begin{pmatrix} 4 \\ 0 \end{pmatrix}\) the transformed curve passes through the point \((3, -18)\).

(b) Determine the value of \(a\). [3]

October 2020 Paper 2 Q2

2 Two curves have equations \(y = \ln x\) and \(y = \dfrac{k}{x}\), where \(k\) is a positive constant.

(a) Sketch the curves on a single diagram. [3]
(b) Explain how your diagram shows that the equation \(x\ln x - k = 0\) has exactly one real root. [2]

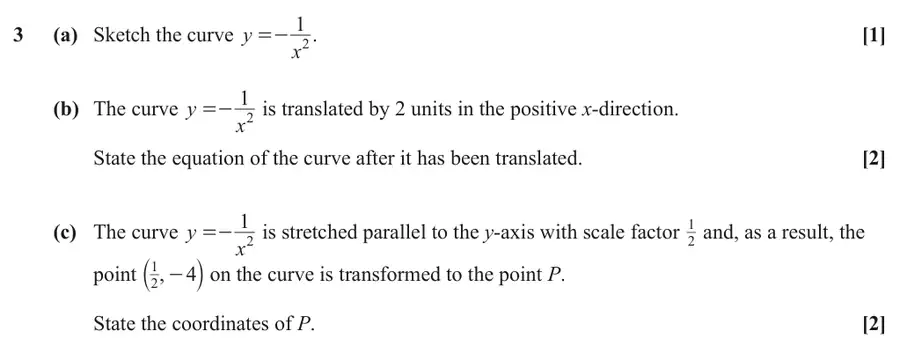

June 2019 Paper 2 Q3

OCR ACurrent spec5 marksSketching & Transforming Graphs

3

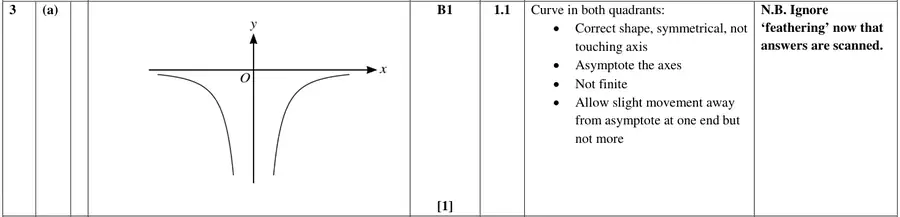

(a) Sketch the curve \(y = -\dfrac{1}{x^2}\). [1]

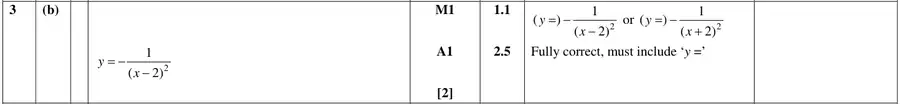

(b) The curve \(y = -\dfrac{1}{x^2}\) is translated by 2 units in the positive \(x\)-direction.
State the equation of the curve after it has been translated. [2]
(c) The curve \(y = -\dfrac{1}{x^2}\) is stretched parallel to the \(y\)-axis with scale factor \(\frac{1}{2}\) and, as a result, the point \(\left(\frac{1}{2}, -4\right)\) on the curve is transformed to the point \(P\).
State the coordinates of \(P\). [2]

June 2018 Paper 1 Q6

OCR ACurrent spec7 marksSketching & Transforming Graphs

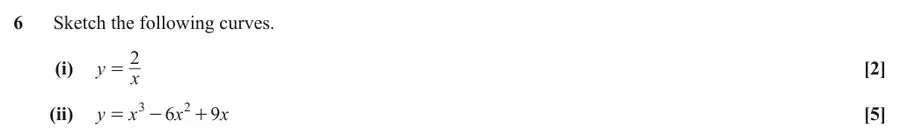

6 Sketch the following curves.

(i) \(y = \dfrac{2}{x}\) [2]

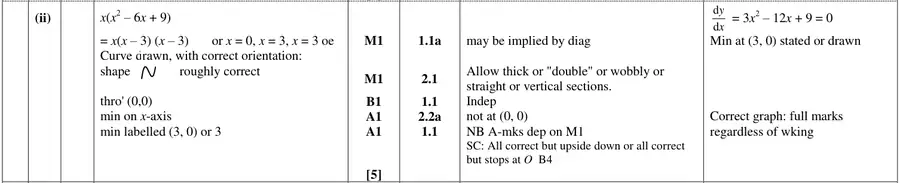

(ii) \(y = x^3 - 6x^2 + 9x\) [5]

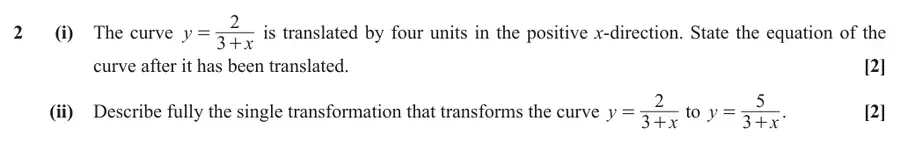

June 2018 Paper 2 Q2

OCR ACurrent spec4 marksSketching & Transforming Graphs

2

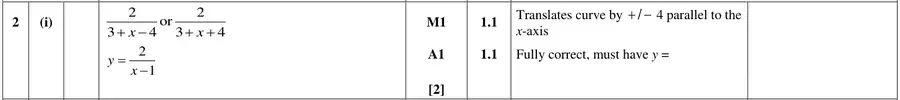

(i) The curve \(y = \dfrac{2}{3 + x}\) is translated by four units in the positive \(x\)-direction. State the equation of the curve after it has been translated. [2]

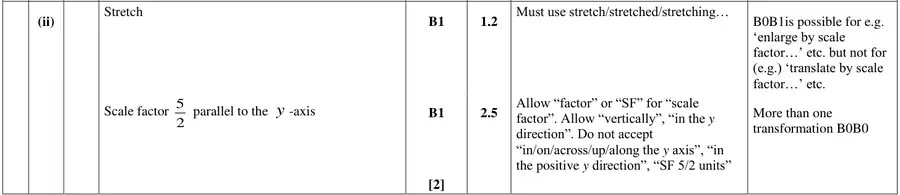

(ii) Describe fully the single transformation that transforms the curve \(y = \dfrac{2}{3 + x}\) to \(y = \dfrac{5}{3 + x}\). [2]

June 2025 Paper 2 Q15

15

(a) On the axes in the Printed Answer Booklet, sketch the graph of \(y = 3^x\). [2]
Blank axes from the Printed Answer Booklet: y on the vertical axis and x on the horizontal axis
Axes printed in the Printed Answer Booklet
(b) Determine the exact coordinates of the points of intersection of the curve \(y = 3^x\) with the curve \({y = 3^{2x} - 6 \times 3^x + 12}\). [5]

June 2023 Paper 1 Q9

9 The graph shows the function \(y = \mathrm{e}^{2x}\).

Graph of y = e^(2x): an increasing exponential curve approaching the negative x-axis on the left, crossing the positive y-axis and rising steeply
(a) Describe the transformation of the graph of \(y = \mathrm{e}^x\) that gives the graph of \(y = \mathrm{e}^{2x}\). [2]

A second function is defined by \(y = k + \mathrm{e}^x\).

(b) A copy of the graph of \(y = \mathrm{e}^{2x}\) is given in the Printed Answer Booklet.

Add a sketch of the graph of \(y = k + \mathrm{e}^x\) in a case where \(k\) is a positive constant. [2]
(c) Show that the two graphs do not intersect for values of \(k\) less than \(-\frac{1}{4}\). [3]
(d) In the case where \(k = 2\), show that the only point of intersection occurs when \(x = \ln 2\). [2]

June 2023 Paper 2 Q4

OCR MEICurrent spec3 marksSketching & Transforming Graphs

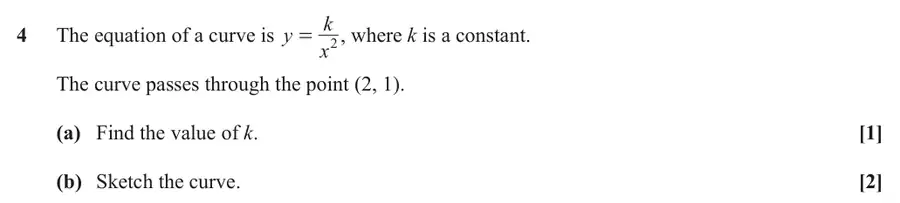

4 The equation of a curve is \(y = \dfrac{k}{x^2}\), where \(k\) is a constant.

The curve passes through the point (2, 1).

(a) Find the value of \(k\). [1]

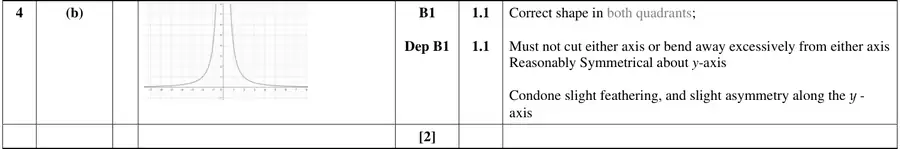

(b) Sketch the curve. [2]

June 2022 Paper 2 Q7

7

(a) On the pair of axes below, sketch the graphs of
  • \(y = 2x + 4\)
  • \(y = \dfrac{2}{x}\) [2]
Pair of axes from the Printed Answer Booklet on a grid: x from −4 to 2 and y from −4 to 8
(b) Determine the \(x\)-coordinates of the points of intersection of the line \(y = 2x + 4\) and the curve \(y = \dfrac{2}{x}\), giving your answers in an exact form. [5]

June 2022 Paper 1 Q4

4 The quadratic function \(\mathrm{f}(x)\) is given by \(\mathrm{f}(x) = x^2 - 3x + 2\).

(a) Write \(\mathrm{f}(x)\) in the form \((x + a)^2 + b\), where \(a\) and \(b\) are constants. [2]
(b) Write down the coordinates of the minimum point on the graph of \(y = \mathrm{f}(x)\). [2]
(c) Describe fully the transformation that maps the graph of \(y = \mathrm{f}(x)\) onto the graph of \(y = (x + 1)^2 - \frac{1}{4}\). [2]

October 2021 Paper 1 Q9

9

(a) Sketch both of the following on the axes provided below.
Blank pair of axes from the Printed Answer Booklet: x-axis and y-axis crossing at the origin O
(i) The curve \(y = \dfrac{12}{x}\), stating the coordinates of at least one point on the curve. [2]
(ii) The line \(y = 2x + 8\), stating the coordinates of the points at which the line crosses the axes. [2]
(b) In this question you must show detailed reasoning.

Determine the exact coordinates of the points of intersection of the curve and the line. [5]

June 2019 Paper 1 Q11

OCR MEICurrent spec11 marksModellingSketching & Transforming Graphs

11 David puts a block of ice into a cool-box. He wishes to model the mass \(m\) kg of the remaining block of ice at time \(t\) hours later. He finds that when \(t = 5,\ m = 2.1\), and when \(t = 50,\ m = 0.21\).

(a) David at first guesses that the mass may be inversely proportional to time. Show that this model fits his measurements. [3]
(b) Explain why this model
(i) is not suitable for small values of \(t\), [1]
(ii) cannot be used to find the time for the block to melt completely. [1]

David instead proposes a linear model \(m = at + b\), where \(a\) and \(b\) are constants.

(c) Find the values of the constants for which the model fits the mass of the block when \(t = 5\) and \(t = 50\). [3]
(d) Interpret these values of \(a\) and \(b\). [2]
(e) Find the time according to this model for the block of ice to melt completely. [1]

June 2019 Paper 1 Q7

7 In this question you must show detailed reasoning.

(a) Nigel is asked to determine whether \((x + 7)\) is a factor of \(x^3 - 37x + 84\). He substitutes \(x = 7\) and calculates \(7^3 - 37 \times 7 + 84\). This comes to 168, so Nigel concludes that \((x + 7)\) is not a factor.

Nigel’s conclusion is wrong.

  • Explain why Nigel’s argument is not valid.
  • Show that \((x + 7)\) is a factor of \(x^3 - 37x + 84\).
[2]
(b) Sketch the graph of \(y = x^3 - 37x + 84\), indicating the coordinates of the points at which the curve crosses the coordinate axes. [5]
(c) The graph in part (b) is translated by \(\begin{pmatrix} 1 \\ 0 \end{pmatrix}\). Find the equation of the translated graph, giving your answer in the form \(y = x^3 + ax^2 + bx + c\) where \(a\), \(b\) and \(c\) are integers. [4]

June 2018 Paper 1 Q9

9 The curve \(y = (x - 1)^2\) maps onto the curve \(\text{C}_1\) following a stretch scale factor \(\frac{1}{2}\) in the \(x\)-direction.

(i) Show that the equation of \(\text{C}_1\) can be written as \(y = 4x^2 - 4x + 1\). [2]

The curve \(\text{C}_2\) is a translation of \(y = 4.25x - x^2\) by \(\begin{pmatrix} 0 \\ -3 \end{pmatrix}\).

(ii) Show that the normal to the curve \(\text{C}_1\) at the point \((0, 1)\) is a tangent to the curve \(\text{C}_2\). [7]

June 2025 Unit 1 Q12

WJECCurrent spec4 marksSketching & Transforming Graphs

12. The diagram below shows the graph of \(y=f(x)\).

Graph of y = f(x): a U-shaped curve with its minimum on the x-axis at x = 1, crossing the y-axis just above the origin

Draw a sketch of each of the following transformations on the diagrams provided.
Clearly label the coordinates of the stationary point in each case.

(a) \(y=f(x+4)\) [2]
Copy of the graph of y = f(x), minimum at (1, 0), for sketching y = f(x + 4)
(b) \(y=f\left(\dfrac{1}{2}x\right)\) [2]
Copy of the graph of y = f(x), minimum at (1, 0), for sketching y = f(x/2)

June 2025 Unit 1 Q6

6. The function \(f\) is defined by \(f(x)=x^3-3x^2-6x+8\).

(a) Use an algebraic method to solve the equation \(f(x)=0\). Show all your working. [6]

The curve \(C\) has equation \(y=f(x)\).

(b) Find the \(x\)-coordinates of the stationary points of \(C\) and determine their nature. [7]
(c) Sketch the curve \(C\), clearly labelling the points where the curve crosses the \(x\) and \(y\) axes. [3]

June 2024 Unit 1 Q11

11.

(a) Sketch the graph of \(y=3^x\). Clearly label the coordinates of the point where the graph crosses the \(y\)-axis. [2]
(b) On the same set of axes, sketch the graph of \(y=3^{(x+1)}\), clearly labelling the coordinates of the point where the graph crosses the \(y\)-axis. [2]

June 2023 Unit 1 Q11

WJECCurrent spec7 marksSketching & Transforming Graphs

11. The function \(f\) is defined by \(f(x)=\dfrac{8}{x^2}\).

(a) Sketch the graph of \(y=f(x)\). [2]
(b) On a separate set of axes, sketch the graph of \(y=f(x-2)\). Indicate the vertical asymptote and the point where the curve crosses the \(y\)-axis. [3]
(c) Sketch the graphs of \(y=\dfrac{8}{x}\) and \(y=\dfrac{8}{(x-2)^2}\) on the same set of axes.

Hence state the number of roots of the equation \(\dfrac{8}{(x-2)^2}=\dfrac{8}{x}\). [2]

June 2022 Unit 1 Q5

5. The curve \(C_1\) has equation \(y=-x^2+2x+3\) and the curve \(C_2\) has equation \(y=x^2-x-6\). The two curves intersect at the points \(A\) and \(B\).

(a) Determine the coordinates of \(A\) and \(B\). [4]
(b) On the same set of axes, sketch the graphs of \(C_1\) and \(C_2\). Clearly label the points where the two curves intersect. [3]
(c) In the diagram drawn in part (b), shade the region satisfying the following inequalities: [2]\[\begin{aligned}&x>0,\\ &y<-x^2+2x+3,\\ &y>x^2-x-6.\end{aligned}\]

June 2022 Unit 1 Q1

1. Write down the inverse function of \(y=\mathrm{e}^x\). On the same set of axes, sketch the graphs of \(y=\mathrm{e}^x\) and its inverse function, clearly labelling the coordinates of the points where the graphs cross the \(x\) and \(y\) axes. [3]

June 2018 Unit 1 Q5

WJECCurrent spec4 marksSketching & Transforming Graphs

5. The diagram below shows a sketch of \(y=f(x)\).

Sketch of y = f(x): one branch in the first quadrant and one in the third quadrant, approaching both axes
(a) Sketch the graph of \(y=4+f(x)\), clearly indicating any asymptotes. [2]
(b) Sketch the graph of \(y=f(x-3)\), clearly indicating any asymptotes. [2]
