Co-ordinate Geometry

More questions on this topic: GCSE Algebra: Linear Graphs & Gradients (341) IGCSE Algebra: Linear Graphs & Gradients (214) Level 2 FM Algebra: Linear Graphs (40) A2 Pure: Co-ordinate Geometry (77) Level 2 FM Algebra: Circles in Coordinate Geometry (17)

Your progress
0 of 125 done
Ticks are kept only in this browser: clearing your browsing data or changing device loses them. · ·

Edexcel

Edexcel · Old spec

AQA

OCR A

OCR MEI

WJEC

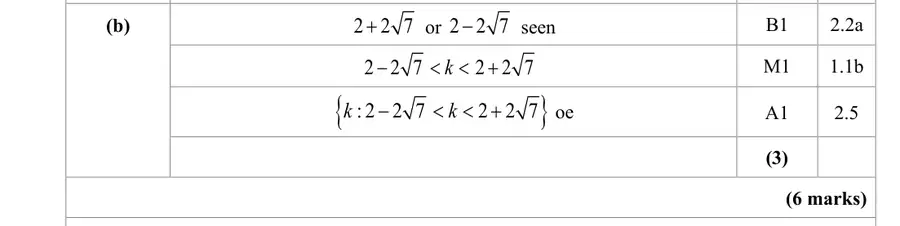

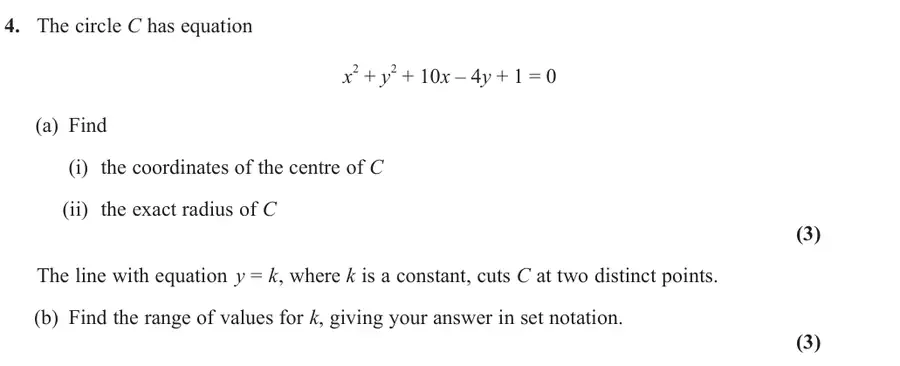

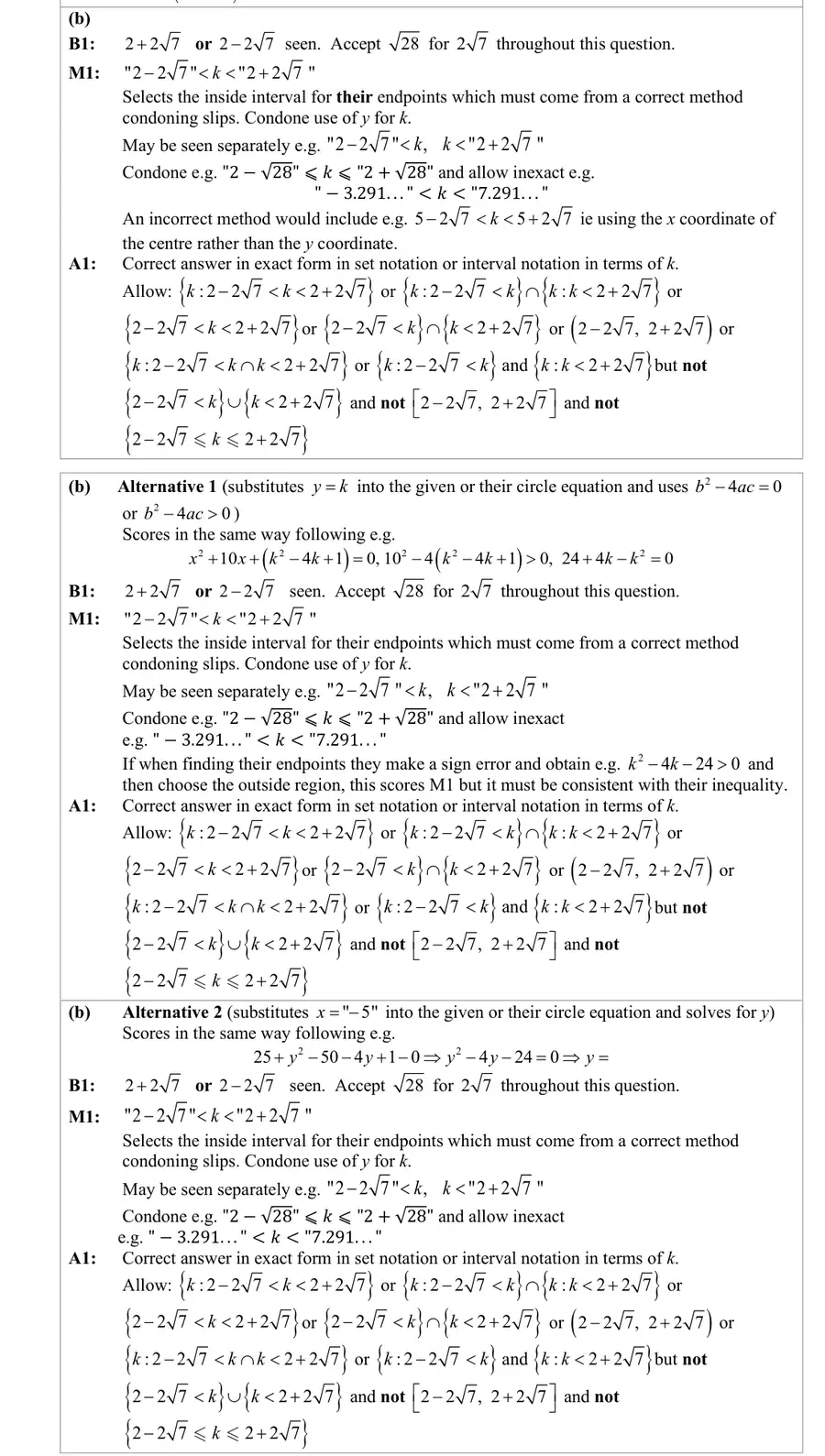

June 2025 Paper 1 Q4

EdexcelCurrent spec6 marksCo-ordinate GeometryQuadratics

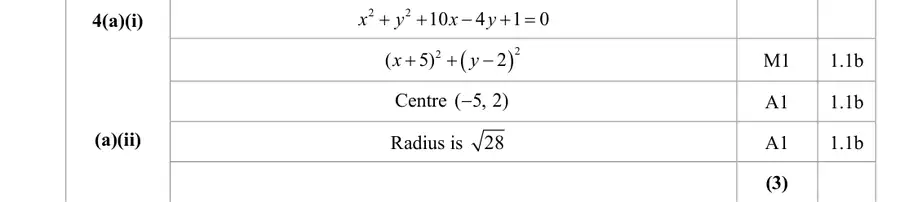

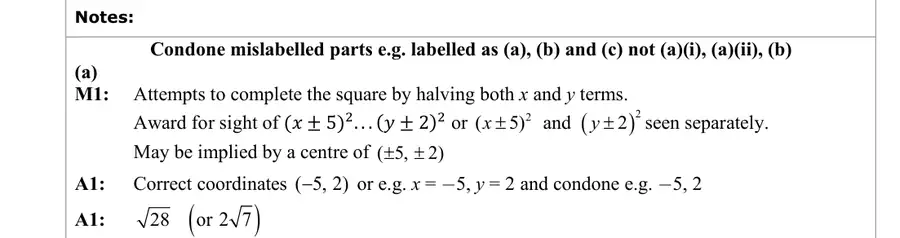

4. The circle \(C\) has equation\[x^2 + y^2 + 10x - 4y + 1 = 0\]

(a) Find
(i) the coordinates of the centre of \(C\)
(ii) the exact radius of \(C\) (3)

The line with equation \(y = k\), where \(k\) is a constant, cuts \(C\) at two distinct points.

(b) Find the range of values for \(k\), giving your answer in set notation. (3)

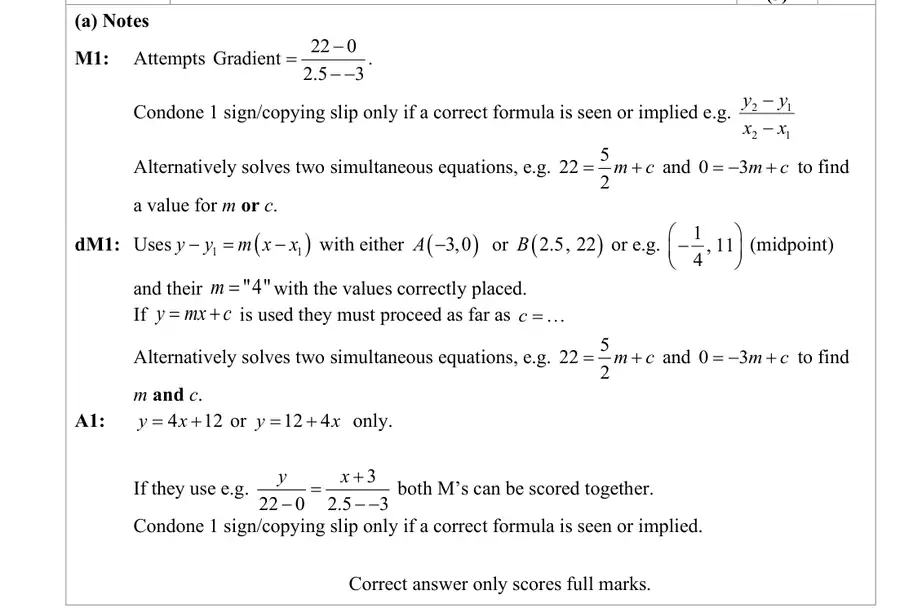

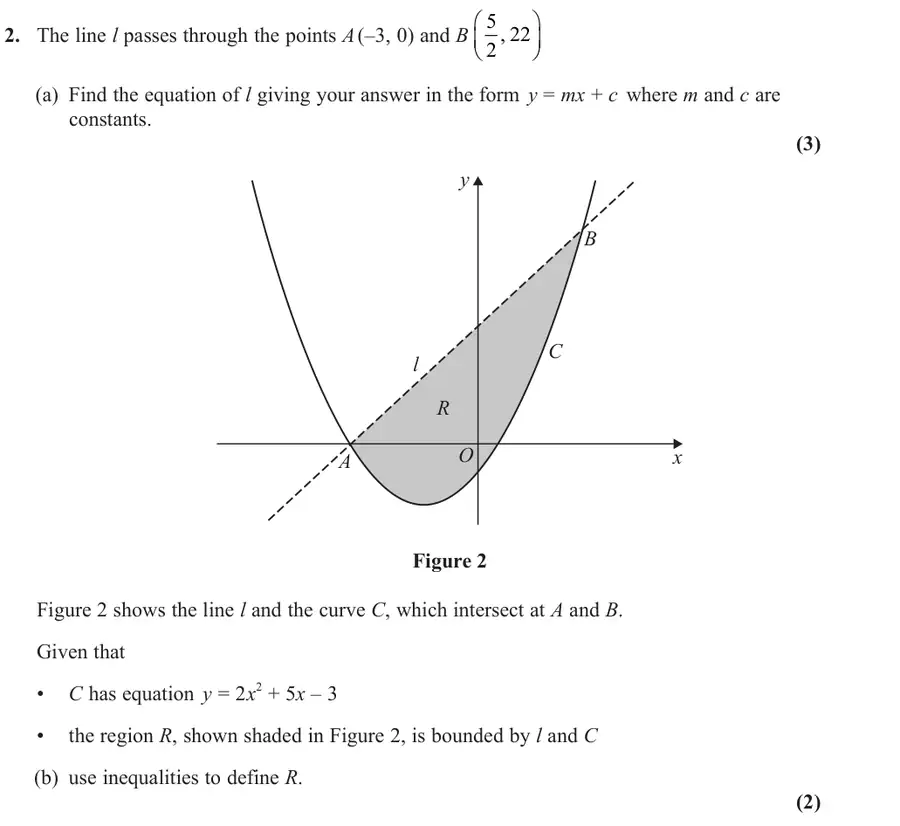

June 2025 Paper 1 Q2

EdexcelCurrent spec5 marksCo-ordinate GeometryQuadratics

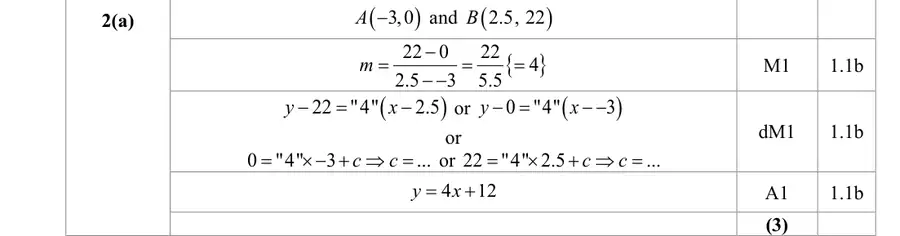

2. The line \(l\) passes through the points \(A(-3,\ 0)\) and \(B\left(\dfrac{5}{2},\ 22\right)\)

(a) Find the equation of \(l\) giving your answer in the form \(y = mx + c\) where \(m\) and \(c\) are constants. (3)
Figure 2: U-shaped curve C and dashed straight line l intersecting at A on the negative x-axis and at B in the first quadrant; the region R between l and C is shaded
Figure 2

Figure 2 shows the line \(l\) and the curve \(C\), which intersect at \(A\) and \(B\).

Given that

  • \(C\) has equation \(y = 2x^2 + 5x - 3\)
  • the region \(R\), shown shaded in Figure 2, is bounded by \(l\) and \(C\)

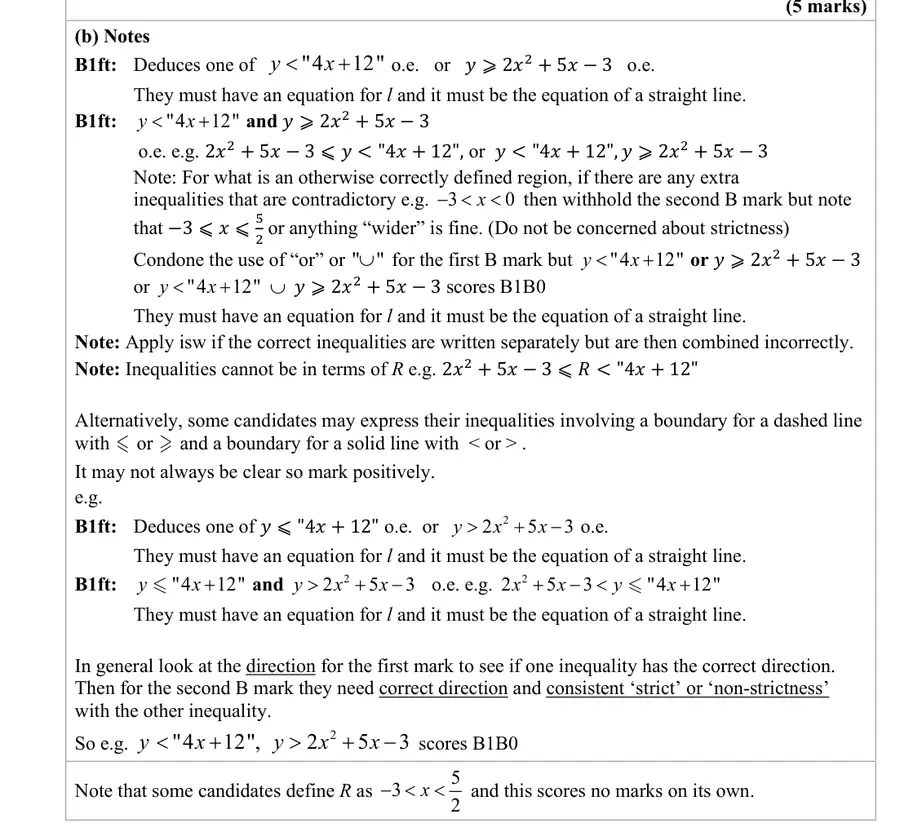

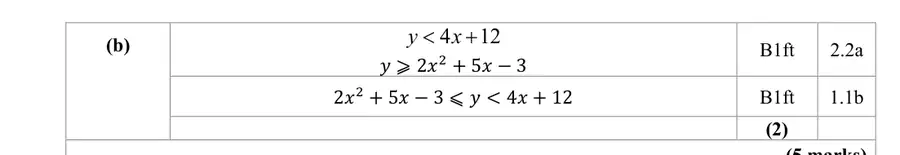

(b) use inequalities to define \(R\). (2)

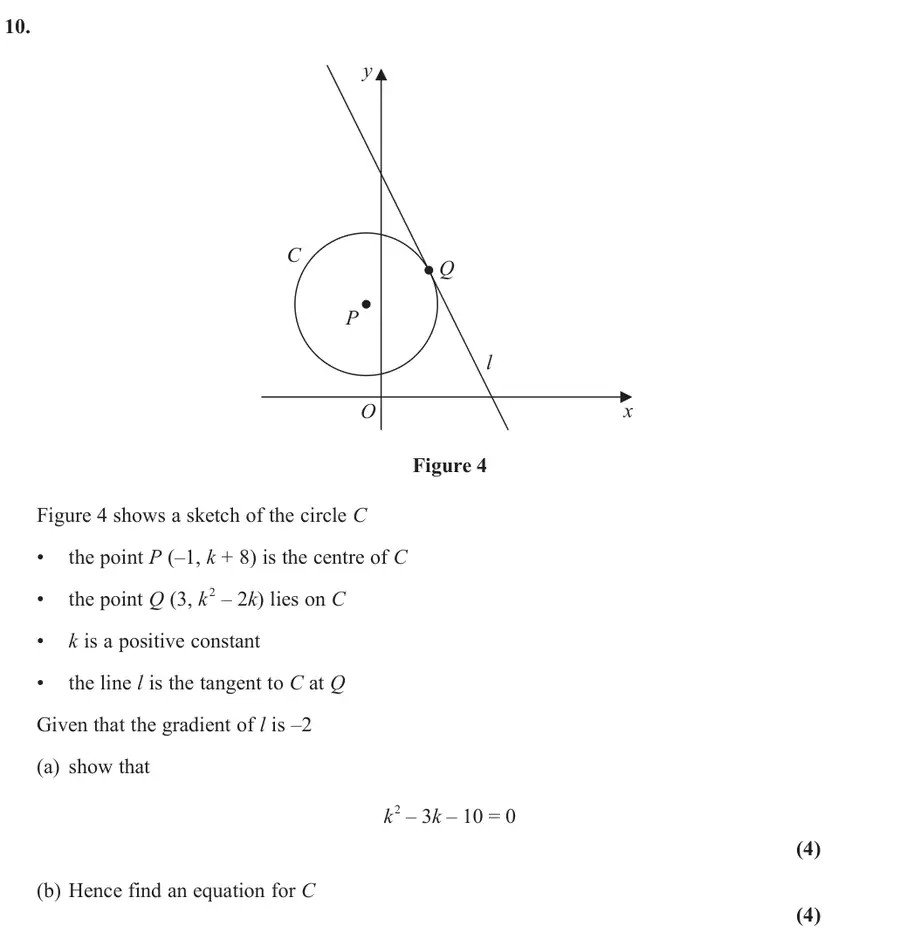

June 2024 Paper 1 Q10

EdexcelCurrent spec8 marksCo-ordinate Geometry

10.

Figure 4: circle C with centre P in the second quadrant, and straight line l with negative gradient touching C at Q in the first quadrant
Figure 4

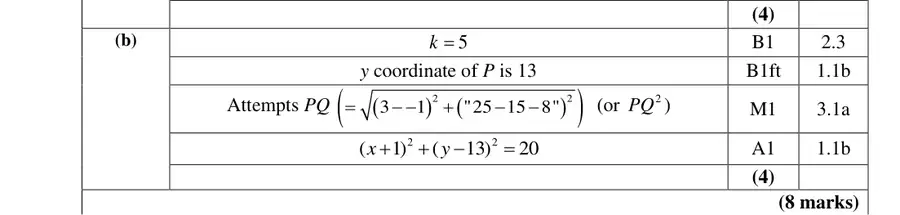

Figure 4 shows a sketch of the circle \(C\)

  • the point \(P\,(-1,\ k + 8)\) is the centre of \(C\)
  • the point \(Q\,(3,\ k^2 - 2k)\) lies on \(C\)
  • \(k\) is a positive constant
  • the line \(l\) is the tangent to \(C\) at \(Q\)

Given that the gradient of \(l\) is \(-2\)

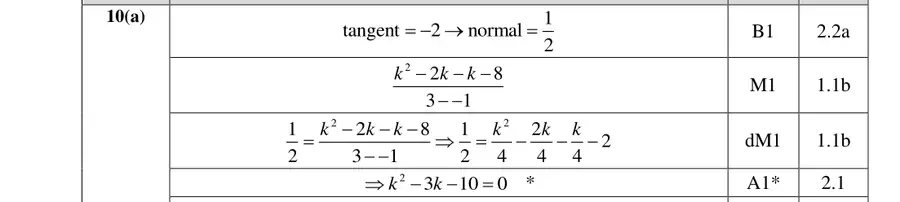

(a) show that\[k^2 - 3k - 10 = 0\] (4)

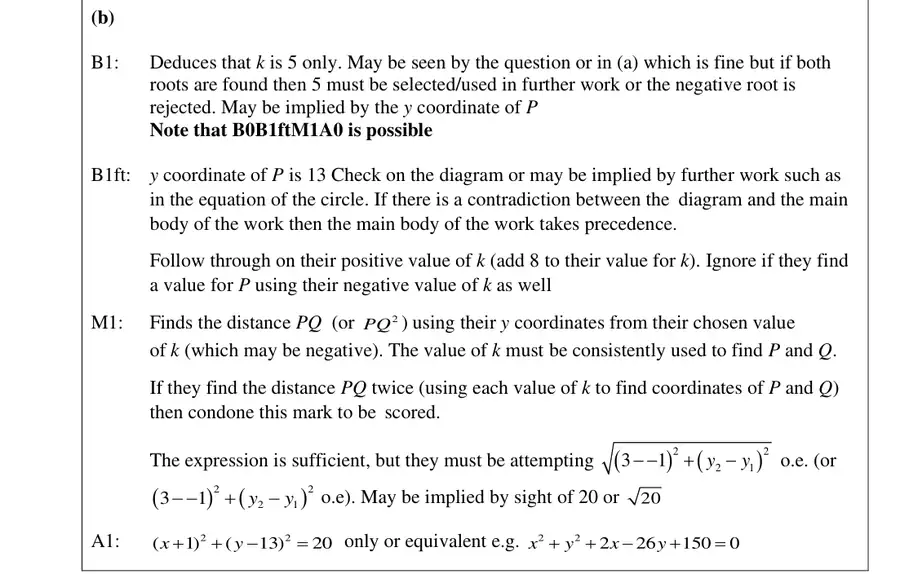

(b) Hence find an equation for \(C\) (4)

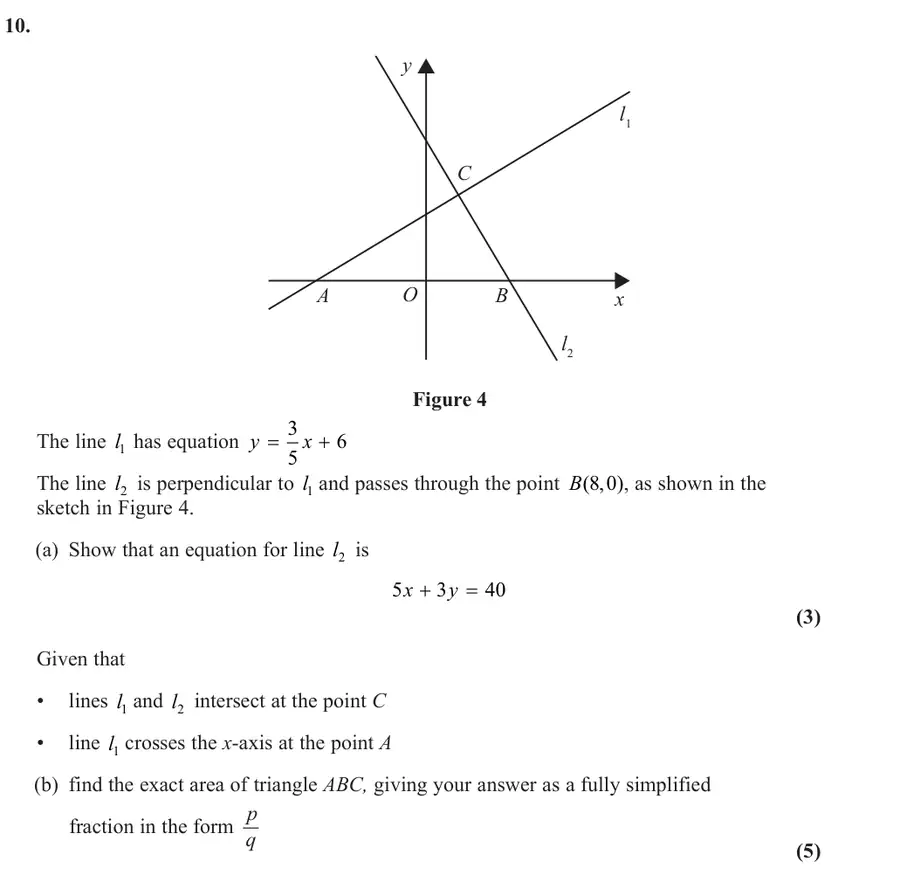

June 2023 Paper 1 Q10

EdexcelCurrent spec8 marksCo-ordinate Geometry

10.

Figure 4: two straight lines: l1 with positive gradient crossing the x-axis at A (left of O); l2 with negative gradient crossing the x-axis at B (right of O); the lines intersect at C above the x-axis
Figure 4

The line \(l_1\) has equation \(y = \dfrac{3}{5}x + 6\)

The line \(l_2\) is perpendicular to \(l_1\) and passes through the point \(B(8, 0)\), as shown in the sketch in Figure 4.

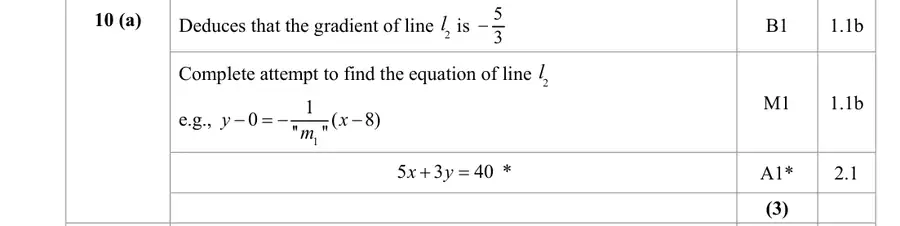

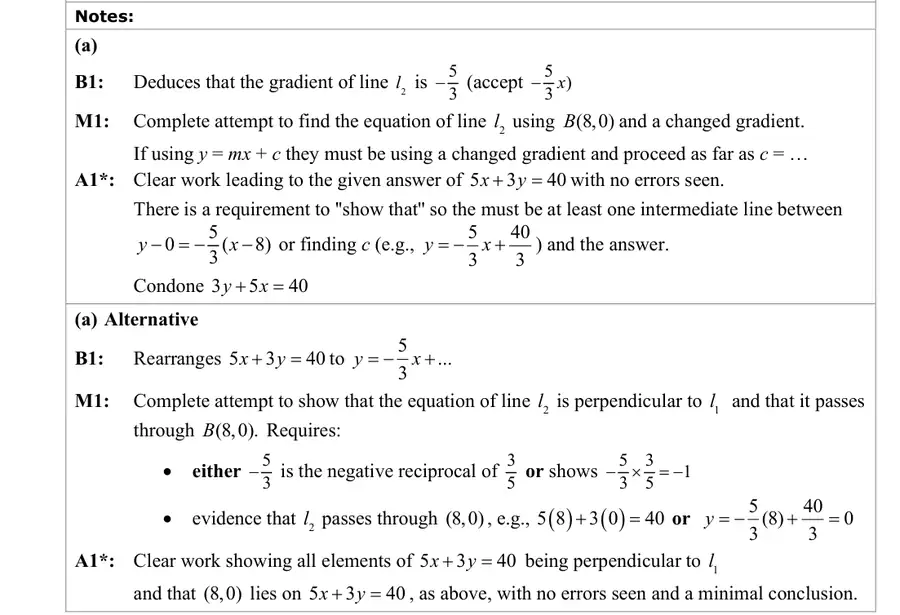

(a) Show that an equation for line \(l_2\) is\[5x + 3y = 40\] (3)

Given that

  • lines \(l_1\) and \(l_2\) intersect at the point \(C\)
  • line \(l_1\) crosses the \(x\)-axis at the point \(A\)

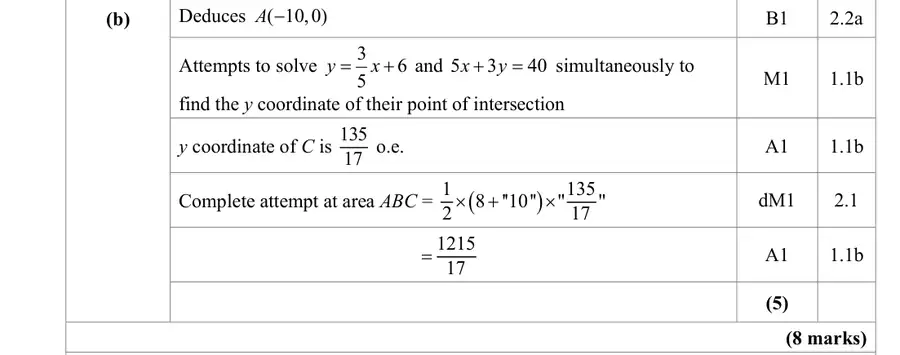

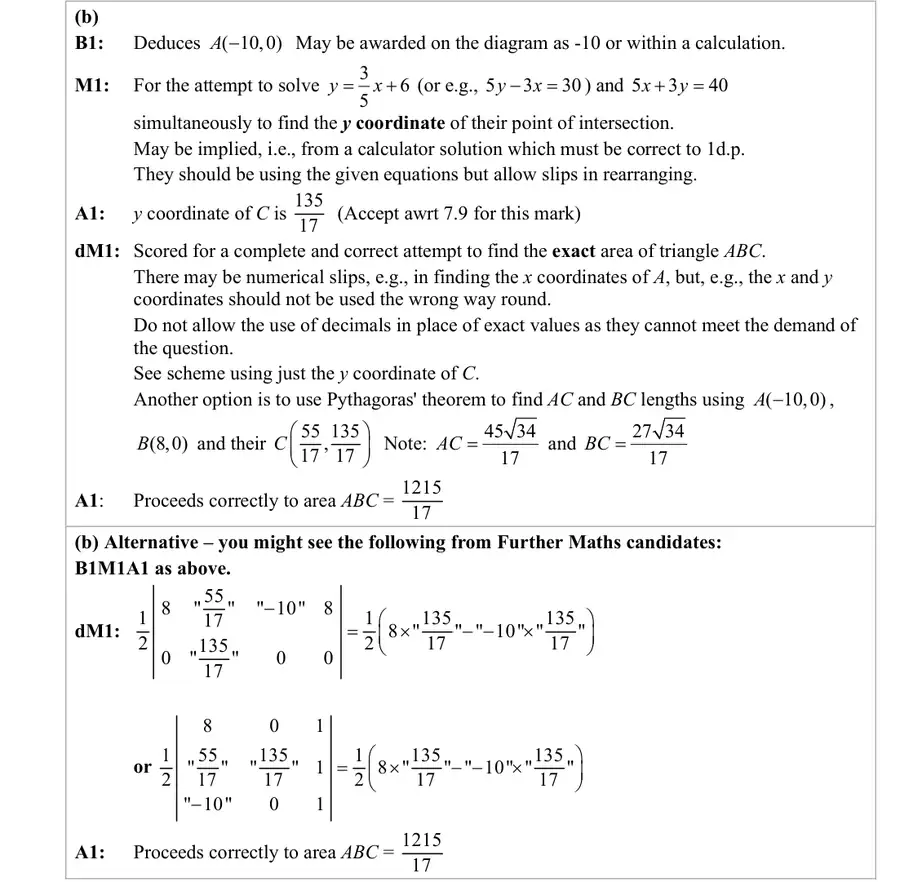

(b) find the exact area of triangle \(ABC\), giving your answer as a fully simplified fraction in the form \(\dfrac{p}{q}\) (5)

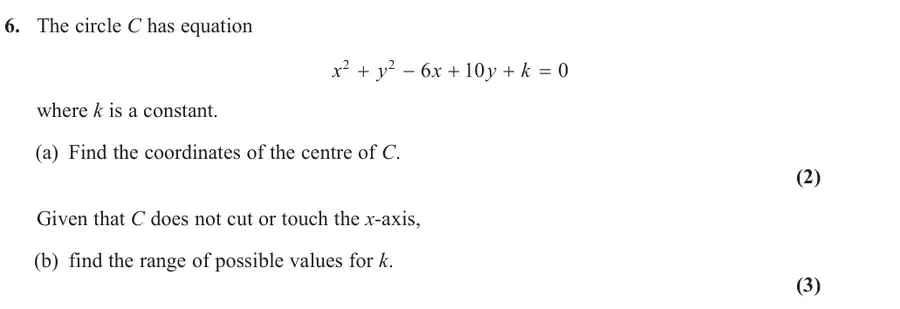

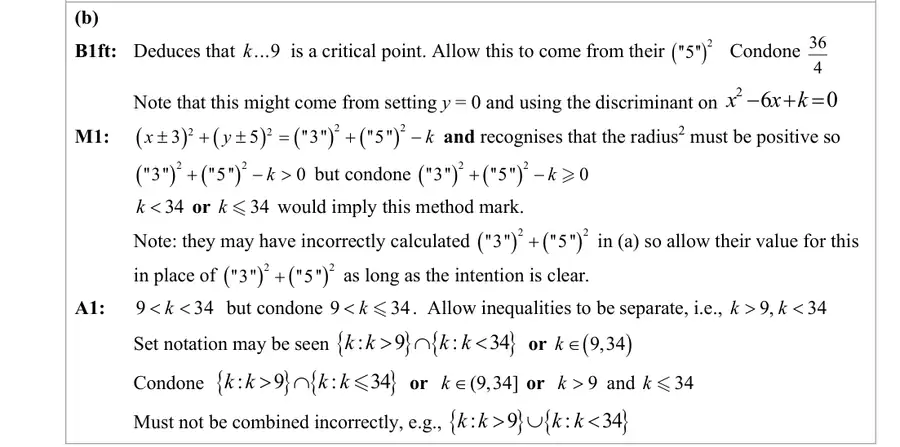

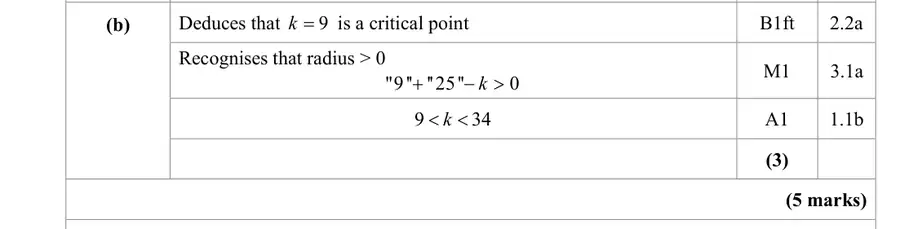

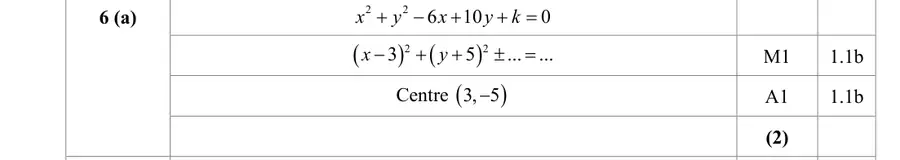

June 2023 Paper 1 Q6

EdexcelCurrent spec5 marksCo-ordinate Geometry

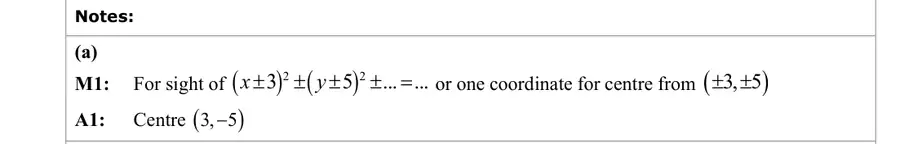

6. The circle \(C\) has equation

\[x^2 + y^2 - 6x + 10y + k = 0\]

where \(k\) is a constant.

(a) Find the coordinates of the centre of \(C\). (2)

Given that \(C\) does not cut or touch the \(x\)-axis,

(b) find the range of possible values for \(k\). (3)

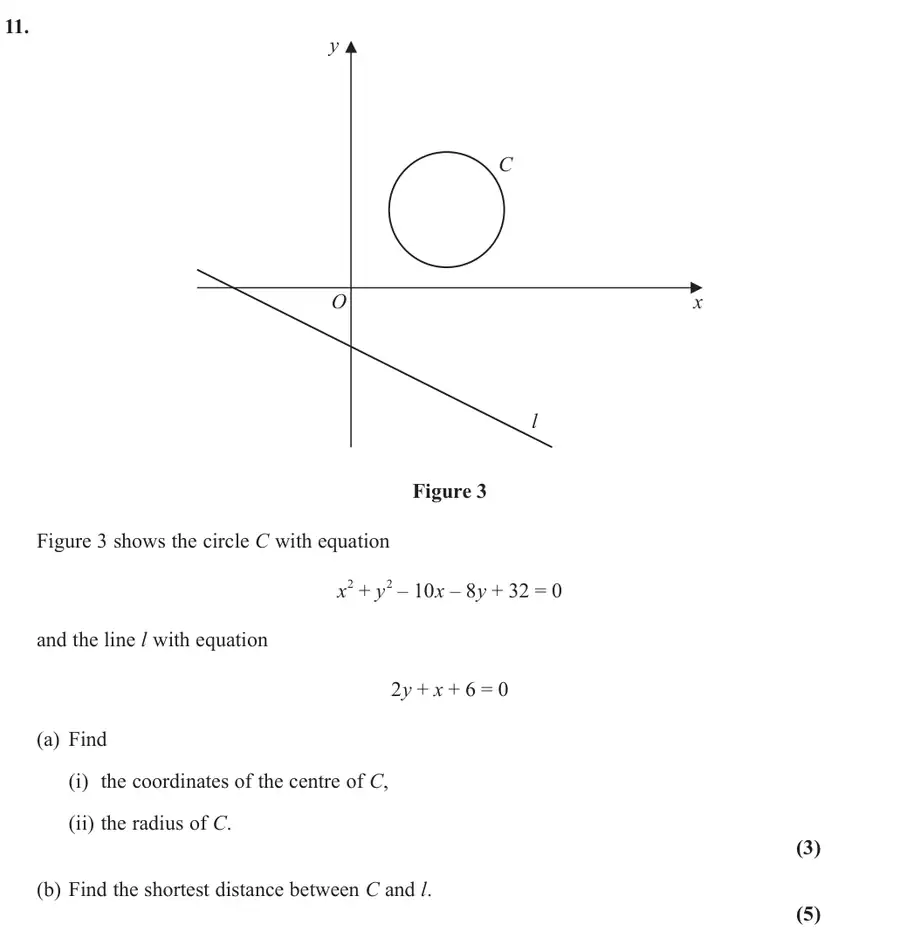

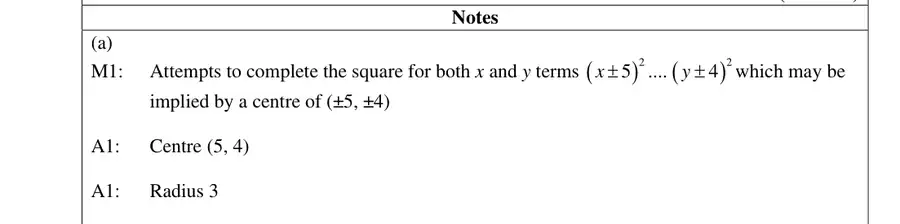

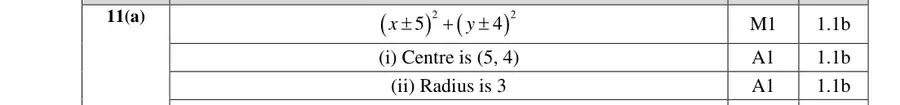

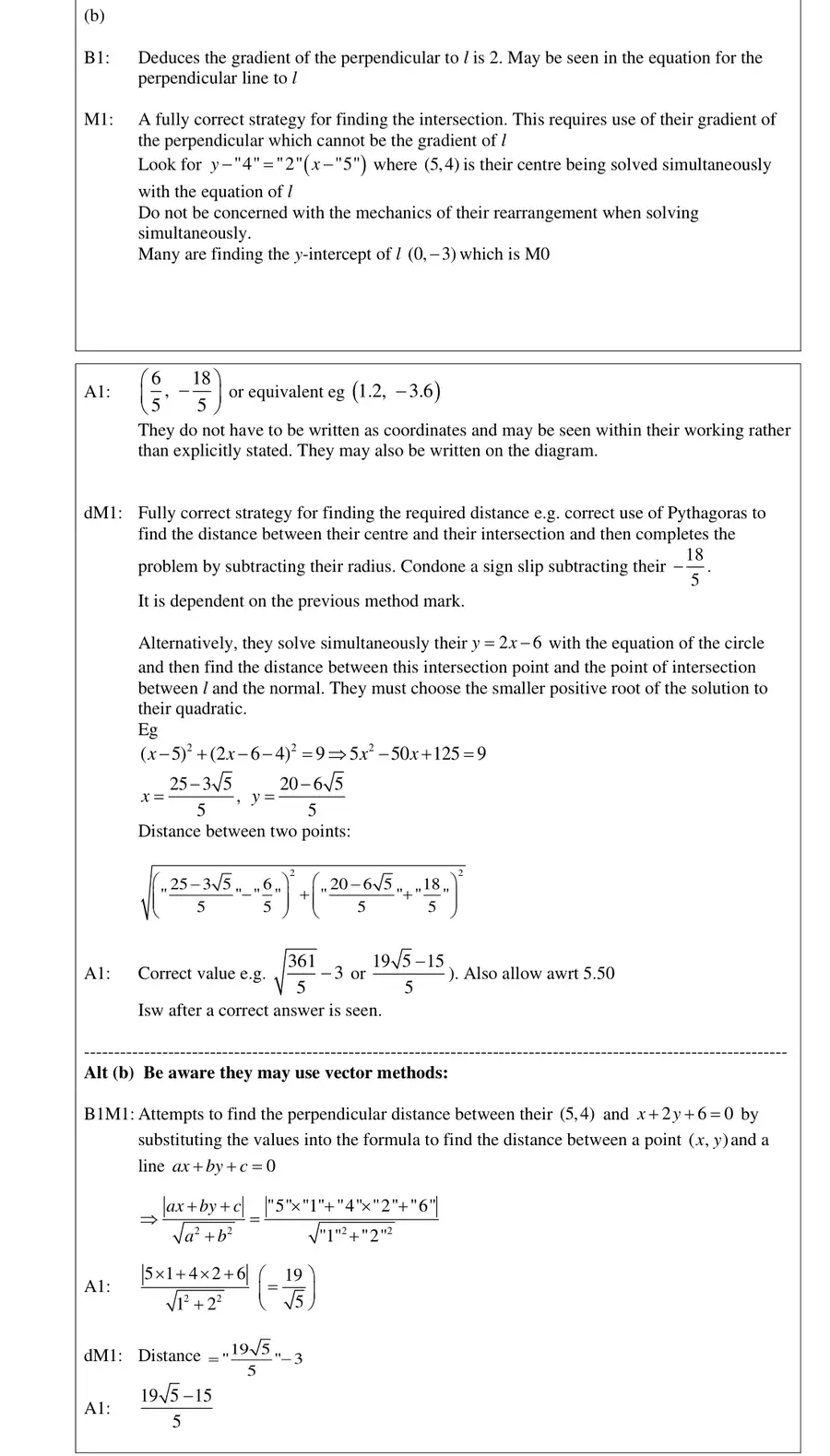

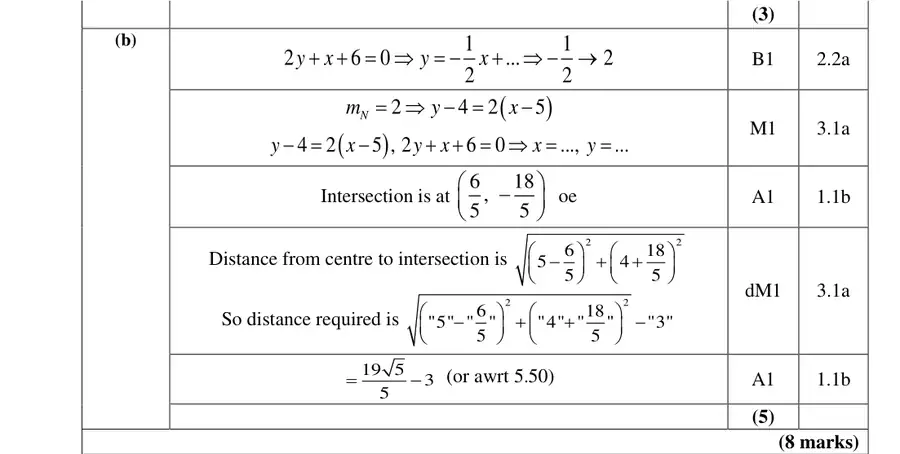

June 2022 Paper 1 Q11

EdexcelCurrent spec8 marksCo-ordinate Geometry

11.

Figure 3: circle C in the first quadrant, above the x-axis, and the line l with negative gradient crossing the negative x-axis and the negative y-axis
Figure 3

Figure 3 shows the circle \(C\) with equation

\[x^2 + y^2 - 10x - 8y + 32 = 0\]

and the line \(l\) with equation

\[2y + x + 6 = 0\]
(a) Find
(i) the coordinates of the centre of \(C\),
(ii) the radius of \(C\). (3)
(b) Find the shortest distance between \(C\) and \(l\). (5)

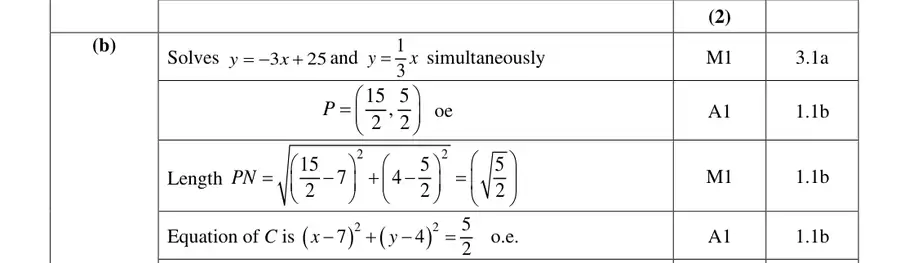

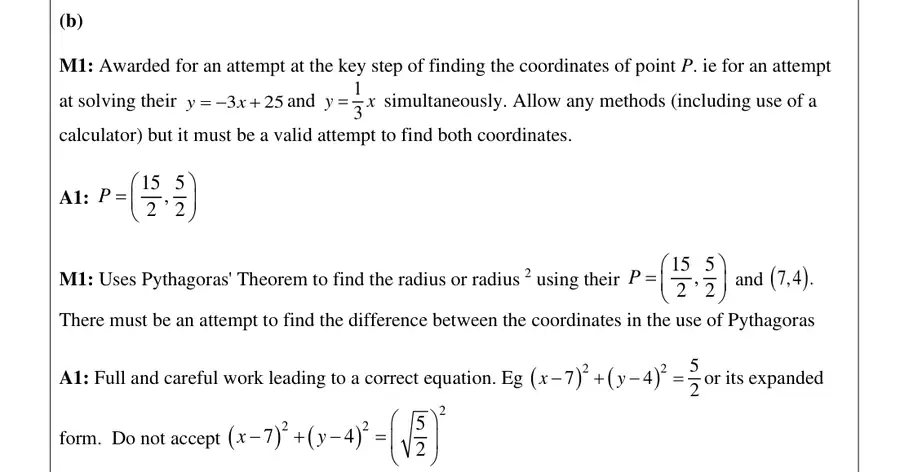

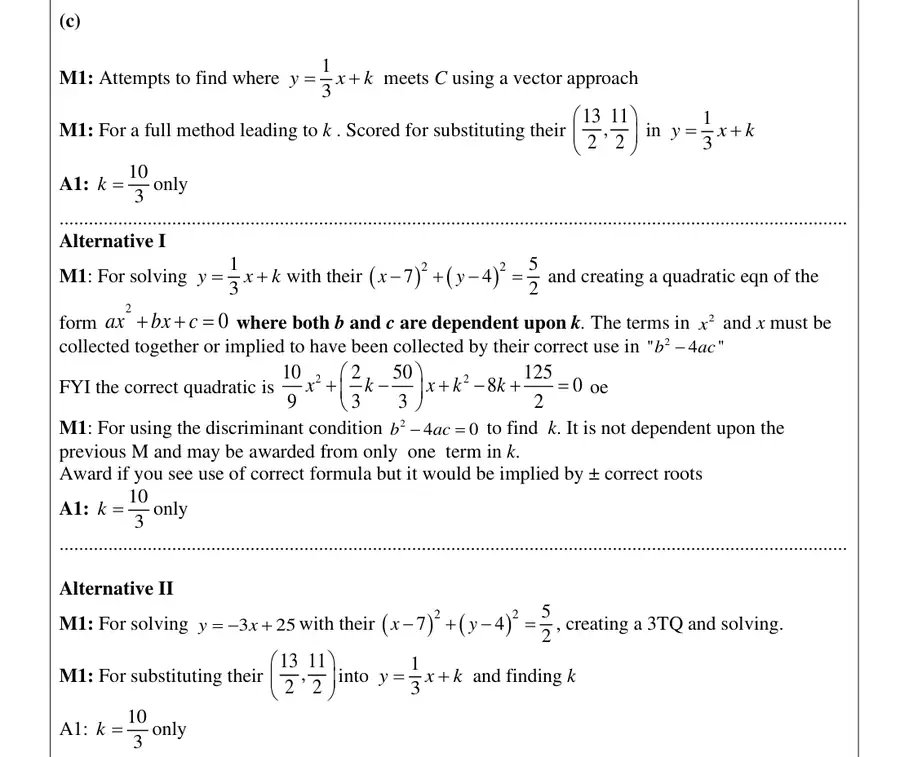

November 2021 Paper 1 Q15

EdexcelCurrent spec9 marksCo-ordinate Geometry

15.

Figure 4: circle C with centre N in the first quadrant; the straight line l through O touches the circle at P, below N
Figure 4

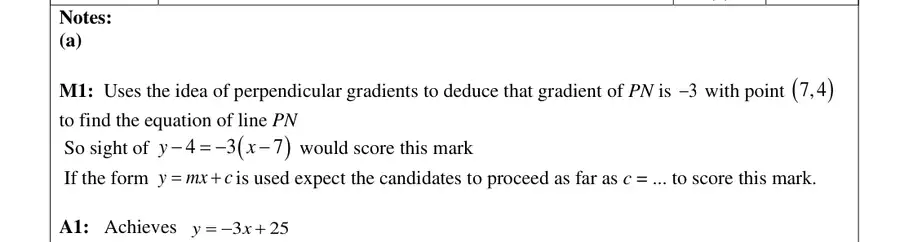

Figure 4 shows a sketch of a circle \(C\) with centre \(N(7, 4)\)

The line \(l\) with equation \(y = \dfrac{1}{3}x\) is a tangent to \(C\) at the point \(P\).

Find

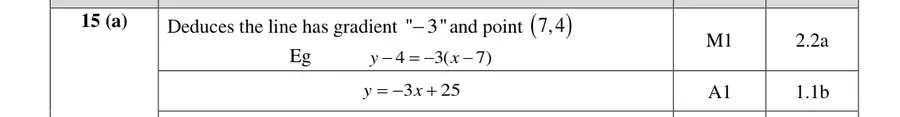

(a) the equation of line \(PN\) in the form \(y = mx + c\), where \(m\) and \(c\) are constants, (2)
(b) an equation for \(C\). (4)

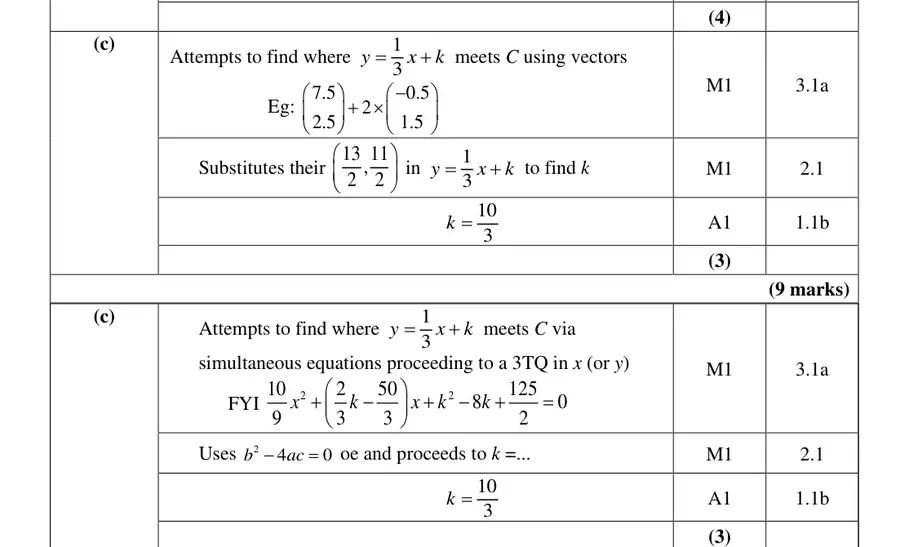

The line with equation \(y = \dfrac{1}{3}x + k\), where \(k\) is a non-zero constant, is also a tangent to \(C\).

(c) Find the value of \(k\). (3)

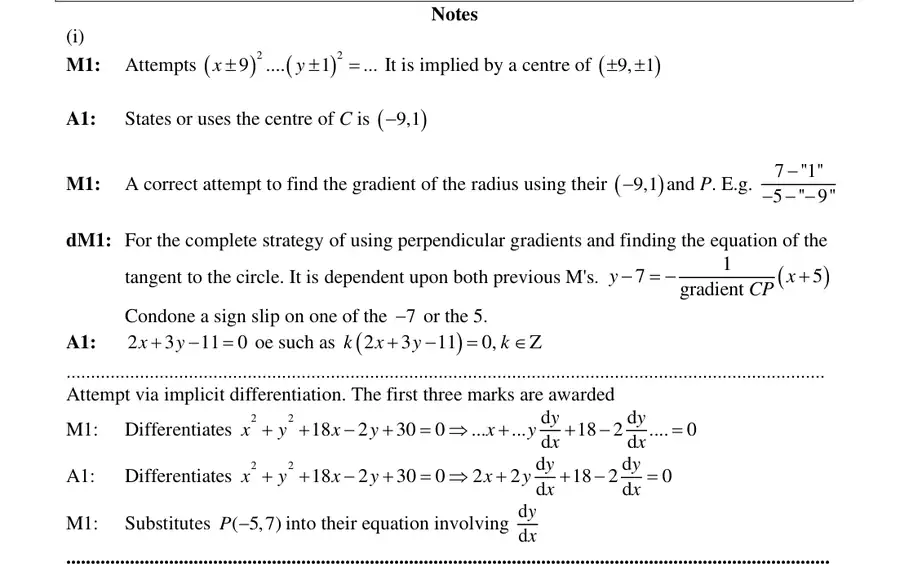

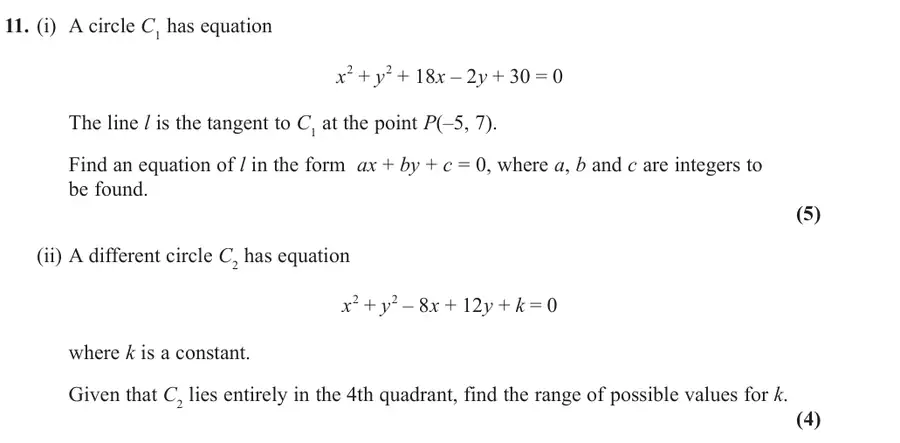

October 2020 Paper 1 Q11

EdexcelCurrent spec9 marksCo-ordinate Geometry

11.

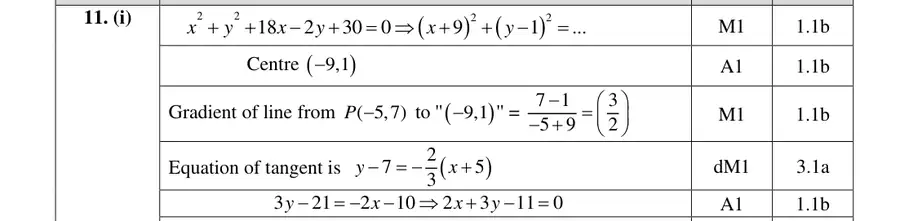

(i) A circle \(C_1\) has equation\[x^2 + y^2 + 18x - 2y + 30 = 0\]

The line \(l\) is the tangent to \(C_1\) at the point \(P(-5, 7)\).

Find an equation of \(l\) in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers to be found.

(5)

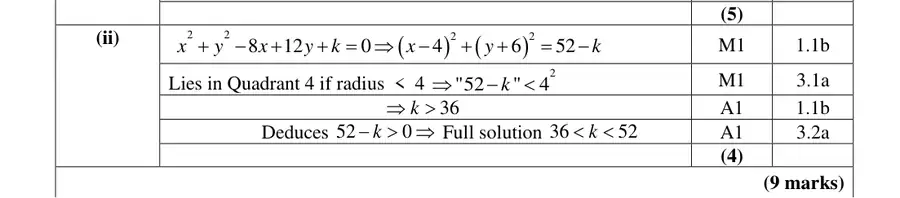

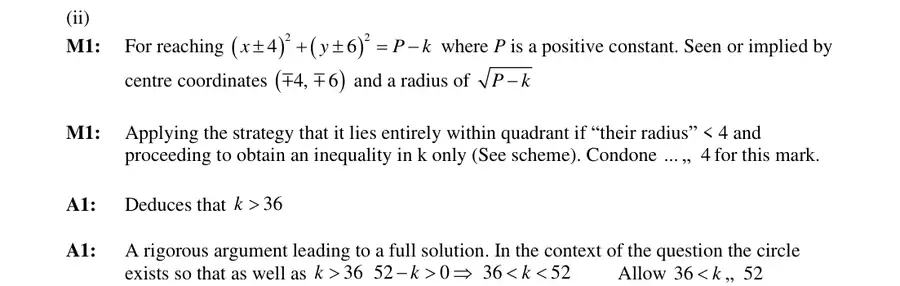

(ii) A different circle \(C_2\) has equation\[x^2 + y^2 - 8x + 12y + k = 0\]where \(k\) is a constant.

Given that \(C_2\) lies entirely in the 4th quadrant, find the range of possible values for \(k\).

(4)

June 2019 Paper 1 Q10

EdexcelCurrent spec5 marksCo-ordinate Geometry

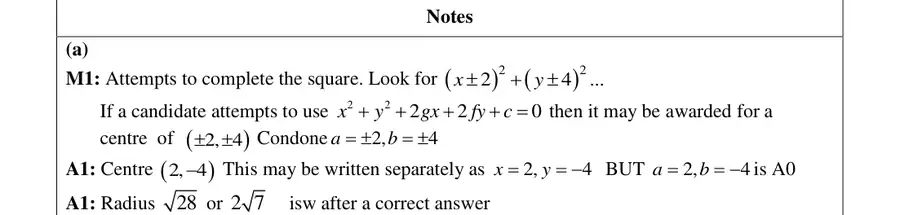

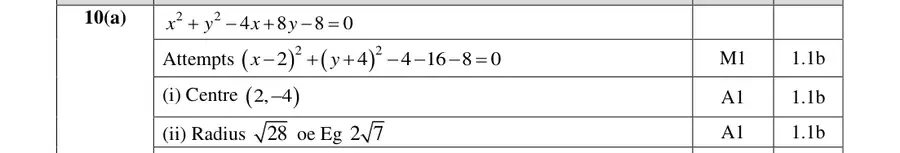

10. A circle \(C\) has equation\[x^2 + y^2 - 4x + 8y - 8 = 0\]

(a) Find
(i) the coordinates of the centre of \(C\),
(ii) the exact radius of \(C\). (3)

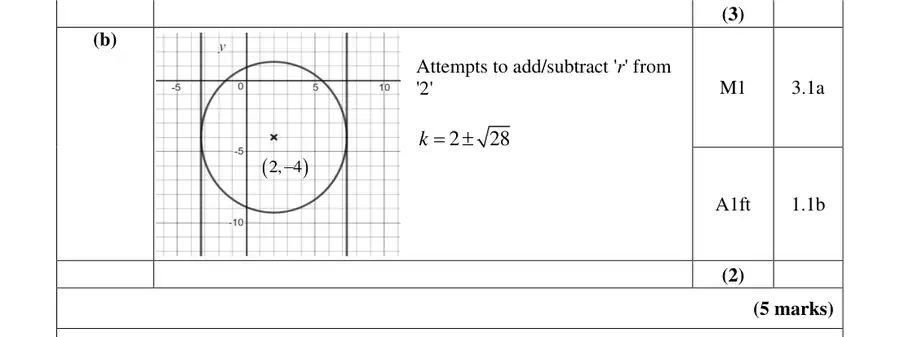

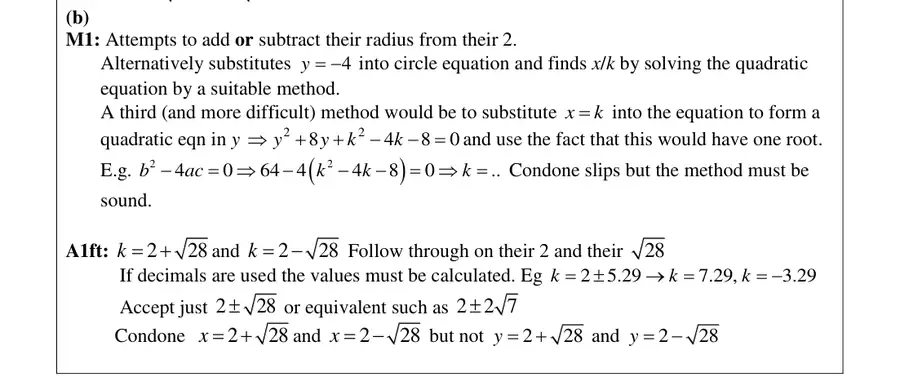

The straight line with equation \(x = k\), where \(k\) is a constant, is a tangent to \(C\).

(b) Find the possible values for \(k\). (2)

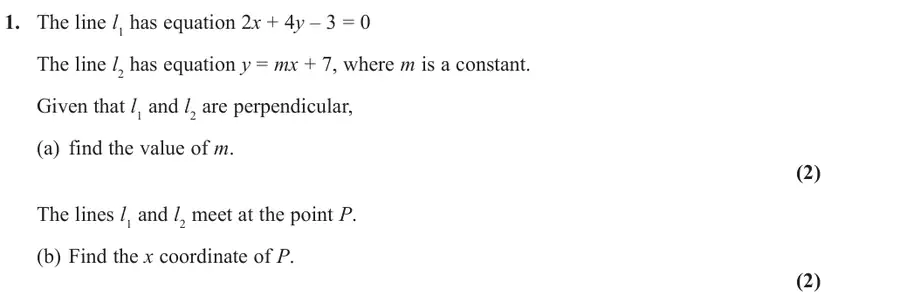

June 2019 Paper 1 Q1

EdexcelCurrent spec4 marksCo-ordinate Geometry

1. The line \(l_1\) has equation \(2x + 4y - 3 = 0\)

The line \(l_2\) has equation \(y = mx + 7\), where \(m\) is a constant.

Given that \(l_1\) and \(l_2\) are perpendicular,

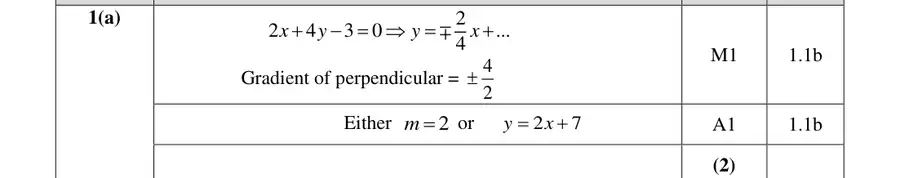

(a) find the value of \(m\). (2)

The lines \(l_1\) and \(l_2\) meet at the point \(P\).

(b) Find the \(x\) coordinate of \(P\). (2)

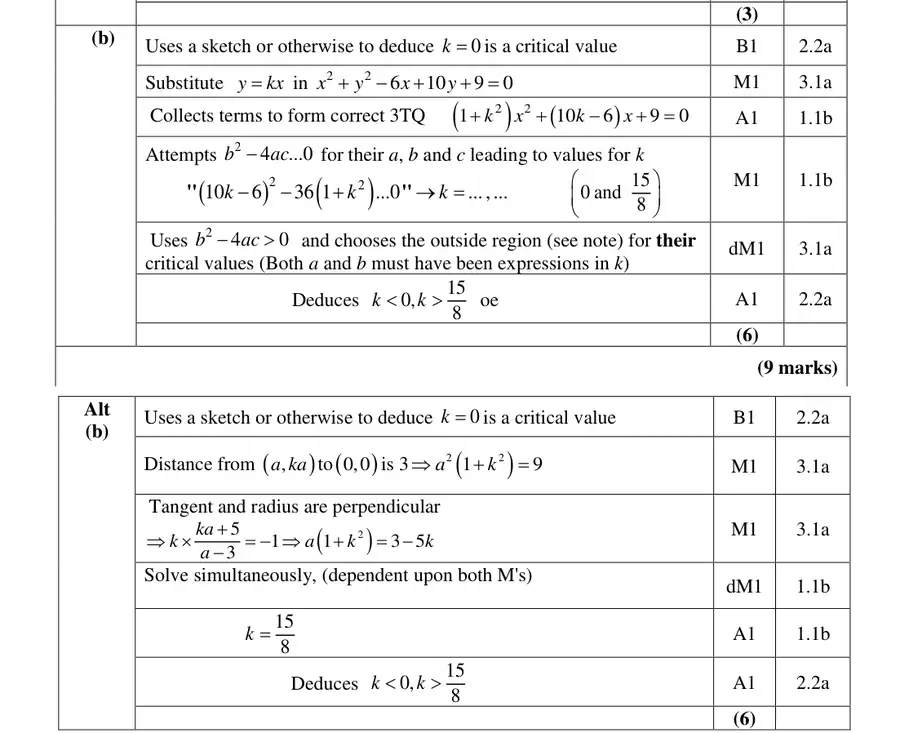

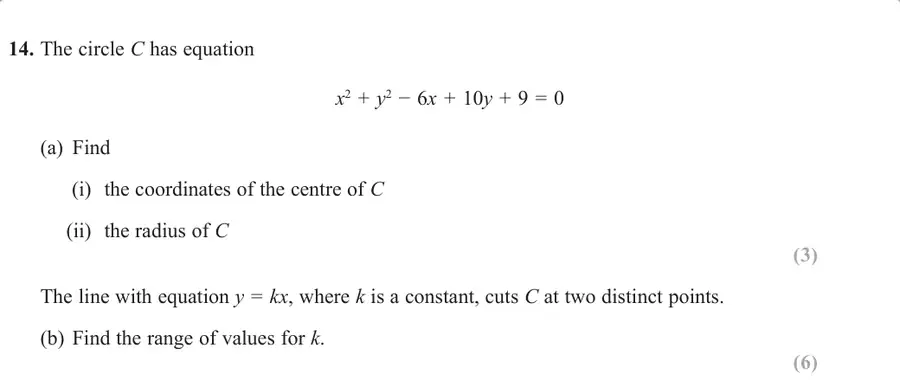

June 2018 Paper 1 Q14

EdexcelCurrent spec9 marksCo-ordinate GeometryQuadratics

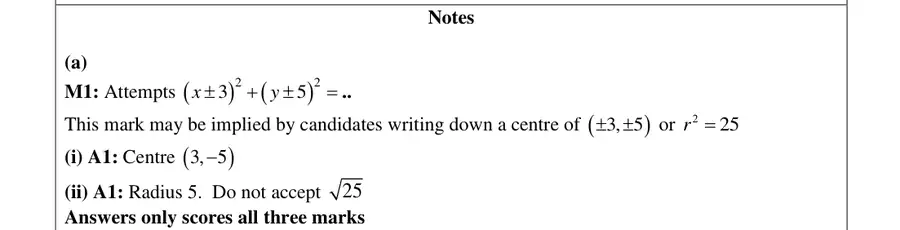

14. The circle \(C\) has equation

\[x^2 + y^2 - 6x + 10y + 9 = 0\]
(a) Find
(i) the coordinates of the centre of \(C\)
(ii) the radius of \(C\) (3)

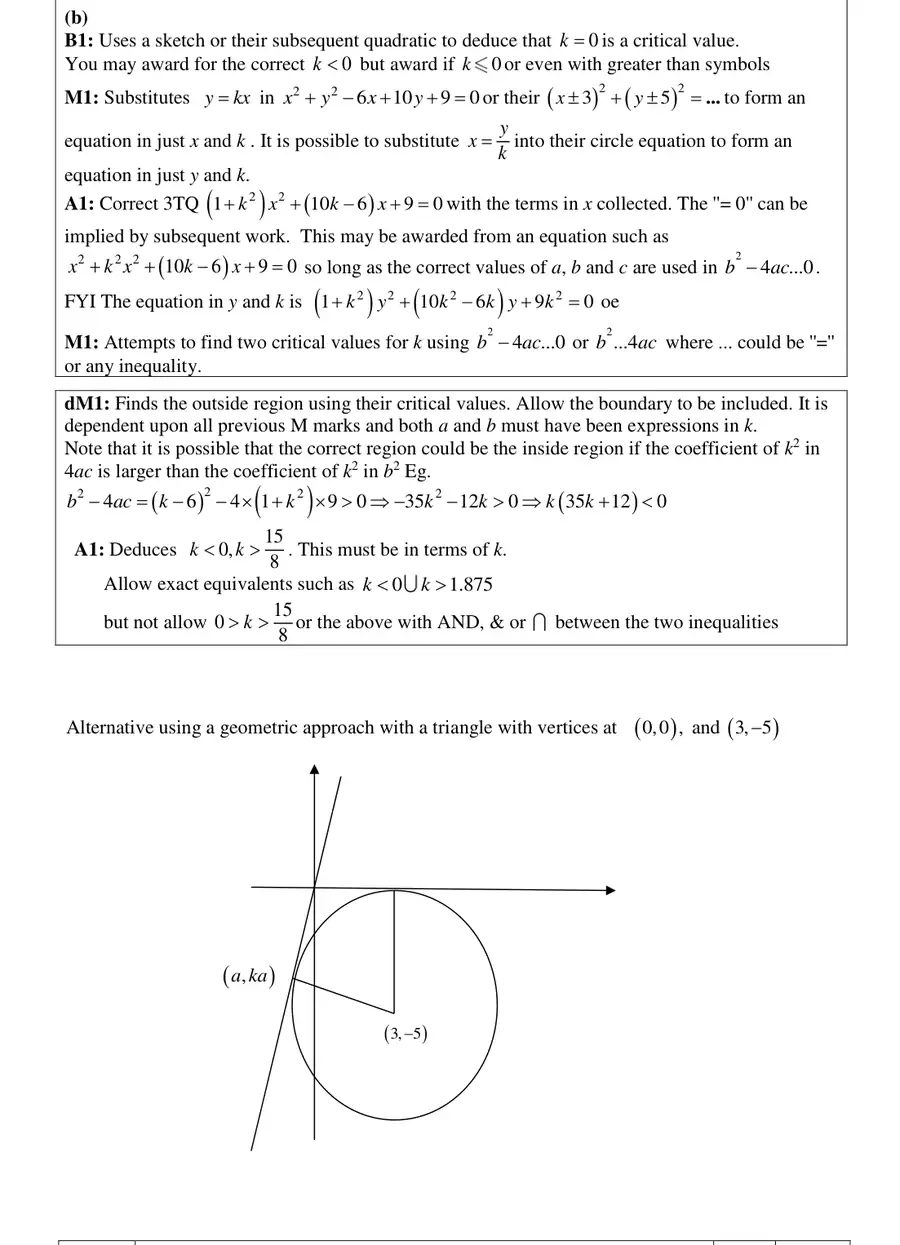

The line with equation \(y = kx\), where \(k\) is a constant, cuts \(C\) at two distinct points.

(b) Find the range of values for \(k\). (6)

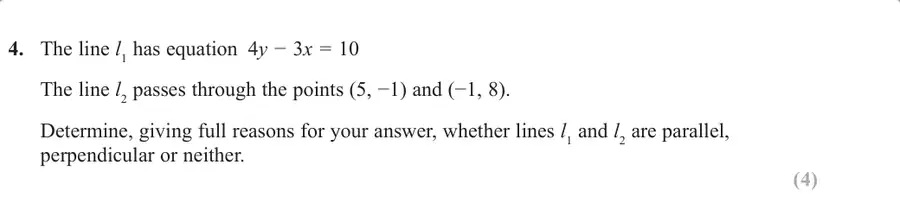

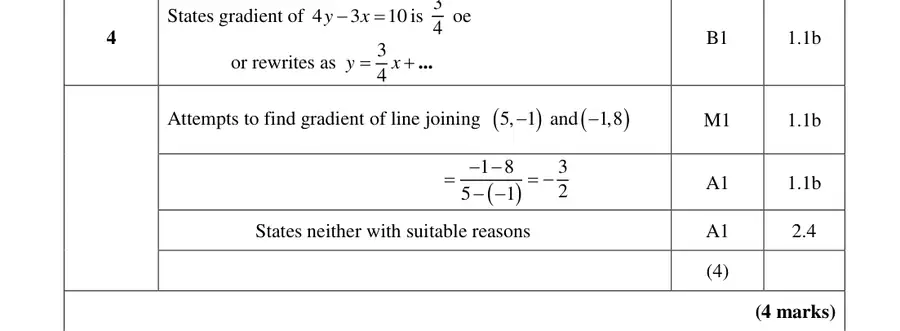

June 2018 Paper 1 Q4

EdexcelCurrent spec4 marksCo-ordinate Geometry

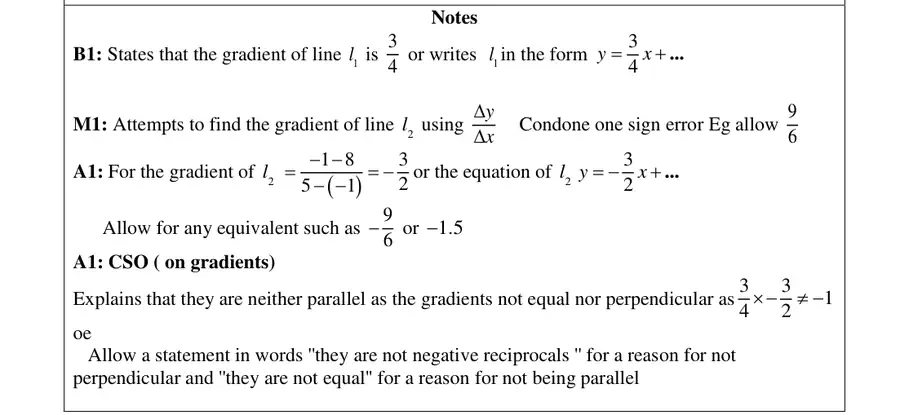

4. The line \(l_1\) has equation \(4y - 3x = 10\)

The line \(l_2\) passes through the points \((5, -1)\) and \((-1, 8)\).

Determine, giving full reasons for your answer, whether lines \(l_1\) and \(l_2\) are parallel, perpendicular or neither. (4)

C1 June 2018 Q8

EdexcelOld spec8 marksCo-ordinate Geometry

8.

Figure 2: parallel lines l1 (through A on the y-axis and D) and l2 (through B on the y-axis, C on the x-axis and E(12, 5)), with D vertically above C, not to scale
Figure 2

Figure 2 shows the straight line \(l_1\) with equation \(4y = 5x + 12\)

(a) State the gradient of \(l_1\) (1)

The line \(l_2\) is parallel to \(l_1\) and passes through the point \(E\,(12, 5)\), as shown in Figure 2.

(b) Find the equation of \(l_2\). Write your answer in the form \(y = mx + c\), where \(m\) and \(c\) are constants to be determined. (3)

The line \(l_2\) cuts the \(x\)-axis at the point \(C\) and the \(y\)-axis at the point \(B\).

(c) Find the coordinates of
(i) the point \(B\),
(ii) the point \(C\).
(2)

The line \(l_1\) cuts the \(y\)-axis at the point \(A\).

The point \(D\) lies on \(l_1\) such that \(ABCD\) is a parallelogram, as shown in Figure 2.

(d) Find the area of \(ABCD\). (2)

C2 June 2018 Q5

EdexcelOld spec10 marksCo-ordinate Geometry

5. The circle \(C\) has equation\[x^2 + y^2 - 2x + 14y = 0\]Find

(a) the coordinates of the centre of \(C\), (2)
(b) the exact value of the radius of \(C\), (2)
(c) the \(y\) coordinates of the points where the circle \(C\) crosses the \(y\)-axis. (2)
(d) Find an equation of the tangent to \(C\) at the point \((2, 0)\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

C1 June 2017 Q8

EdexcelOld spec8 marksCo-ordinate Geometry

8.

Figure 1: line l1 through S on the negative x-axis and P, line l2 through P and T on the positive x-axis, not to scale
Figure 1

The straight line \(l_1\), shown in Figure 1, has equation \(5y = 4x + 10\)

The point \(P\) with \(x\) coordinate 5 lies on \(l_1\)

The straight line \(l_2\) is perpendicular to \(l_1\) and passes through \(P\).

(a) Find an equation for \(l_2\), writing your answer in the form \(ax + by + c = 0\) where \(a\), \(b\) and \(c\) are integers. (4)

The lines \(l_1\) and \(l_2\) cut the \(x\)-axis at the points \(S\) and \(T\) respectively, as shown in Figure 1.

(b) Calculate the area of triangle \(SPT\). (4)

C2 June 2017 Q5

EdexcelOld spec7 marksCo-ordinate Geometry

5. The circle \(C\) has equation\[x^2 + y^2 - 10x + 6y + 30 = 0\]Find

(a) the coordinates of the centre of \(C\), (2)
(b) the radius of \(C\), (2)
(c) the \(y\) coordinates of the points where the circle \(C\) crosses the line with equation \(x = 4\), giving your answers as simplified surds. (3)

C1 June 2016 Q10

EdexcelOld spec12 marksCo-ordinate Geometry

10.

Figure 2: line l1 through P on the y-axis and Q, and line l2 through Q perpendicular to l1, crossing the x-axis at R; not to scale
Figure 2

The points \(P\,(0, 2)\) and \(Q\,(3, 7)\) lie on the line \(l_1\), as shown in Figure 2.

The line \(l_2\) is perpendicular to \(l_1\), passes through \(Q\) and crosses the \(x\)-axis at the point \(R\), as shown in Figure 2.

Find

(a) an equation for \(l_2\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers, (5)
(b) the exact coordinates of \(R\), (2)
(c) the exact area of the quadrilateral \(ORQP\), where \(O\) is the origin. (5)

C2 June 2016 Q3

EdexcelOld spec8 marksCo-ordinate Geometry

3.

Figure 2: circle C with centre P and the tangent l touching C at Q; diagram not drawn to scale
Figure 2

The circle \(C\) has centre \(P(7, 8)\) and passes through the point \(Q(10, 13)\), as shown in Figure 2.

(a) Find the length \(PQ\), giving your answer as an exact value. (2)
(b) Hence write down an equation for \(C\). (2)

The line \(l\) is a tangent to \(C\) at the point \(Q\), as shown in Figure 2.

(c) Find an equation for \(l\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

C1 June 2015 Q8

8.

(a) Factorise completely \(9x - 4x^3\) (3)
(b) Sketch the curve \(C\) with equation\[y = 9x - 4x^3\]Show on your sketch the coordinates at which the curve meets the \(x\)-axis. (3)

The points \(A\) and \(B\) lie on \(C\) and have \(x\) coordinates of \(-2\) and 1 respectively.

(c) Show that the length of \(AB\) is \(k\sqrt{10}\) where \(k\) is a constant to be found. (4)

C2 June 2015 Q2

EdexcelOld spec7 marksCo-ordinate Geometry

2. A circle \(C\) with centre at the point \((2, -1)\) passes through the point \(A\) at \((4, -5)\).

(a) Find an equation for the circle \(C\). (3)
(b) Find an equation of the tangent to the circle \(C\) at the point \(A\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

C2 June 2014 (R) Q10

EdexcelOld spec9 marksCo-ordinate Geometry

10. The circle \(C\), with centre \(A\), passes through the point \(P\) with coordinates \((-9, 8)\) and the point \(Q\) with coordinates \((15, -10)\).

Given that \(PQ\) is a diameter of the circle \(C\),

(a) find the coordinates of \(A\), (2)
(b) find an equation for \(C\). (3)

A point \(R\) also lies on the circle \(C\).
Given that the length of the chord \(PR\) is 20 units,

(c) find the length of the shortest distance from \(A\) to the chord \(PR\).
Give your answer as a surd in its simplest form. (2)
(d) Find the size of the angle \(ARQ\), giving your answer to the nearest 0.1 of a degree. (2)

C1 June 2014 (R) Q7

EdexcelOld spec9 marksCo-ordinate Geometry

7.

Figure 2: right-angled triangle LMN with L(-1, 2), M(7, -4) and N(16, p), right angle at M; diagram not to scale
Figure 2

Figure 2 shows a right angled triangle \(LMN\).

The points \(L\) and \(M\) have coordinates \((-1, 2)\) and \((7, -4)\) respectively.

(a) Find an equation for the straight line passing through the points \(L\) and \(M\).
Give your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

Given that the coordinates of point \(N\) are \((16, p)\), where \(p\) is a constant, and angle \(LMN = 90^\circ\),

(b) find the value of \(p\). (3)

Given that there is a point \(K\) such that the points \(L\), \(M\), \(N\), and \(K\) form a rectangle,

(c) find the \(y\) coordinate of \(K\). (2)

C2 June 2014 Q9

EdexcelOld spec5 marksCo-ordinate Geometry

9.

Figure 3: circle C with centre Q and radius 4; tangent from the origin O touches C at T with OT = 6√5
Figure 3

Figure 3 shows a circle \(C\) with centre \(Q\) and radius 4 and the point \(T\) which lies on \(C\).

The tangent to \(C\) at the point \(T\) passes through the origin \(O\) and \(OT = 6\sqrt{5}\)

Given that the coordinates of \(Q\) are \((11, k)\), where \(k\) is a positive constant,

(a) find the exact value of \(k\), (3)
(b) find an equation for \(C\). (2)

C1 June 2014 Q9

EdexcelOld spec10 marksCo-ordinate Geometry

9.

Figure 2: line l1 with negative gradient crossing the y-axis at B, line l2 through the origin O meeting l1 at C
Figure 2

The line \(l_1\), shown in Figure 2 has equation \(2x + 3y = 26\)

The line \(l_2\) passes through the origin \(O\) and is perpendicular to \(l_1\)

(a) Find an equation for the line \(l_2\) (4)

The line \(l_2\) intersects the line \(l_1\) at the point \(C\).

Line \(l_1\) crosses the \(y\)-axis at the point \(B\) as shown in Figure 2.

(b) Find the area of triangle \(OBC\).
Give your answer in the form \(\dfrac{a}{b}\), where \(a\) and \(b\) are integers to be determined. (6)

C1 January 2014 (IAL) Q6

EdexcelOld spec11 marksCo-ordinate Geometry

6.

Figure 2: lines l1 and l2 meeting at right angles at B; l1 crosses the y-axis at A and l2 crosses the x-axis at C; rectangle ABCD shaded
Figure 2

The straight line \(l_1\) has equation \(2y = 3x + 7\)

The line \(l_1\) crosses the \(y\)-axis at the point \(A\) as shown in Figure 2.

(a)
(i) State the gradient of \(l_1\)
(ii) Write down the coordinates of the point \(A\).
(2)

Another straight line \(l_2\) intersects \(l_1\) at the point \(B\,(1, 5)\) and crosses the \(x\)-axis at the point \(C\), as shown in Figure 2.

Given that \(\angle ABC = 90^\circ\),

(b) find an equation of \(l_2\) in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

The rectangle \(ABCD\), shown shaded in Figure 2, has vertices at the points \(A\), \(B\), \(C\) and \(D\).

(c) Find the exact area of rectangle \(ABCD\). (5)

C1 June 2013 (R) Q11

EdexcelOld spec9 marksCo-ordinate GeometryQuadratics

11.

Figure 2: the curve x^2 + 4y^2 - 2x = 35, an oval about the x-axis, and the line y = x + 2 meeting it at A in the first quadrant and B in the third quadrant
Figure 2

The line \(y = x + 2\) meets the curve \(x^2 + 4y^2 - 2x = 35\) at the points \(A\) and \(B\) as shown in Figure 2.

(a) Find the coordinates of \(A\) and the coordinates of \(B\). (6)
(b) Find the distance \(AB\) in the form \(r\sqrt{2}\) where \(r\) is a rational number. (3)

C1 June 2013 (R) Q4

EdexcelOld spec5 marksCo-ordinate Geometry

4. The line \(L_1\) has equation \(4x + 2y - 3 = 0\)

(a) Find the gradient of \(L_1\). (2)

The line \(L_2\) is perpendicular to \(L_1\) and passes through the point \((2, 5)\).

(b) Find the equation of \(L_2\) in the form \(y = mx + c\), where \(m\) and \(c\) are constants. (3)

C2 June 2013 Q10

EdexcelOld spec6 marksCo-ordinate Geometry

10.

Figure 4: circle C to the left of the y-axis, touching the y-axis at y = 9
Figure 4

The circle \(C\) has radius 5 and touches the \(y\)-axis at the point \((0, 9)\), as shown in Figure 4.

(a) Write down an equation for the circle \(C\), that is shown in Figure 4. (3)

A line through the point \(P(8, -7)\) is a tangent to the circle \(C\) at the point \(T\).

(b) Find the length of \(PT\). (3)

C1 June 2013 Q6

EdexcelOld spec7 marksCo-ordinate Geometry

6. The straight line \(L_1\) passes through the points \((-1, 3)\) and \((11, 12)\).

(a) Find an equation for \(L_1\) in the form \(ax + by + c = 0\),
where \(a\), \(b\) and \(c\) are integers. (4)

The line \(L_2\) has equation \(3y + 4x - 30 = 0\).

(b) Find the coordinates of the point of intersection of \(L_1\) and \(L_2\). (3)

C2 January 2013 Q5

EdexcelOld spec9 marksCo-ordinate Geometry

5. The circle \(C\) has equation\[x^2 + y^2 - 20x - 24y + 195 = 0\]The centre of \(C\) is at the point \(M\).

(a) Find
(i) the coordinates of the point \(M\),
(ii) the radius of the circle \(C\). (5)

\(N\) is the point with coordinates \((25, 32)\).

(b) Find the length of the line \(MN\). (2)

The tangent to \(C\) at a point \(P\) on the circle passes through point \(N\).

(c) Find the length of the line \(NP\). (2)

C1 January 2013 Q5

EdexcelOld spec7 marksCo-ordinate Geometry

5. The line \(l_1\) has equation \(y = -2x + 3\)

The line \(l_2\) is perpendicular to \(l_1\) and passes through the point \((5, 6)\).

(a) Find an equation for \(l_2\) in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (3)

The line \(l_2\) crosses the \(x\)-axis at the point \(A\) and the \(y\)-axis at the point \(B\).

(b) Find the \(x\)-coordinate of \(A\) and the \(y\)-coordinate of \(B\). (2)

Given that \(O\) is the origin,

(c) find the area of the triangle \(OAB\). (2)

C1 June 2012 Q9

EdexcelOld spec15 marksCo-ordinate Geometry

9. The line \(L_1\) has equation \(4y + 3 = 2x\)

The point \(A\,(p, 4)\) lies on \(L_1\)

(a) Find the value of the constant \(p\). (1)

The line \(L_2\) passes through the point \(C\,(2, 4)\) and is perpendicular to \(L_1\)

(b) Find an equation for \(L_2\) giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (5)

The line \(L_1\) and the line \(L_2\) intersect at the point \(D\).

(c) Find the coordinates of the point \(D\). (3)
(d) Show that the length of \(CD\) is \(\dfrac{3}{2}\sqrt{5}\) (3)

A point \(B\) lies on \(L_1\) and the length of \(AB = \sqrt{(80)}\)

The point \(E\) lies on \(L_2\) such that the length of the line \(CDE = 3\) times the length of \(CD\).

(e) Find the area of the quadrilateral \(ACBE\). (3)

C1 January 2012 Q6

EdexcelOld spec8 marksCo-ordinate Geometry

6.

Figure 1: line l1 through A on the negative x-axis and B on the positive y-axis, and line l2 through B and C on the positive x-axis
Figure 1

The line \(l_1\) has equation \(2x - 3y + 12 = 0\)

(a) Find the gradient of \(l_1\). (1)

The line \(l_1\) crosses the \(x\)-axis at the point \(A\) and the \(y\)-axis at the point \(B\), as shown in Figure 1.

The line \(l_2\) is perpendicular to \(l_1\) and passes through \(B\).

(b) Find an equation of \(l_2\). (3)

The line \(l_2\) crosses the \(x\)-axis at the point \(C\).

(c) Find the area of triangle \(ABC\). (4)

C2 January 2012 Q2

EdexcelOld spec4 marksCo-ordinate Geometry

2. A circle \(C\) has centre \((-1, 7)\) and passes through the point \((0, 0)\). Find an equation for \(C\). (4)

C2 June 2011 Q4

EdexcelOld spec8 marksCo-ordinate Geometry

4. The circle \(C\) has equation\[x^2 + y^2 + 4x - 2y - 11 = 0\]Find

(a) the coordinates of the centre of \(C\), (2)
(b) the radius of \(C\), (2)
(c) the coordinates of the points where \(C\) crosses the \(y\)-axis, giving your answers as simplified surds. (4)

C1 June 2011 Q3

EdexcelOld spec5 marksCo-ordinate Geometry

3. The points \(P\) and \(Q\) have coordinates \((-1, 6)\) and \((9, 0)\) respectively.

The line \(l\) is perpendicular to \(PQ\) and passes through the mid-point of \(PQ\).

Find an equation for \(l\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (5)

C2 January 2011 Q9

EdexcelOld spec10 marksCo-ordinate Geometry

9. The points \(A\) and \(B\) have coordinates \((-2, 11)\) and \((8, 1)\) respectively.

Given that \(AB\) is a diameter of the circle \(C\),

(a) show that the centre of \(C\) has coordinates \((3, 6)\), (1)
(b) find an equation for \(C\). (4)
(c) Verify that the point \((10, 7)\) lies on \(C\). (1)
(d) Find an equation of the tangent to \(C\) at the point \((10, 7)\), giving your answer in the form \(y = mx + c\), where \(m\) and \(c\) are constants. (4)

C1 January 2011 Q9

EdexcelOld spec11 marksCo-ordinate Geometry

9. The line \(L_1\) has equation \(2y - 3x - k = 0\), where \(k\) is a constant.

Given that the point \(A\,(1, 4)\) lies on \(L_1\), find

(a) the value of \(k\), (1)
(b) the gradient of \(L_1\). (2)

The line \(L_2\) passes through \(A\) and is perpendicular to \(L_1\).

(c) Find an equation of \(L_2\) giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

The line \(L_2\) crosses the \(x\)-axis at the point \(B\).

(d) Find the coordinates of \(B\). (2)
(e) Find the exact length of \(AB\). (2)

C2 June 2010 Q10

EdexcelOld spec11 marksCo-ordinate Geometry

10. The circle \(C\) has centre \(A(2,1)\) and passes through the point \(B(10,\ 7)\).

(a) Find an equation for \(C\). (4)

The line \(l_1\) is the tangent to \(C\) at the point \(B\).

(b) Find an equation for \(l_1\). (4)

The line \(l_2\) is parallel to \(l_1\) and passes through the mid-point of \(AB\).

Given that \(l_2\) intersects \(C\) at the points \(P\) and \(Q\),

(c) find the length of \(PQ\), giving your answer in its simplest surd form. (3)

C1 June 2010 Q8

EdexcelOld spec8 marksCo-ordinate Geometry

8.

(a) Find an equation of the line joining \(A\,(7, 4)\) and \(B\,(2, 0)\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (3)
(b) Find the length of \(AB\), leaving your answer in surd form. (2)

The point \(C\) has coordinates \((2, t)\), where \(t > 0\), and \(AC = AB\).

(c) Find the value of \(t\). (1)
(d) Find the area of triangle \(ABC\). (2)

C1 January 2010 Q9

9.

(a) Factorise completely \(x^3 - 4x\) (3)
(b) Sketch the curve \(C\) with equation\[y = x^3 - 4x,\]showing the coordinates of the points at which the curve meets the \(x\)-axis. (3)

The point \(A\) with \(x\)-coordinate \(-1\) and the point \(B\) with \(x\)-coordinate 3 lie on the curve \(C\).

(c) Find an equation of the line which passes through \(A\) and \(B\), giving your answer in the form \(y = mx + c\), where \(m\) and \(c\) are constants. (5)
(d) Show that the length of \(AB\) is \(k\sqrt{10}\), where \(k\) is a constant to be found. (2)

C2 January 2010 Q8

EdexcelOld spec12 marksCo-ordinate GeometryTrigonometry

8.

Figure 3: circle C with centre N, a horizontal chord AB of length 12 below the x-axis, and tangents at A and B meeting at P
Figure 3

Figure 3 shows a sketch of the circle \(C\) with centre \(N\) and equation\[(x - 2)^2 + (y + 1)^2 = \frac{169}{4}\]

(a) Write down the coordinates of \(N\). (2)
(b) Find the radius of \(C\). (1)

The chord \(AB\) of \(C\) is parallel to the \(x\)-axis, lies below the \(x\)-axis and is of length 12 units as shown in Figure 3.

(c) Find the coordinates of \(A\) and the coordinates of \(B\). (5)
(d) Show that angle \(ANB = 134.8^\circ\), to the nearest 0.1 of a degree. (2)

The tangents to \(C\) at the points \(A\) and \(B\) meet at the point \(P\).

(e) Find the length \(AP\), giving your answer to 3 significant figures. (2)

C1 January 2010 Q3

EdexcelOld spec5 marksCo-ordinate Geometry

3. The line \(l_1\) has equation \(3x + 5y - 2 = 0\)

(a) Find the gradient of \(l_1\). (2)

The line \(l_2\) is perpendicular to \(l_1\) and passes through the point \((3, 1)\).

(b) Find the equation of \(l_2\) in the form \(y = mx + c\), where \(m\) and \(c\) are constants. (3)

C1 June 2009 Q8

EdexcelOld spec8 marksCo-ordinate Geometry

8.

Figure 1: line l through A (6, 7) perpendicular to AB, with B (8, 2), C on the y-axis, and triangle OCB shown dashed
Figure 1

The points \(A\) and \(B\) have coordinates \((6, 7)\) and \((8, 2)\) respectively.

The line \(l\) passes through the point \(A\) and is perpendicular to the line \(AB\), as shown in Figure 1.

(a) Find an equation for \(l\) in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

Given that \(l\) intersects the \(y\)-axis at the point \(C\), find

(b) the coordinates of \(C\), (2)
(c) the area of \(\Delta OCB\), where \(O\) is the origin. (2)

C2 June 2009 Q6

EdexcelOld spec11 marksCo-ordinate Geometry

6. The circle \(C\) has equation\[x^2 + y^2 - 6x + 4y = 12\]

(a) Find the centre and the radius of \(C\). (5)

The point \(P(-1,\ 1)\) and the point \(Q(7,\ -5)\) both lie on \(C\).

(b) Show that \(PQ\) is a diameter of \(C\). (2)

The point \(R\) lies on the positive \(y\)-axis and the angle \(PRQ = 90^\circ\).

(c) Find the coordinates of \(R\). (4)

C1 January 2009 Q11

11. The curve \(C\) has equation\[y = 9 - 4x - \frac{8}{x}, \qquad x > 0.\]The point \(P\) on \(C\) has \(x\)-coordinate equal to 2.

(a) Show that the equation of the tangent to \(C\) at the point \(P\) is \(y = 1 - 2x\). (6)
(b) Find an equation of the normal to \(C\) at the point \(P\). (3)

The tangent at \(P\) meets the \(x\)-axis at \(A\) and the normal at \(P\) meets the \(x\)-axis at \(B\).

(c) Find the area of triangle \(APB\). (4)

C1 January 2009 Q10

EdexcelOld spec11 marksCo-ordinate Geometry

10. The line \(l_1\) passes through the point \(A\,(2, 5)\) and has gradient \(-\dfrac{1}{2}\).

(a) Find an equation of \(l_1\), giving your answer in the form \(y = mx + c\). (3)

The point \(B\) has coordinates \((-2, 7)\).

(b) Show that \(B\) lies on \(l_1\). (1)
(c) Find the length of \(AB\), giving your answer in the form \(k\sqrt{5}\), where \(k\) is an integer. (3)

The point \(C\) lies on \(l_1\) and has \(x\)-coordinate equal to \(p\).

The length of \(AC\) is 5 units.

(d) Show that \(p\) satisfies\[p^2 - 4p - 16 = 0.\] (4)

C2 January 2009 Q5

EdexcelOld spec8 marksCo-ordinate Geometry

5.

Figure 2: circle C through P(-3, 2), Q(9, 10) and R(a, 4), with chords PQ, QR and PR
Figure 2

The points \(P(-3,\ 2)\), \(Q(9,\ 10)\) and \(R(a,\ 4)\) lie on the circle \(C\), as shown in Figure 2.

Given that \(PR\) is a diameter of \(C\),

(a) show that \(a = 13\), (3)
(b) find an equation for \(C\). (5)

C1 June 2008 Q10

EdexcelOld spec13 marksCo-ordinate Geometry

10.

Figure 2: line l1 through Q and R, with R on the positive x-axis; line l2 through Q crossing the y-axis at P
Figure 2

The points \(Q\,(1, 3)\) and \(R\,(7, 0)\) lie on the line \(l_1\), as shown in Figure 2.

The length of \(QR\) is \(a\sqrt{5}\).

(a) Find the value of \(a\). (3)

The line \(l_2\) is perpendicular to \(l_1\), passes through \(Q\) and crosses the \(y\)-axis at the point \(P\), as shown in Figure 2.

Find

(b) an equation for \(l_2\), (5)
(c) the coordinates of \(P\), (1)
(d) the area of \(\Delta PQR\). (4)

C2 June 2008 Q5

EdexcelOld spec9 marksCo-ordinate Geometry

5. The circle \(C\) has centre \((3, 1)\) and passes through the point \(P(8, 3)\).

(a) Find an equation for \(C\). (4)
(b) Find an equation for the tangent to \(C\) at \(P\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (5)

C1 January 2008 Q4

EdexcelOld spec7 marksCo-ordinate Geometry

4. The point \(A\,(-6, 4)\) and the point \(B\,(8, -3)\) lie on the line \(L\).

(a) Find an equation for \(L\) in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)
(b) Find the distance \(AB\), giving your answer in the form \(k\sqrt{5}\), where \(k\) is an integer. (3)

C1 June 2007 Q11

EdexcelOld spec9 marksCo-ordinate Geometry

11. The line \(l_1\) has equation \(y = 3x + 2\) and the line \(l_2\) has equation \(3x + 2y - 8 = 0\).

(a) Find the gradient of the line \(l_2\). (2)

The point of intersection of \(l_1\) and \(l_2\) is \(P\).

(b) Find the coordinates of \(P\). (3)

The lines \(l_1\) and \(l_2\) cross the line \(y = 1\) at the points \(A\) and \(B\) respectively.

(c) Find the area of triangle \(ABP\). (4)

C1 June 2007 Q10

10. The curve \(C\) has equation \(y = x^2(x - 6) + \dfrac{4}{x}\), \(x > 0\).

The points \(P\) and \(Q\) lie on \(C\) and have \(x\)-coordinates 1 and 2 respectively.

(a) Show that the length of \(PQ\) is \(\sqrt{170}\). (4)
(b) Show that the tangents to \(C\) at \(P\) and \(Q\) are parallel. (5)
(c) Find an equation for the normal to \(C\) at \(P\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

C2 June 2007 Q7

EdexcelOld spec9 marksCo-ordinate Geometry

7.

Figure 3: circle with centre P, chord AB with A(1, −2) and midpoint M(3, 1), and the line l through M and P
Figure 3

The points \(A\) and \(B\) lie on a circle with centre \(P\), as shown in Figure 3.
The point \(A\) has coordinates \((1, -2)\) and the mid-point \(M\) of \(AB\) has coordinates \((3, 1)\).
The line \(l\) passes through the points \(M\) and \(P\).

(a) Find an equation for \(l\). (4)

Given that the \(x\)-coordinate of \(P\) is 6,

(b) use your answer to part (a) to show that the \(y\)-coordinate of \(P\) is \(-1\), (1)
(c) find an equation for the circle. (4)

C2 January 2007 Q3

EdexcelOld spec6 marksCo-ordinate Geometry

3. The line joining the points \((-1, 4)\) and \((3, 6)\) is a diameter of the circle \(C\).

Find an equation for \(C\). (6)

C1 June 2006 Q11

EdexcelOld spec15 marksCo-ordinate Geometry

11. The line \(l_1\) passes through the points \(P(-1, 2)\) and \(Q(11, 8)\).

(a) Find an equation for \(l_1\) in the form \(y = mx + c\), where \(m\) and \(c\) are constants. (4)

The line \(l_2\) passes through the point \(R(10, 0)\) and is perpendicular to \(l_1\). The lines \(l_1\) and \(l_2\) intersect at the point \(S\).

(b) Calculate the coordinates of \(S\). (5)
(c) Show that the length of \(RS\) is \(3\sqrt{5}\). (2)
(d) Hence, or otherwise, find the exact area of triangle \(PQR\). (4)

C2 June 2006 Q7

EdexcelOld spec8 marksCo-ordinate Geometry

7.

Figure 1: circle C with centre Q, touched at P(2, 2) by the line y = 3x - 4
Figure 1

The line \(y = 3x - 4\) is a tangent to the circle \(C\), touching \(C\) at the point \(P(2, 2)\), as shown in Figure 1.

The point \(Q\) is the centre of \(C\).

(a) Find an equation of the straight line through \(P\) and \(Q\). (3)

Given that \(Q\) lies on the line \(y = 1\),

(b) show that the \(x\)-coordinate of \(Q\) is 5, (1)
(c) find an equation for \(C\). (4)

C2 January 2006 Q3

EdexcelOld spec7 marksCo-ordinate Geometry

3.

Figure 1: circle C with diameter AB, A on the x-axis, B above, midpoint P
Figure 1

In Figure 1, \(A(4, 0)\) and \(B(3, 5)\) are the end points of a diameter of the circle \(C\).

Find

(a) the exact length of \(AB\), (2)
(b) the coordinates of the midpoint \(P\) of \(AB\), (2)
(c) an equation for the circle \(C\). (3)

C1 January 2006 Q3

EdexcelOld spec5 marksCo-ordinate Geometry

3. The line \(L\) has equation \(y = 5 - 2x\).

(a) Show that the point \(P\,(3, -1)\) lies on \(L\). (1)
(b) Find an equation of the line perpendicular to \(L\), which passes through \(P\). Give your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (4)

C2 June 2005 Q8

EdexcelOld spec9 marksCo-ordinate Geometry

8. The circle \(C\), with centre at the point \(A\), has equation \(x^2 + y^2 - 10x + 9 = 0\).

Find

(a) the coordinates of \(A\), (2)
(b) the radius of \(C\), (2)
(c) the coordinates of the points at which \(C\) crosses the \(x\)-axis. (2)

Given that the line \(l\) with gradient \(\tfrac{7}{2}\) is a tangent to \(C\), and that \(l\) touches \(C\) at the point \(T\),

(d) find an equation of the line which passes through \(A\) and \(T\). (3)

C1 June 2005 Q8

EdexcelOld spec10 marksCo-ordinate Geometry

8. The line \(l_1\) passes through the point \((9, -4)\) and has gradient \(\frac{1}{3}\).

(a) Find an equation for \(l_1\) in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (3)

The line \(l_2\) passes through the origin \(O\) and has gradient \(-2\). The lines \(l_1\) and \(l_2\) intersect at the point \(P\).

(b) Calculate the coordinates of \(P\). (4)

Given that \(l_1\) crosses the \(y\)-axis at the point \(C\),

(c) calculate the exact area of \(\triangle OCP\). (3)

C1 January 2005 Q8

EdexcelOld spec9 marksCo-ordinate Geometry

8.

Figure 2: triangle with vertices A(1, 7), B(20, 7) and C(p, q), with D(8, 2) on AC
Figure 2

The points \(A(1, 7)\), \(B(20, 7)\) and \(C(p, q)\) form the vertices of a triangle \(ABC\), as shown in Figure 2. The point \(D(8, 2)\) is the mid-point of \(AC\).

(a) Find the value of \(p\) and the value of \(q\). (2)

The line \(l\), which passes through \(D\) and is perpendicular to \(AC\), intersects \(AB\) at \(E\).

(b) Find an equation for \(l\), in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. (5)
(c) Find the exact \(x\)-coordinate of \(E\). (2)

C2 January 2005 Q2

EdexcelOld spec6 marksCo-ordinate Geometry

2. The points \(A\) and \(B\) have coordinates \((5, -1)\) and \((13, 11)\) respectively.

(a) Find the coordinates of the mid-point of \(AB\). (2)

Given that \(AB\) is a diameter of the circle \(C\),

(b) find an equation for \(C\). (4)

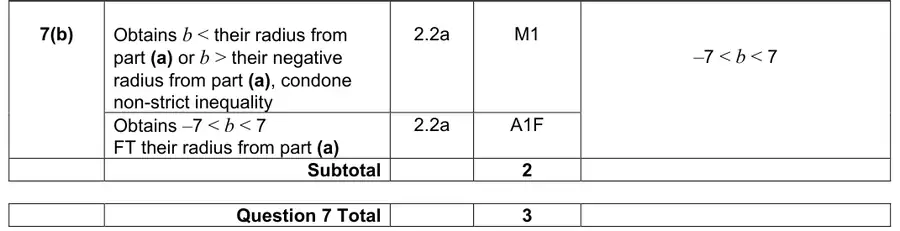

June 2025 Paper 1 Q7

AQACurrent spec3 marksCo-ordinate Geometry

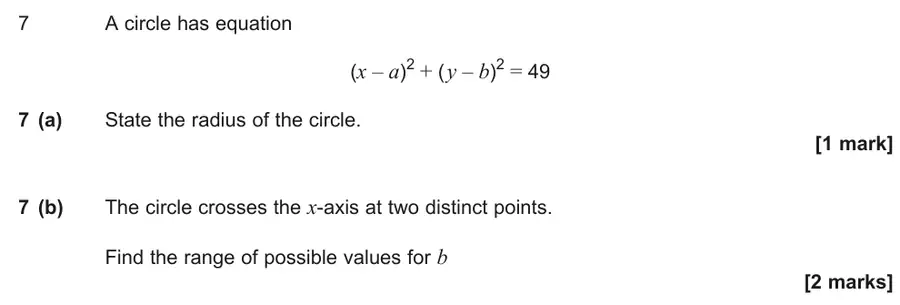

7 A circle has equation

\[(x - a)^2 + (y - b)^2 = 49\]
(a) State the radius of the circle. [1 mark]
(b) The circle crosses the \(x\)-axis at two distinct points.

Find the range of possible values for \(b\) [2 marks]

June 2025 Paper 2 Q4

AQACurrent spec5 marksCo-ordinate Geometry

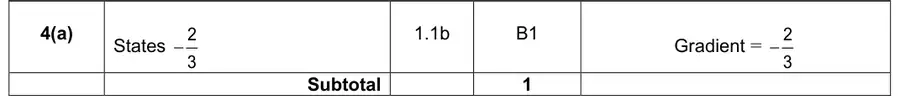

4 The equation of the line \(L\) is

\[2x + 3y = 24\]
(a) Find the gradient of \(L\) [1 mark]

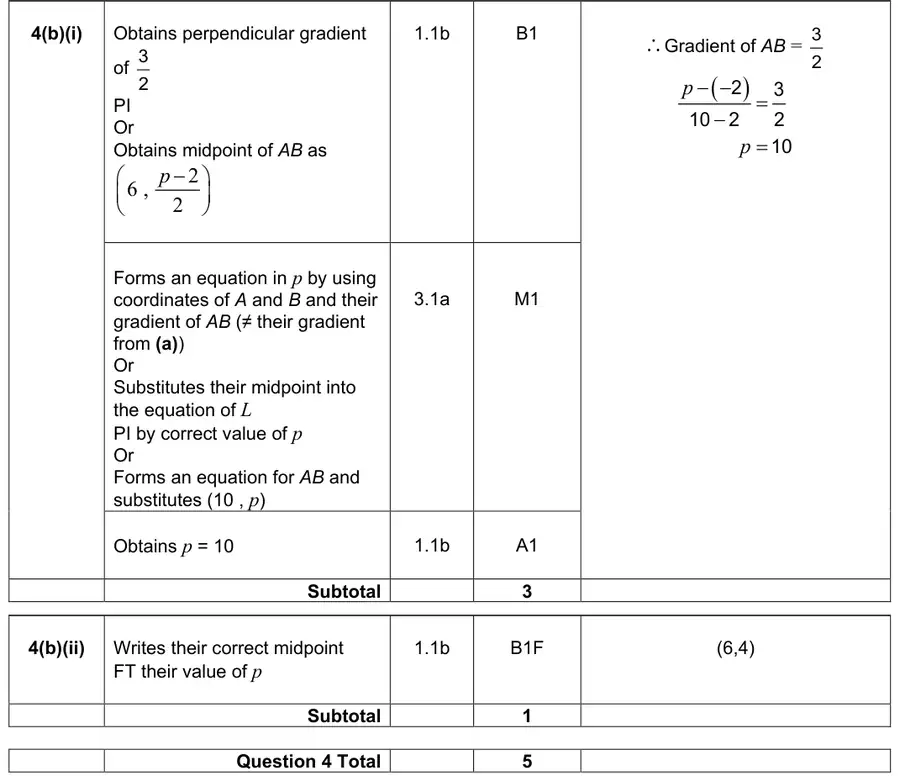

(b) Point \(A\) has coordinates \((2, -2)\) and point \(B\) has coordinates \((10, p)\), where \(p\) is an integer.

The line \(L\) is the perpendicular bisector of the line \(AB\)

(i) Find the value of \(p\) [3 marks]
(ii) Find the coordinates of the point of intersection of \(AB\) and \(L\) [1 mark]

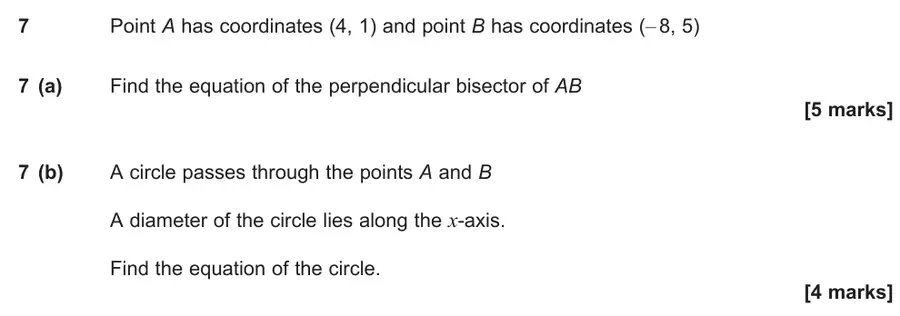

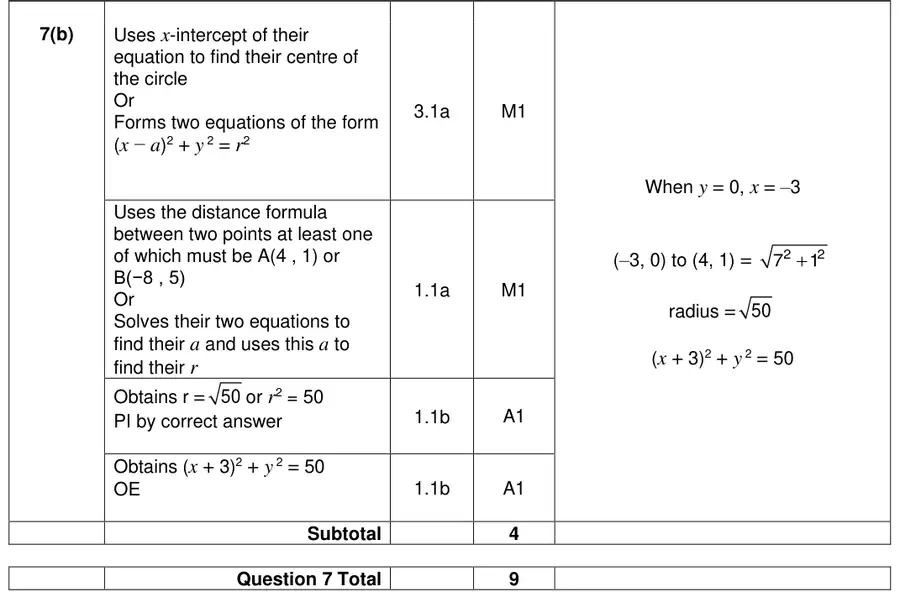

June 2024 Paper 2 Q7

AQACurrent spec9 marksCo-ordinate Geometry

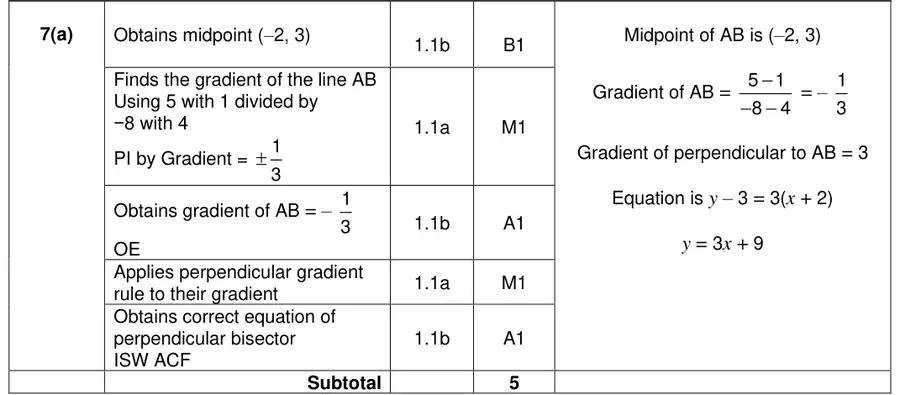

7 Point \(A\) has coordinates (4, 1) and point \(B\) has coordinates (\(-8\), 5)

(a) Find the equation of the perpendicular bisector of \(AB\) [5 marks]
(b) A circle passes through the points \(A\) and \(B\)

A diameter of the circle lies along the \(x\)-axis.

Find the equation of the circle. [4 marks]

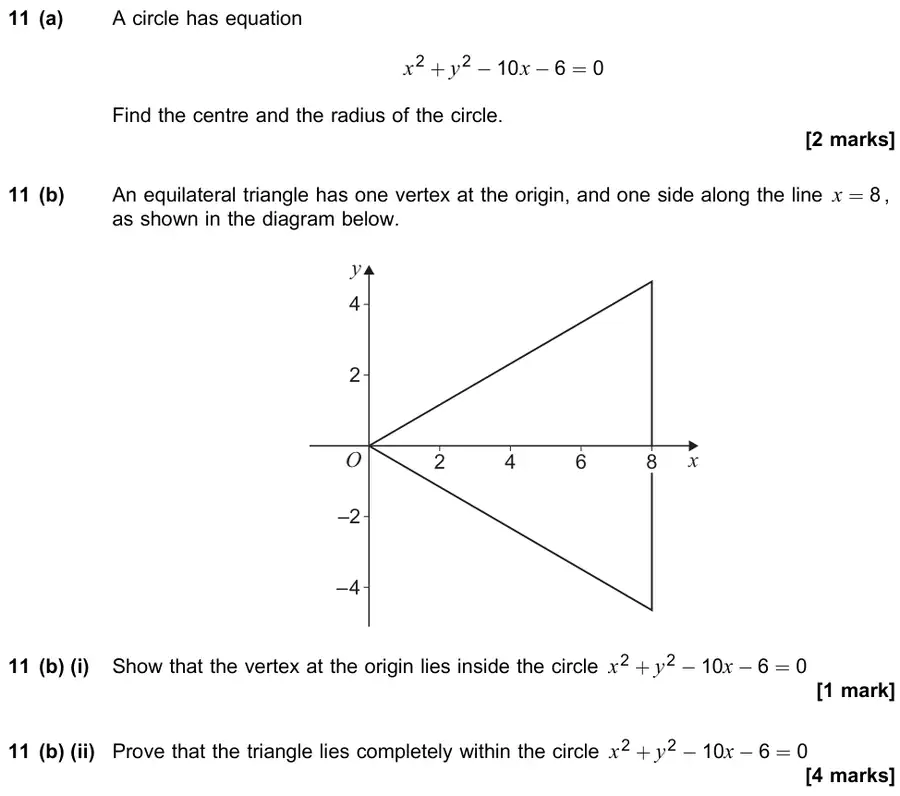

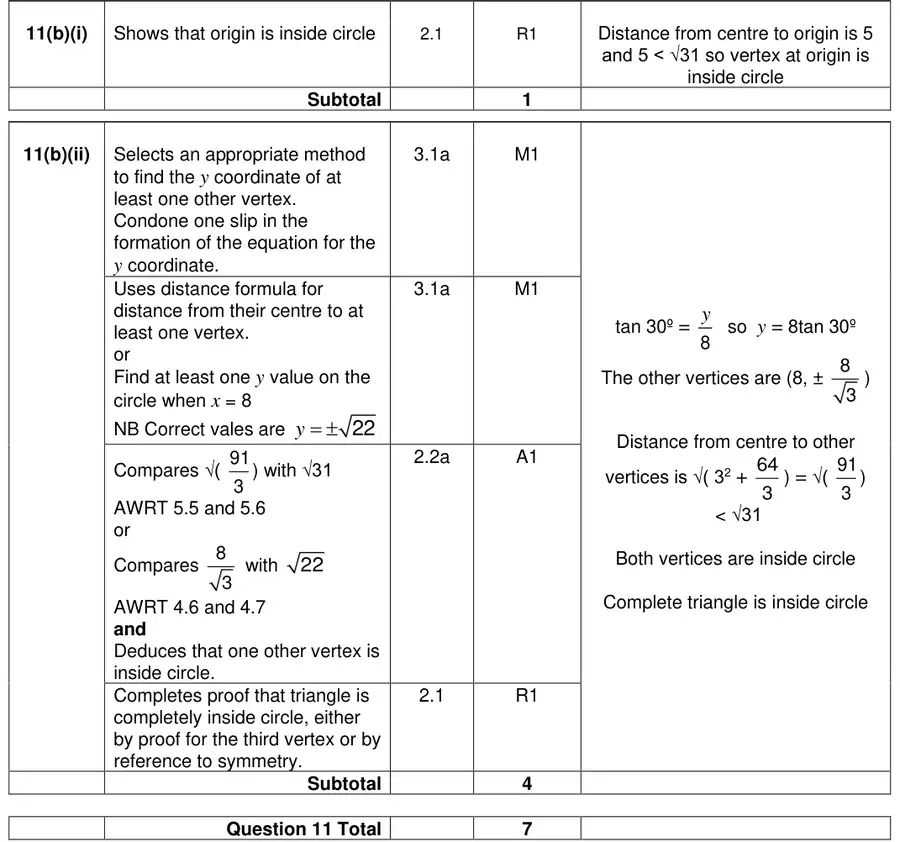

June 2023 Paper 1 Q11

AQACurrent spec7 marksCo-ordinate Geometry

11

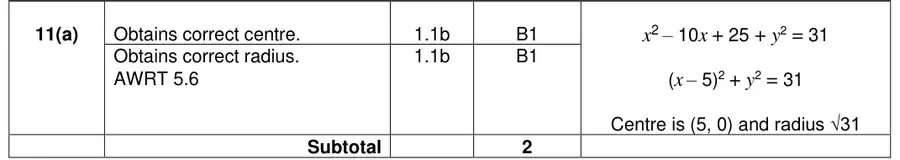

(a) A circle has equation\[x^2 + y^2 - 10x - 6 = 0\]

Find the centre and the radius of the circle. [2 marks]

(b) An equilateral triangle has one vertex at the origin, and one side along the line \(x = 8\), as shown in the diagram below.
Equilateral triangle with one vertex at the origin O and its vertical side on the line x = 8, the other two vertices above and below the x-axis at a height of about 4.6
(i) Show that the vertex at the origin lies inside the circle \(x^2 + y^2 - 10x - 6 = 0\) [1 mark]
(ii) Prove that the triangle lies completely within the circle \(x^2 + y^2 - 10x - 6 = 0\) [4 marks]

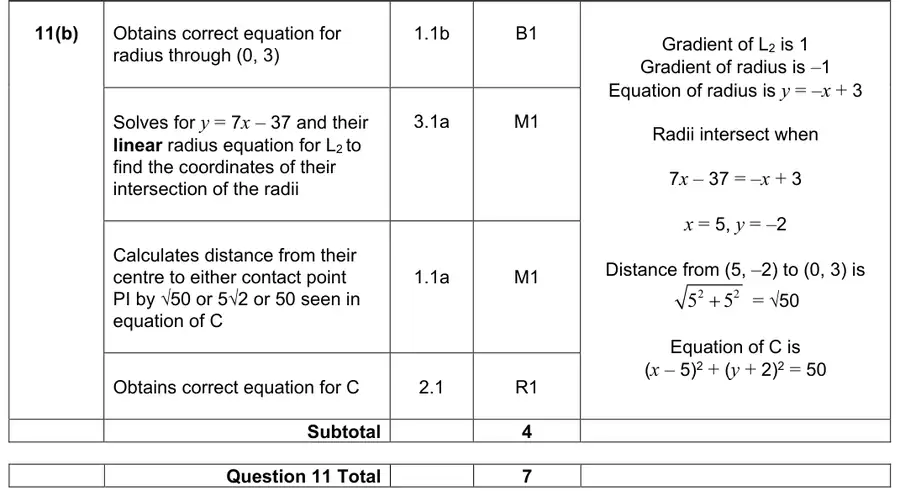

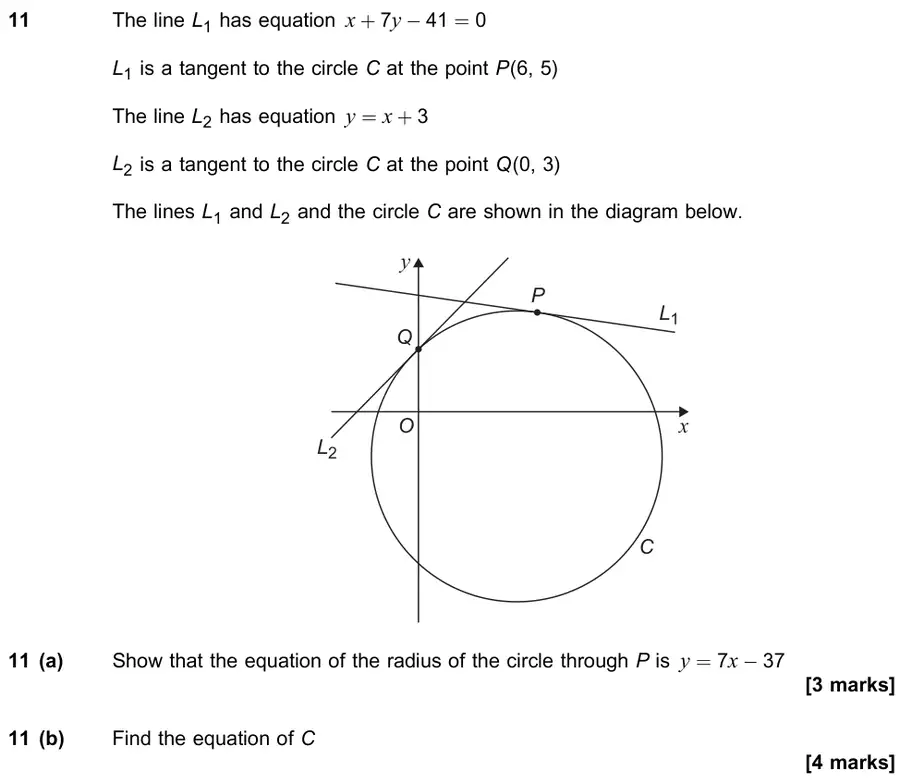

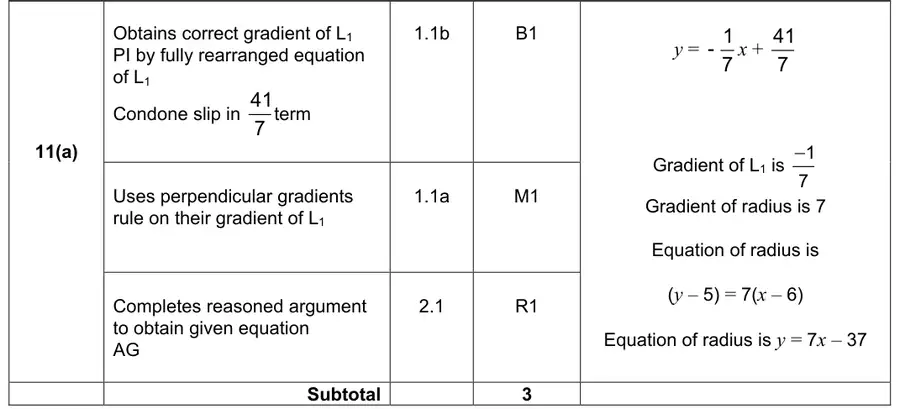

June 2023 Paper 2 Q11

AQACurrent spec7 marksCo-ordinate Geometry

11 The line \(L_1\) has equation \(x + 7y - 41 = 0\)

\(L_1\) is a tangent to the circle \(C\) at the point \(P(6, 5)\)

The line \(L_2\) has equation \(y = x + 3\)

\(L_2\) is a tangent to the circle \(C\) at the point \(Q(0, 3)\)

The lines \(L_1\) and \(L_2\) and the circle \(C\) are shown in the diagram below.

Circle C with tangent L1 touching it at P near the top and tangent L2 touching it at Q on the positive y-axis
(a) Show that the equation of the radius of the circle through \(P\) is \(y = 7x - 37\) [3 marks]
(b) Find the equation of \(C\) [4 marks]

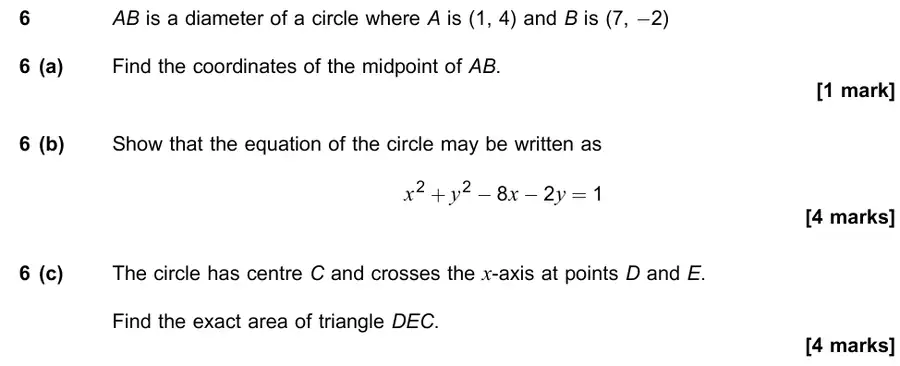

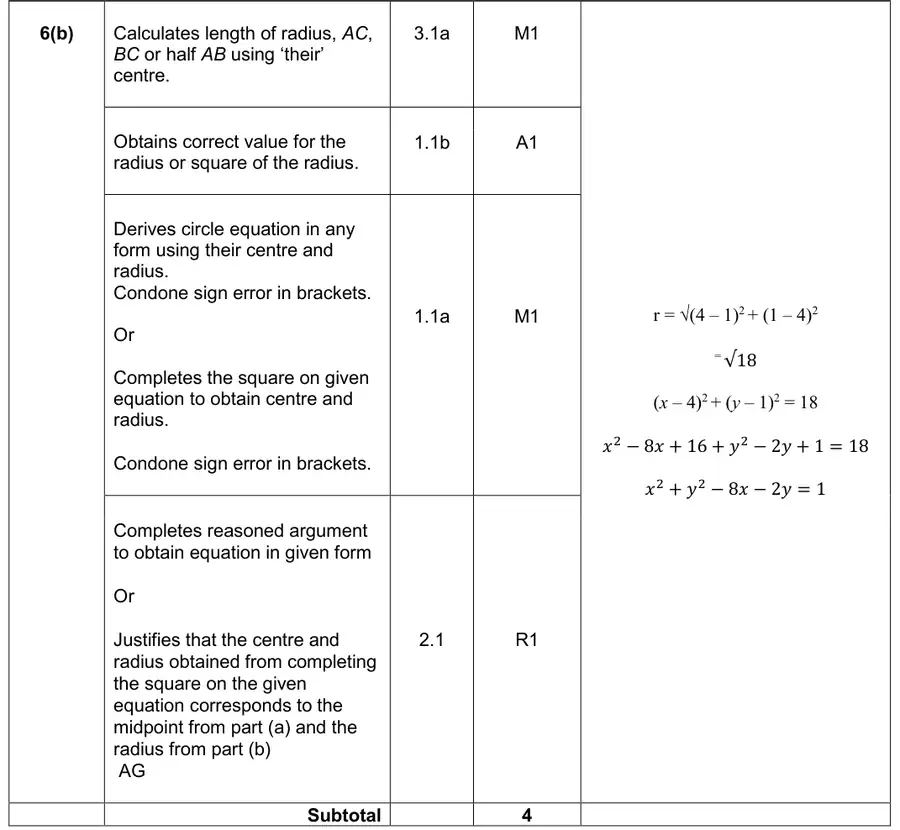

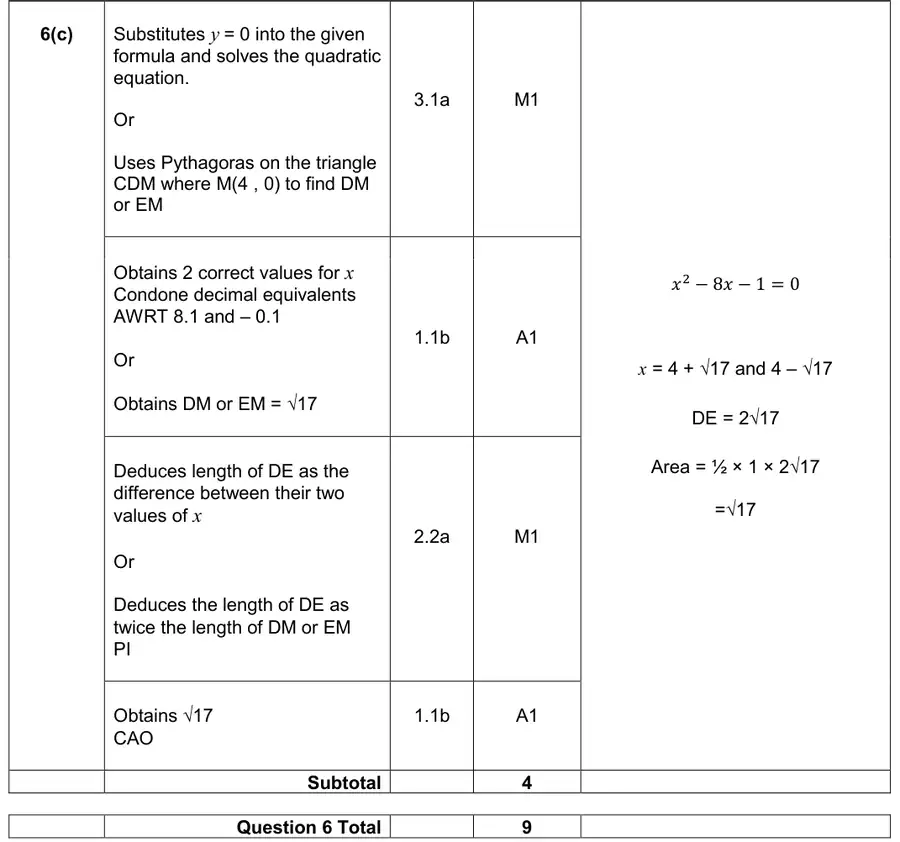

June 2022 Paper 1 Q6

AQACurrent spec9 marksCo-ordinate Geometry

6 \(AB\) is a diameter of a circle where \(A\) is \((1, 4)\) and \(B\) is \((7, -2)\)

(a) Find the coordinates of the midpoint of \(AB\). [1 mark]
(b) Show that the equation of the circle may be written as\[x^2 + y^2 - 8x - 2y = 1\] [4 marks]
(c) The circle has centre \(C\) and crosses the \(x\)-axis at points \(D\) and \(E\).

Find the exact area of triangle \(DEC\). [4 marks]

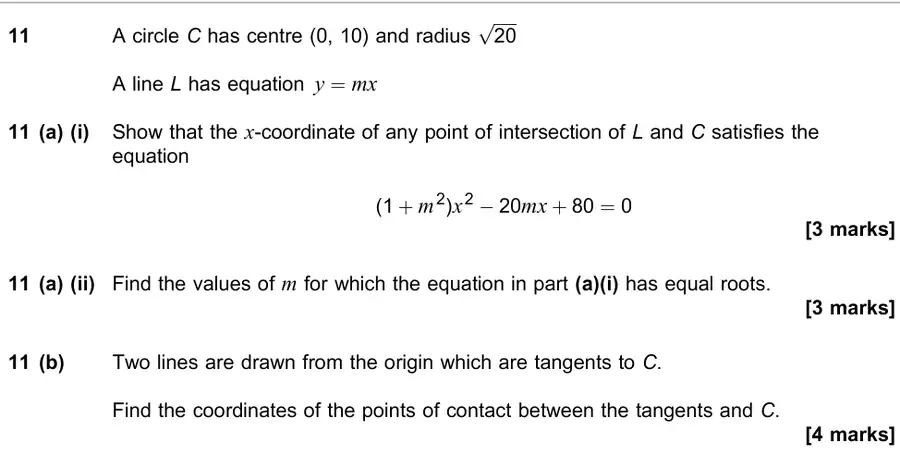

June 2021 Paper 2 Q11

AQACurrent spec10 marksCo-ordinate GeometryQuadratics

11 A circle \(C\) has centre \((0, 10)\) and radius \(\sqrt{20}\)

A line \(L\) has equation \(y = mx\)

(a)

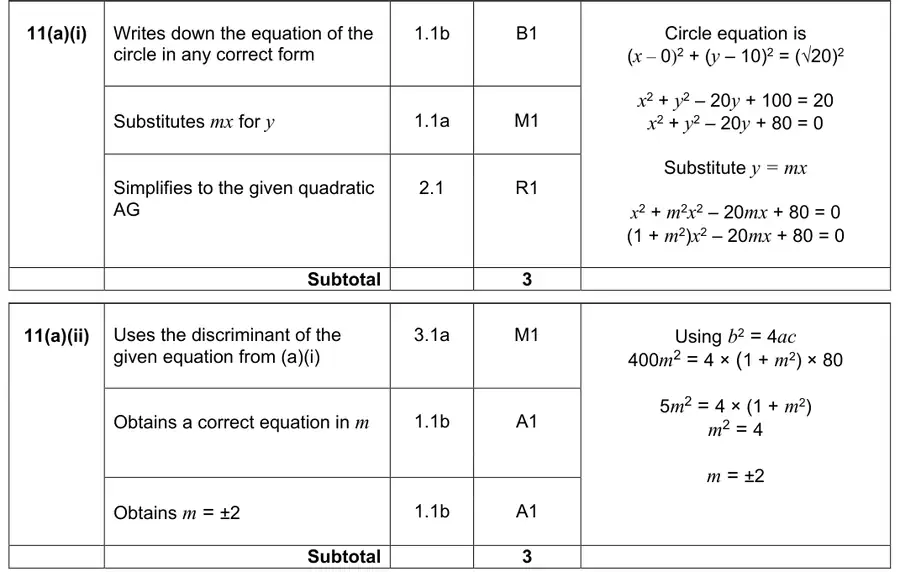

(i) Show that the \(x\)-coordinate of any point of intersection of \(L\) and \(C\) satisfies the equation\[(1 + m^2)x^2 - 20mx + 80 = 0\] [3 marks]
(ii) Find the values of \(m\) for which the equation in part (a)(i) has equal roots. [3 marks]

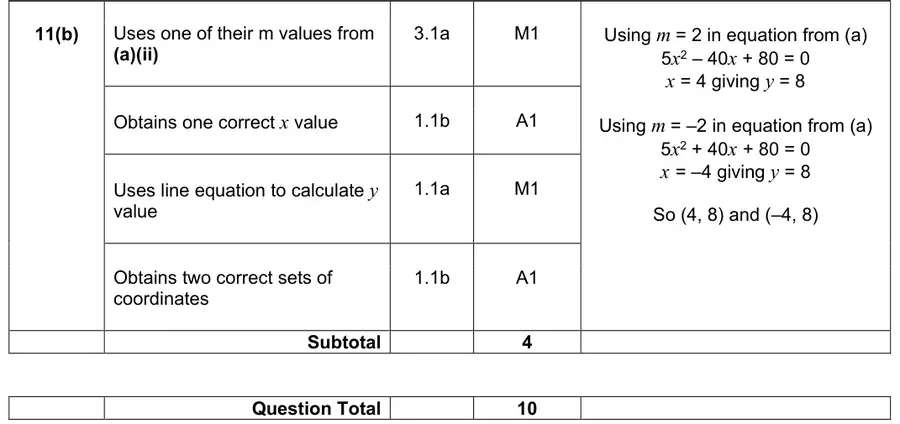

(b) Two lines are drawn from the origin which are tangents to \(C\).

Find the coordinates of the points of contact between the tangents and \(C\). [4 marks]

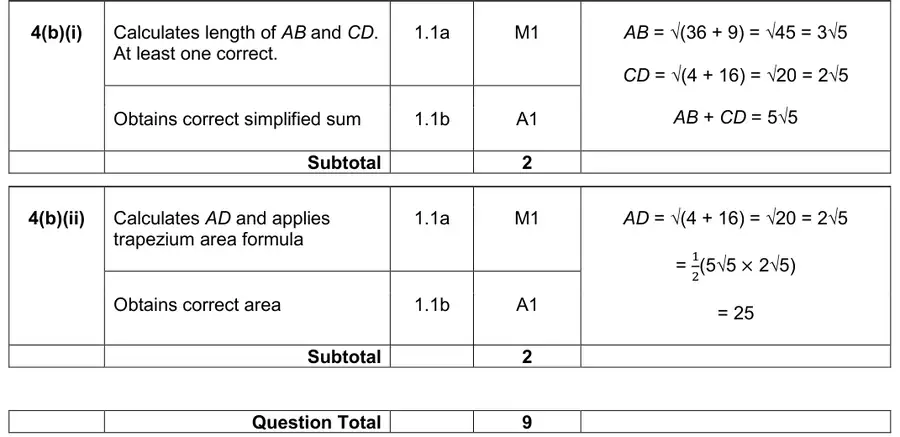

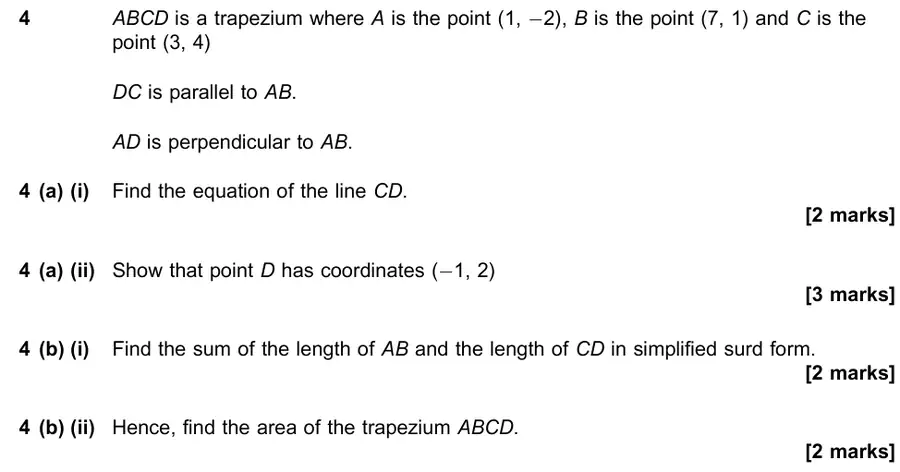

June 2021 Paper 1 Q4

AQACurrent spec9 marksCo-ordinate Geometry

4 \(ABCD\) is a trapezium where \(A\) is the point \((1, -2)\), \(B\) is the point \((7, 1)\) and \(C\) is the point \((3, 4)\)

\(DC\) is parallel to \(AB\).

\(AD\) is perpendicular to \(AB\).

(a)
(i) Find the equation of the line \(CD\). [2 marks]
(ii) Show that point \(D\) has coordinates \((-1, 2)\) [3 marks]
(b)
(i) Find the sum of the length of \(AB\) and the length of \(CD\) in simplified surd form. [2 marks]
(ii) Hence, find the area of the trapezium \(ABCD\). [2 marks]

June 2020 Paper 1 Q9

AQACurrent spec5 marksCo-ordinate GeometryProof

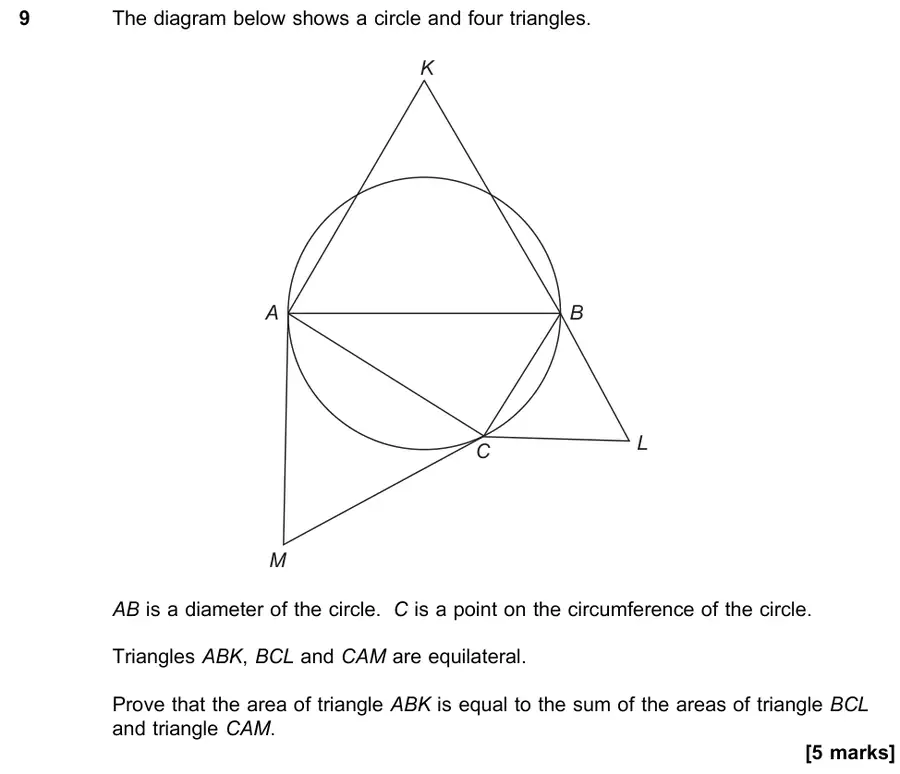

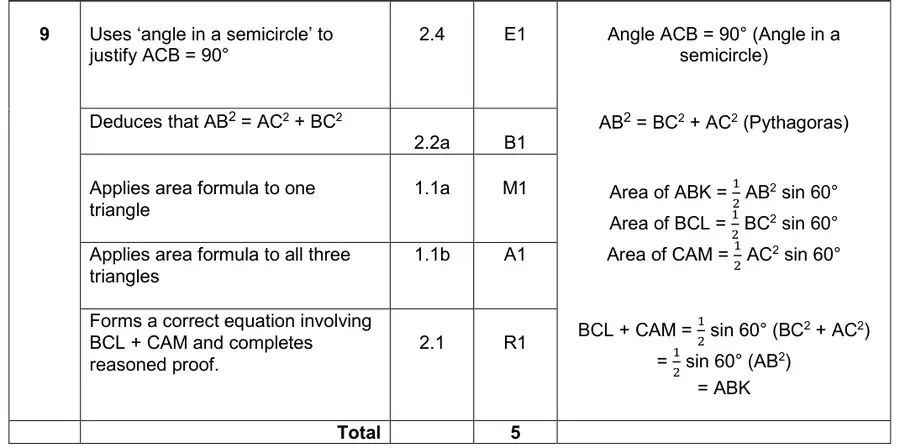

9 The diagram below shows a circle and four triangles.

Circle with diameter AB and point C on the circumference below AB; equilateral triangle ABK drawn on AB with K above the circle, equilateral triangle BCL on BC with L outside the circle to the right, and equilateral triangle CAM on CA with M below left

\(AB\) is a diameter of the circle. \(C\) is a point on the circumference of the circle.

Triangles \(ABK\), \(BCL\) and \(CAM\) are equilateral.

Prove that the area of triangle \(ABK\) is equal to the sum of the areas of triangle \(BCL\) and triangle \(CAM\). [5 marks]

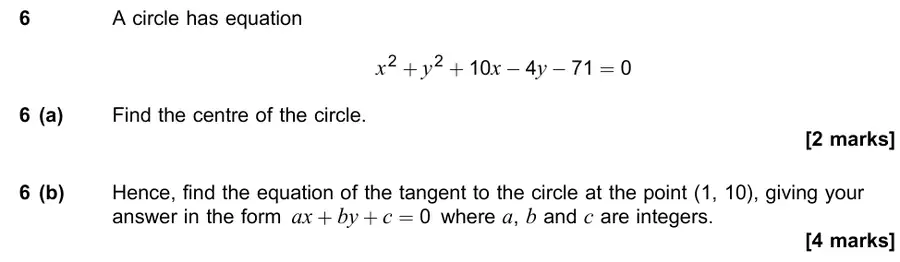

June 2020 Paper 2 Q6

AQACurrent spec6 marksCo-ordinate Geometry

6 A circle has equation

\[x^2 + y^2 + 10x - 4y - 71 = 0\]
(a) Find the centre of the circle. [2 marks]
(b) Hence, find the equation of the tangent to the circle at the point \((1, 10)\), giving your answer in the form \(ax + by + c = 0\) where \(a\), \(b\) and \(c\) are integers. [4 marks]

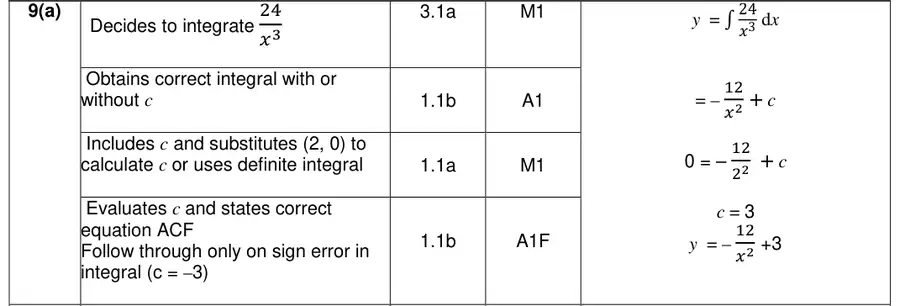

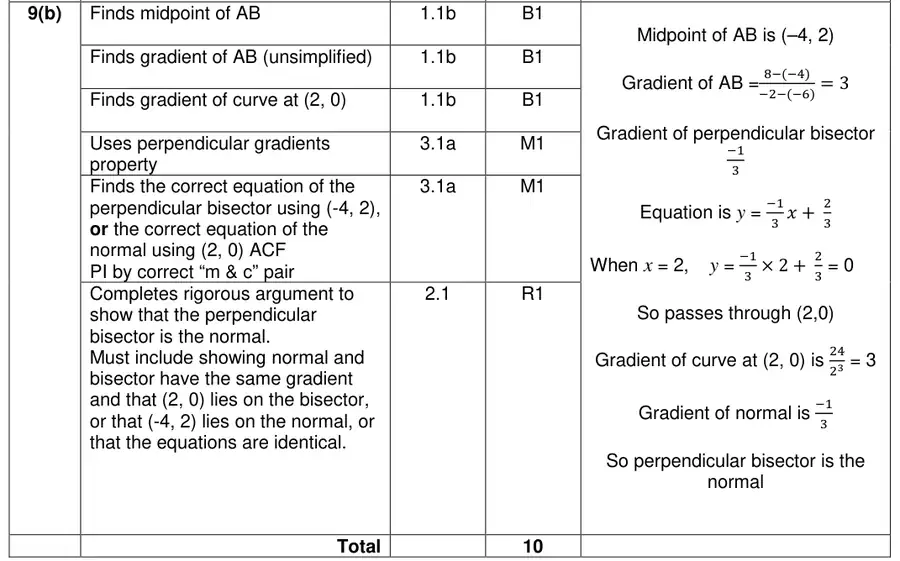

June 2019 Paper 1 Q9

AQACurrent spec10 marksCo-ordinate GeometryIntegration

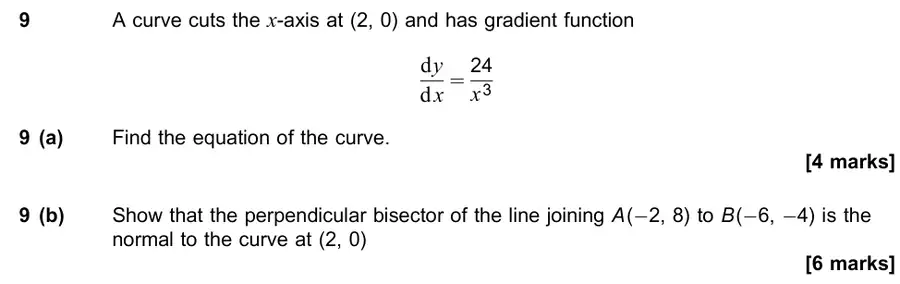

9 A curve cuts the \(x\)-axis at (2, 0) and has gradient function\[\frac{\mathrm{d}y}{\mathrm{d}x} = \frac{24}{x^3}\]

(a) Find the equation of the curve. [4 marks]
(b) Show that the perpendicular bisector of the line joining \(A(-2, 8)\) to \(B(-6, -4)\) is the normal to the curve at (2, 0) [6 marks]

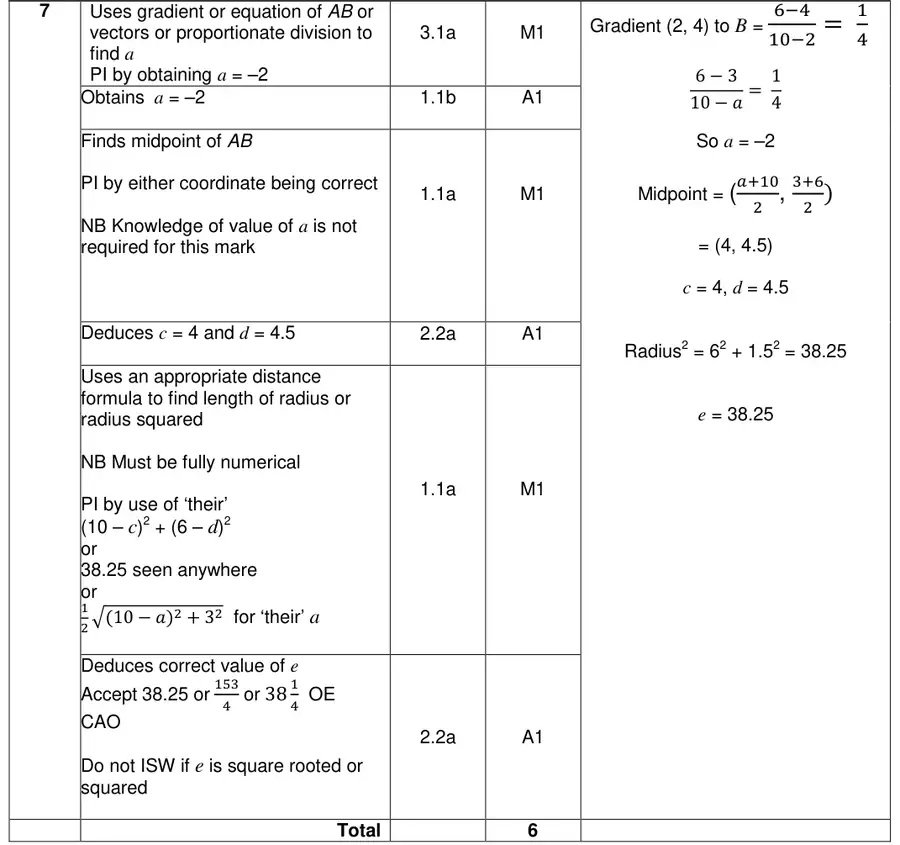

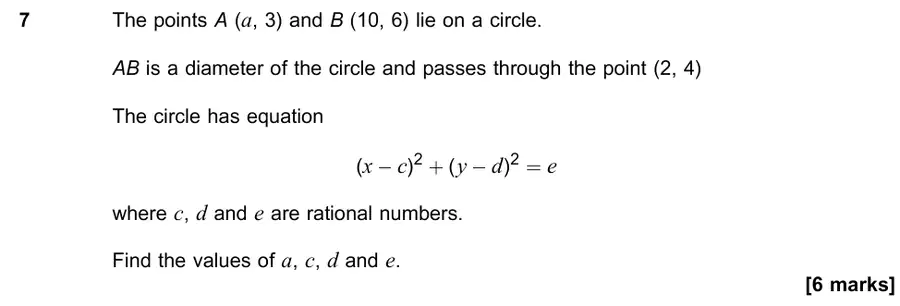

June 2019 Paper 2 Q7

AQACurrent spec6 marksCo-ordinate Geometry

7 The points \(A\) \((a, 3)\) and \(B\) (10, 6) lie on a circle.

\(AB\) is a diameter of the circle and passes through the point (2, 4)

The circle has equation\[(x - c)^2 + (y - d)^2 = e\]where \(c\), \(d\) and \(e\) are rational numbers.

Find the values of \(a\), \(c\), \(d\) and \(e\). [6 marks]

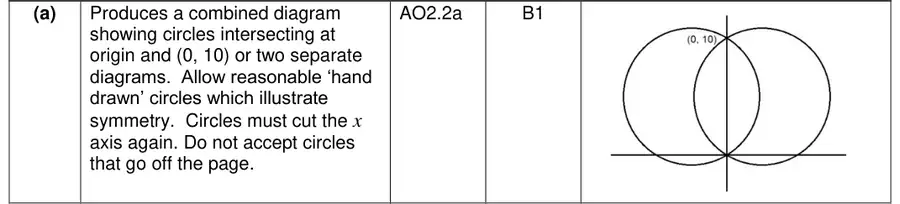

June 2018 Paper 2 Q8

AQACurrent spec4 marksCo-ordinate Geometry

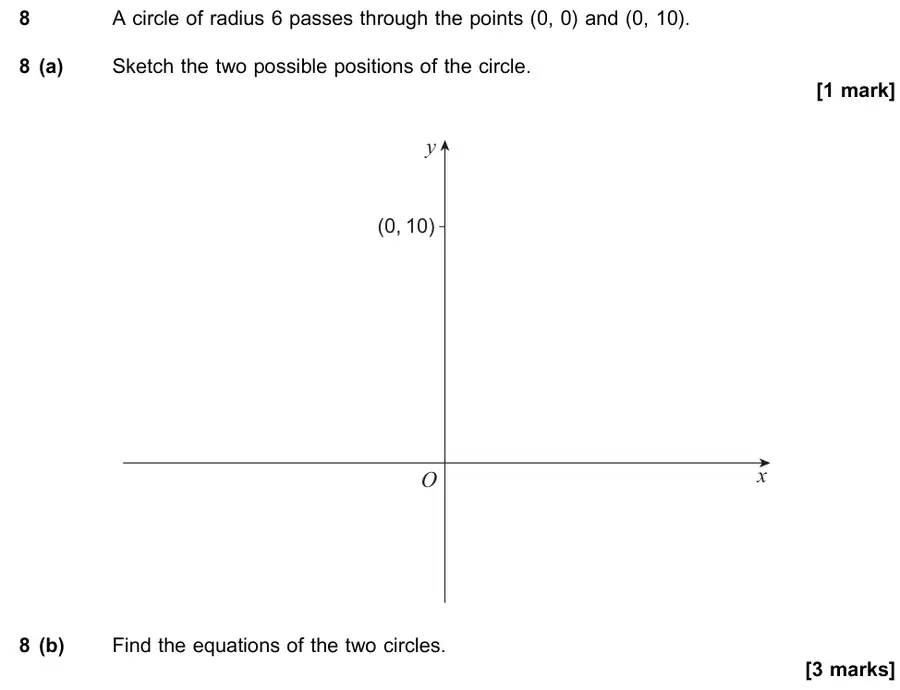

8 A circle of radius 6 passes through the points \((0, 0)\) and \((0, 10)\).

(a) Sketch the two possible positions of the circle. [1 mark]
Blank axes: x-axis and y-axis through the origin O, with (0, 10) marked on the y-axis
(b) Find the equations of the two circles. [3 marks]

June 2018 Paper 2 Q6

AQACurrent spec6 marksCo-ordinate Geometry

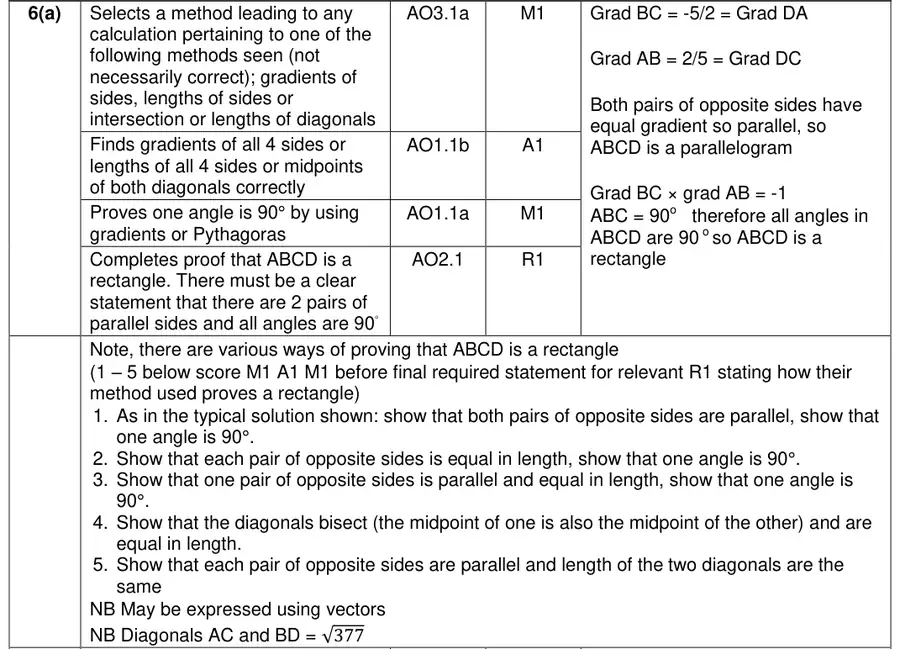

6 Points \(A\,(-7, -7)\), \(B\,(8, -1)\), \(C\,(4, 9)\) and \(D\,(-11, 3)\) are the vertices of a quadrilateral \(ABCD\).

(a) Prove that \(ABCD\) is a rectangle. [4 marks]

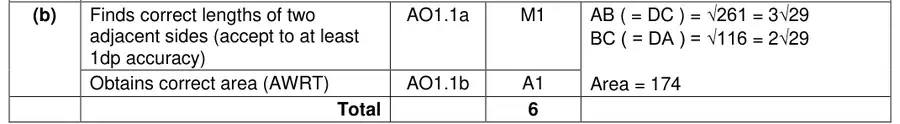

(b) Find the area of \(ABCD\). [2 marks]

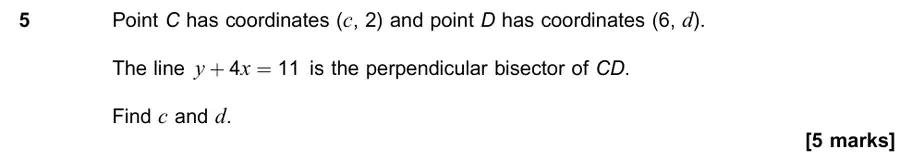

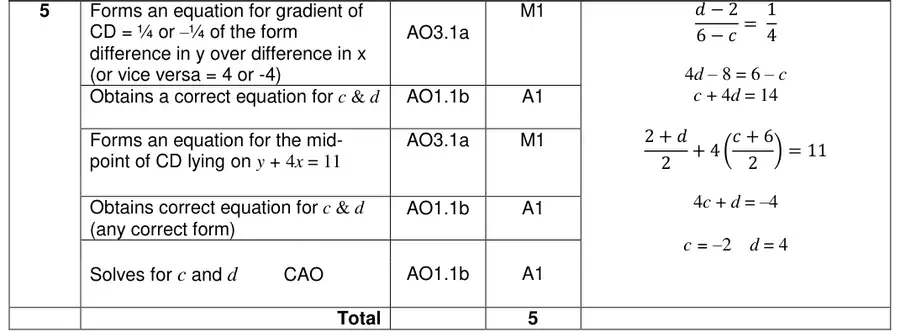

June 2018 Paper 1 Q5

AQACurrent spec5 marksCo-ordinate Geometry

5 Point \(C\) has coordinates \((c, 2)\) and point \(D\) has coordinates \((6, d)\).

The line \(y + 4x = 11\) is the perpendicular bisector of \(CD\).

Find \(c\) and \(d\). [5 marks]

June 2018 Paper 1 Q2

AQACurrent spec1 markCo-ordinate Geometry

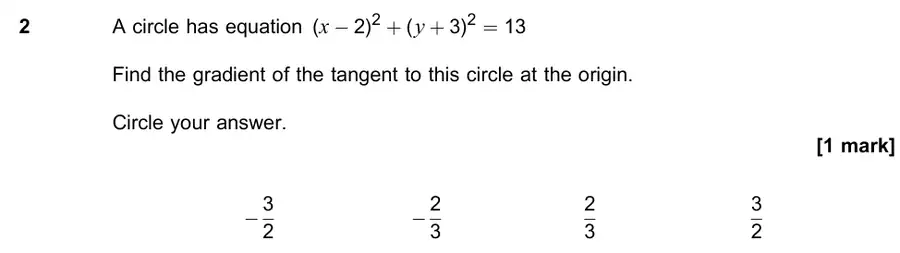

2 A circle has equation \((x - 2)^2 + (y + 3)^2 = 13\)

Find the gradient of the tangent to this circle at the origin.

Circle your answer. [1 mark]

  • \(-\dfrac{3}{2}\)
  • \(-\dfrac{2}{3}\)
  • \(\dfrac{2}{3}\)
  • \(\dfrac{3}{2}\)

June 2025 Paper 1 Q8

OCR ACurrent spec8 marksCo-ordinate GeometryDifferentiation

8 A curve with equation \(y = x^3 + 3x^2 - 9x - 12\) has stationary points \(A\) and \(B\).

Determine the coordinates of the point where the line through \(A\) and \(B\) meets the \(x\)-axis. [8]

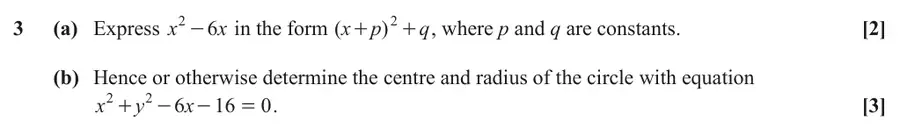

June 2025 Paper 1 Q3

OCR ACurrent spec5 marksCo-ordinate GeometryQuadratics

3

(a) Express \(x^2 - 6x\) in the form \((x + p)^2 + q\), where \(p\) and \(q\) are constants. [2]
(b) Hence or otherwise determine the centre and radius of the circle with equation
\(x^2 + y^2 - 6x - 16 = 0\). [3]

June 2025 Paper 2 Q1

OCR ACurrent spec3 marksCo-ordinate Geometry

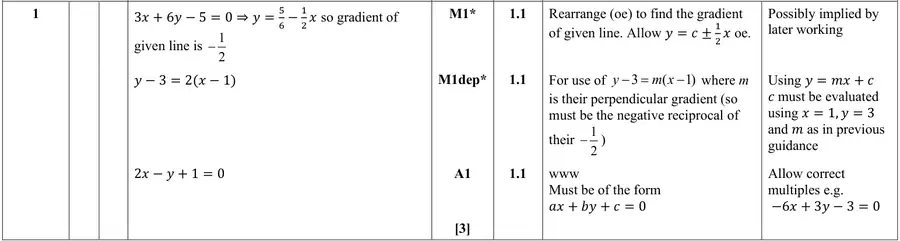

1 Determine the equation of the line that passes through the point \((1, 3)\) and is perpendicular to the line with equation \(3x + 6y - 5 = 0\). Give your answer in the form \(ax + by + c = 0\) where \(a\), \(b\) and \(c\) are integers to be determined. [3]

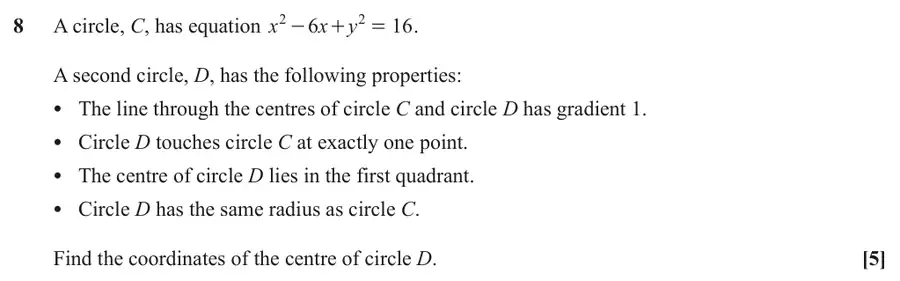

June 2024 Paper 1 Q8

OCR ACurrent spec5 marksCo-ordinate Geometry

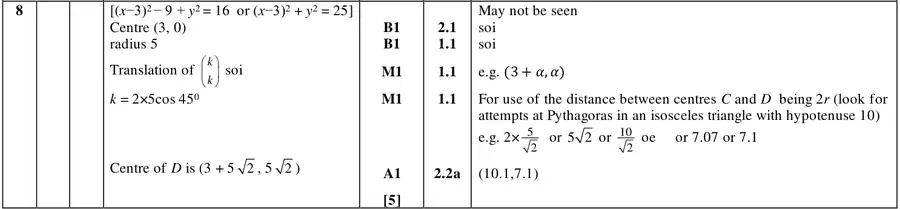

8 A circle, \(C\), has equation \(x^2 - 6x + y^2 = 16\).

A second circle, \(D\), has the following properties:

  • The line through the centres of circle \(C\) and circle \(D\) has gradient 1.
  • Circle \(D\) touches circle \(C\) at exactly one point.
  • The centre of circle \(D\) lies in the first quadrant.
  • Circle \(D\) has the same radius as circle \(C\).

Find the coordinates of the centre of circle \(D\). [5]

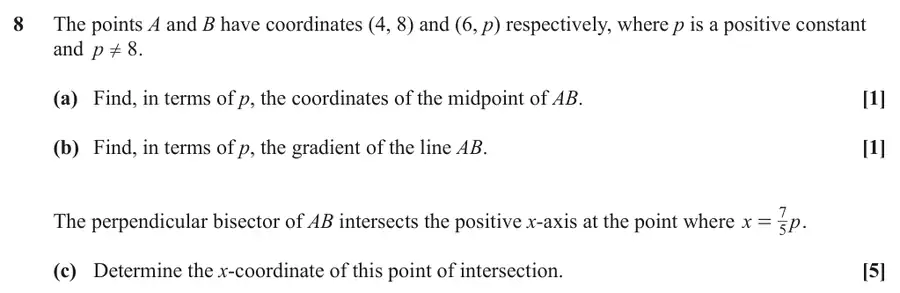

June 2024 Paper 2 Q8

OCR ACurrent spec7 marksCo-ordinate Geometry

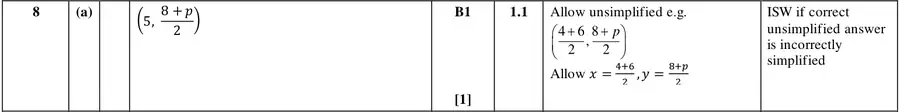

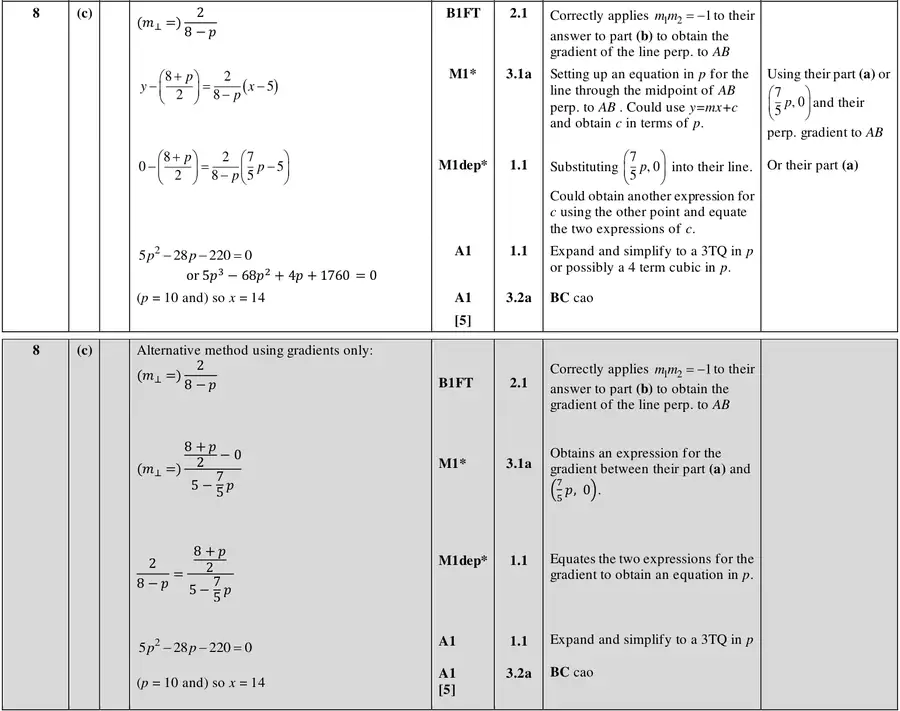

8 The points \(A\) and \(B\) have coordinates \((4, 8)\) and \((6, p)\) respectively, where \(p\) is a positive constant and \(p \neq 8\).

(a) Find, in terms of \(p\), the coordinates of the midpoint of \(AB\). [1]
(b) Find, in terms of \(p\), the gradient of the line \(AB\). [1]

The perpendicular bisector of \(AB\) intersects the positive \(x\)-axis at the point where \(x = \tfrac{7}{5}p\).

(c) Determine the \(x\)-coordinate of this point of intersection. [5]

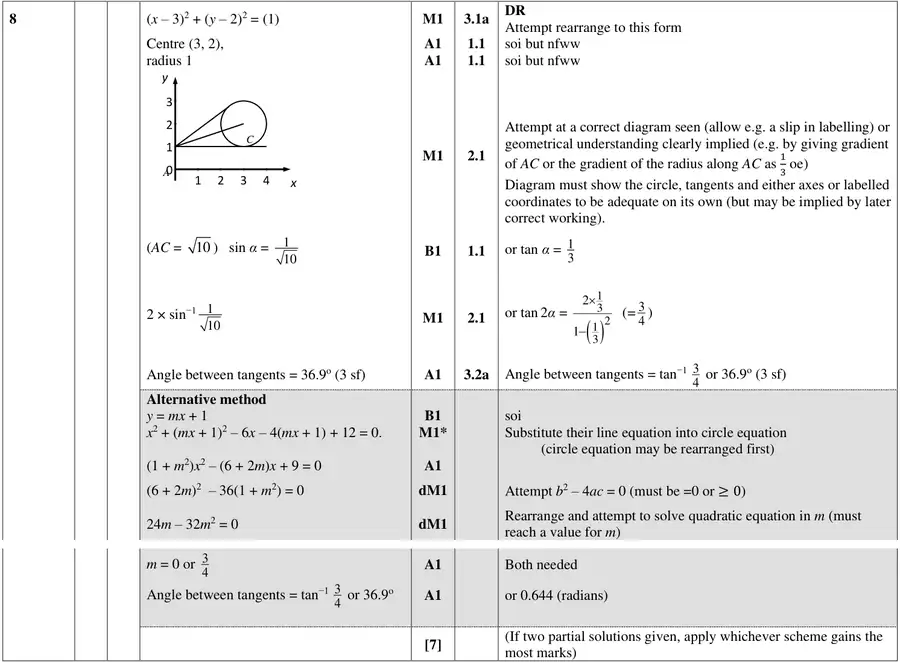

June 2023 Paper 1 Q8

OCR ACurrent spec7 marksCo-ordinate Geometry

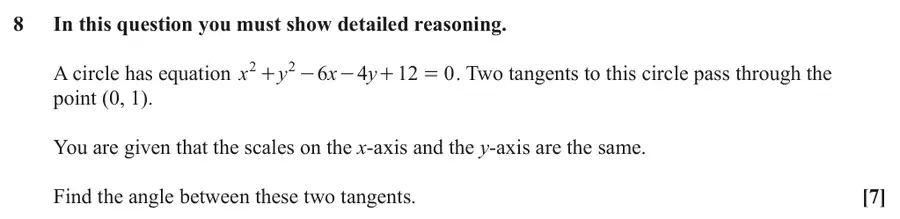

8 In this question you must show detailed reasoning.

A circle has equation \(x^2 + y^2 - 6x - 4y + 12 = 0\). Two tangents to this circle pass through the point \((0, 1)\).

You are given that the scales on the \(x\)-axis and the \(y\)-axis are the same.

Find the angle between these two tangents. [7]

June 2023 Paper 2 Q7

OCR ACurrent spec7 marksCo-ordinate GeometryDifferentiation

7

U-shaped curve C above the x-axis, with the vertical line l2 through its minimum point and the line l1 of small positive gradient crossing C at (1/2, 3) and again further right; the region between C, l1 and l2 to the right of l2 is shaded

The diagram shows the curve \(C\) with equation \(y = 4x^2 - 10x + 7\) and two straight lines, \(l_1\) and \(l_2\). The line \(l_1\) is the normal to \(C\) at the point \(\left(\tfrac{1}{2}, 3\right)\). The line \(l_2\) is the normal to \(C\) at the minimum point of \(C\).

(a) Determine the equation of \(l_1\), giving your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers to be determined. [4]

The shaded region shown in the diagram is bounded by \(C\), \(l_1\) and \(l_2\).

(b) Determine the inequalities that define the shaded region, including its boundaries. [3]

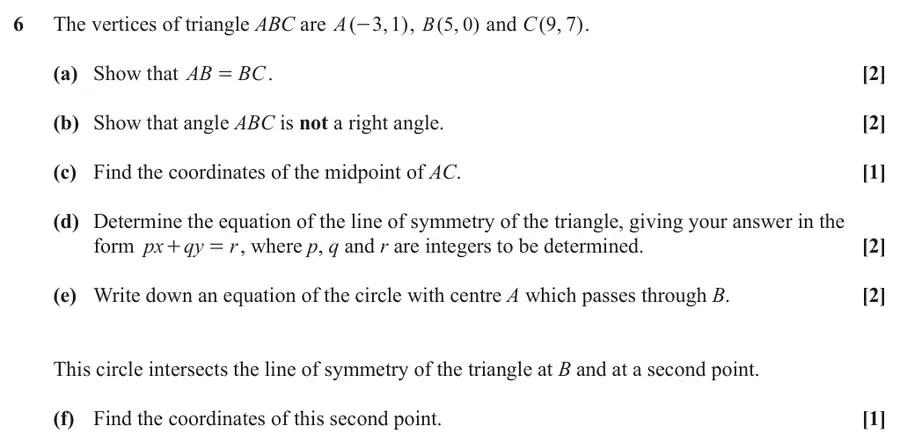

June 2023 Paper 2 Q6

OCR ACurrent spec10 marksCo-ordinate Geometry

6 The vertices of triangle \(ABC\) are \(A(-3, 1)\), \(B(5, 0)\) and \(C(9, 7)\).

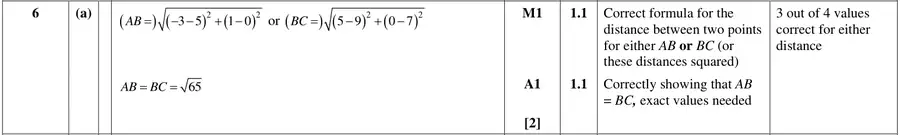

(a) Show that \(AB = BC\). [2]

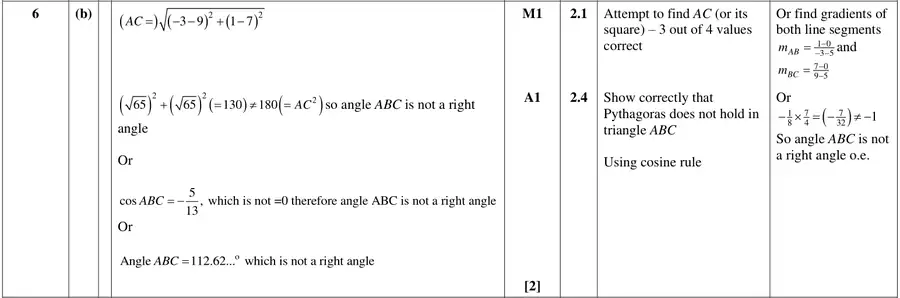

(b) Show that angle \(ABC\) is not a right angle. [2]
(c) Find the coordinates of the midpoint of \(AC\). [1]

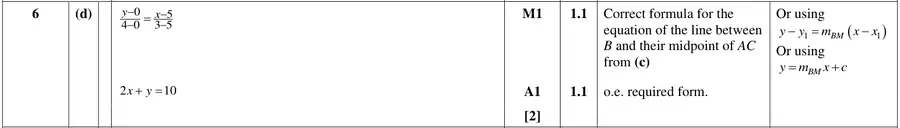

(d) Determine the equation of the line of symmetry of the triangle, giving your answer in the form \(px + qy = r\), where \(p\), \(q\) and \(r\) are integers to be determined. [2]
(e) Write down an equation of the circle with centre \(A\) which passes through \(B\). [2]

This circle intersects the line of symmetry of the triangle at \(B\) and at a second point.

(f) Find the coordinates of this second point. [1]

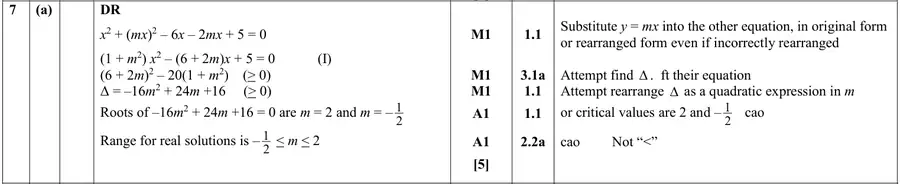

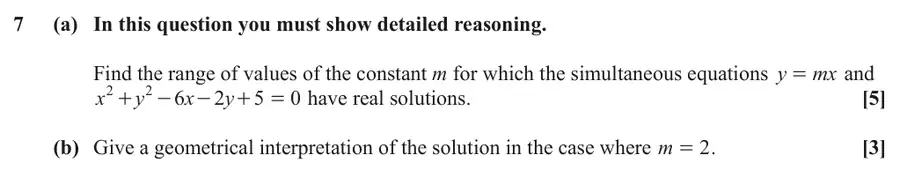

June 2022 Paper 1 Q7

OCR ACurrent spec8 marksCo-ordinate GeometryQuadratics

7

(a) In this question you must show detailed reasoning.

Find the range of values of the constant \(m\) for which the simultaneous equations \(y = mx\) and \(x^2 + y^2 - 6x - 2y + 5 = 0\) have real solutions. [5]

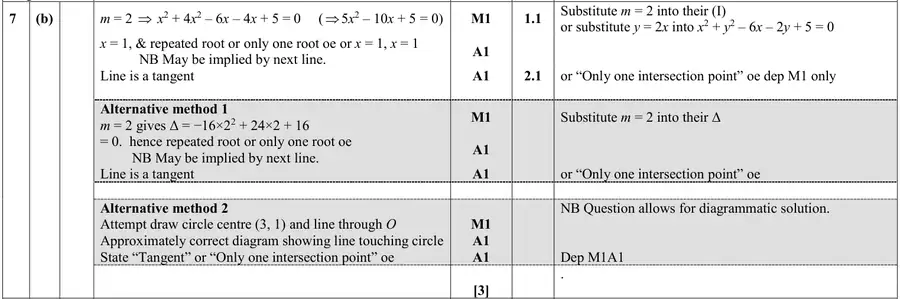

(b) Give a geometrical interpretation of the solution in the case where \(m = 2\). [3]

June 2022 Paper 2 Q4

OCR ACurrent spec3 marksCo-ordinate Geometry

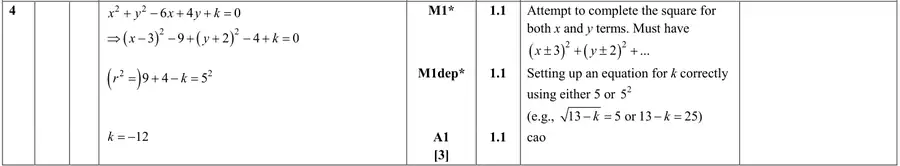

4 The circle \(x^2 + y^2 - 6x + 4y + k = 0\) has radius 5.

Determine the value of \(k\). [3]

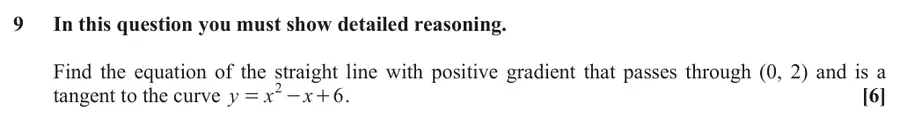

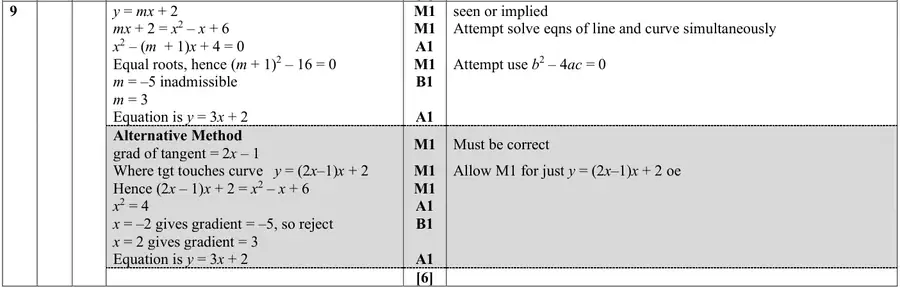

October 2021 Paper 1 Q9

OCR ACurrent spec6 marksCo-ordinate GeometryQuadratics

9 In this question you must show detailed reasoning.

Find the equation of the straight line with positive gradient that passes through \((0, 2)\) and is a tangent to the curve \(y = x^2 - x + 6\). [6]

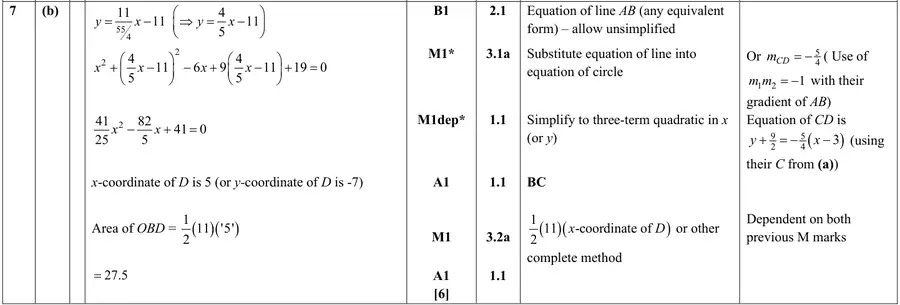

October 2021 Paper 2 Q7

OCR ACurrent spec9 marksCo-ordinate Geometry

7

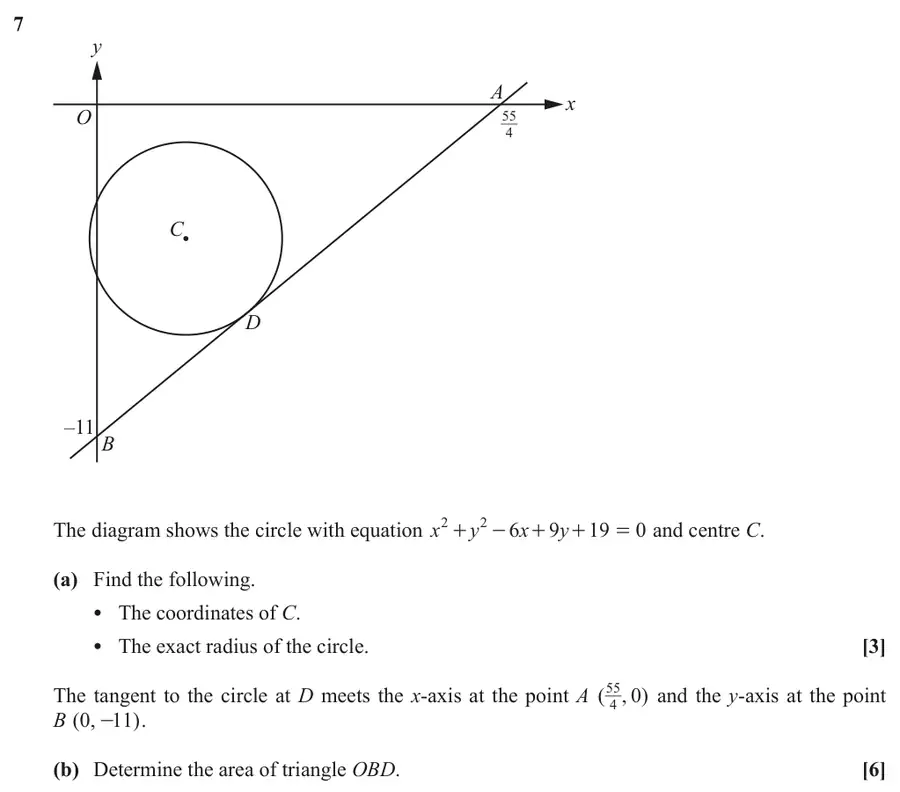

Circle with centre C below the x-axis and to the right of the y-axis; a straight line through A (55/4, 0) on the x-axis and B (0, -11) on the y-axis touches the circle at D

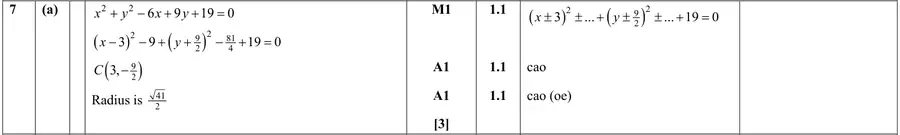

The diagram shows the circle with equation \(x^2 + y^2 - 6x + 9y + 19 = 0\) and centre \(C\).

(a) Find the following.
  • The coordinates of \(C\).
  • The exact radius of the circle. [3]

The tangent to the circle at \(D\) meets the \(x\)-axis at the point \(A\ \left(\frac{55}{4}, 0\right)\) and the \(y\)-axis at the point \(B\ (0, -11)\).

(b) Determine the area of triangle \(OBD\). [6]

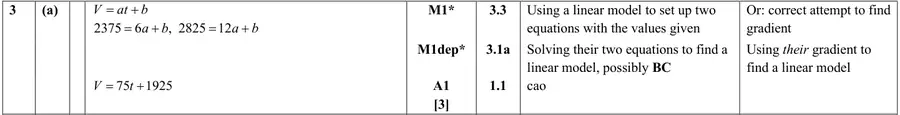

October 2021 Paper 2 Q3

OCR ACurrent spec5 marksCo-ordinate GeometryModelling

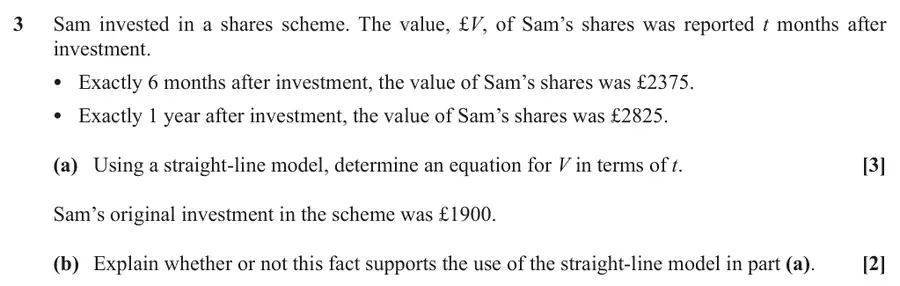

3 Sam invested in a shares scheme. The value, £\(V\), of Sam’s shares was reported \(t\) months after investment.

  • Exactly 6 months after investment, the value of Sam’s shares was £2375.
  • Exactly 1 year after investment, the value of Sam’s shares was £2825.
(a) Using a straight-line model, determine an equation for \(V\) in terms of \(t\). [3]

Sam’s original investment in the scheme was £1900.

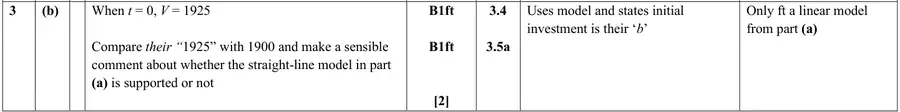

(b) Explain whether or not this fact supports the use of the straight-line model in part (a). [2]

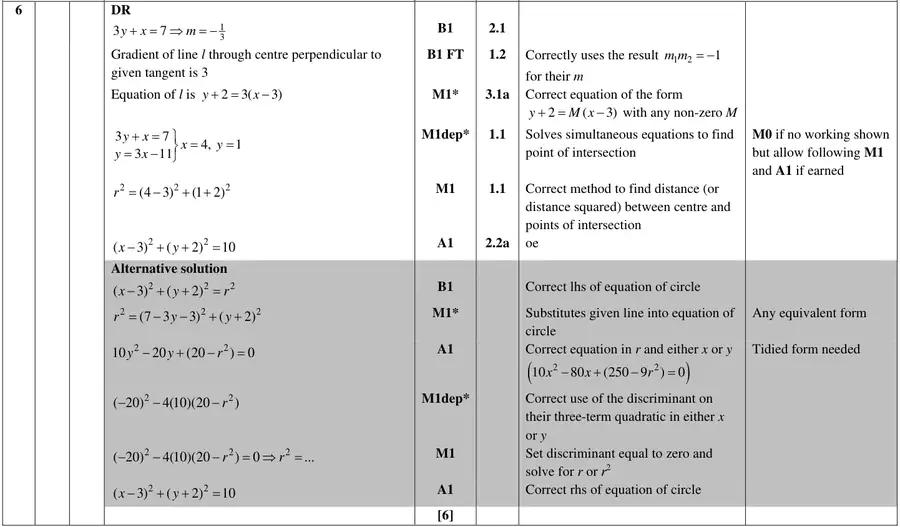

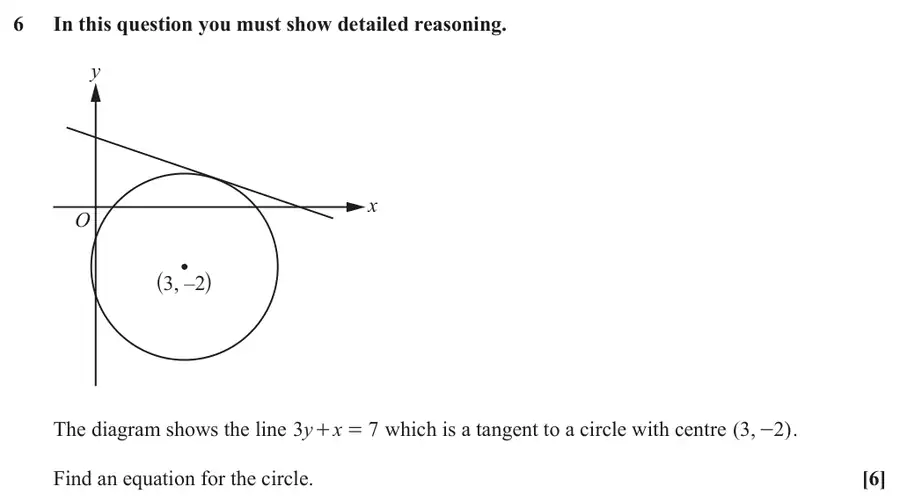

October 2020 Paper 2 Q6

OCR ACurrent spec6 marksCo-ordinate Geometry

6 In this question you must show detailed reasoning.

Axes with a circle centred at (3, -2) crossing the x- and y-axes, and a straight line with negative gradient touching the circle above the x-axis

The diagram shows the line \(3y + x = 7\) which is a tangent to a circle with centre \((3, -2)\).

Find an equation for the circle. [6]

October 2020 Paper 2 Q3

OCR ACurrent spec7 marksCo-ordinate GeometryDifferentiation

3 In this question you must show detailed reasoning.

Find the equation of the normal to the curve \(y = 4\sqrt{x} - 3x + 1\) at the point on the curve where \(x = 4\). Give your answer in the form \(ax + by + c = 0\), where \(a\), \(b\) and \(c\) are integers. [7]

June 2019 Paper 1 Q2

OCR ACurrent spec4 marksCo-ordinate Geometry

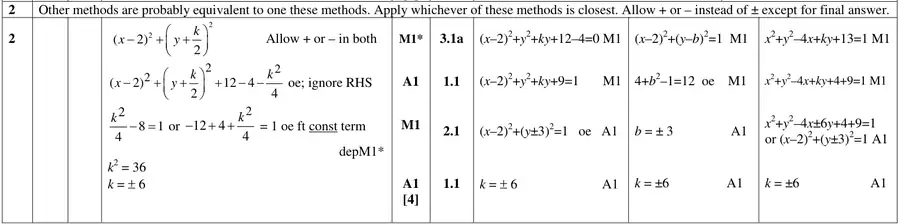

2 The circle \(x^2 + y^2 - 4x + ky + 12 = 0\) has radius 1.

Find the two possible values of the constant \(k\). [4]

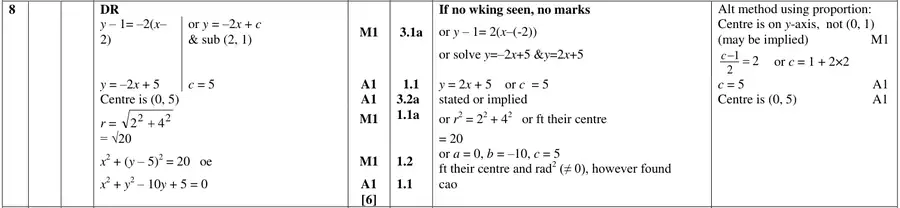

June 2018 Paper 1 Q8

OCR ACurrent spec6 marksCo-ordinate Geometry

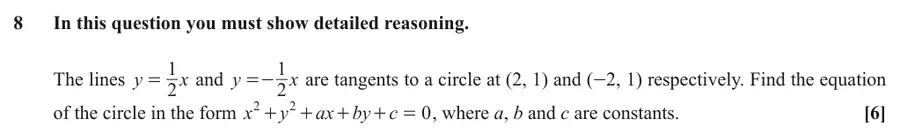

8 In this question you must show detailed reasoning.

The lines \(y = \dfrac{1}{2}x\) and \(y = -\dfrac{1}{2}x\) are tangents to a circle at \((2, 1)\) and \((-2, 1)\) respectively. Find the equation of the circle in the form \(x^2 + y^2 + ax + by + c = 0\), where \(a\), \(b\) and \(c\) are constants. [6]

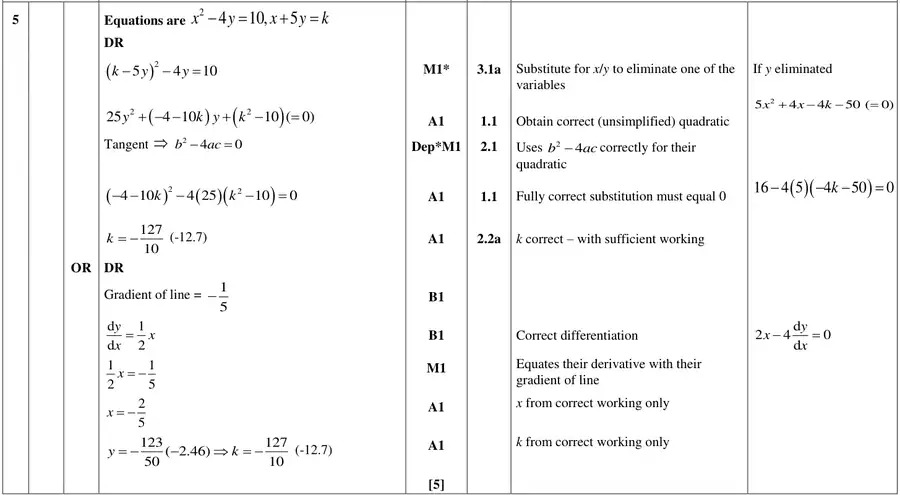

June 2018 Paper 2 Q5

OCR ACurrent spec5 marksCo-ordinate GeometryQuadratics

5 In this question you must show detailed reasoning.

The line \(x + 5y = k\) is a tangent to the curve \(x^2 - 4y = 10\). Find the value of the constant \(k\). [5]

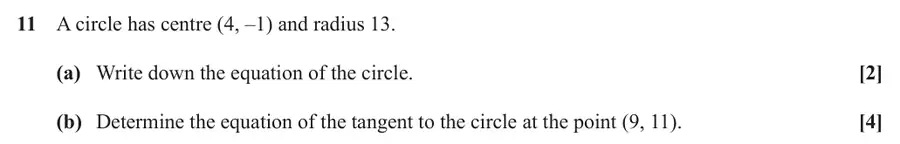

June 2025 Paper 2 Q11

OCR MEICurrent spec6 marksCo-ordinate Geometry

11 A circle has centre \((4, -1)\) and radius 13.

(a) Write down the equation of the circle. [2]

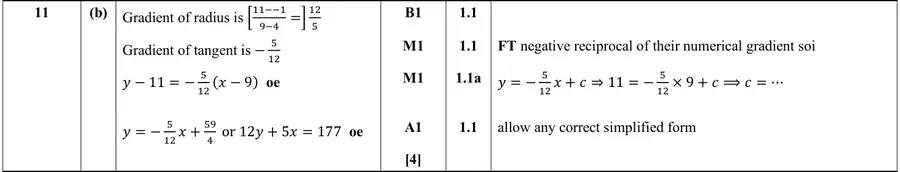

(b) Determine the equation of the tangent to the circle at the point \((9, 11)\). [4]

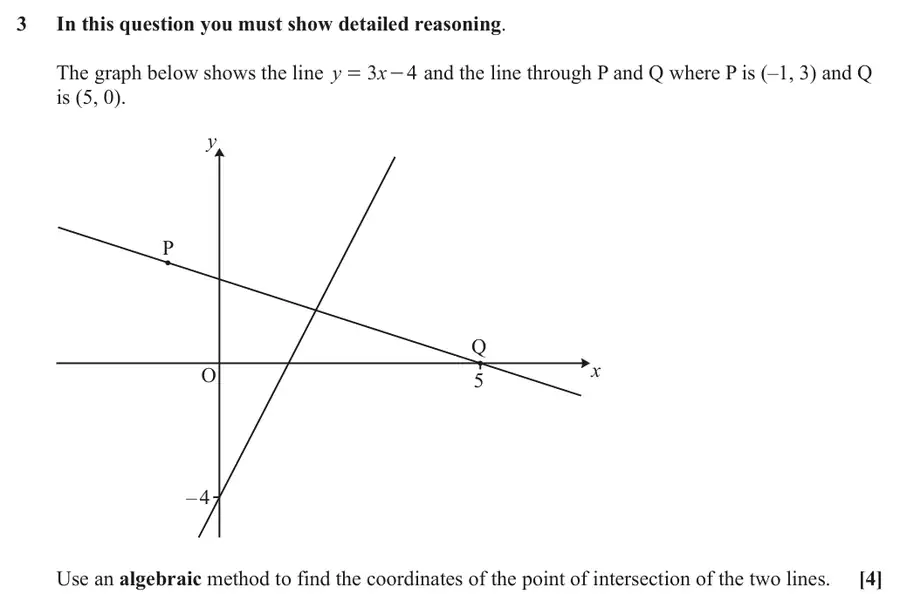

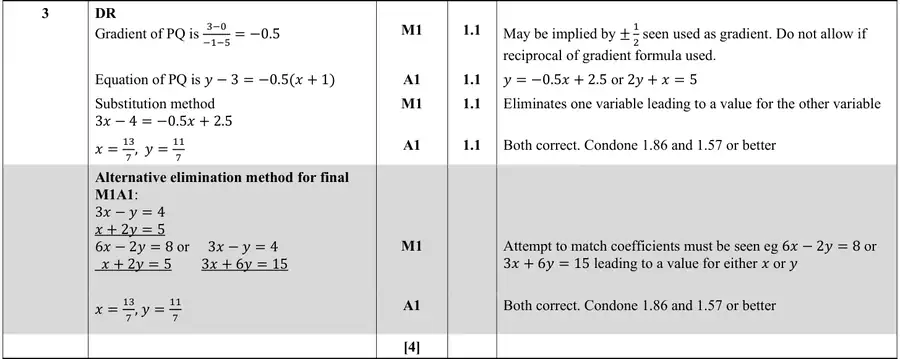

June 2025 Paper 1 Q3

OCR MEICurrent spec4 marksCo-ordinate Geometry

3 In this question you must show detailed reasoning.

The graph below shows the line \(y = 3x - 4\) and the line through P and Q where P is \((-1, 3)\) and Q is \((5, 0)\).

Graph showing the line y = 3x − 4 crossing the y-axis at −4, and the line through P(−1, 3) and Q on the x-axis at 5; the two lines intersect in the first quadrant

Use an algebraic method to find the coordinates of the point of intersection of the two lines. [4]

June 2024 Paper 1 Q8

OCR MEICurrent spec10 marksCo-ordinate Geometry

8 A circle with centre C has equation \(x^2 + y^2 - 6x - 16y + 48 = 0\).

(a) Find the coordinates of C. [2]

A line has equation \(y = x - 2\) and intersects the circle at the points A and B. The midpoints of AC and BC are \(\text{A}'\) and \(\text{B}'\) respectively.

(b) Determine the exact distance \(\text{A}'\text{B}'\). [8]

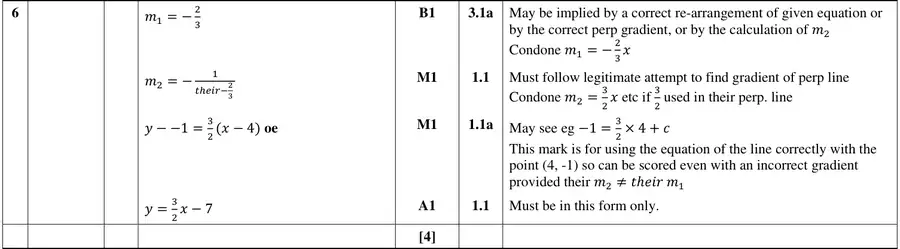

June 2024 Paper 2 Q6

OCR MEICurrent spec4 marksCo-ordinate Geometry

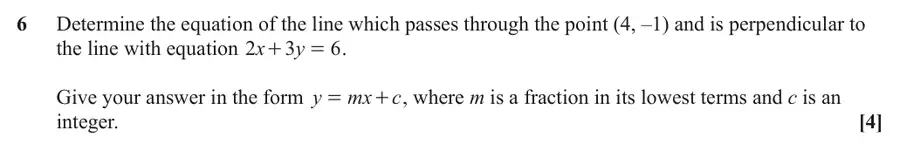

6 Determine the equation of the line which passes through the point \((4, -1)\) and is perpendicular to the line with equation \(2x + 3y = 6\).

Give your answer in the form \(y = mx + c\), where \(m\) is a fraction in its lowest terms and \(c\) is an integer. [4]

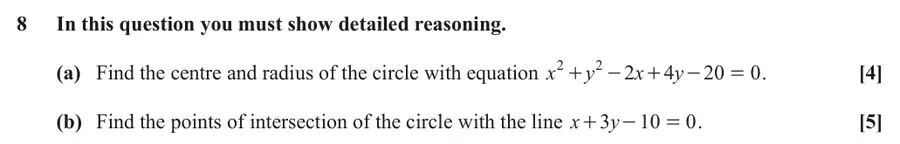

June 2023 Paper 1 Q8

OCR MEICurrent spec9 marksCo-ordinate Geometry

8 In this question you must show detailed reasoning.

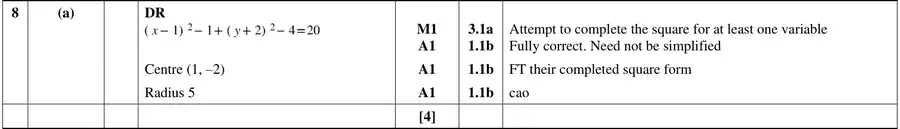

(a) Find the centre and radius of the circle with equation \(x^2 + y^2 - 2x + 4y - 20 = 0\). [4]

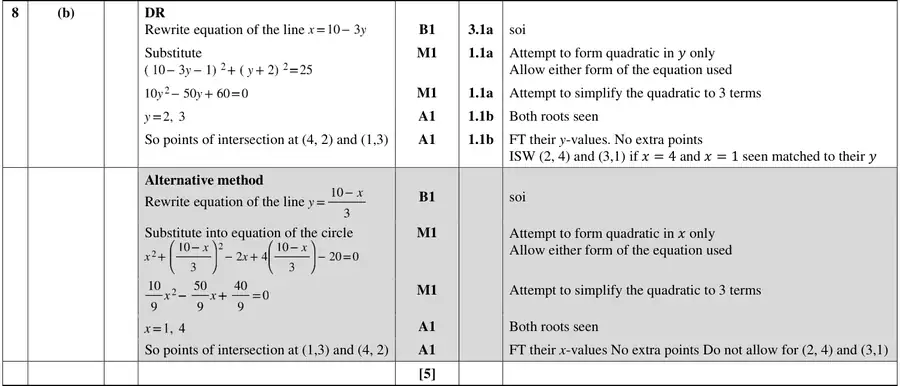

(b) Find the points of intersection of the circle with the line \(x + 3y - 10 = 0\). [5]

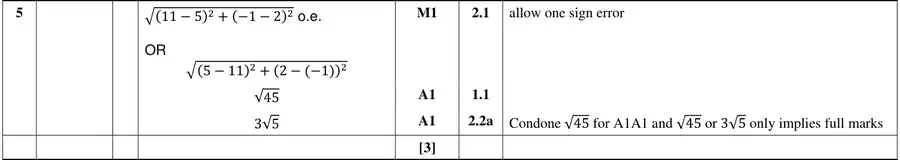

June 2023 Paper 2 Q5

OCR MEICurrent spec3 marksCo-ordinate Geometry

5 Show that the distance between the points (5, 2) and (11, –1) is \(a\sqrt{b}\), where \(a\) and \(b\) are integers to be determined. [3]

June 2022 Paper 1 Q10

OCR MEICurrent spec9 marksCo-ordinate GeometryTrigonometry

10 A triangle has vertices A (1, 4), B (7, 0) and C (−4, −1).

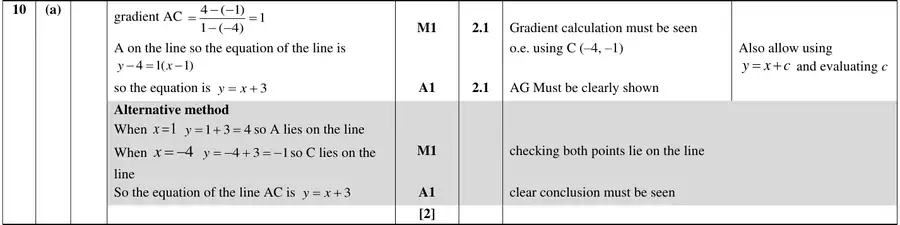

(a) Show that the equation of the line AC is \(y = x + 3\). [2]

M is the midpoint of AB. The line AC intersects the \(x\)-axis at D.

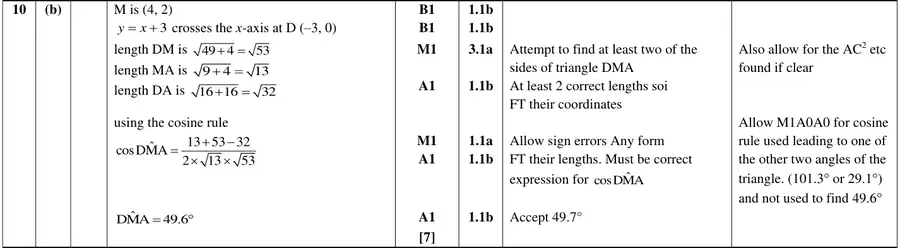

(b) Determine the angle DMA. [7]

October 2021 Paper 2 Q10

OCR MEICurrent spec6 marksCo-ordinate Geometry

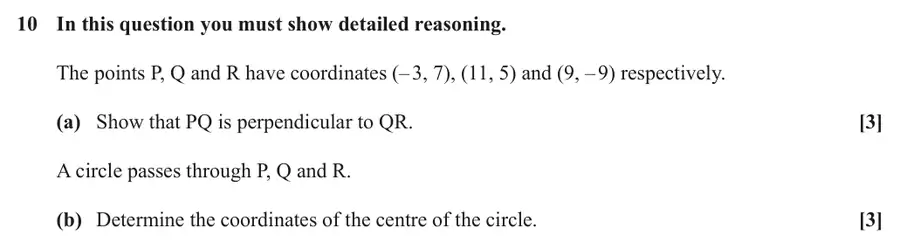

10 In this question you must show detailed reasoning.

The points P, Q and R have coordinates (−3, 7), (11, 5) and (9, −9) respectively.

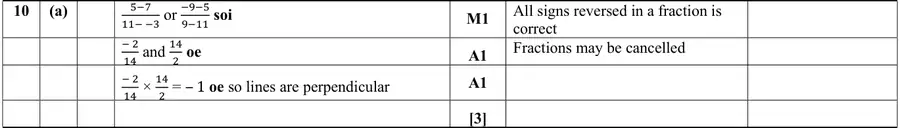

(a) Show that PQ is perpendicular to QR. [3]

A circle passes through P, Q and R.

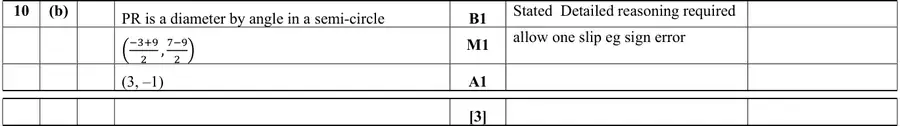

(b) Determine the coordinates of the centre of the circle. [3]

October 2021 Paper 1 Q1

OCR MEICurrent spec2 marksCo-ordinate Geometry

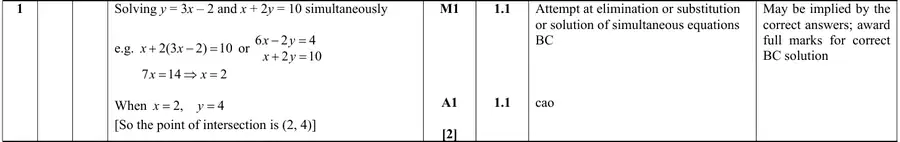

1 Find the coordinates of the point of intersection of the lines \(y = 3x - 2\) and \(x + 2y = 10\). [2]

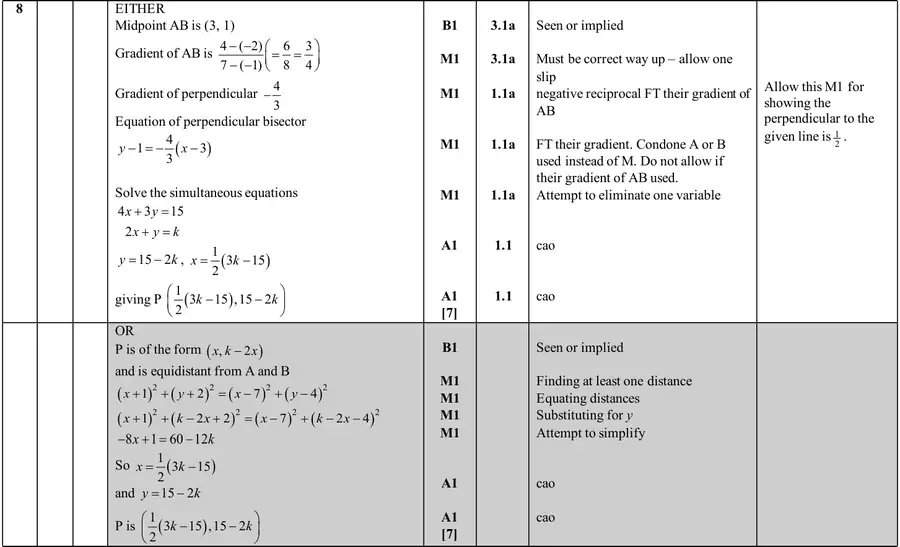

October 2020 Paper 1 Q8

OCR MEICurrent spec7 marksCo-ordinate Geometry

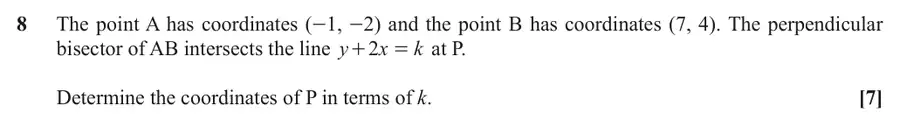

8 The point A has coordinates (−1, −2) and the point B has coordinates (7, 4). The perpendicular bisector of AB intersects the line \(y + 2x = k\) at P.

Determine the coordinates of P in terms of \(k\). [7]

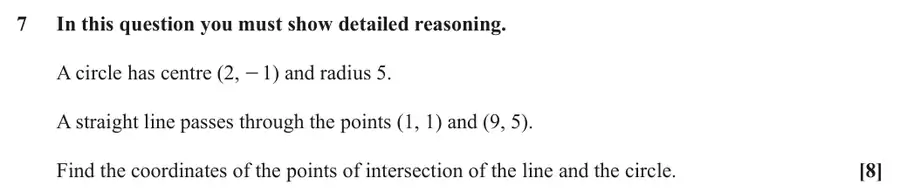

October 2020 Paper 2 Q7

OCR MEICurrent spec8 marksCo-ordinate Geometry

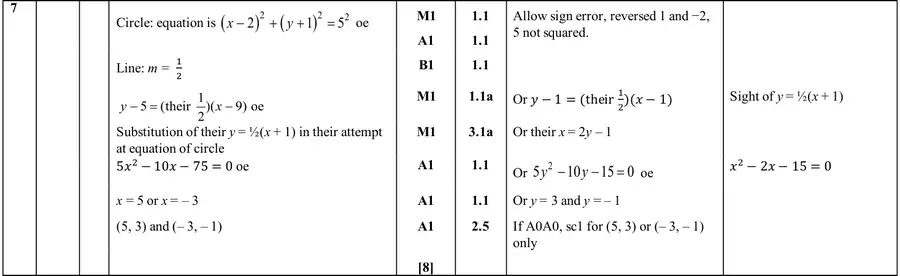

7 In this question you must show detailed reasoning.

A circle has centre (2, −1) and radius 5.

A straight line passes through the points (1, 1) and (9, 5).

Find the coordinates of the points of intersection of the line and the circle. [8]

June 2019 Paper 2 Q10

OCR MEICurrent spec10 marksCo-ordinate GeometryDifferentiation

10 In this question you must show detailed reasoning.

The equation of a curve is \(y = \dfrac{x^2}{4} + \dfrac{2}{x} + 1\). A tangent and a normal to the curve are drawn at the point where \(x = 2\).

Calculate the area bounded by the tangent, the normal and the \(x\)-axis. [10]

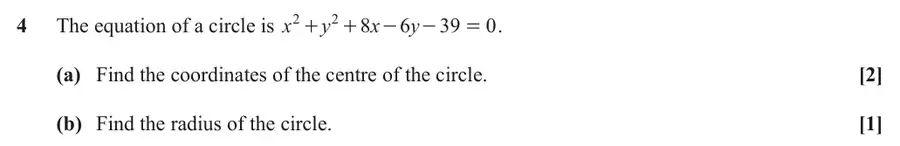

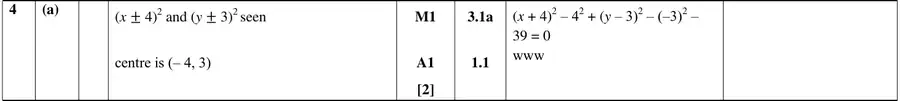

June 2019 Paper 2 Q4

OCR MEICurrent spec3 marksCo-ordinate Geometry

4 The equation of a circle is \(x^2 + y^2 + 8x - 6y - 39 = 0\).

(a) Find the coordinates of the centre of the circle. [2]
(b) Find the radius of the circle. [1]

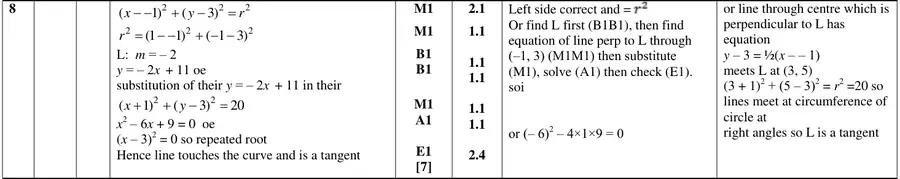

June 2018 Paper 2 Q8

OCR MEICurrent spec7 marksCo-ordinate Geometry

8 In this question you must show detailed reasoning.

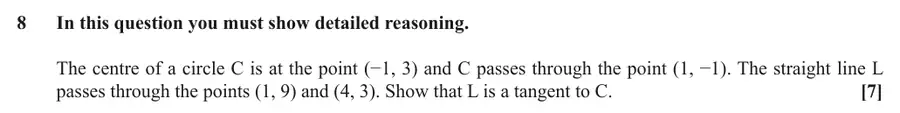

The centre of a circle C is at the point \((-1, 3)\) and C passes through the point \((1, -1)\). The straight line L passes through the points \((1, 9)\) and \((4, 3)\). Show that L is a tangent to C. [7]

June 2025 Unit 1 Q8

WJECCurrent spec10 marksCo-ordinate Geometry

8. A circle \(C\) has centre \(A\) and equation \(x^2+y^2+2x-4y=4\).

(a) Find the coordinates of \(A\) and the radius of \(C\). [3]
(b)
(i) A straight line \(L\), with equation \(y=2x+1\), intersects the circle \(C\) at the points \(P\) and \(Q\). Determine the coordinates of \(P\) and \(Q\). [4]
(ii) Find the gradient of the tangent at each of the points \(P\) and \(Q\). [3]

June 2025 Unit 1 Q2

WJECCurrent spec11 marksCo-ordinate Geometry

2. The line \(L_1\) passes through the points \(A(-2,\ 0)\) and \(B(3,\ 5)\).

(a) Find the equation of \(L_1\). [3]

The line \(L_2\) is perpendicular to \(L_1\), passes through \(B\) and intersects the \(x\)-axis at the point \(C\).

(b) Find the coordinates of \(C\). [3]
(c) Show that \(ABC\) is an isosceles triangle and calculate its area. [5]

June 2024 Unit 1 Q18

WJECCurrent spec12 marksCo-ordinate Geometry

18.

(a) A circle C has centre (–3, –1) and radius \(\sqrt{5}\). Show that the equation of C can be written as \(x^2+y^2+6x+2y+5=0\). [2]
(b)
(i) Find the equations of the tangents to C that pass through the origin O. [6]
(ii) Determine the coordinates of the points where the tangents touch the circle. [4]

June 2024 Unit 1 Q7

WJECCurrent spec11 marksCo-ordinate Geometry

7.

(a) The line L1 passes through the points A(–3, 0) and B(1, 4). Determine the equation of L1. [3]
(b) The line L2 has equation \(y=3x-3\).
(i) Given that L1 and L2 intersect at the point C, find the coordinates of C.
(ii) The line L2 crosses the \(x\)-axis at the point D. Show that the coordinates of D are (1, 0). [4]
(c) Calculate the area of triangle ACD. [2]
(d) Determine the angle ACD. [2]

June 2023 Unit 1 Q3

WJECCurrent spec15 marksCo-ordinate Geometry

3. The point \(A\) has coordinates \((-2,\ 5)\) and the point \(B\) has coordinates \((3,\ 8)\). The point \(C\) lies on the \(x\)-axis such that \(AC\) is perpendicular to \(AB\).

(a) Find the equation of \(AB\). [3]
(b) Show that \(C\) has coordinates \((1,\ 0)\). [3]
(c) Calculate the area of triangle \(ABC\). [4]
(d) Find the equation of the circle which passes through the points \(A\), \(B\) and \(C\). [5]

June 2022 Unit 1 Q7

WJECCurrent spec11 marksCo-ordinate Geometry

7. A circle \(C\) has centre \(A\) and equation \(x^2+y^2-4x-6y=3\).

(a) Find the coordinates of \(A\) and the radius of \(C\). [3]

The line \(L\) with equation \(y=x+5\) intersects \(C\) at the points \(P\) and \(Q\).

(b) Determine the coordinates of \(P\) and \(Q\). [4]
(c) The point \(B\) is on \(PQ\) and is such that \(AB\) is perpendicular to \(PQ\). Find the length of \(PB\). [2]
(d) Show that the area of the smaller segment enclosed by \(C\) and \(L\) is \(4\pi-8\). [2]

June 2022 Unit 1 Q3

WJECCurrent spec11 marksCo-ordinate Geometry

3. The line \(L_1\) passes through the points \(A(0,\ 5)\) and \(B(3,\ -1)\).

(a) Find the equation of the line \(L_1\). [3]

The line \(L_2\) is perpendicular to \(L_1\) and passes through the origin \(O\).

(b) Write down the equation of \(L_2\). [1]

The lines \(L_1\) and \(L_2\) intersect at the point \(C\).

(c) Calculate the area of triangle \(OAC\). [4]
(d) Find the equation of the line \(L_3\) which is parallel to \(L_1\) and passes through the point \(D(4,\ 2)\). [2]
(e) The line \(L_3\) intersects the \(y\)-axis at the point \(E\). Find the area of triangle \(ODE\). [1]

June 2019 Unit 1 Q9

WJECCurrent spec12 marksCo-ordinate Geometry

9. The points \(A(-2,\ 4)\) and \(B(6,\ 10)\) are such that \(AB\) is the diameter of a circle.

(a) Show that the centre of the circle has coordinates \((2,\ 7)\). [1]
(b) The equation of the circle is \(x^2+y^2+ax+by+c=0\).
Determine the values of \(a,\ b,\ c\). [3]

A straight line, with equation \(y=x+6\), passes through the point \(A\) and cuts the circle again at the point \(C\).

(c) Find the coordinates of \(C\). [5]
(d) Calculate the exact area of the triangle \(ABC\). [3]

June 2019 Unit 1 Q4

WJECCurrent spec15 marksCo-ordinate Geometry

4. The line \(L_1\) passes through the points \(A(-1,\ 3)\) and \(B(2,\ 9)\). The line \(L_2\) has equation \(2y+x=25\) and intersects \(L_1\) at the point \(C\). \(L_2\) also intersects the \(x\)-axis at the point \(D\).

(a) Show that the equation of the line \(L_1\) is \(y=2x+5\). [3]
(b)
(i) Find the coordinates of the point \(D\).
(ii) Show that \(L_1\) and \(L_2\) are perpendicular.
(iii) Determine the coordinates of \(C\). [5]
(c) Find the length of \(CD\). [2]
(d) Calculate the angle \(ADB\). Give your answer in degrees, correct to one decimal place. [5]

June 2018 Unit 1 Q18

WJECCurrent spec8 marksCo-ordinate Geometry

18. The coordinates of three points A, B, C are (4, 6), (–3, 5) and (5, –1) respectively.

(a) Show that \(B\hat{A}C\) is a right angle. [3]
(b) A circle passes through all three points A, B, C. Determine the equation of the circle. [5]

June 2018 Unit 1 Q2

WJECCurrent spec14 marksCo-ordinate Geometry

2. The points A and B have coordinates (–1, 10) and (5, 1) respectively. The straight line L has equation \(2x-3y+6=0\).

(a) The line L intersects the line AB at the point C. Find the coordinates of C. [5]
(b) Determine the ratio in which the line L divides the line AB. [2]
(c) The line L crosses the \(x\)-axis at the point D. Find the coordinates of D. [1]
(d)
(i) Show that L is perpendicular to AB.
(ii) Calculate the area of the triangle ACD. [6]
