In this question you must show all stages of your working.
Solutions relying entirely on calculator technology are not acceptable.
The growth of a particular tree is monitored over a period of time.
The height, \(h\) metres, of this tree, \(t\) years after it was planted, is modelled by the equation\[h = 31 - A\mathrm{e}^{-kt}\]where \(A\) and \(k\) are positive constants.
Given that
exactly 10 years after it was planted, the height of the tree was 6 m
exactly 20 years after it was planted, the height of the tree was 11 m
(a) find a complete equation for \(h\) in terms of \(t\), giving the value of each of \(A\) and \(k\) to 3 significant figures. (4)
Use the equation of the model to answer parts (b), (c) and (d).
According to the model, there is a limit to the height to which this tree can grow.
(b) Deduce this limit. (1)
(c)
(i) Find the initial height of the tree.
(ii) Hence explain whether this is a suitable model for the early growth of the tree. (2)
(d)
(i) Find \(\dfrac{\mathrm{d}h}{\mathrm{d}t}\), giving your answer in simplest form. (2)
(ii) Hence find the value of \(t\) for which the height of the tree is increasing at a rate of 30 cm per year. (3)
e.g. \(\mathrm{e}^{10k} = \dfrac{25}{20} \Rightarrow 10k = \ln\left(\dfrac{25}{20}\right) \Rightarrow k = \dfrac{1}{10}\ln\left(\dfrac{5}{4}\right)\)
dM1
3.1a
\(k = 0.0223\) or \(A = 31.3\)
A1
1.1b
\(h = 31 - 31.3\mathrm{e}^{-0.0223t}\)
A1
3.3
(4)
Notes
M1: Uses \(h = 31 - A\mathrm{e}^{-kt}\) with \(h = 6,\ t = 10\) and \(h = 11,\ t = 20\) to create simultaneous equations and proceeds via correct work to eliminate \(A\) or \(k\). Condone the equations appearing as e.g. \(6\text{ m} = 31 - A\mathrm{e}^{-10k},\ 11\text{ m} = 31 - A\mathrm{e}^{-20k}\) Look for the overall method being correct but condone slips.
\(A\mathrm{e}^{-10k} = 25,\ A\mathrm{e}^{-20k} = 20 \Rightarrow \ln A - 10k = \ln 25,\ \ln A - 20k = \ln 20 \Rightarrow \ln A = 2\ln 25 - \ln 20\)
dM1: Proceeds to find a value for \(A\) or \(k\) using the correct order of operations but condoning slips.
A1: Achieves either \(k =\) awrt 0.0223 or \(A =\) awrt 31.3 (or \(A =\) awrt 31.2) Note the exact values are \(k = \dfrac{1}{10}\ln\dfrac{5}{4}\) or \(A = \dfrac{125}{4}\ (31.25)\) which are acceptable.
A1: cso Proceeds correctly to \(h = 31 - 31.2\mathrm{e}^{-0.0223t}\) or \(h = 31 - 31.3\mathrm{e}^{-0.0223t}\) Exact answer is \(h = 31 - \dfrac{125}{4}\mathrm{e}^{-\frac{1}{10}\ln\frac{5}{4}t}\) o.e., e.g., \(h = 31 - 31.25\mathrm{e}^{\frac{1}{10}\ln\frac{4}{5}t}\) which is acceptable. Finding \(A\) and \(k\) is insufficient for this mark as the question asks for a complete equation, however, allow this mark if the complete correct equation is seen subsequently.
Mark scheme (b)
Scheme
Marks
AO
31 m
B1
2.2a
(1)
Notes
B1: cao 31 m and units are required. Must be seen as their answer to (b). There must be no other values.
Mark scheme (c)
Scheme
Marks
AO
(c)(i) \(-0.3\) m
B1ft
3.4
(ii) The model is unsuitable for the early growth of the tree as it suggests that the tree had a negative height.
B1ft
3.5a
(2)
Notes
(c) (i)
B1ft: Accept \(31 - \text{``}A\text{''}\) with correct units. This must be evaluated correctly for their \(A\). Only penalise the omission of units once from an otherwise acceptable answer in (b) and (c)(i) and penalise it on the first occurrence.
(c) (ii)
B1ft: Concludes that the model is unsuitable because (the initial/early) height is negative Follow through on their (c)(i) here but it must be negative. Alternatively, allow that the model is suitable if they conclude that the depth of the seed is \(\text{``}{-0.3}\text{''}\) m or e.g. suitable as it would be underground.
M1: Achieves the form \(\left\{\dfrac{\mathrm{d}h}{\mathrm{d}t} =\right\} a\mathrm{e}^{-kt}\). It is acceptable to use \(k\) and \(A\) for this mark and allow if \(k \lt 0\) but must be consistent with their \(h\).
A1: \(\left\{\dfrac{\mathrm{d}h}{\mathrm{d}t} =\right\}\) awrt \(0.698\mathrm{e}^{-0.0223t}\) Allow awrt \(0.697\mathrm{e}^{-0.0223t}\) or awrt \(0.696\mathrm{e}^{-0.0223t}\) and allow exact e.g. \(\dfrac{25}{8}\ln\dfrac{5}{4}\mathrm{e}^{-\frac{1}{10}\ln\frac{5}{4}t}\)
(d)(ii)
B1ft: Sets their \(\dfrac{\mathrm{d}h}{\mathrm{d}t} = 0.3\) where \(\dfrac{\mathrm{d}h}{\mathrm{d}t}\) is not their \(h\).
M1: Uses their \(\dfrac{\mathrm{d}h}{\mathrm{d}t} = \ldots\), and proceeds from \(a\mathrm{e}^{-kt} = b\) where \(ab \gt 0\) to \(ct = \ln d\) where \(d \gt 0\) using the correct order of operations but condoning slips. Allow equivalent work e.g. \(0.696\mathrm{e}^{-0.0223t} = 0.3 \Rightarrow \ln 0.696 - 0.0223t = \ln 0.3 \Rightarrow -0.0223t = \ln 0.3 - \ln 0.696\)
A1: cso awrt 37.7 or 37.8 or 37.9 but note that this may be scored if \(k\) is rounded in (a). Ignore any units if given and just look for the value.
In this question you must show all stages of your working.
Solutions relying entirely on calculator technology are not acceptable.
Figure 4
Figure 4 shows a design for a feeding trough.
The trough is modelled as a hollow, semicircular cylinder of radius \(r\) cm and length \(l\) cm.
The trough will be made from sheet metal of negligible thickness.
Given that the capacity of the trough will be \(90\,000\pi\ \text{cm}^3\)
(a) show that the total area, \(A\ \text{cm}^2\), of sheet metal required to make the trough is given by\[A = \frac{180\,000\pi}{r} + \pi r^2\] (4)
(b) Use calculus to find the radius of the trough for which \(A\) is a minimum. (4)
(c) Show that the radius found in part (b) gives the minimum value of \(A\). (2)
Given that the sheet metal costs £30 per square metre
(d) calculate the minimum cost of sheet metal required to make one trough. (2)
(e) State one assumption you have made in calculating your answer to part (d). (1)
Mark scheme (a)
Scheme
Marks
AO
\((V =)\ \dfrac{1}{2}\pi r^2 l = 90\,000\pi\)
B1
1.1b
\((A =)\ \pi r^2 + \pi r l\)
B1
1.1b
\(l = \dfrac{180\,000}{r^2} \Rightarrow A = \pi r^2 + \pi r\left(\dfrac{180\,000}{r^2}\right)\) or e.g. \(\pi r l = \dfrac{180\,000\pi}{r} \Rightarrow A = \pi r^2 + \dfrac{180\,000\pi}{r}\) or e.g. \(rl = \dfrac{180\,000}{r} \Rightarrow A = \pi r^2 + \pi\left(\dfrac{180\,000}{r}\right)\)
M1
1.1b
\((A =)\ \pi r^2 + \dfrac{180\,000\pi}{r}\,*\)
A1*
1.1b
(4)
Notes
In Q11 there are a lot of parts so mark positively and condone mislabelling if they are clearly doing the right thing for a particular part.
(a) Condone use of e.g. \(h\) for \(l\) or e.g. \(R\) for \(r\) as long as the intention is clear.
B1: Correct equation seen for volume: \(\dfrac{1}{2}\pi r^2 l = 90\,000\pi\) or \(\pi r^2 l = 180\,000\pi\) or \(\pi r^2 l = 2(90\,000\pi)\) or \(\dfrac{1}{2}r^2 l = 90\,000\) or \(r^2 l = 180\,000\) or \(r^2 l = 2(90\,000)\) May not be implied by subsequent work.
B1:Correct expression for the area stated in terms of the radius (or diameter) and length: e.g. \((A =)\ \pi r^2 + \pi r l\) but allow equivalent correct expression so that the “ends” are any one of:
\(\pi r^2\)
\(\dfrac{1}{2}\pi r^2 + \dfrac{1}{2}\pi r^2\)
\(\pi\left(\dfrac{d}{2}\right)^2\)
\(\dfrac{2\pi r^2}{2}\)
\(2 \times 0.5\pi r^2\)
And the curved surface area is any one of:
\(\pi r l\)
\(\dfrac{1}{2}(2\pi r l)\)
\(\dfrac{\pi l d}{2}\)
These may be seen separately before being combined at the end. Condone a missing “\(A =\)” for this mark. Cannot be implied.
M1: Rearranges their \(\dfrac{1}{2}\pi r^2 l = 90\,000\pi\) to e.g. \(l = \ldots\) or \(\pi r l = \ldots\) or \(rl = \ldots\) and substitutes in for e.g. \(l\) or \(\pi r l\) or \(rl\) in their formula for the area which must have at least 2 terms, all of which must be dimensionally correct, to obtain an expression in terms of \(r\) only. This mark cannot be implied and substitution needs to be shown, not just the printed answer written down. This may be seen combined at the end.
A1*: cso. The “\(A =\)” does not have to be seen. Ignore any units given. All previous marks must be scored. Isw once a correct answer is reached from correct work.
\(\Rightarrow r = \sqrt[3]{90\,000}\) or \(r =\) awrt 44.8 (cm)
A1
1.1b
(4)
Notes
In Q11 there are a lot of parts so mark positively and condone mislabelling if they are clearly doing the right thing for a particular part.
M1: Attempts to differentiate \(A = \pi r^2 + \dfrac{180\,000\pi}{r}\) with respect to \(r\). Award for \(\left(\dfrac{\mathrm{d}A}{\mathrm{d}r} =\right) \ldots r \pm \ldots r^{-2}\)
A1: \(\left\{\dfrac{\mathrm{d}A}{\mathrm{d}r} =\right\} 2\pi r - 180\,000\pi r^{-2}\) Condone \(\dfrac{\mathrm{d}A}{\mathrm{d}r}\) appearing as \(\dfrac{\mathrm{d}y}{\mathrm{d}x}\) or being absent.
dM1: Sets their \(\dfrac{\mathrm{d}A}{\mathrm{d}r} \ldots 0\) where “…” could be an inequality and arrives at a value for \(r\) via \(r^{\pm 3} \ldots k,\ k \gt 0\) where “…” could be an inequality. May be implied by e.g. \(r = \sqrt[3]{\ldots}\) or \(r = \sqrt[-3]{\ldots}\) where “…” > 0 They cannot just go from e.g. \(2\pi r - 180\,000\pi r^{-2} = 0\) straight to a value for \(r\).
A1: Awrt 44.8 or \(\sqrt[3]{90\,000}\) Condone omission of units or use of incorrect units. Do not allow e.g. \(\pm\) 44.8 or e.g. \(r \gt 44.8\)
\(\dfrac{\mathrm{d}^2A}{\mathrm{d}r^2} = (+18.8) \gt 0\) hence minimum (value of \(A\))*
A1
2.4
(2)
Notes
In Q11 there are a lot of parts so mark positively and condone mislabelling if they are clearly doing the right thing for a particular part.
M1: Attempts to find \(\dfrac{\mathrm{d}^2A}{\mathrm{d}r^2}\) following on from their \(\dfrac{\mathrm{d}A}{\mathrm{d}r}\) which includes \(\ldots r \to\) constant and \(\ldots r^{-2} \to \ldots r^{-3}\) and attempts to find its value with their \(r\) (may need to check) or considers its sign with reference to their \(r\). Condone slips in substituting as long as the intention is clear.
Alt may consider the value of \(\dfrac{\mathrm{d}A}{\mathrm{d}r}\) either side e.g. \(\left(\dfrac{\mathrm{d}A}{\mathrm{d}r}\right)_{x=44} = -15.6\ldots,\ \left(\dfrac{\mathrm{d}A}{\mathrm{d}r}\right)_{x=45} = 3.49\ldots\)
or may consider the value of \(A\) either side e.g. \((A)_{x=44.8} = 18927,\ (A)_{x=44} = 18934,\ (A)_{x=45} = 18928\)
A1: Fully correct work and conclusion. This requires
correct work in (b) with the correct value of \(r\)
a correct \(\frac{\mathrm{d}^2A}{\mathrm{d}r^2}\)
obtaining \(\frac{\mathrm{d}^2A}{\mathrm{d}r^2} =\) awrt 19 (or \(6\pi\)) (or truncated as 18) which is > 0 or e.g. \(\frac{\mathrm{d}^2A}{\mathrm{d}r^2} \gt 0\) as \(r \gt 0\)
a conclusion that it is the minimum
For the alt it would be for
correct calculations
e.g. gradient goes from negative to positive so minimum
e.g. \(A\) is larger either side of 44.8 so minimum
Mark scheme (d)
Scheme
Marks
AO
Substitutes \(r = 44.8\) into \(A = \pi r^2 + \dfrac{180\,000\pi}{r}\) \(\{=\text{awrt } 18900\}\) Or may be seen embedded in a (possibly incorrect) conversion e.g. substitutes \(r = 44.8\) into \(\dfrac{30}{100^2}\left(\pi r^2 + \dfrac{180\,000\pi}{r}\right)\) \(\{=\text{awrt } 56.8\}\)
M1
3.4
Minimum cost = £56.78
A1
1.1b
(2)
Notes
In Q11 there are a lot of parts so mark positively and condone mislabelling if they are clearly doing the right thing for a particular part.
M1: For a correct method of finding \(A\) or \(\dfrac{30A}{100^2}\) or e.g. \(30A\) from their solution to \(\dfrac{\mathrm{d}A}{\mathrm{d}r} = 0\) May be implied by e.g. 18928 Do not accept attempts using negative values of \(r\).
A1: Minimum cost = £56.78 or £56.79 including units.
Mark scheme (e)
Scheme
Marks
AO
Accept any sensible assumption, e.g.,
The exact amount of metal required can be bought.
No metal goes to waste.
The trough can be made as a perfect (semicircular) cylinder.
It’s possible to cut accurately
Condone
Need to buy a fixed amount
You can’t buy the exact amount of metal
There will be wastage due to the shape
No extra amount of metal is needed
There will be no errors when cutting the metal
The trough will be fully smooth/have no imperfections
Do not allow e.g.
The thickness of the sheet is negligible
B1
3.5a
(1)
(13 marks)
Notes
In Q11 there are a lot of parts so mark positively and condone mislabelling if they are clearly doing the right thing for a particular part.
B1: See main scheme. Do not accept reference to additional work required, such as labour costs, or materials required to weld the metal together.
The annual profit made by the company is modelled by the equation\[P = -x^2 + 260x - 16\,450\]where \(P\) is the profit measured in thousands of pounds and \(x\) is the selling price of the chair in pounds.
The graph of \(P\) against \(x\) is shown in Figure 3.
Using the model,
(a) explain why £175 is not a sensible selling price for the chair. (2)
Given that the company made an annual profit of more than £200 000
(b) find, according to the model, the highest possible selling price for the chair. You must show your working clearly. (3)
(c) Show that\[P = a + b(x + c)^2\]where \(a\), \(b\) and \(c\) are constants to be found. (3)
The company wishes to maximise its annual profit.
State, according to the model,
(d)
(i) the maximum possible annual profit,
(ii) the selling price of the chair that maximises the annual profit. (2)
Mark scheme (a)
Scheme
Marks
AO
\(P = -175^2 + 260 \times 175 - 16\,450\)
M1
3.4
\(= -1575\ \therefore\) not sensible as the company would make a loss
A1
2.4
(2)
Notes
Look for answers written in the question or on Figure 3
M1: Substitutes \(x = 175\) into \(P = -x^2 + 260x - 16\,450\) to find a value for \(P\). This is implied by an answer of \(-1575\). Alternatively attempts to find the solutions of \(-x^2 + 260x - 16\,450 = 0\) usual rules apply so a method must be seen or the correct roots stated (these are 108.78… and 151.21…) and compares with 175 which may be implied.
A1: Finds \(P = -1575\) and states that \(P \lt 0\) which may be implied and explains that the company would make a loss/negative profit, the profit is negative, the company will not make any money. Condone suggestions that the loss is £1575 rather than £1 575 000 or obtains the larger root as awrt 151, compares 175 > 151 and states that \(P \lt 0\) which may be implied and explains that the company would make a loss/would not make a profit.
Explanations that are incomplete or incorrect score A0 e.g.
the profit cannot be negative (because it can)
they might make a loss (because they will make a loss)
it is negative (without saying what it is)
You may ignore any misconceptions or reference to the price of the chair being too cheap for this mark.
Attempts to find the turning point score no marks unless there is some consideration of the profit when \(x = 175\)
Look for answers written in the question or on Figure 3
M1: Uses \(P \ldots 200\) where … is any inequality or = with \(P = -x^2 + 260x - 16\,450\) and proceeds to at least one value for \(x\) via a correct method which may be via calculator (you may need to check) and may be inexact.
dM1: Award for solving to find two positive values for \(x\). Allow decimal answers or surds. FYI correct answers are \(\dfrac{260 \pm \sqrt{1000}}{2}\) or \(130 \pm 5\sqrt{10}\) or 114/146 or if only one value of \(x\) is seen, this must be the higher value for their quadratic which must have 2 positive solutions (you may need to check). e.g. for the correct quadratic \(130 + 5\sqrt{10}\) or 145.81/145.82/145.8/146
A1: Deduces that the maximum price is £145.81 with units. Allow £145.81p £145.82 is not acceptable and if both values are given score A0. There must be some evidence of the correct equation being solved but condone incorrect inequalities appearing in their working.
Note: Missing units from an otherwise correct answer should only be penalised once in (b) or (d) and penalise it the first time it occurs.
\(-x^2 + 260x - 16\,450 = -(x - 130)^2 \pm \ldots\) or \(b = -1\) and \(c = -130\)
M1
1.1b
\((P =)\ 450 - (x - 130)^2\)
A1
1.1b
(3)
Notes
Look for answers written in the question or on Figure 3
Allow to score anywhere in the question. Note that some candidates use \(200 = -x^2 + 260x - 16\,450\) in (c) and attempt to complete the square on this. In these cases allow the B mark and the M mark as defined below.
B1: Achieves \(-(x \pm k)^2 \pm \ldots\) or states that \(b = -1\)
M1: Achieves \(-(x - 130)^2 \pm \ldots\) or states \(b = -1\) and \(c = -130\)
A1: \(\{P =\}\ 450 - (x - 130)^2\) or e.g. \(\{P =\} -(x - 130)^2 + 450\) or e.g. \(\{P =\}\ 450 - 1(x - 130)^2\) Must be simplified e.g. not \(\{P =\} -16\,450 + 16\,900 - (x - 130)^2\) Note that this may be done in a variety of ways including equating with the expanded form of \(a + b(x + c)^2 = bx^2 + 2bcx + bc^2 + a\) Correct answer only scores full marks. If there is incorrect/muddled working, mark their final answer.
Mark scheme (d)
Scheme
Marks
AO
(d)(i) States maximum profit = £450 000
B1
3.2a
(ii) States selling price £130
B1
2.2a
(2)
(10 marks)
Notes
Look for answers written in the question or on Figure 3
If there is no labelling in (d), mark in the order presented.
(d)(i)
B1: Maximum profit = £450 000 with units. Accept 450 thousand pounds or £450k This is an independent mark so could follow incorrect work in (c).
(d)(ii)
B1: Selling price = £130 with units. This is an independent mark so could follow incorrect work in (c).
Note: Missing units from an otherwise correct answer should only be penalised once in (b) or (d) and penalise it the first time it occurs.
Note that different sections of the perimeter may be completed separately and brought together in a final line. Most marks will only be scored at this point – send to review if unsure.
B1: Correct expression for the surface area in terms of \(x\) and \(y\) only (may be in an equivalent form). May be implied by their equation set equal to 100 or their rearranged form.
M1: Sets their expression in \(x\) and \(y\) equal to 100 and rearranges to make \(y\) (or \(2y\) or \(4y\)) the subject. Do not be concerned by the mechanics of their rearrangement. May be implied by further work or can be scored for a different valid substitution into their expression for the perimeter.
B1: Correct expression for the perimeter in terms of \(x\) and \(y\) (may be in an equivalent form) and may be implied by an expression for the perimeter in terms of \(x\) if they have substituted in for their \(y\) straight away (which may be incorrect or have been rearranged incorrectly)
M1: Attempts to substitute their \(y\) into their perimeter to produce an expression or equation in just \(x\). Condone invisible brackets for this mark. Condone slips provided the intention is clear.
A1*: \(P = 2x + \dfrac{200}{x}\) cso (Condone the omission of \(P =\) on the final line if it is seen on an earlier line of working) Allow Perimeter = Do not withhold this mark if missing/invisible brackets are recovered in their working.
M1: Attempts to differentiate the given expression for \(P\) achieving an answer of the form \(A \pm Bx^{-2}\) Condone candidates who do not achieve the given answer but their derivative differentiates to the required form to score this mark (and possibly dM1)
A1: \(2 - 200x^{-2}\) o.e.
dM1: Sets their derivative of the form \(A - Bx^{-2}\), \(A \times B \gt 0\) equal to 0 and rearranges to find a value for \(x\). It is dependent on the previous method mark. Condone slips in their rearrangement. May proceed directly to the answer.
A1: 10 cao (provided a correct derivative is seen) \(\pm 10\) is A0 isw if they attempt to find \(P\)
e.g. \(\dfrac{\mathrm{d}^2P}{\mathrm{d}x^2}\ (= 0.4) \gt 0\) hence minimum (perimeter)
A1
2.4
(2)
Notes
Note that attempts only evaluating the gradient either side of \(x = 10\) is M0A0
M1: Finds \(\dfrac{\mathrm{d}^2P}{\mathrm{d}x^2}\) of the form \(Ax^{-3}\) o.e. and either considers the sign or evaluates for their positive \(x\)
A1: Requires
\(\left(\dfrac{\mathrm{d}^2P}{\mathrm{d}x^2} =\right) 400x^{-3}\) (condone this mark if \(\dfrac{\mathrm{d}^2y}{\mathrm{d}x^2}\) is written or any other incorrect notation)
reference to \(400x^{-3}\) being \(\gt 0\) for \(x \gt 0\), or by using either a correct calculation (0.4 o.e.), a correct numerical expression or the algebraic expression and referencing that it is \(\gt 0\) for \(x = 10\)
correct conclusion e.g. hence min, shown, tick, QED Condone “minimum value of \(x\)”
Mark scheme (d)
Scheme
Marks
AO
e.g. \(y = \dfrac{400 - \pi \times \text{``}10\text{''}^2}{8 \times \text{``}10\text{''}}\)
M1
3.4
e.g. \(y = 1.07\) (m) so yes this would be suitable
A1
2.2a
(2)
(13 marks)
Notes
M1: Either
substitutes their value of \(x\) into any of their equations involving \(y\) or their expression for \(y\) from part (a) (unless restarted) to find a value for \(y\)
uses their value of \(x\) to find their minimum value of \(P\) using the given expression for \(P\), and then uses their \(x\) and their \(P\) to find a value for \(y\)
attempts to find the value of \(x\) when \(y = 1\) (allow to be solved directly from a calculator once a three-term quadratic has been formed)
attempts to find the value of \(P\) using the given expression for \(P\), their value for \(x\) and \(y = 1\)
Condone slips provided the intention is clear of their intended method.
A1: awrt 1.1 m and concludes would be suitable (yes is sufficient or a tick) Note that “yes suitable because e.g. \(1.07 \gt 0\) is A0” (it had to be greater than 1) If they find the value for \(x\) when \(y = 1\) it requires a correct comparison of awrt 10.1 with 10 so yes suitable If they find the value of \(P\) using \(x = 10\) and \(y = 1\) it requires a correct comparison of awrt 39.7 with 40 so yes suitable
11. The prices of two precious metals are being monitored.
The price per gram of metal \(A\), £\(V_A\), is modelled by the equation\[V_A = 100 + 20\mathrm{e}^{0.04t}\]where \(t\) is the number of months after monitoring began.
The price per gram of metal \(B\), £\(V_B\), is modelled by the equation\[V_B = p\mathrm{e}^{-0.02t}\]where \(p\) is a positive constant and \(t\) is the number of months after monitoring began.
Given that \(V_B = 2V_A\) when \(t = 0\)
(a) find the value of \(p\) (2)
When \(t = T\), the rate of increase in the price per gram of metal \(A\) was equal to the rate of decrease in the price per gram of metal \(B\)
(b) Find the value of \(T\), giving your answer to one decimal place. (Solutions based entirely on calculator technology are not acceptable.)(4)
Mark scheme (a)
Scheme
Marks
AO
At \(t = 0\), \(V_A = 100 + 20 = 120 \Rightarrow p = 2 \times \text{``}120\text{''}\)
M1
1.1b
\((p =)\ 240\)
A1
1.1b
(2)
Notes
M1: Attempts to find the price per gram of metal \(A\) at \(t = 0\), and then doubles this to find the value of \(p\). Can be implied by 240. An expression must be evaluated to score this mark
A1: 240 only (withhold this mark if they find \(V_B = 240\) but proceed to state \(p\) as a different value)
Candidates who state that \(\dfrac{\mathrm{d}V_B}{\mathrm{d}t} = \text{``}4.8\text{''}\mathrm{e}^{-0.02T}\) can still score full marks question (they had already determined that they needed to take the modulus of the gradient function) May be in terms of \(t\) or \(T\)
M1: Attempts to set \(\pm\dfrac{\mathrm{d}V_A}{\mathrm{d}t}\) equal to \(\pm\dfrac{\mathrm{d}V_B}{\mathrm{d}t}\). Look for an equation of the form \(p\mathrm{e}^{0.04T} = q\mathrm{e}^{-0.02T}\) where \(p\) and \(q\) are constants or may be implied by further work. e.g. \(\mathrm{e}^{\pm 0.06T} = \ldots\) (it cannot be for awrt 29.9). Do not allow \(\ldots T\mathrm{e}^{0.04T} = \ldots T\mathrm{e}^{-0.02T}\)
A1ft: \(0.8\mathrm{e}^{0.04T} = \text{``}4.8\text{''}\mathrm{e}^{-0.02T}\). Follow through on their positive value for \(p\). May be implied by further work which is not awrt 29.9.
dM1: Rearranges their \(\dfrac{\mathrm{d}V_A}{\mathrm{d}t} = -\dfrac{\mathrm{d}V_B}{\mathrm{d}t}\) which cannot be the original functions to \(r\mathrm{e}^{\pm 0.06T} = s\) where \(r \times s \gt 0\) \(\dfrac{\mathrm{d}V_B}{\mathrm{d}t} = \text{``}4.8\text{''}\mathrm{e}^{-0.02T} \Rightarrow 0.8\mathrm{e}^{0.04T} = \text{``}4.8\text{''}\mathrm{e}^{-0.02T}\) is allowed (see note at the start of (b). Condone slips. It is dependent on the first method mark. If they take lns of both sides first e.g. \(0.8\mathrm{e}^{0.04T} = \text{``}4.8\text{''}\mathrm{e}^{-0.02T} \Rightarrow \ln 0.8 + 0.04T = \ln\text{``}4.8\text{''} - 0.02T\) they need to rearrange to \(\pm 0.06T = \ldots\) by adding / subtracting.
A1cso: awrt 29.9 provided evidence of solving \(0.8\mathrm{e}^{0.04T} = 4.8\mathrm{e}^{-0.02T}\) is seen. i.e. they cannot proceed from \(\mathrm{e}^{\pm 0.06T} = \ldots\) to the awrt 29.9 in one step. We must see either an expression for \(t\) or e.g. taking lns of both sides. Condone \((T =)\dfrac{50\ln 6}{3}\) or others in the form \((T =)\ a\ln b\) where \(a\) and \(b\) are rational constants e.g. \(\dfrac{\ln 6}{0.06}\). It cannot be scored for an expression.
On a particular day, the concentration of smoke particles in the air emitted by this chimney, \(P\) parts per million, is measured at various distances, \(x\) km, from the chimney.
Figure 2 shows a sketch of the linear relationship between \(\log_{10} P\) and \(x\) that is used to model this situation.
The line passes through the point \((0,\ 3.3)\) and the point \((6,\ 2.1)\)
(a) Find a complete equation for the model in the form\[P = ab^x\]where \(a\) and \(b\) are constants. Give the value of \(a\) and the value of \(b\) each to 4 significant figures. (4)
(b) With reference to the model, interpret the value of \(ab\) (1)
Mark scheme (a)
Scheme
Marks
AO
\(\log_{10} a = 3.3\) or \(\log_{10} b = \dfrac{2.1 - 3.3}{6}\ (= -0.2)\) or e.g. \(\log_{10} P = 3.3 - 0.2x\) or \(\log_{10} P = 3.3 + \dfrac{2.1 - 3.3}{6}x\)
M1
1.1b
\(a = 10^{3.3}\) or \(b = 10^{-0.2}\)
A1
1.1b
\(a = 10^{3.3}\) and \(b = 10^{\text{``}{-}0.2\text{''}}\) or \(P = 10^{3.3 - 0.2x} = 10^{3.3} \times 10^{-0.2x}\)
dM1
3.1a
\(P = 1995 \times 0.6310^x\)
A1
3.3
(4)
Notes
M1: Attempts an equation in \(a\) or \(b\). Score for \(\log_{10} a = 3.3\) or \(\log_{10} b = \dfrac{2.1 - 3.3}{6}\ (= -0.2)\) Condone an incorrectly evaluated gradient provided \(\dfrac{2.1 - 3.3}{6}\) o.e. was attempted (may be seen as two simultaneous equations). Alternatively, forms a correct linear equation in \(\log_{10} P\) and \(x\). Do not penalise if base 10 is missing. May be implied by a correct unsimplified value for \(a\) or \(b\). (which could be truncated rather than rounded for \(b\))
A1: A correct unsimplified value for \(a\) or \(b\). This may be within the linear equation in the alternative method e.g. \(P = 10^{3.3} \times 10^{-0.2x}\)
dM1: A correct method to find unsimplified values for \(a\) and \(b\). Allow use of their \(-0.2\) found from a correct attempt at the gradient of the line. Alternatively, correctly uses laws of indices to achieve \(P = 10^{3.3} \times 10^{\text{``}{-}0.2\text{''}x}\). It is dependent on the previous method mark. May be implied by their final correct equation.
A1: Complete equation with \(a =\) awrt 1995 and \(b =\) awrt 0.6310 (condone 0.631)
Mark scheme (b)
Scheme
Marks
AO
The concentration (in parts per million) 1 km from the chimney
B1
3.2a
(1)
(5 marks)
Notes
B1: Must refer to concentration (or e.g. parts per million) and 1km o.e. Condone use of emitted for measured e.g. “concentration of smoke particles emitted 1km from the chimney” Do not accept “amount of smoke particles” or referring to when \(x = 1\) (not in context)
At \(t = 4 \Rightarrow\) Rate of growth is \(0.34\mathrm{e}^{-0.2 \times 4} = 0.15277\ldots\{\text{m / year}\}\)
dM1
3.4
0.153 {m per year} = 15.3 cm {per year} *
A1*
1.1b
(3)
Notes
M1: Links rate of change to gradient and differentiates \(h = 2.3 - 1.7\mathrm{e}^{-0.2t}\) to \(k\mathrm{e}^{-0.2t},\ k \neq -1.7\) Accept, e.g., \(-0.2 \times -1.7\mathrm{e}^{-0.2t}\) Must be seen in (b).
dM1: Substitutes \(t = 4\) into \(k\mathrm{e}^{-0.2t},\ k \neq -1.7\) and calculates its value.
A1*: Fully correct. Requires
sight of \(\left\{\dfrac{\mathrm{d}h}{\mathrm{d}t} =\right\}0.34\mathrm{e}^{-0.2t}\) o.e., e.g., \(\left\{\dfrac{\mathrm{d}h}{\mathrm{d}t} =\right\}\dfrac{17}{50}\mathrm{e}^{-0.2t}\) or \(\left\{\dfrac{\mathrm{d}h}{\mathrm{d}t} =\right\}-0.2 \times -1.7\mathrm{e}^{-0.2t}\)
\(\left\{\dfrac{\mathrm{d}h}{\mathrm{d}t} =\right\}\) awrt 0.153 {metres per year}
changing to awrt 15.3 cm {per year}.
Note: Substituting \(t = 4\) into \(h = 2.3 - 1.7\mathrm{e}^{-0.2t}\) gives \(h = 1.536\ldots\) scores M0dM0A0 unless differentiation and further correct work is seen separately.
Mark scheme (c)
Scheme
Marks
AO
2.3 (m)
B1
2.2a
(1)
(6 marks)
Notes
B1: Allow 2.3, 2.3 m, or 230 cm \(2.2\dot{9}\) and 2.2999… which clearly continues are both acceptable, but 2.29999999 is not.

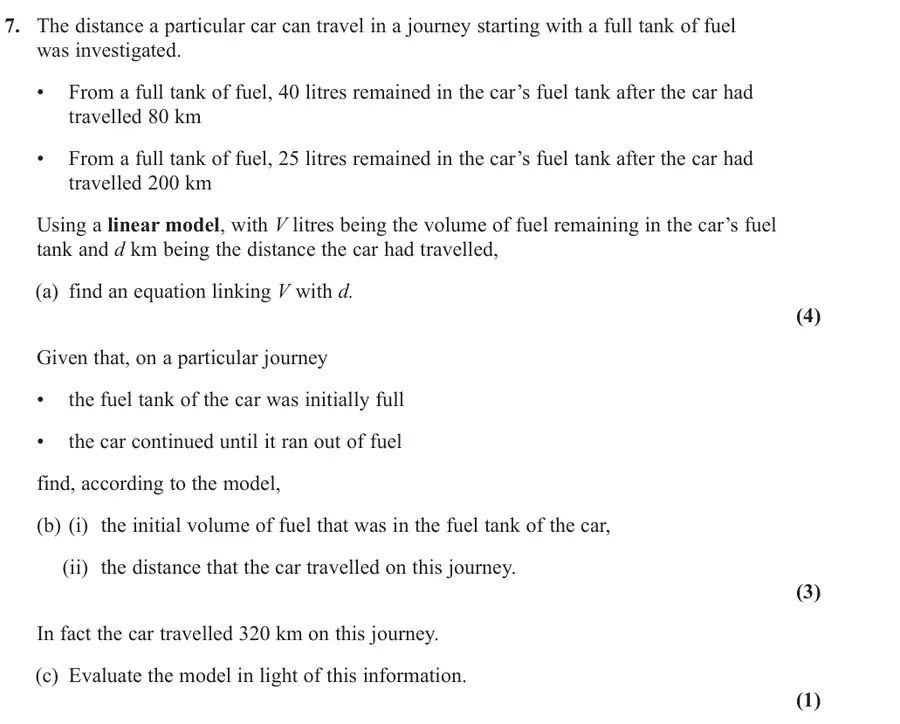

7. The distance a particular car can travel in a journey starting with a full tank of fuel was investigated.
From a full tank of fuel, 40 litres remained in the car’s fuel tank after the car had travelled 80 km
From a full tank of fuel, 25 litres remained in the car’s fuel tank after the car had travelled 200 km
Using a linear model, with \(V\) litres being the volume of fuel remaining in the car’s fuel tank and \(d\) km being the distance the car had travelled,
(a) find an equation linking \(V\) with \(d\). (4)
Given that, on a particular journey
the fuel tank of the car was initially full
the car continued until it ran out of fuel
find, according to the model,
(b)
(i) the initial volume of fuel that was in the fuel tank of the car,
(ii) the distance that the car travelled on this journey. (3)
In fact the car travelled 320 km on this journey.
(c) Evaluate the model in light of this information. (1)

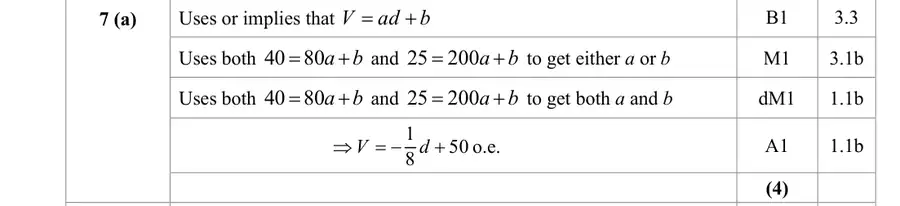

Mark scheme (a)
Scheme
Marks
AO
Uses or implies that \(V = ad + b\)
B1
3.3
Uses both \(40 = 80a + b\) and \(25 = 200a + b\) to get either \(a\) or \(b\)
M1
3.1b
Uses both \(40 = 80a + b\) and \(25 = 200a + b\) to get both \(a\) and \(b\)
dM1
1.1b
\(\Rightarrow V = -\dfrac{1}{8}d + 50\) o.e.
A1
1.1b
(4)

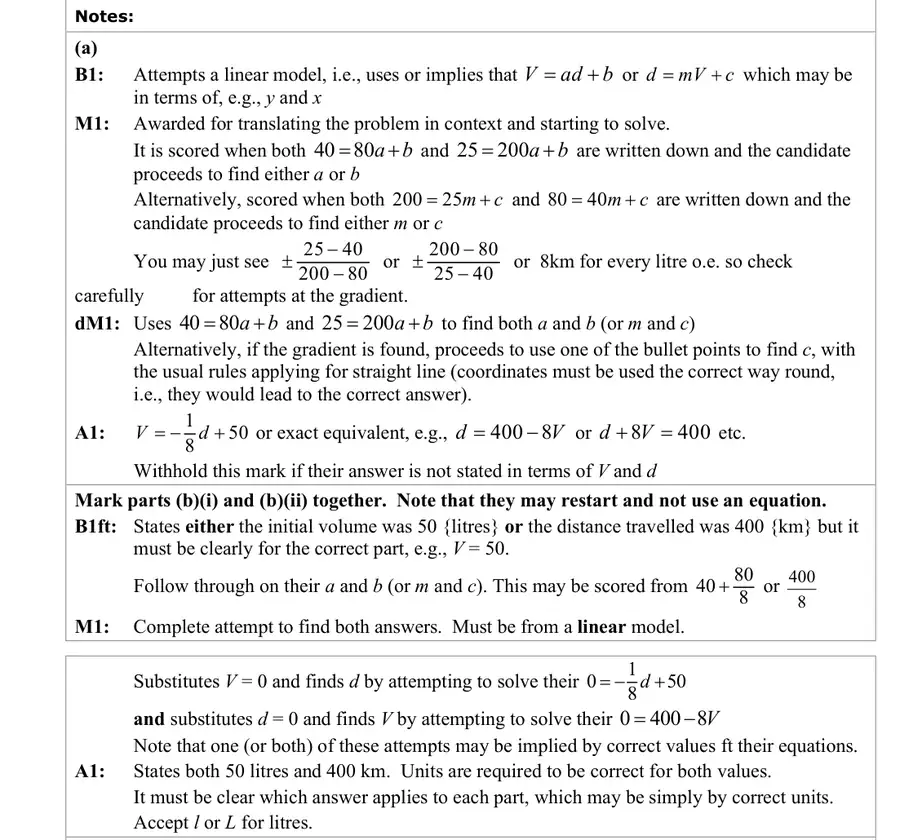

Notes
B1: Attempts a linear model, i.e., uses or implies that \(V = ad + b\) or \(d = mV + c\) which may be in terms of, e.g., \(y\) and \(x\)
M1: Awarded for translating the problem in context and starting to solve. It is scored when both \(40 = 80a + b\) and \(25 = 200a + b\) are written down and the candidate proceeds to find either \(a\) or \(b\) Alternatively, scored when both \(200 = 25m + c\) and \(80 = 40m + c\) are written down and the candidate proceeds to find either \(m\) or \(c\) You may just see \(\pm\dfrac{25 - 40}{200 - 80}\) or \(\pm\dfrac{200 - 80}{25 - 40}\) or 8km for every litre o.e. so check carefully for attempts at the gradient.
dM1: Uses \(40 = 80a + b\) and \(25 = 200a + b\) to find both \(a\) and \(b\) (or \(m\) and \(c\)) Alternatively, if the gradient is found, proceeds to use one of the bullet points to find \(c\), with the usual rules applying for straight line (coordinates must be used the correct way round, i.e., they would lead to the correct answer).
A1: \(V = -\dfrac{1}{8}d + 50\) or exact equivalent, e.g., \(d = 400 - 8V\) or \(d + 8V = 400\) etc. Withhold this mark if their answer is not stated in terms of \(V\) and \(d\)

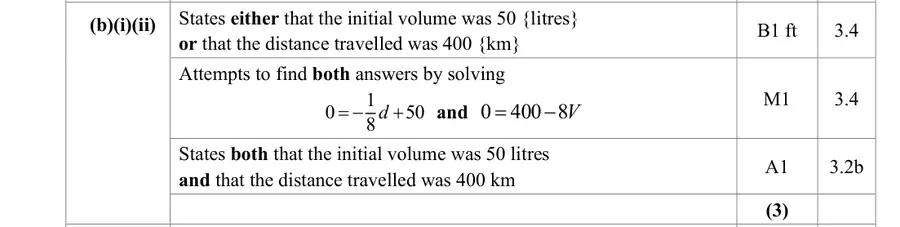

Mark scheme (b)
Scheme
Marks
AO
States either that the initial volume was 50 {litres} or that the distance travelled was 400 {km}
B1 ft
3.4
Attempts to find both answers by solving \(0 = -\dfrac{1}{8}d + 50\) and \(0 = 400 - 8V\)
M1
3.4
States both that the initial volume was 50 litres and that the distance travelled was 400 km
A1
3.2b
(3)
Notes
Mark parts (b)(i) and (b)(ii) together. Note that they may restart and not use an equation.
B1ft: States either the initial volume was 50 {litres} or the distance travelled was 400 {km} but it must be clearly for the correct part, e.g., \(V = 50\). Follow through on their \(a\) and \(b\) (or \(m\) and \(c\)). This may be scored from \(40 + \dfrac{80}{8}\) or \(\dfrac{400}{8}\)
M1: Complete attempt to find both answers. Must be from a linear model. Substitutes \(V = 0\) and finds \(d\) by attempting to solve their \(0 = -\dfrac{1}{8}d + 50\) and substitutes \(d = 0\) and finds \(V\) by attempting to solve their \(0 = 400 - 8V\) Note that one (or both) of these attempts may be implied by correct values ft their equations.
A1: States both 50 litres and 400 km. Units are required to be correct for both values. It must be clear which answer applies to each part, which may be simply by correct units. Accept \(l\) or \(L\) for litres.

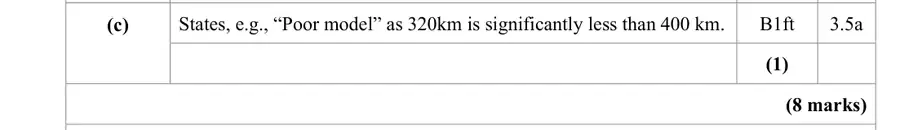

Mark scheme (c)
Scheme
Marks
AO
States, e.g., “Poor model” as 320km is significantly less than 400 km.
B1ft
3.5a
(1)
(8 marks)
Notes

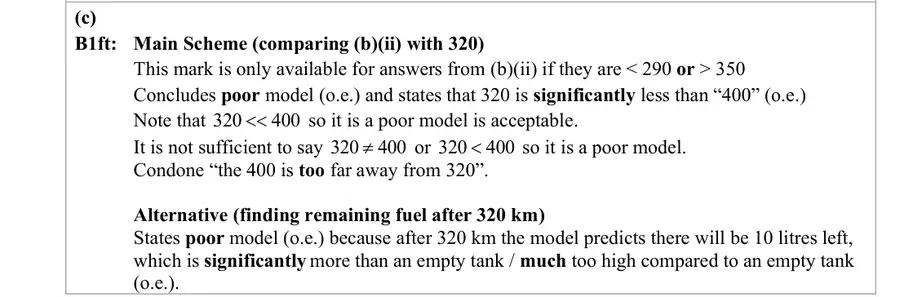

B1ft:Main Scheme (comparing (b)(ii) with 320) This mark is only available for answers from (b)(ii) if they are < 290 or > 350 Concludes poor model (o.e.) and states that 320 is significantly less than “400” (o.e.) Note that \(320 \ll 400\) so it is a poor model is acceptable. It is not sufficient to say \(320 \neq 400\) or \(320 \lt 400\) so it is a poor model. Condone “the 400 is too far away from 320”.
Alternative (finding remaining fuel after 320 km)
States poor model (o.e.) because after 320 km the model predicts there will be 10 litres left, which is significantly more than an empty tank / much too high compared to an empty tank (o.e.).
B1: Correct expression for \(h\) or \(rh\) or \(\pi rh\) in terms of \(r\). This may be implied by their later substitution.
M1: Scored for the sum of the three terms of the form \(0.04\ldots r^2\), \(0.09\ldots r^2\) and \(0.04 \times \ldots rh\) The \(0.04 \times \ldots rh\) may be implied by eg \(0.04 \times \ldots r \times \dfrac{355}{\pi r^2}\) if \(h\) has already been replaced
dM1: Substitutes \(h\) or \(rh\) or \(\pi rh\) into their equation for \(C\) which must be of an allowable form (see above) to obtain an equation connecting \(C\) and \(r\). It is dependent on a correct expression for \(h\) or \(rh\) or \(\pi rh\) in terms of \(r\)
A1*: Achieves given answer with no errors. Allow Cost instead of \(C\) but they cannot just have an expression. As a minimum you must see
the separate equation for volume
the two costs for the top and bottom separate before combining
a substitution before seeing the \(\dfrac{28.4}{r}\) term
M1: Differentiates to obtain at least \(r^{-1} \to r^{-2}\)
A1: Correct derivative.
M1: Sets \(\dfrac{\mathrm{d}C}{\mathrm{d}r} = 0\) and solves for \(r\). There must have been some attempt at differentiation of the equation for \(C\) (\(\ldots r^2 \to \ldots r\) or \(\ldots r^{-1} \to \ldots r^{-2}\)) Do not be concerned with the mechanics of their rearrangement and do not withhold this mark if their solution for \(r\) is negative
A1: Correct value for \(r\). Allow exact value or awrt 3.26
M1: Finds \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2}\) at their (positive) \(r\) or considers the sign of \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2}\). This mark can be scored as long as their second derivative is of the form \(A + \dfrac{B}{r^3}\) where \(A\) and \(B\) are non zero
A1: Requires
A correct \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2}\)
Either
deduces \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2} \gt 0\) for \(r \gt 0\) (without evaluating). There must be some minimal explanation as to why it is positive.
substitute their positive \(r\) into \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2}\) without evaluating and deduces \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2} \gt 0\) for \(r \gt 0\)
evaluate \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2}\) (which must be awrt 2.5) and deduces \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2} \gt 0\) for \(r \gt 0\)
M1: Uses the model and their positive \(r\) found in (b) to find the minimum cost. Their \(r\) embedded in the expression is sufficient. May be seen in (b) but must be used in (d).
In this question you must show all stages of your working.
Solutions relying entirely on calculator technology are not acceptable.
The air pressure, \(P\) kg/cm2, inside a car tyre, \(t\) minutes from the instant when the tyre developed a puncture is given by the equation
\[P = k + 1.4\mathrm{e}^{-0.5t} \qquad t \in \mathbb{R} \qquad t \geqslant 0\]
where \(k\) is a constant.
Given that the initial air pressure inside the tyre was 2.2 kg/cm2
(a) state the value of \(k\). (1)
From the instant when the tyre developed the puncture,
(b) find the time taken for the air pressure to fall to 1 kg/cm2 Give your answer in minutes to one decimal place. (3)
(c) Find the rate at which the air pressure in the tyre is decreasing exactly 2 minutes from the instant when the tyre developed the puncture. Give your answer in kg/cm2 per minute to 3 significant figures. (2)
Mark scheme (a)
Scheme
Marks
AO
\((k =)\ 0.8\)
B1
1.1b
(1)
Notes
B1: Completes the equation for the model by obtaining \((k =)\ 0.8\) or equivalent.
\(-0.5t = \ln\left(\dfrac{0.2}{1.4}\right) \Rightarrow t = \ldots\)
M1
1.1b
awrt 3.9 minutes
A1
1.1b
(3)
Notes
*Be aware this could be solved entirely using a calculator which is not acceptable*
M1: For using the model with \(P = 1\) and their value for \(k\) from (a) and proceeding to \(A\mathrm{e}^{\pm 0.5t} = B\). Condone if \(A\) or \(B\) are negative for this mark.
M1: Uses correct log work to solve an equation of the form \(A\mathrm{e}^{\pm 0.5t} = B\) leading to a value for \(t\). They cannot proceed directly to awrt 3.9 without some intermediate working seen. Eg \(t = 2\ln 7\) or \(-2\ln\left(\dfrac{1}{7}\right)\) is acceptable. Also allow \(1.4\mathrm{e}^{-0.5t} = 0.2 \Rightarrow -0.5t = -1.9459\ldots \Rightarrow t = \ldots\) This cannot be scored from an unsolvable equation (eg when their \(k \geqslant 1\) so that \(\mathrm{e}^{\pm 0.5t} \leqslant 0\)).
A1: Accept awrt 3.9 minutes or \(t =\) awrt 3.9 with correct working seen. eg \(1.4\mathrm{e}^{-0.5t} = 0.2 \Rightarrow t = 3.9\) would be M1M0A0
*Be aware this can be solved entirely using a calculator which is not acceptable*
M1: Links rate of change to gradient and differentiates to obtain an expression of the form \(A\mathrm{e}^{-0.5t}\) and substitutes \(t = 2\). Do not accept \(At\mathrm{e}^{-0.5t}\) as the derivative. Beware that substituting \(t = 2\) and proceeding from \(\mathrm{e}^{-1}\) to \(\mathrm{e}^{-2}\) is M0A0
A1: Obtains awrt 0.258 with differentiation seen. (Units not required) Condone awrt \(-0.258\) Awrt \(\pm 0.258\) with no working is M0A0. Isw after a correct answer is seen.
(Ignore in (c) any spurious notation on the LHS when differentiating such as \(P = \ldots\) or \(\dfrac{\mathrm{d}y}{\mathrm{d}x} = \ldots\))
5. The mass, \(A\) kg, of algae in a small pond, is modelled by the equation
\[A = pq^t\]
where \(p\) and \(q\) are constants and \(t\) is the number of weeks after the mass of algae was first recorded.
Data recorded indicates that there is a linear relationship between \(t\) and \(\log_{10} A\) given by the equation
\[\log_{10} A = 0.03t + 0.5\]
(a) Use this relationship to find a complete equation for the model in the form\[A = pq^t\]giving the value of \(p\) and the value of \(q\) each to 4 significant figures. (4)
(b) With reference to the model, interpret
(i) the value of the constant \(p\),
(ii) the value of the constant \(q\). (2)
(c) Find, according to the model,
(i) the mass of algae in the pond when \(t = 8\), giving your answer to the nearest 0.5 kg,
(ii) the number of weeks it takes for the mass of algae in the pond to reach 4 kg. (3)
(d) State one reason why this may not be a realistic model in the long term. (1)
Mark scheme (a)
Scheme
Marks
AO
\(p = 10^{0.5}\) (or \(\log_{10} p = 0.5\)) or \(q = 10^{0.03}\) (or \(\log_{10} q = 0.03\))
M1
1.1b
\(p =\) awrt 3.162 or \(q =\) awrt 1.072
A1
1.1b
\(p = 10^{0.5}\) (or \(\log_{10} p = 0.5\)) and \(q = 10^{0.03}\) (or \(\log_{10} q = 0.03\))
dM1
3.1a
\(A = 3.162 \times 1.072^t\)
A1
3.3
(4)
Notes
M1: A correct equation in \(p\) or \(q\). May be implied by a correct value for \(p\) or \(q\). Also score for rearranging the equation to the form \(A = 10^{0.5} \ldots 10^{0.03t}\)
A1: For \(p =\) awrt 3.162 or \(q =\) awrt 1.072. May be embedded within the equation.
dM1: Correct equations in \(p\) and \(q\). Also score for rearranging the equation to the form \(A = 10^{0.5} \times 10^{0.03t}\)
A1: Complete equation with \(p =\) awrt 3.162 and \(q =\) awrt 1.072. Must be seen in (a) If \(p\) and \(q\) are just stated but the equation is not written with the values embedded then withhold this mark. Withhold the final mark if the correct values for \(p\) and \(q\) result from incorrect working such as \(A = 10^{0.5} + 10^{0.03t} \Rightarrow A = 3.162 \times 1.072^t\). If \(p\) and \(q\) are stated the wrong way round, take the stated equation as their final answer and isw.
Mark scheme (b)
Scheme
Marks
AO
(i) The initial mass (in kg) of algae (in the pond).
B1
3.4
(ii) The ratio of algae from one week to the next.
B1
3.4
(2)
Notes
(i) B1: Must reference mass of algae and relating to initially/at the start/beginning Examples of acceptable answers: The mass of algae originally (in the pond) \(p\) is the mass of algae when \(t = 0\) Examples of answers we would not accept \(p\) is how much algae there is at the beginning The relationship between algae and number of weeks
(ii) B1: Must reference the rate of change/multiplier and the time frame eg per week/every week/each week. Examples of acceptable answers: \(q\) is the rate at which the mass of algae increases for every week The amount of algae increases by 7.2% each week (condone amount for mass in ii) The proportional increase in mass of the algae each week Examples of answers we would not accept: \(q\) is how much algae will increase when \(t\) increases by 1 The amount that grows per unit of time The rate at which the mass of algae in the small pond increases after \(t\) number of weeks The rate in which the algae mass increases
Mark scheme (c)
Scheme
Marks
AO
(i) 5.5 kg
B1
2.2a
(ii) \(4 = \text{``}3.162\text{''}\times\text{``}1.072\text{''}^t\) or \(\log_{10} 4 = 0.03t + 0.5\)
M1
3.4
awrt 3.4 (weeks)
A1
1.1b
(3)
Notes
B1: cao (including units)
M1: Setting up a correct equation to find \(t\) using the given equation or their part (a) Substitution of \(A = 4\) into their equation for \(A\) or the given equation is sufficient for this mark.
A1: awrt 3.4 (weeks). Accept any acceptable method (including trial and improvement) Condone lack of units. isw if they subsequently convert to weeks and days. Allow awrt 3.5 (weeks) following \(p =\) awrt 3.16 and \(q =\) awrt 1.07. An answer of only awrt 3.4 is M1A1, but an answer of 4 (weeks) with no working is M0A0
Mark scheme (d)
Scheme
Marks
AO
The model predicts unlimited growth.
The weather may affect the rate of growth
B1
3.5b
(1)
(10 marks)
Notes
B1: Any reason why the rate of change, growth or the mass of algae might change or why the model in not realistic. Be generous with the awarding of this mark as long as the answer has engaged with the context of the problem or the model Examples of acceptable answers: Seasonal changes (which would affect the growth rate) Overcrowding (as it is a small pond) Algae may stop growing (the model predicts unlimited growth) Algae may die / be removed / eaten (so the rate of growth may not continue at the same rate) Examples of answers we would not accept: There could be other factors that affect the amount of algae (too vague) The mass of algae might change
A1ft: Comments on the suitability of the model. Follow through on their answer. Requires a comment consistent with their answer from using the model. E.g. It is a suitable model as it is only “3” bpm away from the real value ✓ Do not allow an argument stating that it should be the same. It is an unsuitable model as “122” bpm is not equal to 119 bpm ✗
Mark scheme (c)
Scheme
Marks
AO
"\(p\)" would be the (resting) heart rate (in bpm) of a mammal with a mass of 1 kg
B1
3.4
(1)
(7 marks)
Notes
B1: "\(p\)" would be the (resting) heart rate of a mammal with a mass of 1 kg
11. The owners of a nature reserve decided to increase the area of the reserve covered by trees.
Tree planting started on 1st January 2005.
The area of the nature reserve covered by trees, \(A\ \text{km}^2\), is modelled by the equation
\[A = 80 - 45\mathrm{e}^{ct}\]
where \(c\) is a constant and \(t\) is the number of years after 1st January 2005.
Using the model,
(a) find the area of the nature reserve that was covered by trees just before tree planting started. (1)
On 1st January 2019 an area of \(60\ \text{km}^2\) of the nature reserve was covered by trees.
(b) Use this information to find a complete equation for the model, giving your value of \(c\) to 3 significant figures. (4)
On 1st January 2020, the owners of the nature reserve announced a long-term plan to have \(100\ \text{km}^2\) of the nature reserve covered by trees.
(c) State a reason why the model is not appropriate for this plan. (1)
Mark scheme (a)
Scheme
Marks
AO
\(35\ (\text{km}^2)\)
B1
3.4
(1)
Notes
B1: Uses the equation of the model to find that \(35\ (\text{km}^2)\) of the reserve was covered on 1st January 2005. Do not accept eg. \(35\ \text{m}^2\)
dM1: A full and careful method using precise algebra, correct log laws and a knowledge that \(\mathrm{e}^x\) and \(\ln x\) are inverse functions and proceeds to a value for \(c\).
A1: Gives a complete equation for the model \(A = 80 - 45\mathrm{e}^{-0.0579t}\)
Mark scheme (c)
Scheme
Marks
AO
Gives a suitable answer
The maximum area covered by trees is only \(80\ \text{km}^2\)
The "80" would need to be "100"
Substitutes 100 into the equation of the model and shows that the formula fails with a reason eg. you cannot take a log of a negative number
4. [In this question the unit vectors \(\mathbf{i}\) and \(\mathbf{j}\) are due east and due north respectively.]
A stone slides horizontally across ice.
Initially the stone is at the point \(A(-24\mathbf{i} - 10\mathbf{j})\) m relative to a fixed point \(O\).
After 4 seconds the stone is at the point \(B(12\mathbf{i} + 5\mathbf{j})\) m relative to the fixed point \(O\).
The motion of the stone is modelled as that of a particle moving in a straight line at constant speed.
Using the model,
(a) prove that the stone passes through \(O\), (2)
(b) calculate the speed of the stone. (3)
Mark scheme (a)
Scheme
Marks
AO
Attempts to compare the two position vectors. Allow an attempt using two of \(\overrightarrow{AO}, \overrightarrow{OB}\) or \(\overrightarrow{AB}\) E.g. \((-24\mathbf{i} - 10\mathbf{j}) = -2 \times (12\mathbf{i} + 5\mathbf{j})\)
M1
1.1b
Explains that as \(\overrightarrow{AO}\) is parallel to \(\overrightarrow{OB}\) (and the stone is travelling in a straight line) the stone passes through the point \(O\).
A1
2.4
(2)
Notes
M1: Attempts to compare the two position vectors. Allow an attempt using two of \(\overrightarrow{AO}, \overrightarrow{OB}\) or \(\overrightarrow{AB}\) either way around. E.g. States that \((-24\mathbf{i} - 10\mathbf{j}) = -2 \times (12\mathbf{i} + 5\mathbf{j})\) Alternatively, allow an attempt finding the gradient using any two of \(AO\), \(OB\) or \(AB\) Alternatively attempts to find the equation of the line through \(A\) and \(B\) proceeding as far as \(y = \ldots x\) Condone sign slips.
A1: States that as \(\overrightarrow{AO}\) is parallel to \(\overrightarrow{OB}\) or as \(AO\) is parallel to \(OB\) (and the stone is travelling in a straight line) the stone passes through the point \(O\). Alternatively, shows that the point \((0, 0)\) is on the line and concludes (the stone) passes through the point \(O\).
Alt (a)
Scheme
Marks
AO
Attempts to find the equation of the line which passes through \(A\) and \(B\) E.g. \(y - 5 = \dfrac{5 + 10}{12 + 24}(x - 12)\quad \left(y = \dfrac{5}{12}x\right)\)
M1
1.1b
Shows that when \(x = 0,\ y = 0\) and concludes the stone passes through the point \(O\).
M1: Attempts to find the distance \(AB\) using a correct method. Condone slips but expect to see an attempt at \(\sqrt{a^2 + b^2}\) where \(a\) or \(b\) is correct
dM1: Dependent upon the previous mark. Look for an attempt at \(\dfrac{\text{distance } AB}{4}\)
12. An advertising agency is monitoring the number of views of an online advert.
The equation
\[\log_{10} V = 0.072t + 2.379 \qquad 1 \leqslant t \leqslant 30,\ t \in \mathbb{N}\]
is used to model the total number of views of the advert, \(V\), in the first \(t\) days after the advert went live.
(a) Show that \(V = ab^t\) where \(a\) and \(b\) are constants to be found.
Give the value of \(a\) to the nearest whole number and give the value of \(b\) to 3 significant figures.
(4)
(b) Interpret, with reference to the model, the value of \(ab\). (1)
Using this model, calculate
(c) the total number of views of the advert in the first 20 days after the advert went live. Give your answer to 2 significant figures. (2)
Mark scheme (a)
Scheme
Marks
AO
\(\log_{10} V = 0.072t + 2.379\) \(\Rightarrow V = 10^{0.072t + 2.379}\) \(\Rightarrow V = 10^{0.072t} \times 10^{2.379}\) or \(V = ab^t\) \(\Rightarrow \log_{10} V = \log_{10} a + \log_{10} b^t\) \(\Rightarrow \log_{10} V = \log_{10} a + t\log_{10} b\)
B1
2.1
States either \(a = 10^{2.379}\) or \(b = 10^{0.072}\) or States either \(\log_{10} a = 2.379\) or \(\log_{10} b = 0.072\)
M1
1.1b
\(a = 239\) or \(b = 1.18\)
A1
1.1b
Either \(V = 239 \times 1.18^t\) or imply by \(a = 239, b = 1.18\)
A1
1.1b
(4)
Notes
Condone \(\log_{10}\) written \(\log\) or \(\lg\) written throughout the question
B1: Scored for showing that \(\log_{10} V = 0.072t + 2.379\) can be written in the form \(V = ab^t\) or vice versa Either starts with \(\log_{10} V = 0.072t + 2.379\) (may be implied) and shows lines\[V = 10^{0.072t + 2.379} \text{ and } V = 10^{0.072t} \times 10^{2.379}\]Or starts with \(V = ab^t\) (implied) and shows the lines\[\log_{10} V = \log_{10} a + \log_{10} b^t \text{ and } \log_{10} V = \log_{10} a + t\log_{10} b\]
M1: For a correct equation in \(a\) or a correct equation in \(b\)
A1: Finds either constant. Allow \(a =\) awrt 240 or \(b =\) awrt 1.2 following a correct method
A1: Correct solution: Look for \(V = 239 \times 1.18^t\) or \(a = 239, b = 1.18\) Note that this is NOT awrt
Mark scheme (b)
Scheme
Marks
AO
The value of \(ab\) is the (total) number of views of the advert 1 day after it went live.
B1
3.4
(1)
Notes
B1: See scheme. Condone not seeing total. Do not allow number of views at the start or similar.
Mark scheme (c)
Scheme
Marks
AO
Substitutes \(t = 20\) in either equation and finds \(V\) Eg \(V = 239 \times 1.18^{20}\)
M1
3.4
Awrt 6500 or 6600
A1
1.1b
(2)
(7 marks)
Notes
M1: Substitutes \(t = 20\) in either their \(V = 239 \times 1.18^t\) or \(\log_{10} V = 0.072t + 2.379\) and uses a correct method to find \(V\)
8. The temperature, \(\theta\ ^\circ\mathrm{C}\), of a cup of tea \(t\) minutes after it was placed on a table in a room, is modelled by the equation
\[\theta = 18 + 65\mathrm{e}^{-\frac{t}{8}}\qquad t \geqslant 0\]
Find, according to the model,
(a) the temperature of the cup of tea when it was placed on the table, (1)
(b) the value of \(t\), to one decimal place, when the temperature of the cup of tea was \(35\ ^\circ\mathrm{C}\). (3)
(c) Explain why, according to this model, the temperature of the cup of tea could not fall to \(15\ ^\circ\mathrm{C}\). (1)
Figure 2
The temperature, \(\mu\ ^\circ\mathrm{C}\), of a second cup of tea \(t\) minutes after it was placed on a table in a different room, is modelled by the equation
\[\mu = A + B\mathrm{e}^{-\frac{t}{8}}\qquad t \geqslant 0\]
where \(A\) and \(B\) are constants.
Figure 2 shows a sketch of \(\mu\) against \(t\) with two data points that lie on the curve.
The line \(l\), also shown on Figure 2, is the asymptote to the curve.
Using the equation of this model and the information given in Figure 2
(d) find an equation for the asymptote \(l\). (4)
Mark scheme (a)
Scheme
Marks
AO
Temperature = \(83^\circ\mathrm{C}\)
B1
3.4
(1)
Notes
B1: Uses the model to state that the temperature \(= 83^\circ\mathrm{C}\) Requires units as well
\(t = -8\ln\left(\dfrac{17}{65}\right)\) or \(\ln 65 - \dfrac{t}{8} = \ln 17 \Rightarrow t = \ldots\)
dM1
1.1b
\(t = 10.7\)
A1
1.1b
(3)
Notes
M1: Uses the information and proceeds to \(P\mathrm{e}^{\pm\frac{t}{8}} = Q\) condoning slips
dM1: A full method using correct log laws and a knowledge that \(\mathrm{e}^x\) and \(\ln x\) are inverse functions. This cannot be scored from unsolvable equations, e.g \(P \gt 0, Q \lt 0\). Condone one error in their solution.
A1: \(t =\) awrt 10.7
Mark scheme (c)
Scheme
Marks
AO
States a suitable reason
As \(t \to \infty, \theta \to 18\) from above.
The minimum temperature is \(18^\circ\mathrm{C}\)
B1
2.4
(1)
Notes
B1: States a suitable reason with minimal conclusion
As \(t \to \infty, \theta \to 18\) from above.
The minimum temperature is \(18^\circ\mathrm{C}\) (so it cannot drop to \(15^\circ\mathrm{C}\))
Substitutes \(\theta = 15\) (or a value between 15 and 18) into \(18 + 65\mathrm{e}^{-\frac{t}{8}} = 15\) (may be impied by \(15 - 18 = -3\) or similar) and makes a statement that \(\mathrm{e}^{-\frac{t}{8}}\) cannot be less than zero or else that \(\ln(-ve)\) is undefined and hence \(\theta \neq 15\). All calculations must be correct
(According to the model) the room temperature is \(18^\circ\mathrm{C}\) (so cannot fall below this)
M1: Attempts to use \((0, 94)\) or \((8, 50)\) in order to form at least one equation in \(A\) and \(B\) Allow this to be scored with an equation containing \(\mathrm{e}^0\)
A1: Correct equations \(A + B = 94\) and \(A + B\mathrm{e}^{-1} = 50\) or equivalent. \(\mathrm{e}^0 = 1\) must have been processed. Condone \(A + B = 94\) and \(A + 0.37B = 50\) where \(\mathrm{e}^{-1} =\) awrt 0.37
dM1: Dependent upon having two equations in \(A\) and \(B\) formed from the information given. It is a full and correct method leading to a value of \(A\). Allow this to be solved from a calculator. Note \(B = 69.6..\) or \(\dfrac{44}{1 - \mathrm{e}^{-1}} \Rightarrow A = 94 - \text{``}B\text{''}\)
A1: Deduces that \(\mu = \dfrac{50\mathrm{e} - 94}{\mathrm{e} - 1}\) or accept \(\mu =\) awrt 24.4. Condone \(y = \ldots\)

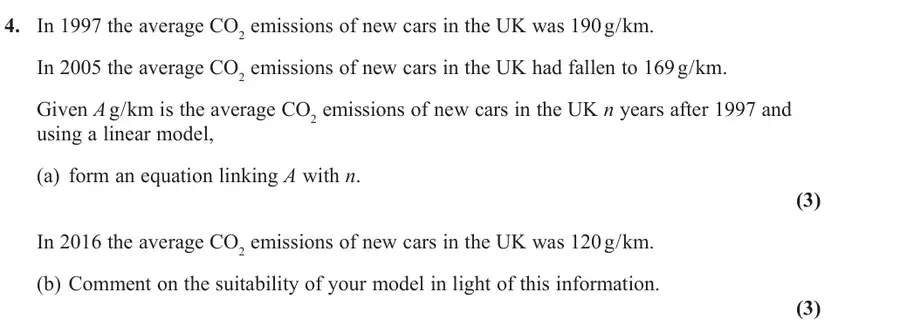

4. In 1997 the average CO2 emissions of new cars in the UK was 190 g/km.
In 2005 the average CO2 emissions of new cars in the UK had fallen to 169 g/km.
Given \(A\) g/km is the average CO2 emissions of new cars in the UK \(n\) years after 1997 and using a linear model,
(a) form an equation linking \(A\) with \(n\). (3)
In 2016 the average CO2 emissions of new cars in the UK was 120 g/km.
(b) Comment on the suitability of your model in light of this information. (3)

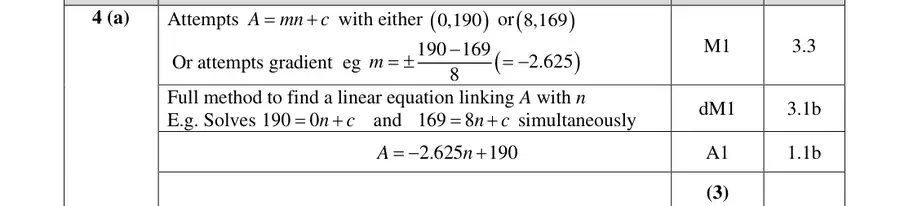

Mark scheme (a)
Scheme
Marks
AO
Attempts \(A = mn + c\) with either \((0, 190)\) or \((8, 169)\) Or attempts gradient eg \(m = \pm\dfrac{190 - 169}{8}\ (= -2.625)\)
M1
3.3
Full method to find a linear equation linking \(A\) with \(n\) E.g. Solves \(190 = 0n + c\) and \(169 = 8n + c\) simultaneously
dM1
3.1b
\(A = -2.625n + 190\)
A1
1.1b
(3)

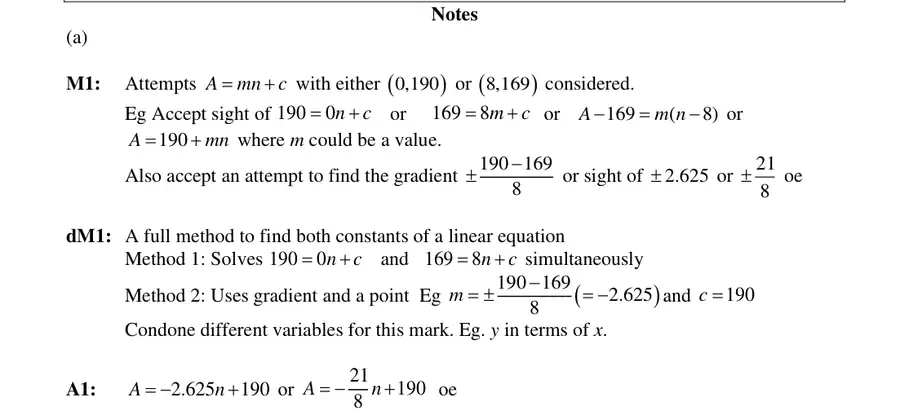

Notes
M1: Attempts \(A = mn + c\) with either \((0, 190)\) or \((8, 169)\) considered. Eg Accept sight of \(190 = 0n + c\) or \(169 = 8m + c\) or \(A - 169 = m(n - 8)\) or \(A = 190 + mn\) where \(m\) could be a value. Also accept an attempt to find the gradient \(\pm\dfrac{190 - 169}{8}\) or sight of \(\pm 2.625\) or \(\pm\dfrac{21}{8}\) oe
dM1: A full method to find both constants of a linear equation Method 1: Solves \(190 = 0n + c\) and \(169 = 8n + c\) simultaneously Method 2: Uses gradient and a point Eg \(m = \pm\dfrac{190 - 169}{8}\ (= -2.625)\) and \(c = 190\) Condone different variables for this mark. Eg. \(y\) in terms of \(x\).

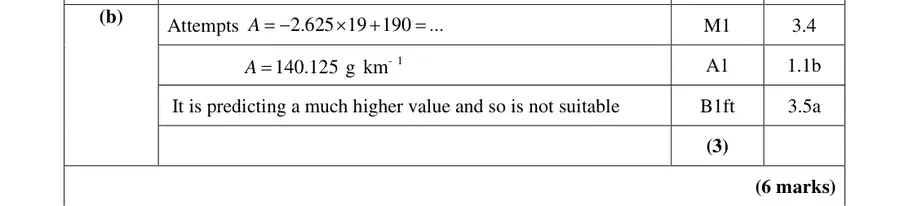

It is predicting a much higher value and so is not suitable
B1ft
3.5a
(3)
(6 marks)
Notes

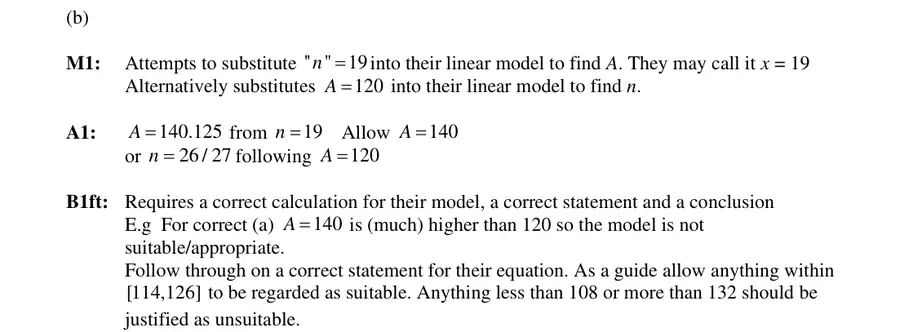

M1: Attempts to substitute "\(n\)" = 19 into their linear model to find \(A\). They may call it \(x = 19\) Alternatively substitutes \(A = 120\) into their linear model to find \(n\).
A1: \(A = 140.125\) from \(n = 19\) Allow \(A = 140\) or \(n = 26/27\) following \(A = 120\)
B1ft: Requires a correct calculation for their model, a correct statement and a conclusion E.g For correct (a) \(A = 140\) is (much) higher than 120 so the model is not suitable/appropriate. Follow through on a correct statement for their equation. As a guide allow anything within [114, 126] to be regarded as suitable. Anything less than 108 or more than 132 should be justified as unsuitable.
Note B0 Recorded value is not the same as/does not equal/does not match the value predicted
2. [In this question the unit vectors \(\mathbf{i}\) and \(\mathbf{j}\) are due east and due north respectively.]
A coastguard station \(O\) monitors the movements of a small boat.
At 10:00 the boat is at the point \((4\mathbf{i} - 2\mathbf{j})\) km relative to \(O\).
At 12:45 the boat is at the point \((-3\mathbf{i} - 5\mathbf{j})\) km relative to \(O\).
The motion of the boat is modelled as that of a particle moving in a straight line at constant speed.
(a) Calculate the bearing on which the boat is moving, giving your answer in degrees to one decimal place. (3)
(b) Calculate the speed of the boat, giving your answer in \(\mathrm{km\,h^{-1}}\) (3)
Mark scheme (a)
Scheme
Marks
AO
Attempts to find an "allowable" angle Eg \(\tan\theta = \dfrac{7}{3}\)
M1
1.1b
A full attempt to find the bearing Eg \(180^\circ + \text{``}67^\circ\text{''}\)
dM1
3.1b
Bearing = awrt \(246.8^\circ\)
A1
1.1b
(3)
Notes
Score these two parts together.
M1: Attempts an allowable angle. (Either the “66.8”, “23.2” or (“49.8” and “63.4”)) \(\tan\theta = \pm\dfrac{7}{3},\ \tan\theta = \pm\dfrac{3}{7},\ \tan\theta = \pm\dfrac{-2 - -5}{4 - -3}\) etc There must be an attempt to subtract the coordinates (seen or applied at least once) If part (b) is attempted first, look for example for \(\sin\theta = \pm\dfrac{7}{\text{``}\sqrt{58}\text{''}},\ \cos\theta = \pm\dfrac{7}{\text{``}\sqrt{58}\text{''}}\), etc They may use the cosine rule and trigonometry to find the two angles in the scheme. See above. Eg award for \(\cos\theta = \dfrac{\text{``}58\text{''} + \text{``}20\text{''} - \text{``}34\text{''}}{2 \times \text{``}\sqrt{58}\text{''} \times \text{``}\sqrt{20}\text{''}}\) and \(\tan\theta = \pm\dfrac{4}{2}\) or equivalent.
dM1: A full attempt to find the bearing. \(180^\circ + \arctan\dfrac{7}{3},\ 270^\circ - \arctan\dfrac{3}{7},\ 360^\circ - \text{``}49.8^\circ\text{''} - \text{``}63.4^\circ\text{''}\). It is dependent on the previous method mark.
A1: Bearing = awrt \(246.8^\circ\) oe. Allow S \(66.8^\circ\) W
Mark scheme (b)
Scheme
Marks
AO
Attempts to find the distance travelled = \(\sqrt{(4 - -3)^2 + (-2 + 5)^2} = \left(\sqrt{58}\right)\)
M1
1.1b
Attempts to find the speed = \(\dfrac{\sqrt{58}}{2.75}\)
dM1
3.1b
= awrt 2.77 \(\mathrm{km\ h^{-1}}\)
A1
1.1b
(3)
(6 marks)
Notes
M1: Attempts to find the distance travelled. Allow for \(d^2 = (4 - -3)^2 + (-2 + 5)^2\) You may see this on a diagram and allow if they attempt to find the magnitude from their “resultant vector” found in part (a).
dM1: Attempts to find the speed. There must have been an attempt to find the distance using the coordinates and then divide it by 2.75. Alternatively they could find the speed in \(\mathrm{km\ min^{-1}}\) and then multiply by 60
14. The value of a car, £\(V\), can be modelled by the equation\[V = 15\,700\mathrm{e}^{-0.25t} + 2300 \qquad t \in \mathbb{R},\ t \geqslant 0\]where the age of the car is \(t\) years.
Using the model,
(a) find the initial value of the car. (1)
Given the model predicts that the value of the car is decreasing at a rate of £500 per year at the instant when \(t = T\),
(b)
(i) show that\[3925\mathrm{e}^{-0.25T} = 500\]
(ii) Hence find the age of the car at this instant, giving your answer in years and months to the nearest month.
(Solutions based entirely on graphical or numerical methods are not acceptable.) (6)
The model predicts that the value of the car approaches, but does not fall below, £\(A\).
(c) State the value of \(A\). (1)
(d) State a limitation of this model. (1)
Mark scheme (a)
Scheme
Marks
AO
(£)18 000
B1
3.4
(1)
Notes
B1: £18 000 There is no requirement to have the units
(ii) \(\mathrm{e}^{-0.25T} = 0.127\ldots \Rightarrow -0.25T = \ln 0.127\ldots\)
M1
1.1b
\(T = 8.24\) (awrt)
A1
1.1b
8 years 3 months
A1
3.2a
(6)
Notes
(b)(i)
M1: Award for making the link between gradient and rate of change. Score for attempting to differentiate \(V\) to \(\dfrac{\mathrm{d}V}{\mathrm{d}t} = k\mathrm{e}^{-0.25t}\) An attempt at both sides are required. For the left hand side you may condone attempts such as \(\dfrac{\mathrm{d}y}{\mathrm{d}x}\)
A1: Achieves \(\dfrac{\mathrm{d}V}{\mathrm{d}t} = -3925\mathrm{e}^{-0.25t}\) or \(\dfrac{\mathrm{d}V}{\mathrm{d}t} = 15700 \times -0.25\mathrm{e}^{-0.25t}\) with both sides correct
A1*: Sets \(-3925\mathrm{e}^{-0.25T} = -500\) oe and proceeds to \(3925\mathrm{e}^{-0.25T} = 500\) This is a given answer and to achieve this mark, all aspects must be seen and be correct. \(t\) must be changed to \(T\) at some point even if just at the end of their solution/proof
SC: Award SC 110 candidates who simply write \(-3925\mathrm{e}^{-0.25T} = -500 \Rightarrow 3925\mathrm{e}^{-0.25T} = 500\) without any mention or reference to \(\dfrac{\mathrm{d}V}{\mathrm{d}t}\) Or \(15700 \times -0.25\mathrm{e}^{-0.25t} = -500 \Rightarrow 3925\mathrm{e}^{-0.25T} = 500\) without any mention or reference to \(\dfrac{\mathrm{d}V}{\mathrm{d}t}\)
(b)(ii)
M1: Proceeds from \(\mathrm{e}^{-0.25T} = A, A > 0\) using ln’s to \(\pm 0.25T = ..\) Alternatively takes lns first \(3925\mathrm{e}^{-0.25T} = 500 \Rightarrow \ln 3925 - 0.25T = \ln 500 \Rightarrow \pm 0.25T = \ldots\) but \(3925\mathrm{e}^{-0.25T} = 500 \Rightarrow \ln 3925 \times -0.25T = \ln 500 \Rightarrow \pm 0.25T = \ldots\) is M0
A1: 8 years 3 months. Correct answer and solution only Answers obtained numerically score 0 marks. The M mark must be scored.
Mark scheme (c)
Scheme
Marks
AO
2 300
B1
1.1b
(1)
Notes
B1: 2 300 but condone £2 300
Mark scheme (d)
Scheme
Marks
AO
Any suitable reason such as
Other factors affect price such as condition/mileage
If the car has had an accident it will be worth less than the model predicts
The price may go up in the long term as it becomes rare
£2300 is too large a value for a car’s scrap price. Most cars scrap for around £400
B1
3.5b
(1)
(9 marks)
Notes
B1: Any suitable reason. See scheme Accept "Scrappage" schemes may pay more (or less) than £2 300. Do not accept "does not take into account inflation" It asks for a limitation of the model so candidates cannot score marks by suggesting other suitable models " the value may fall by the same amount each year"
9. A company started mining tin in Riverdale on 1st January 2019.
A model to find the total mass of tin that will be mined by the company in Riverdale is given by the equation\[T = 1200 - 3(n - 20)^2\]where \(T\) tonnes is the total mass of tin mined in the \(n\) years after the start of mining.
Using this model,
(a) calculate the mass of tin that will be mined up to 1st January 2020, (1)
(b) deduce the maximum total mass of tin that could be mined, (1)
(c) calculate the mass of tin that will be mined in 2023. (2)
(d) State, giving reasons, the limitation on the values of \(n\). (2)
Mark scheme (a)
Scheme
Marks
AO
117 tonnes
B1
3.4
(1)
Notes
Note: Only withhold the mark for a lack of tonnes, once, the first time that it occurs.

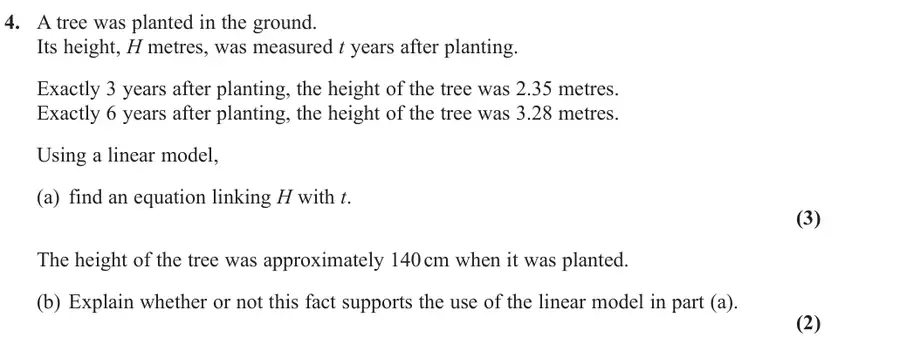

4. A tree was planted in the ground. Its height, \(H\) metres, was measured \(t\) years after planting.
Exactly 3 years after planting, the height of the tree was 2.35 metres. Exactly 6 years after planting, the height of the tree was 3.28 metres.
Using a linear model,
(a) find an equation linking \(H\) with \(t\). (3)
The height of the tree was approximately 140 cm when it was planted.
(b) Explain whether or not this fact supports the use of the linear model in part (a). (2)

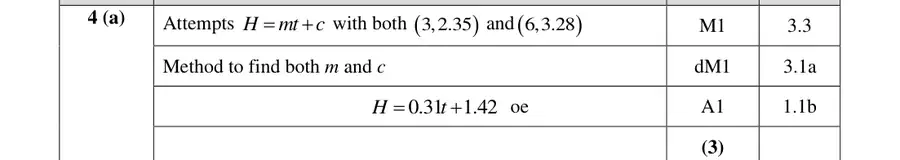

Mark scheme (a)
Scheme
Marks
AO
Attempts \(H = mt + c\) with both \((3, 2.35)\) and \((6, 3.28)\)
M1
3.3
Method to find both \(m\) and \(c\)
dM1
3.1a
\(H = 0.31t + 1.42\) oe
A1
1.1b
(3)

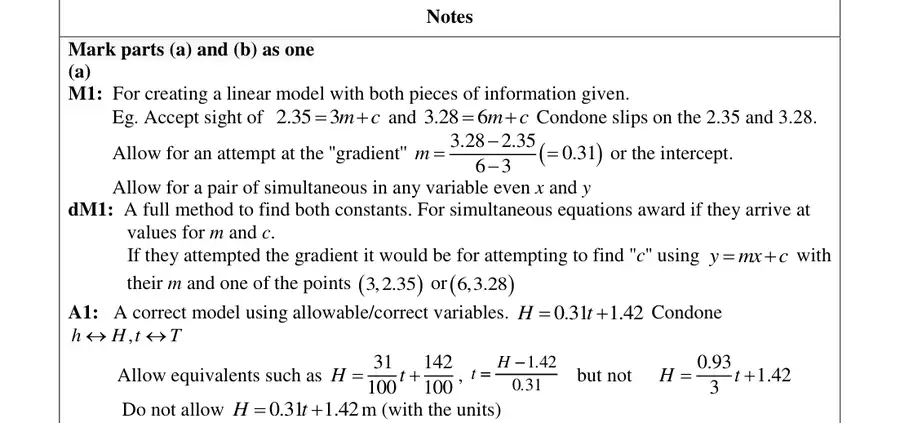

Notes
Mark parts (a) and (b) as one
M1: For creating a linear model with both pieces of information given. Eg. Accept sight of \(2.35 = 3m + c\) and \(3.28 = 6m + c\) Condone slips on the 2.35 and 3.28. Allow for an attempt at the "gradient" \(m = \dfrac{3.28 - 2.35}{6 - 3}\ (= 0.31)\) or the intercept. Allow for a pair of simultaneous in any variable even \(x\) and \(y\)
dM1: A full method to find both constants. For simultaneous equations award if they arrive at values for \(m\) and \(c\). If they attempted the gradient it would be for attempting to find "\(c\)" using \(y = mx + c\) with their \(m\) and one of the points \((3, 2.35)\) or \((6, 3.28)\)
A1: A correct model using allowable/correct variables. \(H = 0.31t + 1.42\) Condone \(h \leftrightarrow H, t \leftrightarrow T\) Allow equivalents such as \(H = \dfrac{31}{100}t + \dfrac{142}{100}\), \(t = \dfrac{H - 1.42}{0.31}\) but not \(H = \dfrac{0.93}{3}t + 1.42\) Do not allow \(H = 0.31t + 1.42\ \mathrm{m}\) (with the units)

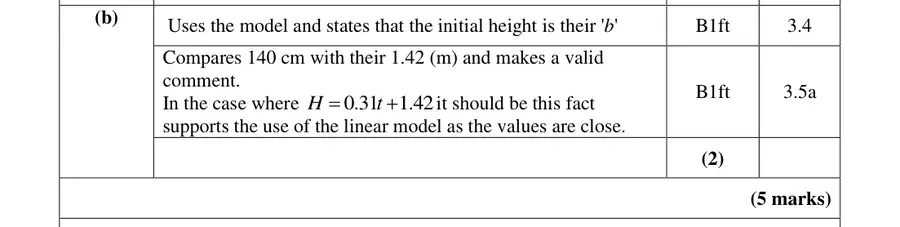

Mark scheme (b)
Scheme
Marks
AO
Uses the model and states that the initial height is their \(\text{‘}b\text{’}\)
B1ft
3.4
Compares 140 cm with their 1.42 (m) and makes a valid comment. In the case where \(H = 0.31t + 1.42\) it should be this fact supports the use of the linear model as the values are close.
B1ft
3.5a
(2)
(5 marks)
Notes
To score any marks in (b) the model must be of the form \(H = mt + b\) where \(m > 0, b > 0\)
B1ft: States or implies that 1.42 (with or without units) or 142 cm (including the units) is the original height or the height when \(t = 0\) You should allow statements such as \(c = 1.42\) or original height \(= 1.42\) (m) Follow through on their value of \(\text{‘}c\text{’}\), so for \(H = 0.25t + 1.60\) it is scored for stating the initial height is 1.60 (m) or 160 cm. Do not follow through if \(c \leqslant 0\)
B1ft: Compares 140 cm with their 1.42 (m) and makes a valid comment. In the case where \(H = 0.31t + 1.42\) it should be this fact supports the use of the linear model as the values are close or approximately the same. Allow \(1.42\,\mathrm{m} \approx 1.4\,\mathrm{m}\) or similar In the case of \(H = 0.25t + 1.60\) it would be for stating that the fact that it does not support the use of the model as the values are too different. If they state \(1.60 > 1.40\) this is insufficient. They cannot just state that they are not the same. It must be implied that there is a significant difference. As a rule of thumb use "good model" for between 135cm and 145 cm. This requires a correct calculation for their \(H\), a correct statement with an appreciation shown for the units and a correct conclusion.
SC B1 B0 Award SC for incomplete answers which suggest the candidate knows what to do. Eg. In (a) \(H = 0.31t + 1.42\) followed by in (b) It supports the model as when \(t = 0\) it is approximately 140 cm (corrected from the printed mark scheme: it says “In (b) … followed by in (c)”, but the question has only parts (a) and (b))
The value of a rare painting, £\(V\), is modelled by the equation \(V = pq^t\), where \(p\) and \(q\) are constants and \(t\) is the number of years since the value of the painting was first recorded on 1st January 1980.
The line \(l\) shown in Figure 3 illustrates the linear relationship between \(t\) and \(\log_{10} V\) since 1st January 1980.
The equation of line \(l\) is \(\log_{10} V = 0.05t + 4.8\)
(a) Find, to 4 significant figures, the value of \(p\) and the value of \(q\). (4)
(b) With reference to the model interpret
(i) the value of the constant \(p\),
(ii) the value of the constant \(q\). (2)
(c) Find the value of the painting, as predicted by the model, on 1st January 2010, giving your answer to the nearest hundred thousand pounds. (2)
Mark scheme (a)
Scheme
Marks
AO
For a correct equation in \(p\) or \(q\) \(p = 10^{4.8}\) or \(q = 10^{0.05}\)
M1
1.1b
For \(p =\) awrt 63100 or \(q =\) awrt 1.122
A1
1.1b
For correct equations in \(p\) and \(q\) \(p = 10^{4.8}\) and \(q = 10^{0.05}\)
dM1
3.1a
For \(p =\) awrt 63100 and \(q =\) awrt 1.122
A1
1.1b
(4)
Notes
(a) This is now being marked M1 A1 M1 A1 and in this order on e pen
M1: For a correct equation in \(p\) or \(q\) This is usually \(p = 10^{4.8}\) or \(q = 10^{0.05}\) but may be \(\log q = 0.05\) or \(\log p = 4.8\)
A1: For \(p =\) awrt 63100 or \(q =\) awrt 1.122
M1: For linking the two equations and forming correct equations in \(p\) and \(q\). This is usually \(p = 10^{4.8}\) and \(q = 10^{0.05}\) but may be \(\log q = 0.05\) and \(\log p = 4.8\)
A1: For \(p =\) awrt 63100 and \(q =\) awrt 1.122 Both these values implies M1 M1
ALT I(a)
M1: Substitutes \(t = 0\) and states that \(\log p = 4.8\)
A1: \(p =\) awrt 63100
M1: Uses their found value of \(p\) and another value of \(t\) to find form an equation in \(q\)
A1: \(p =\) awrt 63100 and \(q =\) awrt 1.122
Mark scheme (b)
Scheme
Marks
AO
(i) The value of the painting on 1st January 1980
B1
3.4
(ii) The proportional increase in value each year
B1
3.4
(2)
Notes
(b)(i)
B1: The value of the painting on 1st January 1980 (is £63 100) Accept the original value/cost of the painting or the initial value/cost of the painting
(b)(ii)
B1: The proportional increase in value each year. Eg Accept an explanation that explains that the value of the painting will rise 12.2% a year. (Follow through on their value of \(q\).) Accept "the rate" by which the value is rising/price is changing. "1.122 is the decimal multiplier representing the year on year increase in value" Do not accept "the amount" by which it is rising or "how much" it is rising by
If they are not labelled (b)(i) and (b)(ii) mark in the order given but accept any way around as long as clearly labelled " \(p\) is………… " and "\(q\) is ……………"
Mark scheme (c)
Scheme
Marks
AO
Uses \(V = 63100 \times 1.122^{30}\) or \(\log V = 0.05 \times 30 + 4.8\) leading to \(V =\)
M1
3.4
\(=\) awrt (£)2000000
A1
1.1b
(2)
(8 marks)
Notes
M1: For substituting \(t = 30\) into \(V = pq^t\) using their values for \(p\) and \(q\) or substituting \(t = 30\) into \(\log_{10} V = 0.05t + 4.8\) and proceeds to \(V\)
A1:For awrt either £1.99 million or £2.00 million. Condone the omission of the £ sign. Remember to isw after a correct answer
\(\Rightarrow v = \sqrt{8250} \Rightarrow v = 90.8\) (km h−1)
A1
1.1b
(ii) For substituting their \(v = 90.8\) in \(C = \dfrac{1500}{v} + \dfrac{2v}{11} + 60\)
M1
3.4
Minimum cost = awrt (£) 93
A1 ft
1.1b
(6)
Notes
(a)(i)
M1: Attempts to differentiate (deals with the powers of \(v\) correctly). Look for an expression for \(\dfrac{\mathrm{d}C}{\mathrm{d}v}\) in the form \(\dfrac{A}{v^2} + B\)
A1: \(\left(\dfrac{\mathrm{d}C}{\mathrm{d}v}\right) = -\dfrac{1500}{v^2} + \dfrac{2}{11}\) A number of students are solving part (a) numerically or graphically. Allow these students to pick up the M1 A1 here from part (b) when they attempt the second derivative.
M1: Sets \(\dfrac{\mathrm{d}C}{\mathrm{d}v} = 0\) (which may be implied) and proceeds to an equation of the type \(v^n = k, k \gt 0\) Allow here equations of the type \(\dfrac{1}{v^n} = k, k \gt 0\)
A1: \(v = \sqrt{8250}\) or \(5\sqrt{330}\) awrt 90.8 (km h−1). Don't be concerned by incorrect / lack of units. As this is a speed withhold this mark for answers such as \(v = \pm\sqrt{8250}\)
* Condone \(\dfrac{\mathrm{d}C}{\mathrm{d}v}\) appearing as \(\dfrac{\mathrm{d}y}{\mathrm{d}x}\) or perhaps not appearing at all. Just look for the rhs.
(a)(ii)
M1: For a correct method of finding \(C =\) from their solution to \(\dfrac{\mathrm{d}C}{\mathrm{d}v} = 0\). Do not accept attempts using negative values of \(v\). Award if you see \(v = \ldots, C = \ldots\) where the \(v\) used is their solution to (a)(i). You do not need to check this calculation.
A1ft: Minimum cost = awrt (£) 93. Condone the omission of units Follow through on sensible values of \(v\). \(60 \lt v \lt 110\)
\(v\)
\(C\)
60
95.9
65
94.9
70
94.2
75
93.6
80
93.3
85
93.1
90
93.0
95
93.1
100
93.2
105
93.4
110
93.6
Mark scheme (b)
Scheme
Marks
AO
Finds \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2} = +\dfrac{3000}{v^3}\) at \(v = 90.8\)
M1: Finds \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2}\) (following through on their \(\dfrac{\mathrm{d}C}{\mathrm{d}v}\) which must be of equivalent difficulty) and attempts to find its value / sign at their \(v\) Allow a substitution of their answer to (a) (i) in their \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2}\) Allow an explanation into the sign of \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2}\) from its terms (as \(v \gt 0\))
A1ft: \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2} = +0.004 \gt 0\) hence minimum (cost). Alternatively \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2} = +\dfrac{3000}{v^3} \gt 0\) as \(v \gt 0\) Requires a correct calculation or expression, a correct statement and a correct conclusion. Follow through on their \(v\) (\(v \gt 0\)) and their \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2}\)
* Condone \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2}\) appearing as \(\dfrac{\mathrm{d}^2y}{\mathrm{d}x^2}\) or not appearing at all for the M1 but for the A1 the correct notation must be used (accept notation \(C''\)).
Mark scheme (c)
Scheme
Marks
AO
It would be impossible to drive at this speed over the whole journey
B1
3.5b
(1)
(9 marks)
Notes
B1: Gives a limitation of the given model, for example
It would be impossible to drive at this speed over the whole journey
The traffic would mean that you cannot drive at a constant speed
Any statement that implies that the speed could not be constant is acceptable. Do not accept/ignore irrelevant statements such as "air resistance" etc
A company makes a particular type of children’s toy.
The annual profit made by the company is modelled by the equation
\[P = 100 - 6.25(x - 9)^2\]
where \(P\) is the profit measured in thousands of pounds and \(x\) is the selling price of the toy in pounds.
A sketch of \(P\) against \(x\) is shown in Figure 1.
Using the model,
(a) explain why £15 is not a sensible selling price for the toy. (2)
Given that the company made an annual profit of more than £80 000
(b) find, according to the model, the least possible selling price for the toy. (3)
The company wishes to maximise its annual profit.
State, according to the model,
(c)
(i) the maximum possible annual profit,
(ii) the selling price of the toy that maximises the annual profit. (2)
Mark scheme (a)
Scheme
Marks
AO
Attempts \(P = 100 - 6.25(15 - 9)^2\)
M1
3.4
\(= -125\ \therefore\) not sensible as the company would make a loss
A1
2.4
(2)
Notes
M1: Substitutes \(x = 15\) into \(P = 100 - 6.25(x - 9)^2\) and attempts to calculate. This is implied by an answer of \(-125\). Some candidates may have attempted to multiply out the brackets before they substitute in the \(x = 15\). This is acceptable as long as the function obtained is quadratic. There must be a calculation seen or implied by the value of \(-125\).
A1: Finds \(P = -125\) or states that \(P \lt 0\) and explains that (this is not sensible as) the company would make a loss. Condone \(P = -125\) followed by an explanation that it is not sensible as the company would make a loss of £125 rather than £125 000. (They will lose marks later in the question). An explanation that it is not sensible as "the profit cannot be negative" , "the profit is negative" or "the company will not make any money" , "they might make a loss" is incomplete/incorrect. You may ignore any misconceptions or reference to the price of the toy being too cheap for this mark.
Alt: M1: Sets \(P = 0\) and finds \(x = 5, 13\) A1: States \(15 \gt 13\) and states makes a loss
\(\Rightarrow 9 - \sqrt{3.2} \lt x \lt 9 + \sqrt{3.2}\)
dM1
1.1b
Minimum Price = £7.22
A1
3.2a
(3)
Notes
M1: Uses \(P \ldots 80\) where … is any inequality or " = " in \(P = 100 - 6.25(x - 9)^2\) and proceeds to \((x - 9)^2 \ldots k\) where \(k \gt 0\) and … is any inequality or " = " Eg. Condone \(P \lt 80\) in \(P = 100 - 6.25(x - 9)^2 \Rightarrow (x - 9)^2 \lt k\) where \(k \gt 0\) If the candidate attempts to multiply out then allow when they achieve a form \(ax^2 + bx + c = 0\)
dM1: Award for solving to find the two positive values for \(x\). Allow decimal answers FYI correct answers are \(\Rightarrow 9 - \sqrt{3.2} \lt x \lt 9 + \sqrt{3.2}\) Accept \(\Rightarrow x = 9 \pm \sqrt{3.2}\) Condone incorrect inequality work \(100 - 6.25(x - 9)^2 \gt 80 \Rightarrow (x - 9)^2 \gt 3.2 \Rightarrow x \gt 9 \pm \sqrt{3.2}\) Alternatively award if the candidate selects the lower of their two positive values \(9 - \sqrt{3.2}\)
A1: Deduces that the minimum Price = £7.22 (£7.21 is not acceptable) Trial and improvement or just answers of £7.22 or £7.21(with no working) then please send to review.
Mark scheme (c)
Scheme
Marks
AO
States (i) maximum profit = £ 100 000 and (ii) selling price £9
B1 B1
3.2a 2.2a
(2)
(7 marks)
Notes
(i) B1: Maximum Profit = £ 100 000 with units. Accept 100 thousand pound.
(ii) B1: Selling price = £9 with units
SC 1: Missing units in (b) and (c) only penalise once, withhold the final mark. Eg correct values in (c) would be scored B1 B0.
SC 2: If the answers to (c) are both correct, but in the wrong order score SC B1 B0 If (i) and (ii) are not written out score in the order given.
9. A solid glass cylinder, which is used in an expensive laser amplifier, has a volume of \(75\pi\) cm3. The cost of polishing the surface area of this glass cylinder is £2 per cm2 for the curved surface area and £3 per cm2 for the circular top and base areas.
Given that the radius of the cylinder is \(r\) cm,
(a) show that the cost of the polishing, £\(C\), is given by\[C = 6\pi r^2 + \frac{300\pi}{r}\] (4)
(b) Use calculus to find the minimum cost of the polishing, giving your answer to the nearest pound. (5)
(c) Justify that the answer that you have obtained in part (b) is a minimum. (1)
Mark scheme (a)
Scheme
Marks
Either: (Cost of polishing top and bottom (two circles) is )\(3 \times 2\pi r^2\) or (Cost of polishing curved surface area is) \(2 \times 2\pi rh\) or both - just need to see at least one of these products
B1
Uses volume to give \((h =)\dfrac{75\pi}{\pi r^2}\) or \((h =)\dfrac{75}{r^2}\) (simplified) (if \(V\) is misread – see below)
B1ft
\((C) = 6\pi r^2 + 4\pi r\left(\dfrac{75}{r^2}\right)\) Substitutes expression for \(h\) into area or cost expression of form \(Ar^2 + Brh\)
M1
\(C = 6\pi r^2 + \dfrac{300\pi}{r}\) *
A1*
(4)
Notes
(a) B1: States \(3 \times 2\pi r^2\) or states \(2 \times 2\pi rh\)
B1ft: Obtains a correct expression for \(h\) in terms of \(r\) (ft only follows misread of \(V\))
M1: Substitutes their expression for \(h\) into area or cost expression of form \(Ar^2 + Brh\)
A1*: Had correct expression for \(C\) and achieves given answer in part (a) including “\(C\) =” or “Cost=” and no errors seen such as \(C\) = area expression without multiples of (£)3 and (£)2 at any point. Cost and area must be perfectly distinguished at all stages for this A mark.
N.B. Candidates using Curved Surface Area \(= \dfrac{2V}{r}\) - please send to review
Mark scheme (b)
Scheme
Marks
\(\left\{\dfrac{\mathrm{d}C}{\mathrm{d}r} =\right\}\ 12\pi r - \dfrac{300\pi}{r^2}\) or \(12\pi r - 300\pi r^{-2}\) (then isw)
M1 A1 ft
\(12\pi r - \dfrac{300\pi}{r^2} = 0\) so \(r^k =\) value where \(k = \pm 2, \pm 3, \pm 4\)
dM1
Use cube root to obtain \(r = \left(\textit{their } \tfrac{300}{12}\right)^{\frac{1}{3}}\) \((= 2.92)\)- allow \(r = 3\), and thus \(C =\)
ddM1
Then \(C\) = awrt 483 or 484
A1cao
(5)
Notes
(b) M1: Attempts to differentiate as evidenced by at least one term differentiated correctly
A1ft: Correct derivative – allow \(12\pi r - 300\pi r^{-2}\) then isw if the power is misinterpreted (ft only for misread)
dM1: Sets their \(\dfrac{\mathrm{d}C}{\mathrm{d}r}\) to 0, and obtains \(r^k =\) value where \(k\) = 2, 3 or 4 (needs correct collection of powers of \(r\) from their original derivative expression – allow errors dividing by 12π)
ddM1: Uses cube root to find \(r\) or see \(r\) = awrt 3 as evidence of cube root and substitutes into correct expression for \(C\) to obtain value for \(C\)
A1: Accept awrt 483 or 484
Mark scheme (c)
Scheme
Marks
\(\left\{\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2} =\right\}\ 12\pi + \dfrac{600\pi}{r^3} \gt 0\) so minimum
B1ft
(1)
[10]
Notes
(c) B1ft: Finds correct expression for \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2}\) and deduces value of \(\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2} \gt 0\) so minimum (\(r\) may have been wrong) OR checks gradient to left and right of 2.92 and shows gradient goes from negative to zero to positive so minimum OR checks value of \(C\) to left and right of 2.92 and shows that \(C\) > 483 so deduces minimum ( i.e. uses shape of graph) Only ft on misread of \(V\) for each ft mark (see below)
Misread of the volume
N..B. Some candidates have misread the volume as 75 instead of \(75\pi\).
Following this misread candidates cannot legitimately obtain the printed answer in part (a). Either they obtain \(C = 6\pi r^2 + \dfrac{300}{r}\) or they “fudge” their working to appear to give the printed answer.
The policy for a misread is to subtract 2 marks from A or B marks. In this case the A mark is to be subtracted from part (a) and the final A mark is to be subtracted from part (b) The maximum mark for part (a) following this misread is 3 marks. The award is B1 B1 M1 A0 as a maximum.
(a) B1: as before B1: Uses volume to give \((h =)\dfrac{75}{\pi r^2}\) M1: \((C) = 6\pi r^2 + 4\pi r\left(\dfrac{75}{\pi r^2}\right)\) A0: Printed answer is not obtained without error
Most Candidates may then adopt the printed answer and gain up to full marks for the rest of the question so 9 of the 10 marks maximum in all.
Any candidate who proceeds with their answer \(C = 6\pi r^2 + \dfrac{300}{r}\) may be awarded up to 4 marks in part (b). These are M1A1dM1ddM1A0 and then the candidate may also be awarded the B1 mark in part (c). So 8 of the 10 marks maximum in all.
(b) M1 A1: \(\left\{\dfrac{\mathrm{d}C}{\mathrm{d}r} =\right\}\ 12\pi r - \dfrac{300}{r^2}\) or \(12\pi r - 300r^{-2}\) (then isw) dM1: \(12\pi r - \dfrac{300}{r^2} = 0\) so \(r^k =\) value where \(k\) = 2, 3 or 4 or \(12\pi r - \dfrac{300}{r^2} = 0\) so \(r^k =\) value ddM1: Use cube root to obtain \(r = \left(\textit{their } \tfrac{300}{12\pi}\right)^{\frac{1}{3}}\) \((= 1.996)\)- allow \(r = 2\), and thus \(C = \ldots\) must use \(C = 6\pi r^2 + \dfrac{300}{r}\) A0: Cannot obtain \(C\) = 483 or 484
(c) B1: \(\left\{\dfrac{\mathrm{d}^2C}{\mathrm{d}r^2} =\right\}\ 12\pi + \dfrac{600}{r^3} \gt 0\) so minimum OR checks gradient to left and right of 1.996 and shows gradient goes from negative to zero to positive so minimum OR checks value of \(C\) to left and right of 1.996 and shows that \(C\) > 225.4 so deduces minimum ( i.e. uses shape of graph) (corrected from the printed mark scheme, which gives 1.966 twice in (c)) There is an example in Practice of this misread.
The shape of the pool \(ABCDEFA\) consists of a rectangle \(BCEF\) joined to an equilateral triangle \(BFA\) and a semi-circle \(CDE\), as shown in Figure 4.
Given that \(AB = x\) metres, \(EF = y\) metres, and the area of the pool is 50 m2,
(a) show that\[y = \frac{50}{x} - \frac{x}{8}\left(\pi + 2\sqrt{3}\right)\] (3)
(b) Hence show that the perimeter, \(P\) metres, of the pool is given by\[P = \frac{100}{x} + \frac{x}{4}\left(\pi + 8 - 2\sqrt{3}\right)\] (3)
(c) Use calculus to find the minimum value of \(P\), giving your answer to 3 significant figures. (5)
(d) Justify, by further differentiation, that the value of \(P\) that you have found is a minimum. (2)
M1: Finds \(P\prime\prime\) (\(x^n \to x^{n-1}\) allow for constant \(\to 0\)) and considers sign
A1ft: \(\dfrac{200}{x^3}\) (need not be simplified) and \(\gt 0\) and conclusion. Only follow through on a correct \(P\prime\prime\) and a single positive value of \(x\) found earlier.
Figure 1 shows the plan of a garden. The marked angles are right angles.
The six edges are straight lines.
The lengths shown in the diagram are given in metres.
Given that the perimeter of the garden is greater than 40 m,
(a) show that \(x > 1.7\) (3)
Given that the area of the garden is less than 120 m2,
(b) form and solve a quadratic inequality in \(x\). (5)
(c) Hence state the range of the possible values of \(x\). (1)
Mark scheme (a)
Scheme
Marks
\(P = 20x + 6\) o.e
B1
\(20x + 6 > 40 \Rightarrow x >\)
M1
\(x > 1.7\)
A1*
(3)
Notes
B1: Correct expression for perimeter but may not be simplified so accept \(2x + 1 + 2x + 4x + 2 + 2x + 6x + 3 + 4x\) or \(2(10x + 3)\) or any equivalent
M1: Set \(P > 40\) with their linear expression for \(P\) (this may not be correct but should be a sum of sides) and manipulate to get \(x > \ldots\)
A1*: cao \(x > 1.7\). This is a given answer, there must not be any errors, but accept \(1.7 < x\)
Mark scheme (b)
Scheme
Marks
Mark parts (b) and (c) together \(A = 2x(2x + 1) + 2x(6x + 3) = 16x^2 + 8x\)
B1
\(16x^2 + 8x - 120 < 0\)
M1
Try to solve their \(2x^2 + x - 15 = 0\) e.g. \((2x - 5)(x + 3) = 0\) so \(x =\)
M1
Choose inside region
M1
\(-3 < x < \dfrac{5}{2}\) or \(0 < x < \dfrac{5}{2}\) (as \(x\) is a length)
A1
(5)
Notes
Marks parts (b) and (c) together
B1: Writes a correct statement in \(x\) for the area. It need not be simplified. You may isw Amongst numerous possibilities are. \(2x(2x + 1) + 2x(6x + 3),\ 16x^2 + 8x,\ \ 4x(6x + 3) - 2x(4x + 2),\ 4x(2x + 1) + 2x(4x + 2)\)
M1: Sets their quadratic expression < 120 and collects on one side of the inequality
M1: For an attempt to solve a 3 Term quadratic equation producing two solutions by factorising, formula or completion of the square with the usual rules (see notes)
M1: For choosing the ‘inside’ region. Can follow through from their critical values – must be stated – not just a table or a graph. Can also be implied by \(0 < x <\) upper value
A1: \(-3 < x < \dfrac{5}{2}\). Accept \(x > -3\) and \(x < 2.5\) or \((-3, 2.5)\) As \(x\) is a width, accept \(0 < x < \dfrac{5}{2}\) Also accept \(\dfrac{10}{4}\) or 2.5 instead of \(\dfrac{5}{2}\). \(\leqslant\) would be M1A0 Allow this final answer to part (b) to appear as answer to part (c) This would score final M1A1 in (b) then B0 in (c)
Mark scheme (c)
Scheme
Marks
\(1.7 < x < \dfrac{5}{2}\)
B1cao
(1)
(9 marks)
Notes
B1cao: \(1.7 < x < \dfrac{5}{2}\). Must be correct. [ This does not imply final M1 in (b)]
Figure 4 shows a closed letter box \(ABFEHGCD\), which is made to be attached to a wall of a house.
The letter box is a right prism of length \(y\) cm as shown in Figure 4. The base \(ABFE\) of the prism is a rectangle. The total surface area of the six faces of the prism is \(S\) cm2.
The cross section \(ABCD\) of the letter box is a trapezium with edges of lengths \(DA = 9x\) cm, \(AB = 4x\) cm, \(BC = 6x\) cm and \(CD = 5x\) cm as shown in Figure 5. The angle \(DAB = 90^\circ\) and the angle \(ABC = 90^\circ\).
The volume of the letter box is 9600 cm3.
(a) Show that\[y = \frac{320}{x^2}\] (2)
(b) Hence show that the surface area of the letter box, \(S\) cm2, is given by\[S = 60x^2 + \frac{7680}{x}\] (4)
(c) Use calculus to find the minimum value of \(S\). (6)
(d) Justify, by further differentiation, that the value of \(S\) you have found is a minimum. (2)
Mark scheme (a)
Scheme
Marks
\(\dfrac{1}{2}(9x + 6x)4x\) or \(\quad 2x \times 15x\) or \(\quad \left(\dfrac{1}{2}4x \times (9x - 6x) + 6x \times 4x\right)\) or \(\quad 6x^2 + 24x^2\) or \(\quad \left(9x \times 4x - \dfrac{1}{2}4x \times (9x - 6x)\right)\) or \(\quad 36x^2 - 6x^2\)
M1A1cso
\(\Rightarrow 30x^2y = 9600 \Rightarrow y = \dfrac{9600}{30x^2} \Rightarrow y = \dfrac{320}{x^2}\) *
(2)
Notes
M1: Correct attempt at the area of a trapezium. Note that \(30x^2\) on its own or \(30x^2\) from incorrect work e.g. \(5x \times 6x\) is M0. If there is a clear intention to find the area of the trapezium correctly allow the M1 but the A1 can be withheld if there are any slips.
A1: Correct proof with at least one intermediate step and no errors seen. “\(y =\)” is required.
M1: An attempt to find the area of six faces of the prism. The 2 trapezia may be combined as \((9x + 6x)4x\) or \(60x^2\) and the 4 other faces may be combined as \(24xy\) but all six faces must be included. There must be attempt at the areas of two trapezia that are dimensionally correct.
A1: Correct expression in any form. Allow just \((S =)\ 60x^2 + 24xy\) for M1A1
M1: Substitutes \(y = \dfrac{320}{x^2}\) into their expression for \(S\) (may be done earlier). \(S\) should have at least one \(x^2\) term and one \(xy\) term but there may be other terms which may be dimensionally incorrect.
A1* cso: Correct solution only. “\(S =\)” is not required here.
M1: Either \(60x^2 \to 120x\) or \(\dfrac{7680}{x} \to \dfrac{\pm\lambda}{x^2}\)
A1: Correct differentiation (need not be simplified).
M1: \(S\prime = 0\) and “their \(x^3 = \pm\) value” or “their \(x^{-3} = \pm\) value” Setting their \(\dfrac{\mathrm{d}S}{\mathrm{d}x} = 0\) and “candidate’s ft correct power of \(x =\) a value”. The power of \(x\) must be consistent with their differentiation. If inequalities are used this mark cannot be gained until candidate states value of \(x\) or \(S\) from their \(x\) without inequalities. \(S\prime = 0\) can be implied by \(120x = \dfrac{7680}{x^2}\). Some may spot that \(x = 4\) gives \(S\prime = 0\) and provided they clearly show \(S\prime(4) = 0\) allow this mark as long as \(S\prime\) is correct. (If \(S\prime\) is incorrect this method is allowed if their derivative is clearly zero for their value of \(x\))
A1: \(x = 4\) only (\(x^3 = 64 \Rightarrow x = \pm 4\) scores A0) Note that the value of \(x\) is not explicitly required so the use of \(x = \sqrt[3]{64}\) to give \(S = 2880\) would imply this mark.
ddM1: Substitute candidate’s value of \(x\ (\neq 0)\) into a formula for \(S\). Dependent on both previous M marks.
M1: Attempt \(S\prime\prime\ \left(x^n \to x^{n-1}\right)\) and considers sign. This mark requires an attempt at the second derivative and some consideration of its sign. There does not necessarily need to be any substitution. An attempt to solve \(S\prime\prime = 0\) is M0
A1: \(120 + \dfrac{15360}{x^3}\) and \(\gt 0\) and conclusion. Requires a correct second derivative of \(120 + \dfrac{15360}{x^3}\) (need not be simplified) and a valid reason (e.g. > 0), and conclusion. Only follow through a correct second derivative i.e. \(x\) may be incorrect but must be positive and/or \(S\prime\prime\) may have been evaluated incorrectly.
A correct \(S\prime\prime\) followed by \(S\prime\prime(\text{"}4\text{"}) = \text{"}360\text{"}\) therefore minimum would score no marks in (d) A correct \(S\prime\prime\) followed by \(S\prime\prime(\text{"}4\text{"}) = \text{"}360\text{"}\) which is positive therefore minimum would score both marks
M1: Multiply out lhs, produce 3TQ = 0 and attempt to solve leading to \(x\) =... according to general guidelines
M1: Attempts the ‘inside’ for their critical values (may be from a 2TQ here)
A1: Accept either \(-7 < x < 3\) or \(0 < x < 3\) or (\(x > -7\) and \(x < 3\)) or (\(x > 0\) and \(x < 3\)) but not e.g. (\(x > -7,\ x < 3\)) or (\(x > -7\) or \(x < 3\)) (There is no specific need for them to realise \(x > 0\))
Mark scheme (c)
Scheme
Marks
\(2.8 < x < 3\)
B1ft
(1)
(8 marks)
Notes
B1ft: Follow through their answers to (a) and (b) Provided “their 3” > 2.8
Examples
\(x(x - 4) < 21 \Rightarrow x^2 - 4x - 21 < 0\) \((x - 7)(x + 3) < 0,\ x = 7, x = -3\) \(-3 < x < 7\ \textit{or}\ 0 < x < 7\) \(2.8 < x < 7\) Scores B0M1M1A0B1ft
\(x\times 4x < 21 \Rightarrow 4x^2 - 21 < 0\) \((2x - \sqrt{21})(2x + \sqrt{21}) < 0,\ x = \pm\dfrac{\sqrt{21}}{2}\) \(-\dfrac{\sqrt{21}}{2} < x < \dfrac{\sqrt{21}}{2}\ \textit{or}\ 0 < x < \dfrac{\sqrt{21}}{2}\) \(2.8 < x < \dfrac{\sqrt{21}}{2}\) Scores B0M0M1A0B0
A manufacturer produces pain relieving tablets. Each tablet is in the shape of a solid circular cylinder with base radius \(x\) mm and height \(h\) mm, as shown in Figure 3.
Given that the volume of each tablet has to be 60 mm\(^3\),
(a) express \(h\) in terms of \(x\), (1)
(b) show that the surface area, \(A\) mm\(^2\), of a tablet is given by \(A = 2\pi x^2 + \dfrac{120}{x}\) (3)
The manufacturer needs to minimise the surface area \(A\) mm\(^2\), of a tablet.
(c) Use calculus to find the value of \(x\) for which \(A\) is a minimum. (5)
(d) Calculate the minimum value of \(A\), giving your answer to the nearest integer. (2)
(e) Show that this value of \(A\) is a minimum. (2)
Mark scheme (a)
Scheme
Marks
\((h =)\dfrac{60}{\pi x^2}\) or equivalent exact (not decimal) expression e.g. \((h =) 60 \div \pi x^2\)
B1
(1)
Notes
B1: This expression must be correct and in part (a) \(\dfrac{60}{\pi r^2}\) is B0
Mark scheme (b)
Scheme
Marks
\((A =) 2\pi x^2 + 2\pi xh\) or \((A =) 2\pi r^2 + 2\pi rh\) or \((A =) 2\pi r^2 + \pi dh\) may not be simplified and may appear on separate lines
B1
Either \((A) = 2\pi x^2 + 2\pi x\left(\dfrac{60}{\pi x^2}\right)\) or As \(\pi xh = \dfrac{60}{x}\) then \((A =) 2\pi x^2 + 2\left(\dfrac{60}{x}\right)\)
M1
\(A = 2\pi x^2 + \left(\dfrac{120}{x}\right)\) *
A1 cso
(3)
Notes
B1: Accept any equivalent correct form – may be on two or more lines.
M1: substitute their expression for \(h\) in terms of \(x\) into Area formula of the form \(kx^2 + cxh\)
A1: There should have been no errors in part (b) in obtaining this printed answer
Mark scheme (c)
Scheme
Marks
\(\left(\dfrac{\mathrm{d}A}{\mathrm{d}x}\right) = 4\pi x - \dfrac{120}{x^2}\) or \(= 4\pi x - 120x^{-2}\)
M1 A1
\(4\pi x - \dfrac{120}{x^2} = 0\) implies \(x^3 =\) (Use of \(\gt 0\) or \(\lt 0\) is M0 then M0A0)
M1
\(x = \sqrt[3]{\dfrac{120}{4\pi}}\) or answers which round to 2.12 (\(-2.12\) is A0)
dM1 A1
(5)
Notes
M1: At least one power of \(x\) decreased by 1 A1 accept any equivalent correct answer
M1: Setting \(\dfrac{\mathrm{d}A}{\mathrm{d}x} = 0\) and finding a value for \(x^3\) (\(x^3 =\) may be implied by answer). Allow \(\dfrac{\mathrm{d}y}{\mathrm{d}x} = 0\)
dM1: Using cube root to find \(x\)
A1: For any equivalent correct answer (need 3sf or more) Correct answer implies previous M mark
Mark scheme (d)
Scheme
Marks
\(A = 2\pi(2.12)^2 + \dfrac{120}{2.12},\ = 85\) (only ft \(x = 2\) or 2.1 – both give 85)
M1, A1
(2)
Notes
M1: Substitute the (+ve) \(x\) value found in (c) into equation for \(A\) and evaluate. A1 is for 85 only
Mark scheme (e)
Scheme
Marks
Method 1
Methods 2 and 3
Either \(\dfrac{\mathrm{d}^2A}{\mathrm{d}x^2} = 4\pi + \dfrac{240}{x^3}\) and sign considered (May appear in (c))
Or (method 2) considers gradient to left and right of their 2.12 (e.g at 2 and 2.5) Or (method 3) considers value of \(A\) either side
M1
which is \(\gt 0\) and therefore minimum (most substitute 2.12 but it is not essential to see a substitution) (may appear in (c))
Finds numerical values for gradients and observes gradients go from negative to zero to positive so concludes minimum OR finds numerical values of \(A\), observing greater than minimum value and draws conclusion
A1
(2)
13 marks
Notes
M1: Complete method, usually one of the three listed in the scheme. For first method \(A^{\prime\prime}(x)\) must be attempted and sign considered
A1: Clear statements and conclusion. (numerical substitution of \(x\) is not necessary in first method shown, and \(x\) or calculation could be wrong but \(A^{\prime\prime}(x)\) must be correct. Must not see 85 substituted)
Figure 3 shows a flowerbed. Its shape is a quarter of a circle of radius \(x\) metres with two equal rectangles attached to it along its radii. Each rectangle has length equal to \(x\) metres and width equal to \(y\) metres.
Given that the area of the flowerbed is 4 m2,
(a) show that\[y = \frac{16 - \pi x^2}{8x}\] (3)
(b) Hence show that the perimeter \(P\) metres of the flowerbed is given by the equation\[P = \frac{8}{x} + 2x\] (3)
(c) Use calculus to find the minimum value of \(P\). (5)
(d) Find the width of each rectangle when the perimeter is a minimum. Give your answer to the nearest centimetre. (2)
M1 : Uses Perimeter formula of the form \(2x + cy + k\pi r\) where \(c = 2\) or 4 and \(k = \tfrac{1}{4}\) or \(\tfrac{1}{2}\)
A1: Correct unsimplified formula with y substituted as shown, i.e. \(c = 4\), \(k = \tfrac{1}{2}\), \(r = x\) and \(y = \dfrac{16 - \pi x^2}{8x}\) or \(y = \left(\dfrac{4 - \frac{1}{4}\pi x^2}{2x}\right)\)
A1: obtains printed answer with at least one line of correct simplification or expansion before giving printed answer or stating result has been shown or equivalent
M1 : Substitute \(x\) value found in (c) into equation for \(y\) from (a) ( or substitute \(x\) and \(P\) into equation for \(P\) from (b)) and evaluate (may see 0.2146 and correct answer implies M1 or need to see substitution if \(x\) value was wrong.)
A1 is for 21 or 21cm or 0.21m as this is to nearest cm
A cuboid has a rectangular cross-section where the length of the rectangle is equal to twice its width, \(x\) cm, as shown in Figure 2. The volume of the cuboid is 81 cubic centimetres.
(a) Show that the total length, \(L\) cm, of the twelve edges of the cuboid is given by\[L = 12x + \frac{162}{x^2}\] (3)
(b) Use calculus to find the minimum value of \(L\). (6)
(c) Justify, by further differentiation, that the value of \(L\) that you have found is a minimum. (2)
Mark scheme (a)
Scheme
Marks
\(\{V =\}\ 2x^2y = 81\) \(2x^2y = 81\)
B1 oe
\(\{L = 2(2x + x + 2x + x) + 4y \Rightarrow L = 12x + 4y\}\)
\(y = \dfrac{81}{2x^2} \Rightarrow L = 12x + 4\left(\dfrac{81}{2x^2}\right)\) Making \(y\) the subject of their expression and substitute this into the correct \(L\) formula.
M1
So, \(L = 12x + \dfrac{162}{x^2}\) AG Correct solution only. AG.
A1 cso
[3]
Notes
B1: For any correct form of \(2x^2y = 81\). (may be unsimplified). Note that \(2x^3 = 81\) is B0. Otherwise, candidates can use any symbol or letter in place of \(y\).
M1: Making \(y\) the subject of their formula and substituting this into a correct expression for \(L\).
A1: Correct solution only. Note that the answer is given.
\(\{x = 3,\}\ L = 12(3) + \dfrac{162}{3^2} = 54\) (cm) Substitute candidate’s value of \(x\ (\ne 0)\) into a formula for \(L\).
ddM1
54
A1 cao
[6]
Notes
Note you can mark parts (b) and (c) together.
2nd M1: Setting their \(\dfrac{\mathrm{d}L}{\mathrm{d}x} = 0\) and “candidate’s ft correct power of \(x =\) a value”. The power of \(x\) must be consistent with their differentiation. If inequalities are used this mark cannot be gained until candidate states value of \(x\) or \(L\) from their \(x\) without inequalities. \(L^\prime = 0\) can be implied by \(12 = \tfrac{324}{x^3}\).
2nd A1: \(x^3 = 27 \Rightarrow x = \pm 3\) scores A0. 2nd A1: can be given for no value of \(x\) given but followed through by correct working leading to \(L = 54\).
3rd M1: Note that this method mark is dependent upon the two previous method marks being awarded.
Mark scheme (c)
Scheme
Marks
\(\{\text{For } x = 3\}\), \(\dfrac{\mathrm{d}^2L}{\mathrm{d}x^2} = \dfrac{972}{x^4} \gt 0 \Rightarrow\) Minimum Correct ft \(L^{\prime\prime}\) and considering sign.
M1
\(\dfrac{972}{x^4}\) and \(\gt 0\) and conclusion.
A1
[2]
11
Notes
M1: for attempting correct ft second derivative and considering its sign.
A1: Correct second derivative of \(\dfrac{972}{x^4}\) (need not be simplified) and a valid reason (e.g. \(\gt 0\)), and conclusion. Need to conclude minimum (allow \(x\) and not \(L\) is a minimum) or indicate by a tick that it is a minimum. The actual value of the second derivative, if found, can be ignored, although substituting their \(L\) and not \(x\) into \(L^{\prime\prime}\) is A0. Note: 2 marks can be scored from a wrong value of \(x\), no value of \(x\) found or from not substituting in the value of their \(x\) into \(L^{\prime\prime}\).
Gradient test or testing values either side of their \(x\) scores M0A0 in part (c).
Throughout this question allow confused notation such as \(\dfrac{\mathrm{d}y}{\mathrm{d}x}\) for \(\dfrac{\mathrm{d}L}{\mathrm{d}x}\).
(c) Use calculus to justify that the volume that you found in part (b) is a maximum. (2)
Mark scheme (a)
Scheme
Marks
\(V = 4x(5 - x)^2 = 4x(25 - 10x + x^2)\)
So, \(V = 100x - 40x^2 + 4x^3\) \(\pm\alpha x \pm \beta x^2 \pm \gamma x^3\), where \(\alpha, \beta, \gamma \ne 0\)
M1
\(V = 100x - 40x^2 + 4x^3\)
A1
\(\dfrac{\mathrm{d}V}{\mathrm{d}x} = 100 - 80x + 12x^2\) At least two of their expanded terms differentiated correctly.
M1
\(100 - 80x + 12x^2\)
A1 cao
(4)
Notes
1st M1 for a three term cubic in the form \(\pm\alpha x \pm \beta x^2 \pm \gamma x^3\). Note that an un-combined \(\pm\alpha x \pm \lambda x^2 \pm \mu x^2 \pm \gamma x^3\), \(\alpha, \lambda, \mu, \gamma \ne 0\) is fine for the 1st M1.
1st A1 for either \(100x - 40x^2 + 4x^3\) or \(100x - 20x^2 - 20x^2 + 4x^3\).
2nd M1 for any two of their expanded terms differentiated correctly. NB: If expanded expression is divided by a constant, then the 2nd M1 can be awarded for at least two terms are correct. Note for un-combined \(\pm\lambda x^2 \pm \mu x^2\), \(\pm 2\lambda x \pm 2\mu x\) counts as one term differentiated correctly.
2nd A1 for \(100 - 80x + 12x^2\), cao.
Note: See appendix for those candidates who apply the product rule of differentiation (shown below).
\(\dfrac{\mathrm{d}y}{\mathrm{d}x} = 4(5 - x)^2 + 4x(2)(5 - x)^1(-1)\) A correct attempt at differentiating any one of either \(u\) or \(v\) correctly.
dM1
Both \(\dfrac{\mathrm{d}u}{\mathrm{d}x}\) and \(\dfrac{\mathrm{d}v}{\mathrm{d}x}\) correct
\(\dfrac{\mathrm{d}y}{\mathrm{d}x} = 4(25 - 10x + x^2) + 4x(-10 + 2x)\) A correct attempt at differentiating any one of either \(u\) or their \(v\) correctly.
dM1
Both \(\dfrac{\mathrm{d}u}{\mathrm{d}x}\) and \(\dfrac{\mathrm{d}v}{\mathrm{d}x}\) correct
Note: The candidate needs to use a complete product rule method in order for you to award the first M1 mark here. The second method mark is dependent on the first method mark awarded.
Mark scheme (b)
Scheme
Marks
\(100 - 80x + 12x^2 = 0\) Sets their \(\dfrac{\mathrm{d}V}{\mathrm{d}x}\) from part (a) \(= 0\)
\(\{\text{As } 0 \lt x \lt 5\}\ x = \dfrac{5}{3}\) \(x = \dfrac{5}{3}\) or \(x = \text{awrt } 1.67\)
A1
\(x = \tfrac{5}{3},\ V = 4\left(\tfrac{5}{3}\right)\left(5 - \tfrac{5}{3}\right)^2\) Substitute candidate’s value of \(x\) where \(0 \lt x \lt 5\) into a formula for \(V\).
dM1
So, \(V = \dfrac{2000}{27} = 74\dfrac{2}{27} = 74.074\ldots\) Either \(\dfrac{2000}{27}\) or \(74\dfrac{2}{27}\) or awrt 74.1
A1
(4)
Notes
Note you can mark parts (b) and (c) together.
Ignore the extra solution of \(x = 5\) (and \(V = 0\)). Any extra solutions for \(V\) inside found for values inside the range of \(x\), then award the final A0.
Mark scheme (c)
Scheme
Marks
\(\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2} = -80 + 24x\) Differentiates their \(\dfrac{\mathrm{d}V}{\mathrm{d}x}\) correctly to give \(\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2}\).
M1
When \(x = \dfrac{5}{3}\), \(\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2} = -80 + 24\left(\dfrac{5}{3}\right)\)
\(\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2} = -40 \lt 0 \Rightarrow V\) is a maximum \(\underline{\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2} = -40}\) and \(\lt 0\) or negative and maximum.
A1 cso
(2)
[10]
Notes
M1 is for their \(\dfrac{\mathrm{d}V}{\mathrm{d}x}\) differentiated correctly (follow through) to give \(\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2}\).
A1 for all three of \(\underline{\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2} = -40}\) and \(\lt 0\) or negative and maximum.
Ignore any second derivative testing on \(x = 5\) for the final accuracy mark.
Alternative Method: Gradient Test: M1 for finding the gradient either side of their \(x\)-value from part (b) where \(0 \lt x \lt 5\). A1 for both gradients calculated correctly to the near integer, using \(\gt 0\) and \(\lt 0\) respectively or a correct sketch and maximum. (See appendix for gradient values, shown below.)
B1: For any correct form of this equation (may be unsimplified, may be implied by 1st M1) M1 : Making \(h\) the subject of their three or four term formula M1: Substituting expression for \(h\) into \(\pi r^2 h\) (independent mark) Must now be expression in \(r\) only. A1: cso
Alternative for (a)
\(A = 2\pi r^2 + 2\pi rh\), \(\tfrac{A}{2} \times r = \pi r^3 + \pi r^2 h\) is M1 Equate to \(400r\) B1 Then \(V = 400r - \pi r^3\) is M1 A1
M1: At least one power of \(r\) decreased by 1 A1: cao M1: Setting \(\dfrac{\mathrm{d}V}{\mathrm{d}r} = 0\) and finding a value for correct power of \(r\) for candidate A1 : This mark may be credited if the value of \(V\) is correct. Otherwise answers should round to 6.5 (allow \(\pm 6.5\) )or be exact answer M1: Substitute a positive value of \(r\) to give \(V\) A1: 1737 or 1737.25….. or exact answer
Mark scheme (c)
Scheme
Marks
\(\dfrac{\mathrm{d}^2V}{\mathrm{d}r^2} = -6\pi r\), Negative, \(\therefore\) maximum (Parts (b) and (c) should be considered together when marking)
M1 A1
(2)
[12]
Other methods for part (c):
Either: M: Find value of \(\dfrac{\mathrm{d}V}{\mathrm{d}r}\) on each side of “\(r = \sqrt{\dfrac{400}{3\pi}}\)” and consider sign.
A: Indicate sign change of positive to negative for \(\dfrac{\mathrm{d}V}{\mathrm{d}r}\), and conclude max.
Or: M: Find value of \(V\) on each side of “\(r = \sqrt{\dfrac{400}{3\pi}}\)” and compare with “1737”.
A: Indicate that both values are less than 1737 or 1737.25, and conclude max.
Notes
M1: needs complete method e.g.attempts differentiation (power reduced) of their first derivative and considers its sign A1(first method) should be \(-6\pi r\) (do not need to substitute \(r\) and can condone wrong \(r\) if found in (b)) Need to conclude maximum or indicate by a tick that it is maximum. Throughout allow confused notation such as d\(y\)/d\(x\) for d\(V\)/d\(r\)
Figure 4 shows an open-topped water tank, in the shape of a cuboid, which is made of sheet metal. The base of the tank is a rectangle \(x\) metres by \(y\) metres. The height of the tank is \(x\) metres.
The capacity of the tank is \(100\ \mathrm{m}^3\).
(a) Show that the area \(A\ \mathrm{m}^2\) of the sheet metal used to make the tank is given by\[A = \frac{300}{x} + 2x^2.\] (4)
(b) Use calculus to find the value of \(x\) for which \(A\) is stationary. (4)
(c) Prove that this value of \(x\) gives a minimum value of \(A\). (2)
(d) Calculate the minimum area of sheet metal needed to make the tank. (2)
For M1: Find \(\dfrac{\mathrm{d}^2A}{\mathrm{d}x^2}\) and explicitly consider its sign, state \(\gt 0\) or “positive”
A1: Candidate’s \(\dfrac{\mathrm{d}^2A}{\mathrm{d}x^2}\) must be correct for their \(\dfrac{\mathrm{d}A}{\mathrm{d}x}\), sign must be + ve and conclusion “so minimum”, (allow QED, \(\surd\)). (may be wrong \(x\), or even no value of \(x\) found)
Alternative: M1: Find value of \(\dfrac{\mathrm{d}A}{\mathrm{d}x}\) on either side of “\(x = \sqrt[3]{75}\)” and consider sign A1: Indicate sign change of negative to positive for \(\dfrac{\mathrm{d}A}{\mathrm{d}x}\), and conclude minimum. OR M1: Consider values of A on either side of “\(x = \sqrt[3]{75}\)” and compare with “107” A1: Both values greater than “\(x = 107\)” and conclude minimum.
Allow marks for (c) and (d) where seen; even if part labelling confused.
Mark scheme (d)
Scheme
Marks
Substituting found value of \(x\) into (a) (Or finding \(y\) for found \(x\) and substituting both in \(3xy + 2x^2\)) \(\left[y = \dfrac{100}{4.2172^2} = 5.6228\right]\)
1st M: Attempting an expression in terms of \(x\) and \(y\) for the total surface area (the expression should be dimensionally correct).
1st A: Correct expression (not necessarily simplified), equated to 600.
2nd M: Substituting their \(y\) into \(2x^2y\) to form an expression in terms of \(x\) only. (Or substituting \(y\) from \(2x^2y\) into their area equation).
Mark scheme (b)
Scheme
Marks
\(\dfrac{\mathrm{d}V}{\mathrm{d}x} = 200 - 4x^2\)
B1
Equate their \(\dfrac{\mathrm{d}V}{\mathrm{d}x}\) to 0 and solve for \(x^2\) or \(x\): \(\;x^2 = 50\) or \(x = \sqrt{50}\) (7.07…)
The 2nd M mark (for substituting their \(x\) value into the given expression for \(V\)) is dependent on the 1st M.
Final A: Allow also exact value \(\dfrac{400\sqrt{50}}{3}\) or \(\dfrac{2000\sqrt{2}}{3}\) or equiv. single term.
Mark scheme (c)
Scheme
Marks
\(\dfrac{\mathrm{d}^2V}{\mathrm{d}x^2} = -8x\) Negative, \(\therefore\) Maximum
M1, A1ft
(2)
11
Notes
Allow marks if the work for (c) is seen in (b) (or vice-versa).
M: Find second derivative and consider its sign.
A: Second derivative following through correctly from their \(\dfrac{\mathrm{d}V}{\mathrm{d}x}\), and correct reason/conclusion (it must be a maximum, not a minimum). An actual value of \(x\) does not have to be used… this mark can still be awarded if no \(x\) value has been found or if a wrong \(x\) value is used.
Alternative: M: Find value of \(\dfrac{\mathrm{d}V}{\mathrm{d}x}\) on each side of “\(x = \sqrt{50}\)” and consider sign. A: Indicate sign change of positive to negative for \(\dfrac{\mathrm{d}V}{\mathrm{d}x}\), and conclude max.
Alternative: M: Find value of \(V\) on each side of “\(x = \sqrt{50}\)” and compare with “943”. A: Indicate that both values are less than 943, and conclude max.
8. A diesel lorry is driven from Birmingham to Bury at a steady speed of \(v\) kilometres per hour. The total cost of the journey, £\(C\), is given by\[C = \frac{1400}{v} + \frac{2v}{7}.\]
(a) Find the value of \(v\) for which \(C\) is a minimum. (5)
(b) Find \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2}\) and hence verify that \(C\) is a minimum for this value of \(v\). (2)
(c) Calculate the minimum total cost of the journey. (2)
M1: Attempt to differentiate \(v^n \to v^{n-1}\). Must be seen and marked in part (a) not part (b). Must be differentiating a function of the form \(av^{-1} + bv\).
A1: o.e. (\(-1400v^{-2} + \dfrac{2}{7} + c\) is A0)
M1: Their \(\dfrac{\mathrm{d}C}{\mathrm{d}v} = 0\). Can be implied by their \(\dfrac{\mathrm{d}C}{\mathrm{d}v} = P + Q \ \to\ P = \pm Q\).
dM1: Dependent on both of the previous Ms. Attempt to rearrange their \(\dfrac{\mathrm{d}C}{\mathrm{d}v}\) into the form \(v^n = \text{number}\) or \(v^n - \text{number} = 0,\ n \neq 0\).
A1cso: \(v = 70\) cso but allow \(v = \pm 70\). \(v = 70\) km per h also acceptable.
Answer only is 0 out of 5. Method of completing the square: send to review.
8(a) Trial and improvement
\(\mathrm{f}(v) = \dfrac{1400}{v} + \dfrac{2v}{7}\) Attempts to evaluate \(\mathrm{f}(v)\) for 3 values \(a, b, c\) where (i) \(a \lt 70,\ b = 70\) and \(c \gt 70\) or (ii) \(a, b \lt 70\) and \(c \gt 70\) or (iii) \(a \lt 70\) and \(b, c \gt 70\).
M1
All 3 correct and states \(v = 70\) (exact)
A1
Then 2nd M0, 3rd M0, 2nd A0.
8(a) Graph
Correct shape (ignore anything drawn for \(v \lt 0\)).
M1: Attempt to differentiate their \(\dfrac{\mathrm{d}C}{\mathrm{d}v}\); \(v^n \to v^{n-1}\) (including \(v^0 \to 0\)).
A1ft: \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2}\) must be correct. Ft only from their value of \(v\) and provided their value of \(v\) is +ve. Must be some (minimal) indication that their value of \(v\) is being used. Statement: “When \(v =\) their value of \(v\), \(\dfrac{\mathrm{d}^2C}{\mathrm{d}v^2} \gt 0\)” is sufficient provided \(2800v^{-3} \gt 0\) for their value of \(v\). If substitution of their \(v\) seen: correct substitution of their \(v\) into \(2800v^{-3}\), but, provided evaluation is +ve, ignore incorrect evaluation. N.B. Parts in mark scheme in { } do not need to be seen.
\(v = 70,\ C = \dfrac{1400}{70} + \dfrac{2\times 70}{7}\)
M1
\(C = 40\)
A1
(2)
(9)
Notes
M1: Substitute their value of \(v\) that they think will give \(C_{\min}\) (independent of the method of obtaining this value of \(v\) and independent of which part of the question it comes from).
A1: 40 or £40 Must have part (a) completely correct (i.e. all 5 marks) to gain this A1.
Answer only gains M1A1 provided part (a) is completely correct..
Figure 3 shows the plan of a stage in the shape of a rectangle joined to a semicircle. The length of the rectangular part is \(2x\) metres and the width is \(y\) metres. The diameter of the semicircular part is \(2x\) metres. The perimeter of the stage is 80 m.
(a) Show that the area, \(A\) m2, of the stage is given by\[A = 80x - \left(2 + \frac{\pi}{2}\right)x^2.\] (4)
(b) Use calculus to find the value of \(x\) at which \(A\) has a stationary value. (4)
(c) Prove that the value of \(x\) you found in part (b) gives the maximum value of \(A\). (2)
(d) Calculate, to the nearest m2, the maximum area of the stage. (2)
Mark scheme (a)
Scheme
Marks
Perimeter \(\Rightarrow 2x + 2y + \pi x = 80\)
B1
Area \(\to A = 2xy + \dfrac{1}{2}\pi x^2\)
B1
\(y = \dfrac{80 - 2x - \pi x}{2}\) and sub in to \(A\)
10 A singer has a social media account with a number of followers. The singer releases a new song and the number of followers grows exponentially.
The number of followers, \(F\), may be modelled by the formula
\[F = a\mathrm{e}^{kt}\]
where \(t\) is the number of days since the song was released and \(a\) and \(k\) are constants.
Two days after the song is released the account has 2050 followers.
Five days after the song is released the account has 9200 followers.
On the graph below \(\ln F\) has been plotted against \(t\) for these two pieces of data.
A line has been drawn passing through these two data points.
(a)
(i) Show that \(\ln F = \ln a + kt\) [2 marks]
(ii) Using the graph, estimate the value of the constant \(a\) and the value of the constant \(k\) [4 marks]
(b)
(i) Show that \(\dfrac{\mathrm{d}F}{\mathrm{d}t} = kF\) [2 marks]
(ii) Using the model, estimate the rate at which the number of followers is increasing 5 days after the song is released. [2 marks]
(c) The singer claims that 30 days after the song is released, the account will have more than a billion followers.
Comment on the singer’s claim. [1 mark]
Mark scheme (a)
Scheme
Marks
AO
(i) Takes logarithms of both sides PI
M1
1.1a
Derives the required equation Must see either: \(\ln F = \ln a + \ln \mathrm{e}^{kt}\) Or \(\ln F = \ln a + kt\ln \mathrm{e}\)
R1
2.1
(2)
(ii) Equates \(\ln a\) to intercept value \(6.55 \leqslant \ln a \leqslant 6.65\) Or Uses one/two points on graph to form 1/2 equations in \(\ln a\) and \(k\)
M1
3.1b
Equates \(k\) to a gradient value Or Solves equation(s) or uses \(F\) to find a value of \(a\) and/or a value of \(k\)
M1
1.1a
Obtains a value for \(a\) AWFW 700 to 773
A1
1.1b
Obtains a value for \(k\) AWFW 0.45 to 0.55
A1
1.1b
(4)
Typical solution
(i)
\[F = a\mathrm{e}^{kt}\]\[\ln F = \ln a\mathrm{e}^{kt}\]\[\ln F = \ln a + \ln \mathrm{e}^{kt}\]\[\ln F = \ln a + kt\]
(ii)
\[\ln a = 6.6\]\[a = 735\]\[\text{gradient} = 0.5 = k\]
Mark scheme (b)
Scheme
Marks
AO
(i) Recalls rate of change of \(\mathrm{e}^{kt}\) is \(k\mathrm{e}^{kt}\) Condone done numerically using their \(a\) and \(k\)
M1
1.2
Obtains given result in algebraic terms only AG
R1
2.1
(2)
(ii) Substitutes their value for \(k\) provided \(0.45 \leqslant k \leqslant 0.55\) and \(F = 9200\) into the differential
M1
3.4
Obtains value for \(\dfrac{\mathrm{d}F}{\mathrm{d}t}\) AWFW 4140 to 5060
\[\frac{\mathrm{d}F}{\mathrm{d}t} = 0.5 \times 9200\]\[= 4600 \text{ per day}\]
Mark scheme (c)
Scheme
Marks
AO
Makes a suitable comment in context to explain why the number of followers will not be/unlikely to be more than 1 billion. E.g.
Realistically the number of followers is too large.
In reality, the number of followers will not continue to grow exponentially
Singer may do something which causes followers to unfollow or lose followers
Song may become less popular
Song may not be to that number of people’s taste
New songs may be released
No individual has a social media following of over 1 billion people
Model only based upon days 2 and 5 so too much extrapolation
People are fickle/lose interest
If any incorrect statement is included with a correct statement(s) then E0
E1
3.5a
(1)
(11 marks)
Typical solution
It is unlikely that the singer will have over one billion followers as that is too high a number. So, the exponential model will not to be valid after 30 days.
States that for a stationary (OE) point \(\dfrac{\mathrm{d}A}{\mathrm{d}x} = 0\) Must state \(\dfrac{\mathrm{d}A}{\mathrm{d}x} = 0\) not \(\dfrac{\mathrm{d}y}{\mathrm{d}x} = 0\) but allow use of \(\dfrac{\mathrm{d}y}{\mathrm{d}x}\) elsewhere
E1
2.4
Solves their linear equation = 0 to obtain \(x\) PI ACF
M1
1.1a
Obtains correct exact value of \(x\) ACF
A1
1.1b
Differentiates their \(\dfrac{\mathrm{d}A}{\mathrm{d}x}\) to obtain an expression independent of \(x\) Or Tests \(x\) values either side of \(12 + 2\sqrt{3}\) in \(\dfrac{\mathrm{d}A}{\mathrm{d}x}\)
M1
1.1a
Completes reasoned argument to deduce the maximum. Must state that \(x = 12 + 2\sqrt{3}\)
Forms inverse proportion equation for \(C\) and substitutes given value PI by sight of 25 with or without inequalities
M1
1.1a
Obtains correct value of constant of proportionality PI by sight of 25 with or without inequalities
A1
1.1b
Forms inequality linking \(P\) and their \(C\). Condone equality at this stage. Or Shows an attempt at trial and error to solve the inequality Condone equality at this stage. Or States \(n \gt 25\) \(n = 25\) or \(n \geqslant 25\) only
M1
1.1a
Obtains \(n \gt 25\) ignore any extra inequality containing 0 CAO
Identifies correctly the number of items that need to be sold to make a profit corresponding to their range of \(\boldsymbol{n}\) from part (b) Providing \(n \gt 0\) OE
E1F
3.5a
(1)
(6 marks)
Typical solution
The artist makes a profit if they sell more than 25 items
10 A bottle of water has a temperature of 6 °C when it is removed from a refrigerator.
It is placed in a room where the temperature is 20 °C
10 minutes later, the temperature of the water is 12 °C
The temperature of the water, \(T\) °C, at time \(t\) minutes after it is removed from the refrigerator, may be modelled by the equation\[T = 20 - a\mathrm{e}^{-kt}\]
(a) Find the value of \(a\). [1 mark]
(b) Calculate the value of \(k\), giving your answer to two significant figures. [3 marks]
(c) Using this model, estimate how long it takes the water to reach a temperature of 18 °C after it is taken out of the refrigerator. [3 marks]
(d) Explain why the model may not be appropriate to predict the temperature of the water three hours after it is taken out of the refrigerator. [1 mark]
Mark scheme (a)
Scheme
Marks
AO
Obtains 14
B1
3.3
(1)
Typical solution
\[a = 14\]
Mark scheme (b)
Scheme
Marks
AO
Substitutes 12 and 10 into given equation
M1
3.4
Forms a fully correct equation FT their value for \(a\)
A1F
1.1a
Obtains correct value of \(k\) AWRT
A1
1.1b
(3)
Typical solution
\[12 = 20 - 14\mathrm{e}^{-10k}\]\[k = 0.056\]
Mark scheme (c)
Scheme
Marks
AO
Substitutes their \(k\) and other values correctly into given model
B1
3.4
Solves their model equation to obtain a value for \(t\), where \(t \gt 10\)
M1
1.1a
Obtains correct value of \(t\) including units AWRT 35
Explains that the conditions may change. Eg. Someone may have drunk the water OE OR states that after 3 hours the water will be effectively at room temperature.
E1
3.5b
(1)
(8 marks)
Typical solution
It is not likely that the room temperature will stay at 20 °C over such a long period
‘To find a dog’s equivalent human age in years, multiply the natural logarithm of the dog’s age in years by 16 then add 31.’
(a) Calculate the equivalent age to the nearest human year of a dog aged 5 years. [1 mark]
(b) A dog’s equivalent age in human years is 40 years. Find the dog’s actual age to the nearest month. [3 marks]
(c) Explain why the behaviour of the natural logarithm for values close to zero means that the formula given on the website cannot be true for very young dogs. [2 marks]
Mark scheme (a)
Scheme
Marks
AO
Obtains 57 AWFW 56 to 57
B1
3.3
(1)
Typical solution
\[16\ln 5 + 31 = 57\text{ years}\]
Mark scheme (b)
Scheme
Marks
AO
Uses exponential as inverse of logarithm PI by correct value of ‘\(x\)’
Condone use of \(10^{\frac{9}{16}}\) for M1
M1
1.1a
Calculates the correct value of ‘\(x\)’, AWFW 1.75 to 1.76
Or FT ‘\(x\)’ = 3.65 from using \(10^{\frac{9}{16}}\), AWFW 3.65 to 3.66
A1F
3.4
Obtains 21 months or 1 year 9 months
Or FT Accept 3 years 8 months or 44 months
A1F
3.2a
(3)
Typical solution
\[\ln x = \frac{40 - 31}{16}\]\[x = \mathrm{e}^{\frac{9}{16}}\]\[x = 1.755\]
= 21 months
Mark scheme (c)
Scheme
Marks
AO
States what happens to a logarithm for values approaching zero or gives appropriate example
E1
3.5b
States the consequence for the dog’s equivalent human age as the dog’s age approaches zero
E1
3.5a
(2)
(6 marks)
Typical solution
As \(x\) approaches zero \(\ln(x)\) becomes negative
As the dog age approaches zero the equivalent human age can become negative
7 Scientists observed a colony of seabirds over a period of 10 years starting in 2010.
They concluded that the number of birds in the colony, its population \(P\), could be modelled by a formula of the form\[P = a(10^{bt})\]where \(t\) is the time in years after 2010, and \(a\) and \(b\) are constants.
(a) Explain what the value of \(a\) represents. [1 mark]
(b) Show that \(\log_{10} P = bt + \log_{10} a\) [2 marks]
(c) The table below contains some data collected by the scientists.
Year
2013
2015
\(t\)
3
\(P\)
10 200
12 800
\(\log_{10} P\)
4.0086
(i) Complete the table, giving the \(\log_{10} P\) value to 5 significant figures. [1 mark]
(ii) Use the data to calculate the value of \(a\) and the value of \(b\). [4 marks]
(iii) Use the model to estimate the population of the colony in 2024. [2 marks]
(d)
(i) State an assumption that must be made in using the model to estimate the population of the colony in 2024. [1 mark]
(ii) Hence comment, with a reason, on the reliability of your estimate made in part (c)(iii). [1 mark]
Mark scheme (a)
Scheme
Marks
AO
Explains that \(a\) represents the initial population. OE
E1
2.4
(1)
Typical solution
\(a\) is the population in 2010
Mark scheme (b)
Scheme
Marks
AO
Takes logarithms to base 10 of both sides
M1
1.1a
Completes derivation convincingly AG
R1
2.1
(2)
Typical solution
\[P = a(10^{bt})\]\[\log_{10} P = \log_{10}(a10^{bt})\]\[= \log_{10} a + \log_{10}(10^{bt})\]\[= \log_{10} a + bt\]
Mark scheme (c)
Scheme
Marks
AO
(i) Completes table correctly, figures seen in table or text or used in part (c)(ii)
B1
3.3
(1)
(ii) Uses data to set up a pair of simultaneous equations
M1
3.1a
Solves equations for either \(b\) or \(\log_{10} a\) correct
A1
1.1b
Converts \(\log_{10} a\) to obtain a value of \(a\) or uses their \(b\) and data to calculate \(a\)
M1
1.1a
Obtains both \(b\) and \(a\) correct. AWRT 0.049 and AWFW 7200 to 7300
A1
1.1b
(4)
(iii) Substitutes their values of \(a\) and \(b\) into model and \(t = 14\)
M1
3.4
Calculates correct value of population AWFW 35500 to 35600 FT provided >12800
Substitutes \(11 + a\) into equation to find \(y\).
M1
3.1b
Explains a limitation of the model eg that the model assumes that jet has no size or a size less than 3.75cm or Wall has no width or has some width or No air resistance
E1
3.5b
Compares correct value with 2.3 to infer that jet passes over wall / fails to pass over the wall. Inference must be consistent with stated assumption. Condone a valid comparison if no assumption given
10 On 18 March 2019 there were 12 hours of daylight in Inverness.
On 16 June 2019, 90 days later, there will be 18 hours of daylight in Inverness.
Jude decides to model the number of hours of daylight in Inverness, \(N\), by the formula\[N = A + B\sin t^\circ\]where \(t\) is the number of days after 18 March 2019.
(a)
(i) State the value that Jude should use for \(A\). [1 mark]
(ii) State the value that Jude should use for \(B\). [1 mark]
(iii) Using Jude’s model, calculate the number of hours of daylight in Inverness on 15 May 2019, 58 days after 18 March 2019. [1 mark]
(iv) Using Jude’s model, find how many days during 2019 will have at least 17.4 hours of daylight in Inverness. [4 marks]
(v) Explain why Jude’s model will become inaccurate for 2020 and future years. [1 mark]
(b) Anisa decides to model the number of hours of daylight in Inverness with the formula\[N = A + B\sin\left(\frac{360}{365}t\right)^\circ\]Explain why Anisa’s model is better than Jude’s model. [1 mark]
Mark scheme (a)
Scheme
Marks
AO
(i) States \(A = 12\)
B1
3.3
(1)
(ii) States \(B = 6\)
B1
3.3
(1)
(iii) Applies formula using their \(A\) and \(B\) 2 sf or better provided their answer >12 and <24
B1F
1.1b
(1)
(iv) Substitutes 17.4 into formula with their \(A\) and \(B\)
M1
1.1a
Evaluates first value of \(t\). AWFW 64 to 65
A1
1.1b
Evaluates second value of \(t\) as 180 – their first value ±1 Or Subtracts their first value from 90 and doubles
M1
3.4
Obtains final answer AWRT 50
A1
3.2a
(4)
(v) Explains 360 days is not the same as a year. Must mention 360
E1
3.5b
(1)
Typical solution
(i)
\[A = 12\]
(ii)
\[B = 6\]
(iii)
\[12 + 6\sin 58 = 17.1\]
(iv)
\[17.4 = 12 + 6\sin t\]\[\sin t = 0.9\]\[t = 64\]
second value of \(t\) is 116
So answer is 53 days
(v)
Jude’s model will repeat after 360 days but a year has 365 days.
Mark scheme (b)
Scheme
Marks
AO
Explains that Anisa’s model adjusts the repeating pattern to match the number of days in a year. Mark may be supported by response seen in part (a)(v)
E1
3.5c
(1)
(9 marks)
Typical solution
Anisa’s model will repeat after 365 days because of the fraction
10 As part of an experiment, Zena puts a bucket of hot water outside on a day when the outside temperature is 0°C.
She measures the temperature of the water after 10 minutes and after 20 minutes. Her results are shown below.
Time (minutes)
10
20
Temperature (degrees Celsius)
30
12
Zena models the relationship between \(\theta\), the temperature of the water in °C, and \(t\), the time in minutes, by\[\theta = A \times 10^{-kt}\]where \(A\) and \(k\) are constants.
(a) Using \(t = 0\), explain how the value of \(A\) relates to the experiment. [1 mark]
(b) Show that\[\log_{10}\theta = \log_{10} A - kt\] [1 mark]
(c) Using Zena’s results, calculate the values of \(A\) and \(k\). [4 marks]
(d) Zena states that the temperature of the water will be less than 1°C after 45 minutes.
Determine whether the model supports this statement. [3 marks]
(e) Explain why Zena’s model is unlikely to accurately give the value of \(\theta\) after 45 minutes. [1 mark]
Mark scheme (a)
Scheme
Marks
AO
Substitutes \(t = 0\) to obtain \(\theta = A\) Or States when \(t = 0\), \(10^{-kt} = 1\) and Infers correctly that \(A\) is the initial temperature of the water
R1
2.2b
(1)
Typical solution
\(t = 0\) gives \(\theta = A\)
\(A\) is the starting temperature of the water
Mark scheme (b)
Scheme
Marks
AO
Uses logarithms correctly to achieve given answer Must see clear evidence of use AG \(\log_{10} A \times \log_{10} 10^{-kt}\) scores B0
B1
1.1b
(1)
Typical solution
\[\log_{10}\theta = \log_{10} A + \log_{10} 10^{-kt}\]\[= \log_{10} A - kt\]
Mark scheme (c)
Scheme
Marks
AO
Substitutes correct \(t\) and \(\theta\) values to form at least one correct equation
M1
3.3
Substitutes correct \(t\) and \(\theta\) values to form two correct equations
A1
3.1b
Solves the equations to find exact \(k\) ACF or AWFW 0.039 to 0.04
\[\log_{10} 30 = \log_{10} A - 10k\]\[\log_{10} 12 = \log_{10} A - 20k\]\[k = \frac{1}{10}\log_{10} 2.5 = 0.0398\]\[A = 75\]
Mark scheme (d)
Scheme
Marks
AO
Substitutes ‘their’ calculated values of \(k\), \(A\) and \(t = 45\) into the given equation or Solves \(75 \times 10^{-0.039 \times t} = 1\)
M1
3.4
Obtains correct answer for \(\theta\) AWFW 1.18 to 1.32 Or Obtains \(t = 47.1\) AWFW 46.8 to 48.1
A1
1.1b
Compares AWFW 1.18 to 1.32 with 1 and states that the model does not support Zena’s statement or Compares AWFW 46.8 to 48.1 with 45 and states that the model does not support Zena’s statement
12 Trees in a forest may be affected by one of two types of fungal disease, but not by both.
The number of trees affected by disease A, \(n_{\mathrm{A}}\), can be modelled by the formula
\[n_{\mathrm{A}} = a\mathrm{e}^{0.1t}\]
where \(t\) is the time in years after 1 January 2017.
The number of trees affected by disease B, \(n_{\mathrm{B}}\), can be modelled by the formula
\[n_{\mathrm{B}} = b\mathrm{e}^{0.2t}\]
On 1 January 2017 a total of 290 trees were affected by a fungal disease.
On 1 January 2018 a total of 331 trees were affected by a fungal disease.
(a) Show that \(b = 90\), to the nearest integer, and find the value of \(a\). [3 marks]
(b) Estimate the total number of trees that will be affected by a fungal disease on 1 January 2020. [1 mark]
(c) Find the year in which the number of trees affected by disease B will first exceed the number affected by disease A. [3 marks]
(d) Comment on the long-term accuracy of the model. [1 mark]
Mark scheme (a)
Scheme
Marks
AO
Uses model to form one correct equation (PI by \(a = 200\)) (ACF) Accept \(1.105a + 1.221b = 331\)
M1
3.1b
Forms a second correct equation (ACF)
M1
1.1a
Obtains correct \(a\) AWRT 200 and \(b\) AWRT 90 (AG) Only award if both previous M1’s achieved. Do not award marks retrospectively for correct values of \(a\) and \(b\) used in part (b)
A1
1.1b
(3)
Typical solution
\[290 = a + b\]\[331 = a\mathrm{e}^{0.1} + b\mathrm{e}^{0.2}\]\[290\mathrm{e}^{0.1} = a\mathrm{e}^{0.1} + b\mathrm{e}^{0.1}\]\[b = \frac{(331 - 290e^{0.1})}{(e^{0.2} - e^{0.1})} = 90.3 = 90 \text{ to the nearest integer}\]
so \(a = 200\)
Mark scheme (b)
Scheme
Marks
AO
Substitutes \(t = 3\) and evaluates CAO
B1
3.4
(1)
Typical solution
\[200e^{0.3} + 90e^{0.6} = 434\]
Mark scheme (c)
Scheme
Marks
AO
Forms inequality (accept \(\lt\) or \(\gt\)) (condone use of equation) FT ‘their’ value of \(a\), but \(b\) must be 90
M1
1.1a
Uses logs or calculator to solve ‘their’ inequality (or equation) If using trial and error must see \(t = 7\) and \(t = 8\) tested
Gives one limitation of the model. Eg. Model must break down as both \(n_{\mathrm{A}}\) and \(n_{\mathrm{B}}\) will tend to infinity / model assumes nothing changes / no attempt to control the diseases / all the trees have died / finite number of trees / cure for the disease might be found / other factors such as drought could affect the model / etc.
E1
3.5b
(1)
(8 marks)
Typical solution
Eventually all of the trees will die so the model will no longer be accurate.
11 Rakti makes open-topped cylindrical planters out of thin sheets of galvanised steel.
She bends a rectangle of steel to make an open cylinder and welds the joint. She then welds this cylinder to the circumference of a circular base.
The planter must have a capacity of 8000 cm3
Welding is time consuming, so Rakti wants the total length of weld to be a minimum.
Calculate the radius, \(r\), and height, \(h\), of a planter which requires the minimum total length of weld.
Fully justify your answers, giving them to an appropriate degree of accuracy. [9 marks]
Mark scheme
Scheme
Marks
AO
Obtains correct weld length in terms of \(h\) and \(r\)
B1
1.1b
Obtains formula for \(h\) in terms of \(r\) or vice versa using volume \(= 8000\)
M1
3.1b
Substitutes to get weld length in terms of one variable, obtaining correct formula for \(w\)
A1
1.1b
States that for a stationary point the first derivative is zero. (OE)
E1
2.4
Differentiates correctly (FT provided formula includes negative powers) (accept numerical value of \(-\frac{16000}{\pi}\) used)
B1F
1.1b
Solves to find a value of \(r\) and a value of \(h\) (do not award if the final value of \(r\) or \(h\) is negative)
M1
1.1a
Obtains \(r = 9\) or 9.3 (AWRT) and \(h = 29\), 29.3 (AWRT) or 30
A1
1.1b
Differentiates ‘their’ first differential and substitutes in ‘their’ value of \(r\) or \(h\)
M1
1.1a
Sets out a well-constructed mathematical argument, using precise statements throughout to find the values of \(r\) (9 or 9.3) and \(h\) (29, 29.3 or 30) and justifies the minimum value. Can be awarded if E1 not obtained.
R1
2.1
(9 marks)
Typical solution
(using \(r\))
\[\text{Length of weld} = w = h + 2\pi r\]\[\text{Volume} = 8000 = \pi r^2 h\]\[\text{So } h = \frac{8000}{\pi r^2}\]\[w = \frac{8000}{\pi r^2} + 2\pi r\]
3 A Ferris wheel at a fairground rotates in a vertical plane. The height above the ground of a seat on the wheel is \(h\) metres at time \(t\) seconds after the seat is at its lowest point.
The height is given by the equation \(h = 15 - 14\cos(kt)^\circ\), where \(k\) is a positive constant.
(a)
(i) Write down the greatest height of a seat above the ground. [1]
(ii) Write down the least height of a seat above the ground. [1]
(b) Given that a seat first returns to its lowest point after 150 seconds, calculate the value of \(k\). [2]
(c) Determine for how long a seat is 20 metres or more above the ground during one complete revolution. Give your answer correct to the nearest tenth of a second. [4]
M1: Setting given expression equal to (a)(ii) and re-arranging to get \(\cos(150k) = \ldots\) or for stating \(150k = 360\) Must substitute/use \(t = 150\) for this method mark. May use \(t = 75\) with \(h = 29\) \(150k = 2\pi\), (i.e. using radians) M1
A1: The correct answer only implies the M mark so “\(k = 2.4\)” without working is M1A1.
\(103.7813\ldots - 46.2186\ldots\) or \(150 - (2 \times 46.2186)\) o.e.
M1
1.1
Therefore above 20 m for 57.6 (s)
A1
3.2a
[4]
Notes
M1*: Setting given expression equal to 20 to obtain an equation of the form \(\cos(kt) = k_1\) Could use inequalities Need \(-1 \leqslant k_1 \leqslant 1\)
M1dep*: Obtaining at least one value of \(t\) correctly from their equation above \(2.4t = 110.9248\ldots,\ 249.0751\ldots\)
M1: Subtracting their two positive values of \(t\) (both obtained correctly from their equation above) or \(150 - (2 \times \text{their } t)\) Dependent on previous two M marks
A1: Must be to 1 decimal place 57.562639… A0 if using radians.
6 During some research the size, \(P\), of a population of insects, at time \(t\) months after the start of the research, is modelled by the following formula.
\(P = 100\mathrm{e}^{t}\)
(a) Use this model to answer the following.
(i) Find the value of \(P\) when \(t = 4\). [1]
(ii) Find the value of \(t\) when the population is 9000. [2]
(b) It is suspected that a more appropriate model would be the following formula.
\(P = ka^{t}\) where \(k\) and \(a\) are constants.
(i) Show that, using this model, the graph of \(\log_{10} P\) against \(t\) would be a straight line. [2]
Some observations of \(t\) and \(P\) gave the following results.
\(t\)
1
2
3
4
5
\(P\)
100
500
1800
7000
19000
\(\log_{10} P\)
2.00
2.70
3.26
3.85
4.28
(ii) On the grid below, draw a line of best fit for the data points \((t, \log_{10} P)\) given in the table. [2]
(iii) Hence estimate the values of \(k\) and \(a\). [4]
Mark scheme (a)
Scheme
Marks
AO
(i) 5460 (3 sf)
B1
1.1
[1]
(ii) \(9000 = 100\mathrm{e}^{t}\) \(t = \ln 90\)
M1
3.1a
\(= 4.50\) (3 sf) Allow 4.5 ISW
A1
1.1
[2]
Notes
(a)(ii)
M1: May be implied by answer
A1: Ignore units. Decimal answer needed
Mark scheme (b)
Scheme
Marks
AO
(i) \(\log_{10} P = \log_{10}(ka^{t})\)
\(\log_{10} P = \log_{10} k + \log_{10}(a^{t})\)
M1
1.1
\(\log_{10} P = \log_{10} k + t\log_{10} a\)
A1
1.1
[2]
(ii) Points plotted correctly \(\pm 0.1\)
B1
1.1
Line of best fit drawn, between \((1, 2.0)\) and \((1, 2.4)\) and between \((5, 4.2)\) and \((5, 4.5)\)
B1f
1.1
[2]
(iii) Read off \(c\) and attempt \(10^{c}\). May be implied by value of \(k\)
M1
3.1a
\(k = 19.9\) to \(63.1\)
A1
2.1
Attempt gradient of their graph AND correct ft equation in \(a\). May be implied by value of \(a\)
M1
1.1
\(a = 3.16\) to \(5.01\) (3 sf)
A1
1.1
[4]
Notes
(b)(i)
First line: No marks yet
M1: At least two terms correct, may be implied by next line
A1: All correct, in this form
(b)(ii)
B1: NB. May be implied by correct line of best fit
B1f: ft reasonable line through their points
(b)(iii)
M1: ft their line. Probably \(c = 1.3\) to \(1.8\), \(k = 10^{1.3}\) to \(10^{1.8}\)
M1: ft their line. Probably \(m = 0.5\) to \(0.7\) AND \(\log_{10} a = 0.5\) to \(0.7\) OR \(a = 10^{0.5}\) to \(10^{0.7}\) scores
NB Use of two points and simultaneous equations: no marks unless the two points used are on their line of best fit.
If first method used for \(k\) or \(a\) and then one point substituted in equation to find the other letter, no marks for second letter unless point used is on line of best fit.
5 The fuel consumption of a car, \(C\) miles per gallon, varies with the speed, \(v\) miles per hour. Jamal models the fuel consumption of his car by the formula
\(C = \frac{12}{5}v - \frac{3}{125}v^2\), for \(0 \leqslant v \leqslant 80\).
(a) Suggest a reason why Jamal has included an upper limit in his model. [1]
(b) Determine the speed that gives the maximum fuel consumption. [4]
Amaya’s car does more miles per gallon than Jamal’s car. She proposes to model the fuel consumption of her car using a formula of the form
\(C = \frac{12}{5}v - \frac{3}{125}v^2 + k\), for \(0 \leqslant v \leqslant 80\), where \(k\) is a positive constant.
(c) Give a reason why this model is not suitable. [1]
(d) Suggest a different change to Jamal’s formula which would give a more suitable model. [2]
Mark scheme (a)
Scheme
Marks
Maximum speed of the car or model will show consumption eventually becoming negative or model may not apply for above 80 mph
B1
[1]
Notes
B1: or, eg, doesn't drive faster than 80, or speed limit
Condone eg “Maximum number of miles car can drive”
\(\dfrac{\mathrm{d}^2}{\mathrm{d}v^2}\left(\frac{12}{5}v - \frac{3}{125}v^2\right) = -\frac{6}{125}\) when \(v = 50\) or any correct method showing that SP is a maximum
2 The number of people, \(n\), living in a small town is changing over time. In an attempt to predict the future growth of the town, a researcher uses the following model for \(n\) in terms of \(t\), where \(t\) is the time in years from the start of the research.
\(n = 12\,500 + \dfrac{5000}{t}\), for \(t \geqslant 1\)
Find the rate of change of \(n\) when \(t = 5\). [4]
Mark scheme
Scheme
Marks
\(\dfrac{\mathrm{d}n}{\mathrm{d}t}\)
M1
\(= -5000t^{-2}\)
A1
At \(t = 5\), \(\dfrac{\mathrm{d}n}{\mathrm{d}t} = \dfrac{-5000}{25}\) ISW
M1
(Rate of change of \(n\) is) \(-200\)
A1
[4]
Notes
M1: Attempt differentiate
M1: Substitute \(t = 5\) into their \(\dfrac{\mathrm{d}n}{\mathrm{d}t}\) which must include \(t^{-2}\)
The diagram shows a model for the roof of a toy building. The roof is in the form of a solid triangular prism \(ABCDEF\). The base \(ACFD\) of the roof is a horizontal rectangle, and the cross-section \(ABC\) of the roof is an isosceles triangle with \(AB = BC\).
The lengths of \(AC\) and \(CF\) are \(2x\) cm and \(y\) cm respectively, and the height of \(BE\) above the base of the roof is \(x\) cm.
The total surface area of the five faces of the roof is \(600\ \text{cm}^2\) and the volume of the roof is \(V\ \text{cm}^3\).
(a) Show that \(V = kx(300 - x^2)\), where \(k = \sqrt{a} + b\) and \(a\) and \(b\) are integers to be determined. [6]
(b) Use differentiation to determine the value of \(x\) for which the volume of the roof is a maximum. [4]
(c) Find the maximum volume of the roof. Give your answer in \(\text{cm}^3\), correct to the nearest integer. [1]
(d) Explain why, for this roof, \(x\) must be less than a certain value, which you should state. [2]
6 A pan of water is heated until it reaches \(100\,{}^\circ\text{C}\). Once the water reaches \(100\,{}^\circ\text{C}\), the heat is switched off and the temperature \(T\,{}^\circ\text{C}\) of the water decreases. The temperature of the water is modelled by the equation
\[T = 25 + a\mathrm{e}^{-kt},\]
where \(t\) denotes the time, in minutes, after the heat is switched off and \(a\) and \(k\) are positive constants.
(i) Write down the value of \(a\). [1]
(ii) Explain what the value of 25 represents in the equation \(T = 25 + a\mathrm{e}^{-kt}\). [1]
When the heat is switched off, the initial rate of decrease of the temperature of the water is \(15\,{}^\circ\text{C}\) per minute.
(iii) Calculate the value of \(k\). [3]
(iv) Find the time taken for the temperature of the water to drop from \(100\,{}^\circ\text{C}\) to \(45\,{}^\circ\text{C}\). [3]
(v) A second pan of water is heated, but the heat is turned off when the water is at a temperature of less than \(100\,{}^\circ\text{C}\). Suggest how the equation for the temperature as the water cools would be modified by this. [1]
Mark scheme (i)
Scheme
Marks
AO
\((a =)\ 75\)
B1
3.3
[1]
Mark scheme (ii)
Scheme
Marks
AO
25 is the value that \(T\) approaches after a long time So therefore it is the ambient temperature
B1
2.2a
[1]
Notes
B1: oe e.g. room temperature, minimum, lowest, etc. Not e.g. initial, etc.
Mark scheme (iii)
Scheme
Marks
AO
\(-ak\mathrm{e}^{-kt}\)
B1
3.1a
\(-ak = -15\)
M1
3.4
\(k = \dfrac{1}{5}\)
A1ft
1.1
[3]
Notes
B1: Correct rate of change of \(T\)
M1: Substitute \(t = 0\) into their rate of change and equate with \(+/-15\)
12 A student dissolves 0.5 kg of salt in a bucket of water. Water leaks out of a hole in the bucket so the student lets fresh water flow in so that the bucket stays full.
They assume that the salty water remaining in the bucket mixes with the fresh water that flows in, so the concentration of salt is uniform throughout the bucket.
They model the mass \(M\) kg of salt remaining after \(t\) minutes by \(M = ak^t\) where \(a\) and \(k\) are constants.
(a) Show that the model for \(M\) can be rewritten in the form \(\log_{10} M = t\log_{10} k + \log_{10} a\). [1]
The student measures the concentration of salt in the bucket at certain times to estimate the mass of the salt remaining. The results are shown in the table below.
\(t\) minutes
8
13
21
35
50
\(M\) kg
0.4
0.3
0.2
0.1
0.05
The student uses this data and plots \(y = \log_{10} M\) against \(x = t\) using graph drawing software. The software gives \(y = -0.0214x - 0.2403\) for the equation of the line of best fit.
(b)
(i) Find the values of \(a\) and \(k\) that follow from the equation of the line. [3]
(ii) Interpret the value of \(k\) in context. [1]
(c) It is known that when \(t = 0\) the mass of salt in the bucket is 0.5 kg.
Comment on the accuracy when the model is used to estimate the initial mass of the salt. [2]
(d) Use the model to predict the value of \(t\) at which \(M = 0.01\) kg. [2]
(e) Rewrite the model for \(M\) in the form \(M = a\mathrm{e}^{-ht}\) where \(h\) is a constant to be determined. [2]
(f) Find the rate at which the mass of salt is decreasing when \(t = 10\). [2]
Mark scheme (a)
Scheme
Marks
AO
\(\log M = \log(ak^t)\)
\(\log M = \log k^t + \log a\)
\(\log M = t\log k + \log a\)
B1
2.1
[1]
Notes
\(\log M = \log k^t + \log a\): this line of working must be seen as well as the given result
B1:AG
Mark scheme (b)
Scheme
Marks
AO
(i) Intercept \(\log a = -0.2403\)
M1
3.1a
\(a = 10^{-0.2403} = 0.575\)
A1
3.3
Gradient \(\log k = -0.0214\) \(k = 10^{-0.0214} = 0.9519\)
A1
3.3
[3]
(ii) This means that every minute, the mass of salt is reduced to 95% of its mass at the start of the minute
B1
3.3
[1]
Notes
(i) M1: Equates \(\log a\) to the intercept of the given line or equates \(\log k\) to the gradient of the given line
(i) A1: Accept awrt 0.57 or 0.58 Accept one answer in index form
(i) A1: Accept awrt 0.95. Second value must be evaluated
(ii) B1: Also accept that the mass is reduced by 4.8% or 5% per minute FT their value Accept without a value for “the proportion of the mass of salt preserved each minute” oe
Mark scheme (c)
Scheme
Marks
AO
When \(t = 0,\ M\,[= a] = 0.575\)
M1
3.4
Which is quite close to the given value 0.5 kg
A1
3.5a
[2]
Notes
M1: Uses \(t = 0\) and their positive value of \(a\). Also allow for \(\log 0.5 = -0.3010\)
A1: Compares their \(M\) with 0.5 kg or their \(\log 0.5\) with \(-0.2403\) (must be seen) Small percentage error so reasonable model. Allow for not very good fit
Mark scheme (d)
Scheme
Marks
AO
\(\log 0.01 = -0.0214t - 0.2403\)
M1
3.4
\(t = 82.2\)
A1
3.4
[2]
Notes
M1: Uses \(\log 0.01\) in the given equation soi
A1: Allow value between \(82 \leqslant t \leqslant 83\)
Alternative method
Scheme
Marks
AO
When \(0.01 = ak^t\)
M1
\(t = 82.2\)
A1
M1: Uses their values of \(a\) and \(k\) to form an equation for \(t\) and attempt to solve. May be implied by a value for \(t\) seen
A1: To allow for values of \(a\) and \(k\) rounded to 2 sf, allow value \(78 \leqslant t \leqslant 83\)
Mark scheme (e)
Scheme
Marks
AO
\(M = a\mathrm{e}^{-ht} = ak^t\) So \(\mathrm{e}^{-h} = k\)
M1
3.1a
\(h = -\ln k = 0.0493\) \(M = 0.575\mathrm{e}^{-0.0493t}\)
A1FT
1.1
[2]
Notes
M1: Equates expressions for \(M\) soi FT their \(k\) and \(a\)
A1FT: FT their \(a\) only. Allow \(0.049 \lt h \lt 0.052\) Allow \(M = 0.575\mathrm{e}^{t\ln 0.952}\) (corrected from the printed mark scheme: it prints \(M = 0.575\,e^{-\ln 0.952t}\), which has the wrong sign, since \(h = -\ln 0.952\))
Alternative method: uses given value for initial mass
Scheme
Marks
AO
Uses given value for initial mass \(M = 0.01 = 0.5\mathrm{e}^{-ht} = 0.5\mathrm{e}^{-82h}\)
M1
\(h = 0.0477\) so \(M = 0.5\mathrm{e}^{-0.0477t}\)
A1
M1: Allow the use of one of the data points from the table for M1 only
A1: Allow \(0.0471 \lt h \lt 0.0502\)
Alternative method: uses their \(a\) as initial mass
Scheme
Marks
AO
Uses their \(a\) as initial mass \(M = 0.575\mathrm{e}^{-ht}\) \(0.01 = 0.575\mathrm{e}^{-82h}\)
M1
\(h = 0.0494\) so \(M = 0.575\mathrm{e}^{-0.0494t}\)
A1
M1: Allow the use of one of the data points from the table for M1 only Allow their value of \(a\)
A1: Allow \(0.0488 \lt h \lt 0.0519\)
Mark scheme (f)
Scheme
Marks
AO
Rate of decrease is \(ha\mathrm{e}^{-ht}\)
M1
1.2
At \(t = 10\) rate of decrease is \(0.0493 \times 0.575\mathrm{e}^{-0.0493 \times 10} = 0.0173\ldots\) [kg per minute]
A1
3.1a
[2]
Notes
M1: Soi Allow sign error. FT their \(h\) (Q. asks for rate of decrease)
11 A student records the time a pendulum takes to swing for different lengths of pendulum.
The student decides to plot a graph of \(\log_{10} T\) against \(\log_{10} l\) where \(T\) is the time in seconds that the pendulum takes to return to its start position and \(l\) is the length in metres of the pendulum. They use a model for \(\log_{10} T\) in terms of \(\log_{10} l\) of the form \(\log_{10} T = \log_{10} k + n\log_{10} l\).
The student records the following data points.
\(\log_{10} l\)
−0.097
0.146
\(\log_{10} T\)
0.254
0.376
(a) Determine the values of \(k\) and \(n\) that best model the data. Give your values correct to 2 significant figures. [4]
(b) Using these values of \(k\) and \(n\), write the student’s model as an equation expressing \(T\) in terms of \(l\). [2]
15 A family is planning a holiday in Europe. They need to buy some euros before they go. The exchange rate, \(y\), is the number of euros they can buy per pound. They believe that the exchange rate may be modelled by the formula
\(y = at^2 + bt + c\),
where \(t\) is the time in days from when they first check the exchange rate.
Initially, when \(t = 0\), the exchange rate is 1.14.
(a) Write down the value of \(c\). [1]
When \(t = 2\), \(y = 1.20\) and when \(t = 4\), \(y = 1.25\).
(b) Calculate the values of \(a\) and \(b\). [2]
The family will only buy their euros when their model predicts an exchange rate of at least 1.29.
(c) Determine the range of values of \(t\) for which, according to their model, they will buy their euros. [3]
(d) Explain why the family’s model is not viable in the long run. [1]
A1: Fractional equivalents are \(a = -\frac{1}{800}\) and \(b = \frac{13}{400}\). Equivalents in standard form is acceptable
Mark scheme (c)
Scheme
Marks
AO
\(1.29 = 1.14 + 0.0325t - 0.00125t^2\)
M1
3.1b
\(t = 6\) and 20
A1
3.4
\(6 \leqslant t \leqslant 20\)
A1
3.5a
[3]
Notes
M1: FT their \(a, b, c\) (Can be \(\gt\) etc)
A1: (\(6 \leqslant t \leqslant 20\)) Set notation such as \(t \in [6, 20]\) is fine but must not be soft brackets. \(t \geqslant 6\) and \(t \leqslant 20\) or \(t \geqslant 6 \cap t \leqslant 20\) but NOT \(t \geqslant 6,\ t \leqslant 20\)
Mark scheme (d)
Scheme
Marks
AO
It will eventually predict a negative exchange rateoe (will fall below zero etc)
B1
3.5a
[1]
Notes
‘Exchange rate tends to zero’ is B0
Must mention the variable ‘exchange rate’. Underlined words needed
10 Layla invests money in the bank and receives compound interest. The amount £\(L\) that she has after \(t\) years is given by the equation \(L = 2800 \times 1.023^t\).
(a)
(i) State the amount she invests. [1]
(ii) State the annual rate of interest. [1]
Amit invests £3000 and receives 2% compound interest per year. The amount £\(A\) that he has after \(t\) years is given by the equation \(A = ab^t\).
(b) Determine the values of the constants \(a\) and \(b\). [2]
(c) Layla and Amit invest their money in the bank at the same time.
Determine the value of \(t\) for which Layla and Amit have equal amounts in the bank. Give your answer correct to 1 decimal place. [3]
Mark scheme (a)
Scheme
Marks
AO
(i) When \(t = 0,\ L = 2800\) She invests £2800
B1
3.1b
[1]
(ii) Each year the amount is multiplied by 1.023 which is 2.3% annual interest
B1
3.1b
[1]
Notes
(i) B1: cao
(ii) B1: cao
Mark scheme (b)
Scheme
Marks
AO
\(A = 3000 \times 1.02^t\) So \(a = 3000\)
B1
1.1b
And \(b = 1.02\)
B1
1.1b
[2]
Notes
Allow for \(a\) and \(b\) given explicitly or embedded in an exponential expression
M1: Equating and attempt to collect terms using their values of \(a\) and \(b\) leading to an equation in which \(t\) appears only once
M1: Uses logarithms leading to a value for \(t\); allow \(\log_{1.003} 1.07\) or \(\dfrac{\log 1.07}{\log 1.003}\) or better for the method mark
A1: Cao must be 1 d.p. Note this is obtained from exact values or using 1.00294 and 1.0714 or better. Allow full credit for trial and improvement that gives 23.5 and £4778 to the nearest pound
2 The height of the first part of a rollercoaster track is \(h\) m at a horizontal distance of \(x\) m from the start. A student models this using the equation \(h = 17 + 15\cos 6x\), for \(0 \leqslant x \leqslant 40\), using the values of \(h\) given when their calculator is set to work in degrees.
(a) Find the height that the student’s model predicts when the horizontal distance from the start is 40 m. [1]
(b) The student argues that the model predicts that the rollercoaster track will achieve a maximum height of 32 m more than once because the cosine function is periodic.
Comment on the validity of the student’s argument. [2]
but the model is only valid for \(0 \leqslant x \leqslant 40\) So Tom’s argument is invalid.
E1
2.3
[2]
Notes
M1: Attempt to use the period of the \(\cos 6x\) function. Must include a reference to either 60 or 240 or a sketch illustrating the \(x\)-direction stretch. Allow if wrong conclusion reached. Do not allow for an argument based on mechanics principles alone
8 A team of volunteers donates cakes for sale at a charity stall. The number of cakes that can be sold depends on the price. A model for this is \(y = 190 - 70x\), where \(y\) cakes can be sold when the price of a cake is £\(x\).
(a) Find how many cakes could be given away for free according to this model. [1]
The number of volunteers who are willing to donate cakes goes up as the price goes up. If the cakes sell for £1.20 they will donate 50 cakes, but if they sell for £2.40 they will donate 140 cakes. They use the linear model \(y = mx + c\) to relate the number of cakes donated, \(y\), to the price of a cake, £\(x\).
(b) Find the values of the constants \(m\) and \(c\) for which this linear model fits the two data points. [2]
(c) Explain why the model is not suitable for very low prices. [1]
(d) The team would like to sell all the cakes that they donate.
Find the set of possible prices that the cakes could have to achieve this. [3]
M1: Attempt to find one of the bounds for \(x\) using their \(y = 75x - 40\)
A1: (upper bound) Accept \(x < 1.586\) or \(x < 1.59\) or \(x < 1.58\) or \(x \leqslant 1.56\). Allow use of \(<\) or \(\leqslant\). Allow for a separate inequality or as part of a combined inequality with lower bound
Note the prices £1.58 and £1.57 do not lead to integer values for the number of cakes, so the fully correct answer is \(x \leqslant 1.56\)
A1: (lower bound) Accept \(0.533 < x\) or \(0.53 < x\) or \(0.54 < x\) or \(0.56 \leqslant x\). Allow use of \(<\) or \(\leqslant\). Allow for a separate inequality or as part of a combined inequality with upper bound
Note the prices £0.54 and £0.55 do not lead to integer values for the number of cakes, so the fully correct answer is \(0.56 \leqslant x\)
11 On the day that a new consumer product went on sale (day zero), a call centre received 1 call about it. On the 2nd day after day zero the call centre received 3 calls, and on the 10th day after day zero there were 200 calls.
Two models were proposed to model \(N\), the number of calls received \(t\) days after day zero.
Model 1 is a linear model \(N = mt + c\).
(a) Determine the values of \(m\) and \(c\) which best model the data for 2 days and 10 days after day zero. [3]
(b) State the rate of increase in calls according to model 1. [1]
(c) Explain why this model is not suitable when \(t = 1\). [1]
Model 2 is an exponential model \(N = \mathrm{e}^{0.53t}\).
(d) Verify that this is a good model for the number of calls when \(t = 2\) and \(t = 10\). [2]
(e) Determine the rate of increase in calls when \(t = 10\) according to model 2. [3]
Mark scheme (a)
Scheme
Marks
AO
Line joining (2, 3) to (10, 200) has gradient \(\dfrac{200 - 3}{10 - 2} = 24.625\)
M1
3.3
Equation of the line is \(N = 24.625t - 46.25\) \(m = \dfrac{197}{8} = 24.625,\ c = -\dfrac{185}{4} = -46.25\)
A1 A1
1.1 1.1
[3]
Notes
M1: Attempt to find the gradient of the line
A1 A1: Each value correct. Accept rounded to 2 or more s.f.
Values may be implied by correct equation
Alternative solution 1
Scheme
Marks
AO
Regression line (BC) for data set (2, 3), (10, 200)
M1
Regression line is \(N = 24.625t - 46.25\) \(m = 24.625,\ c = -46.25\)
A1 A1
M1: Using the calculator to find the regression line (may be implied)
A1 A1: Each value correct. Accept rounded to 2 or more s.f.
Values may be implied by correct equation
Alternative solution 2
Scheme
Marks
AO
Simultaneous equations Using (2, 3) \(2m + c = 3\) and using (10, 200) \(10m + c = 200\)
M1
\(m = \dfrac{197}{8} = 24.625,\ c = -\dfrac{185}{4} = -46.25\)
A1 A1
M1: Attempt to find and solve simultaneous equations (BC)
A1 A1: Each value correct. Accept rounded to 2 or more s.f.
Mark scheme (b)
Scheme
Marks
AO
The number of calls increases by 24.625 per day
B1
3.4
[1]
Notes
B1: FT their \(m\). Condone missing units
Mark scheme (c)
Scheme
Marks
AO
When \(t = 1,\ N = -21.625\) and \(N\) cannot be negative
B1
3.5b
[1]
Notes
B1: Argument from a correct value for \(N\) FT their equation
Mark scheme (d)
Scheme
Marks
AO
When \(t = 2,\ N = \mathrm{e}^{0.53 \times 2} = 2.886 \approx 3\) When \(t = 10,\ N = \mathrm{e}^{0.53 \times 10} = 200.33 \approx 200\)
M1
1.1a
So this is a good model for these two points
E1
3.4
[2]
Notes
M1: Substitution of both values into the model, soi
E1: Conclusion from correct values
Mark scheme (e)
Scheme
Marks
AO
rate of increase \(\dfrac{\mathrm{d}N}{\mathrm{d}t} = 0.53\mathrm{e}^{0.53t}\)
M1
1.1a
When \(t = 10,\ \dfrac{\mathrm{d}N}{\mathrm{d}t} = 0.53\mathrm{e}^{0.53 \times 10}\)
M1
1.1a
106 new calls per day
B1
3.4
[3]
Notes
M1: Using gradient of \(\mathrm{e}^{kx} = k\mathrm{e}^{kx}\)
M1: Substituting \(t = 10\) into their expression
B1: cao Allow for gradient found BC or numerical method
11 A car is travelling along a stretch of road at a steady speed of 11 \(\text{m s}^{-1}\).
The driver accelerates, and \(t\) seconds after starting to accelerate the speed of the car, \(V\), is modelled by the formula
\(V = A + B\left(1 - \mathrm{e}^{-0.17t}\right)\).
When \(t = 3\), \(V = 13.8\).
(a) Find the values of \(A\) and \(B\), giving your answers correct to 2 significant figures. [3]
When \(t = 4\), \(V = 14.5\) and when \(t = 5\), \(V = 14.9\).
(b) Determine whether the model is a good fit for these data. [2]
(c) Determine the acceleration of the car according to the model when \(t = 5\), giving your answer correct to 3 decimal places. [2]
The car continues to accelerate until it reaches its maximum speed.
The speed limit on this road is 60 \(\text{km h}^{-1}\). All drivers who exceed this speed limit are recorded by a speed camera and automatically fined £100.
(d) Determine whether, according to the model, the driver of this car is fined £100. [3]
Mark scheme (a)
Scheme
Marks
AO
\(A = 11\)
B1
1.1
Substitution of \(t = 3\) and \(V = 13.8\)
M1
3.3
\(B = 7.0\)
A1
1.1
[3]
Notes
B1: from \(t = 0\) and \(V = 11\)
M1: \(13.8 = A + B\left(1 - \mathrm{e}^{-0.17 \times 3}\right)\)
Implied by 7.0086
A1: Allow 7, 7.01, 7.009, etc
Mark scheme (b)
Scheme
Marks
AO
\(t = 4\) and \(V = 14.453681053\ldots\) to 1 or more dp good fit
B1
3.4
\(t = 5\) and \(V = 15.008095476\ldots\) to 1 or more dp good fit
B1
1.1
[2]
Notes
allow SC1 for two correct values with no comment or incorrect comment(s)
If B0B0, allow sc M1 for subst with their values.
Allow full marks if more accurate value of \(B\) used – 14.458 and 15.013
11 David puts a block of ice into a cool-box. He wishes to model the mass \(m\) kg of the remaining block of ice at time \(t\) hours later. He finds that when \(t = 5,\ m = 2.1\), and when \(t = 50,\ m = 0.21\).
(a) David at first guesses that the mass may be inversely proportional to time. Show that this model fits his measurements. [3]
(b) Explain why this model
(i) is not suitable for small values of \(t\), [1]
(ii) cannot be used to find the time for the block to melt completely. [1]
David instead proposes a linear model \(m = at + b\), where \(a\) and \(b\) are constants.
(c) Find the values of the constants for which the model fits the mass of the block when \(t = 5\) and \(t = 50\). [3]
(d) Interpret these values of \(a\) and \(b\). [2]
(e) Find the time according to this model for the block of ice to melt completely. [1]
Mark scheme (a)
Scheme
Marks
AO
\(m = \dfrac{k}{t}\), so \(t = 5,\ m = 2.1 \Rightarrow k = 10.5\)
M1
2.1
When \(t = 50,\ m = \dfrac{10.5}{50} = 0.21\), oe
M1
2.1
EITHER The model fits the measurements because the prediction agrees with given value OR The model fits the measurements because the same value of \(k\) is obtained in each case
A1
2.2a
[3]
Notes
M1: Using algebraic expression to represent proportionality and one pair of values in attempt to find \(k\); oe with \(t = 50,\ m = 0.21\)
M1: Uses the model to predict the value of \(m\) for the other value of \(t\), or uses the other pair of values to check the value of \(k\)
A1: Makes suitable statement about consistency of results e.g. \(\therefore\ m = \dfrac{10.5}{t}\)
Alternative argument
Scheme
Marks
AO
When the value of \(t\) is multiplied by 10, the value of \(m\) is divided by 10
M2
So [consistent with the model that] mass is inversely proportional to time.
A1
M2: Argument in words need not reference the constant of proportionality
A1: Must make a clear conclusion about inverse proportionality
Mark scheme (b)
Scheme
Marks
AO
(i) When \(t\) is small, \(m = \dfrac{10.5}{t}\) is large, so the mass will not be modelled correctly.
B1
3.5a
(ii) Melts completely when \(m = 0\), but \(t = \dfrac{10.5}{0}\) is not defined so the model cannot be used
B1
3.5a
[2]
Notes
B1 (i): Any suitable comment that identifies a problem at \(t = 0\) or as \(t \to 0\)
B1 (ii): Any suitable comment explaining that the model will not give a time for \(m = 0\). Allow for “the model does not give a time for which \(m = 0\)” oe
9 In 2012 Adam bought a second hand car for £8500. Each year Adam has his car valued. He believes that there is a non-linear relationship between \(t\), the time in years since he bought the car, and \(V\), the value of the car in pounds. Fig. 9.1 shows successive values of \(V\) and \(\log_{10} V\).
\(t\)
0
1
2
3
4
\(V\)
8500
6970
5720
4690
3840
\(\log_{10} V\)
3.93
3.84
3.76
3.67
3.58
Fig. 9.1
Adam uses a spreadsheet to plot the points \((t, \log_{10} V)\) shown in Fig. 9.1, and then generates a line of best fit for these points. The line passes through the points (0, 3.93) and (4, 3.58). A copy of his graph is shown in Fig. 9.2.
Fig. 9.2
(a) Find an expression for \(\log_{10} V\) in terms of \(t\). [3]
(b) Find a model for \(V\) in the form \(V = A \times b^t\), where \(A\) and \(b\) are constants to be determined. Give the values of \(A\) and \(b\) correct to 2 significant figures. [3]
In 2017 Adam’s car was valued at £3150.
(c) Determine whether the model is a good fit for this data. [1]
A company called Webuyoldcars pays £500 for any second hand car. Adam decides that he will sell his car to this company when the annual valuation of his car is less than £500.
(d) According to the model, after how many years will Adam sell his car to Webuyoldcars? [3]
Mark scheme (a)
Scheme
Marks
AO
\(m = \dfrac{3.58 - 3.93}{4 - 0}\)
M1
1.1
\(\log_{10} V = -0.0875t + 3.93\)
M1 A1
3.3 1.1
[3]
Notes
M1: (\(\pm\)) 0.0875 oe
M1: Allow any value for \(-0.0875\)
A1: condone omission of base. Condone ln
Mark scheme (b)
Scheme
Marks
AO
\(V = 10^{-0.0875t + 3.93}\)
M1
3.1b
\(A = 10^{3.93} = 8500\)
A1
3.3
\(b = 10^{-0.0875} = 0.82\)
A1
1.1
[3]
Notes
M1: Or \(\log V = \log A + \log b^t\)
A1: 8511.38
A1: Accept \(V = 8500 \times 0.82^t\). 0.81752; sc B1 if both answers not to 2 sf. Allow 8500 taken from table (M1A1)
Mark scheme (c)
Scheme
Marks
AO
3151.29 (\(\approx 3150\)) so the model is a (very) good fit
E1
3.4
[1]
Notes
E1: Must see value from model OR find value of \(t\) (approx. 4.98) when model gives 3150
Eg 3107.93 from more accurate values.
Mark scheme (d)
Scheme
Marks
AO
\(8500 \times 0.82^t = 500\) soi
M1
3.1b
take logs of both sides
M1
1.1
(\(t = 14.27\) so) after 15 years
A1
3.5a
[3]
Notes
Ft from (b) for M1M1
M1: eg \(\log 8500 + \log 0.82^t = \log 500\); or \(\log 0.82^t = \log\left(\frac{500}{8500}\right)\); can be implied by 15 or 14.(…)
12 In an experiment 500 fruit flies were released into a controlled environment. After 10 days there were 650 fruit flies present.
Munirah believes that \(N\), the number of fruit flies present at time \(t\) days after the fruit flies are released, will increase at the rate of 4.4% per day. She proposes that the situation is modelled by the formula \(N = Ak^t\).
(i) Write down the values of \(A\) and \(k\). [2]
(ii) Determine whether the model is consistent with the value of \(N\) at \(t = 10\). [2]
(iii) What does the model suggest about the number of fruit flies in the long run? [1]
Subsequently it is found that for large values of \(t\) the number of fruit flies in the controlled environment oscillates about 750. It is also found that as \(t\) increases the oscillations decrease in magnitude.
Munirah proposes a second model in the light of this new information.
\[N = 750 - 250 \times \mathrm{e}^{-0.092t}.\]
(iv) Identify three ways in which this second model is consistent with the known data. [3]
(v)
(A) Identify one feature which is not accounted for by the second model. [1]
(B) Give an example of a mathematical function which needs to be incorporated in the model to account for this feature. [1]
Mark scheme (i)
Scheme
Marks
AO
\(A = 500\)
B1
3.3
\(k = 1.044\)
B1
1.1
[2]
Mark scheme (ii)
Scheme
Marks
AO
\(500 \times 1.044^{10}\)
M1
3.4
\(= 769.1\) which is not close to 650 so not consistent
A1
1.1
[2]
Notes
M1: Ft
A1: www
May use 650 and show \(k\) or \(A\) different
Mark scheme (iii)
Scheme
Marks
AO
exponential growth oe
B1
3.5a
[1]
Notes
OR increase for ever, oe
Mark scheme (iv)
Scheme
Marks
AO
\(t = 0,\ N = 500\)
B1
1.1
\(t = 10,\ N = 650.37 \approx 650\)
B1
1.1
model predicts number of fruit flies tends to 750 in the long run
B1
3.5a
[3]
Notes
B1: Oe ‘\(N\) will not go beyond 750’
Allow shown using large value of \(t\)
Mark scheme (v)(A)
Scheme
Marks
AO
Oscillations
B1
3.5b
[1]
Notes
oe
Mark scheme (v)(B)
Scheme
Marks
AO
cosine or sine oe
B1
3.5c
[1]
Notes
Eg Introducing a multiplier of \((-1)^t\) if \(t\) is a large integer.
11 The intensity of the sun’s radiation, \(y\) watts per square metre, and the average distance from the sun, \(x\) astronomical units, are shown in Fig. 11 for the planets Mercury and Jupiter.
\(x\)
\(y\)
Mercury
0.3075
14 400
Jupiter
4.950
55.8
Fig. 11
The intensity \(y\) is proportional to a power of the distance \(x\).
(i) Write down an equation for \(y\) in terms of \(x\) and two constants. [1]
(ii) Show that the equation can be written in the form \(\ln y = a + b\ln x\). [2]
(iii) Complete the table below for \(\ln x\) and \(\ln y\) correct to 4 significant figures. [2]
\(\ln x\)
\(\ln y\)
Mercury
Jupiter
(iv) Use the values from part (iii) to find \(a\) and \(b\). [3]
(v) Hence rewrite your equation from part (i) for \(y\) in terms of \(x\), using suitable numerical values for the constants. [2]
(vi) Sketch a graph of the equation found in part (v). [2]
(vii) Earth is 1 astronomical unit from the sun. Find the intensity of the sun’s radiation for Earth. [1]
Mark scheme (i)
Scheme
Marks
AO
\(y = kx^n\)
B1
3.3
[1]
Notes
B1: Allow any letters used for constant of proportionality and power.
Mark scheme (ii)
Scheme
Marks
AO
\(\ln y = \ln\left(kx^n\right)\)
M1
2.1
\(\ln y = \ln k + \ln\left(x^n\right) = \ln k + n\ln x\)
E1
2.1
[2]
Notes
M1: Taking natural logs of both sides and one correct use of laws of logs used.
E1: Convincing argument. AG
Scheme for candidates using log base 10
Scheme
Marks
AO
SC1
SC1: Correct use of log instead of ln and no other error
Mark scheme (iii)
Scheme
Marks
AO
\(\ln x\)
\(\ln y\)
Mercury
−1.179
9.575
Jupiter
1.599
4.022
B1 B1
1.1b 1.1b
[2]
Notes
B1: At least 2 correct values
B1: All correct and to 4sf
Scheme for candidates using log base 10
Scheme
Marks
AO
\(\ln x\)
\(\ln y\)
Mercury
−0.5122
4.158
Jupiter
0.6946
1.747
B0 B1
B1: All correct. Must be 4 sf
Mark scheme (iv)
Scheme
Marks
AO
EITHER \(b = \dfrac{9.575 - 4.022}{-1.179 - 1.599} = -1.999\) (\(-2.00\) to 3sf)
M1 A1
1.1a 3.1a
\(a = 7.218\)
A1
1.1b
[3]
Notes
M1: using gradient formula
A1: Allow \(-2\)
A1: \(a\) correct to at least 2 sf
These values could be found using the calculator STATS mode, so allow without working
Alternative (OR)
Scheme
Marks
AO
\(9.575 = a - 1.179b\) \(4.022 = a + 1.599b\)
M1
Giving \(a = 7.218\)
A1
\(b = -1.999\) (\(-2.00\) to 3sf)
A1
[3]
M1: Setting up pair of equations by substitution of their values. Allow one slip.
A1: \(a\) correct to at least 2 sf
A1: \(b\) correct to at least 2 sf
Simultaneous equations can be solved using calculator
Scheme for candidates using log base 10
Scheme
Marks
AO
As in main scheme \(a = 3.1336\) \(b = -1.999\)
M1 A1 A1
Mark scheme (v)
Scheme
Marks
AO
\(y = 1363x^{-2.00}\)
B1 B1
2.2a 3.3
[2]
Notes
FT their equation in (i)
B1: awrt 1300 or 1400, or \(\mathrm{e}^{7.2}\) or better. FT their \(a\)
B1: Allow for \(x^{-2}\) or better. FT their \(b\)
Scheme for candidates using log base 10
Scheme
Marks
AO
\(y = 1360x^{-2}\)
B1 B1
FT their equation in (i)
B1: awrt 1300 or 1400, or \(\mathrm{e}^{3.1}\ (= 22.2)\), \(10^{3.1}\) or better. FT their \(a\)
B1: allow for \(x^{-2}\) or better. FT their \(b\)
Mark scheme (vi)
Scheme
Marks
AO
B1
B1
1.2
1.1b
[2]
Notes
B1: Appropriate curve with at least one horizontal asymptote or vertical asymptote shown
B1: Both asymptotes correct. Ignore \(x < 0\) if shown
FT their equation in (v) provided their function is a decreasing function
(a) Two variables, \(x\) and \(y\), are such that the rate of change of \(y\) with respect to \(x\) is proportional to \(y\). State a model which may be appropriate for \(y\) in terms of \(x\). [1]
(b) The concentration, \(Y\) units, of a certain drug in a patient’s body decreases exponentially with respect to time. At time \(t\) hours the concentration can be modelled by \(Y=A\mathrm{e}^{-kt}\), where \(A\) and \(k\) are constants.
A patient was given a dose of the drug that resulted in an initial concentration of 5 units.
(i) After 4 hours, the concentration had dropped to 1·25 units. Show that \(k=0{\cdot}3466\), correct to four decimal places. [2]
(ii) The minimum effective concentration of the drug is 0·6 units. How much longer would it take for the drug concentration to drop to the minimum effective level? [3]
Mark scheme (a)
Scheme
Marks
Comments
\(y=A\mathrm{e}^{-kx}\) or \(y=A\mathrm{e}^{kx}\)
B1
oe Accept numerical values for \(A\neq 0\), and/or \(k\neq 0\).
(a) The graph \(G\) shows the relationship between the variables \(y\) and \(x\), where \(y\propto x\). Sketch the graph \(G\). [1]
(b) Mary and Jeff work for a company which pays its employees by hourly rates. Mary’s hourly rate is twice Jeff’s hourly rate. On a certain day, Jeff worked three times as long as Mary and was paid £120. Calculate Mary’s earnings on that day. [3]
(c) Atmospheric pressure, \(P\) units, decreases as the height, \(H\) metres, above sea level increases. The rate of decrease is 12% for every 1000 m. At sea level, the pressure \(P\) is 1013 units. Write down the model for \(P\) in terms of \(H\) and find the pressure at the top of Mount Everest, which is 8848 m above sea level. [3]
Mark scheme (a)
Scheme
Marks
Comments
B1
Straight line through the origin, positive or negative gradient
Mark scheme (b)
Scheme
Marks
Comments
Mary’s pay \(=120\times\frac{2}{3}\)
M1
Divide by 3 oe e.g. \(3m=120\)
M1
oe \(\times\) by 2
Mary’s pay = £80
A1
Unsupported answer of £80 award M1M1A1
Corrected by Westie's Workshop
The board's mark scheme printed “award M1A1A1”. Changed to “award M1M1A1” because this part has two M marks and one A mark, so a correct answer with no working gets M1M1A1 (full marks).
Original: see the board's mark scheme PDF (link above).
Mark scheme (c)
Scheme
Marks
Comments
\(P=1013\times 0.88^{\frac{H}{1000}}\)
B1
When \(H=8848\), \(P=1013\times 0.88^{\frac{8848}{1000}}\)
M1
e.g. \(P=1013\times 0.88^{H}\) Allow \(P=1013\times 0.988^{H}\)
We'd like to use Google Analytics cookies to count visits and see which pages help most. They're optional, and the site works exactly the same either way. Privacy policy
