Plans, Elevations & Nets

Topic

Foundation June 2025 Paper 1 Q8

EdexcelCurrent spec2 marksPlans, Elevations & Nets

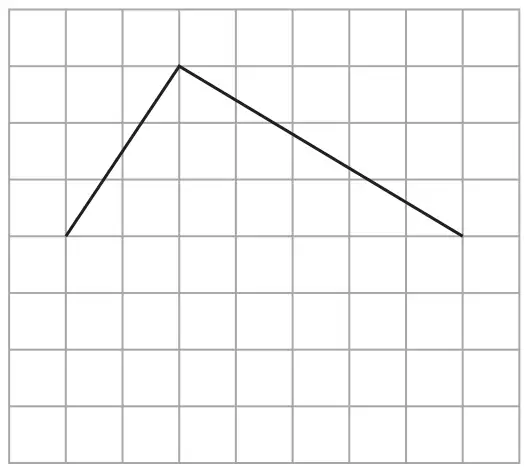

8 The diagram shows two sides of a kite.

Square grid showing two sides of a kite meeting at a vertex at the top

(a) On the grid, complete the kite. (1)

(b) What is the mathematical name of this solid shape?

A solid with two circular faces, one above the other, joined by a curved surface

(1)

Answer	Mark	Mark scheme
Completed kite	B1	cao

Answer	Mark	Mark scheme
Cylinder	B1

Foundation June 2025 Paper 1 Q21

AQACurrent spec2 marksPlans, Elevations & Nets

21 Here is a cuboid.

Complete the drawing of the net on the centimetre grid. [2 marks]

Centimetre grid with part of the net drawn: a 5 by 2 rectangle above a 5 by 3 rectangle, with a 2 by 3 rectangle to the left of the 5 by 3 rectangle

Ten examples of correct completed nets on centimetre grids — Mark scheme

Answer	Mark	Comments
Fully correct net	B2	B1 one or two correctly sized rectangles drawn in appropriate positions

Foundation November 2024 Paper 3 Q20

AQACurrent spec4 marksPlans, Elevations & Nets

20 A building in the shape of a cylinder has diameter 40 m and height 55 m

A cylinder with diameter 40 m across the top and height 55 m

(a) On the centimetre grid, draw a plan of the building.

Use a scale of 1 cm to 10 m [2 marks]

(b) On this centimetre grid, draw the front elevation of the building.

Use a scale of 1 cm to 10 m [2 marks]

A circle of diameter 4 squares drawn on the grid — Mark scheme (a)

Answer	Mark	Comments
Circle with diameter 4 cm	B2	diameter \(\pm\) 5 mm B1 for any circle or \(40 \div 10\) or 4 or (radius =) 2

A rectangle 4 squares wide and 5.5 squares tall drawn on the grid — Mark scheme (b)

Answer	Mark	Comments
Rectangle with horizontal sides 4 cm and vertical sides 5.5 cm	B2	\(\pm\) 2 mm B1 for any rectangle or \(40 \div 10\) or 4 and \(55 \div 10\) or 5.5 SC2 for correct answers in (a) and (b) reversed (award 0 in (a) and 2 in (b))

Foundation June 2024 Paper 3 Q23

AQACurrent spec2 marksPlans, Elevations & Nets Volume & Surface Area

23 The front elevation of a cuboid is shown on this centimetre grid.

Front elevation on a centimetre grid: a rectangle 3 cm wide and 2 cm high

The volume of the cuboid is \(42\text{ cm}^3\)

Draw the side elevation on this centimetre grid. [2 marks]

Blank centimetre grid labelled Side elevation, 9 squares wide and 6 squares high

Side elevation grid with a rectangle 7 cm wide and 2 cm high drawn on it — Mark scheme

Answer	Mark	Comments
\(42 \div (2 \times 3)\) or 7 or rectangle with height 2 cm	M1	oe implied by rectangle with one side 7 cm
Rectangle with height 2 cm and width 7 cm	A1	any position on the grid

Foundation November 2023 Paper 3 Q26

AQACurrent spec5 marksCircles & Sectors Plans, Elevations & Nets

26 An open cardboard cylinder has radius 1.9 cm and height 10.2 cm

Cylinder with radius 1.9 cm and height 10.2 cm

(a) Harry assumes that the net of the cylinder is a rectangle with length \(l\) cm

Not drawn accurately

Rectangle with length l cm and height 10.2 cm

Work out the area of this rectangle. [3 marks]

In fact, the net is a parallelogram, not a rectangle.

Not drawn accurately

Parallelogram with top side l cm and perpendicular height 10.2 cm

(b) What does this mean about the area of the net?

Tick one box. [1 mark]

It is less than the area of the rectangle
It is equal to the area of the rectangle
It is more than the area of the rectangle

Tick one box. [1 mark]

It is less than the perimeter of the rectangle
It is equal to the perimeter of the rectangle
It is more than the perimeter of the rectangle

Mark scheme (a)

Answer	Mark	Comments
\(2 \times 1.9 \times \pi\) or \(3.8\pi\) or [11.9, 11.94]	M1	oe
\(2 \times 1.9 \times \pi \times 10.2\) or \(3.8\pi \times 10.2\) or their \([11.9, 11.94] \times 10.2\)	M1dep	oe
[121, 122]	A1	SC1 [115, 116]

Additional guidance

SC1 [115, 116] is from using the area of the circle

Answer	Mark	Comments
It is equal to the area of the rectangle	B1	accept any indication

Answer	Mark	Comments
It is more than the perimeter of the rectangle	B1	accept any indication

Foundation June 2017 Paper 3 Q14

AQACurrent spec2 marksPlans, Elevations & Nets

(a) The front elevation, side elevation and plan of a solid are all the same, as shown.

Write down the name of the solid. [1 mark]

(b) The front elevation, side elevation and plan of a solid are all the same, as shown.

Write down the name of the solid. [1 mark]

Can be anywhere on the grid	B2
Mark intention
Check stem and part (b) for evidence of 4 or 2
4 or 2 cannot be implied from a diagram for B1

Can be anywhere on the grid	B2
Mark intention
Do not accept curved corners on any rectangle
Check stem and part (a) for evidence of 4 and 5.5
4 and 5.5 cannot be implied from a diagram for B1

Mark intention, condone interior lines
Accept unruled lines
	M1A1
Cuboid with rectangle height 2 cm and / or width 7 cm	M1A0

Accept misspelling as long as intention to indicate sphere	B1
Spherical	B0
Ball	B0
