Higher June 2024 Paper 3 Q5

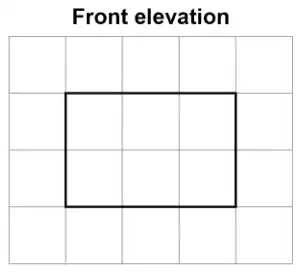

5 The front elevation of a cuboid is shown on this centimetre grid.
The volume of the cuboid is \(42\ \text{cm}^3\)

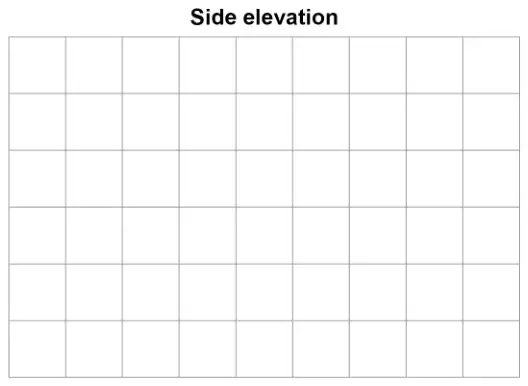

Draw the side elevation on this centimetre grid. [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| \(42 \div (2 \times 3)\) or 7 or rectangle with height 2 cm | M1 | oe implied by rectangle with one side 7 cm |

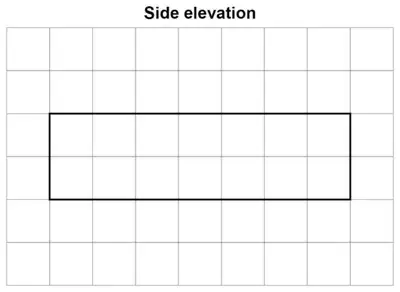

| Rectangle with height 2 cm and width 7 cm | A1 | any position on the grid |
Additional guidance
| Mark intention, condone interior lines | |
| Accept unruled lines | |
 | M1A1 |
| Cuboid with rectangle height 2 cm and / or width 7 cm | M1A0 |
