Foundation November 2020 Paper 3 Q19

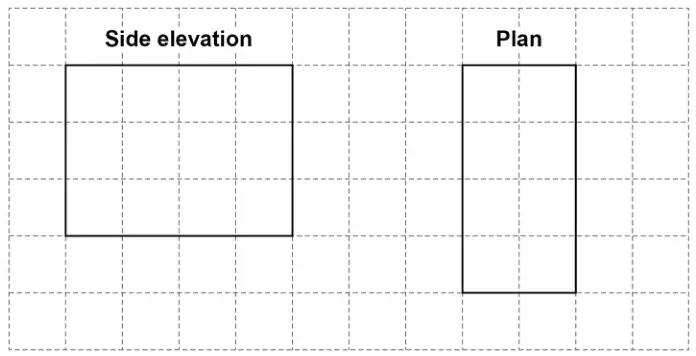

19 The side elevation and plan of a cuboid are shown on the centimetre grid.

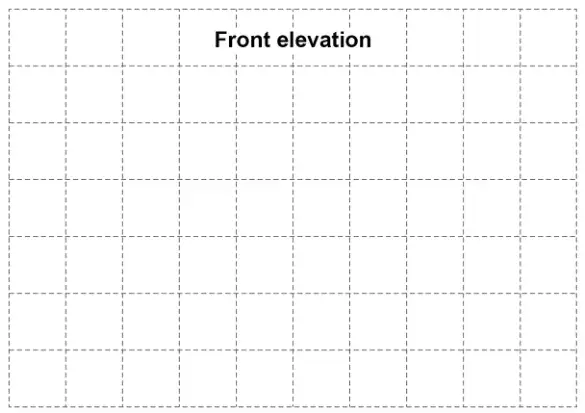

Draw the front elevation of the cuboid on this centimetre grid. [2 marks]
| Answer | Mark | Comments |
|---|---|---|

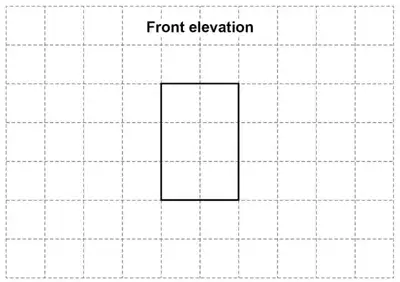

| Rectangle with height 3 and width 2 | B2 | any position on the grid B1 rectangle with height 3 or width 2 or rectangle with height 2 and width 3 or cuboid with rectangular front face height 3 and width 2 |
Additional guidance
| Accept unruled lines | |
 | B2 |
