Foundation June 2023 Paper 2 Q2

EduqasFoundationCurrent spec7 marksPlans, Elevations & NetsTransformations of Shapes

2.

(a)

Complete the pattern below so that AB is a line of symmetry.

Shade the smallest possible number of squares. [2]

Diagram: an 8 by 8 square grid with a vertical line AB down the middle and some squares shaded

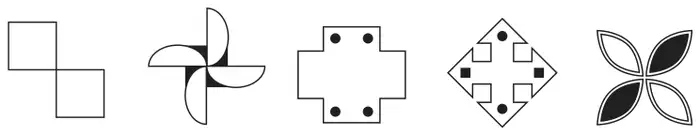

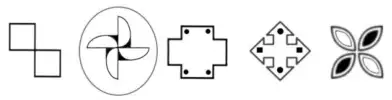

(b) Circle the shape below that has rotational symmetry of order 4. [1]
Diagram: five shapes in a row: two squares joined at a corner, a pinwheel of four quarter circles, a cross shape with four dots, a square tilted as a diamond with dots and small squares, and four leaf shapes, two shaded

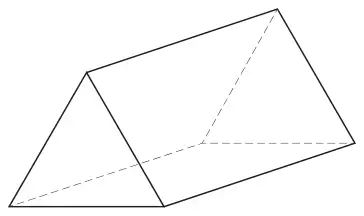

(c) The diagram below shows a triangular prism.
Diagram: a triangular prism with hidden edges dashed

Diagram not drawn to scale

How many edges and vertices does the triangular prism have? [2]

Edges …………    Vertices …………

(d)

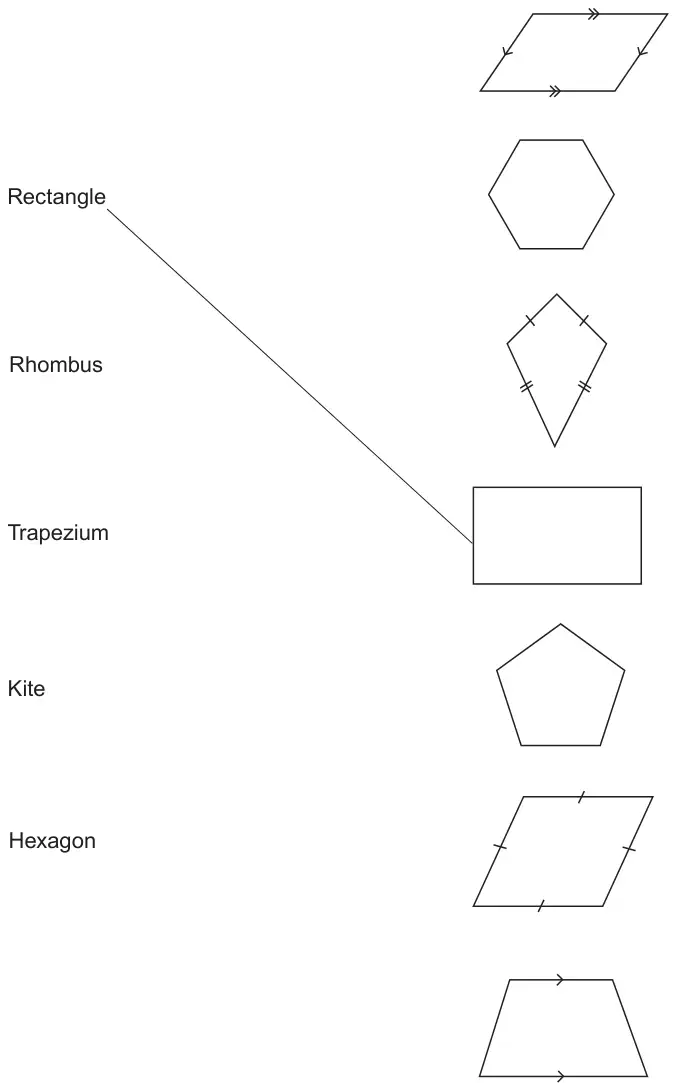

Draw one line to connect each of the following mathematical names to the correct shape.
You will not need to use every shape. One has been completed for you. [2]

Diagram: names Rectangle, Rhombus, Trapezium, Kite and Hexagon on the left; on the right a parallelogram, a regular hexagon, a kite, a rectangle, a regular pentagon, a rhombus and a trapezium. A line already joins Rectangle to the rectangle
