1MA0 Higher November 2016 Paper 1 Q5

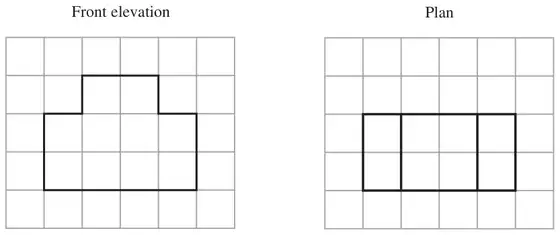

5 Here are the front elevation and the plan of a prism.
On the grid below, draw the side elevation of the prism.
(2)
| Answer | Mark | Notes |
|---|---|---|
 | 2 | B2 for correct side elevation (B1 for a rectangle with base 2 squares or height 3 squares) |
