Foundation June 2019 Paper 3 Q16

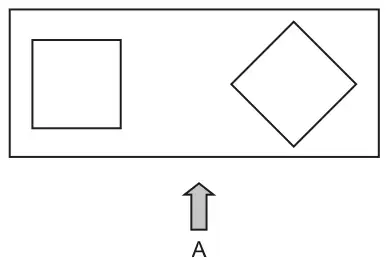

16 This is the plan view of a 3D object.

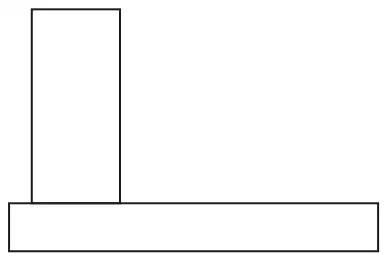

Complete the diagram below to show the front view of the 3D object from A.
[2]

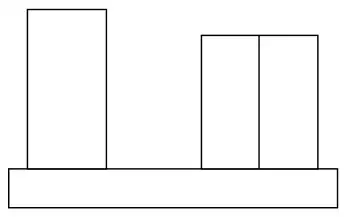

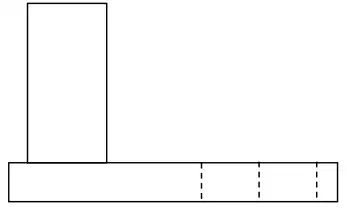

| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Correct side view eg  | 2 | For 2 marks: Second column any height but wider than, and right of, first with roughly middle vertical and flat top B1 for roughly rectangular column width ± 2 mm (between inner and outer overlay circles) and no oblique top and B1 for approx vertical line approx central | If B0 second B1 still possible Mark intention, ruler desirable but not required If no column drawn, must be a hole with dotted lines with same constraints eg  |
