Foundation November 2024 Paper 2 Q5

EduqasFoundationCurrent spec8 marksAngles (Including Parallel Lines)Plans, Elevations & NetsTransformations of Shapes

5.

(a) Complete the shape so that PQ is a line of symmetry. [1]

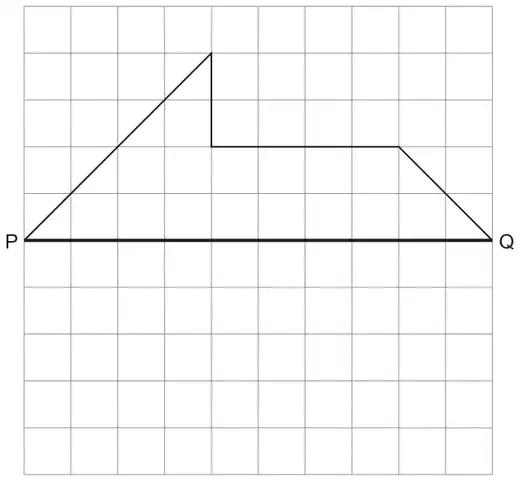

A square grid with a horizontal line PQ; half of a shape is drawn above PQ
(b)

Some three-dimensional shapes are shown below.

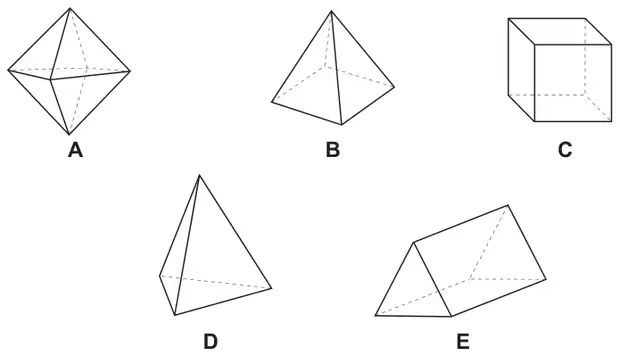

Five 3D shapes: A an octahedron, B a square-based pyramid, C a cube, D a triangular-based pyramid (tetrahedron), E a triangular prism

Complete the following sentences using A, B, C, D or E.

(i) Shape ………… has twice as many edges as it has faces. [1]
(ii) Shape ………… has twice as many edges as it has vertices. [1]
(iii) The number of vertices is equal to the number of faces in shapes
………… and ………… . [1]
(c) Circle the shape below that has rotational symmetry of order three. [1]

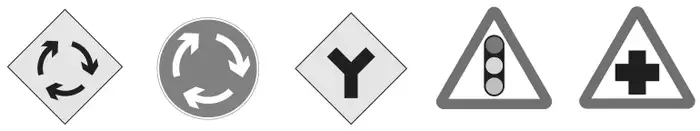

Five road signs: a diamond with three curved arrows, a circle with three curved arrows, a diamond with a Y junction, a triangle with traffic lights, a triangle with a cross
(d) Find the size of each of the angles \(x\) and \(y\). [3]

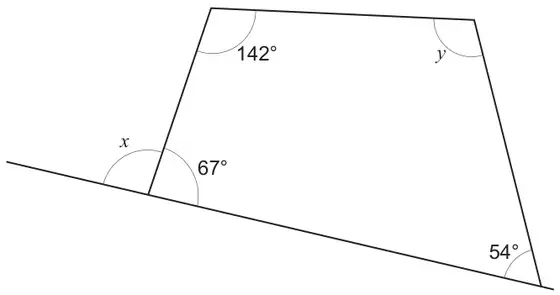

A quadrilateral with interior angles 142 degrees, y, 54 degrees and 67 degrees; the side through the 67 degree and 54 degree angles is extended, giving the exterior angle x next to 67 degrees

Diagram not drawn to scale

\(x =\) ………… \(^\circ\)    \(y =\) ………… \(^\circ\)
