Foundation June 2024 Paper 2 Q11

OCRFoundationCurrent spec3 marksPlans, Elevations & Nets

11 The table shows the plan view and front elevation of some 3D solids.

Write the name of each 3D solid in the third column of the table.

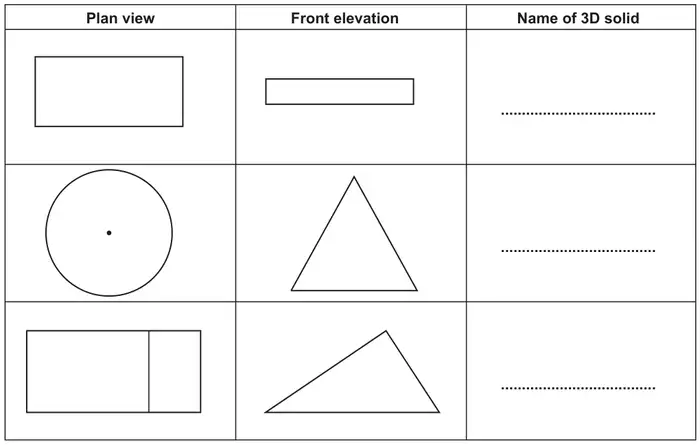

Table with columns Plan view, Front elevation, Name of 3D solid. Row 1: plan a rectangle, front elevation a thinner rectangle. Row 2: plan a circle with a dot at its centre, front elevation a triangle. Row 3: plan a rectangle divided by a vertical line, front elevation a triangle

[3]
