Higher November 2022 Paper 2 Q2

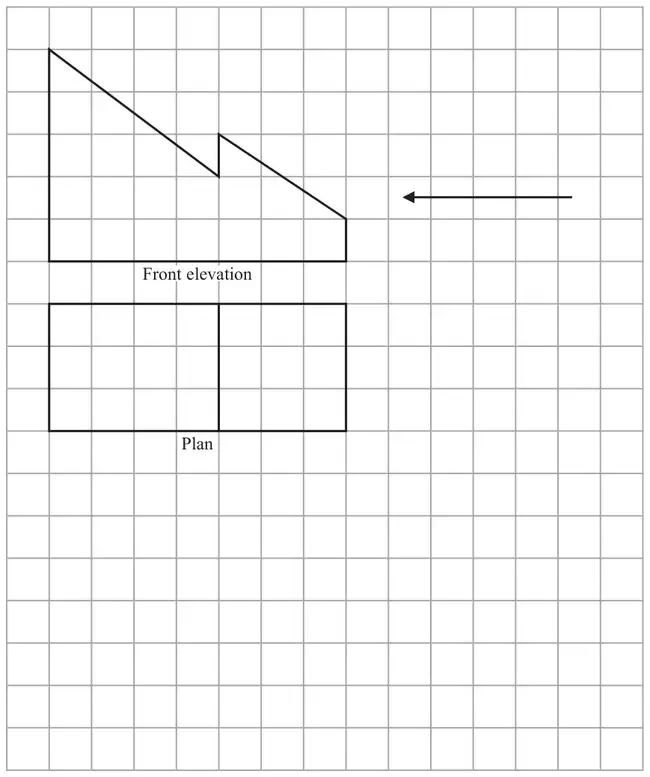

2 The front elevation and the plan of a solid are shown on the grid.
On the grid, draw the side elevation of the solid from the direction of the arrow.
(2)
| Answer | Mark | Mark scheme |
|---|---|---|
| Elevation | B2 | fully correct side elevation 5 high and 3 wide |
| (B1 | for a rectangle 5 high and 3 wide or correct side elevation in the wrong orientation) |
