Foundation November 2023 Paper 3 Q19

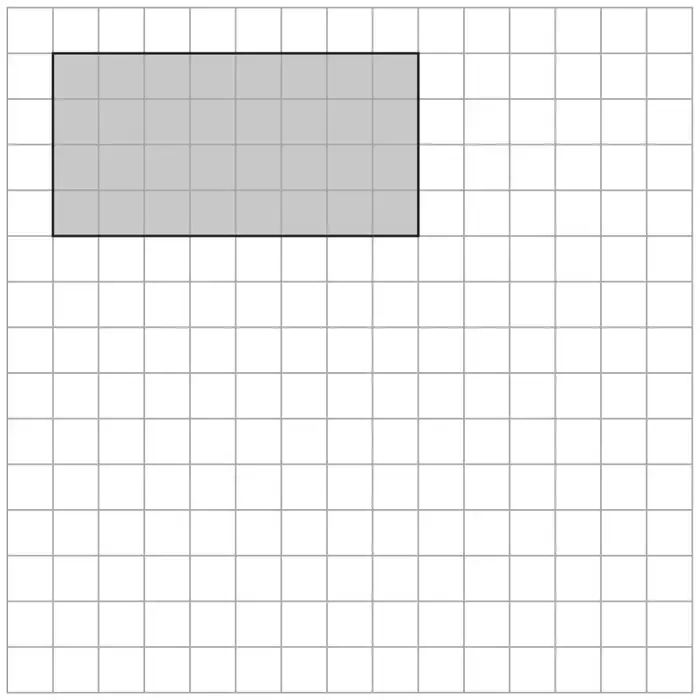

19 The front elevation of a cuboid is shown on the centimetre grid below.
The volume of the cuboid is 224 cm3
On the grid, draw the plan of the cuboid. (3)
| Answer | Mark | Mark scheme |
|---|---|---|
| 7 cm by 8 cm rectangle drawn | M1 | for interpreting the front elevation, eg length = 8 or height = 4 |
| M1 | For beginning to draw plan, eg rectangle drawn with one side length of 8 cm or one of 7 cm or for interpreting front elevation to find missing dimension eg \((224 \div \text{``}8\text{''}) \div \text{``}4\text{''}\ (= 7)\) | |
| C1 | for correct plan drawn |
Additional guidance
First M1 may be seen on diagram or in part of a calculation
May be drawn in any orientation
