Higher November 2022 Paper 5 Q8

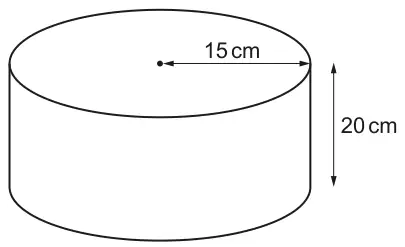

8 The diagram shows a cylinder with radius 15 cm and height 20 cm.
Not to scale
(a) On the grid below, draw the plan view of the cylinder.
Use the scale 1 cm represents 5 cm.
Use the scale 1 cm represents 5 cm.
(b) On the grid below, draw the front elevation of the cylinder.
Use the scale 1 cm represents 5 cm.
Use the scale 1 cm represents 5 cm.
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Circle radius 3 cm | 2 | B1 for circle any radius or for 3 indicated as the radius or for correct circle with internal lines | Allow freehand for 2 marks or for B1 if vertical and horizontal diameters are consistent 6 indicated as diameter implies B1 B1 could be implied on a diagram but condone for 2 marks if correct circle and internal lines are diameter or radius |
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Rectangle 6 cm (width) by 4 cm (height) | 2 | B1 for any rectangle with no internal lines or for correct rectangle but good freehand | All lines must be ruled for 2 marks If both (a) and (b) are reversed but otherwise correct allow SC2 If one correct and reversal is clear allow SC1 |
