Higher November 2021 Paper 3 Q10

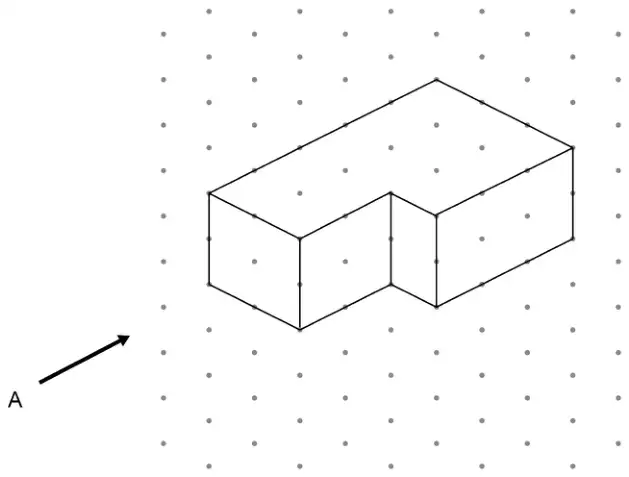

10 A solid shape is drawn on isometric paper.
(a) On the centimetre grid below, draw the elevation of the shape from A. [1 mark]
(b) On the centimetre grid below, draw a plan of the shape. [1 mark]
| Answer | Mark | Comments |
|---|---|---|
| Rectangle with horizontal sides 3 cm and vertical sides 2 cm | B1 | accept internal vertical line 1 cm from the right, but no other internal lines |
Additional guidance
 | B1 |
| Do not accept other internal lines | |
| Mark intention |

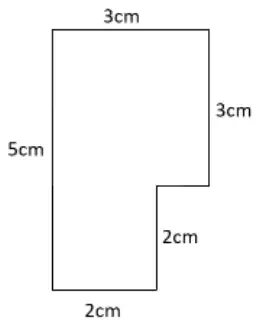

| Answer | Mark | Comments |
|---|---|---|
 | B1 | any orientation |
Additional guidance
Do not accept internal lines
Do not accept a reflection
Mark intention
