1MA0 Higher November 2013 Paper 2 Q4

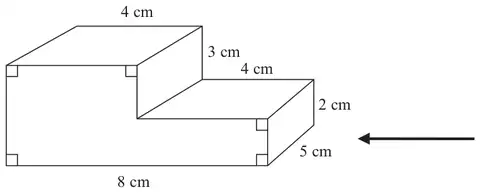

4 The diagram shows a solid prism.
Diagram NOT accurately drawn
On the centimetre square grid, draw the side elevation of the solid prism from the direction shown by the arrow. (2)
| Answer | Mark | Notes |
|---|---|---|
 | 2 | M1 for a 5cm by 5 cm square or a 5cm by 3 cm rectangle or a 5 cm by 2 cm rectangle A1 for correct elevation with dividing line NB: diagrams which appear to have a 3D element get 0 marks |
