Higher June 2019 Paper 1 Q4

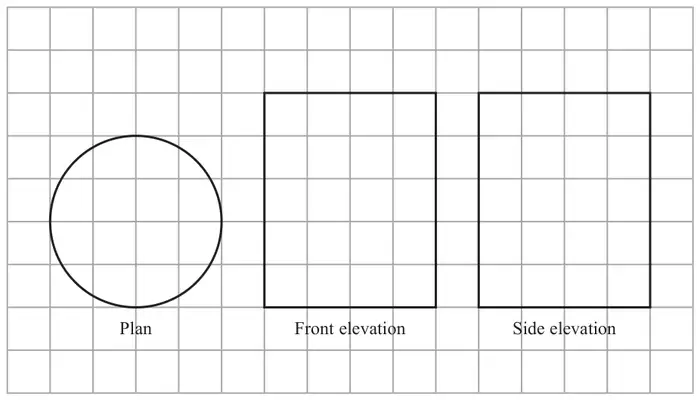

4 The diagram shows the plan, front elevation and side elevation of a solid shape, drawn on a centimetre grid.
In the space below, draw a sketch of the solid shape.
Give the dimensions of the solid on your sketch. (2)
| Answer | Mark | Mark scheme |
|---|---|---|
| sketch | M1 | for sketch of a cylinder |
| A1 | sketch of cylinder, with dimensions shown |
Additional guidance
Hidden edges may or may not be shown
2 (cm) for radius or 4 (cm) for diameter and 5 (cm) for height
