A uniform rod \(AB\) has mass \(M\) and length \(2a\).
A particle of mass \(2M\) is attached to the rod at the point \(C\), where \(AC = 0.5a\)
The rod rests with end \(A\) on rough horizontal ground and end \(B\) against a vertical wall.
The rod lies in a vertical plane which is perpendicular to the wall.

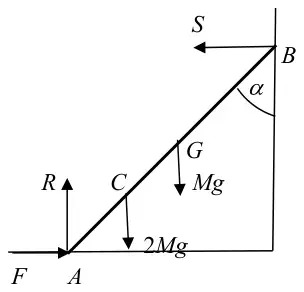

The rod is in equilibrium at an angle \(\alpha\) to the wall, as shown in Figure 4.
In an initial model
the vertical wall is modelled as being smooth
the magnitude of the normal reaction of the ground on the rod at \(A\) is \(R\)
the magnitude of the force exerted on the rod by the wall at \(B\) is \(S\)
Using the model,
(a) find \(R\) in terms of \(M\) and \(g\) (1)
(b) show that \(S = Mg\tan\alpha\) (3)
In a refined model
the vertical wall is modelled as being rough
the magnitude of the normal reaction of the ground on the rod at \(A\) is \(R_1\)
(c) State which is greater, \(R\) or \(R_1\), giving a reason for your answer. (1)

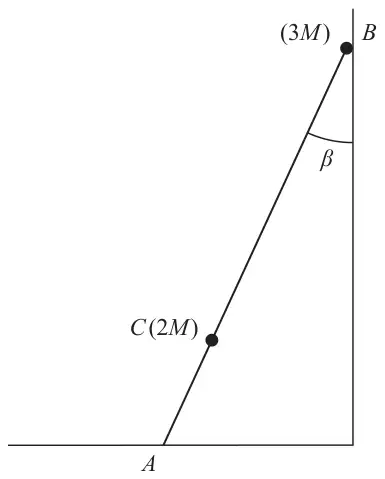

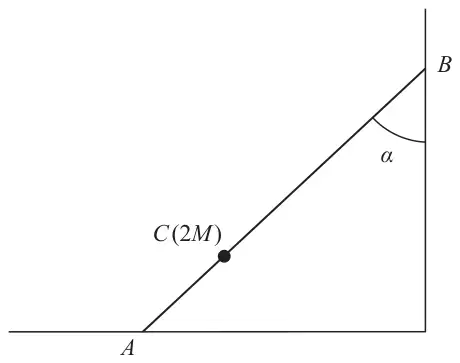

Figure 5
A second particle of mass \(3M\) is now attached to the rod at \(B\).
The rod again rests with end \(A\) on rough horizontal ground and end \(B\) against the vertical wall.
The rod lies in a vertical plane which is perpendicular to the wall.
The rod is now in limiting equilibrium at an angle \(\beta\) to the wall, as shown in Figure 5.
The vertical wall is again modelled as being smooth.
The coefficient of friction between the rod and the ground is \(\mu\)
Given that \(\tan\beta = \dfrac{1}{2}\)
(d) use the model to show that \(\mu = \dfrac{1}{3}\) (6)
Mark scheme (a)
Scheme
Marks
AO
\((\uparrow)\): \((R =)\ 3Mg\)
B1
3.4
(1)
Notes
B1: Cao. Must be in terms of \(M\) and \(g\).
Mark scheme (b)
Scheme
Marks
AO
N.B. Allow consistent use of a different letter for the angle in the working but must be \(\alpha\) in the final answer. BOD if their \(a\)'s and \(\alpha\)'s look the same.
EITHER:
Obtain an equation in \(S\), \(M\), \(a\) and \(\alpha\) only, by taking moments about \(A\)
Obtain an equation in \(S\), \(M\), \(a\) and \(\alpha\) only, by taking moments about \(B\), \(C\) or \(G\) and resolving once and eliminating \(F\) and \(R\) (N.B. \(R = 3Mg\) from (a))
M1
3.1a
Correct equation in \(S\), \(M\), \(a\) and \(\alpha\) only
A1
1.1b
Possible Moments equations: M(\(B\)): \(R \times 2a\sin\alpha = Mga\sin\alpha + 2Mg \times 1.5a\sin\alpha + F \times 2a\cos\alpha\) or M(\(C\)): \(F \times 0.5a\cos\alpha + S \times 1.5a\cos\alpha = R \times 0.5a\sin\alpha + Mg \times 0.5a\sin\alpha\) or M(\(G\)): \(Sa\cos\alpha + Fa\cos\alpha + 2Mg \times 0.5a\sin\alpha = Ra\sin\alpha\) Possible resolution equations: \((\rightarrow)\): \(F = S\) or \((\nearrow)\): \(R\cos\alpha + F\sin\alpha = S\sin\alpha + (2Mg + Mg)\cos\alpha\) or \((\nwarrow)\): \(R\sin\alpha + S\cos\alpha = (2Mg + Mg)\sin\alpha + F\cos\alpha\)
\(S = Mg\tan\alpha\) *
A1*
2.2a
(3)
Notes
M1: M(\(A\)): Correct no. of terms, dim correct, condone sin/cos confusion and sign errors
A1: Correct equation in \(S\), \(M\), \(a\) and \(\alpha\) only. N.B. Must see use of \(0.5a\)
A1*: Given answer correctly obtained. (Must be in \(\alpha\) but allow a different angle used in the equations). Penalise incorrect use of brackets. e.g. if they use \((90^\circ - \alpha)\), penalise missing brackets. N.B. Must see at least one line of intermediate working which will involve: like terms collected, division by \(\cos\alpha\), which does not need to be seen explicitly, division by 2 in some order. N.B. Allow the order of the terms on the RHS to be different and allow \(m\) for \(M\).
OR
M1: M(\(B\)) or M(\(C\)) or M(\(G\)) and a resolution and elimination of \(F\) and \(R\). Both equations used must have correct no. of terms, dim correct, condone sin/cos confusion and sign errors
A1: Correct equation in \(S\), \(M\), \(a\) and \(\alpha\) only
A1*: Given answer correctly obtained. N.B. Must see at least one line of intermediate working which will involve: like terms collected and division by \(\cos\alpha\)
Mark scheme (c)
Scheme
Marks
AO
The friction force at \(B\) will provide an extra upward (not just vertical) force so \(R_1\) will be less i.e. \(R\) will be greater. \(R\) (is greater than \(R_1\)) as the friction act against the weight of the rod. \(R\) (is greater) as the friction acts in the same direction as \(R_1\) \(R\) (is greater) as the friction holds the rod up as well. \(R = 3Mg = R_1 + F\) so \(R\) will be greater N.B. Allow \(R_1\) will be smaller with a correct reason. B0 \(R\) is greater as there is no friction from the wall.
B1
3.5a
(1)
Notes
B1: Correct explanation B0 if any incorrect extras
Mark scheme (d)
Scheme
Marks
AO
N.B. Allow consistent use of a different letter for the angle and could score FULL marks.

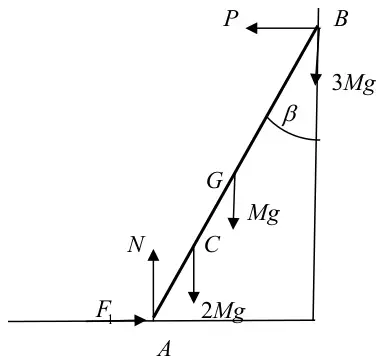

EITHER: Moments about \(B\) or \(D\), the intersection of the normals
Use of \(F_1 = \mu N\), their equations (which must be correct) and \(\tan\beta = \dfrac{1}{2}\), to obtain an equation in \(\mu\) only. N.B. This mark is only available if the previous 4 marks have all been earned.
dM1
3.1a
\(\mu = \dfrac{1}{3}\) *
A1*
2.2a
(6)
(11 marks)
Notes
N.B. If there is a combination of the two alternatives, mark both and award the higher mark. If there are errors in their equations for both methods and the total mark out of 4 is the same, enter the first 4 marks on ePEN for whichever of the 2 methods they use to try to find \(\mu\). If they don’t try and find \(\mu\), enter marks for the EITHER method.
EITHER
M1: M(\(B\)) or M(\(D\)): Correct no. of terms, dim correct, condone sin/cos confusion and sign errors, allow use of a different letter, \(\theta\) say, for \(\beta\). (\(\theta\) could even be \(\alpha\)) N.B. Condone consistent missing \(a\)’s N.B. M0 if they are clearly using \(R\) from part (a) for \(N\).
A1: Correct equation with at most one error
A1: Correct equation
B1: Correct vertical resolution
OR
M1: M(\(A\) or \(C\) or \(G\)): Correct no. of terms, dim correct, condone sin/cos confusion and sign errors, allow use of a different letter, \(\theta\) say, for \(\beta\). (\(\theta\) could even be \(\alpha\)) N.B. Condone consistent missing \(a\)’s N.B. M0 if they are clearly using \(S\) from part (b) for \(P\)
A1: Correct equation
A1: This is treated as a B mark for a correct resolution, seen or implied.
B1: For another correct resolution or another correct moments equation (NOT about \(B\)) seen or implied.
N.B. when entering marks on ePEN for the two resolutions, if only ONE is correct enter as A1 B0.
dM1: Dependent for using \(F_1 = \mu N\) and their correct equations, to produce an equation in \(\mu\) only. N.B. Allow if they use \(F_1 \leqslant \mu N\)
A small box \(B\) of mass 2 kg is dragged in a straight line, along a rough horizontal plane, at a constant speed by a force of magnitude 5 N.
The line of action of the force makes an angle \(\alpha\) with the plane, where \(\sin\alpha = \dfrac{3}{5}\), as shown in Figure 2.
(a) Show that the magnitude of the normal reaction of the plane on the box is 16.6 N. (3)
At the instant when \(B\) is at the point \(O\) on the plane, the force of magnitude 5 N is removed.
(b) Describe the motion of the box after the force of magnitude 5 N is removed. (1)
(c) Find the magnitude of the normal reaction of the plane on the box after the force of magnitude 5 N is removed. (1)
Given that after the force of magnitude 5 N is removed
the box is modelled as a particle
air resistance is modelled as being negligible
the coefficient of friction between the box and the plane is modelled as 0.2
the speed of the box as it passes through \(O\) is \(4\ \text{m s}^{-1}\)
the box comes to rest at the point \(X\) on the plane
(d) use the model to find the length \(OX\). (4)
(e) State one limitation of the model, apart from ignoring air resistance, that could affect your answer to part (d). (1)
Mark scheme (a)
Scheme
Marks
AO
Resolve vertically
M1
3.4
\((\uparrow)\ 5\sin\alpha + R = 2g\) oe
A1
1.1b
\((R =)\ 19.6 - 3 = 16.6\) (N)*
A1*
1.1b
(3)
Notes
N.B. Penalise the use of \(g = 9.81\) ONCE (the first time it is used) for the whole question.
M1: Form an equation in \(R\) and \(\alpha\) only, with correct number of terms, condone sign errors and sin/cos confusion, \(\sin\alpha\) may or may not be substituted. N.B. \(3 + R = 2g\) oe, with no evidence of resolving the 5 N, e.g. not using \(\sin\alpha\), is M0.
A1: Correct equation, \(\sin\alpha\) may or may not be be substituted.
A1*: Given answer correctly obtained, with at least one line of working.
Mark scheme (b)
Scheme
Marks
AO
The box decelerates, slows down, loses speed or velocity, will come to a stop or rest, loses momentum
B1
2.4
(1)
Notes
B1: Any equivalent statement. B0 if any incorrect extras e.g. box is stationary or at rest, doesn’t move, will stop moving.
Mark scheme (c)
Scheme
Marks
AO
\((S =)\ 19.6\) or 20 (N)
B1
3.3
(1)
Notes
N.B. Penalise the use of \(g = 9.81\) ONCE (the first time it is used) for the whole question.
B1: Accept \(2g\) if \(g\) is not substituted for. B0 if they use \(g = 9.81\) unless they have already been penalised in part (a).
Mark scheme (d)
Scheme
Marks
AO
Equation of motion along the plane: \(-F = 2a\) or \(F = 2a\)
N.B. Penalise the use of \(g = 9.81\) ONCE (the first time it is used) for the whole question.
M1: Correct number of terms. Condone an extra \(g\) in \(ma\) term. M0 if 2 is missing. N.B. M0 if they use a vertical force for \(F\) e.g. \(2g\) or 16.6
B1: Seen (e.g. on a diagram) or implied.
M1: Complete method to form an equation in \(d\) (= \(OX\)) only, condone sign errors, using their calculated acceleration from an attempt at using \(F = ma\) M0 if clearly using \(\mu\) (0.2) or \(-\mu\) for \(a\) without any calculation. e.g. may find \(t\) first: \(0 = 4 - 0.2gt \Rightarrow t = \dfrac{20}{g}\ \left(= \dfrac{100}{49}\right)\) then \(d = 4 \times \dfrac{20}{g} - \dfrac{1}{2} \times 0.2g \times \left(\dfrac{20}{g}\right)^2\) or \(d = 0 - \dfrac{1}{2} \times (-0.2g) \times \left(\dfrac{20}{g}\right)^2\) or \(0^2 = 4^2 + 2 \times (-0.2g) \times d\)
A1: Either answer. A0 for \(\dfrac{40}{g}\)
Mark scheme (e)
Scheme
Marks
AO
the box (it) has been modelled as a particle the box (it) will have size or shape or dimensions the coefficient of friction has been modelled as being constant the coefficient of friction may not be exactly 0.2 or may vary the friction may vary B0: the ground may not be horizontal, an inaccurate value of \(g\) has been used, has not considered wind, the angle may not be accurate, any reference to the particle having mass (or not having mass).
Ignore any reference to air resistance.
B1
3.5b
(1)
(10 marks)
Notes
B1: Any equivalent statement which refers to the model. B0 if incorrect extras.
M1: Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors. Allow use of a different letter for the angle. N.B. They may resolve the weight into two components, parallel and perpendicular to the rod, and then take the moment of each about \(A\), one of which is 0. (see N.B. below) N.B. M0 if one or both \(a\)’s aren’t there originally.
A1: Correct equation, \(\cos\theta\) may or may not be replaced by \(\dfrac{3}{5}\) N.B. you may see: \(S \times 1.5a = Mg\cos\theta \times a\)
A1*: Given answer correctly obtained, need to see \(\cos\theta = \dfrac{3}{5}\) used Allow: \(S = \dfrac{2Mg}{5}\) or \(\dfrac{2Mg}{5} = S\) A0 if \(S\) is missing
Mark scheme (b)
Scheme
Marks
AO
N.B. Marks for the equations should be awarded in the order in which they appear on the script.
Resolve horizontally:
M1
3.4
\(F = S\sin\theta\)
A1
1.1b
Resolve vertically:
M1
3.3
\(R = Mg - S\cos\theta\)
A1
1.1b
Other possible equations: (any of which is worth max M1A1) (parallel to the rod): \(F\cos\theta + R\sin\theta = Mg\sin\theta\) (perp to the rod): \(F\sin\theta + Mg\cos\theta = S + R\cos\theta\) M(\(B\)): \((S \times 0.5a) + (R \times 2a\cos\theta) = (Mg \times a\cos\theta) + (F \times 2a\sin\theta)\) M(\(C\)): \((R \times 1.5a\cos\theta) = (Mg \times 0.5a\cos\theta) + (F \times 1.5a\sin\theta)\) M(\(G\)): \((R \times a\cos\theta) = (S \times 0.5a) + (F \times a\sin\theta)\)
N.B. If they have more than two equations, mark only those that they use to try to find \(\mu\)
\(F = \mu R\) and two of their equations used to solve for \(\mu\)
DM1
3.1a
\(\mu = \dfrac{8}{19} = 0.42105\ldots\)
A1
2.2a
(6)
(9 marks)
Notes
M1: Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors
A1: Correct first equation, \(S\) does not need to be substituted
M1: Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors
A1: Correct second equation, \(S\) does not need to be substituted
DM1: Dependent on previous two M marks for using \(F = \mu R\) and two equations to solve for \(\mu\)

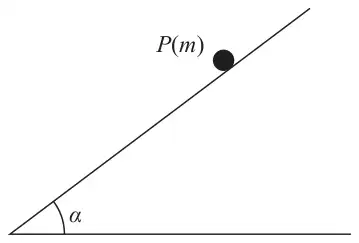

A particle \(P\) of mass \(m\) is held at rest at a point on a rough inclined plane, as shown in Figure 3.
It is given that
the plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{5}{12}\)
the coefficient of friction between \(P\) and the plane is \(\mu\), where \(\mu \lt \dfrac{5}{12}\)
The particle \(P\) is released from rest and slides down the plane. Air resistance is modelled as being negligible.
Using the model,
(a) find, in terms of \(m\) and \(g\), the magnitude of the normal reaction of the plane on \(P\), (2)
(b) show that, as \(P\) slides down the plane, the acceleration of \(P\) down the plane is\[\frac{1}{13}g(5 - 12\mu)\] (4)
(c) State what would happen to \(P\) if it is released from rest but \(\mu \geqslant \dfrac{5}{12}\) (1)
Mark scheme (a)
Scheme
Marks
AO
\((R =)\, mg\cos\alpha\)
M1
3.4
\(= \dfrac{12}{13}mg\)
A1
1.1b
(2)
Notes
M1: Correct no. of terms, condone sin/cos confusion and sign errors, dimensionally correct. Allow use of a different symbol for the angle.
A1: Accept \(0.92mg\) or better. Must be positive.
Mark scheme (b)
Scheme
Marks
AO
Equation of motion down the plane
M1
2.1
\(mg\sin\alpha - F = ma\) or \(mg\sin\alpha - F = -ma\)
A1
1.1b
\((F =)\ \mu \times \text{their } R\)
M1
3.4
\(\dfrac{1}{13}g(5 - 12\mu)\) *
A1*
2.2a
(4)
Notes
M1: Correct no. of terms, condone sin/cos confusion and sign errors (M0 if they use \(g\) for \(a\)) N.B. Must be using \(mg\) or \(m\) not \(W\) for the weight.
A1: Any correct equation e.g. \(mg\sin\alpha = ma + F\) N.B. \(F\) does not need to be substituted.
M1: \(\mu \times\) their \(R\) seen (possibly on a diagram), any trig does not need to be replaced. M0 if they use \(\mu = \dfrac{5}{12}\) M0 for just \(\mu R\) with \(R\) not replaced.
A1*: Given answer correctly obtained, with at least one further line of working with both trig ratios substituted as fractions. Allow \(\dfrac{g}{13}(5 - 12\mu)\) or \(\dfrac{g(5 - 12\mu)}{13}\)
Mark scheme (c)
Scheme
Marks
AO
\(P\) wouldn’t move
B1
2.4
(1)
(7 marks)
Notes
B1: e.g. \(P\) (or the particle or the object) would stay at rest, \(P\) would not slide down, would not roll down the plane, static equilibrium, equilibrium at rest Allow ‘it’ for \(P\) or just ‘stays at rest oe’ B0 for wouldn’t accelerate, would be in equilibrium (only), would stop N.B. Ignore reasons but not contradictions.
Figure 1 shows a particle \(P\) of mass 0.5 kg at rest on a rough horizontal plane.
(a) Find the magnitude of the normal reaction of the plane on \(P\). (1)
The coefficient of friction between \(P\) and the plane is \(\dfrac{2}{7}\)
A horizontal force of magnitude \(X\) newtons is applied to \(P\).
Given that \(P\) is now in limiting equilibrium,
(b) find the value of \(X\). (2)
Mark scheme (a)
Scheme
Marks
AO
\(0.5g,\ \dfrac{1}{2}g\) or \(4.9\) (N) seen
B1
3.4
(1)
Notes
Ignore units in this question.
N.B. Use of \(g = 9.81\) should only be penalised once for the whole question as should two fractional answers (a) 49/10 (b) 7/5.
Penalise the use of \(g = 9.81\) the first time you see it.
N.B. If \(g = 9.81\) is used in (a), B0. If it is then used again in part (b), and they give the answer as 1.4 or 1.40, they can score M1A1 in part (b). If \(g = 9.81\) is only used in (b), they can score max M1A0 for (b).
B1: cao. (must be positive) B0 for a fraction \(\left(\dfrac{49}{10}\right)\) B0 if they have \(0.5g\) and then clearly use \(g = 9.81\) i.e. NOT isw This answer must appear in (a) to earn this mark. If no labelling, give BOD and award as many marks as possible.
Mark scheme (b)
Scheme
Marks
AO
\(\dfrac{2}{7} \times 4.9\) oe seen
M1
3.1a
1.4, 1.40 or \(\frac{1}{7}g\)
A1
1.1b
(2)
(3 marks)
Notes
Ignore units in this question.
N.B. Use of \(g = 9.81\) should only be penalised once for the whole question as should two fractional answers (a) 49/10 (b) 7/5.
Penalise the use of \(g = 9.81\) the first time you see it.
N.B. If \(g = 9.81\) is used in (a), B0. If it is then used again in part (b), and they give the answer as 1.4 or 1.40, they can score M1A1 in part (b). If \(g = 9.81\) is only used in (b), they can score max M1A0 for (b).
M1: \(\dfrac{2}{7} \times\) their (a) (must be a numerical value) If no answer for (a) or if (a) is incorrect and they don’t use it, allow a correct restart i.e. \(\dfrac{2}{7} \times 4.9\) or \(\dfrac{2}{7} \times 0.5g\) or \(\dfrac{2}{7} \times 0.5\) (missing \(g\) is not an M error)
A1: A0 for a fraction N.B. \(X =\) is not needed BUT A0 for \(F\) (or \(P\) or horizontal force) = a correct answer if they don’t go on to state \(X = \ldots\) If they obtain the correct answer for \(F\) and they have said \(F = X\) they can score A1.
N.B. 1.4, 1.40 or \(\frac{1}{7}g\) with no working, scores M1A1
The rod has its end \(A\) on rough horizontal ground and its end \(B\) against a smooth vertical wall.

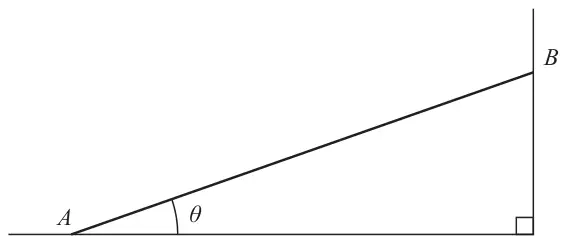

The rod makes an angle \(\theta\) with the ground, as shown in Figure 3.
The rod is at rest in limiting equilibrium.
(a) State the direction (left or right on Figure 3 above) of the frictional force acting on the rod at \(A\). Give a reason for your answer.(1)
The magnitude of the normal reaction of the wall on the rod at \(B\) is \(S\).
In an initial model, the rod is modelled as being uniform.
Use this initial model to answer parts (b), (c) and (d).
(b) By taking moments about \(A\), show that\[S = \frac{1}{2}Mg\cot\theta\] (3)
The coefficient of friction between the rod and the ground is \(\mu\)
Given that \(\tan\theta = \dfrac{3}{4}\)
(c) find the value of \(\mu\) (5)
(d) find, in terms of \(M\) and \(g\), the magnitude of the resultant force acting on the rod at \(A\). (3)
In a new model, the rod is modelled as being non-uniform, with its centre of mass closer to \(B\) than it is to \(A\).
A new value for \(S\) is calculated using this new model, with \(\tan\theta = \dfrac{3}{4}\)
(e) State whether this new value for \(S\) is larger, smaller or equal to the value that \(S\) would take using the initial model. Give a reason for your answer.(1)
Mark scheme (a)
Scheme
Marks
AO
The normal reaction at \(B\) is acting to the left so it must act to the right, right as it needs to balance (oppose, counter) the force at \(B\), right as it prevents the rod from sliding (slipping, falling), right as the weight (mass) of the rod will mean the rod tends to slip left, mass or weight will be pushing the rod to the left so friction will oppose that. N.B. You may see an arrow on the diagram at \(A\), instead of ‘right’. B0 if they say the rod is moving oe Accept towards the wall instead of to the right.
B1
2.4
(1)
Notes
B1: Any equivalent appropriate statement.
Mark scheme (b)
Scheme
Marks
AO

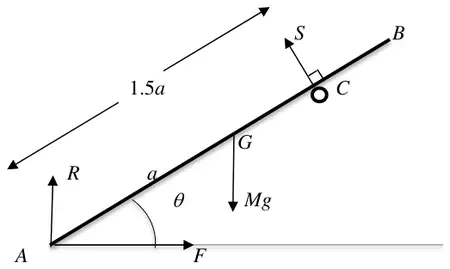

Take moments about \(A\)
M1
3.4
\(S \times 2a\sin\theta = Mga\cos\theta\)
A1
1.1b
\(S = \dfrac{1}{2}Mg\cot\theta\) *
A1*
2.2a
(3)
Notes
M1: Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors. N.B. If \(a\)’s never appear, M0
A1: Correct equation
A1*: Correct given answer correctly obtained, with no wrong working seen. Allow \(\dfrac{1}{2}Mg\cot\theta = S\) or \(S = \dfrac{Mg\cot\theta}{2}\) or \(\dfrac{Mg\cot\theta}{2} = S\) or \(S = \dfrac{Mg}{2}\cot\theta\) or similar but NOT \(S = \dfrac{1}{2}\cot\theta\,\text{Mg}\) or similar N.B. Allow \(m\) instead of \(M\) Must be \(\theta\) in final answer but allow a different angle in the working.
Mark scheme (c)
Scheme
Marks
AO
Resolve vertically, \(R = Mg\)
B1
3.3
Resolve horizontally, \(F = S\)
B1
3.3
Other possible equations: Resolve along the rod, \(F\cos\theta + R\sin\theta = S\cos\theta + Mg\sin\theta\) Resolve perp to the rod, \(R\cos\theta + S\sin\theta = F\sin\theta + Mg\cos\theta\) M(\(B\)), \(R \times 2a\cos\theta = F \times 2a\sin\theta + Mga\cos\theta\) M(\(G\)), \(Ra\cos\theta = Fa\sin\theta + Sa\sin\theta\) N.B. When entering these two B marks on ePEN, First B1 is for a vertical resolution, second B1 is for a horizontal resolution, and if either is replaced by a different equation, enter appropriately. If both are replaced by other equations, enter in the order in which they appear in their working.
\(F = \mu R\)
B1
1.2
\(\dfrac{1}{2}Mg \times \dfrac{4}{3} = \mu Mg\)
dM1
2.1
\(\mu = \dfrac{2}{3}\) oe Accept 0.67 or better
A1
2.2a
S.C. For \(F \leqslant \mu R\), B0 \(\dfrac{1}{2}Mg \times \dfrac{4}{3} \leqslant \mu Mg\) M1 \(\dfrac{2}{3} \leqslant \mu\) A0 N.B. If \(\mu = \dfrac{2}{3}\) follows this, they could score all the marks.
(5)
Notes
B1: cao
B1: cao
B1: Seen anywhere, e.g. on the diagram
dM1: Using \(F = \mu R\), their two equations and substitute for trig (not necessarily correctly) to produce an equation in \(\mu\) only. This mark is dependent on the 3 previous B marks.
A1: Accept 0.67 or better
Mark scheme (d)
Scheme
Marks
AO
\(\sqrt{F^2 + R^2}\)
M1
3.1a
\(\sqrt{\left(\dfrac{2}{3}Mg\right)^2 + (Mg)^2}\)
M1
1.1b
\(\dfrac{1}{3}Mg\sqrt{13}\) or \(1.2Mg\) or better
A1
2.2a
(3)
Notes
M1: Use of Pythagoras with square root to find the required magnitude, but \(F\) and \(R\) do not need to be substituted
M1: Substitute for their \(F\) and their \(R\) in terms of \(Mg\) and take square root to obtain magnitude in terms of \(M\) and \(g\) only. N.B. Must be using Pythagoras
Alternative
ALTERNATIVE: Using trig on triangle of forces
M1: \(X = \dfrac{Mg}{\sin\alpha}\) or \(\dfrac{S}{\cos\alpha}\)
M1: substitute for \(\sin\alpha\) or \(\cos\alpha\) and \(S\), where \(\tan\alpha = \dfrac{Mg}{S}\ \left(= \dfrac{3}{2}\right)\), to obtain \(X\) in terms of \(M\) and \(g\) only.
A1: Any equivalent surd form or \(1.2Mg\) or better Must be in terms of \(M\) and \(g\)
Mark scheme (e)
Scheme
Marks
AO
New value of \(S\) would be larger as the moment of the weight about A would be larger
B1
3.5a
(1)
(13 marks)
Notes
B1: Correct answer and any equivalent appropriate statement.
The particle is pulled along a rough horizontal plane by a horizontal force of magnitude 28 N.
The only resistance to motion is a frictional force of magnitude \(F\) newtons, as shown in Figure 1.
(a) Find the magnitude of the normal reaction of the plane on \(P\) (1)
The particle is accelerating along the plane at \(1.4\ \text{m s}^{-2}\)
(b) Find the value of \(F\) (2)
The coefficient of friction between \(P\) and the plane is \(\mu\)
(c) Find the value of \(\mu\), giving your answer to 2 significant figures. (1)
Mark scheme (a)
Scheme
Marks
AO
Resolve vertically, \(R = 5g = 49\) (N)
B1
1.1b
(1)
Notes
B1: Allow either \(5g\) or 49. No penalty for using \(g = 9.81\) or 10. Ignore any working. Must be a positive number. B0 if \(m\) is involved. N.B. Could be seen on a diagram, provided it’s clearly the reaction.
Mark scheme (b)
Scheme
Marks
AO
Equation of motion: \(28 - F = 5 \times 1.4\)
M1
3.1a
\(F = 21\)
A1
1.1b
(2)
Notes
M1: Equation with correct terms, dimensionally correct, condone sign errors.
A1: cao but allow \(\dfrac{15g}{7}\). Ignore units.
Mark scheme (c)
Scheme
Marks
AO
\(\mu = 0.43\) (2sf required)
B1 ft
3.4
(1)
(4 marks)
Notes
B1ft: \(\mu = \dfrac{\text{their (b)}}{\text{their (a)}}\). Answer must be a positive number given to 2sf. N.B. B0 if they use \(g = 9.81\) or 10 in this part of the question. Do not allow restarts. Allow \(\mu > 1\).
A uniform rod \(AB\) has mass \(M\) and length \(2a\)
A particle of mass \(2M\) is attached to the rod at the point \(C\), where \(AC = 1.5a\)
The rod rests with its end \(A\) on rough horizontal ground.
The rod is held in equilibrium at an angle \(\theta\) to the ground by a light string that is attached to the end \(B\) of the rod.

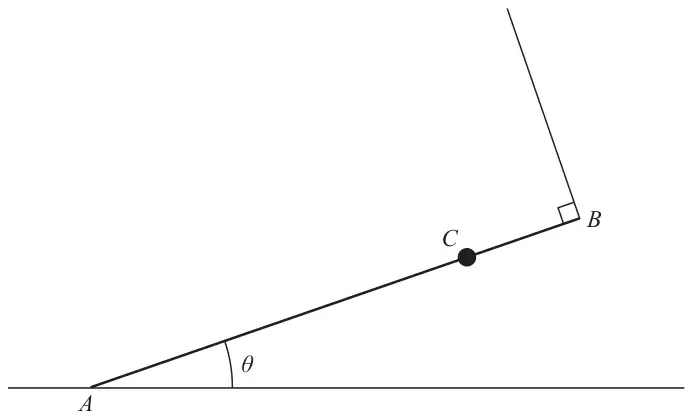

The string is perpendicular to the rod, as shown in Figure 2.
(a) Explain why the frictional force acting on the rod at \(A\) acts horizontally to the right on the diagram. (1)
The tension in the string is \(T\)
(b) Show that \(T = 2Mg\cos\theta\) (3)
Given that \(\cos\theta = \dfrac{3}{5}\)
(c) show that the magnitude of the vertical force exerted by the ground on the rod at \(A\) is \(\dfrac{57Mg}{25}\) (3)
The coefficient of friction between the rod and the ground is \(\mu\)
Given that the rod is in limiting equilibrium,
(d) show that \(\mu = \dfrac{8}{19}\) (4)
Mark scheme (a)
Scheme
Marks
AO
The horizontal component of \(T\) acts to the left and since the only other horizontal force is friction, it must act to the right oe
B1
2.4
(1)
Notes
B1: Any equivalent explanation
Mark scheme (b)
Scheme
Marks
AO
Take moments about \(A\) or any other complete method to obtain an equation in T, M and \(\theta\) only. (see possible equations below that they may use)
Other possible equations but \(F\) and \(R\) would need to be eliminated. \((\nwarrow)\), \(R\cos\theta + T = F\sin\theta + Mg\cos\theta + 2Mg\cos\theta\) \((\nearrow)\), \(R\sin\theta + F\cos\theta = Mg\sin\theta + 2Mg\sin\theta\) \((\rightarrow)\), \(F = T\sin\theta\) M(\(B\)), \(R.2a\cos\theta = Mga\cos\theta + 2Mg \times 0.5a\cos\theta + F.2a\sin\theta\) M(\(G\)), \(Fa\sin\theta + Ta = Ra\cos\theta + 2Mg \times 0.5a\cos\theta\) M(\(C\)), \(R \times 1.5a\cos\theta = T \times 0.5a + Mg \times 0.5a\cos\theta + F \times 1.5a\sin\theta\)
\(T = 2Mg\cos\theta\) *
A1*
1.1b
(3)
Notes
M1: Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors
A1: Correct equation, trig does not need to be substituted (Allow: \(T.2a = Mga\cos\theta + 3Mga\cos\theta\))
A1*: Given answer correctly obtained with no wrong working seen. Allow \(2Mg\cos\theta = T\) But not \(T = 2\cos\theta Mg\)
Mark scheme (c)
Scheme
Marks
AO
e.g. Resolve vertically
M1
3.4
\((\uparrow)\), \(R + T\cos\theta = Mg + 2Mg\)
A1
1.1b
\(R = \dfrac{57Mg}{25}\) *
A1*
1.1b
Other possible equations but \(F\) would need to be eliminated. \((\nwarrow)\), \(R\cos\theta + T = F\sin\theta + Mg\cos\theta + 2Mg\cos\theta\) \((\nearrow)\), \(R\sin\theta + F\cos\theta = Mg\sin\theta + 2Mg\sin\theta\) \((\rightarrow)\), \(F = T\sin\theta\) M(\(B\)), \(R.2a\cos\theta = Mga\cos\theta + 2Mg \times 0.5a\cos\theta + F.2a\sin\theta\) M(\(G\)), \(Fa\sin\theta + Ta = Ra\cos\theta + 2Mg \times 0.5a\cos\theta\) M(\(C\)), \(R \times 1.5a\cos\theta = T \times 0.5a + Mg \times 0.5a\cos\theta + F \times 1.5a\sin\theta\)
(3)
Notes
M1: For an equation in \(R\), \(M\), \(T\) and \(\theta\) only Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors, each term that needs to be resolved must be resolved
A1: Correct equation, \(T\) and trig do not need to be substituted
A1*: Given answer correctly obtained with no wrong working seen
Mark scheme (d)
Scheme
Marks
AO
Find an equation containing \(F\) e.g. Resolve horizontally
\(F = \mu R\) used i.e. both \(F\) and \(R\) are substituted.
M1
3.1b
\(\mu = \dfrac{8}{19}\) *
A1*
2.2a
(4)
(11 marks)
Notes
M1: For any equation with \(F\) in it Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors, each term that needs to be resolved must be resolved
A1: Correct equation, trig does not need to be substituted
M1: Must be used i.e M0 if merely quoting it.
A1*: Given answer correctly obtained with no wrong working seen

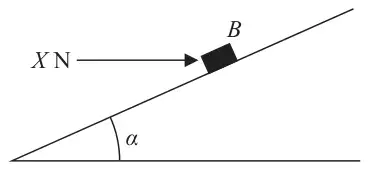

A rough plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\)
A small block \(B\) of mass 5 kg is held in equilibrium on the plane by a horizontal force of magnitude \(X\) newtons, as shown in Figure 1.
The force acts in a vertical plane which contains a line of greatest slope of the inclined plane.
The block \(B\) is modelled as a particle.
The magnitude of the normal reaction of the plane on \(B\) is 68.6 N.
Using the model,
(a)
(i) find the magnitude of the frictional force acting on \(B\), (3)
(ii) state the direction of the frictional force acting on \(B\). (1)
The horizontal force of magnitude \(X\) newtons is now removed and \(B\) moves down the plane.
Given that the coefficient of friction between \(B\) and the plane is 0.5
(b) find the acceleration of \(B\) down the plane. (6)
Mark scheme (a)
Scheme
Marks
AO
(i) Resolve vertically
M1
3.1b
\(F\) acting UP the plane: \((\uparrow)\ F\sin\alpha + 68.6\cos\alpha = 5g\) OR \(F\) acting DOWN the plane: \(-F\sin\alpha + 68.6\cos\alpha = 5g\)
Other possible equations from which \(X\) would need to be eliminated to give an equation in \(F\) only to earn the M mark are shown below.
The equation in \(F\) only must then be correct to earn the A mark.
Possible equations: \((\nwarrow)\ 68.6 = X\sin\alpha + 5g\cos\alpha\) (leads to \(X = 49\) with \(g = 9.8\)) \(F\) acting UP the plane: \((\nearrow)\ F + X\cos\alpha = 5g\sin\alpha\) \((\rightarrow)\ F\cos\alpha + X = 68.6\sin\alpha\) OR \(F\) acting DOWN the plane: \(-F + X\cos\alpha = 5g\sin\alpha\) \(-F\cos\alpha + X = 68.6\sin\alpha\)
A1
1.1b
9.8 (N) (49/5 is A0) N.B. If sin and cos are interchanged in all equations, this leads to an answer of 9.8 in the wrong direction and can only score (a) (i)M1A0A0 (ii) A0
A1
1.1b
(3)
(ii) Down the plane (Allow down or downwards or an arrow \(\swarrow\), but must appear as the answer to (a) (ii) not just on the diagram.)
A1
2.2a
(1)
Notes
(a)(i)
M1: Complete method to obtain an equation in \(F\) only. For each equation used, correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors, each term that needs to be resolved must be resolved.
A1: Correct equation in \(F\) only, trig does not need to be substituted
A1: cao (must be positive)
(a)(ii)
A1: cao. Note that this mark is dependent on an answer of 9.8 or -9.8 for (a)(i) from a fully correct solution unless they have used \(g = 9.81\), in which case the answer will be 9.7 or – 9.7 (2sf) see SC2 below. N.B. Allow this mark, if their answer to (a)(i) is fully correct apart from a small error due to use of inaccurate trig i.e using an angle \(36.9^\circ\)
SC 1: If they use \(\mu R\) at any point (with an unknown \(\mu\)) for \(F\) in part (a), can score (a)(i) max M1A1A0 (a) (ii) A1, where they must have obtained \(\mu R = 9.8\) or \(-9.8\), from correct working.
SC 2: If \(g = 9.81\) is used consistently throughout 2(a), (leading to \(X = 48.9\ldots\) and \(F = 9.7\) (2sf)) can score max (a)(i) M1A1A0 (a)(ii) A1
Mark scheme (b)
Scheme
Marks
AO
N.B. If they use \(R = 68.6\) in this part, the maximum they can score is M1A1M0A0M0A0
If they use \(F = 9.8\) or their \(F\) from (a) in this part, the maximum they can score is M1A1M0A0M0A0
Equation of motion down the plane
M1
2.1
\(5g\sin\alpha - F = 5a\) Allow (\(-a\)) instead of \(a\)
A1
1.1b
Resolve perpendicular to the plane
M1
3.1b
\(R = 5g\cos\alpha\)
A1
1.1b
\(F = 0.5R\) seen
M1
3.4
\(a = 1.96\) or 2.0 or 2 \((\text{m s}^{-2})\) or \(\dfrac{1}{5}g\)
A1
1.1b
(6)
(10 marks)
Notes
M1: Correct no.of terms, dimensionally correct, condone sin/cos confusion and sign errors, each term that needs to be resolved must be resolved.
A1: Correct equation for their F.
M1: Correct no. of terms, dimensionally correct, condone sin/cos confusion and sign errors, each term that needs to be resolved must be resolved. (N.B. M0 if \(R = 68.6\) (N) is used in this equation)
A1: Correct equation
M1: Could be seen on a diagram (N.B. M0 if \(R = 68.6\) (N) is used)

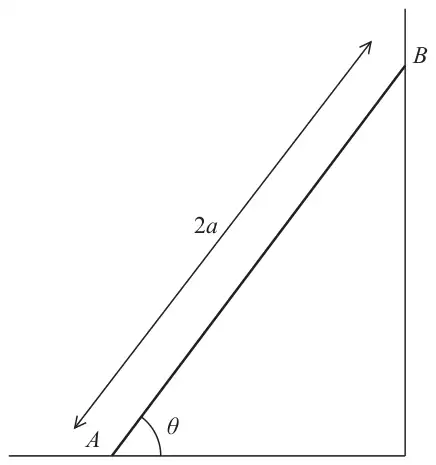

\((\updownarrow)\ R = mg\) OR \((\leftrightarrow)\ F = S\)
B1
3.4
Use their equations (they must have enough) and \(F \leqslant \mu R\) to give an inequality in \(\mu\) and \(\theta\) only (allow DM1 for use of \(F = \mu R\) to give an equation in \(\mu\) and \(\theta\) only)
DM1
2.1
\(\mu \geqslant \dfrac{1}{2}\cot\theta\) *
A1*
2.2a
(5)
Notes
M1: Any moments equation with correct terms, condone sign errors and sin/cos confusion
A1: Correct equation
B1: Correct equation
DM1: Dependent on M1, for using their equations (they must have enough) and \(F \leqslant \mu R\) to give an inequality in \(\mu\) and \(\theta\) only (allow M1 for use of \(F = \mu R\) to give an equation in \(\mu\) and \(\theta\) only)
A1*: Given answer correctly obtained with no wrong working seen (e.g. if they use \(F = \mu R\) anywhere, A0)

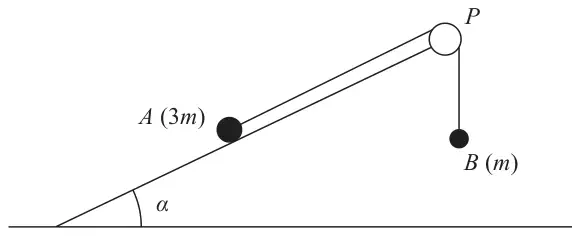

A small stone \(A\) of mass \(3m\) is attached to one end of a string.
A small stone \(B\) of mass \(m\) is attached to the other end of the string.
Initially \(A\) is held at rest on a fixed rough plane.
The plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\)
The string passes over a pulley \(P\) that is fixed at the top of the plane.
The part of the string from \(A\) to \(P\) is parallel to a line of greatest slope of the plane.
Stone \(B\) hangs freely below \(P\), as shown in Figure 1.
The coefficient of friction between \(A\) and the plane is \(\dfrac{1}{6}\)
Stone \(A\) is released from rest and begins to move down the plane.
The stones are modelled as particles.
The pulley is modelled as being small and smooth.
The string is modelled as being light and inextensible.
Using the model for the motion of the system before \(B\) reaches the pulley,
(a) write down an equation of motion for \(A\) (2)
(b) show that the acceleration of \(A\) is \(\dfrac{1}{10}g\) (7)
(c) sketch a velocity-time graph for the motion of \(B\), from the instant when \(A\) is released from rest to the instant just before \(B\) reaches the pulley, explaining your answer. (2)
In reality, the string is not light.
(d) State how this would affect the working in part (b). (1)
Mark scheme (a)
Scheme
Marks
AO
Equation of motion for \(A\)
M1
3.3
\(3mg\sin\alpha - F - T = 3ma\)
A1
1.1b
(2)
Notes
Mark parts (a) and (b) together
N.B. If m’s are consistently missing treat as a MR, so max (a) M1A0 (b) M1A0B0M1A1M1A1 (c) B1B1 (d) B1
For (a) and (b), allow verification, but must see full equations of motion.
M1: Equation in \(T\) and \(a\) with correct no. of terms, condone sign errors and sin/cos confusion (If one of the 3’s is missing, allow M1) N.B. Treat \(\sin(3/5)\) etc as an A error but allow recovery
A1: Correct equation (allow \((-a)\) instead of \(a\) in both equations)
Mark scheme (b)
Scheme
Marks
AO
Resolve perpendicular to the plane
M1
3.4
\(R = 3mg\cos\alpha\)
A1
1.1b
\(F = \dfrac{1}{6}R\)
B1
1.2
Equation of motion for \(B\) OR for whole system
M1
3.3
\(T - mg = ma\) OR \(3mg\sin\alpha - F - mg = 3ma + ma\)
A1
1.1b
Complete method to solve for \(a\)
DM1
3.1b
\(a = \dfrac{1}{10}g\) *
A1*
2.2a
(7)
Notes
Mark parts (a) and (b) together
N.B. If m’s are consistently missing treat as a MR, so max (a) M1A0 (b) M1A0B0M1A1M1A1 (c) B1B1 (d) B1
For (a) and (b), allow verification, but must see full equations of motion.
M1: Correct no. of terms, condone sign errors and sin/cos confusion Allow if appears in (a)
A1: Correct equation
B1: Seen anywhere in (a) or (b), including on a diagram
M1: Equation (for \(B\)) in \(T\) and \(a\) with correct no. of terms, condone sign errors and sin/cos confusion OR Whole system equation with correct no. of terms, condone sign errors and sin/cos confusion
A1: Correct equation
DM1: Complete method (trig may not be substituted), dependent on M1 in (a) and second M1 in (b) if they use two equations, or second M1 in (b) if they use one equation.
A1*: Correct answer correctly obtained.
Mark scheme (c)
Scheme
Marks
AO
B1
1.1b
e.g. acceleration (of \(B\)) is constant; dependent on first B1
DB1
2.4
(2)
Notes
N.B. If m’s are consistently missing treat as a MR, so max (a) M1A0 (b) M1A0B0M1A1M1A1 (c) B1B1 (d) B1
For (a) and (b), allow verification, but must see full equations of motion.
B1: Straight line starting at the origin (could be reflected in the \(t\)-axis). B0 if continuous vertical line at the end.
DB1: Dependent on first B1, for any equivalent statement
Mark scheme (d)
Scheme
Marks
AO
e.g. the tensions in the two equations of motion would be different. Tension on \(A\) would be different to tension on \(B\)
B1
3.5a
(1)
(12 marks)
Notes
N.B. If m’s are consistently missing treat as a MR, so max (a) M1A0 (b) M1A0B0M1A1M1A1 (c) B1B1 (d) B1
For (a) and (b), allow verification, but must see full equations of motion.
M1: Correct no. of terms, dim correct, condone sin/cos confusion and sign errors for an equation in \(N\) and \(Mg\) only. For perp distance allow any of: \(\dfrac{4a}{\sin\alpha}, \dfrac{4a}{\cos\alpha}, 5a\) but use of any of: \(6a, 5a\sin\alpha, 4a\cos\alpha, \ldots\) or anything involving \(\tan\alpha\) is M0 Also M0 if no \(a\)’s in their first equation.
A1: Correct equation, trig does not need to be substituted
A1*: Given answer correctly obtained.
Mark scheme (b)
Scheme
Marks
AO
Resolve horizontally
M1
3.4
\((\rightarrow)\ F = \dfrac{9Mg}{25}\sin\alpha\)
A1
1.1b
Resolve vertically
M1
3.4
\((\uparrow)\ R + \dfrac{9Mg}{25}\cos\alpha = Mg\)
A1
1.1b
Other possible equations: \((\nwarrow),\ R\cos\alpha + \dfrac{9Mg}{25} = Mg\cos\alpha + F\sin\alpha\) \((\nearrow),\ Mg\sin\alpha = F\cos\alpha + R\sin\alpha\)
Alternative equations if they have at \(A\): \(X\) horizontally and \(Y\) perpendicular to the rod. \((\nwarrow),\ Y + \dfrac{9Mg}{25} = Mg\cos\alpha + X\sin\alpha\) \((\nearrow),\ Mg\sin\alpha = X\cos\alpha\) \((\uparrow),\ \dfrac{9Mg}{25}\cos\alpha + Y\cos\alpha = Mg\) \((\rightarrow),\ Y\sin\alpha + \dfrac{9Mg}{25}\sin\alpha = X\) M\((C)\), \(Mg.2a\cos\alpha + X.5a\sin\alpha = Y.5a\) M\((G)\), \(\dfrac{9Mg}{25}.2a + X.3a\sin\alpha = Y.3a\) M1A1 M1A1 M\((B)\), \(Mg.3a\cos\alpha + X.6a\sin\alpha = Y.6a + \dfrac{9Mg}{25}a\) \(\left(X = \dfrac{4Mg}{3},\ Y = \dfrac{98Mg}{75}\right)\) Then \(F = \mu R\) becomes: \(X - Y\sin\alpha = \mu Y\cos\alpha\) M1 Eliminate \(X\) and \(Y\) and solve for \(\mu\) M1
\(\mu = \dfrac{18}{49}\) (0.3673…..accept 0.37 or better)
A1
2.2a
(7)
(10 marks)
Notes
M1: Correct no. of terms, dim correct, condone sin/cos confusion and sign errors
A1: Correct equation, trig does not need to be substituted but \(N\) does.
M1: Correct no. of terms, dim correct, condone sin/cos confusion and sign errors
A1: Correct equation, trig does not need to be substituted but \(N\) does.
N.B. The above 4 marks are for any two equations, either resolutions or moments or one of each. Mark best two equations. Equations may appear in part (a) but must be used in (b) to earn marks.
M1: Must be used, e.g. seen on the diagram. i.e. M0 if merely quoting it. (M0 if \(F = \mu \times \dfrac{9Mg}{25}\) used)
M1: Must have 3 equations (and all 3 previous M marks)
1. A rough plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\)
A brick \(P\) of mass \(m\) is placed on the plane.
The coefficient of friction between \(P\) and the plane is \(\mu\)
Brick \(P\) is in equilibrium and on the point of sliding down the plane.
Brick \(P\) is modelled as a particle.
Using the model,
(a) find, in terms of \(m\) and \(g\), the magnitude of the normal reaction of the plane on brick \(P\) (2)
(b) show that \(\mu = \dfrac{3}{4}\) (4)
For parts (c) and (d), you are not required to do any further calculations.
Brick \(P\) is now removed from the plane and a much heavier brick \(Q\) is placed on the plane.
The coefficient of friction between \(Q\) and the plane is also \(\dfrac{3}{4}\)
(c) Explain briefly why brick \(Q\) will remain at rest on the plane. (1)
Brick \(Q\) is now projected with speed \(0.5\ \text{m s}^{-1}\) down a line of greatest slope of the plane.
Brick \(Q\) is modelled as a particle.
Using the model,
(d) describe the motion of brick \(Q\), giving a reason for your answer. (2)
Mark scheme (a)
Scheme
Marks
AO
Resolve perpendicular to the plane
M1
3.4
\(R = mg\cos\alpha = \dfrac{4}{5}mg\)
A1
1.1b
(2)
Notes
M1: Correct no. of terms, condone sin/cos confusion
A1: cao with no wrong working seen. \(mg\cos 36.86\) is A0
Mark scheme (b)
Scheme
Marks
AO
Resolve parallel to the plane or horizontally or vertically
M1
3.4
\(F = mg\sin\alpha\) or \(R\sin\alpha = F\cos\alpha\)
A1
1.1b
Use \(F = \mu R\) and solve for \(\mu\)
M1
2.1
\(\mu = \dfrac{3}{4}\) *
A1*
2.2a
(4)
Notes
M1: Correct no. of terms, condone sin/cos confusion
A1: Correct equation
M1: Must use \(F = \mu R\) (not merely state it) to obtain a numerical value for \(\mu\). This is an independent M mark.
A1*: Given answer correctly obtained
Mark scheme (c)
Scheme
Marks
AO
The forces acting on \(Q\) will still balance as the \(m\)’s cancel oe Other possibilities: e.g. the friction will increase in the same proportion as the weight component or force down the plane. The force pulling the brick down the plane increases by the same amount as the friction oe This mark can be scored if they do the calculation.
B1
2.4
(1)
Notes
B1: Must have the 3 underlined phrases/word oe
Mark scheme (d)
Scheme
Marks
AO
Brick \(Q\) slides down the plane with constant speed.
B1
2.4
No resultant force down the plane (so no acceleration) oe
B1
2.4
These marks can be scored if they do the calculation.

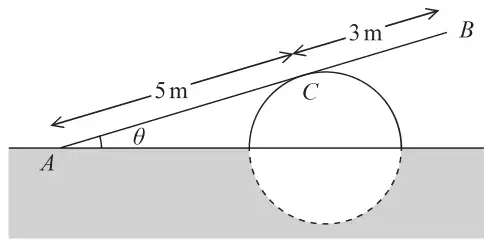

A ramp, \(AB\), of length 8 m and mass 20 kg, rests in equilibrium with the end \(A\) on rough horizontal ground.
The ramp rests on a smooth solid cylindrical drum which is partly under the ground. The drum is fixed with its axis at the same horizontal level as \(A\).
The point of contact between the ramp and the drum is \(C\), where \(AC = 5\) m, as shown in Figure 2.
The ramp is resting in a vertical plane which is perpendicular to the axis of the drum, at an angle \(\theta\) to the horizontal, where \(\tan\theta = \dfrac{7}{24}\)
The ramp is modelled as a uniform rod.
(a) Explain why the reaction from the drum on the ramp at point \(C\) acts in a direction which is perpendicular to the ramp. (1)
(b) Find the magnitude of the resultant force acting on the ramp at \(A\). (9)
The ramp is still in equilibrium in the position shown in Figure 2 but the ramp is not now modelled as being uniform.
Given that the centre of mass of the ramp is assumed to be closer to \(A\) than to \(B\),
(c) state how this would affect the magnitude of the normal reaction between the ramp and the drum at \(C\). (1)
Mark scheme (a)
Scheme
Marks
AO
Drum smooth, or no friction, (therefore reaction is perpendicular to the ramp)
B1
2.4
(1)
Notes
B1: Ignore any extra incorrect comments.
Mark scheme (b)
Scheme
Marks
AO

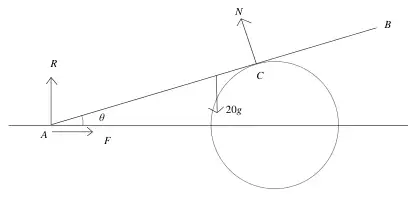

N.B. In (b), for a moments equation, if there is an extra \(\sin\theta\) or \(\cos\theta\) on a length, give M0 for the equation e.g. M(\(A\)): \(20g \times 4\cos\theta = 5N\sin\theta\) would be given M0A0
(The values of the 3 unknowns are: \(N = 150.528\); \(F = 42.14784\); \(R = 51.49312\))
Solve their 3 equations for \(F\) and \(R\) OR \(X\) and \(Y\) OR \(H\) and \(S\)
M1
1.1b
\(|\text{Force}| = \sqrt{R^2 + F^2}\) Main scheme OR \(= \sqrt{X^2 + Y^2}\) Alternative 1 OR \(= \sqrt{(H^2 + S^2 - 2HS\cos(90^\circ - \theta))}\) Alternative 2
M1
3.1b
Magnitude = 67 or 66.5 (N)
A1
2.2a
(9)
Notes
Generally 3 independent equations required so at least one moments equation.: M1A1M1A1M1A1. More than 3 equations, give marks for the best 3. For each: M1 All terms required. Must be dimensionally correct so if a length is missing from a moments equation it’s M0 Condone sin/cos confusion. A1 For a correct equation (trig ratios do not need to be substituted and allow e.g. cos(24/25) if they recover Enter marks on ePEN in order in which equations appear. N.B. If reaction at \(C\) is not perpendicular to the ramp, can only score marks for M(\(C\)) Allow use of \((\mu R)\) for \(F\)
M1: All terms required. Must be dimensionally correct. Condone sin/cos confusion.
A1: Correct unsimplified equation
M1: All terms required. Must be dimensionally correct. Condone sin/cos confusion.
A1: Correct unsimplified equation
M1: All terms required, dim correct, condone sin/cos confusion
A1: Correct unsimplified equation
N.B. They can find \(F\) and \(R\) using only TWO equations, the 1st and 7th in the list. Mark the better equation as M2A2 (-1 each error). Mark the second equation as M1A1
Alt 1
M1: All terms required. Must be dimensionally correct. Condone sin/cos confusion.
A1: Correct unsimplified equation
M1: All terms required. Must be dimensionally correct. Condone sin/cos confusion.
A1: Correct unsimplified equation
M1: All terms required. Must be dimensionally correct. Condone sin/cos confusion.
A1: Correct unsimplified equation
N.B. They can find \(X\) and \(Y\) using only TWO equations, the 1st and 7th in the list. Mark the better equation as M2A2 (-1 each error). Mark the second equation as M1A1
Alt 2
M1: All terms required. Must be dimensionally correct. Condone sin/cos confusion.
A1: Correct unsimplified equation
M1: All terms required. Must be dimensionally correct. Condone sin/cos confusion.
A1: Correct unsimplified equation
M1: All terms required. Must be dimensionally correct.
A1: Correct unsimplified equation
N.B. They can find \(H\) and \(S\) using only TWO equations, the 1st and 7th in the list. Mark the better equation as M2A2 (-1 each error). Mark the second equation as M1A1
M1: Substitute for trig and solve for their two cpts. This is an independent mark but must use 3 equations (unless it’s the special case when 2 is sufficient)
M1: Use Pythagoras to find magnitude (this is an independent M mark but must have found a value for \(F\) (or \(X\)) and a value for \(R\) (or \(Y\))) OR a complete method to find magnitude e.g. cosine rule but must have found a value for \(H\) and a value for \(S\)
A1: Correct answer only
Alternative
Alternative 1: using cpts along ramp (\(X\)) and perp to ramp (\(Y\))

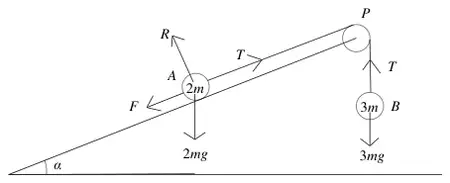

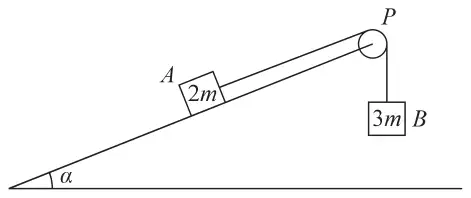

Two blocks, \(A\) and \(B\), of masses \(2m\) and \(3m\) respectively, are attached to the ends of a light string.
Initially \(A\) is held at rest on a fixed rough plane.
The plane is inclined at angle \(\alpha\) to the horizontal ground, where \(\tan\alpha = \dfrac{5}{12}\)
The string passes over a small smooth pulley, \(P\), fixed at the top of the plane.
The part of the string from \(A\) to \(P\) is parallel to a line of greatest slope of the plane. Block \(B\) hangs freely below \(P\), as shown in Figure 1.
The coefficient of friction between \(A\) and the plane is \(\dfrac{2}{3}\)
The blocks are released from rest with the string taut and \(A\) moves up the plane.
The tension in the string immediately after the blocks are released is \(T\).
The blocks are modelled as particles and the string is modelled as being inextensible.
(a) Show that \(T = \dfrac{12mg}{5}\) (8)
After \(B\) reaches the ground, \(A\) continues to move up the plane until it comes to rest before reaching \(P\).
(b) Determine whether \(A\) will remain at rest, carefully justifying your answer. (2)
(c) Suggest two refinements to the model that would make it more realistic. (2)
Mark scheme (a)
Scheme
Marks
AO
\(R = 2mg\cos\alpha\)
B1
3.4
\(F = \dfrac{2}{3}R\)
B1
1.2
Equation of motion for \(A\):
M1
3.3
\(T - F - 2mg\sin\alpha = 2ma\)
A1
1.1b
Equation of motion for \(B\):
M1
3.3
\(3mg - T = 3ma\)
A1
1.1b
Complete strategy to find an equation in \(T\), \(m\) and \(g\) only.
M1
3.1b
\(T = \dfrac{12mg}{5}\) *
A1*
2.2a
(8)
Notes
B1: Normal reaction between \(A\) and the plane seen or implied, \(\cos\alpha\) does not need to be substituted.
B1: \(F = \dfrac{2}{3}R\) seen or implied anywhere, including part (b)
M1: Form an equation of motion for \(A\). Must include all relevant terms. Must be the correct mass but condone consistent missing \(m\)’s. Condone sign errors and sin/cos confusion
A1: Correct unsimplified equation (\(F\) does not need to be substituted). Allow consistent use of \((-a)\) N.B. If \(T - 2mg = 2ma\) is seen with no working, M0A0 unless both B1 marks have been scored.
M1: Form an equation of motion for \(B\). Must be the correct mass on RHS but condone consistent missing \(m\)’s. Condone sign errors and sin/cos confusion.
A1: Correct unsimplified equation (\(F\) does not need to be substituted). Allow consistent use of \((-a)\)
N.B. Allow the ‘whole system’ equation to replace the equation for \(A\) or \(B\). \(3mg - F - 2mg\sin\alpha = 5ma\) Must be the correct mass on RHS but condone consistent missing \(m\)’s. Condone sign errors and sin/cos confusion.
M1: Complete method to give an equation in \(T\), \(m\) and \(g\) only. N.B. Allow \(\theta\) in the equation if they have defined what \(\theta\) is: e.g. \(\theta = \tan^{-1}\left(\dfrac{5}{12}\right)\) This is an independent mark but they must have two simultaneous equations in \(T\) and \(a\) unless one of the equations is the whole system equation in which case one equation will be in \(T\) and \(a\) and the other equation will be in \(a\) only.
A1*: Obtain the given answer from correct working using EXACT trig ratios. (not available if using a decimal angle)
M1: Comparison of their \(F_{\max}\) \(\left(\dfrac{2}{3}R\right)\) and their component of weight down the slope, must be comparing numerical values. oe e.g. if they consider the difference N.B. Allow comparison of \(\mu\) and \(\tan\alpha\) with numerical values
A1: Correctly justified conclusion and no errors seen N.B. If they equate their difference to an ‘\(ma\)’ term then A0
Mark scheme (c)
Scheme
Marks
AO
Extensible string
Weight of string
Friction at pulley e.g. rough pulley
Allow for the dimensions of the blocks e.g. “Do not model blocks as particles”; “(include) air resistance”; “include rotational effects of forces on blocks i.e. spin”
B1 B1
3.5c 3.5c
(2)
(12 marks)
Notes
B1 B1: Deduct 1 mark for each extra (more than 2) incorrect answer up to a maximum of 2 incorrect answers. Ignore extra correct answers. e.g. two correct, one incorrect B1 B0 one correct, one incorrect B1 B0 one correct, two incorrect B0 B0 Ignore incorrect reasons or consequences. Ignore any mention of wind or a general reference to friction.
A plank, \(AB\), of mass \(M\) and length \(2a\), rests with its end \(A\) against a rough vertical wall. The plank is held in a horizontal position by a rope. One end of the rope is attached to the plank at \(B\) and the other end is attached to the wall at the point \(C\), which is vertically above \(A\).
A small block of mass \(3M\) is placed on the plank at the point \(P\), where \(AP = x\). The plank is in equilibrium in a vertical plane which is perpendicular to the wall.
The angle between the rope and the plank is \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\), as shown in Figure 3.
The plank is modelled as a uniform rod, the block is modelled as a particle and the rope is modelled as a light inextensible string.
(a) Using the model, show that the tension in the rope is \(\dfrac{5Mg(3x + a)}{6a}\) (3)
The magnitude of the horizontal component of the force exerted on the plank at \(A\) by the wall is \(2Mg\).
(b) Find \(x\) in terms of \(a\). (2)
The force exerted on the plank at \(A\) by the wall acts in a direction which makes an angle \(\beta\) with the horizontal.
(c) Find the value of \(\tan\beta\) (5)
The rope will break if the tension in it exceeds \(5Mg\).
(d) Explain how this will restrict the possible positions of \(P\). You must justify your answer carefully. (3)
Mark scheme (a)
Scheme
Marks
AO
Moments about \(A\) (or any other complete method)
M1: Using M(\(A\)), with usual rules, or any other complete method to obtain an equation in \(a\), \(M\), \(x\) and \(T\) only.
A1: Correct equation
A1*: Correct PRINTED ANSWER, correctly obtained, need to see \(\sin\alpha = \dfrac{3}{5}\) used.
Mark scheme (b)
Scheme
Marks
AO
\(\dfrac{5Mg(3x + a)}{6a}\cos\alpha = 2Mg\) OR \(2Mg.2a\tan\alpha = Mga + 3Mgx\)
M1
3.1b
\(x = \dfrac{2a}{3}\)
A1
2.2a
(2)
Notes
M1: Using an appropriate strategy to find \(x\). e.g. Resolve horizontally with usual rules applying OR Moments about \(C\). Must use the given expression for \(T\).
\(Y = \dfrac{5Mg}{2}\) N.B. May use \(R\sin\beta\) for \(Y\) and/or \(R\cos\beta\) for \(X\) throughout
A1
1.1b
\(\tan\beta = \dfrac{Y}{X}\) or \(\dfrac{R\sin\beta}{R\cos\beta} = \dfrac{\frac{5Mg}{2}}{2Mg}\)
M1
3.4
\(= \dfrac{5}{4}\)
A1
2.2a
(5)
Notes
M1: Using a complete method to find \(Y\) (or \(R\sin\beta\)) e.g. resolve vertically or Moments about \(B\), with usual rules
A1 ft: Correct equation with their \(x\) substituted in \(T\) expression or using \(T = \dfrac{2Mg}{\cos\alpha}\)
A1: \(Y\) (or \(R\sin\beta\)) \(= \dfrac{5Mg}{2}\) or \(2.5Mg\) or \(2.50Mg\)
M1: For finding an equation in \(\tan\beta\) only using \(\tan\beta = \dfrac{Y}{X}\) or \(\tan\beta = \dfrac{X}{Y}\) This is independent but must have found a \(Y\).
A1: Accept \(\dfrac{-5}{4}\) if it follows from their working.
Mark scheme (d)
Scheme
Marks
AO
\(\dfrac{5Mg(3x + a)}{6a} \leqslant 5Mg\) and solve for \(x\)
M1
2.4
\(x \leqslant \dfrac{5a}{3}\)
A1
2.4
For rope not to break, block can’t be more than \(\dfrac{5a}{3}\) from \(A\) oe Or just: \(x \leqslant \dfrac{5a}{3}\), if no incorrect statement seen. N.B. If the correct inequality is not found, their comment must mention ‘distance from \(A\)’.
B1 A1
2.4
(3)
(13 marks)
Notes
M1: Allow \(T = 5Mg\) or \(T \lt 5Mg\) and solves for \(x\), showing all necessary steps (M0 for \(T \gt 5Mg\))
A1: Allow \(x = \dfrac{5a}{3}\) or \(x \lt \dfrac{5a}{3}\). Accept \(1.7a\) or better.
B1:Treat as A1. For any appropriate equivalent fully correct comment or statement. E.g. maximum value of \(x\) is \(\dfrac{5a}{3}\)

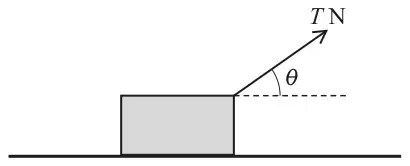

A wooden crate of mass 20 kg is pulled in a straight line along a rough horizontal floor using a handle attached to the crate.
The handle is inclined at an angle \(\alpha\) to the floor, as shown in Figure 1, where \(\tan\alpha = \dfrac{3}{4}\)
The tension in the handle is 40 N. The coefficient of friction between the crate and the floor is 0.14 The crate is modelled as a particle and the handle is modelled as a light rod.
Using the model,
(a) find the acceleration of the crate. (6)
The crate is now pushed along the same floor using the handle. The handle is again inclined at the same angle \(\alpha\) to the floor, and the thrust in the handle is 40 N as shown in Figure 2 below.
Figure 2
(b) Explain briefly why the acceleration of the crate would now be less than the acceleration of the crate found in part (a). (2)
Mark scheme (a)
Scheme
Marks
AO
Resolve vertically
M1
3.1b
\(R + 40\sin\alpha = 20g\)
A1
1.1b
Resolve horizontally
M1
3.1b
\(40\cos\alpha - F = 20a\)
A1
1.1b
\(F = 0.14R\)
B1
1.2
\(a = 0.396\) or \(0.40\ (\text{m s}^{-2})\)
A1
2.2a
(6)
Notes
M1: Resolve vertically with usual rules applying
A1: Correct equation. Neither \(g\) nor \(\sin\alpha\) need to be substituted
M1: Apply \(F = ma\) horizontally, with usual rules
A1: Neither \(F\) nor \(\cos\alpha\) need to be substituted
B1: \(F = 0.14R\) seen (e.g. on a diagram)
A1: Either answer
Mark scheme (b)
Scheme
Marks
AO
Pushing will increase \(R\) which will increase available \(F\)
B1
2.4
Increasing \(F\) will decrease \(a\) * GIVEN ANSWER
B1*
2.4
(2)
(8 marks)
Notes
B1: Pushing increases \(R\) which produces an increase in available (limiting) friction
B1: \(F\) increase produces an \(a\) decrease (need to see this)
N.B. It is possible to score B0 B1 but for the B1, some “explanation” is needed to say why friction is increased e.g. by pushing into the ground.
A particle \(P\) of mass \(4m\) is held at rest at the point \(X\) on the surface of a rough inclined plane which is fixed to horizontal ground. The point \(X\) is a distance \(h\) from the bottom of the inclined plane. The plane is inclined to the horizontal at an angle \(\alpha\) where \(\tan\alpha = \dfrac{3}{4}\). The coefficient of friction between \(P\) and the plane is \(\dfrac{1}{4}\). The particle \(P\) is attached to one end of a light inextensible string. The string passes over a small smooth pulley which is fixed at the top of the plane. The other end of the string is attached to a particle \(Q\) of mass \(m\) which hangs freely at a distance \(d\), where \(d > h\), below the pulley, as shown in Figure 4.
The string lies in a vertical plane through a line of greatest slope of the inclined plane. The system is released from rest with the string taut and \(P\) moves down the plane.
For the motion of the particles before \(P\) hits the ground,
(a) state which of the information given above implies that the magnitudes of the accelerations of the two particles are the same, (1)
(b) write down an equation of motion for each particle, (5)
(c) find the acceleration of each particle. (5)
When \(P\) hits the ground, it immediately comes to rest. Given that \(Q\) comes to instantaneous rest before reaching the pulley,
(d) show that \(d > \dfrac{28h}{25}\). (5)
Mark scheme (a)
Scheme
Marks
Inextensible string
B1
(1)
Notes
B1 for inextensible (and taut) string; B0 if any extras given or if an incorrect consequence of the inextensiblity of the string is given.
Mark scheme (b)
Scheme
Marks
\(4mg\sin\alpha - T - F = 4ma\)
M1 A2
\(T - mg = ma\)
M1 A1
(5)
Notes
MARK PARTS (b) and (c) together
N.B. Omission of \(m\) is a Method error i.e. M0 for that equation
First M1 for equation of motion for \(P\) with usual rules (omission of 4 on RHS is M0)
First A1 and second A1 for a correct equation, A1A0 if one error
Second M1 for equation of motion for \(Q\) with usual rules
Third A1 for a correct equation
Use of e.g cos(4/5) instead of \(\cos\alpha\) is an A error unless they recover correctly.
N.B. Allow consistent use of \(-a\)
Mark scheme (c)
Scheme
Marks
\(F = \tfrac{1}{4}R\)
B1
\(R = 4mg\cos\alpha\)
B1
\(\cos\alpha = \tfrac{4}{5}\) or \(\sin\alpha = \tfrac{3}{5}\)
B1
Eliminating \(R\), \(F\) and \(T\)
M1
\(a = \tfrac{3}{25}g = 1.2\) or 1.18 (m s\(^{-2}\))
A1
(5)
Notes
MARK PARTS (b) and (c) together
First B1 for \(F = \tfrac{1}{4}R\) seen or implied
Second B1 for \(R = 4mg\cos\alpha\) seen or implied
Third B1 for \(\cos\alpha = \tfrac{4}{5}\) or \(\sin\alpha = \tfrac{3}{5}\) seen or implied or an appropriate correct angle is used to give a correct trig ratio
First M1 for eliminating \(R\), \(F\) and \(T\) and finding an \(a\) value
First A1 \(a = \tfrac{3}{25}g = 1.2\) or 1.18 (m s\(^{-2}\)) (must be positive)

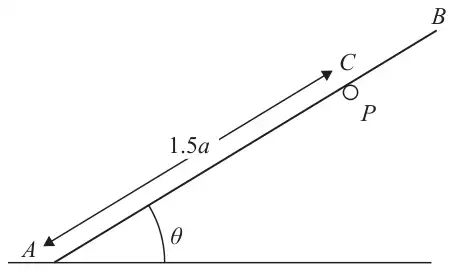

A uniform rod \(AB\), of mass \(m\) and length \(2a\), rests with its end \(A\) on rough horizontal ground. The rod is held in limiting equilibrium at an angle \(\theta\) to the horizontal by a light string attached to the rod at \(B\), as shown in Figure 3. The string is perpendicular to the rod and lies in the same vertical plane as the rod.
The coefficient of friction between the ground and the rod is \(\mu\).
Show that \(\mu = \dfrac{\cos\theta\sin\theta}{2 - \cos^2\theta}\) (10)
Form equation in \(\mu\) and \(\theta\): \(R = mg - \dfrac{1}{2}mg\cos\theta\cos\theta\) and \(\ \mu R = \dfrac{1}{2}mg\cos\theta\sin\theta\ \ \Rightarrow\)
NB for alternatives using moments and resolving: e.g. Resolve \(\leftrightarrow\) : \(\ Fr = T\sin\theta\) \(M\)(centre): \(\ aT = a\cos\theta R - a\sin\theta Fr\)
A1 Correct unsimplified
A2 -1 each error
A1 Obtain given answer from correct working
First equation M1A1. Sufficient equations to solve M2A2
A particle of mass 2 kg lies on a rough plane. The plane is inclined to the horizontal at 30\(^\circ\). The coefficient of friction between the particle and the plane is \(\dfrac{1}{4}\). The particle is held in equilibrium by a force of magnitude \(P\) newtons. The force makes an angle of 20\(^\circ\) with the horizontal and acts in a vertical plane containing a line of greatest slope of the plane, as shown in Figure 1. Find the least possible value of \(P\). (10)
Mark scheme
Scheme
Marks
(Parallel to plane): \(\ P\cos 50 + F = 2g\cos 60\)
M1 A2
(Perp to plane): \(\ R - P\sin 50 = 2g\cos 30\)
M1 A2
\(F = \dfrac{1}{4}R\)
B1
Attempt to eliminate \(F\) and \(R\) to give an equation in \(P\) only
M1
Solve for \(P\)
DM1
\(P = 6.7\) (2 SF) or 6.66 (3SF)
A1
(10 marks)
Notes
First M1 for resolving parallel to the plane with usual rules.
\(2g\) term must be using 30\(^\circ\) or 60\(^\circ\) angle but allow sin/cos confusion.
First and second A1’s for a correct equation. A1A0 if one error.
Second M1 for resolving perpendicular to the plane with usual rules.
\(2g\) term must be using 30\(^\circ\) or 60\(^\circ\) angle but allow sin/cos confusion.
Third and fourth A1’s for a correct equation. A1A0 if one error.
B1 for \(F = \frac{1}{4}R\) seen or implied
Third M1, independent but must have two 3 (or 4) term equations, for attempt to eliminate \(F\) and \(R\) to give an equation in \(P\) only.
Fourth DM1, dependent on third M1, for solving for \(P\).
First M1 for resolving horizontally with usual rules.
\(R\) term must be using 30\(^\circ\) or 60\(^\circ\) angle and \(F\) term must be using 30\(^\circ\) or 60\(^\circ\) angle but allow sin/cos confusion.
First and second A1’s for a correct equation. A1A0 if one error.
Second M1 for resolving vertically with usual rules.
\(R\) term must be using 30\(^\circ\) or 60\(^\circ\) angle and \(F\) term must be using 30\(^\circ\) or 60\(^\circ\) angle but allow sin/cos confusion.
Third and fourth A1’s for a correct equation. A1A0 if one error.
A uniform rod \(AB\), of mass 5 kg and length 8 m, has its end \(B\) resting on rough horizontal ground. The rod is held in limiting equilibrium at an angle \(\alpha\) to the horizontal, where \(\tan\alpha = \dfrac{3}{4}\), by a rope attached to the rod at \(C\). The distance \(AC = 1\) m. The rope is in the same vertical plane as the rod. The angle between the rope and the rod is \(\beta\) and the tension in the rope is \(T\) newtons, as shown in Figure 3. The coefficient of friction between the rod and the ground is \(\dfrac{2}{3}\). The vertical component of the force exerted on the rod at \(B\) by the ground is \(R\) newtons.
B1 Use of \(F = \mu R\). Could be on diagram. Allow in (b) if not seen before
M1 Moments about \(C\) or alternative complete method to find equation in \(F\) and \(R\) or \(R\) only. Dimensionally correct and all terms needed. Condone sin/cos confusion and sign error(s).
A1 At most one error
A1 Correct unsimplified equation
dM1 Substitute for \(F\) and trig and solve for \(R\). Dependent on previous M1
A particle \(P\) of mass 5 kg is held at rest in equilibrium on a rough inclined plane by a horizontal force of magnitude 10 N. The plane is inclined to the horizontal at an angle \(\alpha\) where \(\tan\alpha = \dfrac{3}{4}\), as shown in Figure 1. The line of action of the force lies in the vertical plane containing \(P\) and a line of greatest slope of the plane. The coefficient of friction between \(P\) and the plane is \(\mu\). Given that \(P\) is on the point of sliding down the plane, find the value of \(\mu\). (9)
Mark scheme
Scheme
Marks
\(F = \mu R\)
B1
\((\nwarrow),\ \ R = 10\sin\alpha + 5g\cos\alpha\ \ (45.2)\)
M1 A2
\((\nearrow),\ \ F = 5g\sin\alpha - 10\cos\alpha\ \ (21.4)\)
A particle \(P\) of mass 2 kg is held at rest in equilibrium on a rough plane by a constant force of magnitude 40 N. The direction of the force is inclined to the plane at an angle of 30\(^\circ\). The plane is inclined to the horizontal at an angle of 20\(^\circ\), as shown in Figure 2. The line of action of the force lies in the vertical plane containing \(P\) and a line of greatest slope of the plane. The coefficient of friction between \(P\) and the plane is \(\mu\)
Given that \(P\) is on the point of sliding up the plane, find the value of \(\mu\) (10)
First M1 for resolving perpendicular to the plane with usual rules (must be using \(2(g)\) with 20\(^\circ\) or 70\(^\circ\) and 40 with 30\(^\circ\) or 60\(^\circ\))
First and second A1’s for a correct equation. A1A0 if one error
Second M1 for resolving parallel to the plane with usual rules (must be using \(2(g)\) with 20\(^\circ\) or 70\(^\circ\) and 40 with 30\(^\circ\) or 60\(^\circ\))
Third and fourth A1’s for a correct equation. A1A0 if one error
Third M1 independent for eliminating \(R\) to produce an equation in \(\mu\) only. Does not need to be \(\mu = \ldots\).
Fourth M1 independent for solving for \(\mu\)
Fifth A1 for 0.727 or 0.73
N.B. They may choose to resolve in 2 other directions e.g. horizontally and vertically.
N.B. If \(F\) is replaced by \(-F\) in the second equn, treat this as an error unless they subsequently explain that they have their \(F\) acting in the wrong direction, in which case they could score full marks for the question.
A non-uniform rod \(AB\), of mass 5 kg and length 4 m, rests with one end \(A\) on rough horizontal ground. The centre of mass of the rod is \(d\) metres from \(A\). The rod is held in limiting equilibrium at an angle \(\theta\) to the horizontal by a force \(\mathbf{P}\), which acts in a direction perpendicular to the rod at \(B\), as shown in Figure 2. The line of action of \(\mathbf{P}\) lies in the same vertical plane as the rod.
(a) Find, in terms of \(d\), \(g\) and \(\theta\),
(i) the magnitude of the vertical component of the force exerted on the rod by the ground,
(ii) the magnitude of the friction force acting on the rod at \(A\). (8)
Given that \(\tan\theta = \dfrac{5}{12}\) and that the coefficient of friction between the rod and the ground is \(\dfrac{1}{2}\),
(b) find the value of \(d\). (4)
Mark scheme (a)
Scheme
Marks
M\((A)\): \(\ d\cos\theta \times 5g = 4P\)
M1 A1
Resolving horizontally: \(\ P\sin\theta = F\)
B1
Resolving vertically: \(\ P\cos\theta + R = 5g\)
M1 A1 DM1
\(R = 5g - \dfrac{5gd\cos^2\theta}{4}\)
A1
\(F = \dfrac{5gd\cos\theta\sin\theta}{4}\)
A1
(8)
Notes
M1 Terms must be dimensionally correct. Condone trig confusion
M1 Requires all 3 terms. Condone trig confusion and sign errors
A1 Correct equation
DM1 Substitute for \(P\) to find \(R\) or \(F\). Dependent on both previous M marks
A1 One force correct. Accept equivalent forms e.g. \(R = \dfrac{20g - 5gd + 20g\tan^2\theta}{4\left(1 + \tan^2\theta\right)}\)
A1 Both forces correct. Accept equivalent forms e.g. \(F = \dfrac{5gd\tan\theta}{4\sec^2\theta}\)
Two particles \(P\) and \(Q\) have mass 4 kg and 0.5 kg respectively. The particles are attached to the ends of a light inextensible string. Particle \(P\) is held at rest on a fixed rough plane, which is inclined to the horizontal at an angle \(\alpha\) where \(\tan\alpha = \dfrac{4}{3}\). The coefficient of friction between \(P\) and the plane is 0.5. The string lies along the plane and passes over a small smooth light pulley which is fixed at the top of the plane. Particle \(Q\) hangs freely at rest vertically below the pulley. The string lies in the vertical plane which contains the pulley and a line of greatest slope of the inclined plane, as shown in Figure 4. Particle \(P\) is released from rest with the string taut and slides down the plane.
Given that \(Q\) has not hit the pulley, find
(a) the tension in the string during the motion, (11)
(b) the magnitude of the resultant force exerted by the string on the pulley. (4)
Mark scheme (a)
Scheme
Marks
\(R = 4g\cos\alpha\)
M1 A1
\(T - 0.5g = 0.5a\)
M1 A1
\(4g\sin\alpha - T - F = 4a\)
M1 A1
(OR: \(\ 4g\sin\alpha - F - 0.5g = 4.5a\))
\(F = \dfrac{1}{2}R;\quad \sin\alpha = \dfrac{4}{5}\) or \(\cos\alpha = \dfrac{3}{5}\)
B1; B1
Eliminating \(a\) or finding \(a\)
M1
Solving for \(T\) (must have had an \(a\))
M1
\(T = \dfrac{2g}{3}\) N or 6.5 N or 6.53 N
A1
(11)
Notes
First M1 for resolving perp to plane, with usual criteria
First A1 for a correct equation
Second M1 for resolving vertically, with usual criteria
Second A1 for a correct equation, in terms of \(a\) and \(T\)
Third M1 for resolving parallel to the slope, with usual criteria.
Third A1 for a correct equation, in terms of \(a\), \(F\) and \(T\)
N.B. Their \(a\) could be UP the slope in which case all 4 marks for the 2 equations are available with \(-a\) replacing \(a\), provided they are consistent. If they are inconsistent, then assume the vertical resolution is the correct one and mark accordingly.
Either of the above two equations can be replaced by the ‘whole system’ equation
N.B. If they use \(a = 0\), in any of the above 3 equations, and they use the equation to find T, they lose both marks for that equation, and they lose the two M marks for eliminating and solving.
First B1 for \(F = \tfrac{1}{2}R\) seen or implied;
Second B1 for \(\sin\alpha = 0.8\) or \(\cos\alpha = 0.6\) seen or implied. Allow close approximations if \(\alpha = 53.1^\circ\ldots\) used.
Fourth M1 independent for eliminating \(a\) or finding \(a\).
Fifth M1 for solving for \(T\) but must have had an \(a\).
\(= 12\) N or 12.4 N \(\left(\dfrac{4g}{\sqrt{10}}\right)\)
A1
(4)
(15 marks)
Notes
First M1 for a complete method for finding the magnitude of the resultant (N.B. M0 if same tensions used)
\(2T\cos\left(\dfrac{90^\circ - \alpha}{2}\right)\). Allow sin/cos confusion and allow \(2T\cos\left(\dfrac{\alpha}{2}\right)\)
OR \(\sqrt{(T + T\sin\alpha)^2 + (T\cos\alpha)^2}\). Allow sin/cos confusion and allow omission of \(\sqrt{\ }\) sign, but only if \(R^2 = \ldots\) is included
OR \(\sqrt{T^2 + T^2 - 2T^2\cos(90^\circ + \alpha)}\). Allow \((90^\circ - \alpha)\) but must be cos and allow omission of \(\sqrt{\ }\) sign, but only if \(R^2 = \ldots\) is included
OR \(\dfrac{T\sin(90 + \alpha)}{\sin\left(\dfrac{90^\circ - \alpha}{2}\right)}\). (Sine Rule) Allow sign errors in angles but must be sin
First A1 for correct expression in terms of \(T\) and \(\alpha\)
Second A1, ft on their \(T\), for a ‘correct’ single numerical answer
4. A ladder \(AB\), of weight \(W\) and length \(2l\), has one end \(A\) resting on rough horizontal ground. The other end \(B\) rests against a rough vertical wall. The coefficient of friction between the ladder and the wall is \(\dfrac{1}{3}\). The coefficient of friction between the ladder and the ground is \(\mu\). Friction is limiting at both \(A\) and \(B\). The ladder is at an angle \(\theta\) to the ground, where \(\tan\theta = \dfrac{5}{3}\). The ladder is modelled as a uniform rod which lies in a vertical plane perpendicular to the wall.
\(\dfrac{10}{3}N + \dfrac{2}{3}N = W\ \ \) or \(\ 2R = W + 2\mu R \times \dfrac{5}{3}\)
M1
\(\Rightarrow 4N = W \Rightarrow 4N - R = \dfrac{1}{3}N\)
DM1
\(\dfrac{11}{3}\mu R = R\)
DM1
\(\mu = \dfrac{3}{11}\ (\approx 0.273)\)
A1
(9)
Notes
M1 Allow without friction \(= \mu R\)
A1 With coefficient(s) of friction. Condone \(Wg\)
M1 All terms required but condone sign errors and sin/cos confusion. Terms must be resolved.
A2 -1 each error. Could be in terms of \(F\)s. -1 if see \(Wg\) in place of \(W\). Any Friction force used should be acting in the right direction. Mark the equation, not what they have called it.
M1 Use \(\tan\theta = \dfrac{5}{3}\) (substitute values for the trig ratios)
DM1 Equation in \(N\) and \(R\) (Eliminate one unknown) Dependent on the moments equation
DM1 Solve for \(\mu\). Dependent on the moments equation
A1 0.27 or better
NB: If \(\mu\) and \(\dfrac{1}{3}\) are used the wrong way round the candidate loses the first A1 and the final A1.
\(2lN\sin\theta + 2l\dfrac{N}{3}\cos\theta = 2l\cos\theta R - \mu R2l\sin\theta\)
DM1
Use of \(\tan\theta\): \(\ 2\mu \times \dfrac{5}{3} + \dfrac{2}{3}\mu = 2 - 2\mu \times \dfrac{5}{3}\)
M1
Solve for \(\mu\): \(\ \left(\dfrac{20}{3} + \dfrac{2}{3}\right)\mu = 2,\)
DM1
\(\mu = \dfrac{3}{11}\ (\approx 0.273)\)
A1
M1 Allow without friction \(= \mu R\)
A1 With coefficient(s) of friction
M1 Take moments about \(A\) or \(B\). All terms required but condone sign errors and sin/cos confusion. Terms must be resolved.
A2 -1 each error, Could be in terms of \(F\)s. -1 if \(Wg\) used. Mark the equation, not what they have called it. Any Friction force used should be acting in the right direction. For this method they need two moments equations – allows the marks for their best equation.
DM1 Use two moments equations to eliminate \(W\). Dependent on the moments equation
M1 Substitute for the trig ratios
DM1 Dependent on the moments equation
A1 0.27 or better
Alt 2
Resolving horizontally or vertically:
M1
\(\mu R = N\) or \(W = R + \dfrac{1}{3}N\)
A1
\(l\cos\theta \times R = l\cos\theta \times \dfrac{1}{3}N + l\sin\theta \times N + l\sin\theta \times \mu R\)
M1 A2
\(l\cos\theta \times R = l\cos\theta \times \dfrac{1}{3}\mu R + l\sin\theta \times \mu R + l\sin\theta \times \mu R\)
A1 With coefficient(s) of friction (condone \(Wg\))
M1 Moments about the centre of the rod. All terms required. Terms must be resolved. Condone sign errors and sin/cos confusion. Allow without friction \(= \dfrac{1}{3}N\). Any Friction force used should be acting in the right direction.
A2 -1 each error. Could be in terms of \(F\)s. -1 if \(Wg\) used.
DM1 Obtain an equation in \(\mu\) and \(\theta\) \(\left(\cos\theta = \cos\theta \times \dfrac{1}{3}\mu + \sin\theta \times \mu + \sin\theta \times \mu\right)\) Dependent on the moments equation
M1 Use of \(\tan\theta\) (substitute values for the trig ratios)
A particle of mass 2 kg is suspended from a horizontal ceiling by two light inextensible strings, \(PR\) and \(QR\). The particle hangs at \(R\) in equilibrium, with the strings in a vertical plane. The string \(PR\) is inclined at 55\(^\circ\) to the horizontal and the string \(QR\) is inclined at 35\(^\circ\) to the horizontal, as shown in Figure 1.
Find
(i) the tension in the string \(PR\),
(ii) the tension in the string \(QR\). (7)
Mark scheme
Scheme
Marks
\(T_P\cos 55 = T_Q\cos 35\)
M1 A1
\(T_P\sin 55 + T_Q\sin 35 = 2g\)
M1 A1
Eliminating \(T_P\) or \(T_Q\)
M1
\(T_P = 16\) N or 16.1 N; \(\ T_Q = 11\) N or 11.2 N
A1 A1
(7 marks)
Notes
First M1 for resolving horizontally with correct no. of terms and both \(T_P\) and \(T_Q\) terms resolved. (M0 if they assume \(T_P = T_Q\))
First A1 for a correct equation.
Second M1 for resolving vertically with correct no. of terms and both \(T_P\) and \(T_Q\) terms resolved. (M0 if they assume \(T_P = T_Q\))
Second A1 for a correct equation.
Third M1 (independent) for eliminating either \(T_P\) or \(T_Q\)
Third A1 for \(T_P = 16\) (N) or 16.1 (N)
Fourth A1 for \(T_Q = 11\) (N) or 11.2 (N)
N.B. If both are given to more than 3SF, deduct the third A1.
ALT 1
(Along \(RP\)) \(T_P = 2g\cos 35^\circ = 16\) N or 16.1 N
M1 M1 A1 A1
(Along \(RQ\)) \(T_Q = 2g\cos 55^\circ = 11\) N or 11.2 N
M1 A1 A1
Alternative 1 (resolving along each string)
First M2 for resolving along one of the strings (e.g. \(T_P = 2g\cos 35^\circ\))
First A1 for a correct equation (\(T_P = 2g\sin 35^\circ\) scores M2A0A0)
Third A1 for \(T_P = 16\) (N) or 16.1 (N)
Third M1 for resolving along the other string (e.g. \(T_Q = 2g\cos 55^\circ\))
Second A1 for a correct equation (\(T_Q = 2g\sin 55^\circ\) scores M1A0A0)
Fourth A1 for \(T_Q = 11\) (N) or 11.2 (N)
ALT 2
Alternative 2 (using a Triangle of Forces)
Both of the equations in Alternative 1 could come from using sohcahtoa or The Sine Rule on a triangle of forces, so mark in the same way.
Note that, in either case, once they have found either \(T_P\) or \(T_Q\), they could then use \(T_P = T_Q\tan 55^\circ\) or \(T_Q = T_P\tan 35^\circ\) to find the other one. (Note that both of these are equivalent to the horizontal resolution) or Pythagoras.
e.g. \(T_P = 2g\cos 35^\circ = 16\) (N) or 16.1 (N) M2 First A1, Third A1
\(T_Q = T_P\tan 35^\circ\) or \(\sqrt{(2g)^2 - (T_P)^2} = 11\) (N) or 11.2 (N) M1 Second A1, Fourth A1
N.B. If they are clearly using The Sine Rule but have say 35\(^\circ\), 55\(^\circ\) and 80\(^\circ\) in their triangle, all 3 M marks would be available and at most 1 A mark
A particle \(P\) of mass 2.7 kg lies on a rough plane inclined at 40\(^\circ\) to the horizontal. The particle is held in equilibrium by a force of magnitude 15 N acting at an angle of 50\(^\circ\) to the plane, as shown in Figure 4. The force acts in a vertical plane containing a line of greatest slope of the plane. The particle is in equilibrium and is on the point of sliding down the plane.
Find
(a) the magnitude of the normal reaction of the plane on \(P\), (4)
(b) the coefficient of friction between \(P\) and the plane. (5)
The force of magnitude 15 N is removed.
(c) Determine whether \(P\) moves, justifying your answer. (4)
Mark scheme (a)
Scheme
Marks
Perpendicular to the slope: \(R = 2.7g\cos 40 + 15\cos 40\)
M1A2
\(=\) 31.8 (N) or 32 (N)
A1
(4)
Notes
N.B. Only penalise over- or under-accuracy after using \(g = 9.8\), (or use of \(g = 9.81\)), once in whole question.
First M1 for resolving perpendicular to the slope, with correct no. of terms, and both the \(2.7g\) and 15 terms resolved.
First A2 for a correct equation; -1 each error.
Third A1 for 32 (N) or 31.8 (N)
Mark scheme (b)
Scheme
Marks
Parallel to the slope: \(F = 2.7g\sin 40 - 15\cos 50\) \((F = 7.366..)\)
A non-uniform rod, \(AB\), of mass \(m\) and length \(2l\), rests in equilibrium with one end \(A\) on a rough horizontal floor and the other end \(B\) against a rough vertical wall. The rod is in a vertical plane perpendicular to the wall and makes an angle of 60\(^\circ\) with the floor as shown in Figure 1. The coefficient of friction between the rod and the floor is \(\dfrac{1}{4}\) and the coefficient of friction between the rod and the wall is \(\dfrac{2}{3}\). The rod is on the point of slipping at both ends.
(a) Find the magnitude of the vertical component of the force exerted on the rod by the floor. (5)
The centre of mass of the rod is at \(G\).
(b) Find the distance \(AG\). (5)
Mark scheme (a)
Scheme
Marks
\(R = F\)
B1
\(S + Q = mg\)
B1
\(Q = \dfrac{2}{3}R,\ \ F = \dfrac{1}{4}S\)
B1
\(Q = \dfrac{2}{3}R = \dfrac{2}{3} \times \dfrac{1}{4}S,\ \ \ S + \dfrac{1}{6}S = mg,\ \ S = \dfrac{6}{7}mg\)
M1 A1
(5)
Notes
B1 Resolve horizontally
B1 Resolve vertically (requires Q acting upwards)
B1 Use both coefficients of friction
M1 Solve to find \(S\) in terms of \(m\) & \(g\). (Can be scored if Q is acting downwards)
NB As the rod is not uniform, the use of moments equations is not helpful in part (a).
A particle \(P\) of weight \(W\) newtons is attached to one end of a light inextensible string. The other end of the string is attached to a fixed point \(O\). A horizontal force of magnitude 5 N is applied to \(P\). The particle \(P\) is in equilibrium with the string taut and with \(OP\) making an angle of 25\(^\circ\) to the downward vertical, as shown in Figure 1.
Find
(a) the tension in the string, (3)
(b) the value of \(W\). (3)
Mark scheme (a)
Scheme
Marks
Resolving horizontally: \(5 = T\cos 65^\circ\)
M1A1
\(T =\) 12, 11.8, or better (N)
A1
(3)
Notes
First M1 for resolving horizontally with correct no. of terms and \(T\) term resolved.
First A1 for a correct equation in \(T\) only.
Second A1 for 12 (N) or 11.8 (N) or better.
N.B. The M1 is for a complete method to find the tension so where two resolution equations, neither horizontal, are used, the usual criteria for an M mark must be applied to both equations and the first A1 is for a correct equation in \(T\) only (i.e. \(W\) eliminated correctly)
A uniform rod \(AB\) of weight \(W\) has its end \(A\) freely hinged to a point on a fixed vertical wall. The rod is held in equilibrium, at angle \(\theta\) to the horizontal, by a force of magnitude \(P\). The force acts perpendicular to the rod at \(B\) and in the same vertical plane as the rod, as shown in Figure 3. The rod is in a vertical plane perpendicular to the wall. The magnitude of the vertical component of the force exerted on the rod by the wall at \(A\) is \(Y\).
(a) Show that \(Y = \dfrac{W}{2}(2 - \cos^2\theta)\). (6)
Given that \(\theta = 45^\circ\)
(b) find the magnitude of the force exerted on the rod by the wall at \(A\), giving your answer in terms of \(W\). (6)
Mark scheme (a)
Scheme
Marks
Resolving vertically: \(Y + P\cos\theta = W\)
M1 A1
Moments about \(A\): \(Wl\cos\theta = 2lP\)
M1 A1
\(P = \dfrac{W\cos\theta}{2} \Rightarrow Y = W - \dfrac{W\cos^2\theta}{2} = \dfrac{W}{2}\left(2 - \cos^2\theta\right)\ \ **\)
DM1 A1
(6)
Notes
M1 Needs all 3 terms. Condone sign errors and sin/cos confusion. Condone \(Wg\)
M1 Terms need to be of the correct structure, but condone \(l\) implied if not seen.
DM1 Substitute for \(P\) to obtain simplified \(Y\) Requires both preceding M marks
A1 Obtain given result correctly.
NB \(W + Y = P\cos\theta\) with correct conclusion is possible
They need to find two independent equations that do not include X. If they have equations involving X they need to attempt to eliminate X before they score any marks
Mark scheme (b)
Scheme
Marks
\(\theta = 45^\circ \Rightarrow Y = \dfrac{3W}{4}\)
M1 Resolving horizontally. Accept in terms of \(\theta\).
DM1 Express \(X\) in terms of \(W\). Accept in terms of \(\theta\). Requires preceding M mark.
A1 Correct unsimplified but substituted.
DM1 Use of Pythagoras with \(X\), \(Y\) in terms of \(W\) only. Dependent on the first M1
A1 Or equivalent (\(0.79W\) or better)
Alternative moments equations: about the centre \(Pl + X\sin\theta l = y\cos\theta l\)
About the point where the lines of action of P and X intersect \(Y \times \dfrac{2l}{\cos\theta} = W\left(\dfrac{2l}{\cos\theta} - l\cos\theta\right)\)
Two forces \(\mathbf{P}\) and \(\mathbf{Q}\) act on a particle at \(O\). The angle between the lines of action of \(\mathbf{P}\) and \(\mathbf{Q}\) is 120\(^\circ\) as shown in Figure 4. The force \(\mathbf{P}\) has magnitude 20 N and the force \(\mathbf{Q}\) has magnitude \(X\) newtons. The resultant of \(\mathbf{P}\) and \(\mathbf{Q}\) is the force \(\mathbf{R}\).
Given that the magnitude of \(\mathbf{R}\) is \(3X\) newtons, find, giving your answers to 3 significant figures
(a) the value of \(X\), (5)
(b) the magnitude of \((\mathbf{P} - \mathbf{Q})\). (4)
Mark scheme (a)
Scheme
Marks
Resolve and use Pythagoras \((X - 20\cos 60)^2 + (20\cos 30)^2 = (3X)^2\)
The question asks for both answers to 3 SF but only penalise under or over accuracy once in this question.
First M1 for a complete method to give an equation in \(X\) only i.e. producing two components and usually squaring and adding and equating to \((3X)^2\) (condone sign errors and consistent incorrect trig. in the components for this M mark BUT the \(x\)-component must be a difference)
First A1 for a correct unsimplified equation in \(X\) only
(These could be in terms of \(b\) where \(b = (120^\circ - a)\))
First A1 for two correct equations
Second A1 for \(a = 16.778..^\circ\) (or \(b = 103.221..^\circ\))
Second M1 for solving: \(X / \sin a = 20 / \sin(120^\circ - a)\) or \(3X / \sin 60^\circ = 20 / \sin(120^\circ - a)\) with their \(a\) or \(b\), to find \(X\)
First M1 for use of cosine rule unsimplified with cos120\(^\circ\) (M0 if they use 60\(^\circ\))
First A1 for a correct expression for \(|\mathbf{P} - \mathbf{Q}|\) in terms of \(X\) (does not need to be substituted)
Second M1, dependent on first M1, for substituting for their \(X\) and solving for \(|\mathbf{P} - \mathbf{Q}|\)
Second A1 for 23.5
Alternative using components:
First M1 for a complete method i.e. producing two components and squaring and adding (no square root needed) (condone sign errors and consistent incorrect trig. in the components for this M mark BUT the \(x\)-component must be a sum)
First A1 for a correct expression for \(|\mathbf{P} - \mathbf{Q}|\) (e.g, allow \((\pm(X + 20\cos 60^\circ))^2 + (\pm(20\cos 30^\circ))^2\)
Second M1, dependent on first M1, for substituting for their \(X\) and solving for \(|\mathbf{P} - \mathbf{Q}|\)
A rough plane is inclined at 40\(^\circ\) to the horizontal. Two points \(A\) and \(B\) are 3 metres apart and lie on a line of greatest slope of the inclined plane, with \(A\) above \(B\), as shown in Figure 2. A particle \(P\) of mass \(m\) kg is held at rest on the plane at \(A\). The coefficient of friction between \(P\) and the plane is \(\dfrac{1}{2}\). The particle is released.
(a) Find the acceleration of \(P\) down the plane. (5)
(b) Find the speed of \(P\) at \(B\). (2)
Mark scheme (a)
Scheme
Marks
\(R = mg\cos 40\)
B1
Use of \(F = \mu R\)
B1
\(mg\sin 40 - F = \pm ma\)
M1A1
\(acc = 2.55\) (m s\(^{-2}\)) or 2.5 (m s\(^{-2}\))
A1
(5)
Notes
(Deduct only 1 mark in whole question for not giving an answer to either 2 sf or 3 sf, following use of g = 9.8)
First B1 for \(R = mg\cos 40^\circ\)
Second B1 for \(F = \mu R\) seen or implied(can be on diagram)
M1 for resolving parallel to plane, correct no. of terms, \(mg\) resolved (\(F\) does not need to be substituted)
First A1 for a correct equation
Second A1 for 2.5 (ms\(^{-2}\)) or 2.55 (ms\(^{-2}\)) Must be positive.
S.C. If \(m\) is given a specific numerical value, can score max B1B1M1A0A0
Mark scheme (b)
Scheme
Marks
\(v^2 = u^2 + 2as = 2 \times a \times 3\) Speed at \(B\) is 3.9 (m s\(^{-1}\)) or 3.91(m s\(^{-1}\))
M1A1
(2)
(7 marks)
Notes
M1 is for a complete method for finding speed (usually \(v^2 = u^2 + 2as\))
A particle of weight \(W\) newtons is attached at \(C\) to two light inextensible strings \(AC\) and \(BC\). The other ends of the strings are attached to fixed points \(A\) and \(B\) on a horizontal ceiling. The particle hangs in equilibrium with \(AC\) and \(BC\) inclined to the horizontal at 30\(^\circ\) and 50\(^\circ\) respectively, as shown in Figure 1.
First M1 for resolving horizontally with correct no. of terms and both \(T_{AC}\) and ‘6’ terms resolved.
First A1 for a correct equation in \(T_{AC}\) only.
Second A1 for 4.5 (N), 4.45 (N) or better. (4.453363194)
N.B. The M1 is for a complete method to find the tension so where two resolution equations, neither horizontal, are used, the usual criteria for an M mark must be applied to both equations and the first A1 is for a correct equation in \(T_{AC}\) only (i.e. \(W\) eliminated correctly)
Alternatives:
Triangle of Forces : \(\dfrac{T_{AC}}{\sin 40^\circ} = \dfrac{6}{\sin 60^\circ}\) (same equation as → resolution) M1A1
A particle \(P\) of mass 0.6 kg slides with constant acceleration down a line of greatest slope of a rough plane, which is inclined at 25\(^\circ\) to the horizontal. The particle passes through two points \(A\) and \(B\), where \(AB = 10\) m, as shown in Figure 3. The speed of \(P\) at \(A\) is 2 m s\(^{-1}\). The particle \(P\) takes 3.5 s to move from \(A\) to \(B\). Find
(a) the speed of \(P\) at \(B\), (3)
(b) the acceleration of \(P\), (2)
(c) the coefficient of friction between \(P\) and the plane. (5)
4. A rough circular cylinder of radius \(4a\) is fixed to a rough horizontal plane with its axis horizontal. A uniform rod \(AB\), of weight \(W\) and length \(6a\sqrt{3}\), rests with its lower end \(A\) on the plane and a point \(C\) of the rod against the cylinder. The vertical plane through the rod is perpendicular to the axis of the cylinder. The rod is inclined at 60\(^\circ\) to the horizontal, as shown in Figure 1.
Figure 1
(a) Show that \(AC = 4a\sqrt{3}\) (2)
The coefficient of friction between the rod and the cylinder is \(\dfrac{\sqrt{3}}{3}\) and the coefficient of friction between the rod and the plane is \(\mu\). Given that friction is limiting at both \(A\) and \(C\),
(b) find the value of \(\mu\). (9)
Mark scheme (a)
Scheme
Marks
\(AC = 4a\tan 60^\circ = 4a\sqrt{3}\).
M1 A1
(2)
Notes
M1 A1 Or \(\dfrac{4a}{\tan 30}\) or \(\sqrt{(8a)^2 - (4a)^2}\)
Mark scheme (b)
3 independent equations required. Award M1A1 for each in the order seen. If more than 3 relevant equations seen, award the marks for the best 3.
A fixed rough plane is inclined at 30\(^\circ\) to the horizontal. A small smooth pulley \(P\) is fixed at the top of the plane. Two particles \(A\) and \(B\), of mass 2 kg and 4 kg respectively, are attached to the ends of a light inextensible string which passes over the pulley \(P\). The part of the string from \(A\) to \(P\) is parallel to a line of greatest slope of the plane and \(B\) hangs freely below \(P\), as shown in Figure 2. The coefficient of friction between \(A\) and the plane is \(\dfrac{1}{\sqrt{3}}\). Initially \(A\) is held at rest on the plane. The particles are released from rest with the string taut and \(A\) moves up the plane.
Find the tension in the string immediately after the particles are released. (9)
Mark scheme
Scheme
Marks
Equation of motion of \(B\): \(4g - T = 4a\)
M1A1
Equation of motion of \(A\): \(T - F - 2g\sin 30 = 2a\) OR: \(4g - F - 2g\sin 30 = 6a\)
M1A2
Resolve perpendicular to the plane at \(A\): \(R = 2g\cos 30\)
B1
Use of \(F = \mu R\) : \(F = \dfrac{1}{\sqrt{3}} \times 2g\cos 30 (= g)\)
A particle of weight 8 N is attached at \(C\) to the ends of two light inextensible strings \(AC\) and \(BC\). The other ends, \(A\) and \(B\), are attached to a fixed horizontal ceiling. The particle hangs at rest in equilibrium, with the strings in a vertical plane. The string \(AC\) is inclined at 35\(^\circ\) to the horizontal and the string \(BC\) is inclined at 25\(^\circ\) to the horizontal, as shown in Figure 1. Find
A uniform rod \(AB\), of mass \(m\) and length \(2a\), is freely hinged to a fixed point \(A\). A particle of mass \(m\) is attached to the rod at \(B\). The rod is held in equilibrium at an angle \(\theta\) to the horizontal by a force of magnitude \(F\) acting at the point \(C\) on the rod, where \(AC = b\), as shown in Figure 3. The force at \(C\) acts at right angles to \(AB\) and in the vertical plane containing \(AB\).
(a) Show that \(F = \dfrac{3amg\cos\theta}{b}\). (4)
(b) Find, in terms of \(a\), \(b\), \(g\), \(m\) and \(\theta\),
(i) the horizontal component of the force acting on the rod at \(A\),
(ii) the vertical component of the force acting on the rod at \(A\). (5)
Given that the force acting on the rod at \(A\) acts along the rod,
A box of mass 2 kg is held in equilibrium on a fixed rough inclined plane by a rope. The rope lies in a vertical plane containing a line of greatest slope of the inclined plane. The rope is inclined to the plane at an angle \(\alpha\), where \(\tan\alpha = \tfrac{3}{4}\), and the plane is at an angle of 30\(^\circ\) to the horizontal, as shown in Figure 1. The coefficient of friction between the box and the inclined plane is \(\tfrac{1}{3}\) and the box is on the point of slipping up the plane. By modelling the box as a particle and the rope as a light inextensible string, find the tension in the rope. (8)
First M1 for resolving parallel to the plane with correct no. of terms and both \(T\) and \(2g\) terms resolved.
First A1 for a correct equation. (use of \(\alpha\) instead of 30\(^\circ\) or 60\(^\circ\) or vice versa is an A error not M error; similarly if they use sin(3/5) or cos(4/5) when resolving, this can score M1A0)
Second M1 for resolving perpendicular to the plane with correct no. of terms and both \(T\) and \(2g\) terms resolved.
Second A1 for a correct equation (use of \(\alpha\) instead of 30\(^\circ\) or 60\(^\circ\) or vice versa is an A error not M error; similarly if they use sin(3/5) or cos(4/5) when resolving, this can score M1A0)
B1 for \(F = 1/3\ R\) seen or implied.
Third M1, dependent on first two M marks and appropriate angles used when resolving in both equations, for eliminating \(F\) and \(R\).
Fourth M1 dependent on third M1, for solving for \(T\)
Third A1 for 15(N) or 15.5 (N).
N.B. The first two M marks can be for two resolutions in any directions.
Use of \(\tan\alpha = 4/3\) leads to an answer of 17.83…and can score max 7/8.
Figure 5 shows two particles \(A\) and \(B\), of mass \(2m\) and \(4m\) respectively, connected by a light inextensible string. Initially \(A\) is held at rest on a rough inclined plane which is fixed to horizontal ground. The plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\). The coefficient of friction between \(A\) and the plane is \(\dfrac{1}{4}\). The string passes over a small smooth pulley \(P\) which is fixed at the top of the plane. The part of the string from \(A\) to \(P\) is parallel to a line of greatest slope of the plane and \(B\) hangs vertically below \(P\). The system is released from rest with the string taut, with \(A\) at the point \(X\) and with \(B\) at a height \(h\) above the ground.
For the motion until \(B\) hits the ground,
(a) give a reason why the magnitudes of the accelerations of the two particles are the same, (1)
(b) write down an equation of motion for each particle, (4)
(c) find the acceleration of each particle. (5)
Particle \(B\) does not rebound when it hits the ground and \(A\) continues moving up the plane towards \(P\). Given that \(A\) comes to rest at the point \(Y\), without reaching \(P\),
(d) find the distance \(XY\) in terms of \(h\). (6)
4. A lifeboat slides down a straight ramp inclined at an angle of 15\(^\circ\) to the horizontal. The lifeboat has mass 800 kg and the length of the ramp is 50 m. The lifeboat is released from rest at the top of the ramp and is moving with a speed of 12.6 m s\(^{-1}\) when it reaches the end of the ramp. By modelling the lifeboat as a particle and the ramp as a rough inclined plane, find the coefficient of friction between the lifeboat and the ramp. (9)
3. A particle \(P\) of mass 2 kg is attached to one end of a light string, the other end of which is attached to a fixed point \(O\). The particle is held in equilibrium, with \(OP\) at 30\(^\circ\) to the downward vertical, by a force of magnitude \(F\) newtons. The force acts in the same vertical plane as the string and acts at an angle of 30\(^\circ\) to the horizontal, as shown in Figure 3.
A ladder, of length 5 m and mass 18 kg, has one end \(A\) resting on rough horizontal ground and its other end \(B\) resting against a smooth vertical wall. The ladder lies in a vertical plane perpendicular to the wall and makes an angle \(\alpha\) with the horizontal ground, where \(\tan\alpha = \dfrac{4}{3}\), as shown in Figure 1. The coefficient of friction between the ladder and the ground is \(\mu\). A woman of mass 60 kg stands on the ladder at the point \(C\), where \(AC = 3\) m. The ladder is on the point of slipping. The ladder is modelled as a uniform rod and the woman as a particle.
A box of mass 5 kg lies on a rough plane inclined at 30\(^\circ\) to the horizontal. The box is held in equilibrium by a horizontal force of magnitude 20 N, as shown in Figure 2. The force acts in a vertical plane containing a line of greatest slope of the inclined plane.
The box is in equilibrium and on the point of moving down the plane. The box is modelled as a particle.
Find
(a) the magnitude of the normal reaction of the plane on the box, (4)
(b) the coefficient of friction between the box and the plane. (5)
First M1 for resolving perpendicular to plane with usual criteria
First A2 for a correct equation (A1A0 one error, A0A0 for two or more errors)
Second A1 for either 52 or 52.4
N.B. In part (a), the M1 is for a complete method, so they must have sufficient equations to be able to solve for \(R\). The A2 marks are then for all the equations.
B1 for use of \(F = \mu R\) (could just be on diagram)
First M1 (allow if \(F\) is used rather than \(\mu R\)) for resolving parallel to the plane with usual criteria
First A2 for a correct equation (A1A0 one error, A0A0 for two or more errors)
Second A1 for either 0.14 or 0.137
N.B. If they resolve vertically AND horizontally, there are max 6 marks available (M1A2, M1A2) for the TWO equations, but if they only have one equation, there are no marks available for that equation.
The marks for the horizontal resolution should be entered first on ePen.
A uniform rod \(AB\), of mass 5 kg and length 4 m, has its end \(A\) smoothly hinged at a fixed point. The rod is held in equilibrium at an angle of 25\(^\circ\) above the horizontal by a force of magnitude \(F\) newtons applied to its end \(B\). The force acts in the vertical plane containing the rod and in a direction which makes an angle of 40\(^\circ\) with the rod, as shown in Figure 1.
(a) Find the value of \(F\). (4)
(b) Find the magnitude and direction of the vertical component of the force acting on the rod at \(A\). (4)
Mark scheme (a)
Scheme
Marks
\(M(A),\ F.4\sin 40^\circ = 5g.2\cos 25^\circ\)
M1 A1 A1
\(F = 35\)
A1
(4)
Notes
M1 A complete method to find \(F\), e.g. take moments about \(A\). Condone sin/cos confusion. Requires correct ratio of lengths.
A1 Correct terms with at most one slip
A1 All correct
A1 35 or 34.5 (>3sf not acceptable due to use of 9.8, but only penalise once in a question)
Mark scheme (b)
Scheme
Marks
\(F\cos 75^\circ \pm Y = 5g\)
M1 A1
\(Y = 40\);
A1
UP
A1
(4)
(8 marks)
Notes
M1 Resolve vertically. Need all three terms but condone sign errors. Must be attempting to work with their 75\(^\circ\) or 15\(^\circ\).
A1 Correct equation (their \(F\))
A1 40 or 40.1 Apply ISW if the candidate goes on to find \(R\).
A1 cso (the Q does specifically ask for the direction, so this must be clearly stated)
OR1 (b)
\(4\text{m}\cos 25 \times Y = 5g \times 2\text{m}\cos 25 + F\cos 15 \times 4\text{m}\sin 25\) etc.
M1 A1
M1 A1 Taking moments about the point vertically below \(B\) and on the same horizontal level as \(A\). (Their \(F\))
OR2 (b)
\(R\cos\alpha = F\cos 40 + 5g\cos 65\)
\(R\sin\alpha + F\sin 40 = 5g\cos 25\)
\(R = 52.1,\ \alpha = 25.3^\circ\)
\(Y = R\sin(25 + \alpha)\) Etc.
M1A1
Resolve parallel & perpendicular to the rod
Solve for \(R\), \(\alpha\)
M1A1 Need a complete strategy to find \(Y\) for M1.
A particle \(P\) of mass 4 kg is moving up a fixed rough plane at a constant speed of 16 m s\(^{-1}\) under the action of a force of magnitude 36 N. The plane is inclined at 30\(^\circ\) to the horizontal. The force acts in the vertical plane containing the line of greatest slope of the plane through \(P\), and acts at 30\(^\circ\) to the inclined plane, as shown in Figure 2. The coefficient of friction between \(P\) and the plane is \(\mu\). Find
(a) the magnitude of the normal reaction between \(P\) and the plane, (4)
(b) the value of \(\mu\). (5)
The force of magnitude 36 N is removed.
(c) Find the distance that \(P\) travels between the instant when the force is removed and the instant when it comes to rest. (5)
A uniform rod \(AB\) has mass 4 kg and length 1.4 m. The end \(A\) is resting on rough horizontal ground. A light string \(BC\) has one end attached to \(B\) and the other end attached to a fixed point \(C\). The string is perpendicular to the rod and lies in the same vertical plane as the rod. The rod is in equilibrium, inclined at 20\(^\circ\) to the ground, as shown in Figure 2.
(a) Find the tension in the string. (4)
Given that the rod is about to slip,
(b) find the coefficient of friction between the rod and the ground. (7)

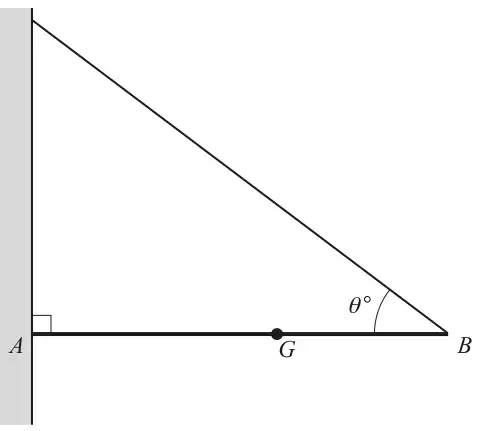

A uniform rod \(AB\), of mass \(3m\) and length \(4a\), is held in a horizontal position with the end \(A\) against a rough vertical wall. One end of a light inextensible string \(BD\) is attached to the rod at \(B\) and the other end of the string is attached to the wall at the point \(D\) vertically above \(A\), where \(AD = 3a\). A particle of mass \(3m\) is attached to the rod at \(C\), where \(AC = x\). The rod is in equilibrium in a vertical plane perpendicular to the wall as shown in Figure 3. The tension in the string is \(\dfrac{25}{4}mg\).
Show that
(a) \(x = 3a\), (5)
(b) the horizontal component of the force exerted by the wall on the rod has magnitude \(5mg\). (3)
The coefficient of friction between the wall and the rod is \(\mu\). Given that the rod is about to slip,
Two particles \(P\) and \(Q\) have masses 0.3 kg and \(m\) kg respectively. The particles are attached to the ends of a light inextensible string. The string passes over a small smooth pulley which is fixed at the top of a fixed rough plane. The plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\). The coefficient of friction between \(P\) and the plane is \(\dfrac{1}{2}\).
The string lies in a vertical plane through a line of greatest slope of the inclined plane. The particle \(P\) is held at rest on the inclined plane and the particle \(Q\) hangs freely below the pulley with the string taut, as shown in Figure 2.
The system is released from rest and \(Q\) accelerates vertically downwards at 1.4 m s\(^{-2}\). Find
(a) the magnitude of the normal reaction of the inclined plane on \(P\), (2)
(b) the value of \(m\). (8)
When the particles have been moving for 0.5 s, the string breaks. Assuming that \(P\) does not reach the pulley,
(c) find the further time that elapses until \(P\) comes to instantaneous rest. (6)
A particle of weight \(W\) newtons is held in equilibrium on a rough inclined plane by a horizontal force of magnitude 4 N. The force acts in a vertical plane containing a line of greatest slope of the inclined plane. The plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\), as shown in Figure 1.
The coefficient of friction between the particle and the plane is \(\dfrac{1}{2}\).
Given that the particle is on the point of sliding down the plane,
(i) show that the magnitude of the normal reaction between the particle and the plane is 20 N,
Two particles \(A\) and \(B\), of mass 7 kg and 3 kg respectively, are attached to the ends of a light inextensible string. Initially \(B\) is held at rest on a rough fixed plane inclined at angle \(\theta\) to the horizontal, where \(\tan\theta = \dfrac{5}{12}\). The part of the string from \(B\) to \(P\) is parallel to a line of greatest slope of the plane. The string passes over a small smooth pulley, \(P\), fixed at the top of the plane. The particle \(A\) hangs freely below \(P\), as shown in Figure 4. The coefficient of friction between \(B\) and the plane is \(\dfrac{2}{3}\). The particles are released from rest with the string taut and \(B\) moves up the plane.
(a) Find the magnitude of the acceleration of \(B\) immediately after release. (10)
(b) Find the speed of \(B\) when it has moved 1 m up the plane. (2)
When \(B\) has moved 1 m up the plane the string breaks. Given that in the subsequent motion \(B\) does not reach \(P\),
(c) find the time between the instants when the string breaks and when \(B\) comes to instantaneous rest. (4)
For B: parallel to plane \(T - F - 3g\sin\theta = 3a\)
M1 A1
perpendicular to plane \(R = 3g\cos\theta\)
M1 A1
\(F = \mu R = \tfrac{2}{3} \times 3g\cos\theta = 2g\cos\theta\)
M1
Eliminating \(T\), \(7g - F - 3g\sin\theta = 10a\)
DM1
Equation in \(g\) and \(a\): \(7g - 2g \times \dfrac{12}{13} - 3g\dfrac{5}{13} = 7g - \dfrac{39}{13}g = 4g = 10a\)
DM1
\(a = \dfrac{2g}{5}\) oe or 3.9 or 3.92
A1
(10)
Notes
(Corrected from the printed mark scheme: the friction line is printed as \(F = \mu R = 3g\cos\theta = 2g\cos\theta\), with the \(\tfrac{2}{3} \times\) missing.)
A uniform plank \(AB\), of weight 100 N and length 4 m, rests in equilibrium with the end \(A\) on rough horizontal ground. The plank rests on a smooth cylindrical drum. The drum is fixed to the ground and cannot move. The point of contact between the plank and the drum is \(C\), where \(AC = 3\) m, as shown in Figure 4. The plank is resting in a vertical plane which is perpendicular to the axis of the drum, at an angle \(\alpha\) to the horizontal, where \(\sin\alpha = \dfrac{1}{3}\). The coefficient of friction between the plank and the ground is \(\mu\). Modelling the plank as a rod, find the least possible value of \(\mu\). (10)
Mark scheme
Scheme
Marks
Taking moments about A:
\(3S = 100 \times 2 \times \cos\alpha\)
M1 A1
Resolving vertically:
\(R + S\cos\alpha = 100\)
M1 A1
Resolving horizontally:
\(S\sin\alpha = F\)
M1 A1
(Most alternative methods need 3 independent equations, each one worth M1A1. Can be done in 2 e.g. if they resolve horizontally and take moments about \(X\) then \(\ R \times 2 \times \cos\alpha = S \times (3 - 2 \times \cos^2\alpha)\ \) scores M2A2)
Substitute trig values to obtain correct values for F and R (exact or decimal equivalent).
DM1
\(\left(S = \dfrac{200\sqrt{8}}{9}\right),\ R = 100 - \dfrac{1600}{27} = \dfrac{1100}{27} \approx 40.74,\ \ F = \dfrac{200\sqrt{8}}{27} \approx 20.95\ldots\)
A particle of weight 120 N is placed on a fixed rough plane which is inclined at an angle \(\alpha\) to the horizontal, where \(\tan\alpha = \dfrac{3}{4}\).
The coefficient of friction between the particle and the plane is \(\dfrac{1}{2}\).
The particle is held at rest in equilibrium by a horizontal force of magnitude 30 N, which acts in the vertical plane containing the line of greatest slope of the plane through the particle, as shown in Figure 2.
(a) Show that the normal reaction between the particle and the plane has magnitude 114 N. (4)
Figure 3
The horizontal force is removed and replaced by a force of magnitude \(P\) newtons acting up the slope along the line of greatest slope of the plane through the particle, as shown in Figure 3. The particle remains in equilibrium.
(b) Find the greatest possible value of \(P\). (8)
(c) Find the magnitude and direction of the frictional force acting on the particle when \(P = 30\). (3)
Mark scheme (a)
Scheme
Marks
Resolving perpendicular to the plane:
\(S = 120\cos\alpha + 30\sin\alpha\)
M1 A1 A1
\(= 114\) *
A1
(4)
Mark scheme (b)
Scheme
Marks
Resolving perpendicular to the plane:
\(R = 120\cos\alpha\)
M1 A1
\(= 96\)
A1
\(F_{\max} = \tfrac{1}{2}R\)
M1
Resolving parallel to the plane:
In equilibrium: \(P_{\max} = F_{\max} + 120\sin\alpha\)
M1 A(2,1,0)
\(= 48 + 72 = 120\)
A1
(8)
Mark scheme (c)
Scheme
Marks
\(30 + F = 120\sin\alpha\) OR \(30 - F = 120\sin\alpha\)
A particle of mass 0.4 kg is held at rest on a fixed rough plane by a horizontal force of magnitude \(P\) newtons. The force acts in the vertical plane containing the line of greatest slope of the inclined plane which passes through the particle. The plane is inclined to the horizontal at an angle \(\alpha\), where \(\tan\alpha = \dfrac{3}{4}\), as shown in Figure 2.
The coefficient of friction between the particle and the plane is \(\dfrac{1}{3}\).
Given that the particle is on the point of sliding up the plane, find
(a) the magnitude of the normal reaction between the particle and the plane, (5)
A small box is pushed along a floor. The floor is modelled as a rough horizontal plane and the box is modelled as a particle. The coefficient of friction between the box and the floor is \(\dfrac{1}{2}\). The box is pushed by a force of magnitude 100 N which acts at an angle of 30\(^\circ\) with the floor, as shown in Figure 1.
Given that the box moves with constant speed, find the mass of the box. (7)
A uniform rod \(AB\), of mass 20 kg and length 4 m, rests with one end \(A\) on rough horizontal ground. The rod is held in limiting equilibrium at an angle \(\alpha\) to the horizontal, where \(\tan\alpha = \dfrac{3}{4}\), by a force acting at \(B\), as shown in Figure 2. The line of action of this force lies in the vertical plane which contains the rod. The coefficient of friction between the ground and the rod is 0.5. Find the magnitude of the normal reaction of the ground on the rod at \(A\). (7)
Mark scheme
Scheme
Marks
\(m(B):\ R \times 4\cos\alpha = F \times 4\sin\alpha + 20g \times 2\cos\alpha\)
5. A particle of mass 0.8 kg is held at rest on a rough plane. The plane is inclined at 30\(^\circ\) to the horizontal. The particle is released from rest and slides down a line of greatest slope of the plane. The particle moves 2.7 m during the first 3 seconds of its motion. Find
(a) the acceleration of the particle, (3)
(b) the coefficient of friction between the particle and the plane. (5)
The particle is now held on the same rough plane by a horizontal force of magnitude \(X\) newtons, acting in a plane containing a line of greatest slope of the plane, as shown in Figure 3. The particle is in equilibrium and on the point of moving up the plane.
A particle of mass \(m\) kg is attached at \(C\) to two light inextensible strings \(AC\) and \(BC\). The other ends of the strings are attached to fixed points \(A\) and \(B\) on a horizontal ceiling. The particle hangs in equilibrium with \(AC\) and \(BC\) inclined to the horizontal at 30\(^\circ\) and 60\(^\circ\) respectively, as shown in Figure 1.
A small box of mass 15 kg rests on a rough horizontal plane. The coefficient of friction between the box and the plane is 0.2. A force of magnitude \(P\) newtons is applied to the box at 50\(^\circ\) to the horizontal, as shown in Figure 1. The box is on the point of sliding along the plane.
Find the value of \(P\), giving your answer to 2 significant figures. (9)
Mark scheme
Scheme
Marks
\(F = P\cos 50^\circ\)
M1 A1
\(F = 0.2R\) seen or implied.
B1
\(P\sin 50^\circ + R = 15g\)
M1 A1 A1
Eliminating \(R\); Solving for \(P\); \(P = 37\) (2 SF)
A uniform rod \(AB\), of length 1.5 m and mass 3 kg, is smoothly hinged to a vertical wall at \(A\). The rod is held in equilibrium in a horizontal position by a light strut \(CD\) as shown in Figure 1. The rod and the strut lie in the same vertical plane, which is perpendicular to the wall. The end \(C\) of the strut is freely jointed to the wall at a point 0.5 m vertically below \(A\). The end \(D\) is freely joined to the rod so that \(AD\) is 0.5 m.
(a) Find the thrust in \(CD\). (4)
(b) Find the magnitude and direction of the force exerted on the rod \(AB\) at \(A\). (7)
at angle \(\tan^{-1}\dfrac{1}{3} = 18.4^\circ\) (0.322 radians) below the line of BA \(161.6^\circ\) (2.82 radians) below the line of AB (\(108.4^\circ\) or 1.89 radians to upward vertical)
4. A small brick of mass 0.5 kg is placed on a rough plane which is inclined to the horizontal at an angle \(\theta\), where \(\tan\theta = \tfrac{4}{3}\), and released from rest. The coefficient of friction between the brick and the plane is \(\tfrac{1}{3}\).
Find the acceleration of the brick. (9)
Mark scheme
Scheme
Marks
\(0.5g\sin\theta - F = 0.5a\)
M1 A1 A1
\(F = \tfrac{1}{3}R\) seen
B1
\(R = 0.5g\cos\theta\)
M1 A1
Use of \(\sin\theta = \tfrac{4}{5}\) or \(\cos\theta = \tfrac{3}{5}\) or decimal equiv or decimal angle e.g. \(53.1^\circ\) or \(53^\circ\)
B1
\(a = \dfrac{3g}{5}\) or 5.88 m s\(^{-2}\) or 5.9 m s\(^{-2}\)
A small package of mass 1.1 kg is held in equilibrium on a rough plane by a horizontal force. The plane is inclined at an angle \(\alpha\) to the horizontal, where \(\tan\alpha = \tfrac{3}{4}\). The force acts in a vertical plane containing a line of greatest slope of the plane and has magnitude \(P\) newtons, as shown in Figure 2.
The coefficient of friction between the package and the plane is 0.5 and the package is modelled as a particle. The package is in equilibrium and on the point of slipping down the plane.
(a) Draw, on Figure 2, all the forces acting on the package, showing their directions clearly. (2)
(b)
(i) Find the magnitude of the normal reaction between the package and the plane.
(ii) Find the value of \(P\). (11)
Mark scheme (a)
Scheme
Marks
B2 -1 e.e.o.o. (labels not needed)
(2)
Mark scheme (b)
Scheme
Marks
\(F = \tfrac{1}{2}R\)
B1
\((\uparrow),\ \ R\cos\alpha + F\sin\alpha = mg\)
M1 A2
\(R = \dfrac{1.1g}{\left(\cos\alpha + \tfrac{1}{2}\sin\alpha\right)} = 9.8\) N
M1 A1 (6)
\((\rightarrow),\ \ P + \tfrac{1}{2}R\cos\alpha = R\sin\alpha\)
Figure 1 shows a ladder \(AB\), of mass 25 kg and length 4 m, resting in equilibrium with one end \(A\) on rough horizontal ground and the other end \(B\) against a smooth vertical wall. The ladder is in a vertical plane perpendicular to the wall. The coefficient of friction between the ladder and the ground is \(\tfrac{11}{25}\). The ladder makes an angle \(\beta\) with the ground. When Reece, who has mass 75 kg, stands at the point \(C\) on the ladder, where \(AC = 2.8\) m, the ladder is on the point of slipping. The ladder is modelled as a uniform rod and Reece is modelled as a particle.
(a) Find the magnitude of the frictional force of the ground on the ladder. (3)
(b) Find, to the nearest degree, the value of \(\beta\). (6)
(c) State how you have used the modelling assumption that Reece is a particle. (1)
Mark scheme (a)
Scheme
Marks
R\((\uparrow)\): \(R = 25g + 75g\ (= 100g)\)
B1
\(F = \mu R \Rightarrow F = \dfrac{11}{25} \times 100g\)
A package of mass 4 kg lies on a rough plane inclined at 30\(^\circ\) to the horizontal. The package is held in equilibrium by a force of magnitude 45 N acting at an angle of 50\(^\circ\) to the plane, as shown in Figure 3. The force is acting in a vertical plane through a line of greatest slope of the plane. The package is in equilibrium on the point of moving up the plane. The package is modelled as a particle. Find
(a) the magnitude of the normal reaction of the plane on the package, (5)
(b) the coefficient of friction between the plane and the package. (6)
A plank rests in equilibrium against a fixed horizontal pole. The plank is modelled as a uniform rod \(AB\) and the pole as a smooth horizontal peg perpendicular to the vertical plane containing \(AB\). The rod has length \(3a\) and weight \(W\) and rests on the peg at \(C\), where \(AC = 2a\). The end \(A\) of the rod rests on rough horizontal ground and \(AB\) makes an angle \(\alpha\) with the ground, as shown in Figure 2.
(a) Show that the normal reaction on the rod at \(A\) is \(\dfrac{1}{4}(4 - 3\cos^2\alpha)W\). (6)
Given that the rod is in limiting equilibrium and that \(\cos\alpha = \dfrac{2}{3}\),
(b) find the coefficient of friction between the rod and the ground. (5)
Mark scheme (a)
Scheme
Marks
R\((\uparrow)\) \(R + P\cos\alpha = W\)
M1 A1
M\((A)\) \(P \times 2a = W \times 1.5a\cos\alpha\)
M1 A1
\(\left(P = \dfrac{3}{4}W\cos\alpha\right)\)
\(R = W - P\cos\alpha = W - \dfrac{3}{4}W\cos^2\alpha\)
DM1
\(= \dfrac{1}{4}(4 - 3\cos^2\alpha)W\) * cso
A1
(6)
Mark scheme (b)
Scheme
Marks
Using \(\cos\alpha = \dfrac{2}{3}\), \(R = \dfrac{2}{3}W\)
B1
R\((\rightarrow)\) \(\mu R = P\sin\alpha\)
M1 A1
Leading to \(\mu = \dfrac{3}{4}\sin\alpha\) \(\left(\sin\alpha = \sqrt{1 - \tfrac{4}{9}} = \tfrac{\sqrt{5}}{3}\right)\)
Two forces \(\mathbf{P}\) and \(\mathbf{Q}\) act on a particle at a point \(O\). The force \(\mathbf{P}\) has magnitude 15 N and the force \(\mathbf{Q}\) has magnitude \(X\) newtons. The angle between \(\mathbf{P}\) and \(\mathbf{Q}\) is 150\(^\circ\), as shown in Figure 1. The resultant of \(\mathbf{P}\) and \(\mathbf{Q}\) is \(\mathbf{R}\).
Given that the angle between \(\mathbf{R}\) and \(\mathbf{Q}\) is 50\(^\circ\), find
A ladder \(AB\), of mass \(m\) and length \(4a\), has one end \(A\) resting on rough horizontal ground. The other end \(B\) rests against a smooth vertical wall. A load of mass \(3m\) is fixed on the ladder at the point \(C\), where \(AC = a\). The ladder is modelled as a uniform rod in a vertical plane perpendicular to the wall and the load is modelled as a particle. The ladder rests in limiting equilibrium making an angle of 30\(^\circ\) with the wall, as shown in Figure 2.
Find the coefficient of friction between the ladder and the ground. (10)
A particle \(P\) of mass 6 kg lies on the surface of a smooth plane. The plane is inclined at an angle of 30\(^\circ\) to the horizontal. The particle is held in equilibrium by a force of magnitude 49 N, acting at an angle \(\theta\) to the plane, as shown in Figure 1. The force acts in a vertical plane through a line of greatest slope of the plane.
(a) Show that \(\cos\theta = \tfrac{3}{5}\). (3)
(b) Find the normal reaction between \(P\) and the plane. (4)
The direction of the force of magnitude 49 N is now changed. It is now applied horizontally to \(P\) so that \(P\) moves up the plane. The force again acts in a vertical plane through a line of greatest slope of the plane.
(c) Find the initial acceleration of \(P\). (4)
Mark scheme (a)
Scheme
Marks
R (// plane): \(49\cos\theta = 6g\sin 30\)
M1 A1
\(\Rightarrow\ \ \cos\theta = 3/5\) \(\ast\)
A1
(3)
Mark scheme (b)
Scheme
Marks
R (perp to plane): \(R = 6g\cos 30 + 49\sin\theta\)
M1 A1
\(R \approx 90.1\) or 90 N
DM1 A1
(4)
Mark scheme (c)
Scheme
Marks
R (// to plane): \(49\cos 30 - 6g\sin 30 = 6a\)
M1 A2,1,0
\(\Rightarrow\ \ a \approx 2.17\) or 2.2 m s\(^{-2}\)
A uniform beam \(AB\) of mass 2 kg is freely hinged at one end \(A\) to a vertical wall. The beam is held in equilibrium in a horizontal position by a rope which is attached to a point \(C\) on the beam, where \(AC = 0.14\) m. The rope is attached to the point \(D\) on the wall vertically above \(A\), where \(\angle ACD = 30^\circ\), as shown in Figure 3. The beam is modelled as a uniform rod and the rope as a light inextensible string. The tension in the rope is 63 N.
Find
(a) the length of \(AB\), (4)
(b) the magnitude of the resultant reaction of the hinge on the beam at \(A\). (5)
Mark scheme (a)
Scheme
Marks
M\((A)\) \(63\sin 30 \cdot 0.14 = 2g \cdot d\)
M1 A1 A1
Solve: \(d = 0.225\) m
Hence \(AB = 45\) cm
A1
(4)
Notes
M1 Take moments about A. 2 recognisable force \(\times\) distance terms involving 63 and \(2(g)\).
A1 63 N term correct
A1 \(2g\) term correct.
A1 \(AB = 0.45\)(m) or 45(cm). No more than 2sf due to use of \(g\).
(Corrected from the printed mark scheme: the moments equation is printed as \(63\sin 30 \cdot 14 = 2g \cdot d\).)
\(R = \sqrt{X^2 + Y^2} \approx 55.8\), 55.9 or 56 N
M1 A1
(5)
(9 marks)
Notes
B1 Horizontal component (Correct expression – no need to evaluate)
M1 Resolve vertically – 3 terms needed. Condone sign errors. Could have cos for sin. Alternatively, take moments about B: \(0.225 \times 2g = 0.31 \times 63\sin 30 + 0.45Y\) or C: \(0.14Y = 0.085 \times 2g\)
A1 Correct expression (not necessarily evaluated) – direction of Y does not matter.
M1 Correct use of Pythagoras
A1 55.8(N), 55.9(N) or 56 (N)
OR For X and Y expressed as \(F\cos\theta\) and \(F\sin\theta\).
M1 Square and add the two equations, or find a value for \(\tan\theta\), and substitute for \(\sin\theta\) or \(\cos\theta\)
A1 As above.
N.B. Part (b) can be done before part (a). In this case, with the extra information about the resultant force at A, part (a) can be solved by taking moments about any one of several points. M1 in (a) is for a complete method – they must be able to substitute values for all their forces and distances apart from the value they are trying to find.
A small ring of mass 0.25 kg is threaded on a fixed rough horizontal rod. The ring is pulled upwards by a light string which makes an angle 40\(^\circ\) with the horizontal, as shown in Figure 3. The string and the rod are in the same vertical plane. The tension in the string is 1.2 N and the coefficient of friction between the ring and the rod is \(\mu\). Given that the ring is in limiting equilibrium, find
(a) the normal reaction between the ring and the rod, (4)
(b) the value of \(\mu\). (6)
Mark scheme (a)
Scheme
Marks
\(\uparrow\ \ \pm R + 1.2\sin 40^\circ = 0.25g\)
M1 A1
Solving to \(R = 1.7\ \ (\text{N})\) accept 1.68
DM1 A1
(4)
Mark scheme (b)
Scheme
Marks
\(\rightarrow\ \ F = 1.2\cos 40^\circ\ \ (\approx 0.919)\)
A particle \(P\) is attached to one end of a light inextensible string. The other end of the string is attached to a fixed point \(O\). A horizontal force of magnitude 12 N is applied to \(P\). The particle \(P\) is in equilibrium with the string taut and \(OP\) making an angle of 20\(^\circ\) with the downward vertical, as shown in Figure 1.
A box of mass 30 kg is being pulled along rough horizontal ground at a constant speed using a rope. The rope makes an angle of 20\(^\circ\) with the ground, as shown in Figure 3. The coefficient of friction between the box and the ground is 0.4. The box is modelled as a particle and the rope as a light, inextensible string. The tension in the rope is \(P\) newtons.
(a) Find the value of \(P\). (8)
The tension in the rope is now increased to 150 N.
A horizontal uniform rod \(AB\) has mass \(m\) and length \(4a\). The end \(A\) rests against a rough vertical wall. A particle of mass \(2m\) is attached to the rod at the point \(C\), where \(AC = 3a\). One end of a light inextensible string \(BD\) is attached to the rod at \(B\) and the other end is attached to the wall at a point \(D\), where \(D\) is vertically above \(A\). The rod is in equilibrium in a vertical plane perpendicular to the wall. The string is inclined at an angle \(\theta\) to the horizontal, where \(\tan\theta = \tfrac{3}{4}\), as shown in Figure 2.
(a) Find the tension in the string. (5)
(b) Show that the horizontal component of the force exerted by the wall on the rod has magnitude \(\tfrac{8}{3}mg\). (3)
The coefficient of friction between the wall and the rod is \(\mu\). Given that the rod is in limiting equilibrium,
A particle of weight 24 N is held in equilibrium by two light inextensible strings. One string is horizontal. The other string is inclined at an angle of 30\(^\circ\) to the horizontal, as shown in Figure 1. The tension in the horizontal string is \(Q\) newtons and the tension in the other string is \(P\) newtons. Find
A wooden plank \(AB\) has mass \(4m\) and length \(4a\). The end \(A\) of the plank lies on rough horizontal ground. A small stone of mass \(m\) is attached to the plank at \(B\). The plank is resting on a small smooth horizontal peg \(C\), where \(BC = a\), as shown in Figure 2. The plank is in equilibrium making an angle \(\alpha\) with the horizontal, where \(\tan\alpha = \tfrac{3}{4}\). The coefficient of friction between the plank and the ground is \(\mu\). The plank is modelled as a uniform rod lying in a vertical plane perpendicular to the peg, and the stone as a particle.
Show that
(a) the reaction of the peg on the plank has magnitude \(\tfrac{16}{5}mg\), (3)
(b) \(\mu \geqslant \tfrac{48}{61}\). (6)
(c) State how you have used the information that the peg is smooth. (1)
Mark scheme (a)
Scheme
Marks
M(\(A\)):
\(S.3a = 4mg.2a\cos\alpha + mg.4a\cos\alpha\)
M1 A1
\(= \dfrac{48}{5}mga\ \ \Rightarrow\ \ S = \dfrac{16}{5}mg\ \ *\)
A1
(3)
Mark scheme (b)
Scheme
Marks
R(\(\uparrow\)): \(R + S\cos\alpha = 5mg\)
M1 A1
R(\(\rightarrow\)): \(F = S\sin\alpha\)
M1 A1
\(F \leqslant \mu R\ \ \Rightarrow\ \ \mu \geqslant \dfrac{48}{61}\ \ *\) dep on both previous M’s
M1 A1
(6)
Mark scheme (c)
Scheme
Marks
Direction of \(S\) is perpendicular to plank or No friction at the peg
A particle \(P\) of mass 0.5 kg is on a rough plane inclined at an angle \(\alpha\) to the horizontal, where \(\tan\alpha = \tfrac{3}{4}\). The particle is held at rest on the plane by the action of a force of magnitude 4 N acting up the plane in a direction parallel to a line of greatest slope of the plane, as shown in Figure 2. The particle is on the point of slipping up the plane.
(a) Find the coefficient of friction between \(P\) and the plane. (7)
The force of magnitude 4 N is removed.
(b) Find the acceleration of \(P\) down the plane. (4)
(a) 1st two M1’s require correct number of the correct terms, with valid attempt to resolve the correct relevant term (valid ‘resolve’ = \(\times\) sin/cos).
4th M1 (dept) for forming equn in \(\mu\) + numbers only
Mark scheme (b)
Scheme
Marks
\(0.5a = 0.3g - 0.27 \times 0.4g\)
M1 A2,1,0ft
\(\Rightarrow a \approx (+)\ 3.76\) m s\(^{-2}\) (or 3.8)
A1
(4)
(11 marks)
Notes
(b) In first equn, allow their \(R\) or \(F\) in the equation for full marks.
A marks: f.t. on their \(R\), \(F\) etc. Deduct one A mark (up to 2) for each wrong term.
A fixed wedge has two plane faces, each inclined at 30\(^\circ\) to the horizontal. Two particles \(A\) and \(B\), of mass \(3m\) and \(m\) respectively, are attached to the ends of a light inextensible string. Each particle moves on one of the plane faces of the wedge. The string passes over a small smooth light pulley fixed at the top of the wedge. The face on which \(A\) moves is smooth. The face on which \(B\) moves is rough. The coefficient of friction between \(B\) and this face is \(\mu\). Particle \(A\) is held at rest with the string taut. The string lies in the same vertical plane as lines of greatest slope on each plane face of the wedge, as shown in Figure 3.
The particles are released from rest and start to move. Particle \(A\) moves downwards and \(B\) moves upwards. The accelerations of \(A\) and \(B\) each have magnitude \(\tfrac{1}{10}g\).
(a) By considering the motion of \(A\), find, in terms of \(m\) and \(g\), the tension in the string. (3)
(b) By considering the motion of \(B\), find the value of \(\mu\). (8)
(c) Find the resultant force exerted by the string on the pulley, giving its magnitude and direction. (3)
A ladder \(AB\), of weight \(W\) and length \(4a\), has one end \(A\) on rough horizontal ground. The coefficient of friction between the ladder and the ground is \(\mu\). The other end \(B\) rests against a smooth vertical wall. The ladder makes an angle \(\theta\) with the horizontal, where \(\tan\theta = 2\). A load of weight \(4W\) is placed at the point \(C\) on the ladder, where \(AC = 3a\), as shown in Figure 2. The ladder is modelled as a uniform rod which is in a vertical plane perpendicular to the wall. The load is modelled as a particle. Given that the system is in limiting equilibrium,
(a) show that \(\mu = 0.35\). (6)
A second load of weight \(kW\) is now placed on the ladder at \(A\). The load of weight \(4W\) is removed from \(C\) and placed on the ladder at \(B\). The ladder is modelled as a uniform rod which is in a vertical plane perpendicular to the wall. The loads are modelled as particles. Given that the ladder and the loads are in equilibrium,
(b) find the range of possible values of \(k\). (7)
A parcel of weight 10 N lies on a rough plane inclined at an angle of 30\(^\circ\) to the horizontal. A horizontal force of magnitude \(P\) newtons acts on the parcel, as shown in Figure 2. The parcel is in equilibrium and on the point of slipping up the plane. The normal reaction of the plane on the parcel is 18 N. The coefficient of friction between the parcel and the plane is \(\mu\). Find
(a) the value of \(P\), (4)
(b) the value of \(\mu\). (5)
The horizontal force is removed.
(c) Determine whether or not the parcel moves. (5)
Mark scheme (a)
Scheme
Marks
R(perp to plane): \(P\sin 30 + 10\cos 30 = 18\)
M1 A1
Solve: \(P \approx 18.7\) N
M1 A1
(4)
Mark scheme (b)
Scheme
Marks
R(// plane): \(P\cos 30 = 10\sin 30 + F\)
M1 A1
\(F = 18\mu\) used
M1
Sub and solve: \(\mu = 0.621\) or 0.62
M1 A1
(5)
Mark scheme (c)
Scheme
Marks
Normal reaction now \(= 10\cos 30\)
M1 A1
Component of weight down plane \(= 10\sin 30\ \ (= 5\text{ N})\) (seen)
B1
\(F_{\max} = \mu R_{\text{new}} \approx 5.37\) N (AWRT 5.4)
4. Two forces \(\mathbf{P}\) and \(\mathbf{Q}\) act on a particle. The force \(\mathbf{P}\) has magnitude 7 N and acts due north. The resultant of \(\mathbf{P}\) and \(\mathbf{Q}\) is a force of magnitude 10 N acting in a direction with bearing 120\(^\circ\). Find
(i) the magnitude of \(\mathbf{Q}\),
(ii) the direction of \(\mathbf{Q}\), giving your answer as a bearing. (9)
Using \(\mathbf{P} = 7\mathbf{j}\) and \(\mathbf{Q} = \mathbf{R} - \mathbf{P}\) to obtain \(\mathbf{Q} = 5\sqrt{3}\,\mathbf{i} - 12\mathbf{j}\)
M1 A1
Magnitude \(= \sqrt{[(5\sqrt{3})^2 + 12^2]} \approx 14.8\) N (AWRT)
M1 A1
angle with \(\mathbf{i} = \arctan(12/5\sqrt{3}) \approx 54.2^\circ\)
M1 A1
bearing \(\approx 144^\circ\) (AWRT)
A1
(9)
(9 marks)
Notes
(Corrected from the printed mark scheme: the angle with \(\mathbf{i}\) is printed as 64.2\(^\circ\); \(\arctan(12/5\sqrt{3}) \approx 54.2^\circ\), giving the bearing 144\(^\circ\).)
Figure 4 shows a lorry of mass 1600 kg towing a car of mass 900 kg along a straight horizontal road. The two vehicles are joined by a light towbar which is at an angle of 15\(^\circ\) to the road. The lorry and the car experience constant resistances to motion of magnitude 600 N and 300 N respectively. The lorry’s engine produces a constant horizontal force on the lorry of magnitude 1500 N. Find
(a) the acceleration of the lorry and the car, (3)
(b) the tension in the towbar. (4)
When the speed of the vehicles is 6 m s\(^{-1}\), the towbar breaks. Assuming that the resistance to the motion of the car remains of constant magnitude 300 N,
(c) find the distance moved by the car from the moment the towbar breaks to the moment when the car comes to rest. (4)
(d) State whether, when the towbar breaks, the normal reaction of the road on the car is increased, decreased or remains constant. Give a reason for your answer. (2)
A uniform pole \(AB\), of mass 30 kg and length 3 m, is smoothly hinged to a vertical wall at one end \(A\). The pole is held in equilibrium in a horizontal position by a light rod \(CD\). One end \(C\) of the rod is fixed to the wall vertically below \(A\). The other end \(D\) is freely jointed to the pole so that \(\angle ACD = 30^\circ\) and \(AD = 0.5\) m, as shown in Figure 2. Find
(a) the thrust in the rod \(CD\), (4)
(b) the magnitude of the force exerted by the wall on the pole at \(A\). (6)
The rod \(CD\) is removed and replaced by a longer light rod \(CM\), where \(M\) is the mid-point of \(AB\). The rod is freely jointed to the pole at \(M\). The pole \(AB\) remains in equilibrium in a horizontal position.
(c) Show that the force exerted by the wall on the pole at \(A\) now acts horizontally. (2)
Mark scheme (a)
Scheme
Marks
\(M(A)\):
\(P \times 0.5\sin 60 = 30g \times 1.5\)
M1 A2
\(P = 90g.\tfrac{2}{\sqrt{3}} \approx 1020\) N (1000N)
A1
(4)
Mark scheme (b)
Scheme
Marks
\(\rightarrow\) \(X = P\cos 60 = \tfrac{1}{2}P\)
M1 A1
\((\approx 509\ \text{N}\ \ (510\text{N}))\)
\(\uparrow\) \(Y + P\cos 30 = 30g\)
M1 A1
\((\Rightarrow Y = -588\ \text{N})\)
resultant \(= \sqrt{(X^2 + Y^2)} = \sqrt{(509^2 + 588^2)} \approx 778\) N or 780N
M1 A1
(6)
Mark scheme (c)
Scheme
Marks
In equilibrium all forces act through a point
M1
\(P\) and weight meet at mid-point; hence reaction also acts through mid-point so reaction horizontal
A1 cso
(2)
(12 marks)
OR
\(M(\text{mid-point})\): \(Y \times 1.5 = 0\ \Rightarrow\ Y = 0\)
A box of mass 2 kg is pulled up a rough plane face by means of a light rope. The plane is inclined at an angle of 20\(^\circ\) to the horizontal, as shown in Figure 2. The rope is parallel to a line of greatest slope of the plane. The tension in the rope is 18 N. The coefficient of friction between the box and the plane is 0.6. By modelling the box as a particle, find
(a) the normal reaction of the plane on the box, (3)
A smooth bead \(B\) is threaded on a light inextensible string. The ends of the string are attached to two fixed points \(A\) and \(C\) on the same horizontal level. The bead is held in equilibrium by a horizontal force of magnitude 6 N acting parallel to \(AC\). The bead \(B\) is vertically below \(C\) and \(\angle BAC = \alpha\), as shown in Figure 1. Given that \(\tan\alpha = \tfrac{3}{4}\), find
A particle \(P\) of mass 2.5 kg rests in equilibrium on a rough plane under the action of a force of magnitude \(X\) newtons acting up a line of greatest slope of the plane, as shown in Figure 3. The plane is inclined at 20\(^\circ\) to the horizontal. The coefficient of friction between \(P\) and the plane is 0.4. The particle is in limiting equilibrium and is on the point of moving up the plane. Calculate
(a) the normal reaction of the plane on \(P\), (2)
(b) the value of \(X\). (4)
The force of magnitude \(X\) newtons is now removed.
(c) Show that \(P\) remains in equilibrium on the plane. (4)
Mark scheme (a)
Scheme
Marks
\(R = 2.5g\cos 20\)
M1
\(\approx 23.0\) or 23 N
A1
(2)
Mark scheme (b)
Scheme
Marks
\(X = 0.4 \times 23.0 + 2.5g\sin 20\)
M1 A2,1,0ft
\(\approx 17.6\) or 18 N
A1
(4)
Mark scheme (c)
Scheme
Marks
In equlib. \(F = 2.5g\sin 20 \approx 8.38\) or 8.4 N
B1
\(\mu R = 0.4 \times 2.5g\cos 20 \approx 9.21\) or 9.2 N
A uniform rod \(AB\), of length \(8a\) and weight \(W\), is free to rotate in a vertical plane about a smooth pivot at \(A\). One end of a light inextensible string is attached to \(B\). The other end is attached to point \(C\) which is vertically above \(A\), with \(AC = 6a\). The rod is in equilibrium with \(AB\) horizontal, as shown in Figure 1.
(a) By taking moments about \(A\), or otherwise, show that the tension in the string is \(\tfrac{5}{6}W\). (4)
(b) Calculate the magnitude of the horizontal component of the force exerted by the pivot on the rod. (3)
Resolves perpendicular to the plane to form a three-term dimensionally correct equation with at least two terms correct.
M1
3.3
Obtains a correct expression or value for R AWRT 65 PI by friction = AWRT \(\pm 13.02\)
A1
1.1b
Uses F = \(m\)a to form a four-term dimensionally correct equation, excluding a 15N force, with at least three terms correct. FT their R value Condone inclusion of a 15N force from 16(a) as a 5th term
M1
3.4
Forms fully correct equation in a for the particle with all values substituted. FT their R value Note this alone obtains B1B1M1A1M1A1
15 A particle moves under the actions of two forces, \(\mathbf{F}_1\) and \(\mathbf{F}_2\)
\(\mathbf{F}_1\) has magnitude 17 newtons and acts due East. \(\mathbf{F}_2\) has magnitude 26 newtons and acts at a bearing of 310°
The resultant of \(\mathbf{F}_1\) and \(\mathbf{F}_2\) is \(\mathbf{R}\)
(a) Show that the magnitude of \(\mathbf{R}\) is 17.0 newtons, correct to three significant figures. [4 marks]
(b) Find the angle that \(\mathbf{R}\) makes with \(\mathbf{F}_1\)
Give your answer to the nearest degree.
[2 marks]
(c) A third force, \(\mathbf{F}_3\), acts upon the particle so that the particle is in equilibrium.
(i) State the magnitude of \(\mathbf{F}_3\) [1 mark]
(ii) State the bearing on which \(\mathbf{F}_3\) acts. [1 mark]
Mark scheme (a)
Scheme
Marks
AO
Resolves horizontally or vertically to find a correct expression for one of the i or j components of the resultant force. Or Uses the cosine rule with b = 17 and c = 26
M1
3.3
Resolves horizontally and vertically to find a correct expression for both i and j components of the resultant force PI by H: AWRT \(\pm\) 2.9 V: AWRT \(\pm\)16.7 Or Uses the cosine rule to obtain a2 = AWRT 287.8
A1
1.1b
Finds the magnitude of the resultant vector of their horizontal and vertical components Or Finds the square root of their expression for b2 + c2 − 2bcCosA PI by AWFW [16.96, 16.97]
M1
1.1a
Completes reasoned argument showing a full method to obtain AWFW [16.96, 16.97] and concludes that the magnitude of R is 17.0 Condone 17 AG
Uses an appropriate trigonometric equation using their components for R Or Deduces that the two 17N forces make this an isosceles triangle, eg: 180 − (2 x 40) PI AWRT 79 or 80
M1
3.1a
Obtains any of the following angles AWRT 100, 101, \(\pm 259\), \(\pm 260\)

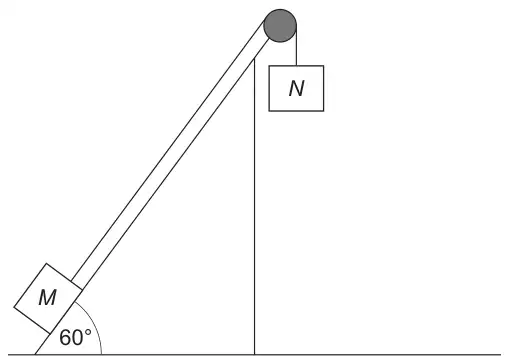

(d) State one modelling assumption you have made throughout this question. [1 mark]
Mark scheme (a)
Scheme
Marks
AO
States that the resultant force is \(80g - T\) and states \(F = ma\)
E1
3.4
(1)
Typical solution
\(80g - T\) is the resultant force and as \(F = ma\), \(80g - T = 80a\)
Mark scheme (b)
Scheme
Marks
AO
States \(50g\cos 60 = 25g\) OE
B1
3.1b
(1)
Typical solution
Resolve perpendicular to slope
\[R = 50g\cos 60 = 25g\]
Mark scheme (c)
Scheme
Marks
AO
Resolves parallel to the slope to obtain \(50g\sin 60\) or better PI OE
B1
1.1b
Obtains \(\mu \times 25g\) for friction OE Or States \(\mu = 1\) and obtains \(25g\) for friction
B1
3.3
Forms a three or four-term equation of motion for \(M\) using \(F = ma\) parallel to slope Condone cos60 OE and sign errors
M1
3.3
Obtains single correct equation or inequality with \(\mu\) Or \(T - 50g\sin 60 - 25g = 50a\) where \(\mu = 1\) is stated Or \(T - 50g\sin 60 - 25g \leqslant 50a\) where \(\mu = 1\) is stated
A1
1.1b
Eliminates \(T\) using the equation in 21(a) and their equation or inequality with \(\mu\) Condone use of \(T = 80a + 80g\)
M1
1.1a
Completes reasoned argument to show \(a \geqslant \dfrac{(11 - 5\sqrt{3})g}{26}\) Must include clear reason for using \(\mu = 1\) or uses \(0 \leqslant \mu \leqslant 1\) or uses \(\mu \leqslant 1\) AG

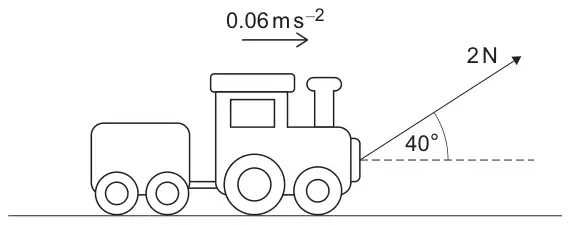

19 A wooden toy comprises a train engine and a trailer connected to each other by a light, inextensible rod.
The train engine has a mass of 1.5 kilograms. The trailer has a mass 0.7 kilograms.
A string inclined at an angle of 40° above the horizontal is attached to the front of the train engine.
The tension in the string is 2 newtons.
As a result the toy moves forward, from rest, in a straight line along a horizontal surface with acceleration 0.06 m s−2 as shown in the diagram below.
As it moves the train engine experiences a total resistance force of 0.8 N
(a) Show that the total resistance force experienced by the trailer is approximately 0.6 N [4 marks]
(b) At the instant that the toy reaches a speed of 0.5 m s−1 the string breaks.
As a result of this the train engine and trailer decelerate at a constant rate until they come to rest, having travelled a distance of \(h\) metres.
It can be assumed that the resistance forces remain unchanged.
(i) Find the tension in the rod after the string has broken. [4 marks]
(ii) Find \(h\) [3 marks]
(c) State one modelling assumption that you have used about the rod when answering part (b)(i). [1 mark]
Mark scheme (a)
Scheme
Marks
AO
Resolves the 2 N force to obtain either \(2\cos 40\) AWRT 1.53 or \(2\sin 40\) AWRT 1.29
May be seen on the diagram.
M1
1.1a
Uses Newton’s 2nd Law to form a four term equation for the whole system. This may be seen with total resistance equivalent to \(0.8 + R\) or Uses Newton’s 2nd Law to form a three term equation for the trailer or a four term equation for the engine.
Condone one incorrect sign.
M1
3.3
Obtains a fully correct equation for the whole system. or Obtains two fully correct equations for the train engine and the trailer.
For example: \(2\cos 40 - T - 0.8 = 0.09\) \(T - R = 0.042\)
A1
3.3
Completes a reasoned argument to show that the given value for \(R\) is approximately 0.6 AG
(i) Forms an equation of motion without a driving force for the engine or the combined system. PI by \(a = \dfrac{7}{11}\) or \(-\dfrac{7}{11}\)
M1
3.3
Obtains one of the following: \(\pm(T - 0.6) = 0.7a\) or \(\mp(0.8 + T) = 1.5a\) or \(\pm(0.8 + 0.6) = 2.2a\) Allow use of \(a = -\dfrac{7}{11}\)
M1
3.4
Obtains a correct pair of equations of motion for the trailer and the engine which are both moving in the same direction. or Obtains \(a = -\dfrac{7}{11}\) and one fully correct equation of motion involving \(T\)
A1
1.1b
Finds \(T\) AWFW [0.15 , 0.16]
A1
1.1b
(4)
(ii) Obtains \(a = -\dfrac{7}{11}\) AWRT \(-0.64\) Condone missing or incorrect units
B1
3.1b
Selects an appropriate equation of constant acceleration to find \(s\) and substitutes \(u\) = 0.5 , \(v\) = 0 and their \(a\)
A rough wooden ramp is 10 metres long and is inclined at an angle of 25° above the horizontal.
The bottom of the ramp is at the point \(O\).
A crate of mass 20 kg is at rest at the point \(A\) on the ramp.
The crate is pulled up the ramp using a rope attached to the crate.
Once in motion, the rope remains taut and parallel to the line of greatest slope of the ramp.
(a) The tension in the rope is 230 N
The crate accelerates up the ramp at 1.2 m s−2
Find the coefficient of friction between the crate and the ramp. [7 marks]
(b)
(i) The crate takes 3.8 seconds to reach the top of the ramp.
Find the distance \(OA\). [3 marks]
(ii) Other than air resistance, state one assumption you have made about the crate in answering part (b)(i). [1 mark]
Mark scheme (a)
Scheme
Marks
AO
States \(F = \mu R\) seen anywhere PI by use of \(\mu R\) in their 4-term equation of motion or on diagram
B1
3.3
Resolves the weight parallel to the slope to obtain \(mg\sin 25\) or better
B1
1.1b
Resolves perpendicular to the slope to obtain \(R = mg\cos 25\) or better
B1
1.1b
Uses F = ma to form a four-term equation with consistent signs. eg \(T - \text{weight} - \text{Friction} = ma\) Condone omission of \(g\) in weight and friction component
M1
3.3
Substitutes \(T\) = 230 and \(F = \mu mg\cos 25\) into their four term \(F = ma\) equation with consistent signs. Condone ‘\(mga\)’ in \(F = ma\) for this mark
M1
1.1a
Obtains single correct equation with all numerical values substituted. eg \(230 - 196\sin 25 - 196\cos 25\,\mu = 24\) Scores B1B1B1M1M1A1

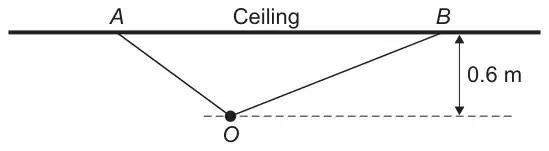

18 An object, \(O\), of mass \(m\) kilograms is hanging from a ceiling by two light, inelastic strings of different lengths.
The shorter string, of length 0.8 metres, is fixed to the ceiling at \(A\).
The longer string, of length 1.2 metres, is fixed to the ceiling at \(B\).
This object hangs 0.6 metres directly below the ceiling as shown in the diagram.
(a) Show that the tension in the shorter string is over 30% more than the tension in the longer string. [4 marks]
(b) The tension in the longer string is known to be \(2g\) newtons.
Find the value of \(m\). [4 marks]
Mark scheme (a)
Scheme
Marks
AO
Obtains both \(\sin^{-1}\left(\dfrac{0.6}{0.8}\right)\) and \(\sin^{-1}\left(\dfrac{0.6}{1.2}\right)\) OE Accept complementary angles or exact values \(\dfrac{\sqrt{3}}{2}\) and \(\dfrac{\sqrt{7}}{4}\)
B1
1.1b
Resolves forces horizontally to form equilibrium equation, one component correct Or Uses a triangle of forces and applies the sine rule
M1
3.3
Obtains correct equation with angles substituted
A1
1.1b
Rearranges the correct equation to show that \(T_{OA} = k\,T_{OB}\) OE where \(1.305 \leqslant k \leqslant 1.325\)
Completes argument to conclude that the tension in the shorter string is over 30% more than the tension in the longer string
R1
2.1
(4)
Typical solution
Angle for \(OA = \sin^{-1}\left(\dfrac{0.6}{0.8}\right) = 48.59^\circ\)
Angle for \(OB = \sin^{-1}\left(\dfrac{0.6}{1.2}\right) = 30^\circ\)
So, the tension in the shorter string is more than 30% greater than the tension in the longer string
Mark scheme (b)
Scheme
Marks
AO
Obtains \(T_{OA} = 2g \times\) their ratio
B1
1.1b
Resolves forces vertically to form a three-term equilibrium equation, with at least two terms correct Or Uses a triangle of forces and applies the sine rule
M1
3.3
Forms fully correct equation of forces in equilibrium This mark can be awarded for \(mg = T_{OA}\sin A + T_{OB}\sin B\)
A1
1.1b
Substitutes their \(T_{OA}\) and \(T_{OB}\) and correct values for angles into the correct equation and obtains AWRT \(m\) = 3 Might come from 2.96.. FT their ratio from part (a) provided their \(m\) = AWRT 3
18 Block \(A\), of mass 0.2 kg, lies at rest on a rough plane.
The plane is inclined at an angle \(\theta\) to the horizontal, such that \(\tan\theta = \dfrac{7}{24}\)
A light inextensible string is attached to \(A\) and runs parallel to the line of greatest slope until it passes over a smooth fixed pulley at the top of the slope.
The other end of this string is attached to particle \(B\), of mass 2 kg, which is held at rest so that the string is taut, as shown in the diagram below.
(a) \(B\) is released from rest so that it begins to move vertically downwards with an acceleration of \(\dfrac{543}{625}g\) m s−2
Show that the coefficient of friction between \(A\) and the surface of the inclined plane is 0.17 [8 marks]
(b)In this question use \(g = 9.81\) m s−2
When \(A\) reaches a speed of 0.5 m s−1 the string breaks.
(i) Find the distance travelled by \(A\) after the string breaks until first coming to rest. [4 marks]
(ii) State an assumption that could affect the validity of your answer to part (b)(i). [1 mark]
Mark scheme (a)
Scheme
Marks
AO
Uses F = ma to form a four-term equation with at least three correct terms condone consistent swapping of sine/cosine
(i) Uses F = ma with T=0 to form a three-term equation with at least two correct terms condone consistent sine/cosine error condone one sign error
M1
3.4
Obtains a= −4.347792 AWRT −4.35
A1
1.1b
Uses \(v^2 = u^2 + 2as\) with u=0.5 and v=0 and their \(a\) value Do not accept the following values for \(a\) \(a \neq 0, \dfrac{543}{625}g, 8.51424\) \(a \neq 8.522928, 8.688\)
M1
3.4
Obtains 0.0288 m Must have units CAO
A1
3.2a
(4)
(ii) Describes assumption in context of part (b)(i)eg No air resistance, String does not obstruct block

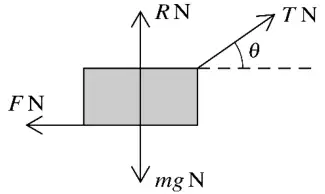

The combined mass of Lizzie and the sledge is \(M\) kilograms.
The sledge is being pulled forward in a straight line along a horizontal surface by means of a light inextensible rope, which is attached to the front of the sledge.
This rope stays inclined at an acute angle \(\theta\) above the horizontal and remains taut as the sledge moves forward.
The sledge remains in contact with the surface throughout.
The coefficient of friction between the sledge and the surface is \(\mu\) and there are no other resistance forces.
Lizzie and the sledge move forward with constant acceleration, \(a\) m s−2
The tension in the rope is a constant \(T\) Newtons.
13In this question use \(g = 9.8\ \text{m s}^{-2}\)
A boy attempts to move a wooden crate of mass 20 kg along horizontal ground. The coefficient of friction between the crate and the ground is 0.85
(a) The boy applies a horizontal force of 150 N. Show that the crate remains stationary. [3 marks]
(b) Instead, the boy uses a handle to pull the crate forward. He exerts a force of 150 N, at an angle of \(15^\circ\) above the horizontal, as shown in the diagram.

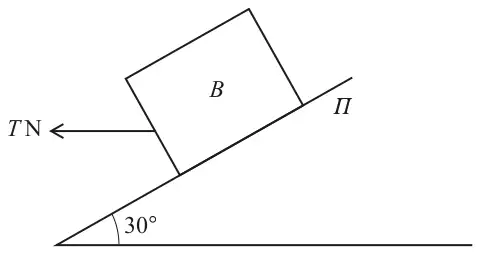

A rectangular block \(B\) of mass 10 kg lies at rest in limiting equilibrium on a rough plane \(\Pi\) inclined at 30° to the horizontal. A horizontal force of magnitude \(T\) N, acting above a line of greatest slope, is applied to \(B\) (see Fig. 1).
The coefficient of friction between \(B\) and the plane is 0.8.
(a) Show that the value of \(T\) is 14.9, correct to 3 significant figures. [6]
For the remainder of the question, you should you use this value of \(T\).

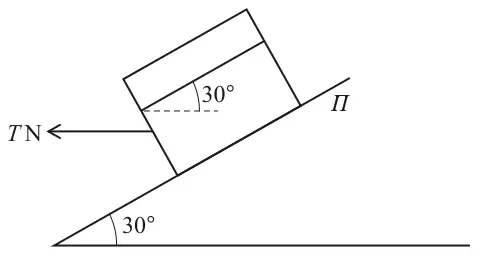

Fig. 2
Block \(B\) is now cut at an angle of 30° to the horizontal into two smaller blocks. The upper block has a mass of 4 kg, and the lower block has a mass of 6 kg. The two blocks are held at rest with the lower block on \(\Pi\). The horizontal force of magnitude \(T\) N is now applied to the lower block (see Fig. 2).
The two blocks are released from rest and in the subsequent motion the upper block starts to move with acceleration 3.5 m s−2.
(b) Determine the coefficient of friction between the two blocks. [4]
(c) Show that the lower block does not move. [3]
Mark scheme (a)
Scheme
Marks
AO
Resolving perpendicular to the plane to form an equation
M1*
3.3
\(R + T\sin 30 = 10g\cos 30\)
A1
1.1
Resolving parallel to the plane to form an equation
M1*: Correct number of dimensionally correct terms – must be using \(m = 10\) for M1
Allow sign errors and sin/cos mix only
A1: oe e.g. \(R = 49\sqrt{3} - 0.5T\) or \(R = 84.8(7048\ldots) - 0.5T\) etc.
\(R\) is the normal contact force
M1*: Correct number of dimensionally correct terms – must be using \(m = 10\) for M1
Allow sign errors and sin/cos mix only
A1: oe \(F = T \times \frac{\sqrt{3}}{2} + 49\) or \(F = 0.866(0254\ldots)T + 49\) etc. May have replaced \(F\) with \(0.8R\) and be using their (possibly incorrect) \(R\)
\(F\) is the frictional contact force For reference only: \(R = 77.4076\ldots\) and \(F = 61.92608\ldots\)
M1dep*: Apply \(F = 0.8R\) to obtain an equation in \(T\) only. A correct value of \(T\) to at least 4 significant figures rot can imply this and the next mark www
A correct equation in \(T\) implies the first 5 marks
A1:AG – awrt 14.9 www - sufficient working must be shown as answer given – for this mark we must see either the correct answer to at least 4 significant figures rot or a correct explicit expression for \(T\) e.g. \(T = \dfrac{8g\cos 30 - 10g\sin 30}{\cos 30 + 0.8\sin 30}\) before the given answer of 14.9
14.925760…
Alternative for part (a) – resolving vertically and horizontally
M1*: Correct number of dimensionally correct terms – must be using \(m = 10\) for M1
Allow sign errors and sin/cos mix only
A1: oe e.g. \(F + R\sqrt{3} = 20g\) or \(0.8R + R\sqrt{3} = 20g\) etc.
M1*: Correct number of dimensionally correct terms
Allow sign errors and sin/cos mix only
A1: oe e.g. \(2T + R = F\sqrt{3}\) or \(2T + R = 0.8R\sqrt{3}\) etc.
M1dep*: Apply \(F = 0.8R\) to obtain an equation in \(T\) only. A correct value of \(T\) to at least 4 significant figures rot can imply this and the next mark www
For reference: \(R = 77.4076\ldots\) and \(F = 61.92608\ldots\)
A1:AG – awrt 14.9 www - sufficient working must be shown as answer given – for this mark we must see either the correct answer to at least 4 significant figures or a correct explicit expression for \(T\) e.g. \(T = \dfrac{8g\cos 30 - 10g\sin 30}{\cos 30 + 0.8\sin 30}\) before the given answer of 14.9
M1*: Applying N2L for the upper block – allow sign errors and sin/cos mix only - must be using \(m = 4\) for M1 (if correct then \(F_1 = 5.6\))
where \(F_1\) is the frictional contact force between the two blocks
B1: Correctly resolve forces perpendicular to the line of contact between the two blocks
where \(R_1\) is the normal contact force between the two blocks
M1dep*: Apply \(F = \mu R\) with their \(F_1\) to obtain an un-simplified equation/expression in \(\mu\) only where \(R\) must be replaced by either \(4g\cos 30\) or \(4g\cos 60\) or \(4g\sin 30\) or \(4g\sin 60\)
A1: awrt 0.165 or allow exact \(\frac{2\sqrt{3}}{21}\)
(Resultant force down the plane is) \(4g\sin 30 - 4 \times 3.5 + 14.9\cos 30 + 6g\sin 30\ (= 47.9\ldots)\) or \(5.6 + 14.9\cos 30 + 6g\sin 30\ (= 47.9\ldots)\)
B1*
3.1b
\(F_{\max} \gt\) Resultant force down the plane and so therefore the lower block does not move or \(47.9\ldots - 61.9\ldots = 6a \Rightarrow a \lt 0 \therefore\) doesn’t move
B1dep*
3.2a
[3]
Notes
B1*: Correct expression for the maximum frictional force between the lower block and the plane – note that \(77.4204\ldots \times 0.8\) is B1
If expressions not seen then values must be correct to at least 3 sf \(77.4076\ldots \times 0.8\) is B1
B1*: Correct expression for the resultant force acting down the plane for the lower block
Do not penalise if a more accurate correct value of \(T\) is used (14.925760…)
B1dep*: Correctly show that the lower block does not move or correctly showing that \(a\), or even \(6a\) is negative
Correct values to at least 3 sf rot must be seen for this mark
The diagram shows a non-uniform rod \(AB\) of mass 4 kg and length 2 m. The end \(A\) of the rod rests against a rough vertical wall. The rod is held in a horizontal position, perpendicular to the wall, by a light inextensible string attached to the rod at \(B\). The other end of the string is attached to the wall at a point vertically above \(A\). The string is inclined at an angle of \(\theta^\circ\) to the horizontal, where \(\sin\theta = \frac{4}{5}\).
The rod rests in equilibrium in a vertical plane perpendicular to the wall. The rod’s weight acts at the point \(G\) on \(AB\).
You are given that the magnitude of the moment of the rod’s weight about \(A\) is 47.04 N m.
(a) Show that the distance \(AG\) is 1.2 m. [1]
(b) Find the tension in the string. [2]
(c) Determine the magnitude of the contact force exerted on the rod by the wall at \(A\). [5]
Mark scheme (a)
Scheme
Marks
AO
\(AG \times 4g = 47.04\) or \((AG =)\ \dfrac{47.04}{4g}\) or \(4g \times 1.2 = 47.04\)
B1
3.1b
[1]
Notes
B1: Taking moments about \(A\) for the rod’s weight – allow \(\dfrac{47.04}{4 \times 9.8}\) oe (so using 9.8 for \(g\)) but B0 for only \(\dfrac{47.04}{39.2}\) oe B0 for \(AB \times 4g = 47.04\) or similar
M1: Taking moments about \(A\) for the rod – M1 for \(2 \times \frac{4}{5}T = 47.04\) or \(2 \times T\sin 53 = 47.04\) or \(2 \times \frac{3}{5}T = 47.04\) or \(2 \times T\cos 53 = 47.04\) only (or \(1.2 \times 4g\) for 47.04)
Allow use of 53 or better (53.1301…) for \(\theta\) - note that e.g. \(2 \times T\sin 37 = 47.04\) or \(2 \times T\cos 37 = 47.04\) (therefore using the complementary angle) is M1
Resolve vertically or take moments about \(B\) or \(G\) for the forces acting on the rod to form an equation or an expression for \(Y\)
M1*
3.3
\(\mathrm{R}(\uparrow)\): \(\text{‘}29.4\text{’} \times \frac{4}{5} + Y = 4g\) or \(\text{‘}29.4\text{’} \times \frac{4}{5} = 4g + Y\) or \(\mathfrak{M}(B)\): \(0.8 \times 4g = 2Y\) or \(\mathfrak{M}(G)\): \(0.8 \times \text{‘}29.4\text{’} \times \frac{4}{5} = Y \times 1.2\)
A1FT
1.1
\(\sqrt{17.64^2 + 15.68^2}\)
M1dep*
3.4
Magnitude is 23.6 (N)
A1
1.1
[5]
Notes
B1FT: Follow through their value of \(T\) only. Allow use of 53 or better (53.1301…) for \(\theta\)
\(X\) is the horizontal component of the contact force at \(A\)
M1*: Must be the correct number of dimensionally correct terms but allow sign errors and sin/cos confusion only – all values must be substituted. If taking moments about \(B\) or \(G\) allow sin/cos confusion only
\(Y\) is the vertical contact force at \(A\)
A1FT: Correct equation for \(Y\) follow through their value of \(T\) only – if correct then \(Y = \pm 15.68\)
Allow \(\sin 53\) or \(\cos 37\) or better for \(\frac{4}{5}\)
M1dep*: Correct use of Pythagoras with their values of \(X\) and \(Y\) which must come from equations with the correct number of dimensionally correct relevant terms
Relevant for \(X\) requires \(\text{‘}29.4\text{’} \times \frac{3}{5}\) or \(\text{‘}29.4\text{’} \times \frac{4}{5}\) oe only
A1: awrt 23.6 or exact e.g. \(\dfrac{49\sqrt{145}}{25}\) oe
The points \(A\) and \(B\) are the lower and upper ends, respectively, of a line of greatest slope on a plane inclined at an angle \(\theta\) to the horizontal, where \(\sin\theta = 0.6\) and \(AB = 1.375\) m (see diagram).
A particle \(P\) is projected up the plane with speed \(6\,\mathrm{m\,s^{-1}}\) from \(A\) towards \(B\).
The plane at \(A\) is fixed to the ground which is horizontal.
The surface of the plane is rough and the coefficient of friction between \(P\) and the plane is 0.25.
(a) Show that the speed of \(P\) at \(B\) is \(3.8\,\mathrm{m\,s^{-1}}\). [6]
The particle leaves the slope at \(B\) and moves freely under gravity.
The particle first lands at a point \(C\) on the horizontal ground. The time taken for \(P\) to travel from \(A\) to \(C\) is \(T\) seconds.
(b) Determine the value of \(T\). [6]
Mark scheme (a)
Scheme
Marks
AO
\(R(\text{perp. plane}): R = mg\cos 36.86\ldots\) or \(mg \times 0.8\)
\(v^2 = 14.44 \Rightarrow v = 3.8\ (\mathrm{m\,s^{-1}})\)
A1
2.2a
[6]
Notes
B1: Allow using an angle of 37 or better soi (possibly in N2L)
M1*: \(F = 0.25R\) with their \(R\) (with \(R \ne mg\)) – using an angle of 37 or better – allow sin/cos mix \(R\) must be a component of weight soi (possibly in N2L)
M1dep*: Applying N2L parallel to the plane with correct number of terms and weight term resolved, dimensionally consistent – if down the plane is the positive direction expect \(0.25 \times mg \times 0.8 + mg \times 0.6 = ma\) Allow sign errors and sin/cos mix, using an angle of 37 or better
A1: \(\pm 0.8g\) - allow awrt \(\pm 7.84\) or awrt \(\pm 7.85\) (using an angle of 37) www Condone \(\pm 7.8\) or \(\pm 7.9\) www
M1dep*: Use of \(v^2 = u^2 + 2as\) with correct \(u\) and \(s\) and their negative \(a\) (\(\ne -9.8\)) - dependent on both previous M marks – must see the values substituted into the formula (as value for \(v\) is AG) – therefore just seeing \(v^2 = \frac{361}{25}\) or 14.44 is M0 Condone finding a positive value of \(a\) and then using the negative version
A1:AG – do not award this mark if using any non-exact values for \(\sin\theta / \cos\theta\) (so seeing e.g. \(\cos 36.86\ldots\) in their working loses this final A mark) Must see either \(v^2 = 14.44\) or \(v^2 = 36 - 21.56\) or \(v^2 = 6^2 - 21.56\) or a correct expression for \(v\) before given answer
SC – if \(m\) absent throughout (so implying \(m = 1\)) or \(m\) given a numerical value then at most B0 M1 M1 A1 M1 A0 can be awarded.
M1dep*: Use of \(s = ut + \frac{1}{2}at^2\) with correct \(u\) and \(s\) and their negative \(a\) (\(\ne -9.8\)), and selects the smaller of the two positive \(t\) values and uses this value correctly in \(v = u + at\) with correct \(u\) and their negative \(a\) - dependent on both previous M marks So, using the second positive \(t\) (if correct this is 1.25) is M0
A1:AG – do not award this mark if using any non-exact values for \(\sin\theta / \cos\theta\) Must see a correct expression for \(v\) before given answer
Alternative energy approach to 13(a) (Appendix)
Scheme
Marks
\(R(\text{perp. plane}): R = mg\cos 36.86\ldots\) or \(mg \times 0.8\)
\(v^2 = 14.44 \Rightarrow v = 3.8\ (\mathrm{m\,s^{-1}})\)
A1
B1: Allow using an angle of 37 or better soi (possibly in Work-Energy equation)
M1: Use of \(F = 0.25R\) with their \(R\) (with \(R \ne mg\)) – using an angle of 37 or better – allow sin/cos mix \(R\) must be a component of weight not mass soi (possibly in W-E equation)
B1: Correct expression for either WD by gravity or friction – using an angle of 37 or better soi (possibly in W-E equation)
M1: Attempt at W-E principle – equation with the correct number of relevant terms, dimensionally correct, allow sign errors and sin/cos mix, M0 if PE term is \(\pm 1.375mg\)
A1: Correct W-E equation
A1:AG – do not award this mark if using any non-exact values for \(\sin\theta / \cos\theta\) Must see either \(v^2 = 14.44\) or \(v^2 = 36 - 21.56\) or \(v^2 = 6^2 - 21.56\) or a correct expression for \(v\) before given answer
SC – if \(m\) absent throughout (so implying \(m = 1\)) or \(m\) given a numerical value then at most B0 M1 B1 M1 A1 A0 can be awarded.
Mark scheme (b)
Scheme
Marks
AO
Time from \(A\) to \(B\) is \(t_1\) where \(3.8 = 6 + (-7.84)t_1\)
M1: Use of \(v = u + at\) with correct \(u\) and \(v\), and their negative \(a\) from (a) (or any other complete method e.g. \(1.375 = \left(\dfrac{6 + 3.8}{2}\right)t_1\)) Give BOD if \(6 = 3.8 + 7.84t_1\) seen but if \(v = u + at\) stated before then M0
A1: awrt 0.281 or accept 0.28 www. If exact then expect \(\frac{55}{196}\) 0.2806122...
B1: Must be exact e.g. \(\frac{33}{40}\) – allow un-simplified e.g. \(1.375 \times 0.6\) Allow negative
M1:M1 for an equation for time \(t_2\) (from \(B\) to \(C\)) with awrt \(\pm 0.83\) for \(s\), \(a = \pm g\) and either \(u = 3.8 \times \sin\theta\) or \(u = 3.8 \times \cos\theta\) with \(\theta = 37\) (or better) substituted (or corresponding exact value) – condone sign errors
A1:A1 for a correct (un-simplified) equation for \(t_2\) - must be using 0.825 but allow \(\theta = 37\) or better For reference: \(t_2 = 0.704346599\ldots\)
A1: awrt 0.985 only – dependent on all previous marks in this part 0.984958…

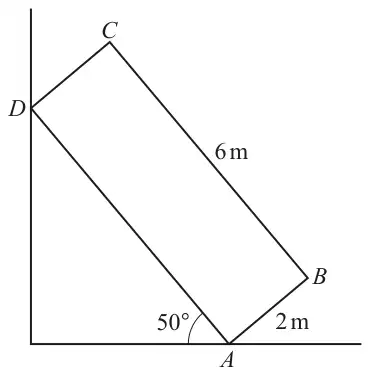

A uniform rectangular lamina \(ABCD\) has a mass of 0.5 kg. The length of \(AB\) is 2 m, and the length of \(BC\) is 6 m. The lamina is in limiting equilibrium with corner \(A\) in contact with rough horizontal ground and corner \(D\) in contact with a smooth vertical wall. The lamina rests in a vertical plane that is perpendicular to the wall, with \(AD\) inclined at 50° to the horizontal (see diagram).
(a) By taking moments, show that the magnitude of the normal contact force between the lamina and the wall is 1.24 N, correct to 3 significant figures. [4]
(b) Determine the coefficient of friction between the lamina and the ground. [3]
Mark scheme (a)
Scheme
Marks
AO
\(R_D \times k_1\sin 50 = 0.5g \times k_2\) or \(R_D \times k_1\cos 50 = 0.5g \times k_2\) (see notes)
M1: Attempt at moments about \(A\) – at least two terms (one term for the weight and one term with a component of \(R_D\)) – must be written as an equation to score any marks in this part (see Answer column for the only acceptable forms) with \(k_1, k_2 \gt 0\) but not \(= \pm 1\)
A1: Correct moment for the contact force at \(D\)
A1: Correct moment for the weight of the lamina (See Appendix) (e.g. \(0.5g \times (3 - \tan 50)\cos 50\) or \(0.5g \times \cos 50 \times 1.808\ldots\) etc. e.g. \(0.5g \times \sqrt{10}\sin\left(40 - \arctan\left(\tfrac{1}{3}\right)\right)\) or \(0.5g \times \sqrt{10}\sin(21.565\ldots)\) etc.) – if value stated with no or unclear working, then must see at least 5.6953… to award this mark - if moment stated as 5.6993… then A0 (and A0 for the next mark) For reference 5.695360…
A1:AG – as this answer is given then working must be checked carefully – all previous marks must have been awarded 1.23912743… A fully correct equation followed by stating 1.24 can score full marks
Additional guidance for 11(a) (Appendix)
There are many ways that candidates are correctly approaching this part: For example, \(6(R_D\sin 50) = 3(0.5g\cos 50) - (0.5g\sin 50)\) \(6(R_D\sin 50) = 0.5g \times (3 - \tan 50)\cos 50\) \(6(R_D\sin 50) = 0.5g \times \sqrt{10}\sin\left(40 - \arctan\left(\tfrac{1}{3}\right)\right)\) \(6(R_D\sin 50) = 0.5g \times \sqrt{10}\cos(140 - \arctan(3))\) \(6(R_D\sin 50) = 0.5g \times \sqrt{10}\cos\left(50 + \arctan\left(\tfrac{1}{3}\right)\right)\)
Any of these followed by the correct answer of 1.24 would score full marks (we do not need to see any intermediate working). If these exact expressions are not seen then sufficient working with values that are correct to at least 3 significant figures should be awarded full marks (and those that have 2 significant figures with sufficient working should get partial credit), e.g.
• \(6(R_D\sin 50) = 9.448977\ldots - 3.7536177\ldots\) so seeing \(6(R_D\sin 50) = 9.45 - 3.75\) followed by 1.24 is M1 A1 A1 A1 • \(6(R_D\sin 50) = 9.4 - 3.8\) followed by 1.24 is M1 A1 A1 A0 (leads to 1.22 not 1.24) • \(6(R_D\sin 50) = 5.7(0)\) is no marks (assume working backwards from the AG and no indication that the RHS contains a weight component) • \(6(R_D\sin 50) = 0.5g \times \cos 50 \times 1.808246\ldots\) so seeing \(6(R_D\sin 50) = 0.5g \times \cos 50 \times 1.81\) followed by 1.24 is M1 A1 A1 A1 • \(6(R_D\sin 50) = 0.5g \times \cos 50 \times 1.80\) followed by 1.24 is M1 A1 A1 A0 (leads to 1.23 not 1.24) • \(6(R_D\sin 50) = 0.5g \times 0.643 \times 1.81\) followed by 1.24 is M1 A1 A1 A1 • \(6(R_D\sin 50) = 0.5g \times 0.64 \times 1.8\) followed by 1.24 is M1 A1 A1 A0 (leads to 1.23 not 1.24) • \(6(R_D\sin 50) = 0.5g \times 1.16\) followed by 1.24 is M1 A1 A0 A0 (assume working backwards from the given answer on the RHS) • \(6(R_D\sin 50) = 0.5g \times \sqrt{10}\sin(40 - 18.434948\ldots)\) so seeing \(6(R_D\sin 50) = 0.5g \times 3.16 \times \sin(21.6)\) followed by 1.24 is M1 A1 A1 A1 • \(6(R_D\sin 50) = 0.5g \times 3.16 \times \sin(22)\) followed by 1.24 is M1 A1 A1 A0 (leads to 1.26 not 1.24) • \(6(R_D\sin 50) = 0.5g \times 3.2 \times \sin(22)\) followed by 1.24 is M1 A1 A1 A0 (leads to 1.28 not 1.24) • \(6(R_D\sin 50) = 0.5g \times \sqrt{10}\cos(68.4349\ldots)\) so seeing \(6(R_D\sin 50) = 0.5g \times \sqrt{10} \times \cos(68)\) followed by 1.24 is M1 A1 A1 A0 (leads to 1.26 not 1.24)
B1*: Resolving horizontally and vertically (possibly implied by later working) – must be using given 1.24 (or a more accurate correct value) only (so not their incorrect value from part (a)) If taking moments about another point e.g. \(D\), then the corresponding equation(s) must be correct
M1dep*:Use of \(F = \mu R\) or \(F \leqslant \mu R\) with \(0.5g\) and 1.24 (or better) for \(F\)
A1: awrt 0.253 If final answer is \(\mu \geqslant 0.253\) then A0 Using the exact value or 1.24 for \(R_D\) leads to the same answer to 3 significant figures

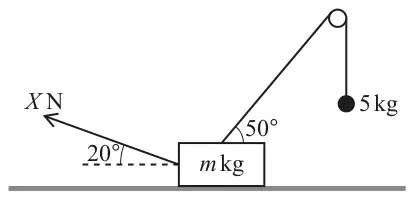

A block of mass \(m\) kg is on smooth horizontal ground with one end of a light inextensible rope attached to its upper surface. The other end of the rope is attached to an object of mass 5 kg. The rope passes over a small smooth pulley, and the object hangs vertically below the pulley. The part of the rope between the block and the pulley makes an angle of 50° with the horizontal. A force of magnitude \(X\) N acts on the block at an angle of 20° above the horizontal in the vertical plane containing the rope (see diagram).
You are given that the block is in equilibrium.
(a) Determine the value of \(X\). [3]
You are also given that the magnitude of the contact force exerted by the ground on the block is 147 N.
B1: Possibly implied by later working Allow \(T - 5g = 0\)
M1: Resolving horizontally to form an equation – correct number of terms (possibly with \(T\) replaced with \(5g\)) – allow sin/cos mix but must be using correct angles Must be components of both \(T\) and \(X\)
A1: awrt 33.5 – condone including of ‘N’ 33.51797…
M1: Resolving vertically to form an equation for the block with the correct number of relevant terms – allow sign errors and sin/cos mix but must be using correct angles Allow \(X\), \(T\) or their value(s) for \(X\) and \(T\) – relevant means both dimensionally correct (so must be using \(mg\)) and that we must see components of \(T\) and \(X\) but no component of the weight or the 147
A1FT: Correct equation for \(m\) FT their value of \(X\) only (so not just \(X\))
A1: Accept either 20 or awrt 20.0; condone inclusion of ‘kg’ www

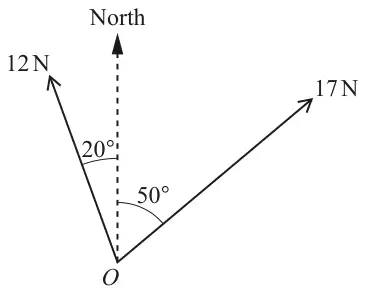

Resultant force is 23.9 (N) on a bearing of 022(°)
A1
2.2a
[6]
Notes
M1*: Resolve vertically or horizontally – correct number of relevant terms. Allow sign errors and sin/cos mix but must be using correct angles
A1: Need not be simplified \(\pm 22.20370081\ldots\)
A1: Need not be simplified \(\pm 8.918513813\ldots\)
M1dep*: Correct method to calculate magnitude from expressions with the correct number of relevant terms
M1dep*: Correct method to calculate a relevant angle (so allow reciprocal) from expressions with the correct number of relevant terms
A1: awrt 23.9 and awrt 022 (so 021.9 is okay but 21.9 is A0) 23.927896… 21.883744…
Alternative method
Scheme
Marks
\(R^2 = 17^2 + 12^2 - 2(17)(12)\cos\alpha\)
M1*
\(R^2 = 17^2 + 12^2 - 2(17)(12)\cos 110\)
B1 A1
\(\dfrac{\sin\theta}{12} = \dfrac{\sin\alpha}{R}\) or \(\cos\theta = \dfrac{R^2 + 17^2 - 12^2}{2 \times R \times 17}\)
M1dep*
Bearing \(= 50 - \theta\)
M1dep*
Resultant force is 23.9 (N) on a bearing of 022(°)
A1
M1*: Correct cosine rule with any angle \(\alpha\)
B1 A1:B1 for correct angle of 110 seen, A1 for correct expression for \(R\) or \(R^2\) 110 may be seen on a diagram
M1dep*: Correct sine rule with their \(\alpha\) or correct cosine rule If correct \(\theta = 28.11625\ldots\)
M1dep*: Correct calculation for bearing Dep. both M marks
A1: awrt 23.9 and awrt 022 (so 021.9 is okay but 21.9 is A0)
Mark scheme (b)
Scheme
Marks
AO
Magnitude of \(\mathbf{F}\) is 23.9 (N)
B1FT
1.2
On a bearing of 202(°)
B1FT
3.1b
[2]
Notes
B1FT: Follow through their resultant in (a)
B1FT: Follow through the answer to (a) – if \(0 \lt \theta \lt 180\) then FT is \(180 + \theta\) and if \(180 \lt \theta \lt 360\) then FT is \(\theta - 180\) As in part (a) their bearing must be at least three figures (with leading zeros if necessary) but allow greater accuracy

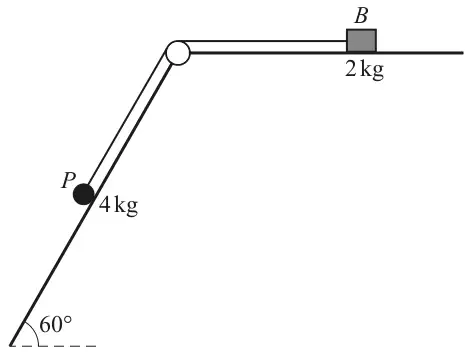

The diagram shows a small block \(B\), of mass \(2\,\mathrm{kg}\), and a particle \(P\), of mass \(4\,\mathrm{kg}\), which are attached to the ends of a light inextensible string. The string is taut and passes over a small smooth pulley fixed at the intersection of a horizontal surface and an inclined plane. The particle can move on the inclined plane, which is rough, and which makes an angle of \(60^\circ\) with the horizontal. The block can move on the horizontal surface, which is also rough.
The system is released from rest, and in the subsequent motion \(P\) moves down the plane and \(B\) does not reach the pulley.
It is given that the coefficient of friction between \(P\) and the inclined plane is twice the coefficient of friction between \(B\) and the horizontal surface.
(a) Determine, in terms of \(g\), the tension in the string. [7]
When \(P\) is moving at \(2\,\mathrm{m\,s^{-1}}\) the string breaks. In the 0.5 seconds after the string breaks \(P\) moves \(1.9\,\mathrm{m}\) down the plane.
(b) Determine the deceleration of \(B\) after the string breaks. Give your answer correct to 3 significant figures. [5]
Mark scheme (a)
See appendix at the end of the MS for important information regarding this part
Scheme
Marks
AO
M1*
2.1
\(4g\sin 60 - F_P - T = 4a\)
A1
1.1
\(R_P = 4g\cos 60\)
B1
3.3
\(4g\sin 60 - \mu_P(4g\cos 60) - T = 4a\) \(\Rightarrow 2\sqrt{3}g - 2\mu_P g - T = 4a\)
M1dep*
3.4
\(T - \mu_B(2g) = 2a\)
M1
3.3
\(2\sqrt{3}g - 2\mu_P g - T = 4a\) and \(2T - 4\mu_B g = 4a\) with \(\mu_P = 2\mu_B\) gives \(2\sqrt{3}g - T = 2T\)
A1
3.3
\(2\sqrt{3}g - T = 2T \Rightarrow T = \dfrac{2\sqrt{3}}{3}g\)
A1
2.2a
[7]
Notes
For the first five marks condone: \(\mu\) used as the coefficient of friction for both \(P\) and \(B\), or implying that \(\mu_B = 2\mu_P\) rather than the correct \(\mu_P = 2\mu_B\)
M1*: Applying N2L parallel to the plane for \(P\) – correct number of terms and weight component resolved – allow sign errors and sin/cos confusion. Allow \(g\) missing but M0 if \(4ga\) in N2L
A1: NB \(T + F_P - 4g\sin 60 = 4a\) is A1 (taking up the plane as +ve dir.) Where \(F_P\) is the frictional force for \(P\)
B1: Resolving correctly perpendicular to the plane for \(P\) Where \(R_P\) is the normal contact force for \(P\)
M1dep*: Use of \(F = \mu R\) in the attempt at N2L for \(P\) with their \(R\) which must be a component of \(4g\) only Where \(\mu_P\) is the coefficient of friction between \(P\) and the plane
M1: Applying N2L parallel to the surface for \(B\) – correct number of terms – allow sign errors but note that \(\mu_B(2g) - T = 2a\) is consistent with \(T + F_P - 4g\sin 60 = 4a\) and therefore gives the correct answer (and is not incorrect working) Where \(\mu_B\) is the coefficient of friction between \(B\) and the plane Allow \(g\) missing but M0 if \(2ga\) in N2L or for \(T - F_B = 2a\) only
A1: Solving simultaneously with \(\mu_P = 2\mu_B\) (soi) to obtain a correct equation in \(T\) only
A1: Must be seen in terms of \(g\) Accept awrt \(1.15g\)
Appendix: exemplar responses for Q13(a)
See main MS for Guidance for the requirements/conditions to award each of these marks.
Case 1 (max 7): candidates who immediately set \(\mu\) as the coefficient of friction for \(B\) and \(2\mu\) as the coefficient of friction for \(P\) (correct)
Response
Marks
\(4g\sin 60 - F_P - T = 4a\)
M1 A1
\(R_P = 4g\cos 60\)
B1
\(4g\sin 60 - 2\mu(4g\cos 60) - T = 4a\)
M1
\(T - \mu(2g) = 2a\)
M1
\(2\sqrt{3}g - T = 2T\)
A1
\(T = \dfrac{2\sqrt{3}}{3}g\)
A1
Or equivalent e.g. replace \(2\mu\) above with \(\mu\) and \(\mu\) above with \(0.5\mu\)
Case 2 (max 5): candidates who immediately set \(2\mu\) as the coefficient of friction for \(B\) and \(\mu\) as the coefficient of friction for \(P\) or set both coefficients of frictions equal to \(\mu\) (both of these are incorrect)
Response (\(2\mu\) for \(B\), \(\mu\) for \(P\))
Marks
\(4g\sin 60 - F_P - T = 4a\)
M1 A1
\(R_P = 4g\cos 60\)
B1
\(4g\sin 60 - \mu(4g\cos 60) - T = 4a\)
M1
\(T - 2\mu(2g) = 2a\)
M1
\(4g\sin 60 - 4g\mu\cos 60 - T = 2T - 8\mu g\)
A0 A0
Response (\(\mu\) for both)
Marks
\(4g\sin 60 - F_P - T = 4a\)
M1 A1
\(R_P = 4g\cos 60\)
B1
\(4g\sin 60 - \mu(4g\cos 60) - T = 4a\)
M1
\(T - \mu(2g) = 2a\)
M1
\(4g\sin 60 - 4g\mu\cos 60 - T = 2T - 4\mu g\)
A0 A0
Case 3 (max 3): assuming that as \(\mu_P = 2\mu_B\) then this implies that \(F_P = 2F_B\) without justification (e.g. no calculation of the normal contact forces for \(P\) and \(B\) considered – so while it turns out to be correct in this case it is not true in general) – if this is assumed then
Response
Marks
\(4g\sin 60 - 2F - T = 4a\)
M1 A1
\(T - F = 2a\)
M1
(so now allow this M mark even though in the main MS this would have been M0) leading to \(2g\sqrt{3} - 2(T - 2a) - T = 4a\) and therefore \(T = \dfrac{2\sqrt{3}}{3}g\) no further marks (3 marks max. also if assuming that \(2F_P = F_B\))
Case 4 (max 1): if assuming that \(a = 0\) or \(g\) or any other value then they can score the B mark only for \(R_P = 4g\cos 60\)
\(a_B = -\mu_B g \Rightarrow\) deceleration is 1.29 \((\mathrm{m\,s^{-2}})\)
A1
3.2a
[5]
Notes
B1: Applying \(s = ut + \frac{1}{2}at^2\) correctly to find \(a_P\)
M1: Set \(T = 0\) (or apply N2L) to obtain an expression for the acceleration of \(P\) when the string breaks Correct number of terms, dimensionally correct (so \(g\) not missing), must be using the correct mass of 4 – allow sin/cos mix and sign errors only
A1: Using their acceleration of \(P\) to correctly calculate the coefficient of friction for \(B\). Can be implied from a correct deceleration of \(B\). Accept 0.13 (so 2 sf) or better For reference: exact value is \(\dfrac{-72 + 49\sqrt{3}}{98}\) (which scores A1)
A1: Accept awrt 1.29 or \(-1.29\) \(1.28704895\ldots\) or, for reference, exact value is \(\dfrac{-72 + 49\sqrt{3}}{10}\) (which scores A1)

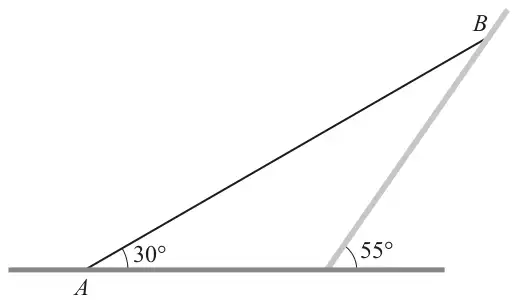

A uniform rod \(AB\), of weight \(20\,\mathrm{N}\) and length \(2.8\,\mathrm{m}\), rests in equilibrium with the end \(A\) in contact with rough horizontal ground and the end \(B\) resting against a smooth wall inclined at \(55^\circ\) to the horizontal. The rod, which rests in a vertical plane that is perpendicular to the wall, is inclined at \(30^\circ\) to the horizontal (see diagram).
(a) Show that the magnitude of the force acting on the rod at \(B\) is \(9.56\,\mathrm{N}\), correct to 3 significant figures. [3]
(b) Determine the magnitude of the contact force between the rod and the ground. Give your answer correct to 3 significant figures. [5]
M1: Moments about \(A\) to form an equation with the correct number of terms and both the weight and contact force at \(B\) resolved - condone \(20g\) for the weight of the rod. All relevant values must have been substituted. May take moments about another point (and resolve) but must end up after elimination with an equation in \(R_B\) only Resolved for the weight means either sin or cos with an angle of either 30 or 60 only, and for the contact force at \(B\) either sin or cos with an angle of 25 or 35 or 55 or 65 only
M1: One of the two moment terms correct Must be as part of a two-term moment equation (so dimensionally correct so M0 if \(20g\) for the weight) but the other term need not be resolved (or resolved correctly) e.g. \(1.4(20\cos 30) = 2.8R_B\) scores M0 M1
A1:AG - correct equation followed by 9.56 scores all 3 marks Allow awrt 9.56
For reference in parts (a) and (b): Moments about \(B\): \(R_A(2.8\cos 30) = F_A(2.8\sin 30) + 20(1.4\cos 30)\) Moments about the mid-point: \(R_A(1.4\cos 30) = F_A(1.4\sin 30) + R_B(1.4\cos 25)\)
Mark scheme (b)
Scheme
Marks
AO
M1*
3.3
\(R_A + 9.56\sin 35 = 20\) \(F_A = 9.56\cos 35\)
A1 A1
1.1 1.1
\(\sqrt{(9.56\cos 35)^2 + (20 - 9.56\sin 35)^2}\)
M1dep*
1.1
16.5 (N)
A1
2.2a
[5]
Notes
M1*: Attempt at resolving vertically or horizontally – correct number of terms with the contact force at \(B\) resolved (angle must be one of 25, 35, 55 or 65 only) – or taking moments again (see below) (same conditions for taking moments as in part (a)). M0 if using \(W\) or \(mg\) only for the weight of the rod (must substitute in the given value before awarding this mark – see second guidance column if using \(20g\)) Allow sign errors, sin/cos confusion and \(20g\) used as the weight for the M mark. Allow \(R_B\) instead of the given value of 9.56 for the M mark
A1: Correct expression/equation for \(F_A\) \(F_A = 7.83\ldots\)
M1dep*: Correct method for calculating the magnitude of the contact force at \(A\) where \(R_A\) and \(F_A\) are a linear combination of the correct number of terms with 9.56 resolved in both equations (angle must be one of 25, 35, 55 or 65 only)
A1:www awrt 16.5. For reference if using 9.56 for \(R_B\) then \(16.494179\ldots\) If using more accurate value for \(R_B\) then \(16.494698\ldots\)
For reference in parts (a) and (b): Moments about \(B\): \(R_A(2.8\cos 30) = F_A(2.8\sin 30) + 20(1.4\cos 30)\) Moments about the mid-point: \(R_A(1.4\cos 30) = F_A(1.4\sin 30) + R_B(1.4\cos 25)\)

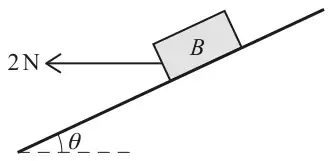

A block \(B\) of weight \(10\,\mathrm{N}\) lies at rest in equilibrium on a rough plane inclined at \(\theta\) to the horizontal. A horizontal force of magnitude \(2\,\mathrm{N}\), acting above a line of greatest slope, is applied to \(B\) (see diagram).
(a) Complete the diagram in the Printed Answer Booklet to show all the forces acting on \(B\). [1]
It is given that \(B\) remains at rest and the coefficient of friction between \(B\) and the plane is 0.8.
(b) Determine the greatest possible value of \(\tan\theta\). [5]
Mark scheme (a)
Scheme
Marks
AO
B1
1.2
[1]
Notes
B1: Correct force diagram showing the weight, normal contact, and frictional contact forces only (but ignore labelling of these forces even if labelled incorrectly) but must include all arrows pointing in the correct direction – the line of action of all forces must pass through the block (or imply passing through the block) but do not need to be attached to the block Ignore components of any of the three forces if shown – if only components shown then B0
\(10\cos\theta + 50\sin\theta \leqslant 40\cos\theta - 8\sin\theta\) \(\left(\tan\theta \leqslant \frac{30}{58} \Rightarrow \text{greatest value of}\right)\ \tan\theta\) is \(\frac{15}{29}\)
A1
2.2a
[5]
Notes
M1*: Resolving parallel or perpendicular to the plane – correct number of terms - must be using 10 for the weight so no marks until this value used/applied (however, see SC in the final A mark) Allow sin/cos confusion and sign errors – but the 2 and 10 must be resolved and the \(R\) and \(F\) should not (if considering \(\perp\) & \(\parallel\))
A1 A1: Condone \(\leqslant\) or \(\geqslant\) with \(F\) for this mark but withhold the final A mark Where \(R\) is the normal contact force and \(F\) is the frictional contact force
M1dep*: Applying \(F \leqslant \mu R\) or \(F = \mu R\) to obtain an equation/inequality in \(\theta\) only – where \(R\) and \(F\) are a linear combination of the correct number of relevant resolved terms
A1: oe e.g. \(\frac{30}{58}\) but A0 for \(\frac{6}{11.6}\) as a final answer. Allow awrt 0.517. Isw if candidates go on to work out \(\theta\). Allow \(\tan\theta \leqslant \frac{15}{29}\) (oe) as a final answer Can use equals throughout (no justification required) But not \(\tan\theta \lt \frac{15}{29}\) If using \(10g\) for the weight, then SC M1* A1 A0 M1dep* A0 max (where the first A mark is for both equations correct using \(10g\) rather than 10)
A uniform rod \(AB\) of mass 4 kg and length 3 m rests in a vertical plane with \(A\) on rough horizontal ground.
A particle of mass 1 kg is attached to the rod at \(B\). The rod makes an angle of 60° with the horizontal and is held in limiting equilibrium by a light inextensible string \(CD\). \(D\) is a fixed point vertically above \(A\) and \(CD\) makes an angle of 60° with the vertical. The distance \(AC\) is \(x\) m (see diagram).
(a) Find, in terms of \(g\) and \(x\), the tension in the string. [3]
The coefficient of friction between the rod and the ground is \(\dfrac{9\sqrt{3}}{35}\).
(b) Determine the value of \(x\). [4]
Mark scheme (a)
Scheme
Marks
AO
Taking moments about \(A\) – correct number of terms, allow sin/cos confusion and sign errors – may take moments about another point (and resolve) but must end up after elimination with an equation in \(T\) and \(x\) only
M1: Dimensionally correct. Must be \(xT\) and not \(xT\cos(\ldots)\) or \(xT\sin(\ldots)\)
A1: Correct equation in \(g\), \(x\) and \(T\) only – condone \(g\) replaced by 9.8 \(T\) is the tension in the string
A1: An answer of \(\frac{44.1}{x}\) (or with trigonometric terms) is A0 unless correct answer in terms of \(g\) seen oe exact answers in terms of \(g\) and \(x\) (condone correct triple decker fractions)
For reference for parts (a) and (b): Moments about \(C\): \(R_A(x\cos 60) + g(3 - x)\cos 60 = 4g(x - 1.5)\cos 60 + F_A(x\sin 60)\) Moments about \(B\): \(T(3 - x) + R_A(3\cos 60) = 4g(1.5\cos 60) + F_A(3\sin 60)\) Moments about midpoint of \(AB\): \(R_A(1.5\cos 60) + g(1.5\cos 60) = T(x - 1.5) + F_A(1.5\sin 60)\) Resolving perpendicular to \(AB\): \(T + R_A\cos 60 = 4g\cos 60 + g\cos 60 + F_A\sin 60\) Resolving parallel to \(AB\): \(R_A\sin 60 + F_A\cos 60 = 4g\sin 60 + g\sin 60\)
Mark scheme (b)
Scheme
Marks
AO
Resolve vertically or horizontally – correct number of terms with the tension at \(C\) in terms of cos/sin, condone sign errors, allow sin/cos confusion but forces that require resolving must be (and correspondingly those that don’t require resolving e.g. the weights if resolving vertically, should not be resolved)
M1: Or obtain an equation in \(F_A\) and/or \(R_A\) in terms of \(T\) (or their \(T\)) only (see list of equations below)
A1: Both correct (unsimplified) – allow with \(T\) or their (possibly incorrect) \(T\) (oe eg two valid equations in \(R_A\) and \(F_A\)) \(R_A\) is the normal contact force at \(A\) \(F_A\) is the frictional contact force at \(A\)
M1dep*: Use of \(F = \mu R\) with correct \(\mu\) to form an equation in \(x\) only – no forces missing from their \(R_A\) and \(F_A\) and all required forces resolved accordingly or not e.g. if resolving vertically the two weights should not contain sin/cos
A1: awrt 2.2 www
For reference for parts (a) and (b): Moments about \(C\): \(R_A(x\cos 60) + g(3 - x)\cos 60 = 4g(x - 1.5)\cos 60 + F_A(x\sin 60)\) Moments about \(B\): \(T(3 - x) + R_A(3\cos 60) = 4g(1.5\cos 60) + F_A(3\sin 60)\) Moments about midpoint of \(AB\): \(R_A(1.5\cos 60) + g(1.5\cos 60) = T(x - 1.5) + F_A(1.5\sin 60)\) Resolving perpendicular to \(AB\): \(T + R_A\cos 60 = 4g\cos 60 + g\cos 60 + F_A\sin 60\) Resolving parallel to \(AB\): \(R_A\sin 60 + F_A\cos 60 = 4g\sin 60 + g\sin 60\)
A rectangular block \(B\) is at rest on a horizontal surface. A particle \(P\) of mass 2.5 kg is placed on the upper surface of \(B\). The particle \(P\) is attached to one end of a light inextensible string which passes over a smooth fixed pulley. A particle \(Q\) of mass 3 kg is attached to the other end of the string and hangs freely below the pulley. The part of the string between \(P\) and the pulley is horizontal (see diagram).
The particles are released from rest with the string taut. It is given that \(B\) remains in equilibrium while \(P\) moves on the upper surface of \(B\). The tension in the string while \(P\) moves on \(B\) is 16.8 N.
(a) Find the acceleration of \(Q\) while \(P\) and \(B\) are in contact. [2]
(b) Determine the coefficient of friction between \(P\) and \(B\). [3]
(c) Given that the coefficient of friction between \(B\) and the horizontal surface is \(\frac{5}{49}\), determine the least possible value for the mass of \(B\). [3]
M1: N2L for \(Q\) – correct number of terms with the correct mass. Condone sign errors M0 if using \(3g\) for the mass but allow \(g\) missing from the net force
Mark scheme (b)
Scheme
Marks
AO
\(16.8 - F_P = 2.5(4.2)\)
M1*
3.3
\(16.8 - 2.5(4.2) = \mu(2.5g)\)
M1dep*
3.4
\(\mu = 0.257\)
A1
1.1
[3]
Notes
M1*: N2L for \(P\) horizontally using \(T = 16.8\) and their \(a\) (but not \(\pm 9.8\)) from (a) – allow sign errors but must have correct number of terms and correct mass (\(\ne 3\)) – if correct \(F_P = 6.3\) \(F_P\) is the friction between \(P\) and \(B\)
M1dep*: Use of \(F = \mu R\) for \(P\) with \(R = 2.5g\)
A1: awrt 0.257 – condone working with \(F \leqslant \mu R\) provided that the value of \(\mu\) is explicitly stated (and not left in an inequality) 0.257142857… allow \(\dfrac{9}{35}\)
Mark scheme (c)
Scheme
Marks
AO
\(R_B = 2.5g + Mg\)
M1*
3.1b
\(6.3 \leqslant \dfrac{5}{49}(2.5g + Mg)\)
M1dep*
3.4
\(M \geqslant 3.8\) so least possible value for the mass of \(B\) is 3.8 (kg)
A1
2.2a
[3]
Notes
M1*: Resolving vertically for \(B\) – correct number of terms, allow sign errors and condone \(g\)’s missing Where \(M\) is the mass of \(B\)
M1dep*: Use of \(F \leqslant \mu R\) or \(F = \mu R\) with correct \(R\) and \(\mu = \frac{5}{49}\) with \(F\) being their \(F_P\) from (b) where \(F_P \ne 16.8\) No \(g\)’s missing for this mark
A1: 3.8 - allow use of ‘=’ throughout this part No justification required
A child attempts to drag a sledge along horizontal ground by means of a rope attached to the sledge. The rope makes an angle of 15° with the horizontal (see diagram).
Given that the sledge remains at rest and that the frictional force acting on the sledge is 60 N, find the tension in the rope. [2]
Mark scheme
Scheme
Marks
AO
\(T\cos 15 = 60\)
M1
1.1
\(T = 62.1\) (N)
A1
1.1
[2]
Notes
M1: Resolve horizontally, correct number of terms, allow sin/cos confusion (e.g. \(T\sin 15 = 60\) scores M1 but \(T = 60\cos 15\) scores M0) Where \(T\) is the tension in the rope
A1: awrt 62.1 – allow the exact answer of \(60(\sqrt{6} - \sqrt{2})\) 62.11657082…
One end of a light inextensible string is attached to a particle \(A\) of mass \(2\,\mathrm{kg}\). The other end of the string is attached to a second particle \(B\) of mass \(3\,\mathrm{kg}\). Particle \(A\) is in contact with a smooth plane inclined at \(30^\circ\) to the horizontal and particle \(B\) is in contact with a rough horizontal plane.
A second light inextensible string is attached to \(B\). The other end of this second string is attached to a third particle \(C\) of mass \(4\,\mathrm{kg}\). Particle \(C\) is in contact with a smooth plane \(\mathit{\Pi}\) inclined at an angle of \(60^\circ\) to the horizontal.
Both strings are taut and pass over small smooth pulleys that are at the tops of the inclined planes. The parts of the strings from \(A\) to the pulley, and from \(C\) to the pulley, are parallel to lines of greatest slope of the corresponding planes (see diagram).
The coefficient of friction between \(B\) and the horizontal plane is \(\mu\). The system is released from rest and in the subsequent motion \(C\) moves down \(\mathit{\Pi}\) with acceleration \(a\,\mathrm{m\,s^{-2}}\).
(a) By considering an equation involving \(\mu\), \(a\) and \(g\) show that \(a \lt \frac{1}{9}g\left(2\sqrt{3} - 1\right)\). [7]
(b) Given that \(a = \frac{1}{9}g\), determine the magnitude of the contact force between \(B\) and the horizontal plane. Give your answer correct to 3 significant figures. [4]
M1*: N2L parallel to plane for \(A\) – correct number of terms, allow cos/sin confusion Dimensionally consistent equations for M marks
M1*: N2L parallel to plane for \(C\) – correct number of terms, allow cos/sin confusion M1M0M0 if \(T\) used in both equations
M1*: N2L parallel to plane for \(B\)
M1dep*: Eliminates both tensions Allow in terms of \(F_B\)
A1: Use of \(F_B = \mu(3g)\) to get a correct equation in \(a\) and \(\mu\) \(9a = g\left(2\sqrt{3} - 1 - 3\mu\right)\)
M1: Explicitly uses \(\mu \gt 0\) to get a strict inequality in \(a\) and \(g\) only. If \(a = \frac{1}{9}g\left(2\sqrt{3} - 1 - 3\mu\right) \Rightarrow a \lt \frac{1}{9}g\left(2\sqrt{3} - 1\right)\) without justification is M0 Dependent on all previous M marks
A1:AG – must follow from a correct equation involving \(\mu, a\) and \(g\) SC considering whole system with no friction B2 only for deriving \(9a = g\left(2\sqrt{3} - 1\right)\)
A block \(D\) of weight \(50\,\mathrm{N}\) lies at rest in equilibrium on a fixed rough horizontal surface. A force of magnitude \(15\,\mathrm{N}\) is applied to \(D\) at an angle \(\theta\) to the horizontal (see diagram).
(a) Complete the diagram in the Printed Answer Booklet showing all the forces acting on \(D\). [1]
It is given that \(D\) remains at rest and the coefficient of friction between \(D\) and the surface is 0.2.
(b) Show that \[15\cos\theta - 3\sin\theta \leqslant 10.\] [5]
Mark scheme (a)
Scheme
Marks
AO
B1
1.2
[1]
Notes
B1: All three forces added correctly – need not be labelled Extra forces is B0
The diagram shows a wall-mounted light. It consists of a rod \(AB\) of mass 0.25 kg and length 0.8 m which is freely hinged to a vertical wall at \(A\), and a lamp of mass 0.5 kg fixed at \(B\). The system is held in equilibrium by a chain \(CD\) whose end \(C\) is attached to the midpoint of \(AB\). The end \(D\) is fixed to the wall a distance 0.4 m vertically above \(A\). The rod \(AB\) makes an angle of \(60^\circ\) with the downward vertical.
The chain is modelled as a light inextensible string, the rod is modelled as uniform and the lamp is modelled as a particle.
(a) By taking moments about \(A\), determine the tension in the chain. [4]
(b)
(i) Determine the magnitude of the force exerted on the rod at \(A\). [4]
(ii) Calculate the direction of the force exerted on the rod at \(A\). [2]
(c) Suggest one improvement that could be made to the model to make it more realistic. [1]
Mark scheme (a)
Scheme
Marks
AO
M1
3.3
\(0.4(0.25g\sin 60) + 0.8(0.5g\sin 60) = \ldots\)
B1
1.1
\(\ldots = T(0.4\sin 30)\)
B1
1.1
Tension is 21.2 (N)
A1
3.4
[4]
Notes
M1: Moments about \(A\) correct number of terms – condone sign errors and cos/sin confusion M0 if only using masses or if no sin/cos term with either weight or \(T\) term
M1*: Resolving horizontally and vertically – correct number of terms allow cos/sin confusion – award this mark if only one stated correctly Where \(X\) is the horizontal component of the reaction at \(A\)
A1: (For reference only: \(Y = 11.025\) and \(X = 10.6\ldots\)) Where \(Y\) is the vertical component
M1dep*: Correct method for finding the magnitude of the contact force (using their value of \(T\))
A1: (15.283139… if \(T = 21.2\) used) \(\tfrac{49}{20}\sqrt{39} = 15.3002\ldots\)
(b)(ii)
M1: Correct method for finding the direction of the contact force at \(A\) Dependent on first M mark in (b)(i)
A1: oe (e.g. \(43.9^\circ\) to the downward vertical) 46.1021137… or 46.086245… if \(T = 21.2\) used
One end of a light inextensible string is attached to a particle \(A\) of mass 2 kg. The other end of the string is attached to a second particle \(B\) of mass 2.5 kg. Particle \(A\) is in contact with a rough plane inclined at \(\theta\) to the horizontal, where \(\cos\theta = \tfrac{4}{5}\). The string is taut and passes over a small smooth pulley \(P\) at the top of the plane. The part of the string from \(A\) to \(P\) is parallel to a line of greatest slope of the plane. Particle \(B\) hangs freely below \(P\) at a distance 1.5 m above horizontal ground, as shown in the diagram.
The coefficient of friction between \(A\) and the plane is \(\mu\). The system is released from rest and in the subsequent motion \(B\) hits the ground before \(A\) reaches \(P\). The speed of \(B\) at the instant that it hits the ground is \(1.2\,\mathrm{m\,s^{-1}}\).
(a) For the motion before \(B\) hits the ground, show that the acceleration of \(B\) is \(0.48\,\mathrm{m\,s^{-2}}\). [1]
(b) For the motion before \(B\) hits the ground, show that the tension in the string is 23.3 N. [3]
(c) Determine the value of \(\mu\). [5]
After \(B\) hits the ground, \(A\) continues to travel up the plane before coming to instantaneous rest before it reaches \(P\).
(d) Determine the distance that \(A\) travels from the instant that \(B\) hits the ground until \(A\) comes to instantaneous rest. [4]
Mark scheme (a)
Scheme
Marks
AO
\(1.2^2 = 0^2 + 2a(1.5) \Rightarrow a = 0.48\ (\mathrm{m\,s^{-2}})\)
B1
2.1
[1]
Notes
B1:AG
Mark scheme (b)
Scheme
Marks
AO
M1
3.3
\(2.5g - T = 2.5a\)
A1
1.1
\(T = 2.5(9.8) - 2.5(0.48) = 23.3\ (\mathrm{N})\)
A1
1.1
[3]
Notes
M1: N2L for particle \(B\) – correct number of terms – allow sign errors M0 if mass only on lhs
A1:AG e.g. \(2.5(9.8) - T = 2.5(0.48) \Rightarrow T = 23.3\) Value of \(a\) must be substituted for this mark
B1: Correctly resolves perpendicular to the plane and substitutes the correct value for cosine \(R = 15.68\)
M1*: N2L for particle \(A\) – correct number of terms with weight component resolved Allow sign errors
A1: Correct equation with \(T = 23.3\) and \(a = 0.48\)
M1dep*: Use of \(F = \mu R\) with their values for \(F\) and \(R\) – may be implied by N2L Equation in \(\mu\) only \(R\) must be a component of \(2g\) only
A1: Correct to at least 3 sf (0.674744898…) Note that \(\mu = \tfrac{529}{784}\)
The diagram shows a ladder \(AB\), of length \(2a\) and mass \(m\), resting in equilibrium on a vertical wall of height \(h\). The ladder is inclined at an angle of \(30^\circ\) to the horizontal. The end \(A\) is in contact with horizontal ground. An object of mass \(2m\) is placed on the ladder at a point \(C\) where \(AC = d\).
The ladder is modelled as uniform, the ground is modelled as being rough, and the vertical wall is modelled as being smooth.
(a) Show that the normal contact force between the ladder and the wall is \(\dfrac{mg(a + 2d)\sqrt{3}}{4h}\). [4]
It is given that the equilibrium is limiting and the coefficient of friction between the ladder and the ground is \(\frac{1}{8}\sqrt{3}.\)
(b) Show that \(h = k(a + 2d)\), where \(k\) is a constant to be determined. [7]
(c) Hence find, in terms of \(a\), the greatest possible value of \(d\). [2]
(d) State one improvement that could be made to the model. [1]
Mark scheme (a)
Scheme
Marks
AO
Dist. from \(A\) to the wall along the ladder: \((l =)\, \dfrac{h}{\sin 30}\)
M1: Moments about \(A\) (each term must therefore by a force \(\times\) distance) – three terms, both weights resolved (but allow sin/cos confusion), allow sign errors (M0 if only using masses) M0 if the contact force at the wall appears as a component in their equation
A1: Correct LHS and RHS with their \(l = \alpha h\) - A0 if \(l = 2a\) \(\alpha \ne 0, 1\)
A1:AG www – note that using \(l = 2a\) but then stating \(a = h\) is M1 only Enough working must be shown as AG
M1*: Resolve vertically (three or four terms (if both weights not combined)) – reaction at the wall resolved – allow sign errors and sin/cos confusion (must be using \(mg\) not \(m\)) \(R_A\) is the normal contact force at \(A\)
A1: oe
M1*: Resolve horizontally (allow sin/cos confusion) – two terms only \(F_A\) is the frictional contact force at \(A\)
A1: oe
M1dep*: Use of \(F = \frac{\sqrt{3}}{8}R\) with their expressions for \(F_A\) and \(R_A\) – dependent on previous M marks Either in terms of \(R_w\), \(m\) and \(g\) or \(a\), \(d\) and \(h\) (and \(m\), \(g\))
A1: Correct equation in terms of (\(m\), \(g\)) \(a\), \(d\) and \(h\) Condone non-exact values for this A mark
A1: \(k = \frac{11}{24}\) oe www (must be exact value of \(k\)) From exact working For reference: \(k = 0.45833\ldots\)
Mark scheme (c)
Scheme
Marks
AO
\(\frac{11}{24}(a + 2d) \le a\)
M1
3.1b
\(d \le \frac{13}{22}a\) so greatest possible value of \(d\) is \(\frac{13}{22}a\)
A1
2.2a
[2]
Notes
M1: Uses the condition that \(h\) cannot exceed \(2a\sin 30\ (= a)\) – allow if in terms of \(k\) or their incorrect \(k\) (e.g. \(k(a + 2d) = a\) is M1) Allow any inequality sign or equals
A1: Allow \(d \le \frac{13}{22}a\) or \(d = \frac{13}{22}a\) A0 if exact answer not seen
Mark scheme (d)
Scheme
Marks
AO
e.g. model the ladder as non-uniform e.g. include a frictional component for the contact of the ladder with the wall e.g. consider the size of the object at \(C\) e.g. consider the thickness of the ladder e.g. consider the fact that the ladder could bend
B1
3.5c
[1]
Notes
B1: B0 if suggestion is to model the ground as smooth B0 for using a more accurate value for \(g\)
The diagram shows a small block \(B\), of mass \(0.2\text{ kg}\), and a particle \(P\), of mass \(0.5\text{ kg}\), which are attached to the ends of a light inextensible string. The string is taut and passes over a small smooth pulley fixed at the intersection of a horizontal surface and an inclined plane.
The block can move on the horizontal surface, which is rough. The particle can move on the inclined plane, which is smooth and which makes an angle of \(\theta\) with the horizontal where \(\tan\theta = \frac{3}{4}\).
The system is released from rest. In the first 0.4 seconds of the motion \(P\) moves \(0.3\text{ m}\) down the plane and \(B\) does not reach the pulley.
(a) Find the tension in the string during the first 0.4 seconds of the motion. [4]
(b) Calculate the coefficient of friction between \(B\) and the horizontal surface. [5]
Mark scheme (a)
Scheme
Marks
AO
\(0.3 = \frac{1}{2}a \times 0.4^2\ (\Rightarrow a = 3.75)\)
B1
3.1b
\(0.5g\sin\theta - T = 0.5a\)
M1
3.3
\(0.5g \times \frac{3}{5} - T = 0.5 \times 3.75\)
A1ft
1.1
\(T = 1.065\text{ N}\)
A1
1.1
[4]
Notes
B1: Cao seen or implied by correct \(T\)
M1: Use of N II parallel to the plane (correct number of terms) – weight must be resolved (but allow sin/cos confusion in component of the weight – may still be in terms of \(\theta\) and \(a\) (or their incorrect values of \(\theta\) and \(a\))) Allow sign errors but M0 if using \(0.5g\) for the mass on the rhs or if only resolving the mass (e.g. \(0.5\sin\theta\)) on the lhs
A1ft: 'correct' equation in terms of \(T\) with their \(a\) Allow \(0.5g \times \sin 36.9 - T = 0.5 \times \text{‘}3.75\text{’}\) or \(0.5g \times \sin 0.644 - T = 0.5 \times \text{‘}3.75\text{’}\) (in radians) A0 if \(a = 0\) or \(\pm g\) (or a component of \(g\))
A1: Allow 1.07 www
Mark scheme (b)
Scheme
Marks
AO
\(R = 0.2g\)
B1
1.1
\(T - F = 0.2a\) or \(T - \mu R = 0.2a\)
M1*
3.3
\(1.065 - F = 0.2(3.75)\)
A1
1.1
\(0.315 = \mu \times 0.2 \times 9.8\)
M1dep*
3.4
\(\mu = 0.161\)
A1
1.1
[5]
Notes
B1: Where \(R\) is the normal contact force of surface acting on \(B\) – may be implied in N II applied horizontally
M1*: Use of N II horizontally for \(B\) or \(0.5g\sin\theta - F = 0.7a\) for the whole system (M0 if any other mass used for whole system) Correct number of terms (M0 if mass is \(0.2g\)) – allow sign errors
A1: Or for a correct statement without explicitly seeing \(F\) e.g. \(1.065 - 0.2g\mu = 0.2(3.75)\) (which would imply the next M mark as well) \(F = 0.315\) or \(\mu R = 0.315\) or \(F = 0.32\)
M1dep*: Use of \(F = \mu R\) where \(R = 0.2g\) - may be implied in N II applied horizontally
A1: Allow awrt 0.161 or 0.163 from using \(T = 1.07\) www \(\mu = \frac{9}{56}\)
12 One end of a light inextensible string is attached to a particle \(A\) of mass \(m\) kg. The other end of the string is attached to a second particle \(B\) of mass \(\lambda m\) kg, where \(\lambda\) is a constant. Particle \(A\) is in contact with a rough plane inclined at \(30^\circ\) to the horizontal. The string is taut and passes over a small smooth pulley \(P\) at the top of the plane. The part of the string from \(A\) to \(P\) is parallel to a line of greatest slope of the plane. The particle \(B\) hangs freely below \(P\) (see diagram).
The coefficient of friction between \(A\) and the plane is \(\mu\).
(i) It is given that \(A\) is on the point of moving down the plane.
(a) Find the exact value of \(\mu\) when \(\lambda = \frac{1}{4}\). [7]
(b) Show that the value of \(\lambda\) must be less than \(\frac{1}{2}\). [2]
(ii) Given instead that \(\lambda = 2\) and that the acceleration of \(A\) is \(\frac{1}{4}g\,\mathrm{m\,s^{-2}}\), find the exact value of \(\mu\). [5]
M1: Where \(\alpha\) is the angle below the horizontal Alt – M1 for \(\dfrac{\sin\alpha}{3} = \dfrac{\sin 41.4}{\text{'}3.39\text{'}}\)
A1: 54.2 or better (54.18696…) – must indicate ‘below horizontal’ or equivalent to the ‘downward vertical’ (35.8) – direction may be shown on diagram with minimum of arrow on resultant or arrows on both components
B1: Soi. Allow \(\boldsymbol{F} = -9\mathbf{i}\) or \(F = -9\)
M1: Soi Vertical equation – weight and 20 involved and not 9. Allow sign errors
A1: Correct equation soi
M1: Uses their \(F\) and \(R\) to evaluate \(\mu\). Where \(F = \mu\times 5g\) is seen it must be explicit that \(5g\) is their reaction and not weight
A1FT: FT their \(R\) and \(F\). Final answer must follow from their working and be positive Ignore unsupported \(\mu = 0.310\) seen.
Mark scheme (b)
Scheme
Marks
AO
Resolve perpendicular \(R_1 = 5g\cos\alpha\)
B1
3.4
Resolve parallel \(F_1 = 5g\sin\alpha\)
B1
3.3
\(F_1 = \dfrac{9}{29}R_1\) so \(\tan\alpha = \mu\left[=\dfrac{9}{29}\right]\)
M1
1.1
\(\tan^{-1}\dfrac{9}{29} = 17.2^\circ\)
A1
2.1
[4]
Notes
Condone repeated use of \(F\) and \(R\) throughout even though their values have changed
B1: Allow \(R - 5g\cos\alpha = 0\) or \(F = \mu\times 5g\cos\alpha\) seen explicitly
B1: Allow for \(5g\sin\alpha = \mu\times 5g\cos\alpha\) Allow sin/cos interchange if consistent with their \(R_1\)
M1: Allow for fraction which simplifies to 0.310 or better. FT their \(\mu\) or 0.310 May be a quoted formula following B0B0
A1:AG must follow \(\mu = 0.310\) correctly calculated in (a)
Mark scheme (c)
Scheme
Marks
AO
N2L up the slope \(-\left(5g\sin 17.2^\circ + \dfrac{9}{29}5g\cos 17.2^\circ\right) = 5a\)
B1 B1FT M1
3.3 3.4 3.1b
\(a = -5.80\ldots\)
A1
1.1
\(v = u + at\) with \(v = 0,\ u = 5\) and their \(a\)
M1
3.4
\(t = 0.862\) s
A1FT
1.1
[6]
Notes
B1: Correct weight term seen (Allow \(\pm 14.5\) oe)
B1FT: Friction term seen FT their \(\mu\) (Allow \(\pm 14.5\) oe)
M1: Formulate equation of motion with their weight. Allow wrong or missing friction. Allow sign errors No extra forces.
A1: Soi Allow 5.8 if down the slope used as positive direction clear (eg on diagram, or \(u = -5\) or \(a = -5.8\) used subsequently)
M1:suvat equation(s) leading to a value for \(t\). Allow sign errors
A1FT: FT their acceleration \(\neq \pm g\) Using \(\alpha = \tan^{-1}\frac{9}{29}\) gives 0.86067
16 A block of mass \(m\) kg rests on rough horizontal ground. The coefficient of friction between the block and the ground is \(\mu\). A force of magnitude \(T\) N is applied at an angle \(\theta\) radians above the horizontal as shown in the diagram and the block slides without tilting or lifting.
(a) Show that the acceleration of the block is given by \(\dfrac{T}{m}\cos\theta - \mu g + \dfrac{T}{m}\mu\sin\theta\). [4]
For a fixed value of \(T\), the acceleration of the block depends on the value of \(\theta\). The acceleration has its greatest value when \(\theta = \alpha\).
(b) Find an expression for \(\alpha\) in terms of \(\mu\). [3]
3 A particle hangs at the end of a string. A horizontal force of magnitude \(F\) N acting on the particle holds it in equilibrium so that the string makes an angle of \(20^\circ\) with the vertical, as shown in the diagram. The tension in the string is 12 N.
(a) Find the value of \(F\). [2]
(b) Find the mass of the particle. [3]
Mark scheme (a)
Scheme
Marks
AO
Resolve horizontally \(F = 12\sin 20\)
M1
1.1a
\(F = 4.10\)
A1
1.1
[2]
Notes
M1: Resolving horizontally – allow sin/cos interchange. Allow if \(F = T\sin 20\) or similar seen
M1: Resolve to find vertical component of tension. Allow sin/cos interchange if consistent with (a) If triangle of forces used, allow attempt to find by Pythagoras
M1: Equating weight to their component of tension and dividing their weight by \(g\) soi

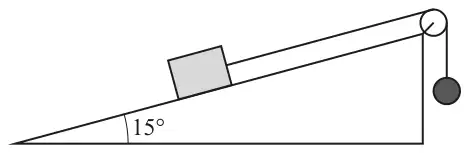

13 A block of mass 8 kg is placed on a rough plane inclined at \(15^\circ\) to the horizontal. The coefficient of friction between the block and the plane is 0.3.
One end of a light rope is attached to the block. The rope passes over a smooth pulley fixed at the top of the plane, and a sphere of mass 5 kg, attached to the other end of the rope, hangs vertically below the pulley. The part of the rope between the block and the pulley is parallel to the plane. The system is released from rest, and as the sphere falls the block moves directly up the plane with acceleration \(a\,\mathrm{m\,s^{-2}}\).
(a) On the diagram in the Printed Answer Booklet, show all the forces acting on the block and on the sphere. [4]
(b) Write down the equation of motion for the sphere. [2]
(c) Determine the value of \(a\). [6]

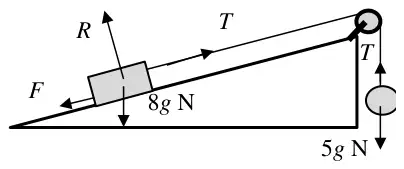

Mark scheme (a)
Scheme
Marks
AO
B1 B1 B1 B1
1.1b 1.1b 1.1b 1.1b
[4]
Notes
(Each force must have correct direction)
B1: Matching tensions on the sphere and the block (may also include tensions on the pulley)
B1: Normal reaction. Allow without label or \(8g\cos 15^\circ\) used
B1: Friction in the correct direction and labelled This could be \(0.3 \times 8g\cos 15^\circ\) oe
B1: Both weights correct. Do not award if weight and its components shown together (unless dotted or similar) or any other extra forces
Mark scheme (b)
Scheme
Marks
AO
Sphere (downwards positive) \(5g - T = 5a\)
M1 A1
1.1a 1.1b
[2]
Notes
M1: Newton’s second law allow sign errors
A1: All correct – accept \(49 - T = 5a\) Any form
Mark scheme (c)
Scheme
Marks
AO
\(R = 8g\cos 15^\circ\)
B1
3.1b
\(F = 0.3R = 2.4g\cos 15^\circ\)
M1
3.4
Newton’s second law for the block \(T - 8g\sin 15^\circ - F = 8a\)
13 A toy train consists of an engine of mass 0.5 kg pulling a coach of mass 0.4 kg. The coupling between the engine and the coach is light and inextensible. The train is pulled along with a string attached to the front of the engine.
At first, the train is pulled from rest along a horizontal carpet where there is a resistance to motion of 0.8 N on each part of the train. The string is horizontal, and the tension in the string is 5 N.
(a) Determine the velocity of the train after 1.5 s. [4]
The train is then pulled up a track inclined at \(20^\circ\) to the horizontal. The string is parallel to the track and the tension in the string is \(P\) N. The resistance on each part of the train along the track is \(R\) N.
(b) Draw a diagram showing all the forces acting on the train modelled as two connected particles. [3]
(c) Find the equation of motion for the train modelled as a single particle. [2]
(d) The acceleration of the train when \(P = 5.5\) is double the acceleration when \(P = 5\). Calculate the value of \(R\). [3]
Mark scheme (a)
Scheme
Marks
AO
Newton’s second law for the train \(5 - 2 \times 0.8 = (0.5 + 0.4)a\)
M1: N2L for whole train with correct mass and all forces present Alternative: \(5 - 0.8 - T = 0.5a\), \(T - 0.8 = 0.4a\). Also allow for 2 equations where both have correct mass and all forces present in each
M1: using suvat equation(s) with \(u = 0\) and their \(a \neq g\) leading to a value for \(v\)
A1: FT their \(a\). Any form

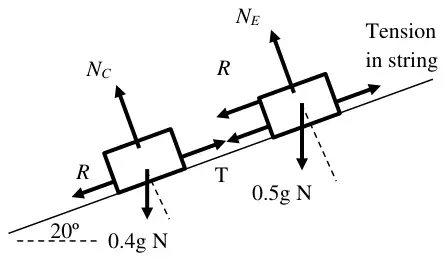

Mark scheme (b)
Scheme
Marks
AO
B1 B1 B1
1.1b 1.1b 1.1b
[3]
Notes
B1: weights and normal reactions (must be distinct and not vertical) Allow if both components of weight given instead. Allow in addition to weight only if clear they are for working purposes only
B1: tensions in string and coupling parallel to inclined plane
B1: \(R\) marked for both parts of the train. No additional forces Allow if distinct if it is clear they are equal in later work
Mark scheme (c)
Scheme
Marks
AO
Newton’s second law \(P - 2R - 0.9g\sin 20^\circ = 0.9a\)
M1 A1
1.1b 3.3
[2]
Notes
M1: Newton’s law with \(m = 0.9\). Allow for incorrect weight term(s) or \(R\) used instead of \(2R\)
A1: Fully correct Any form
Mark scheme (d)
Scheme
Marks
AO
When \(P = 5\) the equation gives \(5 - 2R - 0.9g\sin 20^\circ = 0.9a\)
M1
3.1b
When \(P = 5.5\) the equation gives \(5.5 - 2R - 0.9g\sin 20^\circ = 0.9 \times 2a\)
5 A sphere of mass 3 kg hangs on a string. A horizontal force of magnitude \(F\) N acts on the sphere so that it hangs in equilibrium with the string making an angle of \(25^\circ\) to the vertical. The force diagram for the sphere is shown below.
(a) Sketch the triangle of forces for these forces. [2]
(b) Hence or otherwise determine each of the following:
the tension in the string
the value of \(F\).
[3]
Mark scheme (a)
Scheme
Marks
AO

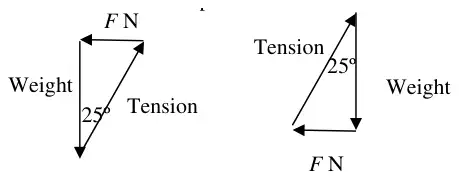

Either of these is acceptable
B1 B1
1.1b 1.1b
[2]
Notes
B1: Arrows making a closed loop in roughly the right directions
B1: Tension, weight and \(F\) labelled on their triangle and \(25^\circ\) (or \(65^\circ\)) correctly labelled. May be given as a suitable angle outside the triangle.
Mark scheme (b)
Scheme
Marks
AO
Using the triangle of forces \(F = 3g\tan 25^\circ\) or Tension \(= \dfrac{3g}{\cos 25^\circ}\)
M1
1.1a
\(F = 13.7\)
A1
1.1b
Tension \(= 32.4\) N
A1
1.1b
[3]
Notes
M1: Allow sin/cos or \(25^\circ\)/\(65^\circ\) interchange to find \(F\) or \(T\)
12 A box of mass \(m\) kg slides down a rough slope inclined at \(15^\circ\) to the horizontal. The coefficient of friction between the box and the slope is 0.4. The box has an initial velocity of \(1.2\,\text{m}\,\text{s}^{-1}\) down the slope.
Calculate the distance the box travels before coming to rest. [7]
Mark scheme
Scheme
Marks
AO
Normal reaction \(mg\cos 15^\circ\)
B1
3.1b
Max friction \(\mu N = 0.4mg\cos 15^\circ\)
M1
1.1b
Resolve down the slope \(mg\sin 15^\circ - F = ma\)
M1: Attempt to evaluate friction FT their normal reaction. Only allow \(0.4mg\) if it is clear that \(mg\) is their normal reaction and not just weight
B1: Correct component of weight seen \((2.536m)\)
M1: All terms present; allow sign errors, sin/cos interchange for weight and their \(F\)
A1: Correct equation (\(a\) need not be explicitly evaluated here)
M1: Use of suvat equation(s) leading to a value for \(s\) using \(v = 0\)
15 Fig. 15 shows a particle of mass \(m\) kg on a smooth plane inclined at \(30^\circ\) to the horizontal. Unit vectors \(\mathbf{i}\) and \(\mathbf{j}\) are parallel and perpendicular to the plane, in the directions shown.

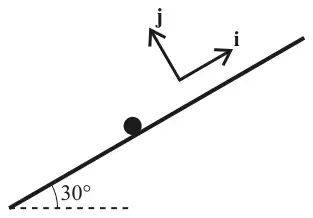

Fig. 15
(a) Express the weight \(\mathbf{W}\) of the particle in terms of \(m\), \(g\), \(\mathbf{i}\) and \(\mathbf{j}\). [2]
The particle is held in equilibrium by a force \(\mathbf{F}\), and the normal reaction of the plane on the particle is denoted by \(\mathbf{R}\). The units for both \(\mathbf{F}\) and \(\mathbf{R}\) are newtons.
(b) Write down an equation relating \(\mathbf{W}\), \(\mathbf{R}\) and \(\mathbf{F}\). [1]
(c) Given that \(\mathbf{F} = 6\mathbf{i} + 8\mathbf{j}\),
show that \(m = 1.22\) correct to 3 significant figures,
B1: Allow for any clear indication that \(\mathbf{R}\) is a multiple of \(\mathbf{j}\) or that it has no component in the \(\mathbf{i}\) direction May be implied with an equation for the i direction with two terms and an equation in the j direction with three terms
M1: Forming equation from their \(\mathbf{i}\) terms, or equivalent by resolving parallel to the plane. FT their \(\mathbf{W}\)
A1: Correct equation in \(\mathbf{i}\) direction
A1:AG
M1: Equation from the \(\mathbf{j}\) terms (must include all three terms), oe, and using value of \(m\) 12 is the value for \(mg\). \(1.22 \times 9.8 = 11.956\)
11 A block of mass 2 kg is placed on a rough horizontal table. A light inextensible string attached to the block passes over a smooth pulley attached to the edge of the table. The other end of the string is attached to a sphere of mass 0.8 kg which hangs freely.
The part of the string between the block and the pulley is horizontal. The coefficient of friction between the table and the block is 0.35. The system is released from rest.
(a) Draw a force diagram showing all the forces on the block and the sphere. [3]
(b) Write down the equations of motion for the block and the sphere. [2]
(c) Show that the acceleration of the system is \(0.35\,\mathrm{m\,s^{-2}}\). [4]
(d) Calculate the time for the block to slide the first 0.5 m. Assume the block does not reach the pulley. [2]

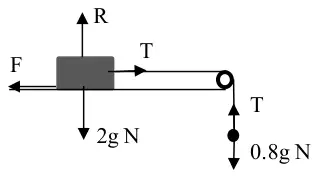

Mark scheme (a)
Scheme
Marks
AO
B1 B1 B1
1.1a 1.1a 1.1a
[3]
Notes
B1: both weights correct.
B1: common tension in the rigtht directions
B1: Friction and normal reaction and no extra forces
Allow weight of box and weight of sphere, but not if both marked weight. Allow \(T_1\) and \(T_2\) provided they are clearly shown equal to each other elsewhere. For \(F\), allow \(0.35R,\ 0.35 \times 2g\) \(0.7g\) or 6.86 N
Mark scheme (b)
Scheme
Marks
AO
\(T - F = 2a\)
B1
1.1a
\(0.8g - T = 0.8a\)
B1
1.1a
[2]
Notes
B1: Allow any expression for F
B1: Allow distinct tensions if consistent with diagram
For \(F\), allow \(0.35R,\ 0.35 \times 2g\) \(0.7g\) or 6.86 N
16 A particle of mass 2 kg slides down a plane inclined at \(20^\circ\) to the horizontal. The particle has an initial velocity of \(1.4\,\mathrm{m\,s^{-1}}\) down the plane. Two models for the particle’s motion are proposed.
In model A the plane is taken to be smooth.
(a) Calculate the time that model A predicts for the particle to slide the first 0.7 m. [5]
(b) Explain why model A is likely to underestimate the time taken. [1]
In model B the plane is taken to be rough, with a constant coefficient of friction between the particle and the plane.
(c) Calculate the acceleration of the particle predicted by model B given that it takes 0.8 s to slide the first 0.7 m. [2]
(d) Find the coefficient of friction predicted by model B, giving your answer correct to 3 significant figures. [6]
Mark scheme (a)
Scheme
Marks
AO
Resolve down the plane \(2g\sin 20^\circ = 2a\) \(a = g\sin 20^\circ\ [= 3.352]\)
M1 A1
3.1b 3.3
\(s = ut + \frac{1}{2}at^2\) with \(s = 0.7,\ u = 1.4\) and their \(a\) \(0.7 = 1.4t + \frac{1}{2}(g\sin 20^\circ)t^2\)
M1
3.3
\((4.9\sin 20^\circ)t^2 + 1.4t - 0.7 = 0\)
A1
3.4
Time taken is 0.352 s
A1
3.2a
[5]
Notes
M1: N2L with no other forces with attempt to resolving the weight Allow sin/cos interchange for M mark
A1: Allow \(a = -g\sin 20^\circ\) if it is clear that up the slope is the positive direction.
M1: Using suvat equation(s) leading to an equation for \(t\); allow sign errors
A1: Correct equation using their \(0.5a\) Allow coefficient of \(t^2\) 1.7 or better Solution BC is sufficient
A1: Cao Must select correct root if two roots given Allow if positive root only seen
Mark scheme (b)
Scheme
Marks
AO
Friction (and/or air resistance) would have the effect of slowing the particle so ignoring friction underestimates time
B1
3.5a
[1]
Notes
B1: Needs to indicate why ignoring resistance produces an underestimate eg “friction will slow it down” for B1
Mark scheme (c)
Scheme
Marks
AO
\(s = 0.7,\ u = 1.4,\ t = 0.8 \Rightarrow 0.7 = 1.4 \times 0.8 + \frac{1}{2}a \times 0.8^2\)
13 A 15 kg box is suspended in the air by a rope which makes an angle of \(30^\circ\) with the vertical. The box is held in place by a string which is horizontal.
(a) Draw a diagram showing the forces acting on the box. [1]
(b) Calculate the tension in the rope. [2]
(c) Calculate the tension in the string. [2]
Mark scheme (a)
Scheme
Marks
AO
B1
1.1a
[1]
Notes
B1: Three forces in approximately correct directions, with arrows and labels; tensions must be distinct Accept \(W\) or \(mg\) for the weight; condone missing \(g\) for this mark
11 Fig. 11 shows two blocks at rest, connected by a light inextensible string which passes over a smooth pulley. Block A of mass 4.7 kg rests on a smooth plane inclined at \(60^\circ\) to the horizontal. Block B of mass 4 kg rests on a rough plane inclined at \(25^\circ\) to the horizontal. On either side of the pulley, the string is parallel to a line of greatest slope of the plane. Block B is on the point of sliding up the plane.
Fig. 11
(i) Show that the tension in the string is 39.9 N correct to 3 significant figures. [2]
(ii) Find the coefficient of friction between the rough plane and Block B. [5]
Mark scheme (i)
Scheme
Marks
AO
Component of weight down the plane \(4.7g\sin 60^\circ\)
B1
2.1
Equilibrium equation \(T = 4.7g\sin 60^\circ\) \(= 39.889\ldots\) so \(T = 39.9\) to 3 sf
E1
3.3
[2]
Notes
AG
B1: Award if seen
E1: Must be clear that 39.9 N is the tension and not just component of weight
Mark scheme (ii)
Scheme
Marks
AO
Resolve perpendicular to the slope \(N\) is the normal reaction between plane and block B \(N = 4g\cos 25^\circ\)
B1
1.1a
Resolve up the slope \(T - F - 4g\sin 25^\circ = 0\)
M1 A1
3.3 1.1b
On the point of sliding so \(F = \mu N = \mu \times 4g\cos 25^\circ\)
8. An object, of mass 5 kg, is projected up the line of greatest slope of a rough plane inclined at an angle of \(30^\circ\) to the horizontal.
(a) Given that the deceleration of the object up the plane is 6·3 ms−2, show that the coefficient of friction between the plane and the object is \(\dfrac{2\sqrt3}{21}\). [5]
(b) Determine whether the object will remain stationary on the plane immediately after it comes to rest. [2]
Mark scheme (a)
Scheme
Marks
Comments
Perpendicular to plane: \(R=5g\cos30^\circ\qquad\left(=\tfrac{5\sqrt3}{2}g=\tfrac{49\sqrt3}{2}=42{\cdot}435\ldots\right)\)
B1
si, any form
Apply N2L up slope, upwards positive \(0\pm5g\sin30^\circ\pm F=\pm5a\)
M1
Dim. correct, no missing/extra forces Any signs, allow \(5g\cos30^\circ\)
Maximum friction (up slope) \(F=\mu R=\tfrac{2\sqrt3}{21}\times5g\cos30^\circ=\tfrac57g=7\)
From part (a)
Component of weight (down slope) \(=5g\sin30^\circ=\tfrac52g=\tfrac{49}{2}=24{\cdot}5\) Reference to weight and friction Component of weight \(>\) Friction
M1
\(24{\cdot}5>7\) \(24{\cdot}5\neq7\)
A clear concluding statement For example, the object will
5. The diagram below shows a set of traffic lights suspended in equilibrium by means of two cables \(AC\) and \(BC\), inclined at angles of \(60^\circ\) and \(45^\circ\) to the vertical respectively. The set of traffic lights has a mass of 25 kg and may be modelled as a single particle attached at \(C\).
(a) Show that the tension in \(AC\) is approximately 179 N, and calculate the tension in \(BC\). [6]
(b) State a modelling assumption that you have made in your solution. [1]
Mark scheme (a)
Scheme
Marks
Comments
Attempt to resolve horizontally AND vertically (only 1 needs to be dim. correct, i.e. allow missing g)
M1
No missing/extra forces, correct signs allow for confusion of sin/cos with 60 and 30
Horizontally (\(\leftrightarrow\)) \(T_1\sin60^\circ=T_2\sin45^\circ\qquad\left(\tfrac{\sqrt3}{2}T_1=\tfrac{\sqrt2}{2}T_2\right)\) \(T_1=\dfrac{\sin45^\circ}{\sin60^\circ}T_2=\dfrac{\sqrt6}{3}T_2\) or \(T_2=\dfrac{\sin60^\circ}{\sin45^\circ}T_1=\dfrac{\sqrt6}{2}T_1\) \(T_1\approx0{\cdot}816\ldots T_2\) or \(T_2\approx1{\cdot}224\ldots T_1\)
B1
First correct equation, oe \(T_1\cos30^\circ=T_2\cos45^\circ\)
Attempt to eliminate one variable \(\tfrac12\left(\tfrac{\sqrt6}{3}T_2\right)+\tfrac{\sqrt2}{2}T_2=25g\) or \(\tfrac12T_1+\tfrac{\sqrt2}{2}\left(\tfrac{\sqrt6}{2}T_1\right)=25g\)
5. The diagram below shows a uniform rod \(AB\) of weight \(W\) N and length \(2l\), with its lower end \(A\) resting on a rough horizontal floor. A light cable is attached to the other end \(B\). The rod is in equilibrium when it is inclined at an angle of \(\theta\) to the floor, where \(0^\circ<\theta\leqslant45^\circ\). The tension in the cable is \(T\) N acting at an angle of \(2\theta\) to the rod, as shown in the diagram.
(a)
(i) Show that \(T=\dfrac{W}{4}\operatorname{cosec}\theta\). [4]
(ii) Hence determine the normal reaction of the floor on the rod at \(A\), giving your answer in terms of \(W\). [4]
(b) Given that the coefficient of friction between the floor and the rod is \(\dfrac{\sqrt{3}}{3}\), calculate the minimum possible value for \(\theta\). [5]
Mark scheme (a)
Scheme
Marks
Comments
Length of rod \(=2l\)
(i) Moments about \(A\) \(T\times2l\sin2\theta=W\times l\cos\theta\)
9. The diagram below shows a wooden crate of mass 35 kg being pushed on a rough horizontal floor, by a force of magnitude 380 N inclined at an angle of 30° below the horizontal. The crate, which may be modelled as a particle, is moving at a constant speed.
(a) The coefficient of friction between the crate and the floor is \(\mu\). Show that \[\mu=\frac{190\sqrt{3}}{533}.\] [6]
Suppose instead that the crate is pulled with the same force of 380 N inclined at an angle of 30° above the horizontal, as shown in the diagram below.
(b) Without carrying out any further calculations, explain why the crate will no longer move at a constant speed. [1]
1. The diagram shows a uniform rod AB, of length 8 m and mass 23 kg, in limiting equilibrium with its end A on rough horizontal ground and point C resting against a smooth fixed cylinder. The rod is inclined at an angle of 30° to the ground.
The coefficient of friction between the ground and the rod is \(\dfrac{2}{3}\).
(a) Calculate the magnitude of the normal reaction at C and the magnitude of the normal reaction to the ground at A. [8]
(b) Find the length AC. [4]
(c) Suppose instead that the rod is non-uniform with its centre of mass closer to A than to B. Without carrying out any further calculations, state whether or not this will affect your answers in part (a). Give a reason for your answer. [1]
The diagram shows a ramp being used to load a washing machine of mass 90 kg into a truck.
The washing machine may be modelled as a particle and the ramp as a rough plane inclined at an angle \(\alpha\) to the horizontal. The coefficient of friction between the plane and the washing machine is \(\dfrac{2}{9}\).
(a) Suppose that the ramp is set up so that \(\alpha=10^\circ\) and a rope is attached to the washing machine. When the rope is pulled with a constant force of 380 N parallel to the line of greatest slope of the ramp, the washing machine moves up the ramp. Calculate the acceleration of the washing machine. [5]
(b) Suppose instead that, with the rope removed, the washing machine is at rest on the ramp. Calculate the maximum possible value of \(\alpha\). [3]
6. The diagram shows a hanging basket attached at a point \(A\) to two light rods \(AB\) and \(AC\). The rod \(AC\) is horizontal and the rod \(AB\) is inclined at an angle \(\alpha\) to the horizontal, where \(\tan\alpha=\dfrac{3}{4}\).
Given that the mass of the hanging basket is 3·6 kg, calculate the thrust in the rod \(AB\) and the tension in the rod \(AC\). [5]
4. The diagram below shows a uniform rod \(AB\), of weight 10 N, hinged to a vertical wall at \(A\). The rod is held in a horizontal position by means of a light inextensible string. One end of the string is attached to a point \(C\) on the rod and the other end is attached to a point \(D\) on the wall. The point \(D\) is 0·6 m vertically above \(A\) and the length of \(AC\) is 0·8 m. A particle of weight 25 N is attached to the rod at \(B\) and the tension in the string is 75 N.
(a) Find the length of the rod \(AB\). [4]
(b) Calculate the magnitude and direction of the reaction at the hinge at \(A\). [8]
Forces will form sides of a vector triangle when in equilibrium. However, \(21>8+11\) so this is impossible.
Finding angles \(21\cos\alpha=8\) gives \(\alpha=67{\cdot}6\ldots^\circ\) \(21\sin\alpha=11\) gives \(\alpha=31{\cdot}588\ldots^\circ\) Values for \(\alpha\) are different, so cannot be in equilibrium.
A uniform ladder AB, of mass 10 kg and length 5 m, rests with one end A against a smooth vertical wall and the other end B on rough horizontal ground. The ladder is inclined at an angle \(\theta\) to the horizontal. A woman of mass 75 kg stands on the ladder so that her weight acts at a distance \(x\) m from B.
(a) Show that the frictional force, \(F\) N, between the ladder and the horizontal ground is given by \[F=5g\cot\theta\,(1+3x).\] [5]
For safety reasons, it is recommended that \(\theta\) is chosen such that the ratio CB : CA is 1 : 4.
(b) Determine the least value of the coefficient of friction such that the ladder will not slip however high the woman climbs. [6]
(c) State one modelling assumption that you have made in your solution. [1]
8. An object of mass 60 kg is on a rough plane inclined at an angle of 20° to the horizontal. The coefficient of friction between the object and the plane is 0·3. Initially, the object is held at rest. A force which is parallel to the plane and of magnitude \(T\) N is applied to the object in an upward direction along the line of greatest slope. The object is then released.
(a) Given that \(T\) = 15, calculate the acceleration of the object down the plane. [6]
(b) Given that \(T\) = 350, determine whether or not the object moves up the plane. Give a reason for your answer. [3]
Mark scheme (a)
Scheme
Marks
Comments
\(R=60g\cos20^\circ\)
B1
si
\(F=0.3\times R\qquad(=165{\cdot}761\ldots)\)
B1
si \((F=18g\cos20^\circ)\)
Apply N2L to object, downwards +ve
M1
dim correct equ, all forces
\(60g\sin20^\circ-F-15=60a\)
A2
-1 each error
\(a=0{\cdot}3391\qquad(\mathrm{ms}^{-2})\)
A1
cao
(6)
Mark scheme (b)
Scheme
Marks
Comments
Resultant tractive force up plane
M1
dim correct, all forces
\(=350-60g\sin20^\circ=148{\cdot}892\)
A1
Limiting friction \(=165{\cdot}761\ldots\) Resultant tractive force < Limiting friction
Object does not move up the plane.
A1
convincing
(3)
Total
[9]
Alternative solution to (b)
Scheme
Marks
Comments
(Maximum) force that can be applied up the slope (without object slipping)
We'd like to use Google Analytics cookies to count visits and see which pages help most. They're optional, and the site works exactly the same either way. Privacy policy
