Vectors

More questions on this topic: GCSE Shape & Space: Vectors (115) IGCSE Shape & Space: Vectors (66) AS Pure: Vectors (27)

Your progress
0 of 32 done
Ticks are kept only in this browser: clearing your browsing data or changing device loses them. · ·

Edexcel

OCR A

OCR MEI

June 2025 Paper 2 Q14

EdexcelCurrent spec8 marksVectors

14.

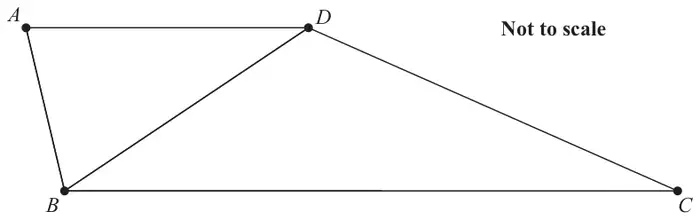

Figure 4: trapezium ABCD with AD parallel to BC, AD shorter than BC, and the diagonal BD drawn; not to scale
Figure 4

In this question you must show detailed reasoning.

Figure 4 shows a trapezium \(ABCD\) where \(AD\) is parallel to \(BC\)

Given that

  • \(\overrightarrow{AB} = 2\mathbf{a} + 3\mathbf{b}\)
  • \(\overrightarrow{BC} = 15\mathbf{a} - 5\mathbf{b}\)
  • \(\overrightarrow{DB} = -4\mathbf{a} + k\mathbf{b}\) where \(k\) is an integer
(a) show that \(k = 5\) (3)

Given also that

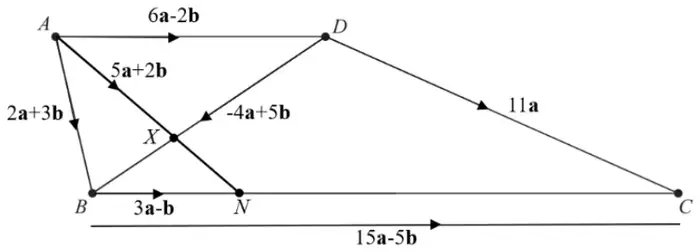

  • the point \(N\) lies on \(BC\) such that \(BN : NC = 1 : 4\)
  • \(AN\) intersects \(BD\) at \(X\)
(b) find \(BX : XD\) (5)

June 2025 Paper 1 Q10

EdexcelCurrent spec6 marksVectors

10. Given that

  • \(\overrightarrow{PQ} = 2\mathbf{i} + 8\mathbf{j} - 2\mathbf{k}\)
  • \(\overrightarrow{QR} = 6\mathbf{i} + 6\mathbf{k}\)
(a) find \(\overrightarrow{PR}\). (2)
(b) Hence show that triangle \(PQR\) is both right-angled and isosceles. (4)

June 2024 Paper 2 Q7

EdexcelCurrent spec5 marksVectors

7.

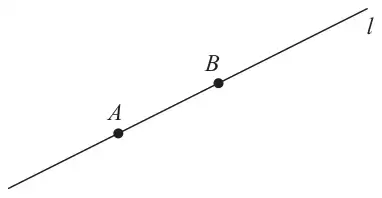

Figure 2: a straight line l passing through the points A and B, with B further along the line than A
Figure 2

Figure 2 shows a sketch of the straight line \(l\).

Line \(l\) passes through the points \(A\) and \(B\).

Relative to a fixed origin \(O\)

  • the point \(A\) has position vector \(2\mathbf{i} - 3\mathbf{j} + 5\mathbf{k}\)
  • the point \(B\) has position vector \(5\mathbf{i} + 6\mathbf{j} + 8\mathbf{k}\)
(a) Find \(\overrightarrow{AB}\) (1)

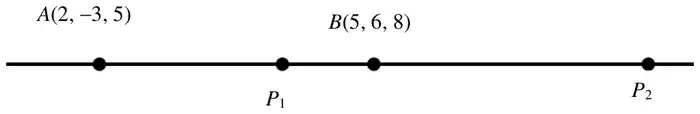

Given that a point \(P\) lies on \(l\) such that

\[|\overrightarrow{AP}| = 2|\overrightarrow{BP}|\]
(b) find the possible position vectors of \(P\). (4)

June 2023 Paper 2 Q6

EdexcelCurrent spec6 marksModellingVectors

6. Relative to a fixed origin \(O\),

  • \(A\) is the point with position vector \(12\mathbf{i}\)
  • \(B\) is the point with position vector \(16\mathbf{j}\)
  • \(C\) is the point with position vector \((50\mathbf{i} + 136\mathbf{j})\)
  • \(D\) is the point with position vector \((22\mathbf{i} + 24\mathbf{j})\)
(a) Show that \(AD\) is parallel to \(BC\). (2)

Points \(A\), \(B\), \(C\) and \(D\) are used to model the vertices of a running track in the shape of a quadrilateral.

Runners complete one lap by running along all four sides of the track.

The lengths of the sides are measured in metres.

Given that a particular runner takes exactly 5 minutes to complete 2 laps,

(b) calculate the average speed of this runner, giving the answer in kilometres per hour. (4)

June 2023 Paper 1 Q3

EdexcelCurrent spec3 marksVectors

3. Relative to a fixed origin \(O\)

  • the point \(A\) has position vector \(5\mathbf{i} + 3\mathbf{j} + 2\mathbf{k}\)
  • the point \(B\) has position vector \(2\mathbf{i} + 4\mathbf{j} + a\mathbf{k}\)

where \(a\) is a positive integer.

(a) Show that \(\left\lvert\overrightarrow{OA}\right\rvert = \sqrt{38}\) (1)
(b) Find the smallest value of \(a\) for which\[\left\lvert\overrightarrow{OB}\right\rvert \gt \left\lvert\overrightarrow{OA}\right\rvert\] (2)

June 2022 Paper 2 Q13

EdexcelCurrent spec6 marksVectors

13. Relative to a fixed origin \(O\)

  • the point \(A\) has position vector \(4\mathbf{i} - 3\mathbf{j} + 5\mathbf{k}\)
  • the point \(B\) has position vector \(4\mathbf{j} + 6\mathbf{k}\)
  • the point \(C\) has position vector \(-16\mathbf{i} + p\mathbf{j} + 10\mathbf{k}\)

where \(p\) is a constant.

Given that \(A\), \(B\) and \(C\) lie on a straight line,

(a) find the value of \(p\). (3)

The line segment \(OB\) is extended to a point \(D\) so that \(\overrightarrow{CD}\) is parallel to \(\overrightarrow{OA}\)

(b) Find \(\left\lvert\overrightarrow{OD}\right\rvert\), writing your answer as a fully simplified surd. (3)

June 2022 Paper 1 Q9

EdexcelCurrent spec6 marksVectors

9.

Figure 3: sketch of parallelogram PQRS with vertices P, Q, R, S
Figure 3

Figure 3 shows a sketch of a parallelogram \(PQRS\).

Given that

  • \(\overrightarrow{PQ} = 2\mathbf{i} + 3\mathbf{j} - 4\mathbf{k}\)
  • \(\overrightarrow{QR} = 5\mathbf{i} - 2\mathbf{k}\)
(a) show that parallelogram \(PQRS\) is a rhombus. (2)
(b) Find the exact area of the rhombus \(PQRS\). (4)

October 2021 Paper 1 Q6

EdexcelCurrent spec5 marksTrigonometryVectors

6.

Figure 1: sketch of triangle ABC
Figure 1

Figure 1 shows a sketch of triangle \(ABC\).

Given that

  • \(\overrightarrow{AB} = -3\mathbf{i} - 4\mathbf{j} - 5\mathbf{k}\)
  • \(\overrightarrow{BC} = \mathbf{i} + \mathbf{j} + 4\mathbf{k}\)
(a) find \(\overrightarrow{AC}\) (2)
(b) show that \(\cos ABC = \dfrac{9}{10}\) (3)

October 2020 Paper 1 Q3

EdexcelCurrent spec4 marksVectors

3. Relative to a fixed origin \(O\)

  • point \(A\) has position vector \(2\mathbf{i} + 5\mathbf{j} - 6\mathbf{k}\)
  • point \(B\) has position vector \(3\mathbf{i} - 3\mathbf{j} - 4\mathbf{k}\)
  • point \(C\) has position vector \(2\mathbf{i} - 16\mathbf{j} + 4\mathbf{k}\)
(a) Find \(\overrightarrow{AB}\) (2)
(b) Show that quadrilateral \(OABC\) is a trapezium, giving reasons for your answer. (2)

October 2020 Paper 2 Q2

EdexcelCurrent spec3 marksVectors

2. Relative to a fixed origin, points \(P\), \(Q\) and \(R\) have position vectors \(\mathbf{p}\), \(\mathbf{q}\) and \(\mathbf{r}\) respectively.

Given that

  • \(P\), \(Q\) and \(R\) lie on a straight line
  • \(Q\) lies one third of the way from \(P\) to \(R\)

show that\[\mathbf{q} = \frac{1}{3}(\mathbf{r} + 2\mathbf{p})\](3)

June 2019 Paper 2 Q10

EdexcelCurrent spec6 marksProofVectors

10.

Figure 7: triangle OAB with OB horizontal and A above, nearer to O than to B
Figure 7

Figure 7 shows a sketch of triangle \(OAB\).

The point \(C\) is such that \(\overrightarrow{OC} = 2\overrightarrow{OA}\).

The point \(M\) is the midpoint of \(AB\).

The straight line through \(C\) and \(M\) cuts \(OB\) at the point \(N\).

Given \(\overrightarrow{OA} = \mathbf{a}\) and \(\overrightarrow{OB} = \mathbf{b}\)

(a) Find \(\overrightarrow{CM}\) in terms of \(\mathbf{a}\) and \(\mathbf{b}\) (2)
(b) Show that \(\overrightarrow{ON} = \left(2 - \dfrac{3}{2}\lambda\right)\mathbf{a} + \dfrac{1}{2}\lambda\mathbf{b}\), where \(\lambda\) is a scalar constant. (2)
(c) Hence prove that \(ON : NB = 2:1\) (2)

June 2018 Paper 2 Q2

EdexcelCurrent spec5 marksVectors

2. Relative to a fixed origin \(O\),

the point \(A\) has position vector \((2\mathbf{i} + 3\mathbf{j} - 4\mathbf{k})\),

the point \(B\) has position vector \((4\mathbf{i} - 2\mathbf{j} + 3\mathbf{k})\),

and the point \(C\) has position vector \((a\mathbf{i} + 5\mathbf{j} - 2\mathbf{k})\), where \(a\) is a constant and \(a \lt 0\)

\(D\) is the point such that \(\overrightarrow{AB} = \overrightarrow{BD}\).

(a) Find the position vector of \(D\). (2)

Given \(\left|\overrightarrow{AC}\right| = 4\)

(b) find the value of \(a\). (3)

June 2025 Paper 1 Q4

OCR ACurrent spec7 marksVectors

4 The position vector of the point \(A\) is \(0.5\mathbf{i} - 0.5\mathbf{j}\).

(a) Determine whether \(0.5\mathbf{i} - 0.5\mathbf{j}\) is a unit vector. [2]
(b) Find the direction of \(0.5\mathbf{i} - 0.5\mathbf{j}\), giving your answer in degrees. [2]

The position vector of the point \(B\) is \(3.5\mathbf{i} + c\mathbf{j}\), where \(c\) is a constant.

(c) Given that \(\left|\overrightarrow{AB}\right| = 5\), determine the possible values of \(c\). [3]

June 2024 Paper 2 Q2

OCR ACurrent spec4 marksTrigonometryVectors

2 The vector \(\begin{pmatrix} a \\ b \end{pmatrix}\) has magnitude 6 and direction \(60^\circ\) above the positive \(x\)-axis.

Determine the exact values of \(a\) and \(b\). [4]

June 2023 Paper 1 Q4

OCR ACurrent spec8 marksVectors

4 It is given that \(ABCD\) is a quadrilateral. The position vector of \(A\) is \(\mathbf{i} + \mathbf{j}\), and the position vector of \(B\) is \(3\mathbf{i} + 5\mathbf{j}\).

(a) Find the length \(AB\). [1]
(b) The position vector of \(C\) is \(p\mathbf{i} + p\mathbf{j}\) where \(p\) is a constant greater than 1.
Given that the length \(AB\) is equal to the length \(BC\), determine the position vector of \(C\). [3]
(c) The point \(M\) is the midpoint of \(AC\).
Given that \(\overrightarrow{MD} = 2\overrightarrow{BM}\), determine the position vector of \(D\). [2]
(d) State the name of the quadrilateral \(ABCD\), giving a reason for your answer. [2]

June 2023 Paper 2 Q2

OCR ACurrent spec5 marksVectors

2 The points \(O\) and \(A\) have position vectors \(\begin{pmatrix} 0 \\ 0 \\ 0 \end{pmatrix}\) and \(\begin{pmatrix} 6 \\ 0 \\ 8 \end{pmatrix}\) respectively. The point \(P\) is such that \(\overrightarrow{OP} = k\overrightarrow{OA}\), where \(k\) is a non-zero constant.

(a) Find, in terms of \(k\), the length of \(OP\). [1]

Point \(B\) has position vector \(\begin{pmatrix} 1 \\ 2 \\ 3 \end{pmatrix}\) and angle \(OPB\) is a right angle.

(b) Determine the value of \(k\). [4]

June 2022 Paper 2 Q2

OCR ACurrent spec5 marksCo-ordinate GeometryVectors

2 The points \(A\) and \(B\) have position vectors \(3\mathbf{i} + 2\mathbf{j}\) and \(4\mathbf{i} + 2\mathbf{j} - 5\mathbf{k}\) respectively.

(a) Find the length of \(AB\). [2]

Point \(P\) has position vector \(p\mathbf{i} - 3\mathbf{k}\), where \(p\) is a constant. \(P\) lies on the circumference of a circle of which \(AB\) is a diameter.

(b) Find the two possible values of \(p\). [3]

October 2021 Paper 2 Q9

OCR ACurrent spec6 marksVectors

9 Points \(A\), \(B\) and \(C\) have position vectors \(\mathbf{a}\), \(\mathbf{b}\) and \(\mathbf{c}\) relative to an origin \(O\) in 3-dimensional space. Rectangles \(OADC\) and \(BEFG\) are the base and top surface of a cuboid.

Cuboid with base OADC and top BEFG; vectors a along OA, b along OB (vertical) and c along OC; M is the midpoint of BC and X lies on the dashed line from A to M
  • The point \(M\) is the midpoint of \(BC\).
  • The point \(X\) lies on \(AM\) such that \(AX = 2XM\).
(a) Find \(\overrightarrow{OX}\) in terms of \(\mathbf{a}\), \(\mathbf{b}\) and \(\mathbf{c}\), simplifying your answer. [4]
(b) Hence show that the lines \(OF\) and \(AM\) intersect. [2]

October 2020 Paper 2 Q7

OCR ACurrent spec8 marksCo-ordinate GeometryVectors

7 \(A\) and \(B\) are fixed points in the \(x\)-\(y\) plane. The position vectors of \(A\) and \(B\) are \(\mathbf{a}\) and \(\mathbf{b}\) respectively.

State, with reference to points \(A\) and \(B\), the geometrical significance of

(a) the quantity \(|\mathbf{a} - \mathbf{b}|\), [1]
(b) the vector \(\dfrac{1}{2}(\mathbf{a} + \mathbf{b})\). [1]

The circle \(P\) is the set of points with position vector \(\mathbf{p}\) in the \(x\)-\(y\) plane which satisfy

\(\left|\mathbf{p} - \dfrac{1}{2}(\mathbf{a} + \mathbf{b})\right| = \dfrac{1}{2}\left|\mathbf{a} - \mathbf{b}\right|\).

(c) State, in terms of \(\mathbf{a}\) and \(\mathbf{b}\),
(i) the position vector of the centre of \(P\), [1]
(ii) the radius of \(P\). [1]

It is now given that \(\mathbf{a} = \begin{pmatrix} 2 \\ -1 \end{pmatrix}\), \(\mathbf{b} = \begin{pmatrix} 4 \\ 5 \end{pmatrix}\) and \(\mathbf{p} = \begin{pmatrix} x \\ y \end{pmatrix}\).

(d) Find a cartesian equation of \(P\). [4]

October 2020 Paper 1 Q5

OCR ACurrent spec8 marksVectors

5

Points O, A and B: line OA labelled with vector a along the horizontal, and line OB labelled with vector b going up to the right

The diagram shows points \(A\) and \(B\), which have position vectors \(\mathbf{a}\) and \(\mathbf{b}\) with respect to an origin \(O\). \(P\) is the point on \(OB\) such that \(OP : PB = 3:1\) and \(Q\) is the midpoint of \(AB\).

(a) Find \(\overrightarrow{PQ}\) in terms of \(\mathbf{a}\) and \(\mathbf{b}\). [2]

The line \(OA\) is extended to a point \(R\), so that \(PQR\) is a straight line.

(b) Explain why \(\overrightarrow{PR} = k\,(2\mathbf{a} - \mathbf{b})\), where \(k\) is a constant. [2]
(c) Hence determine the ratio \(OA : AR\). [4]

June 2019 Paper 1 Q2

OCR ACurrent spec8 marksTrigonometryVectors

2 The point \(A\) is such that the magnitude of \(\overrightarrow{OA}\) is 8 and the direction of \(\overrightarrow{OA}\) is 240°.

(a)
(i) Show the point \(A\) on the axes provided in the Printed Answer Booklet. [1]
Blank x and y axes crossing at the origin O, as provided in the Printed Answer Booklet
(ii) Find the position vector of point \(A\).
Give your answer in terms of \(\mathbf{i}\) and \(\mathbf{j}\). [3]

The point \(B\) has position vector \(6\mathbf{i}\).

(b) Find the exact area of triangle \(AOB\). [2]

The point \(C\) is such that \(OABC\) is a parallelogram.

(c) Find the position vector of \(C\).
Give your answer in terms of \(\mathbf{i}\) and \(\mathbf{j}\). [2]

June 2018 Paper 2 Q2

OCR ACurrent spec6 marksVectors

2 The points \(A\) and \(B\) have position vectors \(\begin{pmatrix}1\\-2\\5\end{pmatrix}\) and \(\begin{pmatrix}-3\\-1\\2\end{pmatrix}\) respectively.

(i) Find the exact length of \(AB\). [2]
(ii) Find the position vector of the midpoint of \(AB\). [1]

The points \(P\) and \(Q\) have position vectors \(\begin{pmatrix}1\\2\\0\end{pmatrix}\) and \(\begin{pmatrix}5\\1\\3\end{pmatrix}\) respectively.

(iii) Show that \(ABPQ\) is a parallelogram. [3]

June 2025 Paper 3 Q10

OCR MEICurrent spec6 marksProofVectors

10 The magnitude of the vector \(\begin{pmatrix}4\\-1\\x\end{pmatrix}\) is an integer.

Determine all possible integer values of \(x\). [6]

June 2025 Paper 2 Q9

OCR MEICurrent spec3 marksVectors

9 The position vectors of the points \(A\) and \(B\) are \(\overrightarrow{OA} = \begin{pmatrix}-1\\-2\\0\end{pmatrix}\) and \(\overrightarrow{OB} = \begin{pmatrix}2\\1\\-3\end{pmatrix}\) respectively.

(a) Write down the vector \(\overrightarrow{AB}\). [1]

The point \(C\) lies on \(AB\) such that \(2\overrightarrow{AC} = \overrightarrow{CB}\).

(b) Find the vector \(\overrightarrow{OC}\). [2]

June 2024 Paper 1 Q4

OCR MEICurrent spec4 marksVectors

4 The vectors \(\mathbf{v}_1\) and \(\mathbf{v}_2\) are defined by \(\mathbf{v}_1 = 2a\mathbf{i} + b\mathbf{j}\) and \(\mathbf{v}_2 = b\mathbf{i} - 3\mathbf{j}\) where \(a\) and \(b\) are constants.

Given that \(3\mathbf{v}_1 + \mathbf{v}_2 = 22\mathbf{i} - 9\mathbf{j}\), find the values of \(a\) and \(b\). [4]

June 2023 Paper 3 Q6

OCR MEICurrent spec10 marksCo-ordinate GeometryVectors

6

(a) Quadrilateral KLMN has vertices K \((-4, 1)\), L \((5, -1)\), M \((6, 2)\) and N \((2, 5)\), as shown in Fig. 6.1.
Fig. 6.1: shaded quadrilateral KLMN on x- and y-axes with K(−4, 1), L(5, −1), M(6, 2), N(2, 5); P on KL (on the x-axis), Q on LM, R on MN and S on NK
Fig. 6.1
(i) Find the coordinates of the following midpoints.
  • P, the midpoint of KL
  • Q, the midpoint of LM
  • R, the midpoint of MN
  • S, the midpoint of NK
[2]
(ii) Verify that PQRS is a parallelogram. [3]
(b) TVWX is a quadrilateral as shown in Fig. 6.2.

Points A and B divide side TV into 3 equal parts. Points C and D divide side VW into 3 equal parts. Points E and F divide side WX into 3 equal parts. Points G and H divide side TX into 3 equal parts.

\(\overrightarrow{\mathrm{TA}} = \mathbf{a}\), \(\overrightarrow{\mathrm{TH}} = \mathbf{b}\), \(\overrightarrow{\mathrm{VC}} = \mathbf{c}\).

Fig. 6.2: quadrilateral TVWX with A, B on TV, C, D on VW, E, F on WX, G, H on TX; segments AH, BC, DE and GF drawn; vectors a along TA, b along TH, c along VC
Fig. 6.2
(i) Show that \(\overrightarrow{\mathrm{WX}} = k(-\mathbf{a} + \mathbf{b} - \mathbf{c})\), where \(k\) is a constant to be determined. [1]
(ii) Verify that AH is parallel to DE. [2]
(iii) Verify that BC is parallel to GF. [2]

June 2023 Paper 2 Q5

OCR MEICurrent spec3 marksVectors

5 You are given that \(\overrightarrow{OA} = \begin{pmatrix} 3 \\ -1 \end{pmatrix}\) and \(\overrightarrow{OB} = \begin{pmatrix} 5 \\ -3 \end{pmatrix}\).

Determine the exact length of \(AB\). [3]

October 2021 Paper 2 Q6

OCR MEICurrent spec5 marksVectors

6 You are given that \(\mathbf{v} = 2\mathbf{a} + 3\mathbf{b}\), where \(\mathbf{a}\) and \(\mathbf{b}\) are the position vectors

\(\mathbf{a} = \begin{pmatrix}5\\3\end{pmatrix}\) and \(\mathbf{b} = \begin{pmatrix}-1\\6\end{pmatrix}\).

(a) Determine the magnitude of \(\mathbf{v}\). [3]
(b) Determine the angle between \(\mathbf{v}\) and the vector \(\begin{pmatrix}1\\0\end{pmatrix}\). [2]

October 2020 Paper 3 Q4

OCR MEICurrent spec3 marksVectors

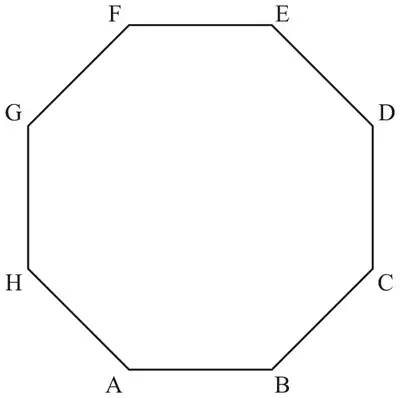

4 Fig. 4 shows the regular octagon ABCDEFGH.

Fig. 4: regular octagon ABCDEFGH with AB horizontal at the bottom, CD vertical on the right, EF horizontal at the top and GH vertical on the left
Fig. 4

\(\overrightarrow{\mathrm{AB}} = \mathbf{i}\), \(\overrightarrow{\mathrm{CD}} = \mathbf{j}\), where \(\mathbf{i}\) is a unit vector parallel to the \(x\)-axis and \(\mathbf{j}\) is a unit vector parallel to the \(y\)-axis.

Find an exact expression for \(\overrightarrow{\mathrm{BC}}\) in terms of \(\mathbf{i}\) and \(\mathbf{j}\). [3]

October 2020 Paper 1 Q3

OCR MEICurrent spec3 marksVectors

3 The points A and B have position vectors \(\mathbf{a} = \begin{pmatrix} 3 \\ 2 \\ -1 \end{pmatrix}\) and \(\mathbf{b} = \begin{pmatrix} -1 \\ 4 \\ 8 \end{pmatrix}\) respectively.

Show that the exact value of the distance AB is \(\sqrt{101}\). [3]

June 2019 Paper 3 Q6

OCR MEICurrent spec7 marksCo-ordinate GeometryVectors

6 A circle has centre C \((10, 4)\). The \(x\)-axis is a tangent to the circle, as shown in Fig. 6.

Fig. 6: axes with origin O; a circle with centre C (10, 4) in the first quadrant touching the x-axis
Fig. 6
(a) Find the equation of the circle. [2]
(b) Show that the line \(y = x\) is not a tangent to the circle. [4]
(c) Write down the position vector of the midpoint of OC. [1]

June 2018 Paper 3 Q10

OCR MEICurrent spec10 marksVectors

10 Point A has position vector \(\begin{pmatrix} a \\ b \\ 0 \end{pmatrix}\) where \(a\) and \(b\) can vary, point B has position vector \(\begin{pmatrix} 4 \\ 2 \\ 0 \end{pmatrix}\) and point C has position vector \(\begin{pmatrix} 2 \\ 4 \\ 2 \end{pmatrix}\).

ABC is an isosceles triangle with \(\mathrm{AC} = \mathrm{AB}\).

(i) Show that \(a - b + 1 = 0\). [4]
(ii) Determine the position vector of A such that triangle ABC has minimum area. [6]
