Numeracy Intermediate November 2024 Unit 2 Q1

WJECIntermediateCurrent spec4 marksDrawing & Using GraphsUnits & Time

1. Yesterday, Jemila cycled along a straight track from home to the beach and back.

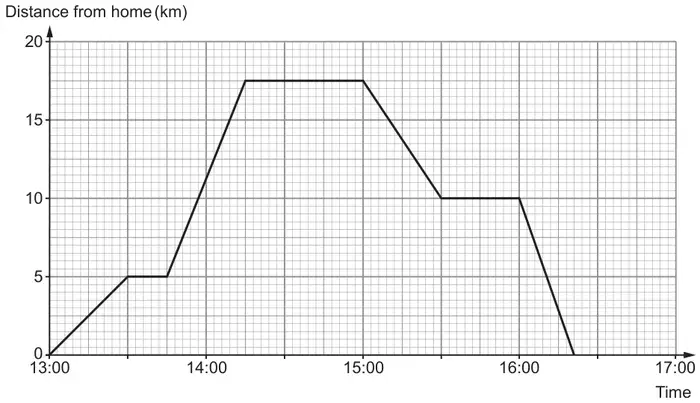

Distance-time graph: distance from home (km) from 0 to 20 against time from 13:00 to 17:00. The line rises from 0 at 13:00 to 5 km at 13:30, is level until 13:45, rises to 17.5 km at 14:15, is level until 15:00, falls to 10 km at 15:30, is level until 16:00, then falls to 0
(a) For how many minutes was Jemila 17·5 km from home? [1]

…………… minutes

(b) At what time did Jemila first start cycling in the direction of home?
Circle your answer. [1]

13:30    14:15    15:00    15:30    16:00

(c) By 15:30, how many kilometres in total had Jemila cycled? [1]

…………… km

(d) Jemila was due to get home at 16:30.
She arrived home early.
How many minutes early was she? [1]

…………… minutes
