Numeracy Foundation November 2016 Unit 1 Q4

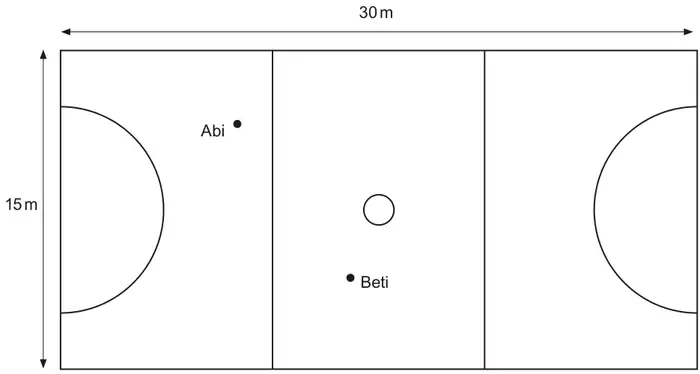

4. The diagram shows a scale drawing of a netball court.
On screen this diagram may not be shown at actual size. To measure it, use the question paper (PDF) printed at 100%.
(a) All of the straight lines on the netball court are to be painted white.
What is the total length of the white lines that need to be painted? [2]
What is the total length of the white lines that need to be painted? [2]
(b)
The scale used in the diagram is 1 cm represents 2 m.
Abi passes the ball to Beti.
Use the scale to work out the distance between Abi and Beti in metres. [2]
(c)
Abi, Beti, Cala and Delaney played a practice game.
Abi scored 9 goals.
Beti scored 6 goals.
Cala scored 5 goals.
The mean number of goals scored by all four players was 7.
How many goals did Delaney score? [4]
(d) The practice game started at 3:55 p.m.
Cala scored her first goal after 12 minutes.
At what time did Cala score her first goal?
Circle your answer. [1]
Cala scored her first goal after 12 minutes.
At what time did Cala score her first goal?
Circle your answer. [1]
3:43 p.m. 15:67 04:07 3:07 p.m. 16:07
| Scheme | Marks | Comments |
|---|---|---|
| 30 + 30 + 15 + 15 + 15 + 15 120 (metres) | M1 A1 | Ignore incorrect units Award SC1 for an answer of 90(m) from a method of 15 × 2 + 30 × 2 OR award SC1 for an answer of 105(m) from a method of 15 × 3 + 30 × 2 |
| Scheme | Marks | Comments |
|---|---|---|
| Answer in the range 8.6(m) to 9.4(m) inclusive | B2 | Award B1 for AB 4.5(cm) ±2mm OR award B1 for 2 × ‘their AB’ where AB is not in the range 4.3 to 4.7 inclusive. OR award B1 for an answer of 8(m) or 10(m) |
| Scheme | Marks | Comments |
|---|---|---|
| Total goals scored 4 × 7 28 28 – (9 + 6 + 5)8 | M1 A1 M1 A1 | Accept an embedded answer of 8. |
| Scheme | Marks | Comments |
|---|---|---|
| 16:07 | B1 |
