Foundation November 2024 Paper 3 Q25

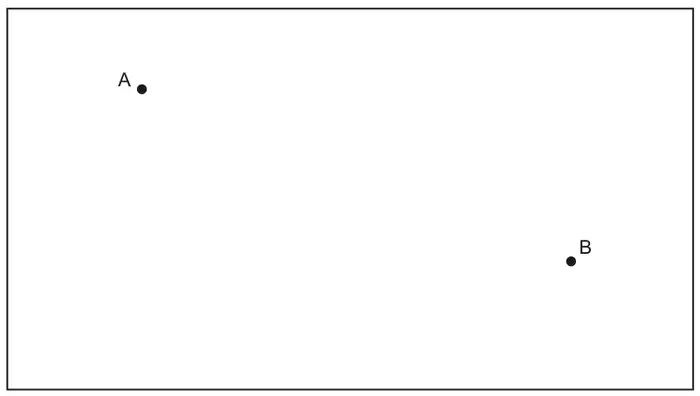

25 The diagram represents a rectangular field.
A and B are two trees.
A straight path goes across the field.
The path is always the same distance from A and B.
Construct the route followed by the path.
Show all your construction lines.
[2]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Accurate ruled perpendicular bisector of AB that reaches both horizontal boundaries, with correct supporting arcs | 2 | B1 for accurate ruled perpendicular bisector of AB including with no or incorrect arcs | Condone perpendicular bisector going beyond rectangle |
