Foundation June 2025 Paper 1 Q6

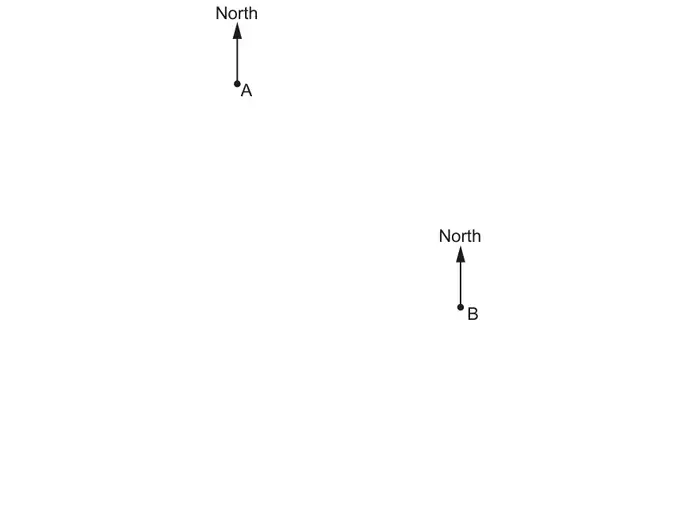

6 The scale drawing shows the positions of ship A and ship B.
Scale: 1 cm represents 6 km
(a) Find the actual distance between ship A and ship B. [2]
(b) Ship C is 33 km from ship B on a bearing of \(285^\circ\).
On the scale drawing, mark and label the position of ship C with a cross. [2]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| 42 | 2 | B1 for 6.8 to 7.2 maybe on diagram or M1 for their 7 \(\times\) 6 | Allow 40.8 to 43.2 their 7 between 6.5 and 7.5 or between 68 and 72 |
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Point C on a bearing of \(285^\circ\) | 1 | Allow 283 to 287 | |
| Point C at a distance of 5.5 cm | 1 | Allow 5.3 to 5.7 | |
