Foundation November 2024 Paper 1 Q24

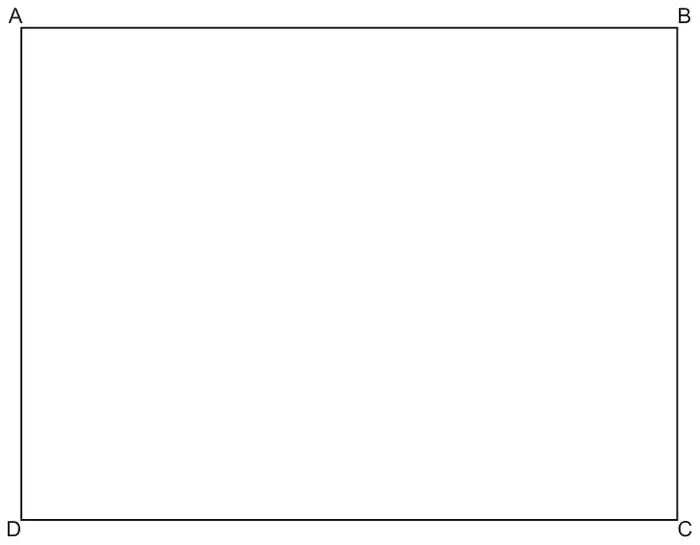

24 The diagram shows a rectangular garden ABCD.
The region of the garden that is closer to DA than DC is to be made into a patio.
Construct and shade the region for the patio.
Show all your construction lines. [3]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Accurate ruled angle bisector of D reaching AB with two pairs of correct arcs | 2 | B1 for accurate ruled angle bisector | Tolerance on angle \(\pm 2^\circ\) Allow correct alternative method using 2 arcs and cross drawn |
| Correct area shaded | 1 | Dep on at least B1 | |
