Foundation November 2022 Paper 2 Q11
11

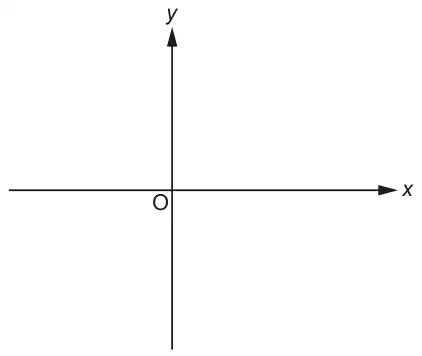

(a) Sketch the graph of \(y = -2\).
Show clearly the value of any intercepts.
[2]
(b) Sketch the graph of \(y = x - 3\).
Show clearly the value of any intercepts.
[3]
(c) Sketch the graph of \(y = x^2\).
[1]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
Correct sketch with -2 indicated as \(y\)-intercept | 2 | B1 for a horizontal line below the \(x\) axis | Condone good freehand Line must be at least 10mm |
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|

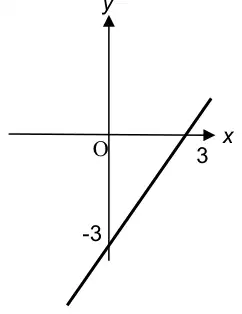

Correct sketch with -3 indicated as \(y\)-intercept and 3 indicated as \(x\)-intercept | 3 | B1 for line with positive gradient and B1 DEP for a line with -3 indicated as \(y\)-intercept or for a line with 3 indicated as \(x\)-intercept | Condone good freehand Line must be at least 10mm |
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
Correct sketch | 1 | curve, correct shape | Condone intention to curve at point (0,0) and length of curve. |
