Foundation November 2018 Paper 1 Q2

EduqasFoundationCurrent spec4 marks2D Area & PerimeterDrawing & Using Graphs

2.

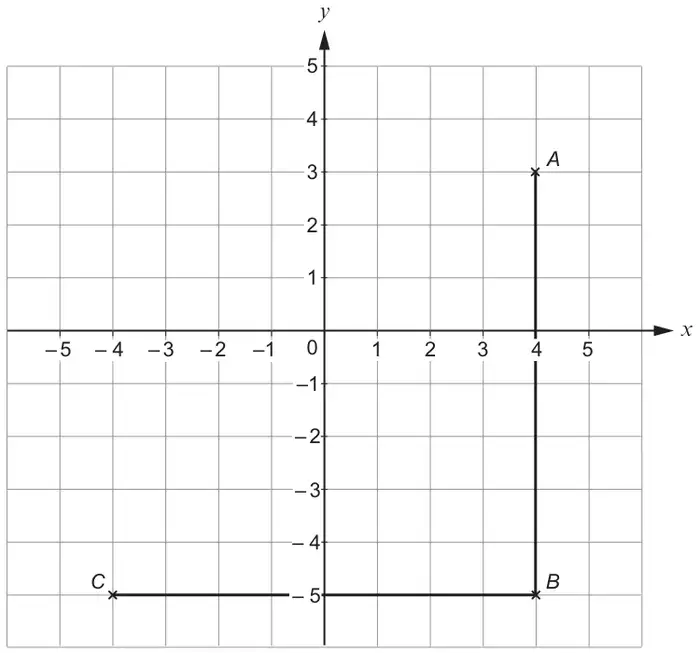

Diagram: 1 cm grid with x and y axes from -5 to 5; points A (4, 3), B (4, -5) and C (-4, -5) marked, with lines AB and BC drawn

Part of a square, ABCD, is drawn accurately on the 1 cm grid above.

(a) On the diagram, mark the position of D. [1]
(b) Write down the coordinates of D. [1]
(c) Work out the perimeter of the square ABCD.
You must state the units of your answer. [2]
