Foundation November 2024 Paper 1 Q16

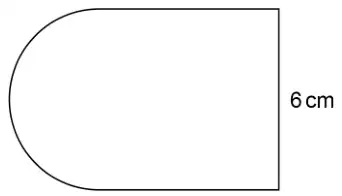

16 This shape is made from a semicircle and a square.
Not drawn accurately

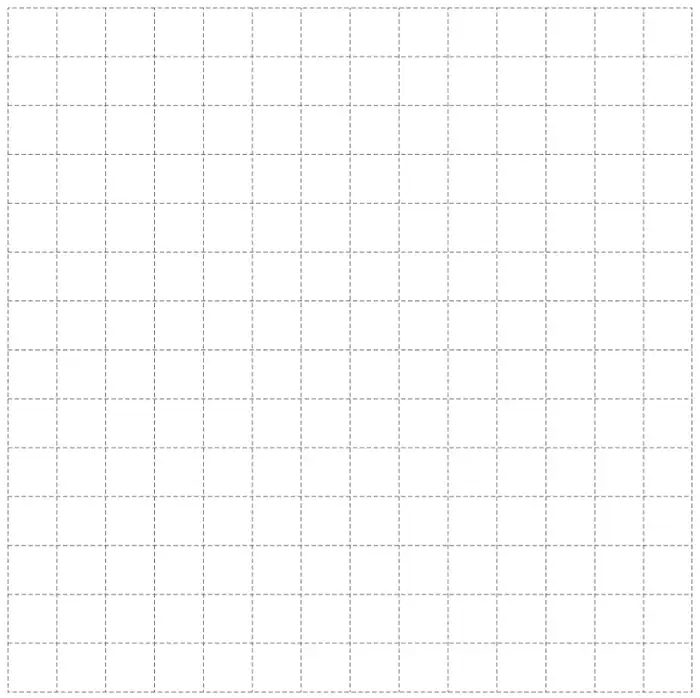

On the centimetre grid below, make an accurate drawing of the shape. [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| Fully correct diagram | B2 | B1 6 cm square (3 or 4 sides drawn) or 3 cm radius (semi) circle or radius half the length of their square and complete shape drawn |
Additional guidance
Condone additional interior line(s)
Mark intention but whole shape must be on the grid
Shape may be in any orientation
