Higher November 2024 Paper 1 Q11

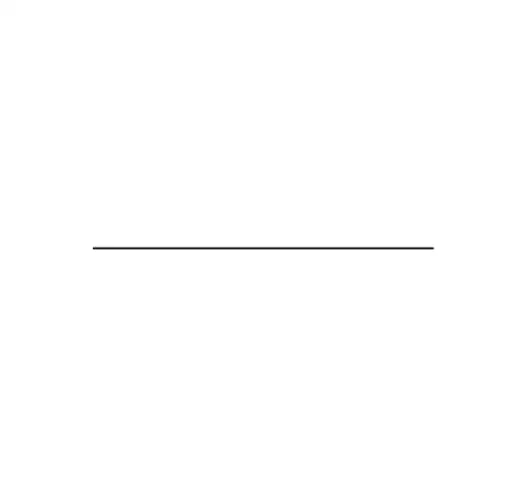

11 Construct the region that lies within 4 cm of the line. [3 marks]
| Answer | Mark | Comments |
|---|---|---|
| Circles or at least semicircular arcs, radius 4 cm, at both ends connected by horizontal lines at top and bottom | B3 | B2 semicircles or at least semicircular arcs, radius 4 cm, at both ends B1 semicircle or at least semicircular arc, radius 4 cm, at one end or correct shape for region with incorrect measurements |
Additional guidance
Condone parts of circles within the region not erased
Condone dotted lines used for (part of) the perimeter
All accuracy is \(\pm\) 2 mm
