Foundation June 2025 Paper 2 Q3
3 A path joins points \(A\), \(B\), and \(C\).

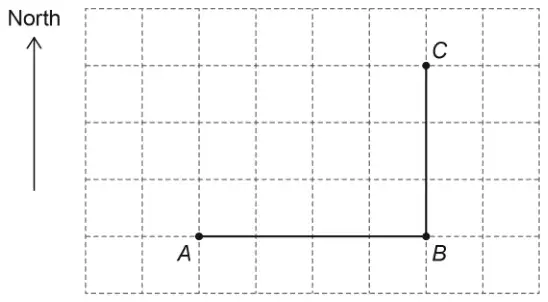

The scale drawing shows the path on a centimetre grid.
Scale: 1 centimetre represents 10 metres
(a) Write down the direction of \(B\) from \(A\). [1 mark]
(b) Work out the actual distance along the path from \(A\) to \(C\). [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| East | B1 |
Additional guidance
| Any unambiguous indication eg due East or Easterly or E | B1 |
| Ignore any reference to a distance | |
| 090 | B1 |
| 90 | B0 |
| 2 directions chosen on the answer line is choice | B0 |
| Right | B0 |
| Answer | Mark | Comments |
|---|---|---|
| \(4 \times 10\) or 40 or \(3 \times 10\) or 30 or \(4 + 3\) or 7 | M1 | may be on the diagram |
| 70 | A1 | SC1 50 |
Additional guidance
| M1 may be awarded for correct work with no answer or incorrect answer, even if this is seen amongst multiple attempts | |
| SC1 for using the direct distance from A to C | |
| Further work eg1 \(3 \times 10 + 4 = 34\) eg2 70 found then \(70 \div 2 = 35\) | M1A0 M1A0 |
