Foundation November 2022 Paper 3 Q15
15

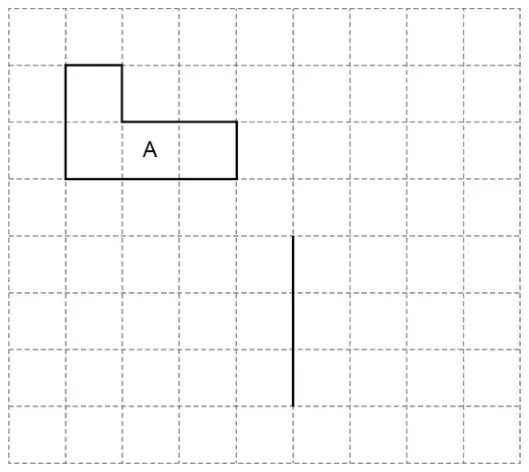

(a) On the grid, shape A is shown.
One side of shape B is also shown.
Complete shape B so that it is congruent to shape A. [1 mark]

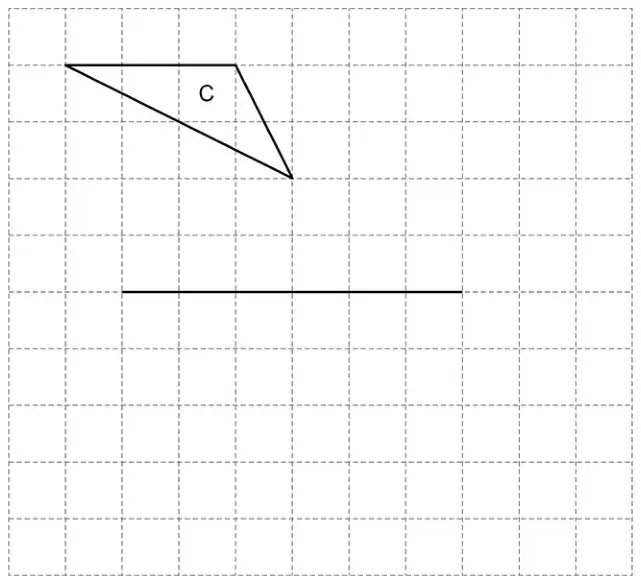

(b) On this grid, shape C is shown.
One side of shape D is also shown.
Complete shape D so that it is an enlargement of shape C with scale factor 2 [1 mark]
| Answer | Mark | Comments |
|---|---|---|
| Congruent shape drawn using given side | B1 | any orientation |
Additional guidance
| Allow internal lines | |
| Mark intention | |
| Ignore any labels | |
 | B1 |
 | B1 |
 | B1 |
 | B1 |
| Answer | Mark | Comments |
|---|---|---|

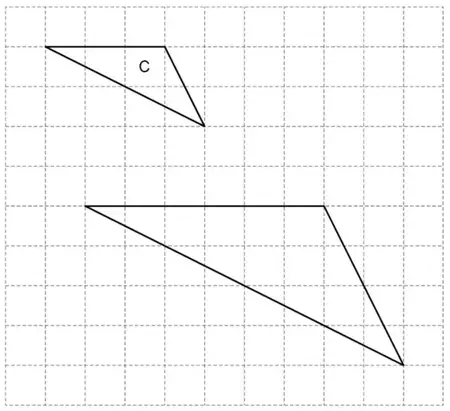

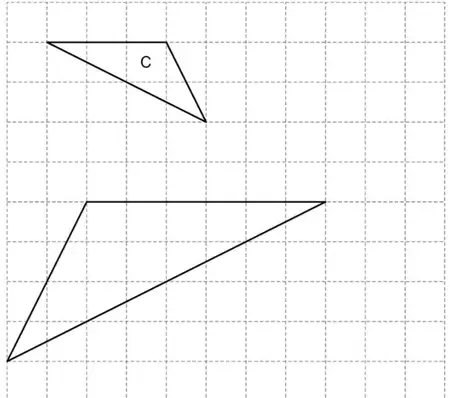

| Enlargement drawn with scale factor 2 using given side | B1 | any orientation |
Additional guidance
| Mark intention | |
| Ignore any labels | |
 | B1 |
 | B1 |
