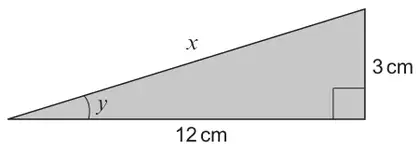

The cross-section of the wedge is shown below. The horizontal length is 12 cm and the vertical height is 3 cm.
Diagram not drawn to scale
(i)
Calculate the length \(x\).
Give your answer correct to 3 significant figures. [4]
\(x\) = …………… cm
(ii)
The wedge must fit under Yared’s door. The angle \(y\) must be less than 15°. Show that this wedge will fit under Yared’s door. You must show all your working. [3]
(b)

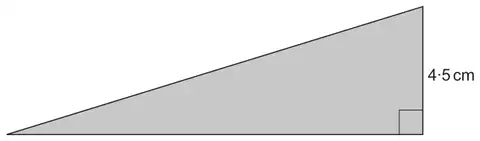

Yared decides to make a larger wedge that is mathematically similar to the one shown in part (a). This wedge is to have a vertical height of 4·5 cm.
Diagram not drawn to scale
Calculate the horizontal length of this door wedge. [2]
The wedge will be …………… cm long
Mark scheme (a)
Scheme
Marks
Comments
(i) (x2 =) 32 + 122
M1
Or alternative full method
x2 = 153 or (x =) √153
A1
Or accurate first stage of alternative full method
12.4 (cm)
A2
Must be 3 s.f. A1 for sight of (x =) 12.40 or 12.3(69…cm), NOT for 12 (cm) FT from M1 for the correctly evaluated square root of ‘their 153’ provided ‘their answer’ > 12 (cm)
(ii) (y=) tan-13/12 or tan-1 0.25, or cos-1 12/12.4 or cos-1 0.967.. or cos-1 0.97.., or sin-13/12.4 or sin-10.24…,
M2
FT ‘their 12.4’ provided > 12 (cm) M1 for tany = 3/12 or cosy = 12/12.4 or siny = 3/12.4
