Numeracy Foundation June 2022 Unit 2 Q6
6. Ann is designing her kitchen.
(a)
Ann wants to place ceramic tiles on the floor in part of her kitchen.
She uses the tiles shown below.

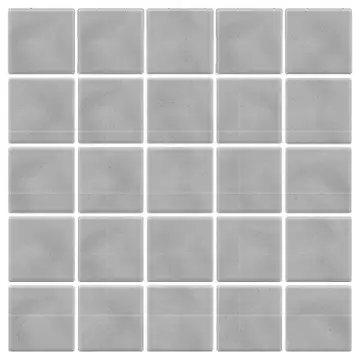

Ann’s design is shown below.
The tiles are to be laid with a 1 cm gap between them.
Diagram not drawn to scale

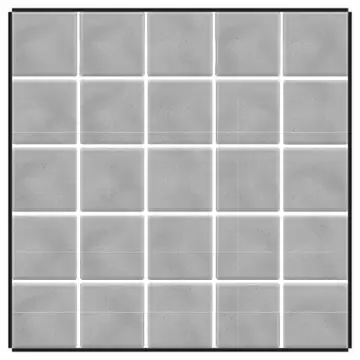

Ann wants to place a thin metallic border along the edges of the tiles, as shown below.
Diagram not drawn to scale
Calculate the total length of the metallic border.
Give your answer in metres. [4]
(b)
Ann wants a rectangular mat by her kitchen door.

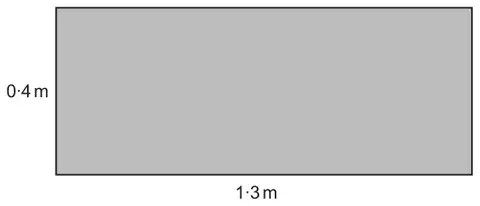

The diagram below shows a sketch of the mat that she wants.
Diagram not drawn to scale
What is the area of the mat?
State the units of your answer. [3]
| Scheme | Marks | Comments |
|---|---|---|
| (5 × 30 + 4) × 4 or 20 × 30 + 4 × 4 (154 × 4) or (600 + 16) | M2 | Look at diagram May be seen in stages Award M1 for sight of:
|
| 616 (cm) | A1 | FT for ‘their perimeter’ provided at least M1 awarded AND 4 sides considered
|
| 6·16 (metres) | A1 | FT ‘their perimeter’ for correct conversion to metres provided at least M1 awarded Eg A final answer of 6(m) gains M1 A1 A1 If no marks awarded, award SC1 for sight of
|
| Scheme | Marks | Comments |
|---|---|---|
| 1·3 × 0·4 or 130 × 40 | M1 | Must be only the correct method but allow if x/÷ by power of 10 |
| 0·52 or 5200 | A1 | Mark final answer Allow 0·5 provided no incorrect working seen |
| m2 or cm2 | U1 | Correct units for ‘their area’ Eg 1.3 × 0·4 = 0.52 0.52 × 100 = 52 cm2 Award M1 A0 U1 (attempt to change to cm2) |
