Intermediate November 2023 Unit 2 Q7

WJECIntermediateCurrent spec3 marksTransformations of Shapes

7.

(a) Translate the triangle 6 squares to the left and 2 squares down. [1]

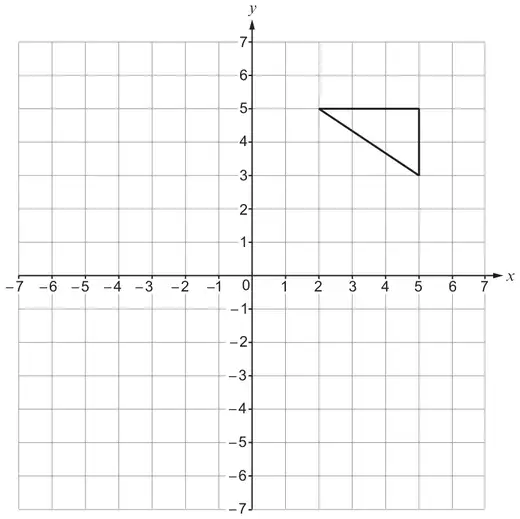

Coordinate grid, x and y from −7 to 7, with a right-angled triangle with vertices (2, 5), (5, 5) and (5, 3)

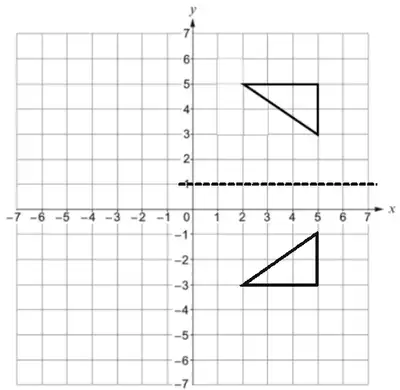

(b) Reflect the triangle in the line \(y = 1\). [2]
Coordinate grid, x and y from −7 to 7, with a right-angled triangle with vertices (2, 5), (5, 5) and (5, 3)
