Transformations of Shapes: Eduqas GCSE Higher November 2023 Paper 1 Q12

Higher November 2023 Paper 1 Q12

EduqasHigherCurrent spec5 marksTransformations of Shapes

12.

(a)

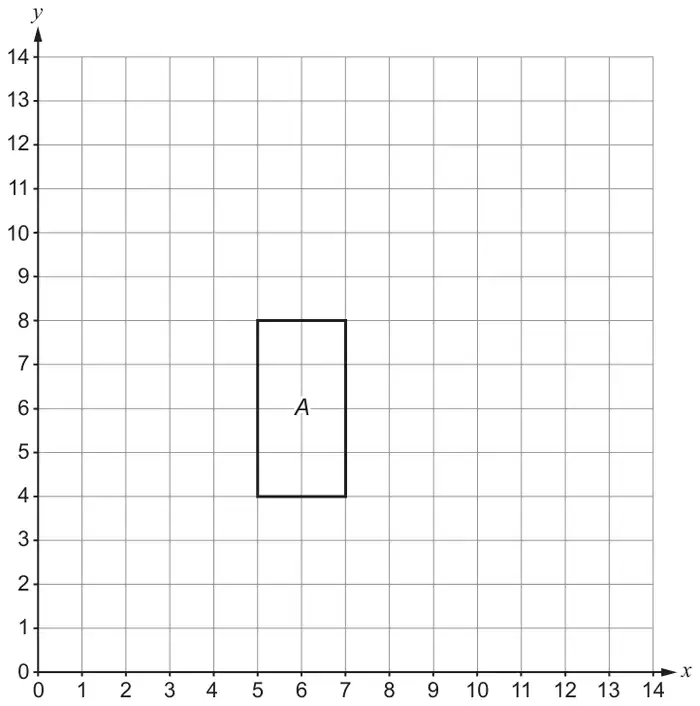

Draw the enlargement of rectangle A with scale factor \(\dfrac{1}{2}\) and centre of enlargement (1, 2). [2]

(b)

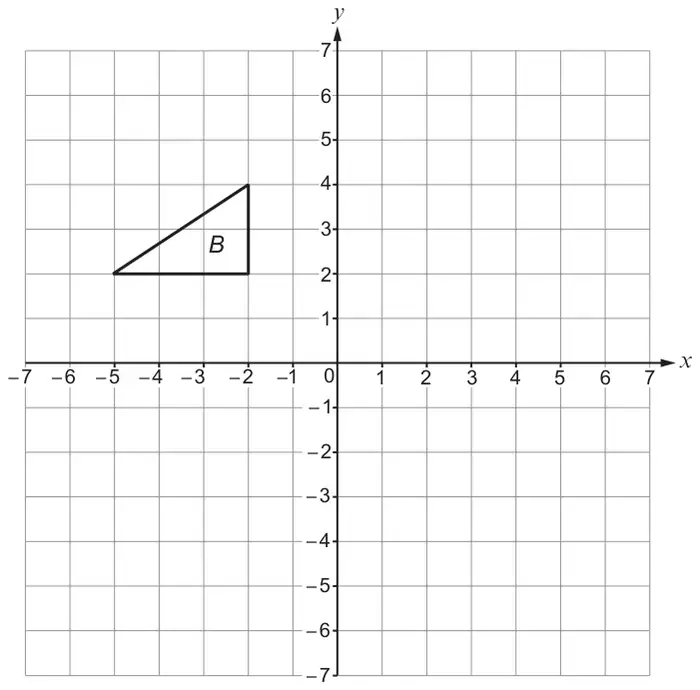

Triangle B is reflected in the line \(x = 0\) to give triangle C.

Triangle C is rotated 90° clockwise about (0, 0) to give triangle D.

(i) Draw triangle C and triangle D. [2]

(ii) Describe the single transformation that maps triangle B to triangle D. [1]

Scheme	Marks	Comments
	B2	B1 for either: 3 out of 4 vertices correct all vertices correct but not joined a completely correct solution with use of centre (2,1)

Mark scheme (b)

Scheme	Marks	Comments
(i) Triangle C drawn correctly	B1
Triangle D drawn correctly	B1	FT ‘their Triangle C’
(ii) Reflection in the line \(y = x\).	B1	FT ‘their Triangle D’ provided at least B1 awarded. Must be written as a single transformation.
	(5)
