Foundation November 2018 Unit 2 Q13

WJECFoundationCurrent spec3 marksAngles (Including Parallel Lines)

13. \(ABC\) is an isosceles triangle and \(ABP\) is a straight line.
\(AC = BC\) and \(A\hat{C}B = 76^\circ\).

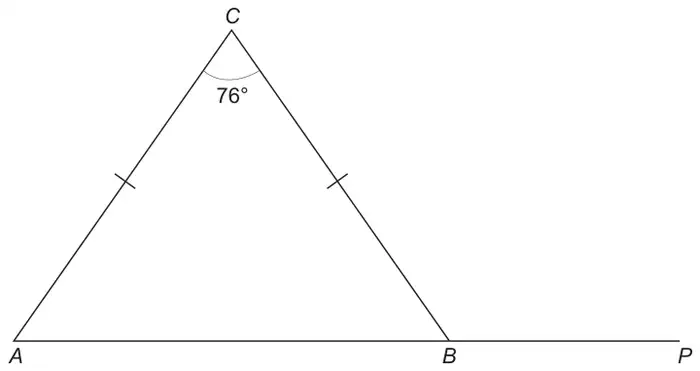

Isosceles triangle ABC with AC and BC marked equal, angle 76° at C, and AB extended to P

Diagram not drawn to scale

Calculate the size of \(C\hat{B}P\).
You must show all your working. [3]
