Foundation June 2019 Unit 2 Q16

WJECFoundationCurrent spec5 marksSimilar ShapesTransformations of Shapes

16.

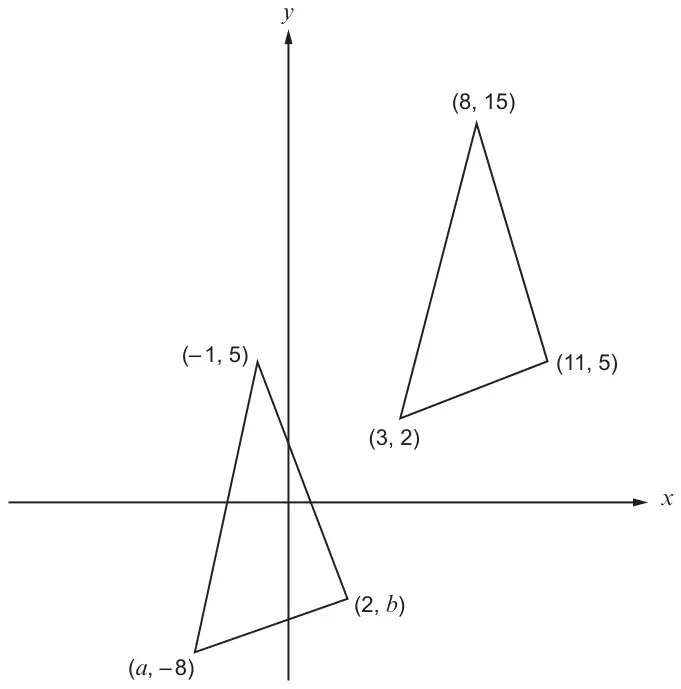

(a) The diagram shows two congruent triangles.
The coordinates of each vertex are shown.
Coordinate axes with two triangles: one with vertices (8, 15), (11, 5) and (3, 2); the other with vertices (−1, 5), (2, b) and (a, −8)

Diagram not drawn to scale

Find the value of \(a\) and the value of \(b\). [2]

\(a\) = ……………     \(b\) = ……………

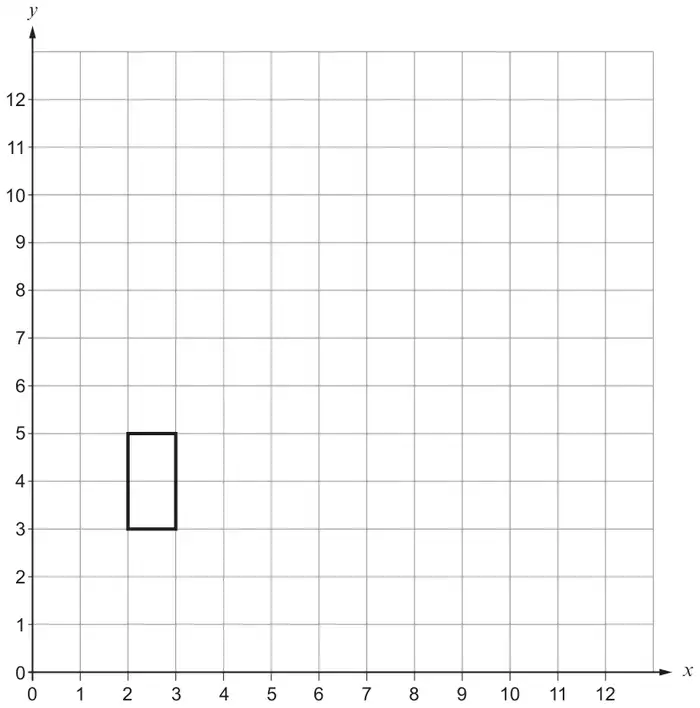

(b) Draw an enlargement of the rectangle below, using a scale factor of 3 and centre (1, 2). [3]
Grid with x and y from 0 to 12; a rectangle with vertices (2, 3), (3, 3), (3, 5) and (2, 5)
