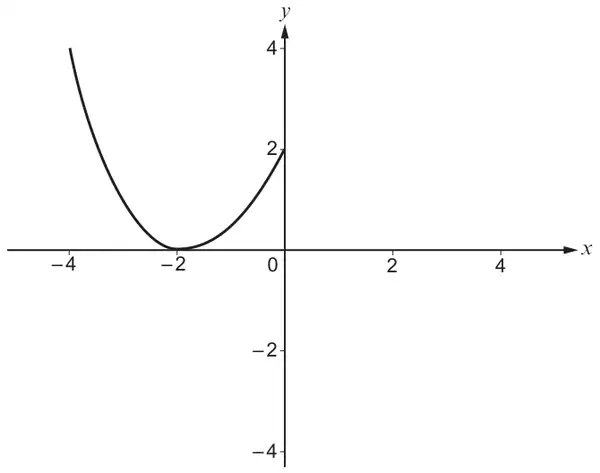

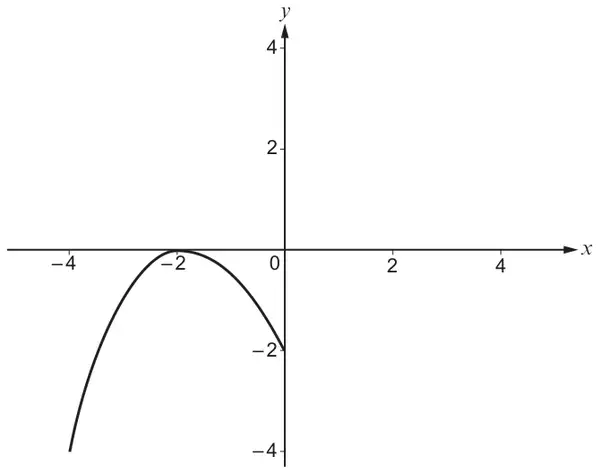

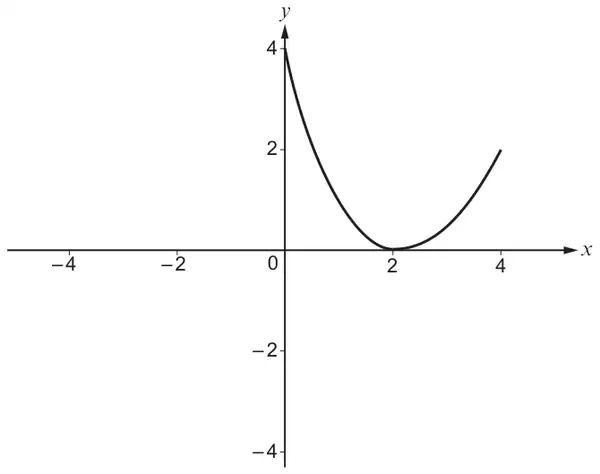

Higher June 2022 Unit 1 Q16WJECHigherCurrent spec2 marksGraphical Transformations16.(a) The following diagram shows a sketch of the curve \(y = f(x)\).The curve is transformed, as shown below.Using function notation, complete the equation of the transformed curve. [1]\(y =\) ……………………(b) The following diagram shows a sketch of the curve \(y = f(x)\).The curve is transformed, as shown below.Using function notation, complete the equation of the transformed curve. [1]\(y =\) ……………………Mark scheme (a)Mark scheme (b)Mark scheme (a)SchemeMarksComments\(y = -f(x)\)B1Correct notation. Allow \(y = -f\,x\)Mark scheme (b)SchemeMarksComments\(y = f(x - 4)\)B1Must be unambiguous e.g. not missing brackets.
