(a)In this part of the question, you will be assessed on the quality of your linguistic and mathematical accuracy in writing.

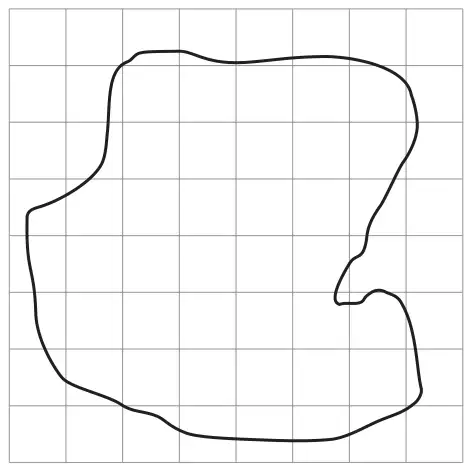

The shape above has been drawn on a square grid. Each square represents an area of 5 cm2. Estimate the total area of the shape. You must show all your working. [3 + 1 W]

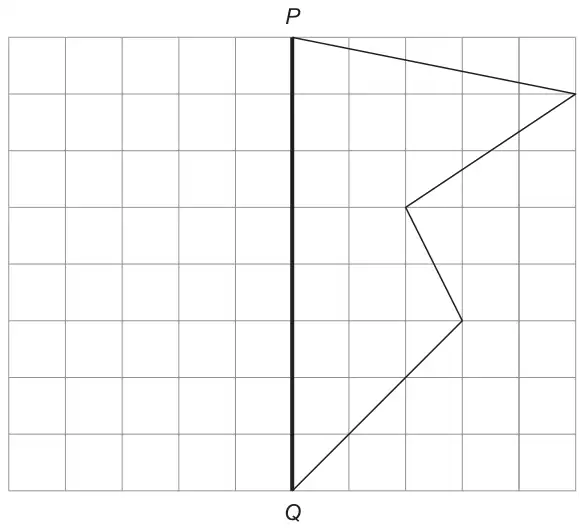

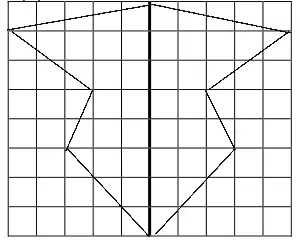

(b) Draw a reflection of this shape in the line PQ. [1]
Mark scheme (a)
Scheme
Marks
Comments
Evidence of counting squares 32 – 42 inclusive
M1 A1
160 – 210 (cm2)
B1
FT ‘their number of squares’ × 5 evaluated correctly Award 3 marks for an unsupported answer between 160 and 210 inclusive. Mark final answer
Accuracy in writing
W1
For W1, candidates will be expected to:
show all their working
make few, if any, errors in spelling, punctuation and grammar
