Higher November 2020 Paper 4 Q5

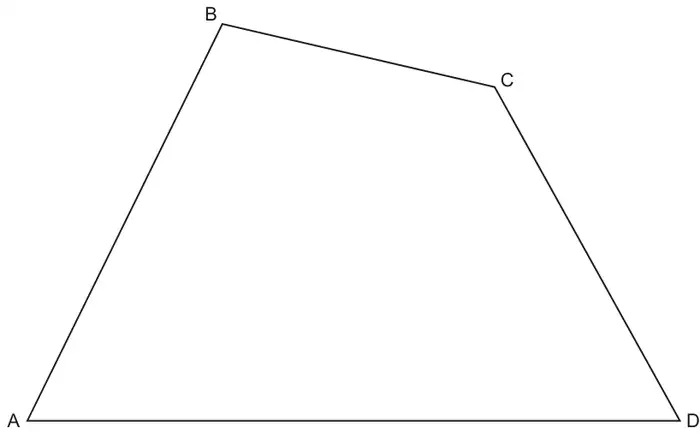

5 ABCD is a quadrilateral.
(a) Construct the bisector of angle ABC.
Show all your construction lines. [2]
Show all your construction lines. [2]
(b) Construct the perpendicular bisector of BC.
Show all your construction lines. [2]
Show all your construction lines. [2]
(c) Shade the region which is
- nearer to BC than to AB
and
- nearer to B than to C.
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Accurate ruled angle B bisector with two pairs of correct arcs | 2 | B1 for accurate ruled angle B bisector | Tolerance ± 2° e.g. one angle 49° to 53° and the line can be any length, must touch B and condone dotted line |
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Accurate ruled perpendicular bisector of BC with two pairs of correct arcs | 2 | B1 for accurate ruled perpendicular bisector of BC | Tolerance ± 2° e.g. angle 88° to 92° and ± 2mm e.g. 27mm to 31 mm and line can be any length, must touch BC and condone dotted line |
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| Correct region shaded | 1 dep | dep on at least B1 and B1 and both bisectors intersecting | |
