Foundation November 2019 Paper 2 Q17

OCRFoundationCurrent spec6 marksConstructions

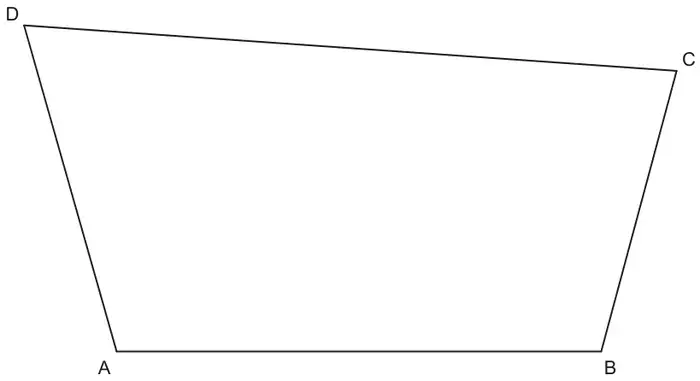

17 The diagram shows the scale drawing of a garden ABCD.

Scale: 1 cm represents 5 m
Scale drawing of a quadrilateral garden ABCD with AB along the bottom, D at the top left and C at the top right

A tree is to be planted in the garden so that it is

  • at least 10 m from AB

and

  • closer to CD than CB

and

  • at least 15 m from D.
Using a ruler and compasses only, construct and shade the region in which the tree can be planted. [6]
