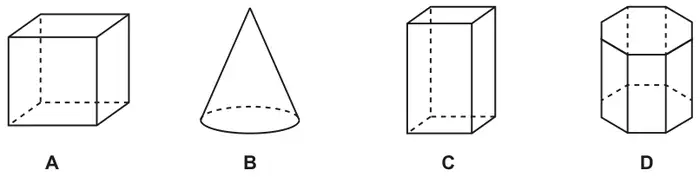

Write down the letter of the solid that is not a prism. [1]

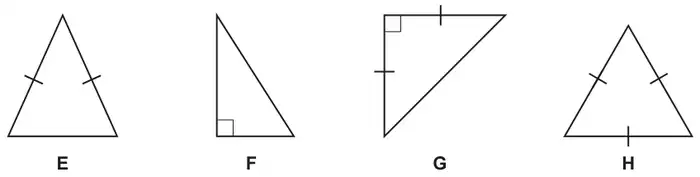

(b) These four triangles are labelled E, F, G and H.
Write down the letter of the right-angled isosceles triangle. [1]
(c) A quadrilateral has
exactly one line of symmetry and
each angle is either acute or obtuse.

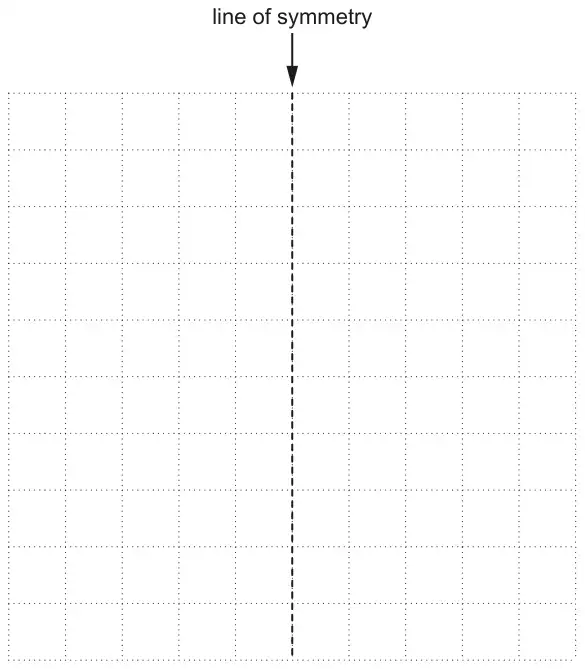

Draw a possible quadrilateral on this grid. The dashed line must be the line of symmetry.
[2]
Mark scheme (a)
Answer
Marks
Part marks and guidance
B
1
Accept any clear indication e.g. the cone or the second one May be on diagram
Mark scheme (b)
Answer
Marks
Part marks and guidance
G
1
Accept any clear indication e.g the third one May be on diagram
Mark scheme (c)
Answer
Marks
Part marks and guidance
Kite or isosceles trapezium with only the given line of symmetry and no right angles
2
B1 for correct shape but inaccurate or • kite with right angle • arrowhead without right angle • rhombus
B0 for • square • rectangle • non-isosceles trapezium • arrowhead with right angle • parallelogram • triangle or shape with 5 or more sides
Mark intention: accept vertices \(\pm\) 2mm and freehand for 2 marks If in doubt, use overlay as guide. Place so the correct point would be in the centre of the square and their point must be in, or on, square formed by red lines within overlay Condone slight extensions, gaps and wobbles
If more than 1 drawing and no clear choice mark the worst
