Foundation June 2022 Paper 1 Q12

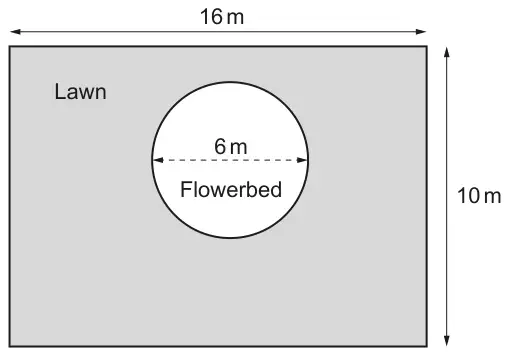

12 The diagram shows Kai’s garden.
The garden is a rectangle, 16 m by 10 m.
It has a lawn and a flowerbed.
The flowerbed is a circle of diameter 6 m.
Not to scale
Work out the area of Kai’s lawn. [4]
| Answer | Marks | Part marks and guidance | |
|---|---|---|---|
| 131.7[…] or 132 | 4 | M1 for [rectangle] \(16 \times 10\) soi 160 M1 for [circle] \(\pi \times 3^2\) oe soi 28.2 to 28.3 M1 for their rectangle area – their circle area If 0 or 1 scored, instead award SC2 answer 46.9[…] | Method for rectangle and circle areas spoilt by additional steps in initial area calculations e.g. M0 for \(16 \times 10 \times 2\) Do not lose M1 for [rectangle] or M1 for [circle] if further work does not include these, provided it is not contradicted by further method Their circle area should be from \(\pi \times 3^2\) or \(\pi \times 6^2\) eg soi by 113.[…] not \(2\pi r\) |
