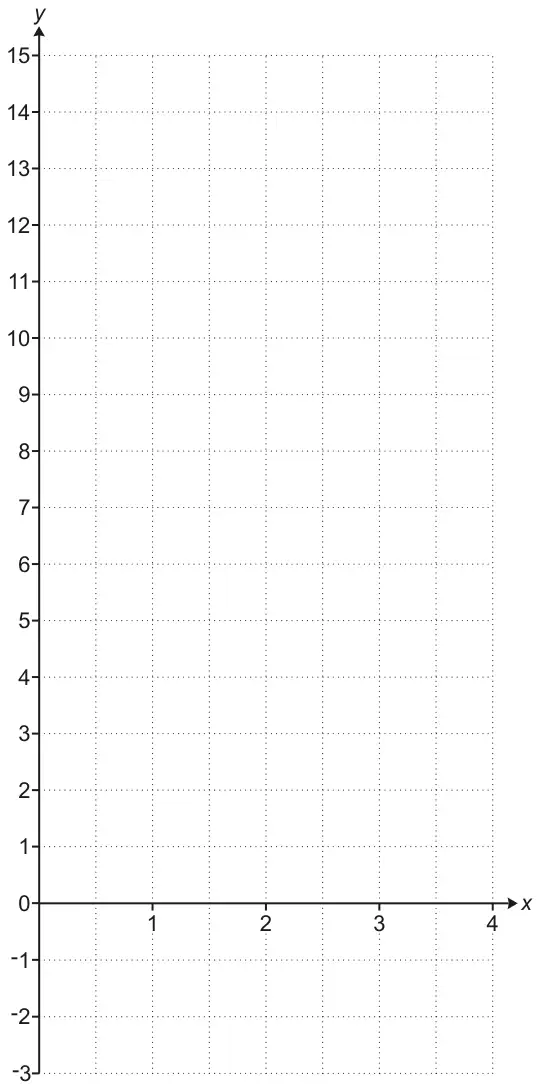

(b) On the grid below, draw the graph of \(y = 4x - 2\) for values of \(x\) from 0 to 4.
[2]
(c) The diagram below shows part of another straight line.
Find the equation of this straight line. [3]
Mark scheme (a)
Answer
Marks
Part marks and guidance
10
1
Mark scheme (b)
Answer
Marks
Part marks and guidance
Correct continuous ruled line from \(x = 0\) to \(x = 4\)
2
Tolerance 2 mm by eye B1 for 2 points correctly plotted FTtheir table
Mark scheme (c)
Answer
Marks
Part marks and guidance
\(y = -3x + 11\) oe
3
B2 for \(-3x + 11\) or \(y = mx + 11\) (\(m \ne -3\) or 0, \(m\) does not need to be numeric) or \(y = -3x + c\), (\(c\) can be 0, \(c\) does not need to be numeric)
OR
M1 for \(\dfrac{11 - -1}{0 - 4}\) oe
OR
B1 for \(mx + 11\), (where \(m \ne -3\) or 0, \(m\) does not need to be numeric) or \(-3x + c\) (where \(c \ne 11\), \(c\) can be 0, \(c\) does not need to be numeric).
