Higher June 2017 Paper 2 Q7

EduqasHigherCurrent spec4 marksConstructionsRatio & Basic Proportion

7.

(a)

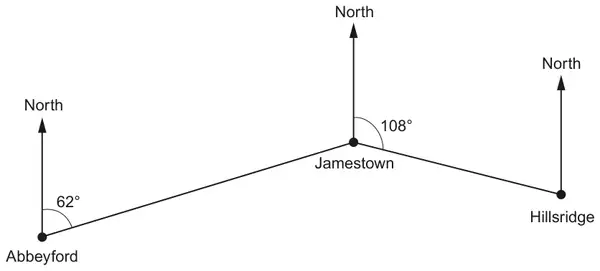

Abbeyford, Jamestown and Hillsridge with North lines; the angle from North at Abbeyford to Jamestown is 62°, and the angle from North at Jamestown to Hillsridge is 108°

Diagram not drawn to scale

(i) What is the bearing of Jamestown from Abbeyford? [1]
(ii) What is the bearing of Jamestown from Hillsridge? [1]
(b) The actual distance between Abbeyford and Jamestown is 20 km.
On the map the distance between Abbeyford and Jamestown is 8 cm.
Work out the scale of the map.

Give your answer in the form 1 : ……… [2]
