Foundation November 2020 Paper 2 Q6

EduqasFoundationCurrent spec4 marks2D Area & PerimeterDrawing & Using Graphs

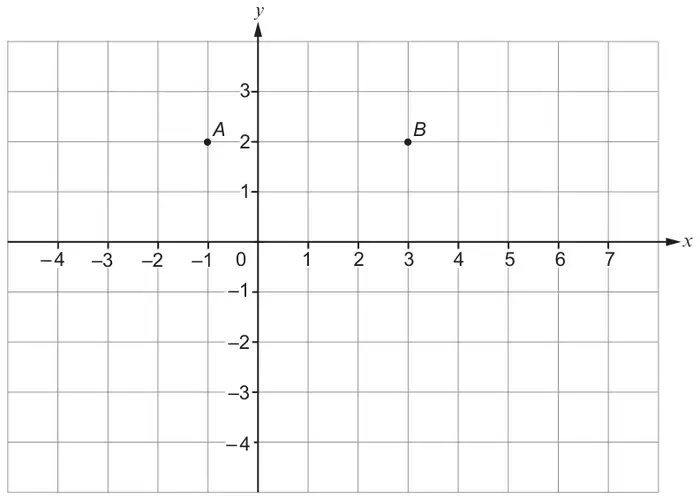

6. Points A and B are shown on the 1 cm grid below.

Coordinate grid with x from -4 to 7 and y from -4 to 3, showing A at (-1, 2) and B at (3, 2)
(a)

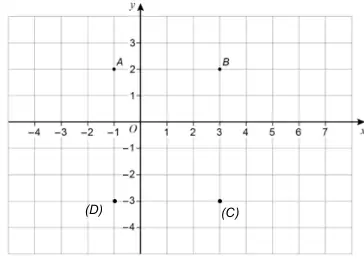

ABCD is a rectangle with area 20 cm\(^2\).

Mark the points C and D on the grid. [2]

(b)
(i)

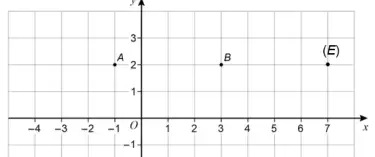

B is the midpoint of AE.

Mark the point E on the grid. [1]

(ii)

Write down the coordinates of the point E. [1]

E is the point (………… , …………)
