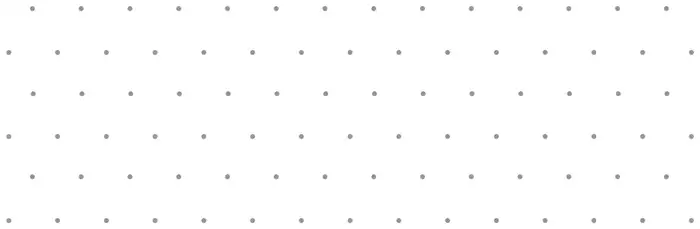

Draw a hexagon that has exactly one line of symmetry on the grid below. [2]
(b)

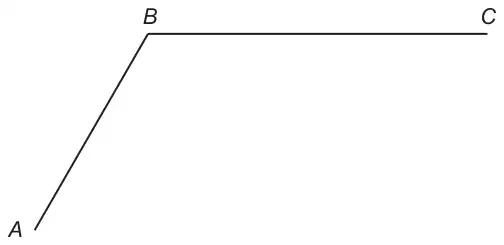

The diagram accurately shows two lines \(AB\) and \(BC\). These lines are part of a quadrilateral, \(ABCD\). Point \(D\) is missing.
On screen this diagram may not be shown at actual size. To measure it, use the question paper (PDF) printed at 100%.
(i)
Use this information to complete the quadrilateral \(ABCD\): \(AD\) is parallel to \(BC\), Angle \(BCD = 60^\circ\), \(CD\) is the same length as \(AB\). [2]
(ii) Write down the name of the quadrilateral \(ABCD\). [1]
Mark scheme (a)
Scheme
Marks
Comments
Any six-sided closed shape with exactly one line of symmetry
B2
B1 for any hexagon, or for any shape with greater than 4 sides with exactly one line of symmetry
If more than one shape has been drawn and not all are hexagons, it must be clear which shape is the answer.
Mark scheme (b)
Scheme
Marks
Comments
(i) Shape completed correctly.
B2
Must be a closed shape for B2
B1 for angle BCD measuring 60° (±2°) or for side CD = 4 cm (±2mm). or for side AD parallel to BC.
