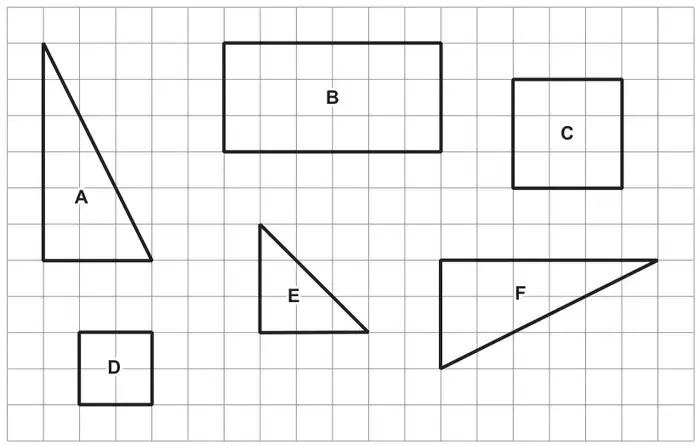

Foundation June 2025 Paper 2 Q3EduqasFoundationCurrent spec6 marksAngles (Including Parallel Lines)Transformations of Shapes3.(a) The grid below shows 6 shapes.Complete the following sentences about the shapes on the grid. [3]Shape ………… has exactly one line of symmetry.Shape ………… has rotational symmetry of order two.Shapes ………… and ………… are congruent.(b) (i) Calculate the value of \(x\). [2]Diagram not drawn to scale(ii) Calculate the value of \(y\). [1]Diagram not drawn to scaleMark scheme (a)Mark scheme (b)Mark scheme (a)SchemeMarksCommentsEB1BB1A and FB1In any orderMark scheme (b)SchemeMarksComments(i) (\(x\) = )(180 – 90) ÷ 2M1Angle may be seen on the diagram.May be seen in stages= 45(°)A1(ii) (\(y\) = ) 22(°)B1(6)
