2D Area & Perimeter: Eduqas GCSE Foundation June 2023 Paper 1 Q7

Foundation June 2023 Paper 1 Q7

(a)

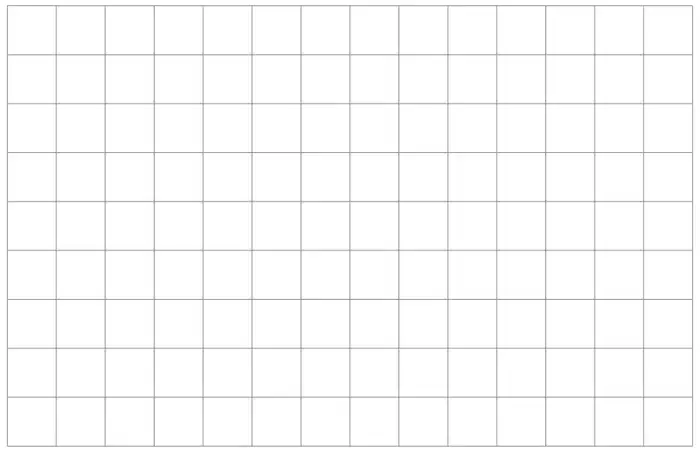

On the 1 cm square grid below, draw a rectangle that has an area of 16 cm\(^2\) and a perimeter of 20 cm. [2]

(b)

The radius of a circle is 8 cm.

(i)

Write down the diameter of this circle. [1]

………… cm

(ii)

Write the ratio of the length of the radius to the length of the diameter.
Give the ratio in its simplest form. [1]

radius : diameter = ………… : …………

Mark scheme (a)

Scheme	Marks	Comments
2 cm by 8 cm rectangle drawn	B2	Allow a good freehand for B2 or B1. B1 for one of the following: a rectangle/square with a perimeter 20 cm a rectangle/square with an area of 16 cm\(^2\) a rectangle drawn incorrectly but labelled as 2cm and 8cm. If more than one rectangle is drawn and no answer indicated then, as this is a choice, mark the worst.

Scheme	Marks	Comments
(i) 16 (cm)	B1
(ii) 1 : 2	B1	Must be fully simplified. FT 8 : ‘their 16’ provided this can be simplified.
	(4)
