Foundation June 2018 Paper 2 Q14

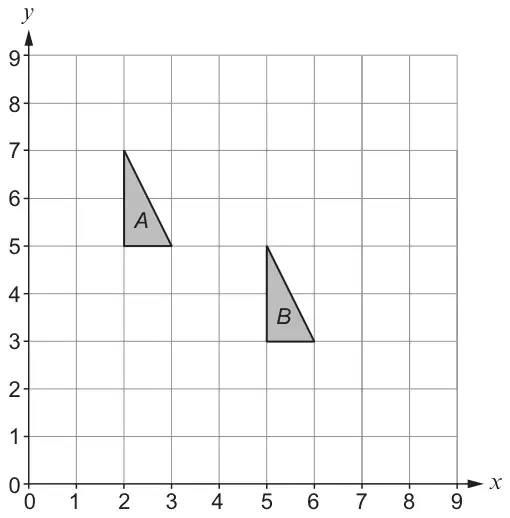

14. Two triangles, A and B, are shown on the grid below.
(a) Describe the single transformation that transforms triangle A onto triangle B. [2]
(b) Reflect triangle A in the line \(y = 4\) and label your answer C. [2]
| Scheme | Marks | Comments |
|---|---|---|
| Translation | B1 | |
| 3 right and 2 down or \(\begin{pmatrix}3\\-2\end{pmatrix}\) | B1 | Do not accept 3 across and 2 down. |
| Scheme | Marks | Comments |
|---|---|---|
| Correct reflection on the grid. | B2 | B1 for a correct reflection but in a different horizontal mirror line or in the line x = 4 or sight of the line y = 4. |
| (4) |
