Foundation June 2017 Paper 1 Q11

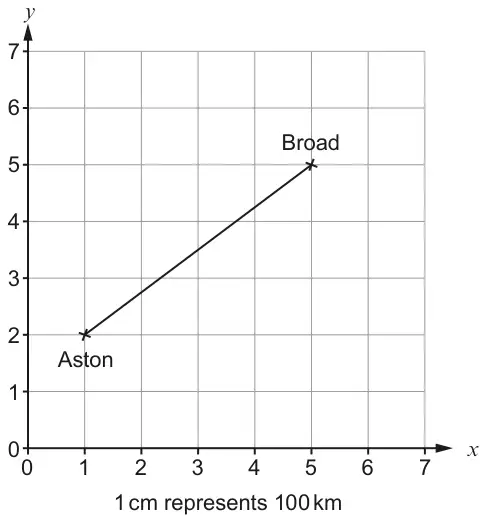

11. The grid shows a scale drawing of the flight path of a plane from Aston to Broad.
On screen this diagram may not be shown at actual size. To measure it, use the question paper (PDF) printed at 100%.
(a) Write down the coordinates of Aston. [1]
(b)
The scale of the drawing is 1 cm represents 100 km.
On average, the plane flies 4 km for each litre of fuel used.
Work out how much fuel is used to fly from Aston to Broad. [3]
Fuel used is ………… litres.
| Scheme | Marks | Comments |
|---|---|---|
| (1, 2) | B1 |
| Scheme | Marks | Comments |
|---|---|---|
| Line AB (measured as) 5 cm seen or implied | B1 | Allow ±0·2 cm |
| (5 × 100) ÷ 4 or equivalent | M1 | FT (‘their 5’ × 100) ÷ 4 |
| 125 (litres) | A1 | FT ‘their 5’ provided ‘their 5’ is not an integer multiple of 4 |
| (4) |
